Adaptive Kriging reliability analysis method based on extended expectation improvement strategy
-
摘要:

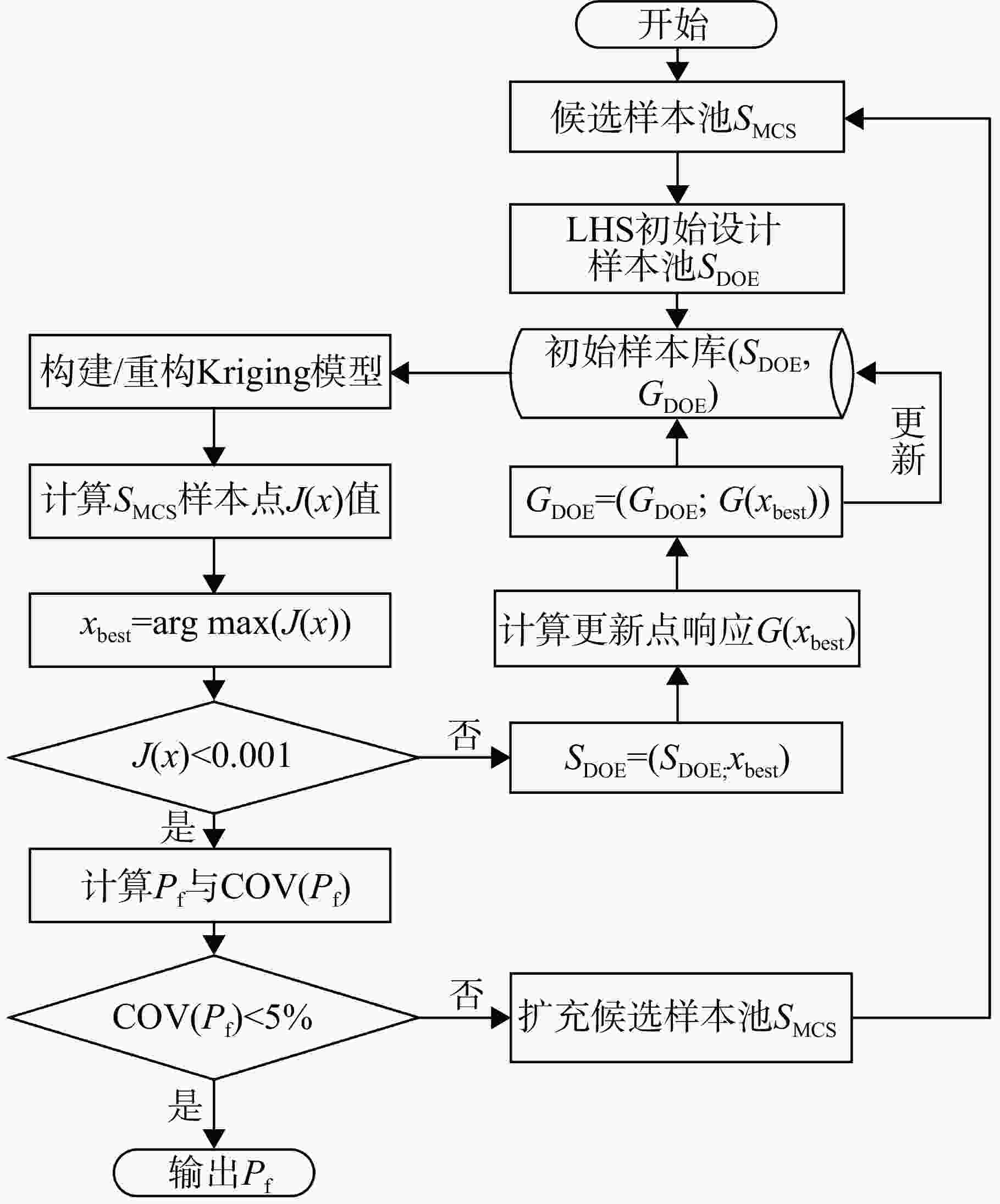

为了提高隐式、强非线性结构在可靠性求解时的计算效率与精度，发展一种改进的自适应Kriging可靠性分析方法。在Kriging模型加点策略中引入符号函数与距离权重函数以构建扩展期望改善学习函数，确保在极限状态曲面附近完成样本点更新。结合蒙特卡洛模拟构建自适应可靠性求解框架，确保计算稳定性并降低新增样本数量。通过经典数学算例与经典工程问题表明：所提方法相比蒙特卡洛模拟，失效概率相对误差不超过0.5%，新增样本数量较现有可靠性求解方法实现大幅降低。最后，某航空燃油离心泵汽蚀可靠性有限元算例表明：相对蒙特卡洛模拟，所提方法求解失效概率误差仅为1.06%；相较现有可靠性求解方法，所提方法实现计算成本降低51.06%。上述成果，验证了所提方法在隐式非线性结构可靠性分析中兼顾高精度与高效率的显著优势。
-
关键词:
- 结构可靠性 /
- 自适应Kriging /
- 失效概率 /
- 学习函数 /
- 主动学习
Abstract:To enhance computational efficiency and accuracy in reliability analysis for implicit and highly nonlinear structures, this study develops an improved adaptive Kriging-based reliability analysis method. in the infill strategy of the Kriging model, a sign function and a distance-based weight function were incorporated to construct an Extended Expected Improvement learning function, ensuring that sample updates are concentrated near the limit state surface. An adaptive reliability analysis framework was established by integrating Monte Carlo simulation, which improved computational stability and reduced the number of additional samples required. Validation through classical mathematical examples and engineering problems demonstrated that, compared with Monte Carlo simulation, the relative error in failure probability was within 0.5%, and the number of new samples was significantly reduced compared to existing reliability analysis methods. Finally, a finite element case study on cavitation reliability in an aviation fuel centrifugal pump showed that the error in failure probability was only 1.06% relative to Monte Carlo simulation, while the computational cost was reduced by 51.06% compared to existing reliability analysis approaches. These results verify that the proposed method achieves both high precision and high efficiency in reliability analysis of implicit nonlinear structures.
-
Key words:
- structural reliability /
- adaptive Kriging /
- failure probability /
- learning function /
- active learning
-

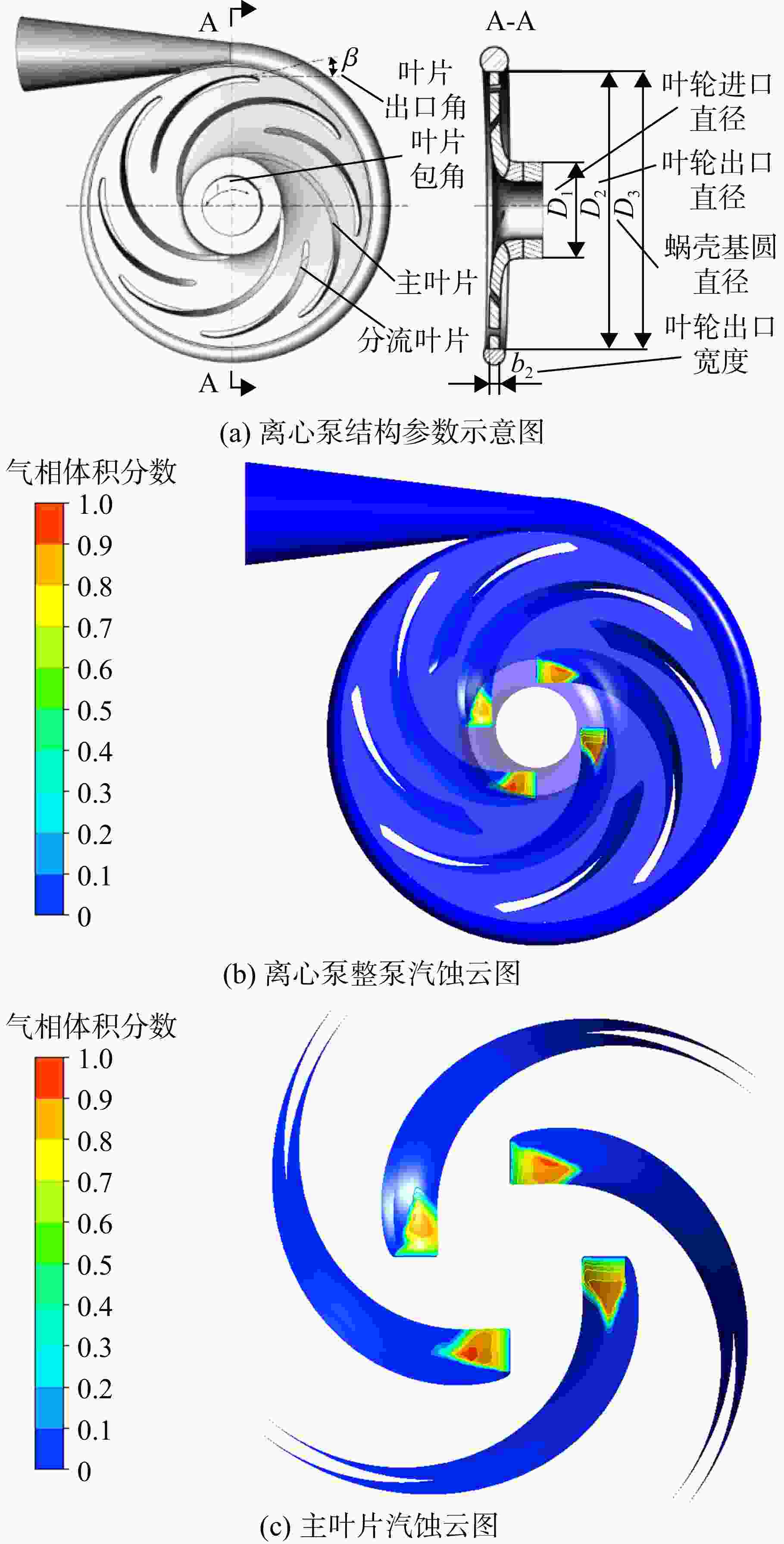

图 6 离心泵结构及汽蚀分布云图
Figure 6. Structure and cavitation distribution cloud diagram of centrifugal pump

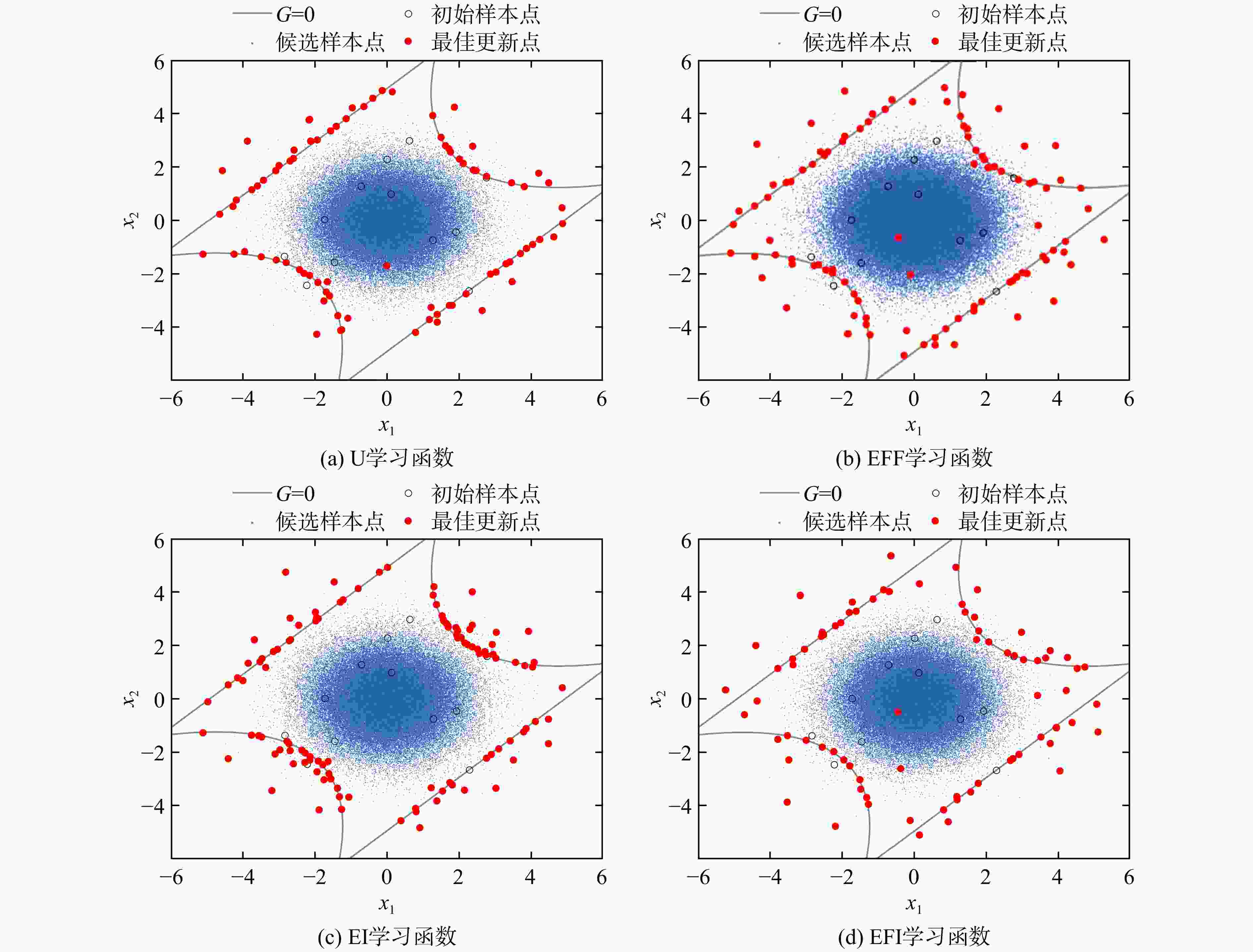

表 1 算例1可靠性分析结果
Table 1. Reliability analysis results for Example 1
方法 Ncall Pf /10−3 Cov（Pf）/% $ \varepsilon /\% $ MCS 106 2.1971 4.6090 AK-MCS 12+96 2.2172 2.1214 0.91 AK-EFF-MCS 12+153 2.2901 2.0872 4.23 AK-EI-MCS 12+95 2.1664 2.1048 1.40 AK-EEI-MCS 12+79 2.2002 2.1463 0.14
下载: 导出CSV

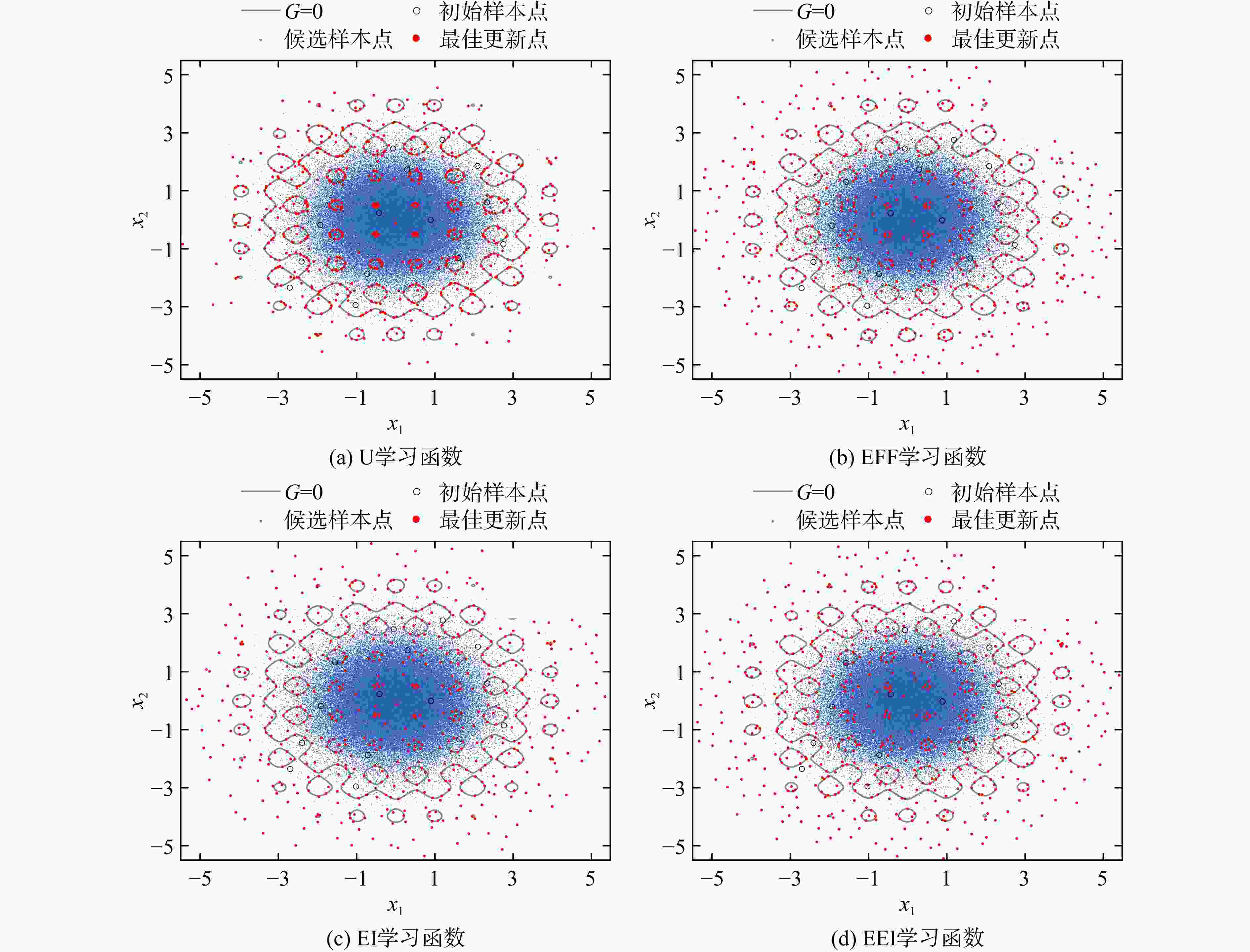

表 2 算例2可靠性分析结果
Table 2. Reliability analysis results of Example 2
方法 Ncall Pf/10−2 Cov（Pf）/% $ \varepsilon /{\text{%}} $ MCS 106 7.3912 2.0863 - AK-MCS 15+771 7.2111 1.1344 2.44 AK-EFF-MCS 15+776 7.3813 1.1201 0.13 AK-EI-MCS 15+686 7.2324 1.1193 2.15 AK-EEI-MCS 15+676 7.3933 1.1431 0.03
下载: 导出CSV

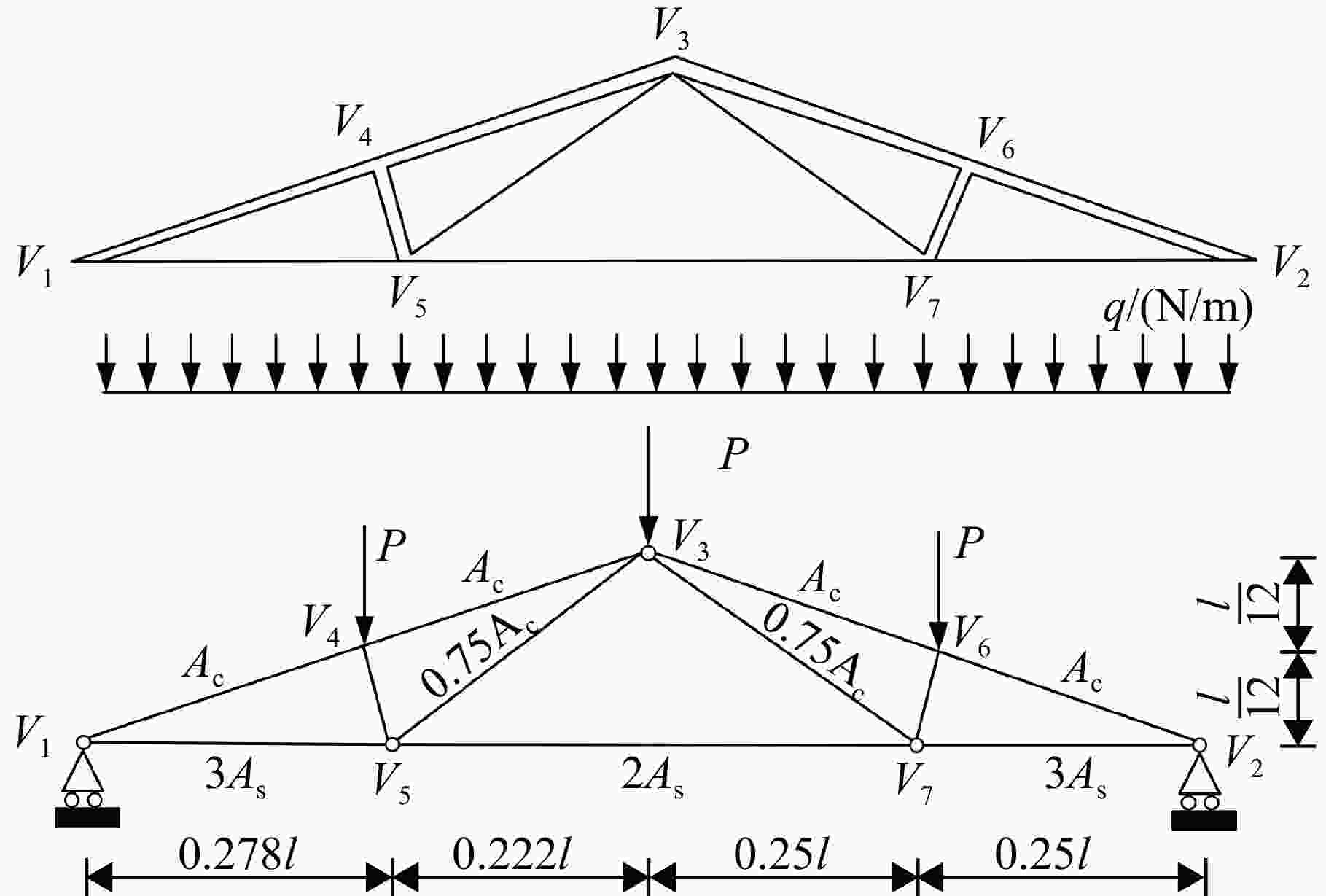

表 3 屋顶桁架结构输入参数分布
Table 3. Distribution of input parameters for roof truss structures
变量 分布类型 均值 标准差 q/（N/m） 正态分布 20000 2000 l/m 正态分布 13.5 0.50 $ {A}_{\mathrm{s}} $/m2 正态分布 9.82×10−4 6×10−5 $ {A}_{\mathrm{c}} $/m2 正态分布 0.04 0.008
下载: 导出CSV
表 4 某屋顶桁架结构可靠性分析结果
Table 4. Reliability analysis results of a certain roof truss structure
方法 Ncall Pf /10−2 Cov（Pf）/% $ \varepsilon /{\text{%}} $ MCS 106 4.1092 1.1529 AK-MCS 8+252 4.1446 1.5347 0.86 AK-EFF-MCS 8+384 4.1181 1.4786 0.22 AK-EI-MCS 8+119 4.1125 1.5270 0.08 AK-EEI-MCS 8+75 4.1072 1.5178 0.05
下载: 导出CSV

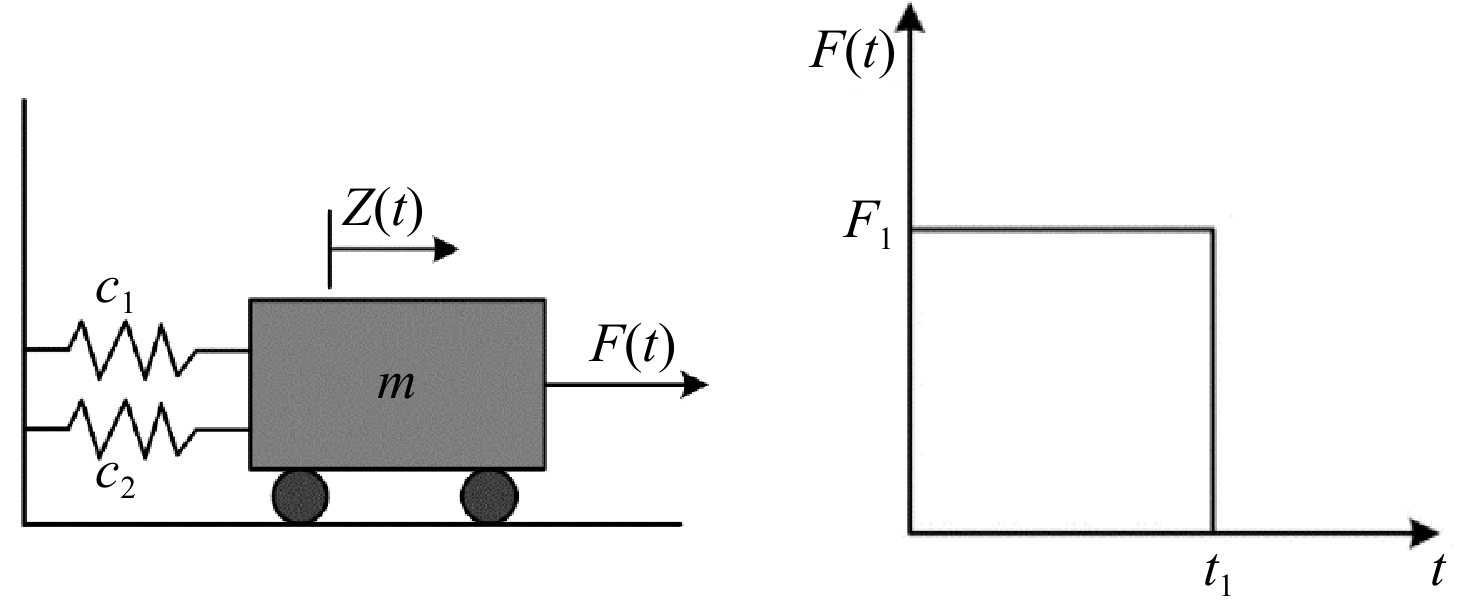

表 5 Non-linear Oscillator系统参数分布
Table 5. Distribution of parameters of non-linear oscillator system
变量 分布类型 均值 标准差 m 正态分布 1 0.05 c1 正态分布 1 0.1 c2 正态分布 0.1 0.01 F1 正态分布 1 0.2 r 正态分布 0.5 0.05 t1 正态分布 1 0.2
下载: 导出CSV
表 6 Non-linear Oscillator可靠性分析结果
Table 6. Reliability analysis results of non-linear oscillator
方法 Ncall Pf /10−2 Cov（Pf）/% $ \varepsilon /{\text{%}} $ MCS 106 2.7761 1.8714 AK-MCS 50+221 2.8670 1.8407 3.27 AK-EFF-MCS 50+384 2.6901 2.0148 3.10 AK-EI-MCS 50+288 2.8210 1.8560 1.62 AK-EEI-MCS 50+45 2.7862 1.8680 0.36
下载: 导出CSV
表 7 离心泵随机不确定性参数描述
Table 7. Description of random uncertainty parameters of centrifugal Pumps
变量名称 分布类型 均值 标准差 叶轮入口直径$ {D}_{\mathrm{j}} $/mm 正态分布 40.662 0.3 叶轮出口直径$ {D}_{2} $/mm 正态分布 116.330 0.3 叶轮出口宽度$ {b}_{2} $/mm 正态分布 4.004 0.3 叶片出口角度$ {\beta }_{2} $/° 正态分布 15.80 0.03
下载: 导出CSV

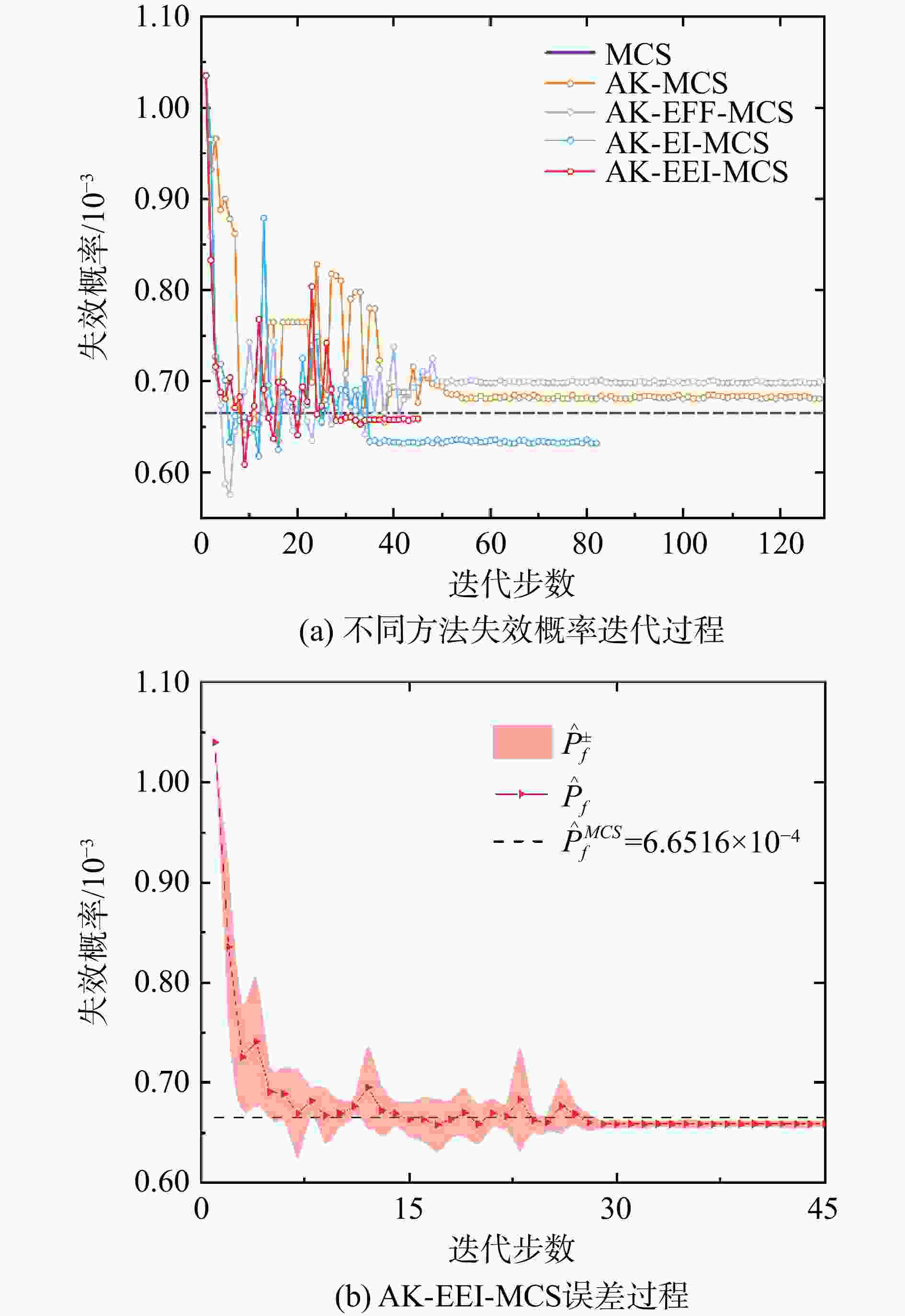

表 8 离心泵汽蚀可靠性分析结果
Table 8. Cavitation reliability analysis results of centrifugal pump
方法 Ncall Pf /10−4 Cov（Pf）/% $ \varepsilon /{\text{%}} $ MCS 106 6.6516 4.0051 AK-MCS 50+128 6.8323 3.8251 2.72 AK-EFF-MCS 50+129 7.0102 3.6973 5.39 AK-EI-MCS 50+94 6.3440 3.7463 4.62 AK-EEI-MCS 50+46 6.5811 4.0019 1.06
下载: 导出CSV
-
