Aerodynamic design and aerodynamic characteristic tests of a high-aspect-ratio flying-wing standard model
-
摘要:
为校验高速风洞流场品质以及完善大展弦比飞翼布局飞行器的CFD算法验证体系，解决传统标模难以适配新型飞翼布局气动特性研究的问题，本文介绍了自主设计的大展弦比飞翼标模以及在2.4 m暂冲型跨声速风洞完成的气动力测量试验情况。重点分析了边界层转捩对大展弦比飞翼类布局气动特性试验结果的影响、2.4 m暂冲型跨声速风洞在大展弦比飞翼类布局气动力测量的试验精度、典型试验状态下模型弹性变形量等，并对大展弦比飞翼标模的基本纵横航向气动特性进行了介绍。结果表明大展弦比飞翼标模具有良好的气动性能，能够作为大展弦比飞翼布局飞行器研究标模，通过持续构建的气动数据库和研究结果，可有力支撑大展弦比飞翼气动布局流动机理认知、雷诺数效应、气动弹性等一系列相关空气动力学研究，并可有效支撑新型风洞试验技术开发、CFD技术验证与确认等研究。
Abstract:Aerodynamic evaluation of a self-developed high-aspect-ratio flying wing standard model was conducted in a 2.4 m transonic blowdown wind tunnel. The tests quantified boundary layer transition effects, assessed measurement system precision, and characterized elastic deformations under critical test conditions. Longitudinal and lateral-directional aerodynamic performance analyses confirmed the model’s stability and suitability as a benchmark for high-aspect-ratio flying wing configurations. The derived aerodynamic database elucidates flow mechanisms, Reynolds number dependencies, and aeroelastic behaviors specific to such configurations. Additionally, the study validates advanced wind tunnel testing methodologies while supplying critical testdatasets for computational fluid dynamics (CFD) code verification. Findings underscore the model’s utility in advancing integrated testcomputational frameworks for next-generation aircraft development, particularly in addressing aerodynamic complexities of high-aspect-ratio flying wings.
-
Key words:
- aerodynamic characteristics /
- flying-wing /
- wind tunnel test /
- high-aspect-ratio /
- standard model
-

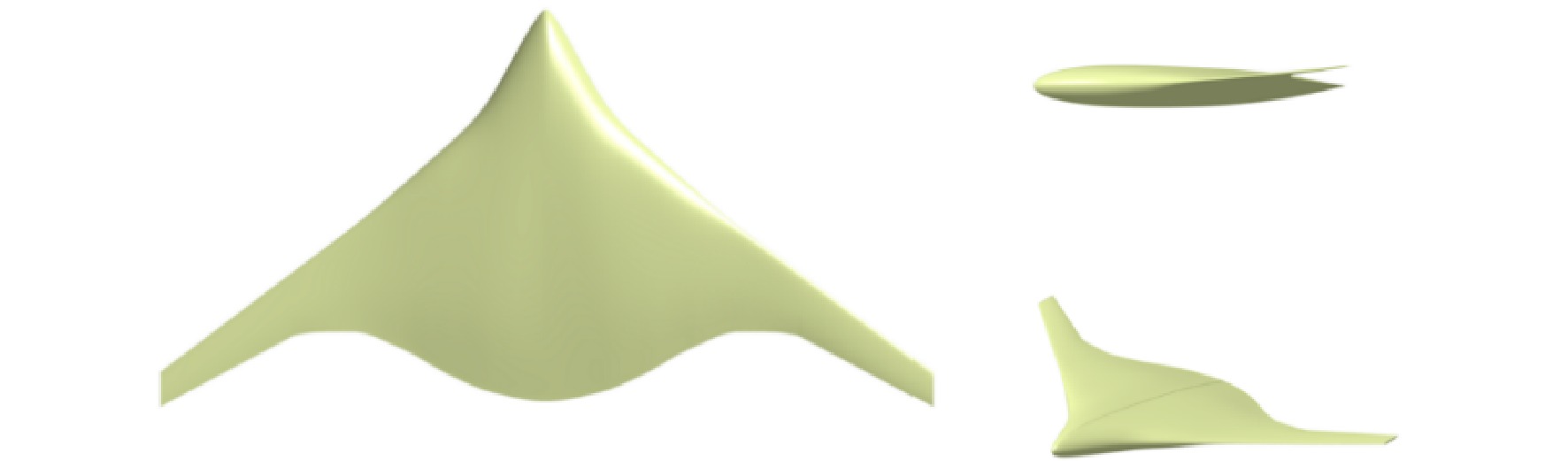

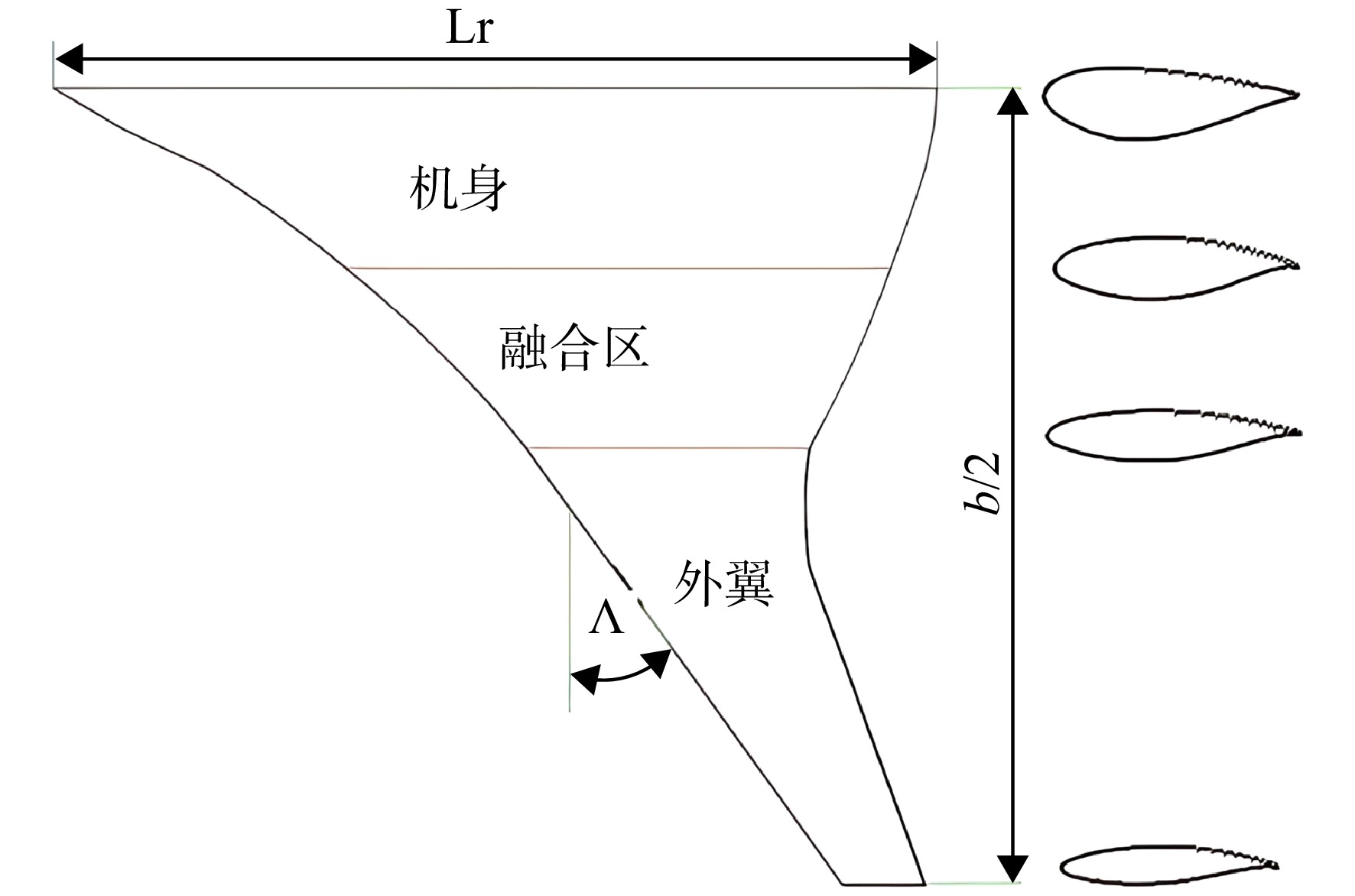

图 1 大展弦比飞翼第一轮气动布局设计方案
Figure 1. First round aerodynamic layout design for high-aspect-ratio flying-wing

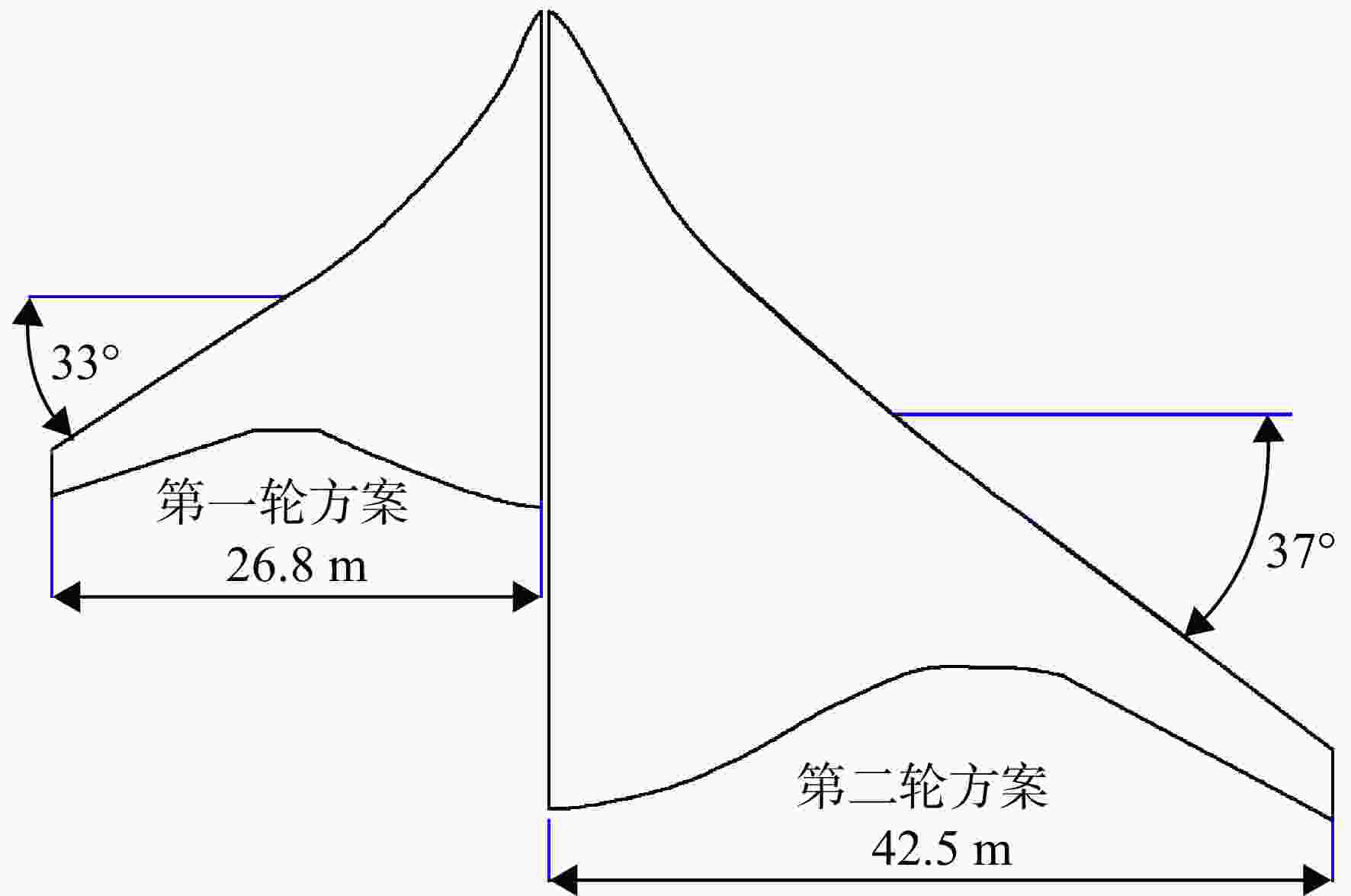

图 2 大展弦比飞翼气动方案迭代外形示意图
Figure 2. Schematic of aerodynamic configuration iteration for the high-aspect-ratio flying-wing

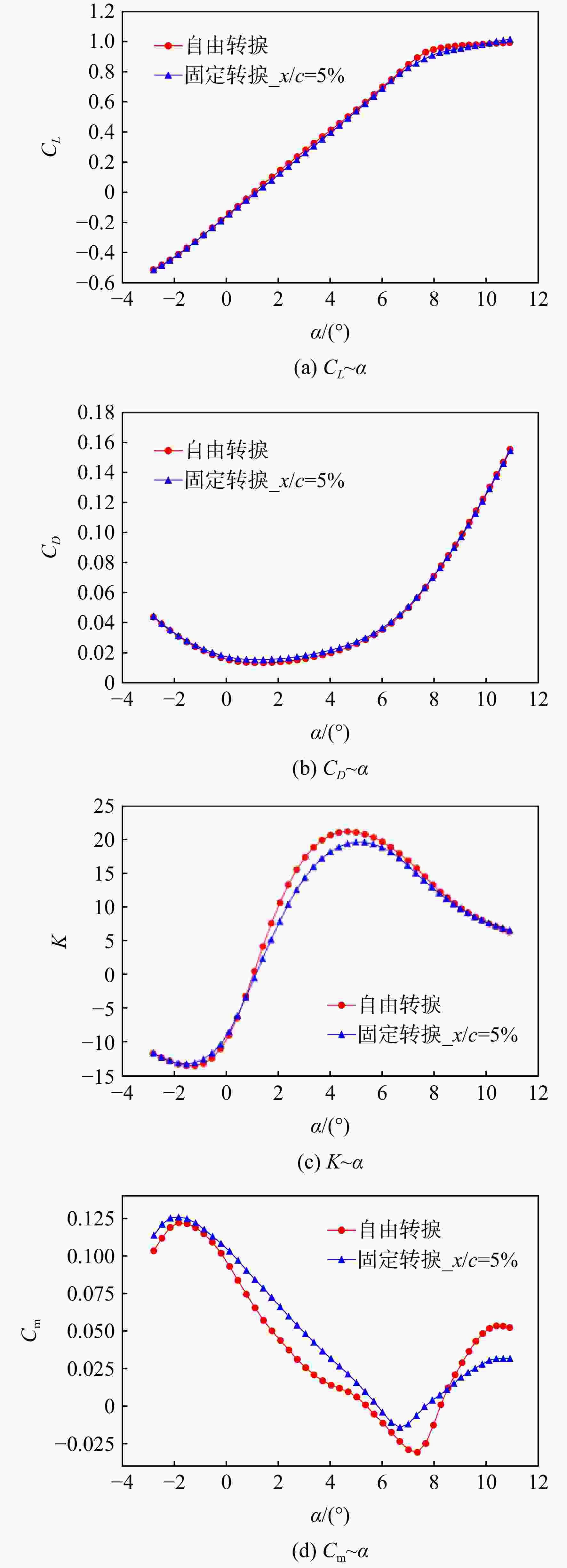

图 6 自由转捩与固定转捩试验结果对比（Ma=0.75, Rec=3.13×106）
Figure 6. Comparison of test results between natural transition and fixed transition （Ma=0.75, Rec=3.13×106）

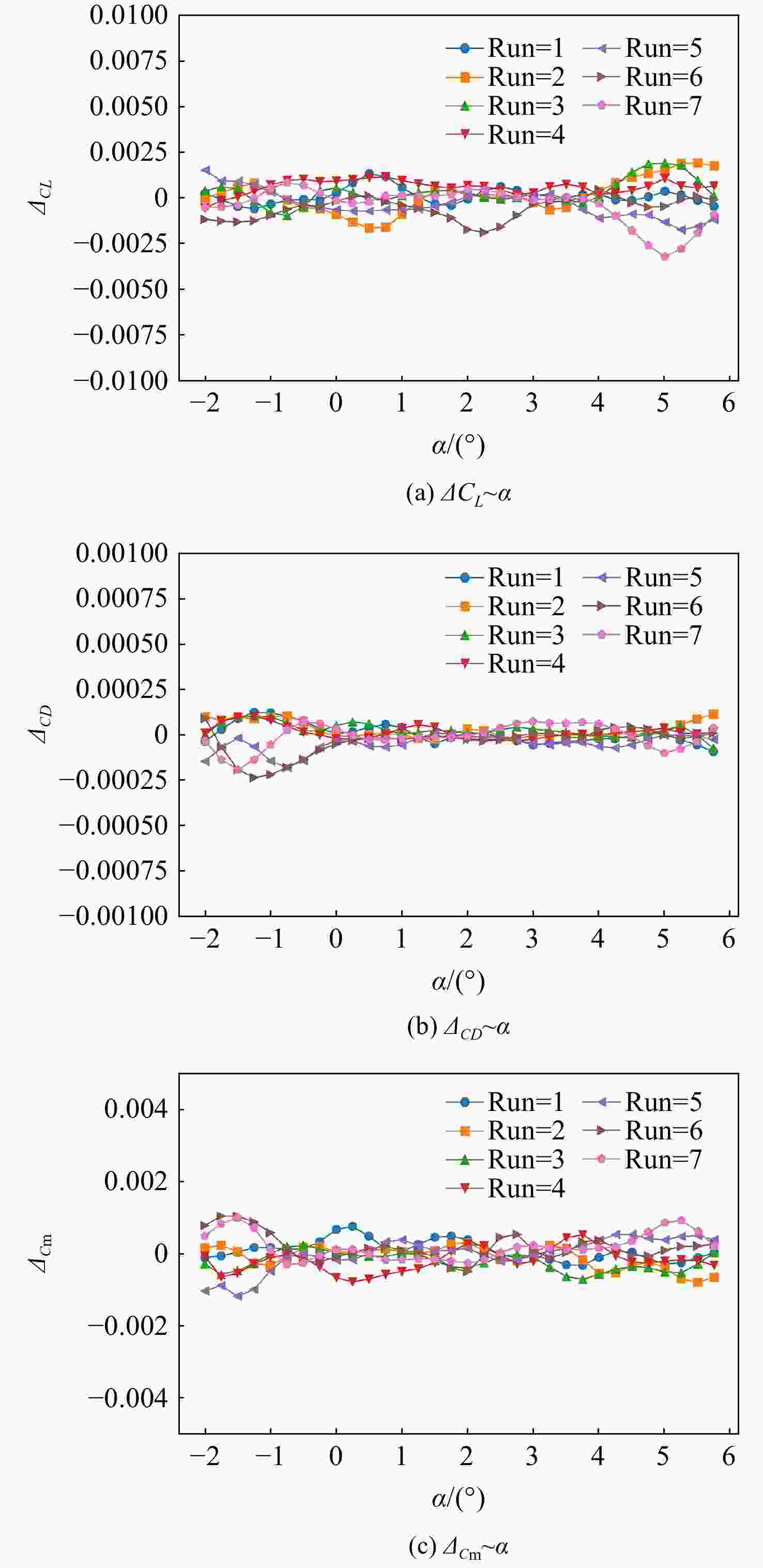

图 7 重复性试验结果（Ma=0.75, Rec=3.13×106）
Figure 7. Results of repeated tests （Ma=0.75, Rec=3.13×106）

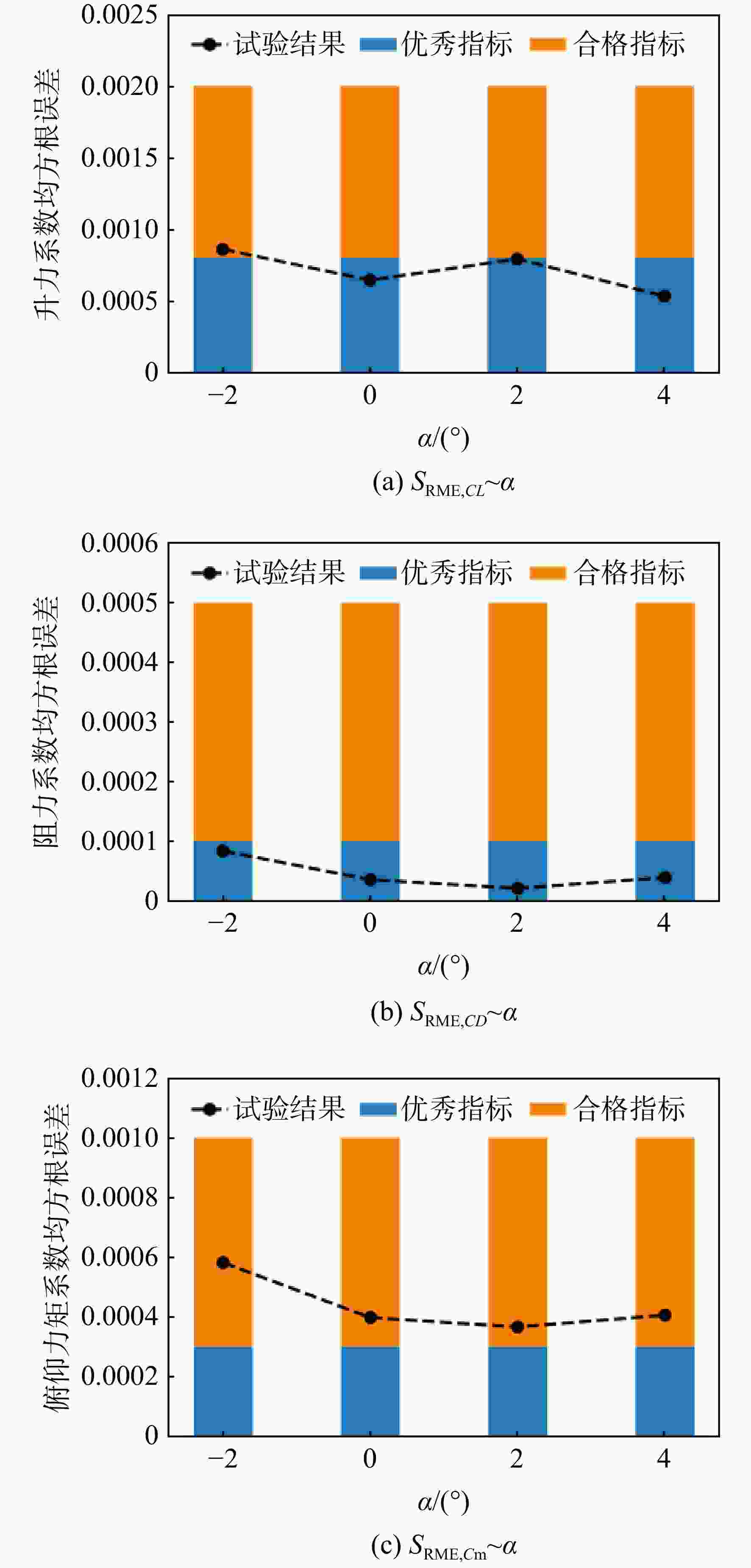

图 8 7次重复性试验的方均根误差（Ma=0.75, Rec=3.13×106）
Figure 8. Root mean square error of seven repeated tests （Ma=0.75, Rec=3.13×106）

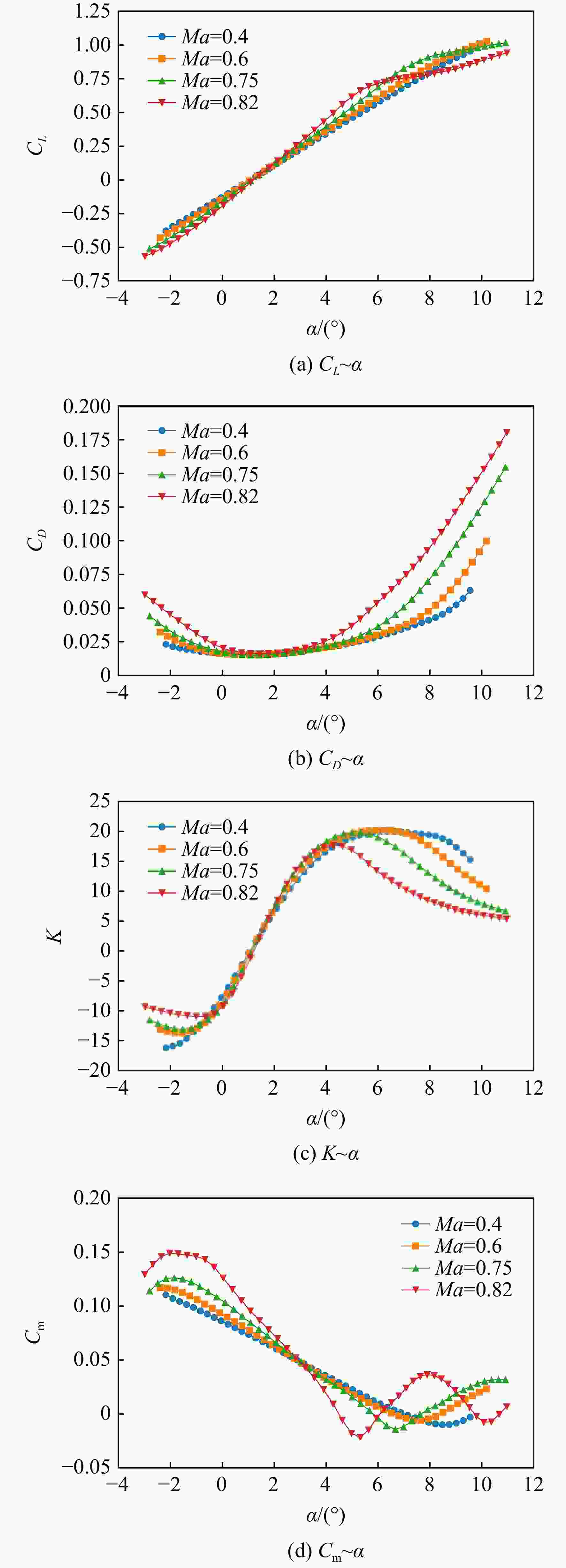

图 9 全机基本纵向气动特性
Figure 9. Basic longitudinal aerodynamic characteristics of the whole aircraft

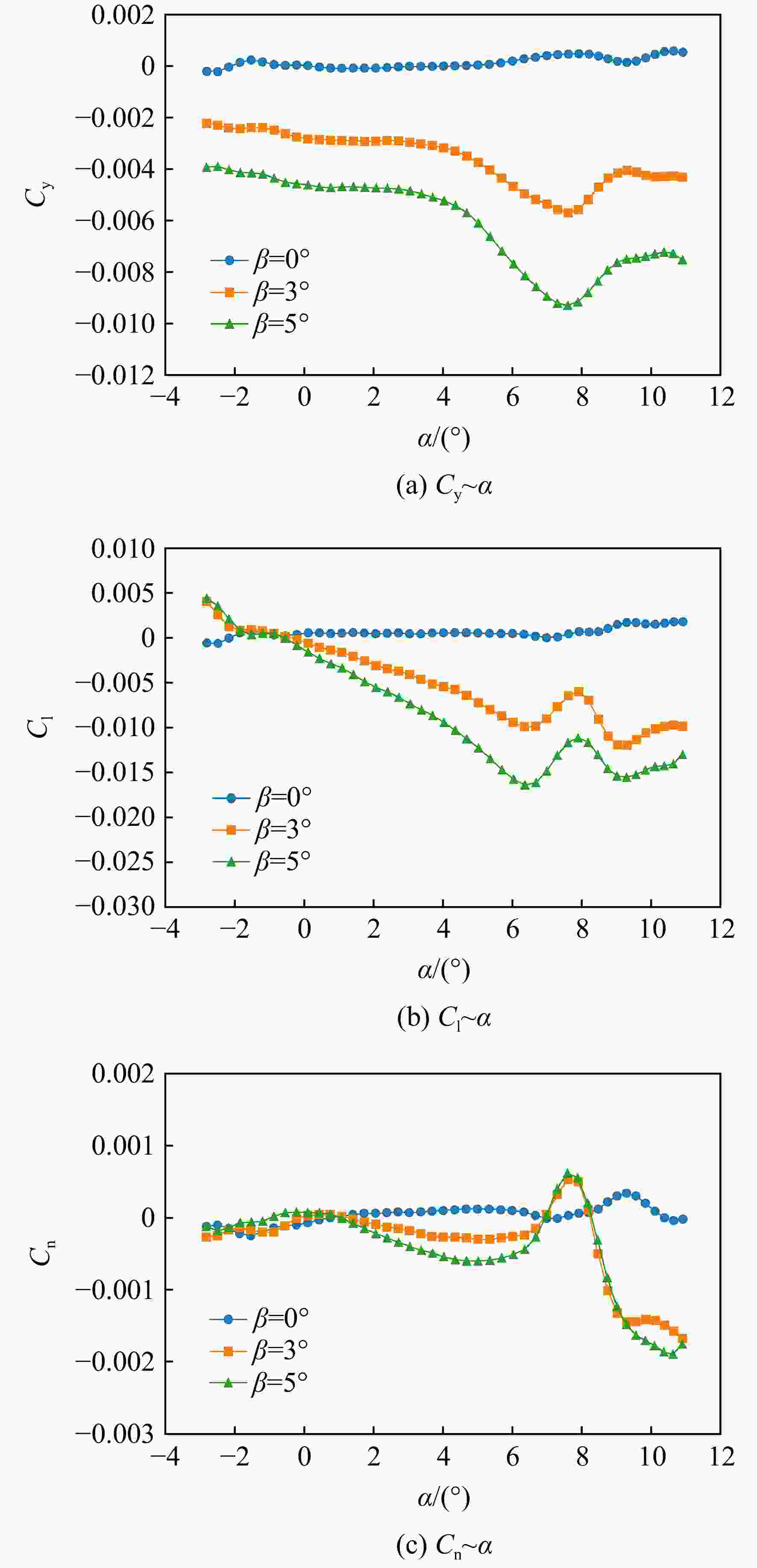

图 10 全机基本横航向气动特性
Figure 10. Basic lateral aerodynamic characteristics of the whole aircraft

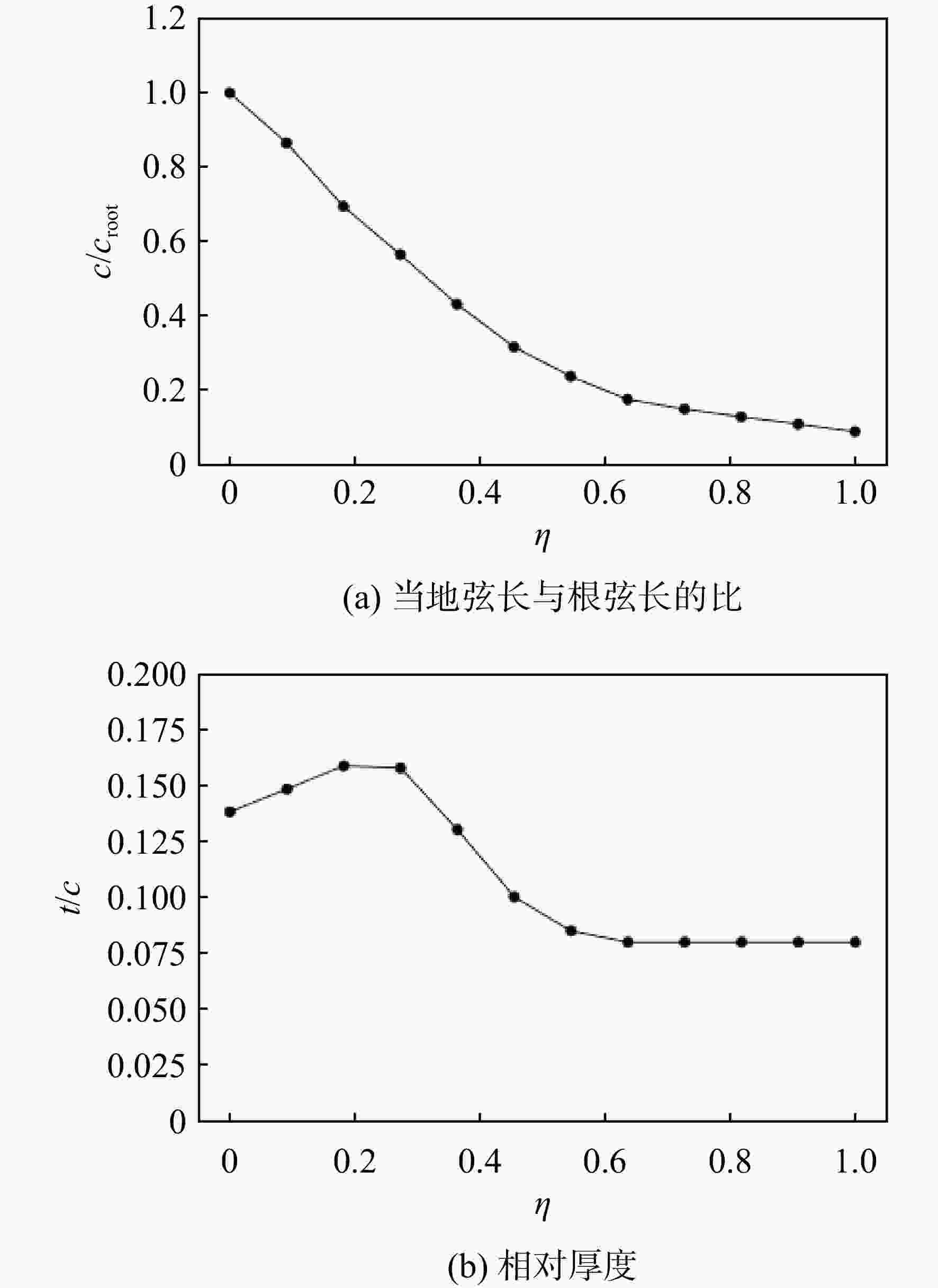

图 13 大展弦比飞翼标模弦长和相对厚度沿展向的分布
Figure 13. Distributions of chord length and relative thickness along the span for the high-aspect-ratio flying-wing standard model
表 1 大展弦比飞翼布局气动外形迭代方案典型几何参数对比
Table 1. Comparison of typical geometric parameters for iterative aerodynamic configuration schemes of high-aspect-ratio flying-wing layout
几何特征参数 第一轮
布局第二轮布局
初始外形第二轮布局
优化外形翼展/m 53.6 85.3 85 中央翼根弦（机长）L/m 26.9 42.9 43 参考重心距离机头 Xg/m 16.14 24.6 23.1704 平均气动弦长Ca/m 15.27 9.36 9.3843 展弦比 Ar 5.1 9.1 10 前缘后掠角（外翼）Λl.e./（°） 33 37 37 后缘后掠角（外翼）Λt.e./（°） 0，18 28.6 28 面积（全面积）Sref/m2 563 1397 1394.8
下载: 导出CSV
表 2 Ma=0.75条件下气动力测量精度
Table 2. Force test accuracy at Ma=0.75
α σCL σCD σCm −2 0.0008 0.00008 0.0006 0 0.0006 0.00004 0.0004 2 0.0008 0.00002 0.0004 4 0.0005 0.00004 0.0004 6 0.0010 0.00013 0.0004 8 0.008 0.00025 0.0007 10 0.0054 0.00023 0.0051
下载: 导出CSV
-
[1] Liebeck R H. Design of the blended wing body subsonic transport[J]. Journal of Aircraft, 2004, 41(1): 10-25. doi: 10.2514/1.9084 [2] Mohr B, Paulus D, Baier H, et al. Design of a 450-passenger blended wing body aircraft for active control investigations[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2012, 226(12): 1513-1522. doi: 10.1177/0954410011426031 [3] Mukhopadhyay V. Blended wing body (BWB) fuselage structural design for weight reduction: AIAA2005-2349 [R]. Austin, Texas: 46th AIAA/ASME/ASCE/AHS/ASC Structures, Structural Dynamics and Materials Conference, 2005. [4] Li Peifeng, Zhang Binqian, Chen Yingchun, et al. Aerodynamic design methodology for blended wing body transport[J]. Chinese Journal of Aeronautics, 2012, 25(4): 508-516. doi: 10.1016/S1000-9361(11)60414-7 [5] Qin Ning, Vavalle A, Le Moigne A. Spanwise lift distribution for blended wing body aircraft[J]. Journal of Aircraft, 2005, 42(2): 356-365. doi: 10.2514/1.4229 [6] Qin N, Vavalle A, Le Moigne A, et al. Aerodynamic considerations of blended wing body aircraft[J]. Progress in Aerospace Sciences, 2004, 40(6): 321-343. doi: 10.1016/j.paerosci.2004.08.001 [7] 朱佳晨, 史志伟, 耿玺, 等. 飞翼布局飞行器航向射流控制方案优化[J]. 航空动力学报, 2021, 36(11): 2278-2291. Zhu Jiachen, Shi Zhiwei, Geng Xi, et al. Scheme optimization of yaw control of flying-wing aircraft based on jet flow control[J]. Journal of Aerospace Power, 2021, 36(11): 2278-2291. (in Chinese doi: 10.13224/j.cnki.jasp.20200466Zhu Jiachen, Shi Zhiwei, Geng Xi, et al. Scheme optimization of yaw control of flying-wing aircraft based on jet flow control[J]. Journal of Aerospace Power, 2021, 36(11): 2278-2291. (in Chinese) doi: 10.13224/j.cnki.jasp.20200466 [8] 米百刚, 詹浩. 考虑进排气的飞翼静、动态气动特性数值模拟[J]. 航空动力学报, 2017, 32(9): 2180-2186. Mi Baigang, Zhan Hao. Numerical simulation of static and dynamic aerodynamics for flying wing with intake and exhaust effect[J]. Journal of Aerospace Power, 2017, 32(9): 2180-2186. (in Chinese doi: 10.13224/j.cnki.jasp.2017.09.017Mi Baigang, Zhan Hao. Numerical simulation of static and dynamic aerodynamics for flying wing with intake and exhaust effect[J]. Journal of Aerospace Power, 2017, 32(9): 2180-2186. (in Chinese) doi: 10.13224/j.cnki.jasp.2017.09.017 [9] 马杰, 梁华, 吴云, 等. 毫秒脉冲等离子体激励改善飞翼的气动性能实验[J]. 航空动力学报, 2016, 31(8): 1845-1851. Ma Jie, Liang Hua, Wu Yun, et al. Experiment for improving aerodynamic performances of a flying wing by millisecond pulsed plasma actuation[J]. Journal of Aerospace Power, 2016, 31(8): 1845-1851. (in Chinese doi: 10.13224/j.cnki.jasp.2016.08.007Ma Jie, Liang Hua, Wu Yun, et al. Experiment for improving aerodynamic performances of a flying wing by millisecond pulsed plasma actuation[J]. Journal of Aerospace Power, 2016, 31(8): 1845-1851. (in Chinese) doi: 10.13224/j.cnki.jasp.2016.08.007 [10] 崔兴达, 张露, 刘钒, 等. 类X-47B无人机菱形编队气动干扰数值模拟[J]. 航空动力学报, 2022, 37(8): 1692-1702. Cui Xingda, Zhang Lu, Liu Fan, et al. Numerical simulation on aerodynamic interference of UAVs like X-47B in rhombus formation[J]. Journal of Aerospace Power, 2022, 37(8): 1692-1702. (in Chinese doi: 10.13224/j.cnki.jasp.20210125Cui Xingda, Zhang Lu, Liu Fan, et al. Numerical simulation on aerodynamic interference of UAVs like X-47B in rhombus formation[J]. Journal of Aerospace Power, 2022, 37(8): 1692-1702. (in Chinese) doi: 10.13224/j.cnki.jasp.20210125 [11] 牛中国, 刘捷, 胡秋琦, 等. 基于压力反馈的等离子体主动流动控制试验[J]. 航空动力学报, 2024, 39(3): 20220265. Niu Zhongguo, Liu Jie, Hu Qiuqi, et al. Experiment of the plasma active flow control based on pressure feedback[J]. Journal of Aerospace Power, 2024, 39(3): 20220265. (in Chinese doi: 10.13224/j.cnki.jasp.20220265Niu Zhongguo, Liu Jie, Hu Qiuqi, et al. Experiment of the plasma active flow control based on pressure feedback[J]. Journal of Aerospace Power, 2024, 39(3): 20220265. (in Chinese) doi: 10.13224/j.cnki.jasp.20220265 [12] 史文博, 李杰. 螺旋桨安装效应对无人机气动特性影响[J]. 航空动力学报, 2020, 35(3): 611-619. Shi Wenbo, Li Jie. Impacts of propeller installation effect on aerodynamic performances for UAV[J]. Journal of Aerospace Power, 2020, 35(3): 611-619. (in Chinese doi: 10.13224/j.cnki.jasp.2020.03.017Shi Wenbo, Li Jie. Impacts of propeller installation effect on aerodynamic performances for UAV[J]. Journal of Aerospace Power, 2020, 35(3): 611-619. (in Chinese) doi: 10.13224/j.cnki.jasp.2020.03.017 [13] Guo Siyi, Chen Zhenli, Yao Xuanyu. A deformation criterion of pressurized non-circular cross-section cabin and its effects on cruise performance of BWB civil aircraft[J]. Chinese Journal of Aeronautics, 2024, 37(6): 78-88. doi: 10.1016/j.cja.2024.02.016 [14] Qiu Aoxiang, Sang Weimin, Du Shuya, et al. The characteristics and corrections of ventral support interferences in the transonic-speed wind tunnel for the blended-wing-body aircraft[J]. Advances in Aerodynamics, 2024, 6(1): 14. doi: 10.1186/s42774-024-00175-3 [15] 战培国, 罗月培. 飞行器风洞试验标模体系研究初探[J]. 标准科学, 2011(11): 28-31. Zhan Peiguo, Luo Yuepei. Primary research on the standard system of air vehicle calibration models used in wind tunnel test[J]. Standard Science, 2011(11): 28-31. (in Chinese doi: 10.3969/j.issn.1674-5698.2011.11.005Zhan Peiguo, Luo Yuepei. Primary research on the standard system of air vehicle calibration models used in wind tunnel test[J]. Standard Science, 2011(11): 28-31. (in Chinese) doi: 10.3969/j.issn.1674-5698.2011.11.005 [16] Du Pan, Agarwal R K. Numerical drag prediction of NASA Common Research Models using different turbulence models[J]. Computers & Fluids, 2019, 191: 104238. doi: 10.1016/j.compfluid.2019.104238 [17] Helm S, Fehrs M, Kaiser C, et al. Numerical simulation of the common research model with natural laminar flow[J]. Journal of Aircraft, 2023, 60(2): 449-460. doi: 10.2514/1.C036889 [18] Schmidt F N, Wild J. Design of an UHBR through flow nacelle and a krueger flap for the CRM-HL: AIAA-2024-2851[R]. Orlando, Florida: AIAA SCITECH 2024 Forum, 2024. [19] Zauner M, Matsuzaki T, Sansica A, et al. Sensitivity study of delayed detached-eddy simulations of NASA’s CRM-HL in-tunnel and free-air: AIAA 2024-2335 [R]. Orlando, Florida: AIAA SCITECH 2024 Forum, 2024. [20] 李浩然, 李亚坤, 张宇飞, 等. CHN-T1标模的数值计算及气动特性研究[J]. 空气动力学学报, 2019, 37(2): 329-336. Li Haoran, Li Yakun, Zhang Yufei, et al. Numerical simulation and aerodynamic performance analysis of the standard model CHN-T1[J]. Acta Aerodynamica Sinica, 2019, 37(2): 329-336. (in Chinese doi: 10.7638/kqdlxxb-2018.0255Li Haoran, Li Yakun, Zhang Yufei, et al. Numerical simulation and aerodynamic performance analysis of the standard model CHN-T1[J]. Acta Aerodynamica Sinica, 2019, 37(2): 329-336. (in Chinese) doi: 10.7638/kqdlxxb-2018.0255 [21] 李强, 刘大伟, 许新, 等. CHN-T1标模2.4米风洞气动特性试验研究[J]. 空气动力学学报, 2019, 37(2): 337-344. Li Qiang, Liu Dawei, Xu Xin, et al. Experimental study of aerodynamic characterictics of CHN-T1standard model in 2.4 m transonic wind tunnel[J]. Acta Aerodynamica Sinica, 2019, 37(2): 337-344. (in Chinese doi: 10.7638/kqdlxxb-2018.0099Li Qiang, Liu Dawei, Xu Xin, et al. Experimental study of aerodynamic characterictics of CHN-T1standard model in 2.4 m transonic wind tunnel[J]. Acta Aerodynamica Sinica, 2019, 37(2): 337-344. (in Chinese) doi: 10.7638/kqdlxxb-2018.0099 [22] 余永刚, 周铸, 黄江涛, 等. 单通道客机气动标模CHN-T1设计[J]. 空气动力学学报, 2018, 36(3): 505-513. Yu Yonggang, Zhou Zhu, Huang Jiangtao, et al. Aerodynamic design of a standard model CHN-T1 for single-aisle passenger aircraft[J]. Acta Aerodynamica Sinica, 2018, 36(3): 505-513. (in Chinese doi: 10.7638/kqdlxxb-2018.0072Yu Yonggang, Zhou Zhu, Huang Jiangtao, et al. Aerodynamic design of a standard model CHN-T1 for single-aisle passenger aircraft[J]. Acta Aerodynamica Sinica, 2018, 36(3): 505-513. (in Chinese) doi: 10.7638/kqdlxxb-2018.0072 [23] 苏继川, 黄勇, 钟世东, 等. 小展弦比飞翼跨声速典型流动特性研究[J]. 空气动力学学报, 2015, 33(3): 307-312, 318. Su Jichuan, Huang Yong, Zhong Shidong, et al. Research on flow characteristics of low-aspect-ratio flying-wing at transonic speed[J]. Acta Aerodynamica Sinica, 2015, 33(3): 307-312, 318. (in Chinese doi: 10.7638/kqdlxxb-2015.0054Su Jichuan, Huang Yong, Zhong Shidong, et al. Research on flow characteristics of low-aspect-ratio flying-wing at transonic speed[J]. Acta Aerodynamica Sinica, 2015, 33(3): 307-312, 318. (in Chinese) doi: 10.7638/kqdlxxb-2015.0054 [24] Liu Hongyang, Zhou Zhu, Yu Yonggang, et al. Design of a standard aerodynamic model CHN-T2 for wide-body aircraft[J]. Acta Aerodynamica Sinica, 2023, 41(10): 15-29. [25] 李永红, 刘会龙, 黄勇, 等. 小展弦比飞翼标模三座高速风洞气动力数据相关性研究[J]. 空气动力学学报, 2016, 34(1): 107-112, 130. Li Yonghong, Liu Huilong, Huang Yong, et al. Investigation on the correlation of high-speed force test results of flying-wing calibration model with low-aspect ratio[J]. Acta Aerodynamica Sinica, 2016, 34(1): 107-112, 130. (in Chinese doi: 10.7638/kqdlxxb-2015.0096Li Yonghong, Liu Huilong, Huang Yong, et al. Investigation on the correlation of high-speed force test results of flying-wing calibration model with low-aspect ratio[J]. Acta Aerodynamica Sinica, 2016, 34(1): 107-112, 130. (in Chinese) doi: 10.7638/kqdlxxb-2015.0096 [26] 张杰, 李王斌, 王争取, 等. 小展弦比飞翼标模跨声速横向失稳运动[J]. 航空学报, 2022, 43(11): 526340. Zhang Jie, Li Wangbin, Wang Zhengqu, et al. Transonic lateral departure motion characteristics of a low-aspect-ratio flying-wing model[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(11): 526340. (in ChineseZhang Jie, Li Wangbin, Wang Zhengqu, et al. Transonic lateral departure motion characteristics of a low-aspect-ratio flying-wing model[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(11): 526340. (in Chinese) [27] 钟世东, 李巍, 苏继川, 等. 三种跨声速洞壁干扰修正方法及其在小展弦比飞翼标模试验中的应用[J]. 空气动力学学报, 2016, 34(1): 113-118. Zhong Shidong, Li Wei, Su Jichuan, et al. Three types of transonic wind tunnel wall interference correction method and their application on low aspect ratio flying wing calibration model[J]. Acta Aerodynamica Sinica, 2016, 34(1): 113-118. (in Chinese doi: 10.7638/kqdlxxb-2015.0095Zhong Shidong, Li Wei, Su Jichuan, et al. Three types of transonic wind tunnel wall interference correction method and their application on low aspect ratio flying wing calibration model[J]. Acta Aerodynamica Sinica, 2016, 34(1): 113-118. (in Chinese) doi: 10.7638/kqdlxxb-2015.0095 [28] Li Yonghong, Qin Ning. Influence of spanwise load distribution on blended-wing–body performance at transonic speed[J]. Journal of Aircraft, 2020, 57(3): 408-417. doi: 10.2514/1.C035696 [29] 陈德华, 王瑞波, 刘光远, 等. 2.4m跨声速风洞槽壁试验段调试及流场校测[J]. 实验流体力学, 2013, 27(4): 66-70. Chen Dehua, Wang Ruibo, Liu Guangyuan, et al. The test and flow field calibration of 2.4m transonic wind tunnel slotted test section[J]. Journal of Experiments in Fluid Mechanics, 2013, 27(4): 66-70. (in Chinese doi: 10.3969/j.issn.1672-9897.2013.04.012Chen Dehua, Wang Ruibo, Liu Guangyuan, et al. The test and flow field calibration of 2.4m transonic wind tunnel slotted test section[J]. Journal of Experiments in Fluid Mechanics, 2013, 27(4): 66-70. (in Chinese) doi: 10.3969/j.issn.1672-9897.2013.04.012 [30] 周岭, 何彬华, 李建强, 等. 大展弦比飞机模型边界层转捩模拟技术[J]. 空气动力学学报, 2013, 31(3): 357-361. Zhou Ling, He Binhua, Li Jianqiang, et al. Simulation of boundary layer transition on a high aspect ratio aircraft model[J]. Acta Aerodynamica Sinica, 2013, 31(3): 357-361. (in ChineseZhou Ling, He Binhua, Li Jianqiang, et al. Simulation of boundary layer transition on a high aspect ratio aircraft model[J]. Acta Aerodynamica Sinica, 2013, 31(3): 357-361. (in Chinese) [31] 许新, 李强, 彭鑫, 等. 2.4 m暂冲型跨声速风洞大飞机试验技术及数据修正方法[J]. 空气动力学学报, 2023, 41(12): 95-106. Xu Xin, Li Qiang, Peng Xin, et al. Test techniques and data correction method for large airplanes in a 2.4 m intermittent transonic wind tunnel[J]. Acta Aerodynamica Sinica, 2023, 41(12): 95-106. (in Chinese doi: 10.7638/kqdlxxb-2023.0137Xu Xin, Li Qiang, Peng Xin, et al. Test techniques and data correction method for large airplanes in a 2.4 m intermittent transonic wind tunnel[J]. Acta Aerodynamica Sinica, 2023, 41(12): 95-106. (in Chinese) doi: 10.7638/kqdlxxb-2023.0137 [32] 张征宇, 黄叙辉, 尹疆, 等. 高速风洞试验中的视频测量技术进展[J]. 实验流体力学, 2015, 29(2): 1-7. Zhang Zhengyu, Huang Xuhui, Yin Jiang, et al. Progress of videogrammetric measurement techniques for high speed wind tunnel test[J]. Journal of Experiments in Fluid Mechanics, 2015, 29(2): 1-7. (in Chinese doi: 10.11729/syltlx20140070Zhang Zhengyu, Huang Xuhui, Yin Jiang, et al. Progress of videogrammetric measurement techniques for high speed wind tunnel test[J]. Journal of Experiments in Fluid Mechanics, 2015, 29(2): 1-7. (in Chinese) doi: 10.11729/syltlx20140070 -
