Numerical simulation of two-dimensional backward-facing step flow using OpenFOAM
-
摘要:
为提升不可压缩流动中湍流模拟精度并发展高效湍流模型，本研究在先前提出的 partial averaged fluctuation velocity （PAFV） 湍流模型的基础上进行了部分改进，通过引入侧偏脉动速度调整动力黏度，构建了一款相等于无人工系数的主要用于不可压缩流体计算的湍流模型，以优化近壁面边界层分离的预测能力。基于 OpenFOAM 开源平台开发了模型求解器模块，对二维后向台阶流动进行了高分辨率数值模拟，获取瞬时速度场与脉动速度分布以及雷诺应力分布数据。结果表明：与 Spalart-Allmaras（S-A）、
k-ω SST 两种常用湍流模型相比，PAFV 模型结果与理论值在部分区域的符合度更好，由于引入了侧偏脉动速度并降低了动力黏度，该新湍流模型在捕捉台阶下游近区的漩涡时表现出更高的敏感性，对漩涡的捕捉能力更强，可准确预测湍流边界层分离过程。然而，在捕捉上壁旋涡区方面，该模型表现不及传统湍流模型，且对远场涡结构的预测存在滞后，其有待进一步优化。本研究为近壁流动优化提供新思路，未来将致力于提升模型普适性。-
关键词:
- OpenFOAM软件 /
- 后向台阶流动 /
- PAFV湍流模型 /
- 边界层分离 /
- 不可压缩流动
Abstract:To enhance the accuracy of turbulence modeling in incompressible flows and to develop efficient turbulence models, this study builds upon the previously proposed Partial Averaged Fluctuation Velocity （PAFV） turbulence model and introduces several improvements. By incorporating lateral fluctuation velocity to adjust the viscosity coefficient, a turbulence model was developed that is essentially free of empirical constants and primarily applicable to incompressible flow computations, with improved capability in predicting near-wall boundary layer separation. The model solver was implemented on the open-source platform OpenFOAM, and high-resolution numerical simulations were conducted for two-dimensional backward-facing step flows to obtain instantaneous velocity fields, fluctuation velocity distributions, and Reynolds stress data. The results demonstrate that, compared with the commonly used Spalart–Allmaras （S-A） and k–ω SST turbulence models, the PAFV model exhibits better agreement with theoretical values in certain regions. Due to the introduction of lateral fluctuation velocity and the reduction of viscosity, the new turbulence model shows enhanced sensitivity in capturing vortices in the near-wake region downstream of the step, thereby providing stronger capability in vortex prediction and more accurate characterization of turbulent boundary layer separation. However, in terms of capturing the upper-wall vortex region, this model performs worse than traditional turbulence models, and there is a lag in predicting the far-field vortex structure, which needs further optimization. This study provides new ideas for near-wall flow optimization, and future work will be dedicated to improving the universality of the model.
-

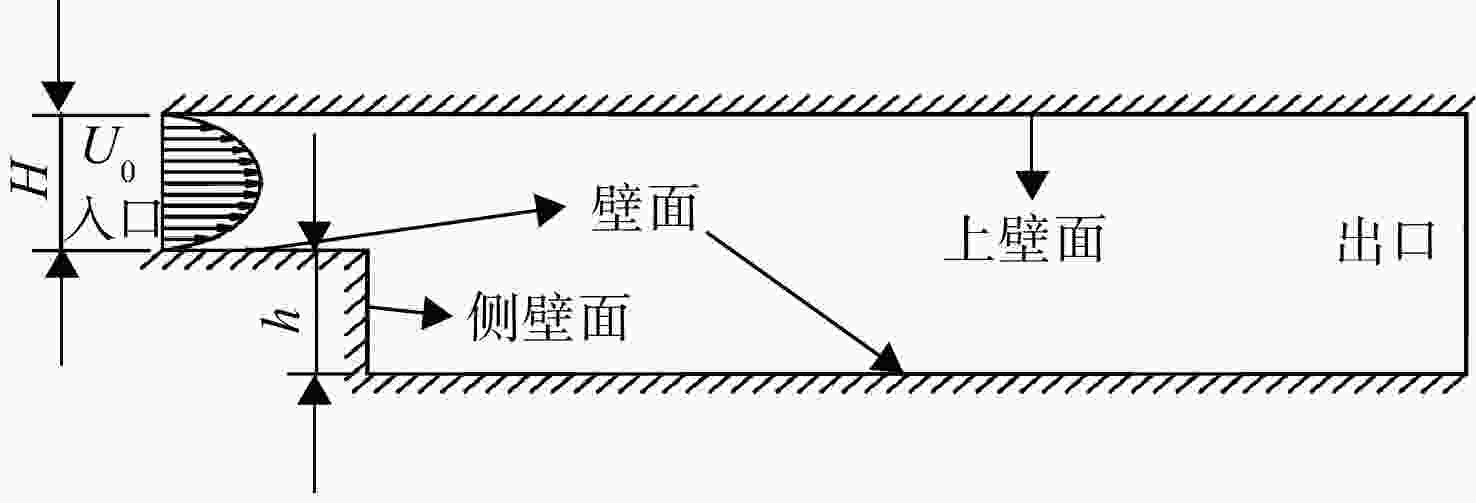

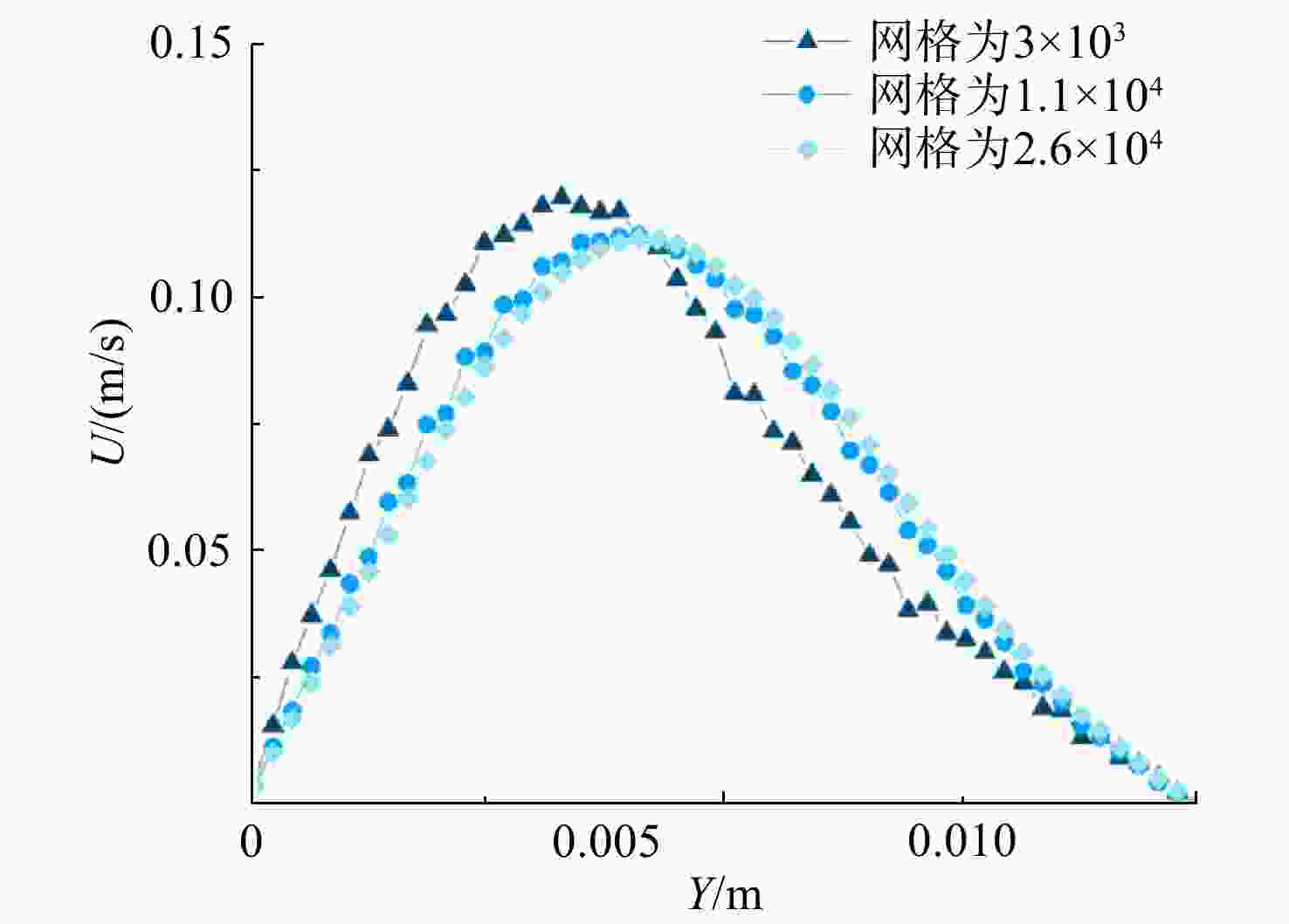

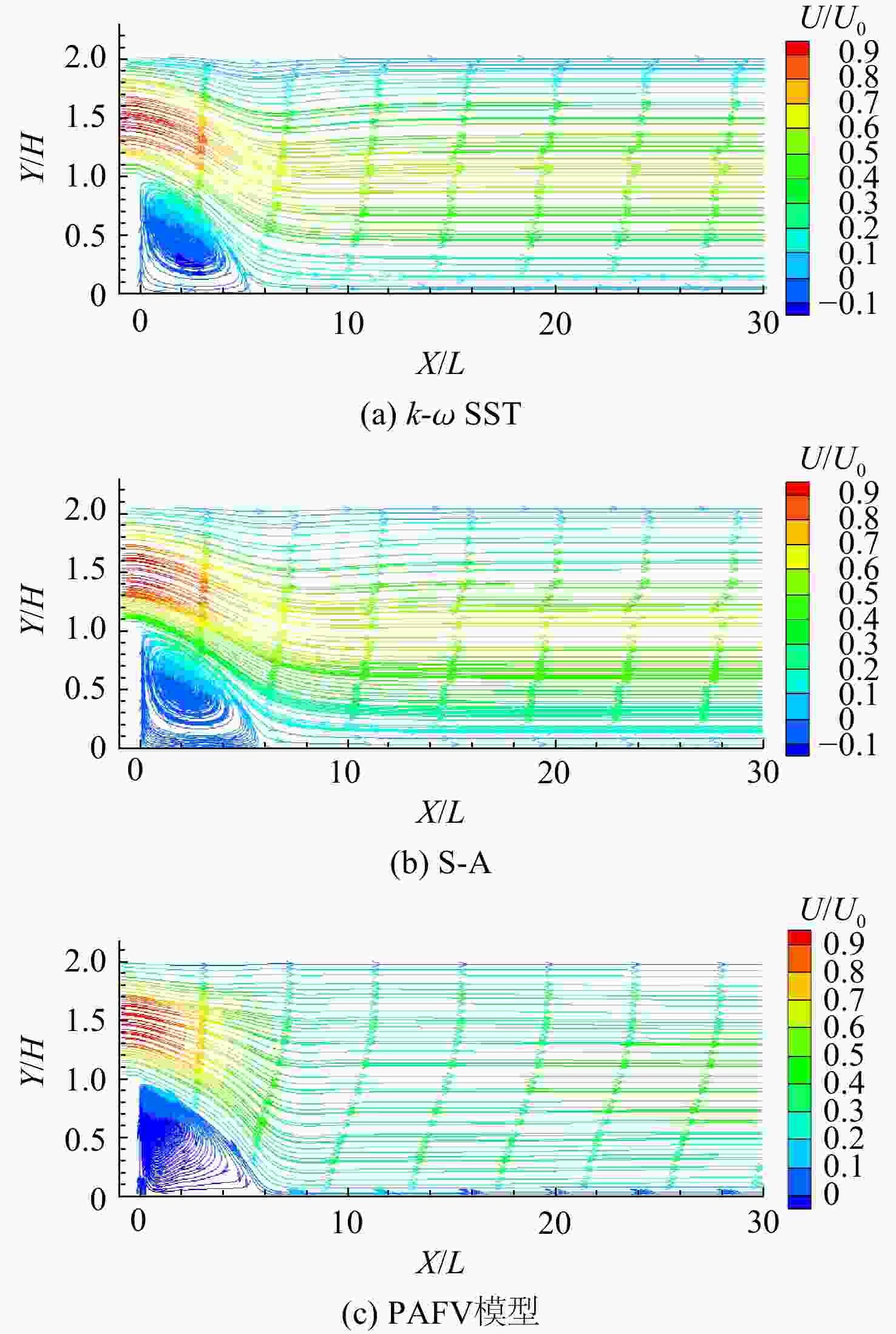

图 3 Re=389时台阶下游流场的时均流速场分布
Figure 3. Time-averaged velocity field distribution of the downstream flow field of the step at Re=389

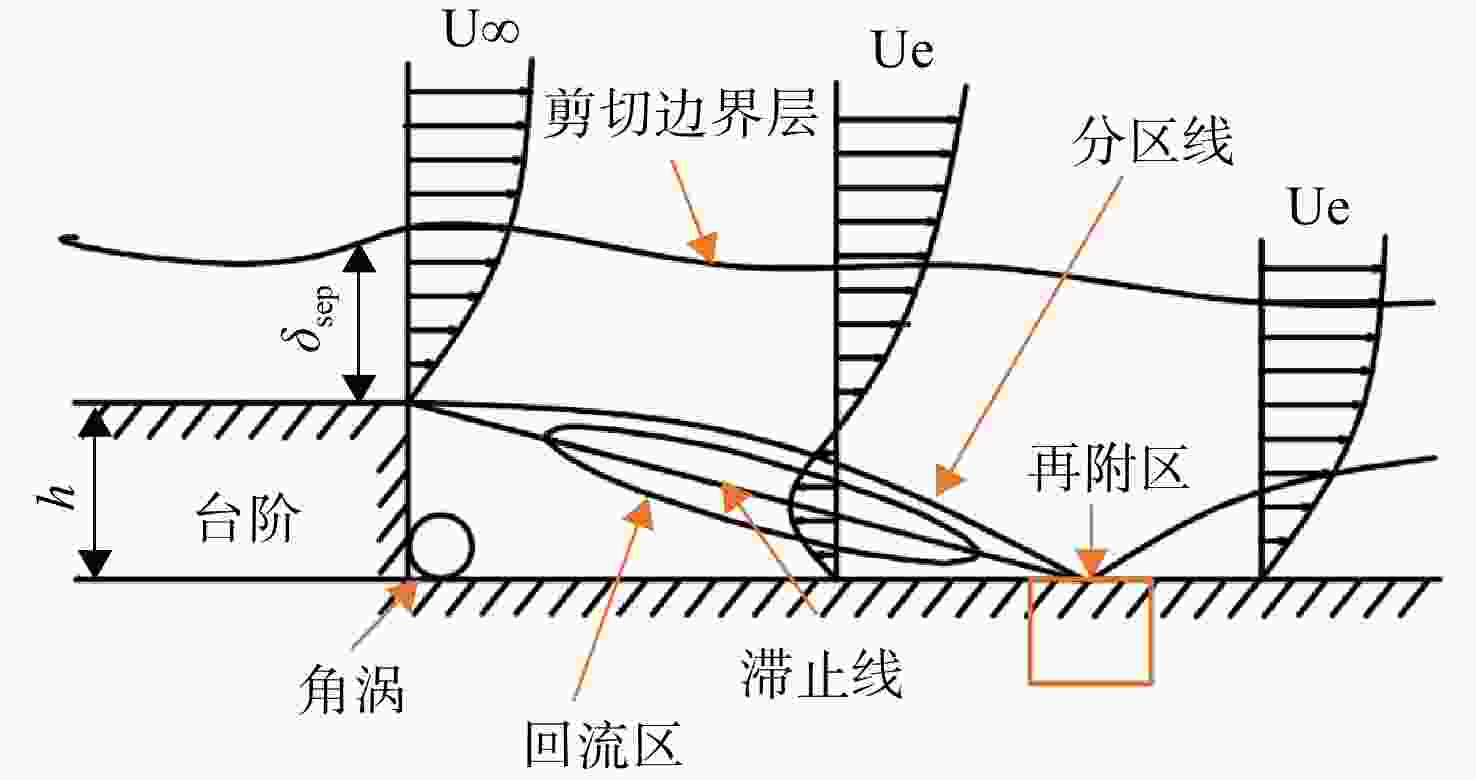

图 4 后向台阶流动中平均流场结构的区域划分
Figure 4. Regional division of the average flow field structure in backward-facing step flow

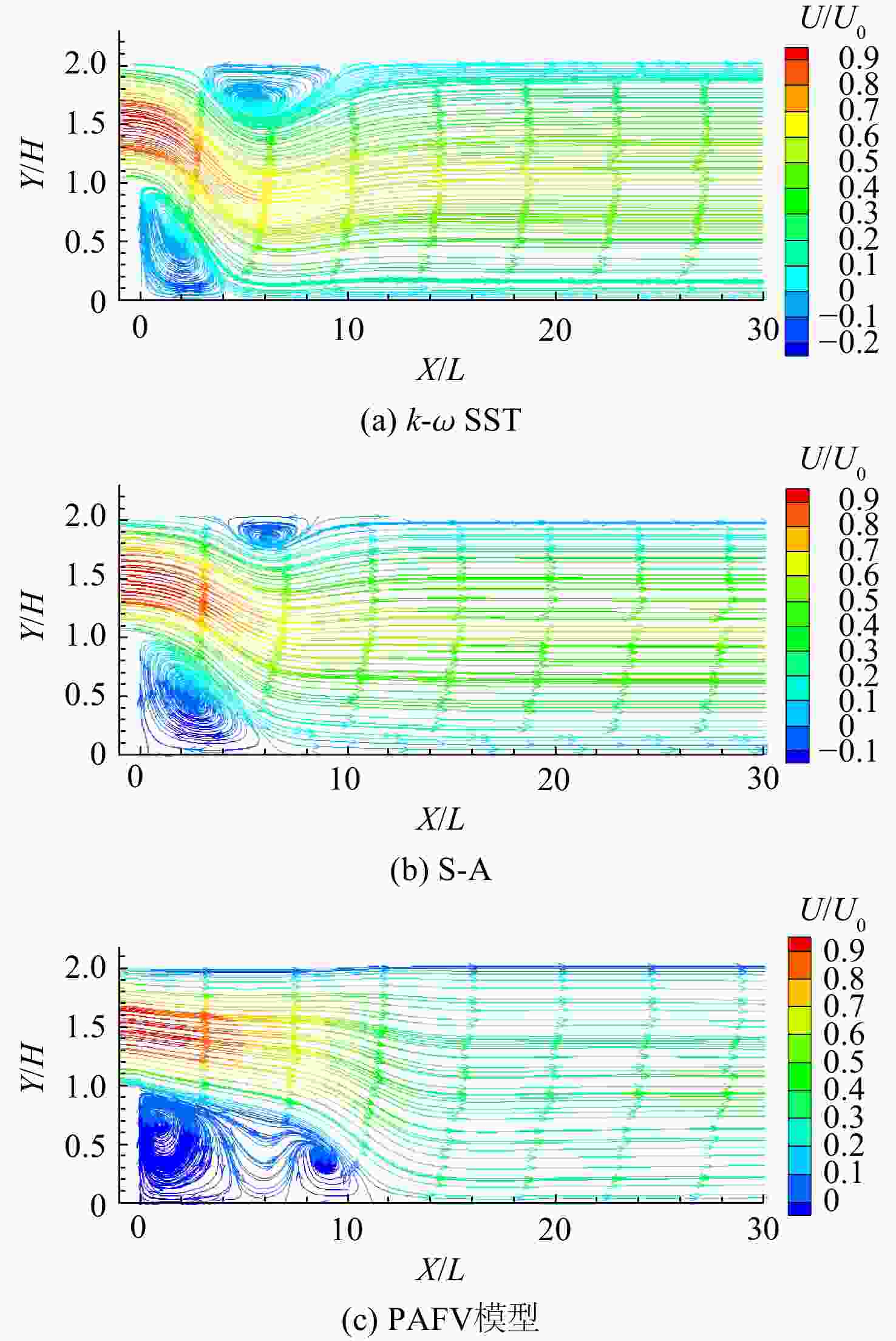

图 5 Re=
1000 时台阶下游流场的时均流速场分布Figure 5. Time-averaged velocity field distribution of the downstream flow field of the step at Re=
1000

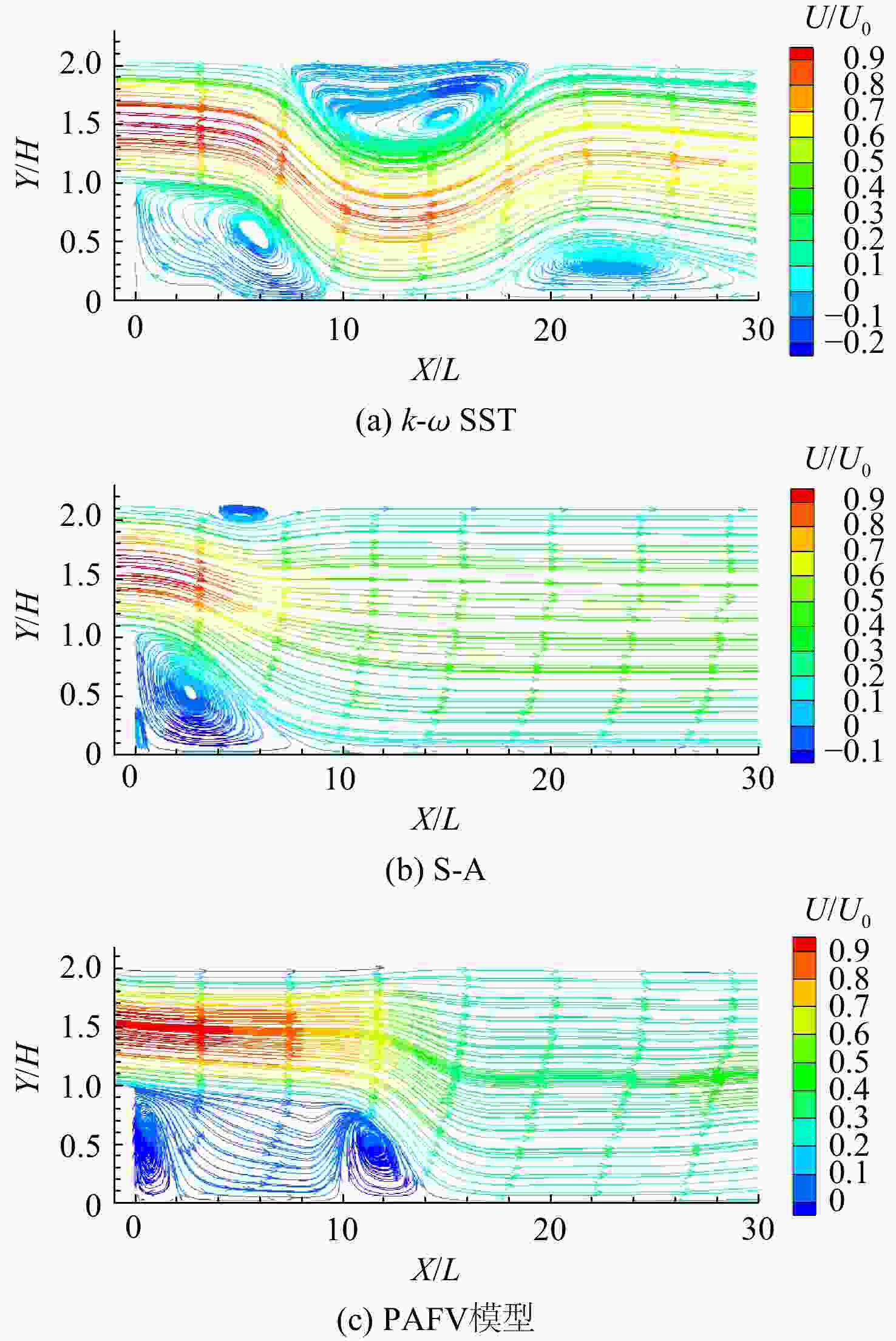

图 6 Re=
2260 时台阶下游流场的时均流速场分布Figure 6. Time-averaged velocity field distribution downstream of the step at Re =
2260

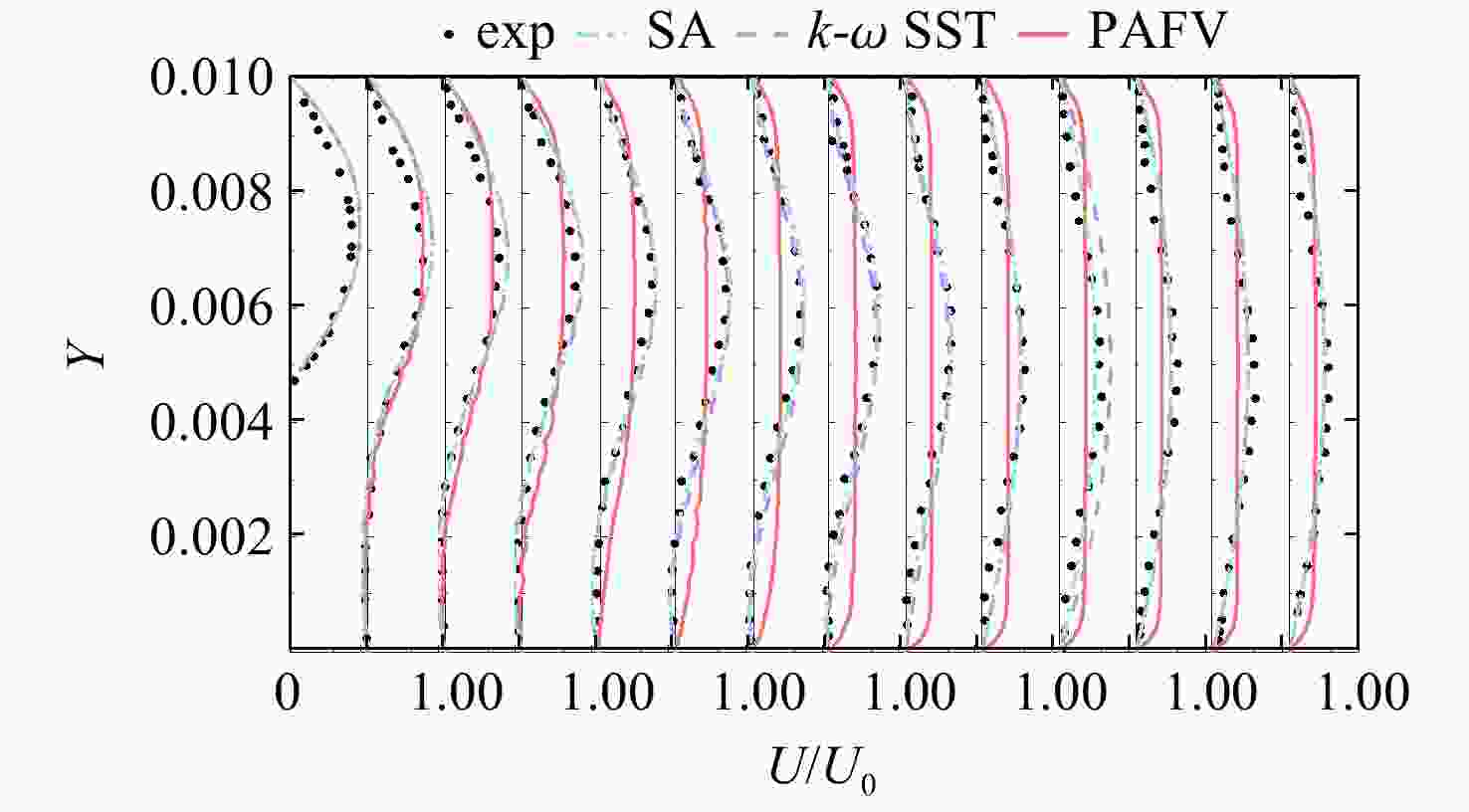

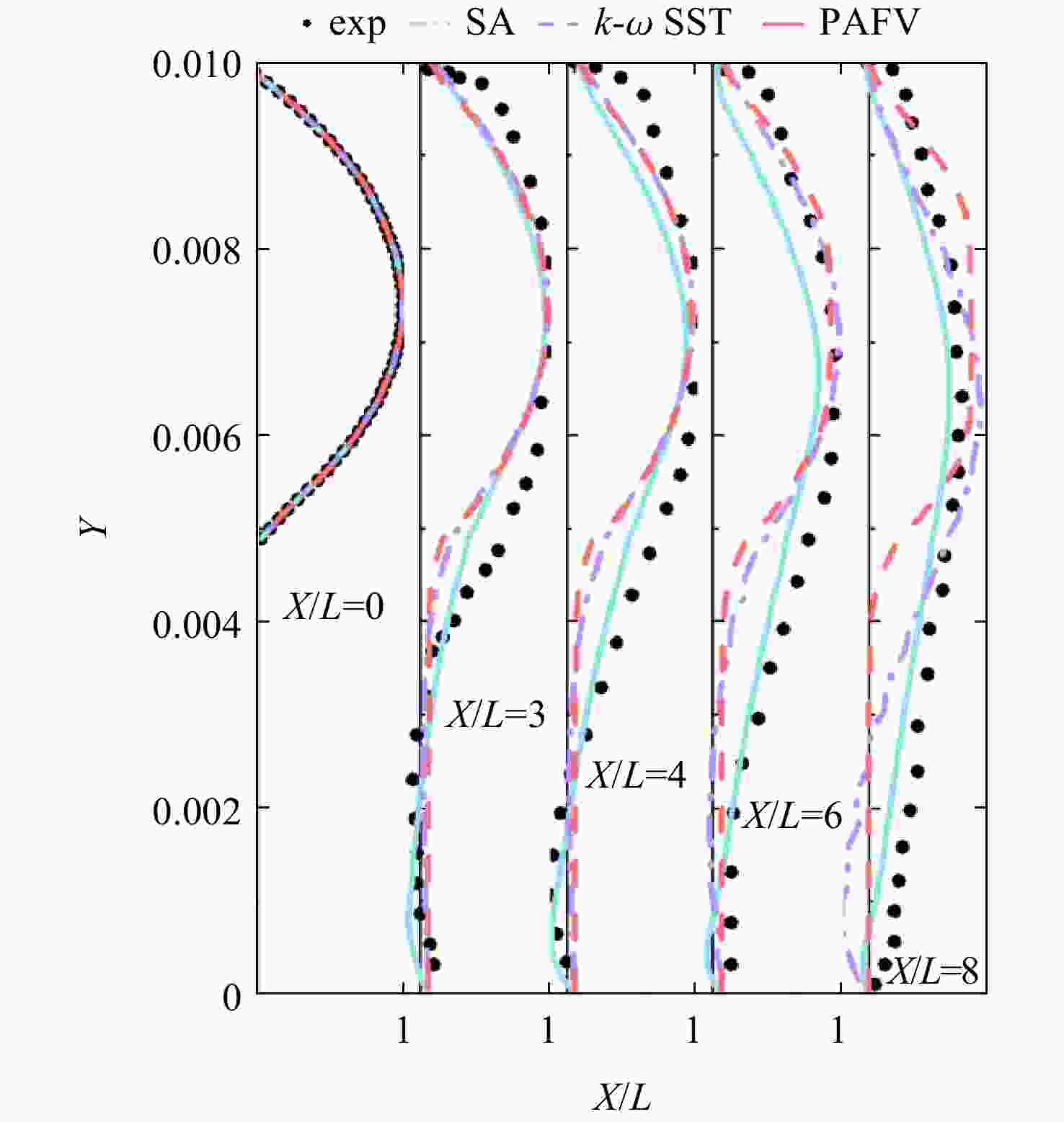

图 7 不同湍流模型在不同位置X/L上速度变化曲线（Re=389）
Figure 7. Velocity variation curves of different turbulence models at different positions X/L （Re=389）
图 8 不同湍流模型在不同位置X/L上速度变化曲线（Re=
1000 ）Figure 8. Velocity Variation Curves of Different Turbulence Models at Different Positions X/L （Re=
1000 ）

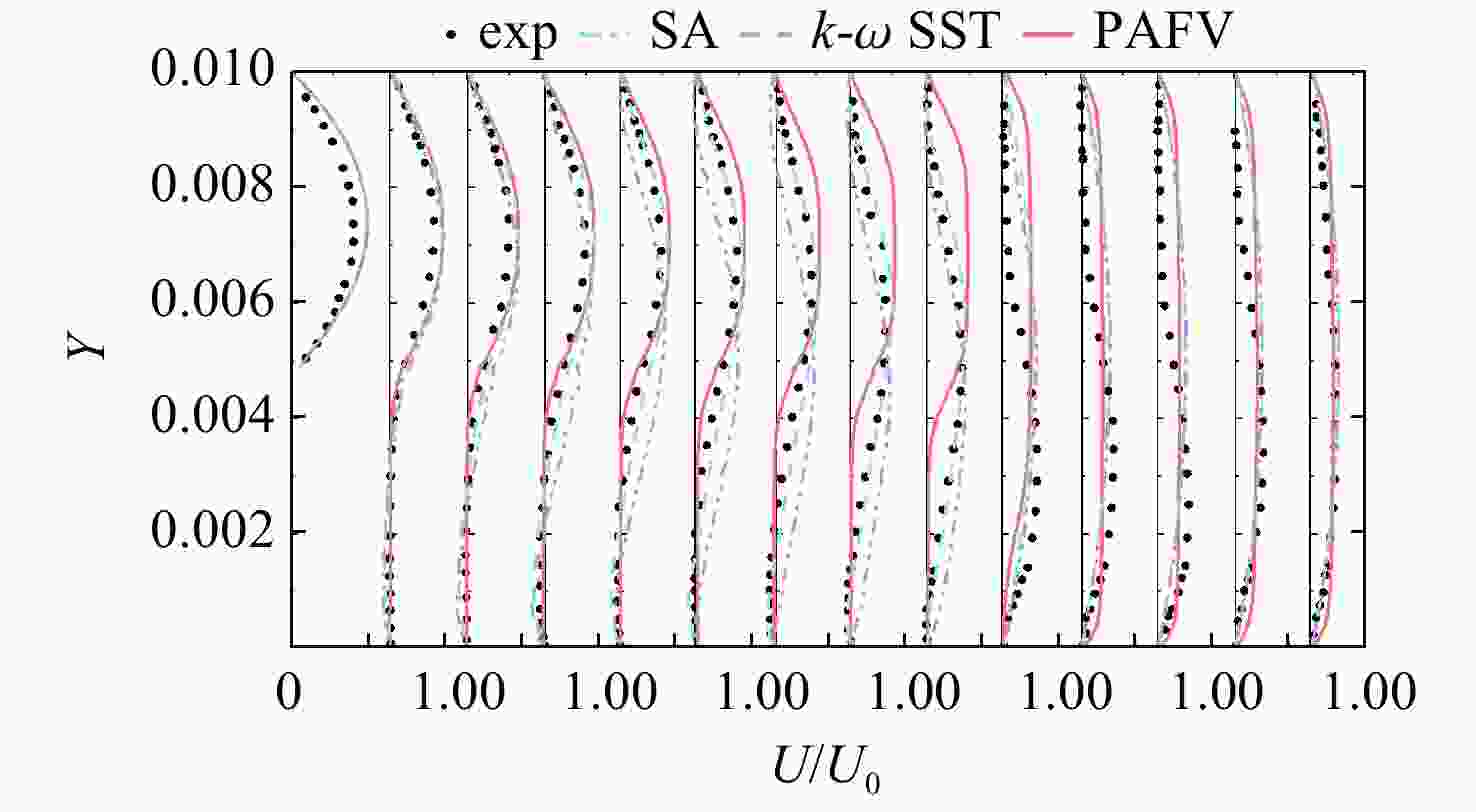

图 9 不同湍流模型在不同位置X/L上速度变化曲线（Re=
2260 ）Figure 9. Velocity variation curves of different turbulence models at different positions X/L （Re=
2260 ）

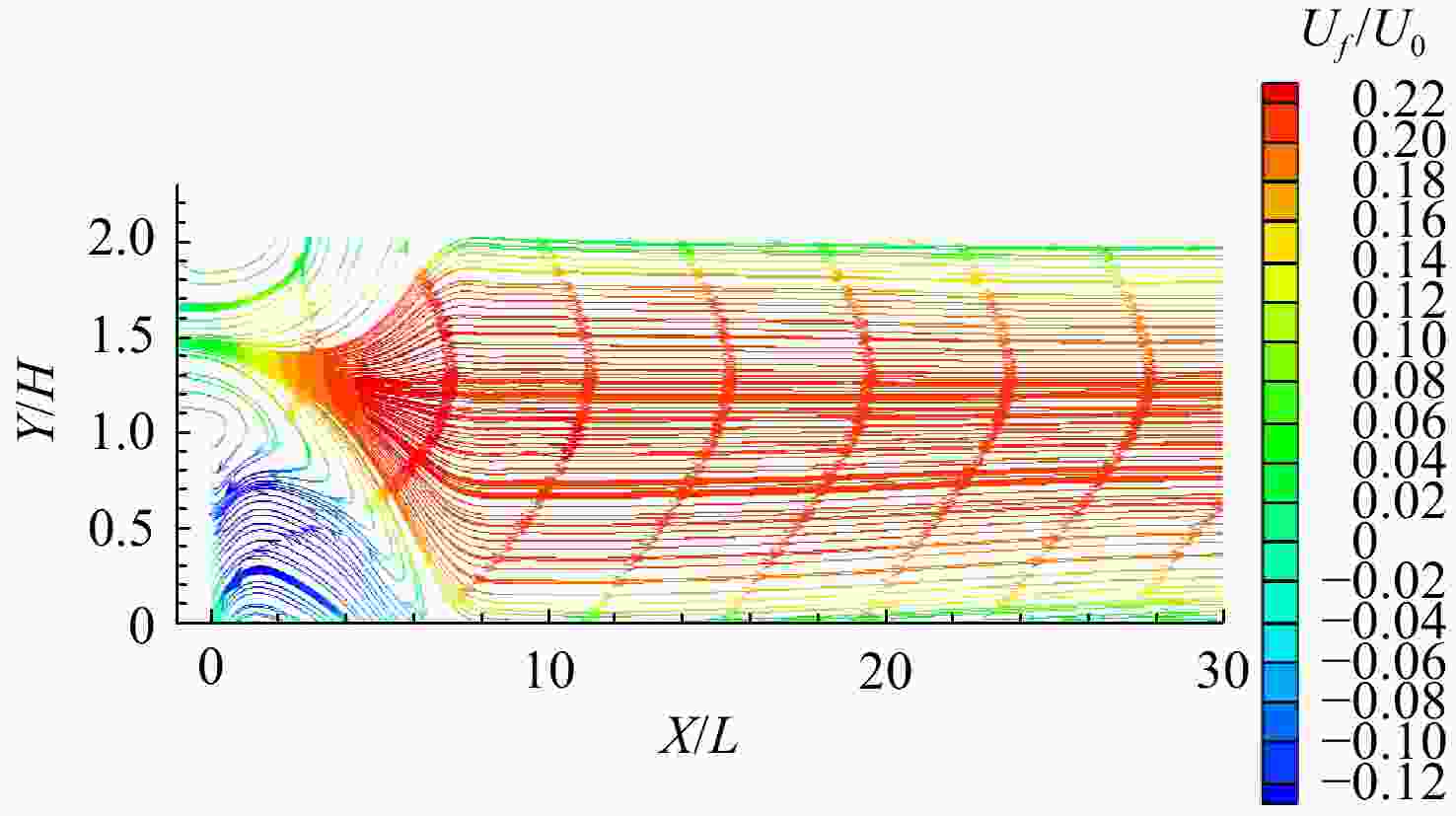

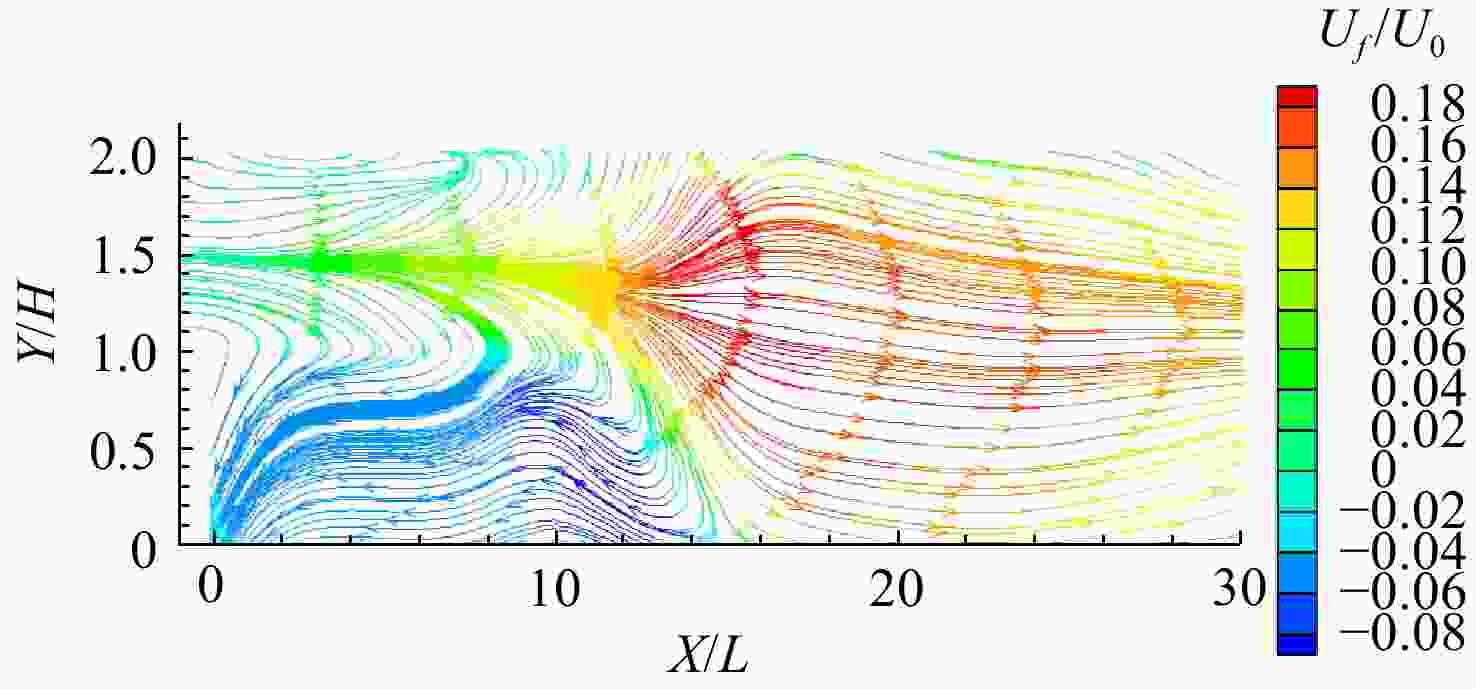

图 10 Re=389时台阶下游流场的瞬时脉动速度场分布
Figure 10. Instantaneous fluctuating velocity field distribution of the downstream flow field of the step at Re=389

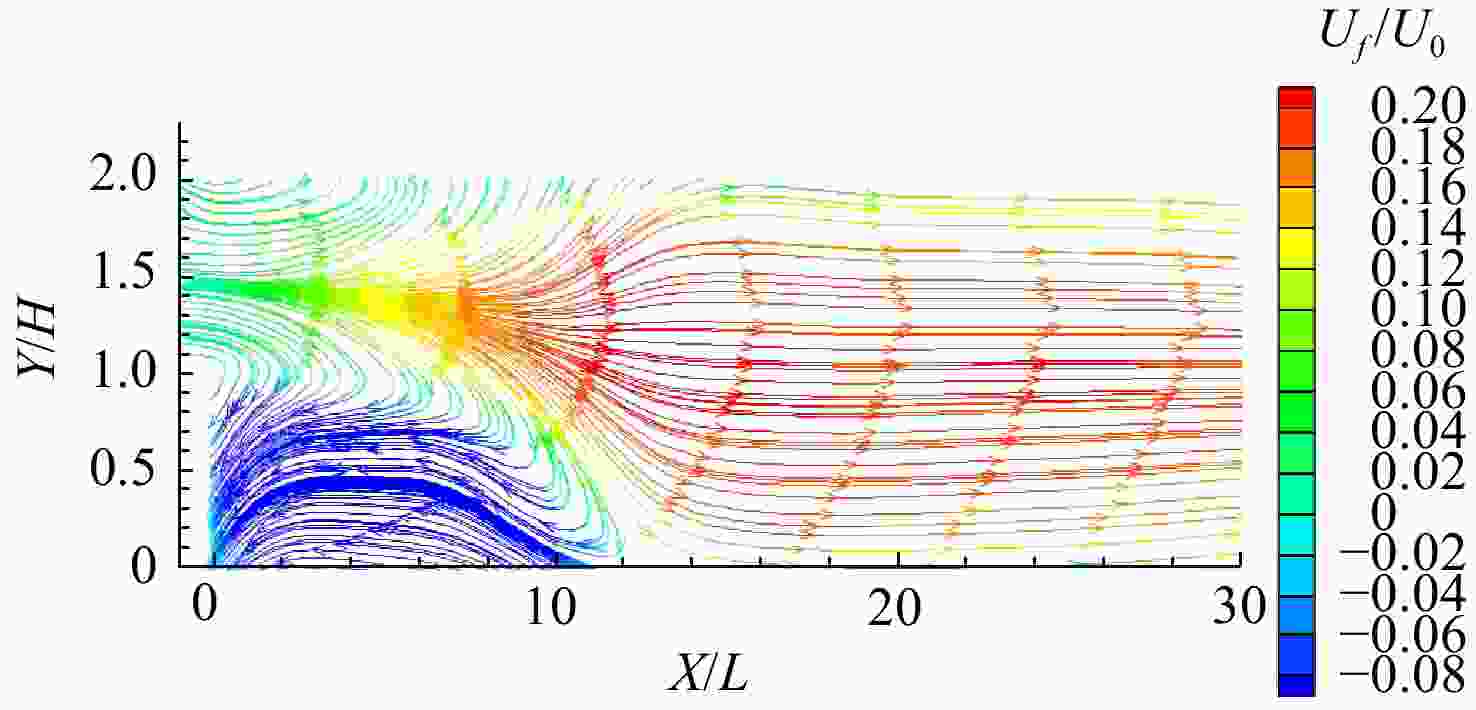

图 11 Re=
1000 时台阶下游流场的瞬时脉动速度场分布Figure 11. Instantaneous fluctuating velocity field distribution of the downstream flow field of the step at Re=
1000 -
[1] 胡如云, 王亮, 符松. 后台阶流动及其控制述评[J]. 中国科学: 物理学 力学 天文学, 2015, 45(12): 44-53. Hu Ruyun, Wang Liang, Fu Song. Review of backward-facing step flow and separation reduction[J]. Scientia Sinica (Physica, Mechanica & Astronomica), 2015, 45(12): 44-53. (in ChineseHu Ruyun, Wang Liang, Fu Song. Review of backward-facing step flow and separation reduction[J]. Scientia Sinica (Physica, Mechanica & Astronomica), 2015, 45(12): 44-53. (in Chinese) [2] 张磊, 刘滔, 高文峰, 等. 四种常用湍流模型在二维后向台阶流数值模拟上的性能比较[J]. 云南师范大学学报(自然科学版), 2012, 32(4): 8-16. Zhang Lei, Liu Tao, Gao Wenfeng, et al. Comparison of performance of four commonly-used turbulence models in numerically simulating two-dimensional backward-facing step turbulent flows[J]. Journal of Yunnan Normal University (Natural Sciences Edition), 2012, 32(4): 8-16. (in ChineseZhang Lei, Liu Tao, Gao Wenfeng, et al. Comparison of performance of four commonly-used turbulence models in numerically simulating two-dimensional backward-facing step turbulent flows[J]. Journal of Yunnan Normal University (Natural Sciences Edition), 2012, 32(4): 8-16. (in Chinese) [3] 王晋军, 连淇祥, 兰世隆. 后向台阶层流分离湍流结构的实验研究[J]. 航空学报, 1996, 17(2): 149-154. Wang Jinjun, Lian Qixiang, Lan Shilong. Experimental investigation on the turbulent coherent structures of laminar separation flow over a backward-facing step[J]. Acta Aeronautica et Astronautica Sinica, 1996, 17(2): 149-154. (in ChineseWang Jinjun, Lian Qixiang, Lan Shilong. Experimental investigation on the turbulent coherent structures of laminar separation flow over a backward-facing step[J]. Acta Aeronautica et Astronautica Sinica, 1996, 17(2): 149-154. (in Chinese) [4] 连淇祥. 后向台阶湍流拟序结构的实验研究[J]. 力学学报, 1993, 25(2): 129-133, 257-259. Lian Qixiang. An experimental investigation of the coherent structures of the flow behind a backward facing step[J]. Chinese Journal of Theoretical and Applied Mechanics, 1993, 25(2): 129-133, 257-259. (in ChineseLian Qixiang. An experimental investigation of the coherent structures of the flow behind a backward facing step[J]. Chinese Journal of Theoretical and Applied Mechanics, 1993, 25(2): 129-133, 257-259. (in Chinese) [5] 钱炜祺, 蔡金狮. 用非线性 K-ε 两方程湍流模型计算后向台阶分离流动[J]. 空气动力学学报, 1998, 16(4): 426-432. Qian Weiqi, Cai Jinshi. Numerical simulation of backward facing step flow with nonlinear K ε two equation turbulence model[J]. Acta Aerodynamica Sinica, 1998, 16(4): 426-432. (in ChineseQian Weiqi, Cai Jinshi. Numerical simulation of backward facing step flow with nonlinear K ε two equation turbulence model[J]. Acta Aerodynamica Sinica, 1998, 16(4): 426-432. (in Chinese) [6] Chiang T P, Sheu T W H. A numerical revisit of backward-facing step flow problem[J]. Physics of Fluids, 1999, 11(4): 862-874. doi: 10.1063/1.869958 [7] Tihon J, Legrand J, Legentilhomme P. Near-wall investigation of backward-facing step flows[J]. Experiments in Fluids, 2001, 31(5): 484-493. doi: 10.1007/s003480100300 [8] 齐鄂荣, 黄明海, 李炜, 等. 应用PIV进行二维后向台阶流流动特性的研究(1)二维后向台阶流的旋涡结构的研究[J]. 水动力学研究与进展(A辑), 2004, 19(4): 525-532. Qi (E| Ei)(Rong), Huang Minghai, Li Wei, et al. Investigation of vortex structure of the 2D backward facing step flow via PIV[J]. Chinese Journal of Hydrodynamics, 2004, 19(4): 525-532. (in Chinese doi: 10.16076/j.cnki.cjhd.2004.04.018Qi (E| Ei)(Rong), Huang Minghai, Li Wei, et al. Investigation of vortex structure of the 2D backward facing step flow via PIV[J]. Chinese Journal of Hydrodynamics, 2004, 19(4): 525-532. (in Chinese) doi: 10.16076/j.cnki.cjhd.2004.04.018 [9] 江立军, 高歌, 张常贤. 三维斜掠后台阶流动数值模拟[J]. 北京航空航天大学学报, 2010, 36(1): 87-90. Jiang Lijun, Gao Ge, Zhang Changxian. Numerical simulation of a swept backward-facing step flow[J]. Journal of Beijing University of Aeronautics and Astronautics, 2010, 36(1): 87-90. (in Chinese doi: 10.13700/j.bh.1001-5965.2010.01.009Jiang Lijun, Gao Ge, Zhang Changxian. Numerical simulation of a swept backward-facing step flow[J]. Journal of Beijing University of Aeronautics and Astronautics, 2010, 36(1): 87-90. (in Chinese) doi: 10.13700/j.bh.1001-5965.2010.01.009 [10] 李锴萌, 李卓越, 高南. 低速二维后向台阶流动中的壁面压强脉动[J]. 气体物理, 2020, 5(5): 35-44. Li Kaimeng, Li Zhuoyue, Gao Nan. Wall-pressure fluctuations for a low-speed two-dimensional backward-facing step flow[J]. Physics of Gases, 2020, 5(5): 35-44. (in Chinese doi: 10.19527/j.cnki.2096-1642.0803Li Kaimeng, Li Zhuoyue, Gao Nan. Wall-pressure fluctuations for a low-speed two-dimensional backward-facing step flow[J]. Physics of Gases, 2020, 5(5): 35-44. (in Chinese) doi: 10.19527/j.cnki.2096-1642.0803 [11] Rani H P, Sheu T W H, Tsai E S F. Eddy structures in a transitional backward-facing step flow[J]. Journal of Fluid Mechanics, 2007, 588: 43-58. doi: 10.1017/S002211200700763X [12] Schäfer F, Breuer M, Durst F. The dynamics of the transitional flow over a backward-facing step[J]. Journal of Fluid Mechanics, 2009, 623: 85-119. doi: 10.1017/S0022112008005235 [13] 高南, 李卓越. 后向台阶流动三维展向运动的实验研究 [C]// 中国力学学会流体力学专业委员会. 第十一届全国流体力学学术会议论文摘要集. 哈尔滨: 哈尔滨工业大学, 2020: 41. [14] 孙逸凡, 祁海鹰, 吴玉新, 等. 基于 OpenFOAM 的漂移速度单方程湍流模型应用研究 [C]// 中国力学学会流体力学专业委员会. 第十三届全国流体力学学术会议论文集. XX: XX 出版社, 2024: 511. [15] Uruba V. Dynamics of secondary flow behind backward-facing step in a narrow channel[J]. EPJ Web of Conferences, 2014, 67: 02120. doi: 10.1051/epjconf/20146702120 [16] Ratha D, Sarkar A. Analysis of flow over backward facing step with transition[J]. Frontiers of Structural and Civil Engineering, 2015, 9(1): 71-81. doi: 10.1007/s11709-014-0270-x [17] Chovet C, Lippert M, Foucaut J M, et al. Dynamical aspects of a backward-facing step flow at large Reynolds numbers[J]. Experiments in Fluids, 2017, 58(11): 162. doi: 10.1007/s00348-017-2444-5 [18] Scharnowski S, Bolgar I, Kähler C J. Characterization of turbulent structures in a transonic backward-facing step flow[J]. Flow, Turbulence and Combustion, 2017, 98(4): 947-967. doi: 10.1007/s10494-016-9792-8 [19] Bolgar I, Scharnowski S, Kähler C J. The effect of the Mach number on a turbulent backward-facing step flow[J]. Flow, Turbulence and Combustion, 2018, 101(3): 653-680. doi: 10.1007/s10494-018-9921-7 [20] Pioch F, Harmening J H, Müller A M, et al. Turbulence modeling for physics-informed neural networks: comparison of different RANS models for the backward-facing step flow[J]. Fluids, 2023, 8(2): 43. doi: 10.3390/fluids8020043 [21] Zhang Jie, Niu Xiying, Ye Lin, et al. Effect of backward-facing step and turbulence level on film cooling characteristic of a turbine concave endwall with upstream leakage flow[J]. Applied Thermal Engineering, 2024, 243: 122671. doi: 10.1016/j.applthermaleng.2024.122671 [22] Caccia C G, Corti M, Della Torre A, et al. Backward facing step: from fluid flow to conjugate heat transfer with the coupling library preCICE[J]. IOP Conference Series: Materials Science and Engineering, 2024, 1312(1): 012007. doi: 10.1088/1757-899X/1312/1/012007 [23] Yan Wenhui, Sun Zhaozheng, Sun Yifan, et al. Implementation of a PAFV turbulence model for airfoil flow simulation on OpenFOAM[J]. Physica Scripta, 2024, 99(5): 055203. doi: 10.1088/1402-4896/ad3492 [24] Armaly B F, Durst F, Pereira J C F, et al. Experimental and theoretical investigation of backward-facing step flow[J]. Journal of Fluid Mechanics, 1983, 127: 473-496. doi: 10.1017/S0022112083002839 [25] 齐鄂荣, 黄明海, 李炜, 等. 二维后向台阶流流动特性的实验研究[J]. 实验力学, 2006, 21(2): 225-232. Qi Erong, Huang Minghai, Li Wei, et al. A experimental study on the 2D time-average flow over a backward facing step via PIV[J]. Journal of Experimental Mechanics, 2006, 21(2): 225-232. (in Chinese doi: 10.3969/j.issn.1001-4888.2006.02.018Qi Erong, Huang Minghai, Li Wei, et al. A experimental study on the 2D time-average flow over a backward facing step via PIV[J]. Journal of Experimental Mechanics, 2006, 21(2): 225-232. (in Chinese) doi: 10.3969/j.issn.1001-4888.2006.02.018 -
