旋流条件多参数耦合对横向射流煤油雾化特性影响

王波; 韩雨杉; 苗家铭; 任光明

doi:10.13224/j.cnki.jasp.20250300

旋流条件多参数耦合对横向射流煤油雾化特性影响

doi: 10.13224/j.cnki.jasp.20250300

南方科技大学力学与航空航天工程系，广东深圳 518055

基金项目: 国家科技重大专项（J2019-Ⅲ-0002-0045，J2019-Ⅲ-0005-0048）

详细信息

通讯作者:
王波（1988-），男，副研究员，博士，主要从事航空发动机燃烧、先进光学诊断方面的研究。E-mail：wangb6@sustech.edu.cn

中图分类号: V231.1
计量
- 文章访问数: 633
- HTML浏览量: 319
- PDF量: 66
- 被引次数: 0
出版历程
- 收稿日期: 2025-06-25
- 网络出版日期: 2025-11-20

Multi-parameter coupling effects on atomization characteristics of kerosene jet in swirling crossflow

Department of Mechanics and Aerospace Engineering，Southern University of Science and Technology，Shenzhen Guangdong 518055，China

摘要

摘要:
航空发动机燃烧室工作环境复杂，旋流条件下多参数耦合作用对横向射流雾化特性的影响规律尚不清楚。采用激光粒度仪、平面激光测量的方法，获取了空气压力、空气温度、旋流器压降比、燃油温度、油气比等多参数交叉影响下的雾化粒径和油雾锥角数据，构建了包含韦伯数、雷诺数、奥内佐格数、旋流数等无量纲参数的半经验模型。研究发现：雾化粒径与气体韦伯数相关系数高达0.964，而韦伯数主要受进气压力及旋流器压降比影响；旋流强度对雾化粒径影响较小。油雾锥角与旋流强度的相关系数为0.866，说明燃油分布受旋流强度的影响较大，要显著强于动量比的影响。给定旋流条件下煤油雾化特性数据及半经验模型，可为航发燃烧室性能优化以及横向射流雾化喷嘴的设计提供支撑。
- 航空发动机燃烧室 /
- 横向射流喷射 /
- 旋流条件 /
- 多参数耦合影响 /
- 雾化特性
Abstract:
Due to the complex operating environment in aero-engine combustors, the laws governing the effects of multi-parameter coupling on the atomization characteristics of a kerosene jet in a swirling crossflow remain unclear. Utilizing a laser particle sizer and planar laser imaging techniques, data on droplet size and spray cone angle under the cross-effect of multiple parameters, including air pressure, air temperature, swirler pressure drop ratio, fuel temperature, and fuel-air ratio, were obtained. Semi-empirical models incorporating dimensionless parameters such as the Weber number, Reynolds number, Ohnesorge number, and swirl number were developed. The test results indicated that the correlation coefficient between the droplet size and the gas Weber number was as high as 0.964. The Weber number was mainly affected by the inlet pressure and the pressure drop ratio of the swirler, while the swirl intensity had a relatively minor impact on the droplet size. The correlation coefficient between the spray cone angle and the swirl intensity was 0.866, indicating that the fuel distribution was significantly affected by the swirl intensity, and this effect was notably stronger than that of the momentum ratio. The spray characteristic data and semi-empirical models established under swirling conditions could provide valuable support for optimizing aero-engine combustor performance and designing cross-flow atomizing nozzles.
- aero-engine combustor /
- jet in crossflow /
- swirling conditions /
- multi-parameter coupling effects /
- atomization characteristics

HTML

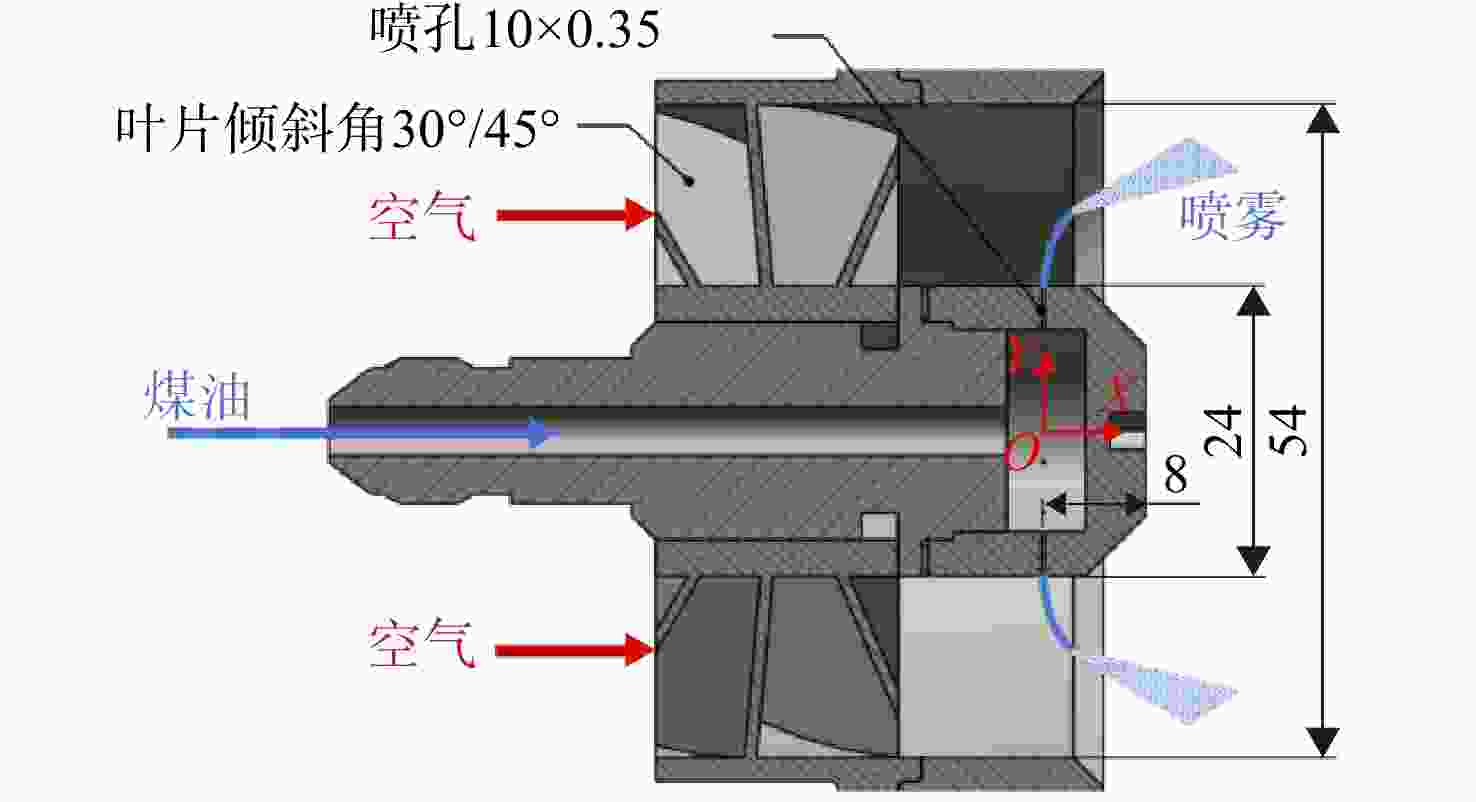

图 1 旋流喷嘴结构示意图（单位：mm）

Figure 1. Detail structure of swirl nozzle （unit：mm）

下载: 全尺寸图片幻灯片

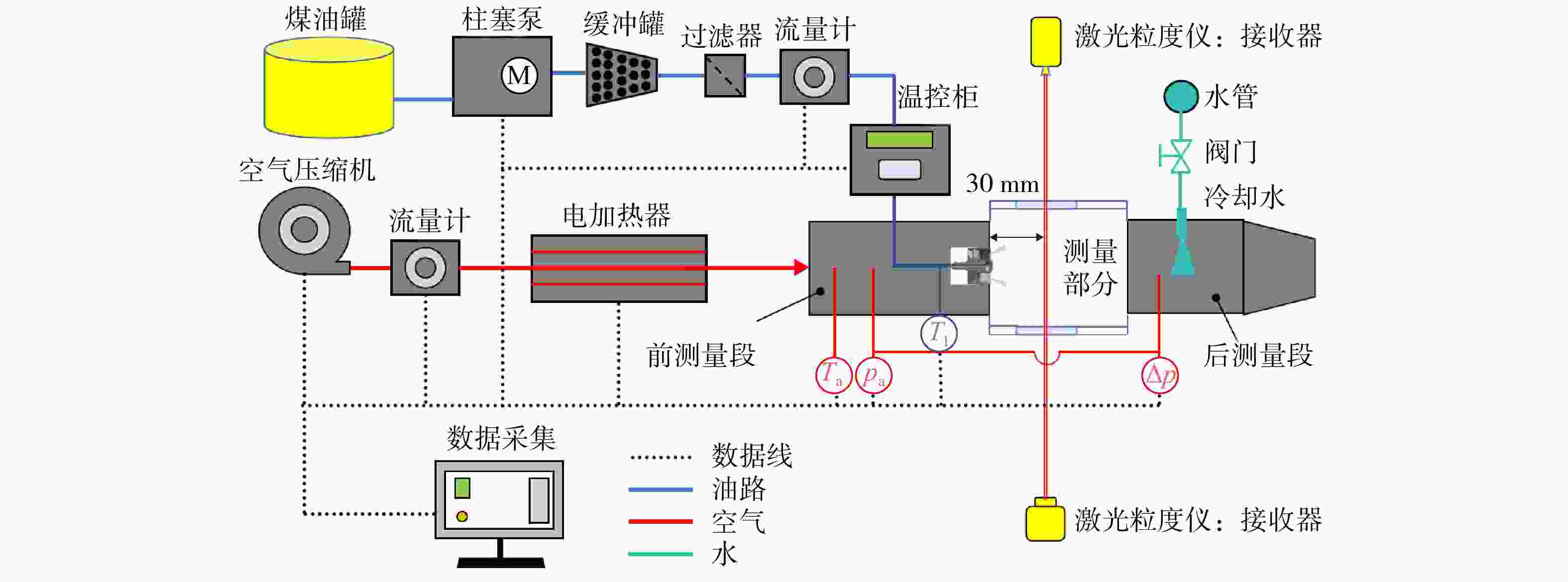

图 2 试验系统示意图

Figure 2. Schematic of the test system

下载: 全尺寸图片幻灯片

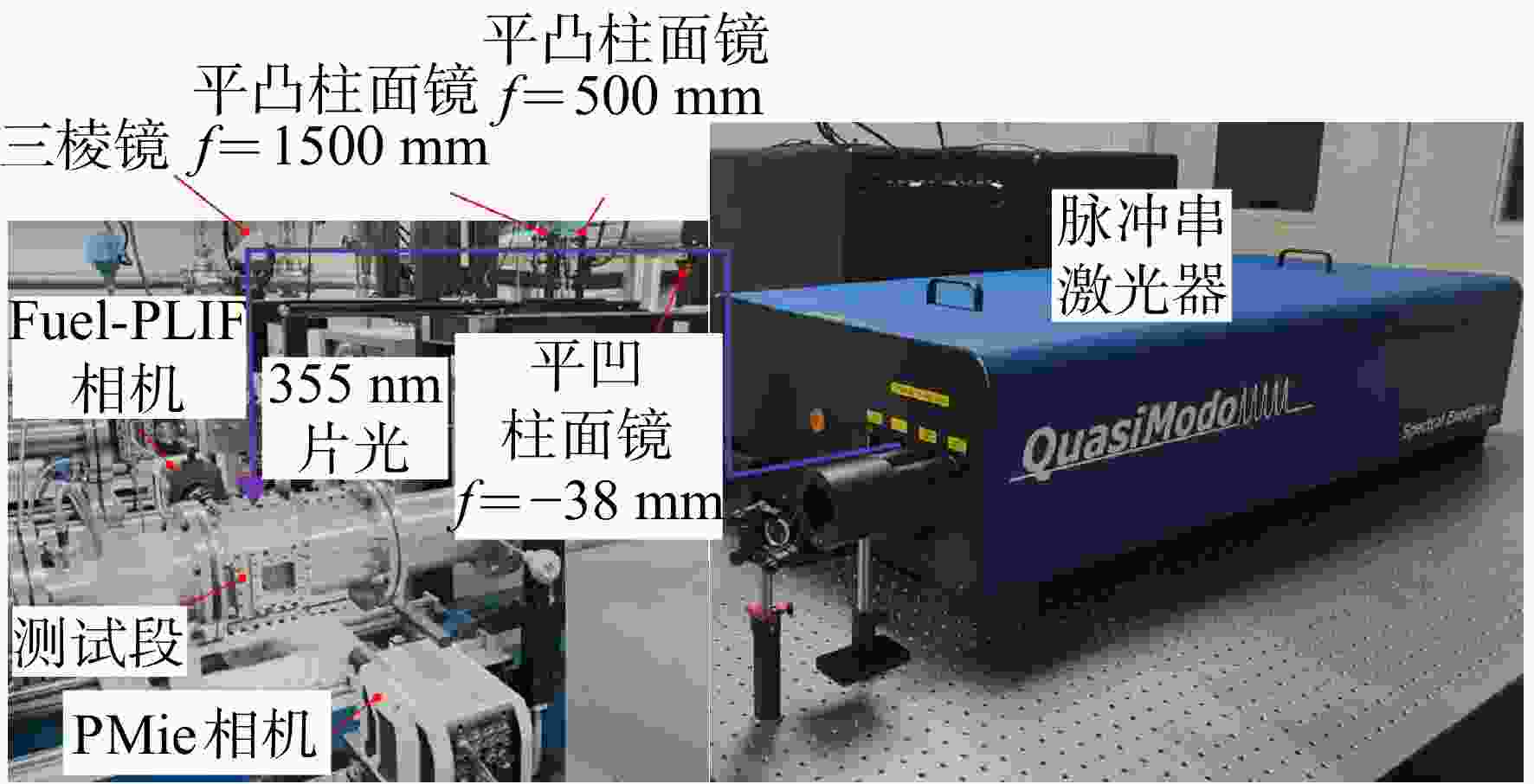

图 3 激光光学测量系统

Figure 3. Layout for optical measurements

下载: 全尺寸图片幻灯片

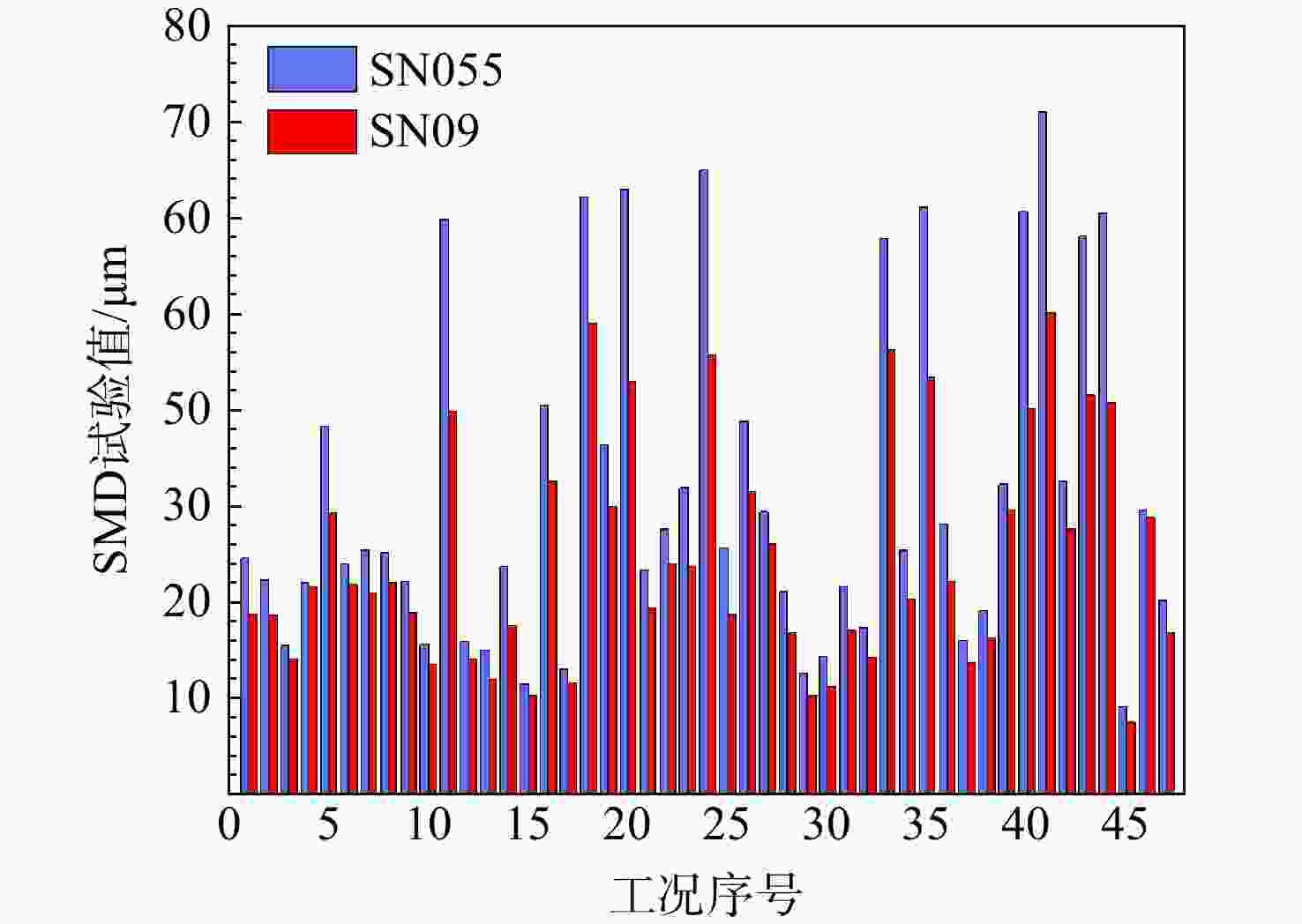

图 4 SMD试验结果

Figure 4. Test results of SMD

下载: 全尺寸图片幻灯片

图 5 工况变量的Spearman相关系数

Figure 5. Spearman coefficient of operating condition variables

下载: 全尺寸图片幻灯片

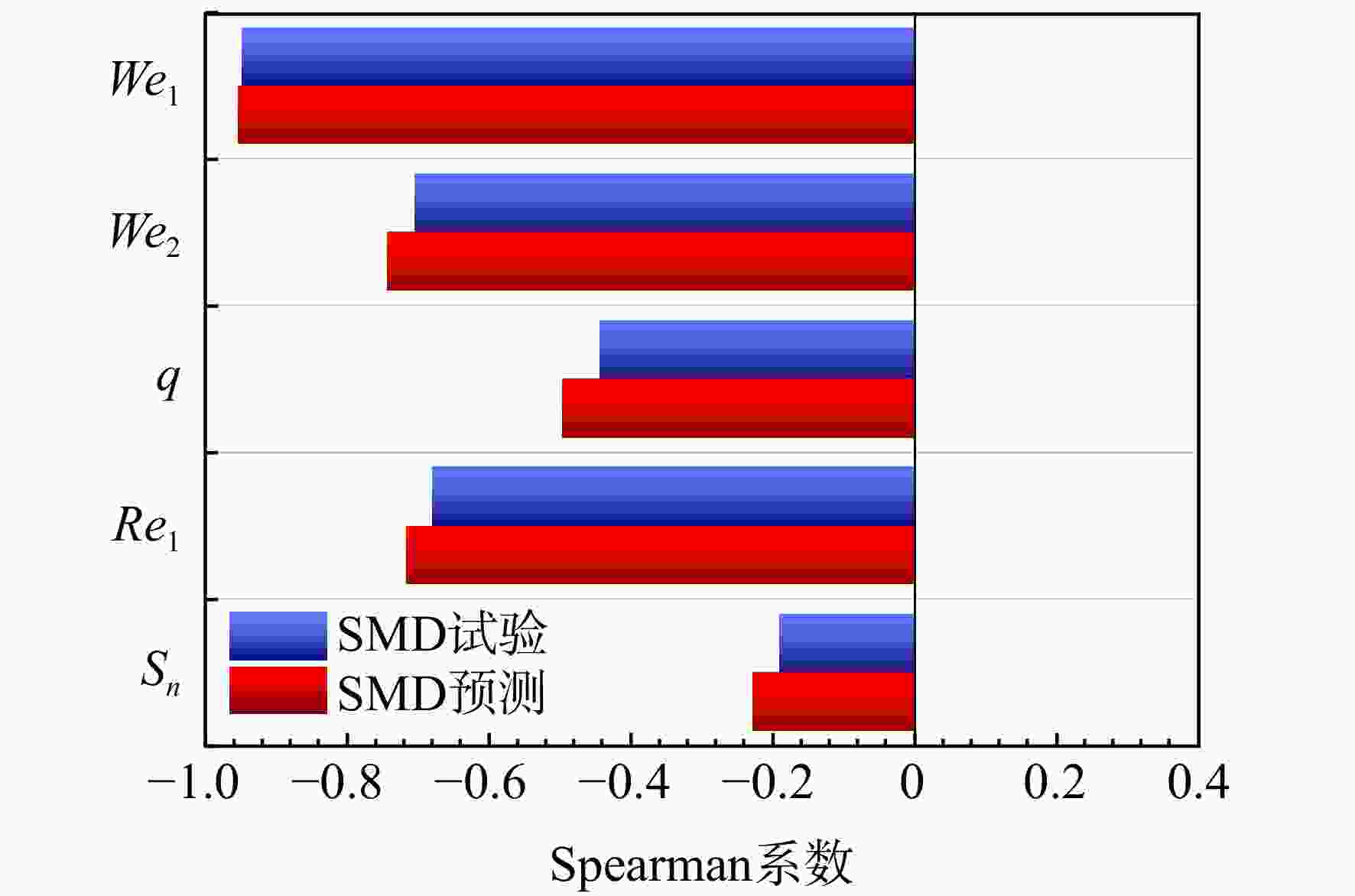

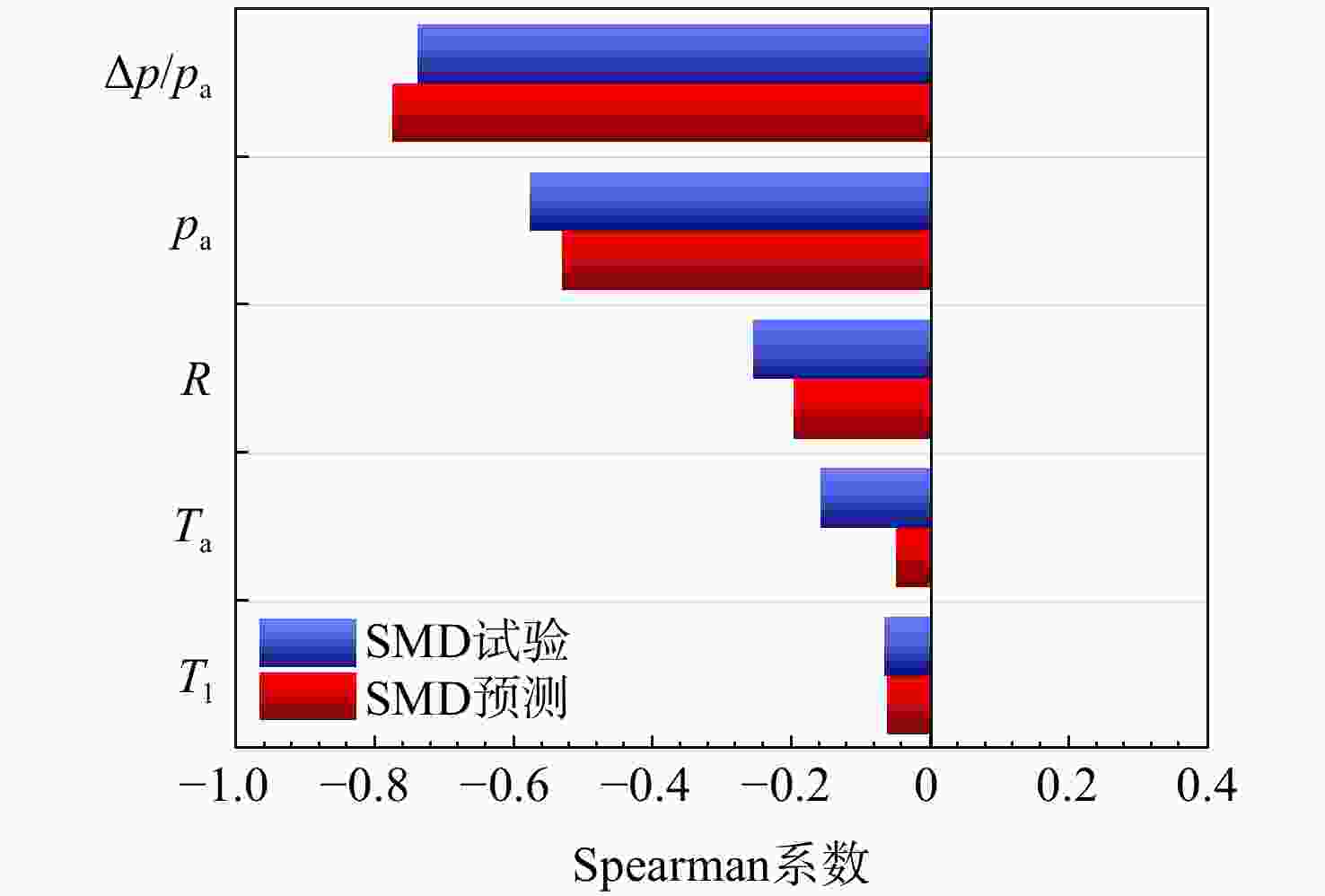

图 6 预测模型中各独立变量的Spearman相关系数

Figure 6. Spearman coefficient of the independent variables of the prediction model

下载: 全尺寸图片幻灯片

图 7 SMD预测分布

Figure 7. Distribution of predicted SMD

下载: 全尺寸图片幻灯片

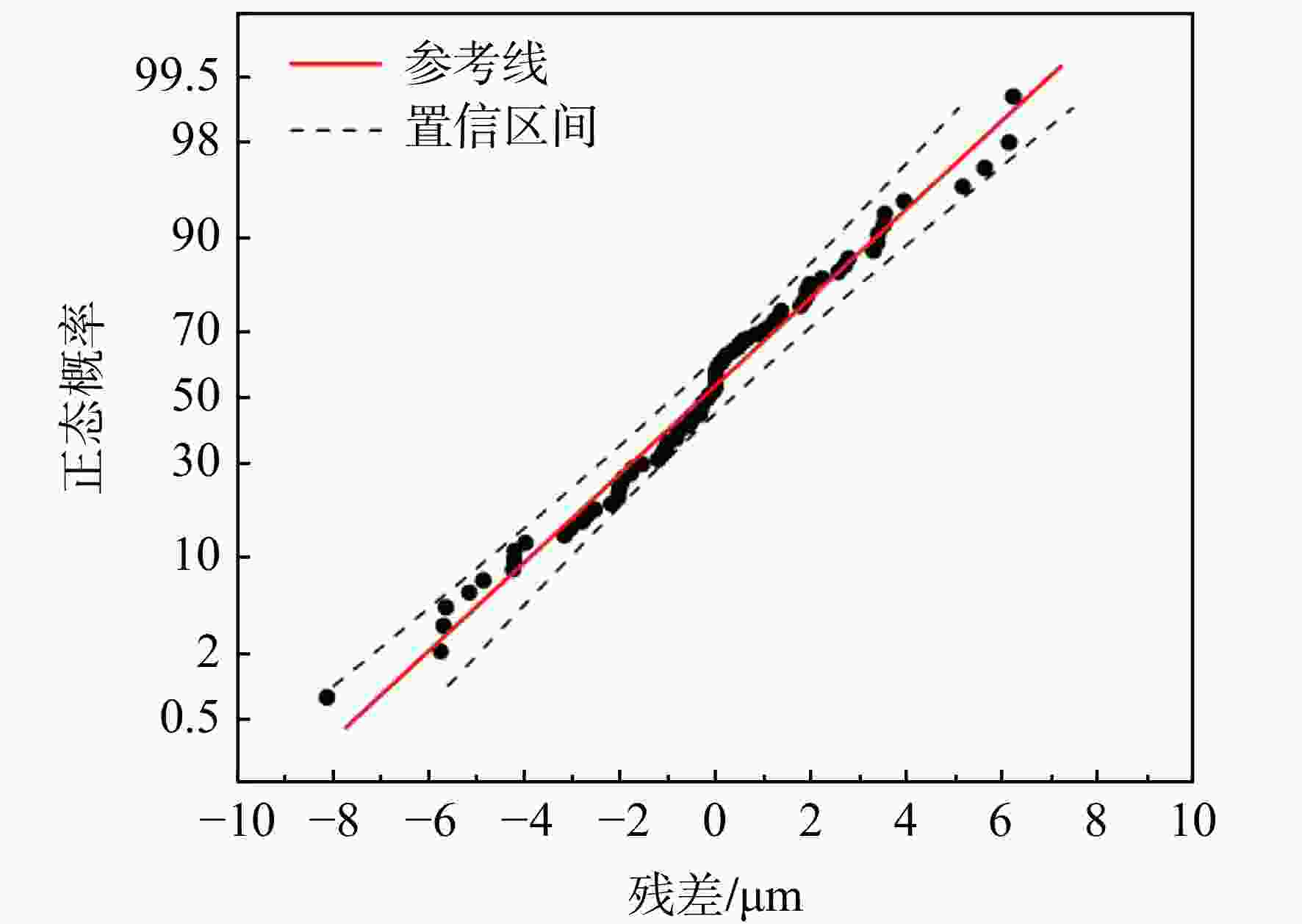

图 8 SMD残差正态概率图

Figure 8. Normal probability plots of SMD residuals

下载: 全尺寸图片幻灯片

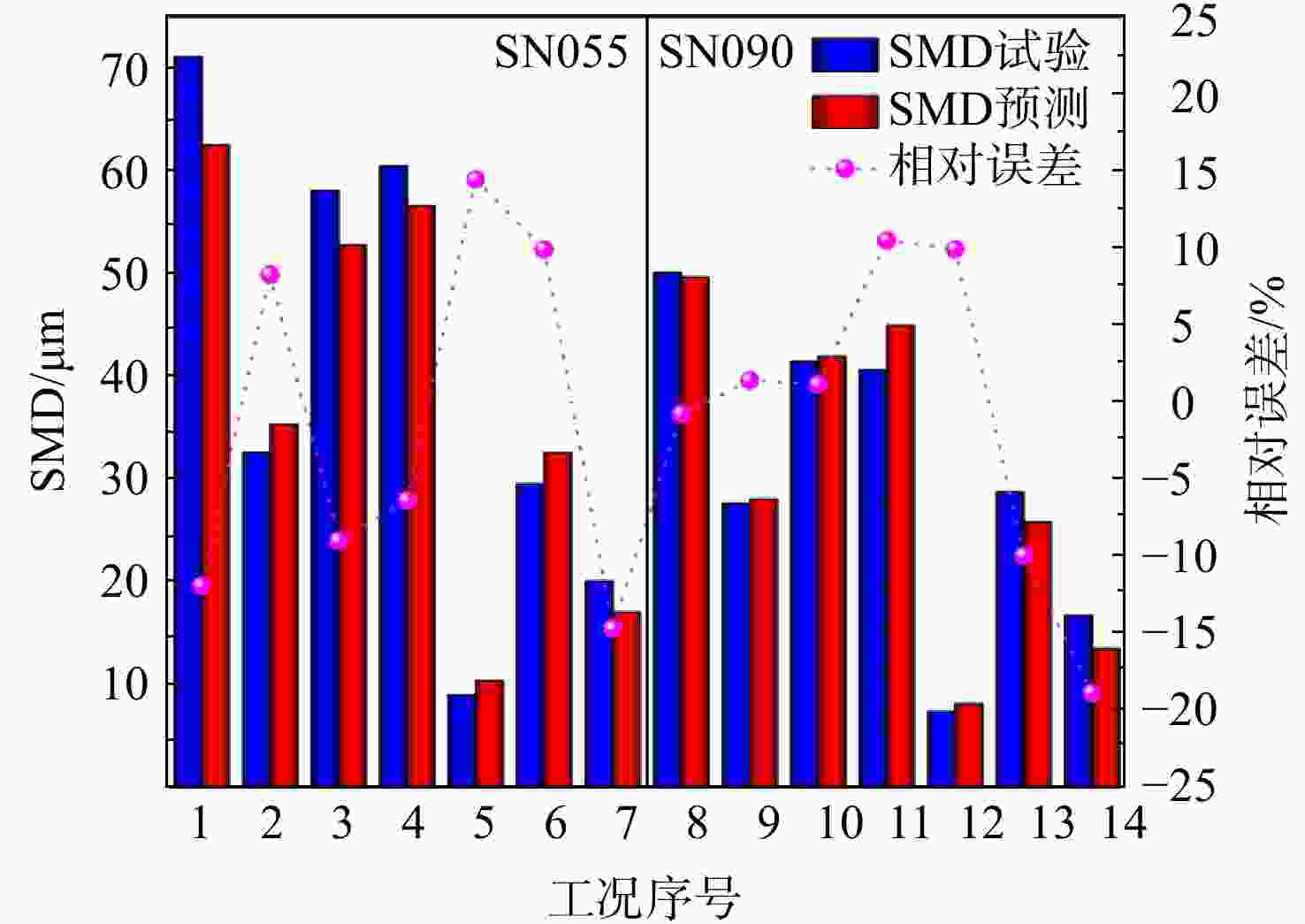

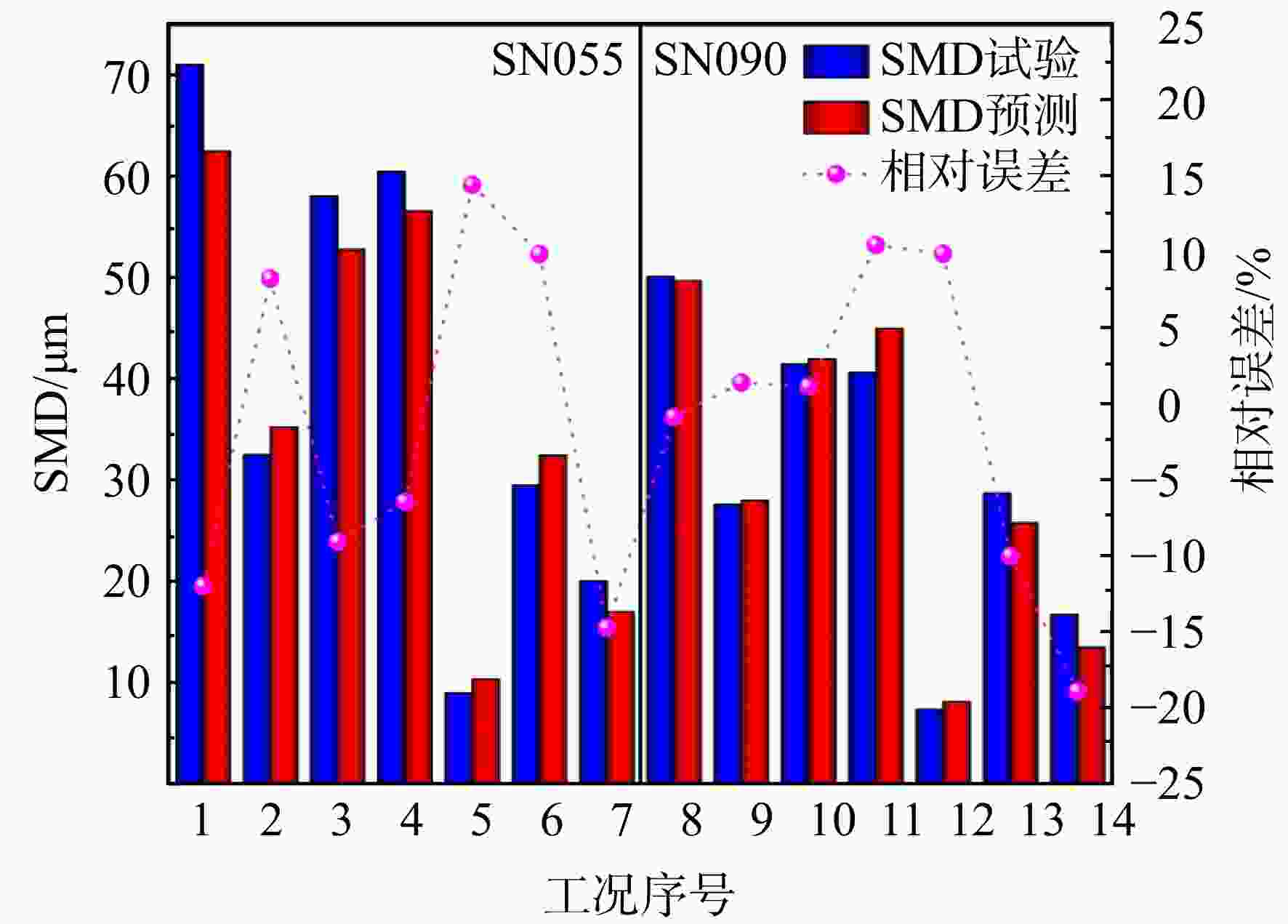

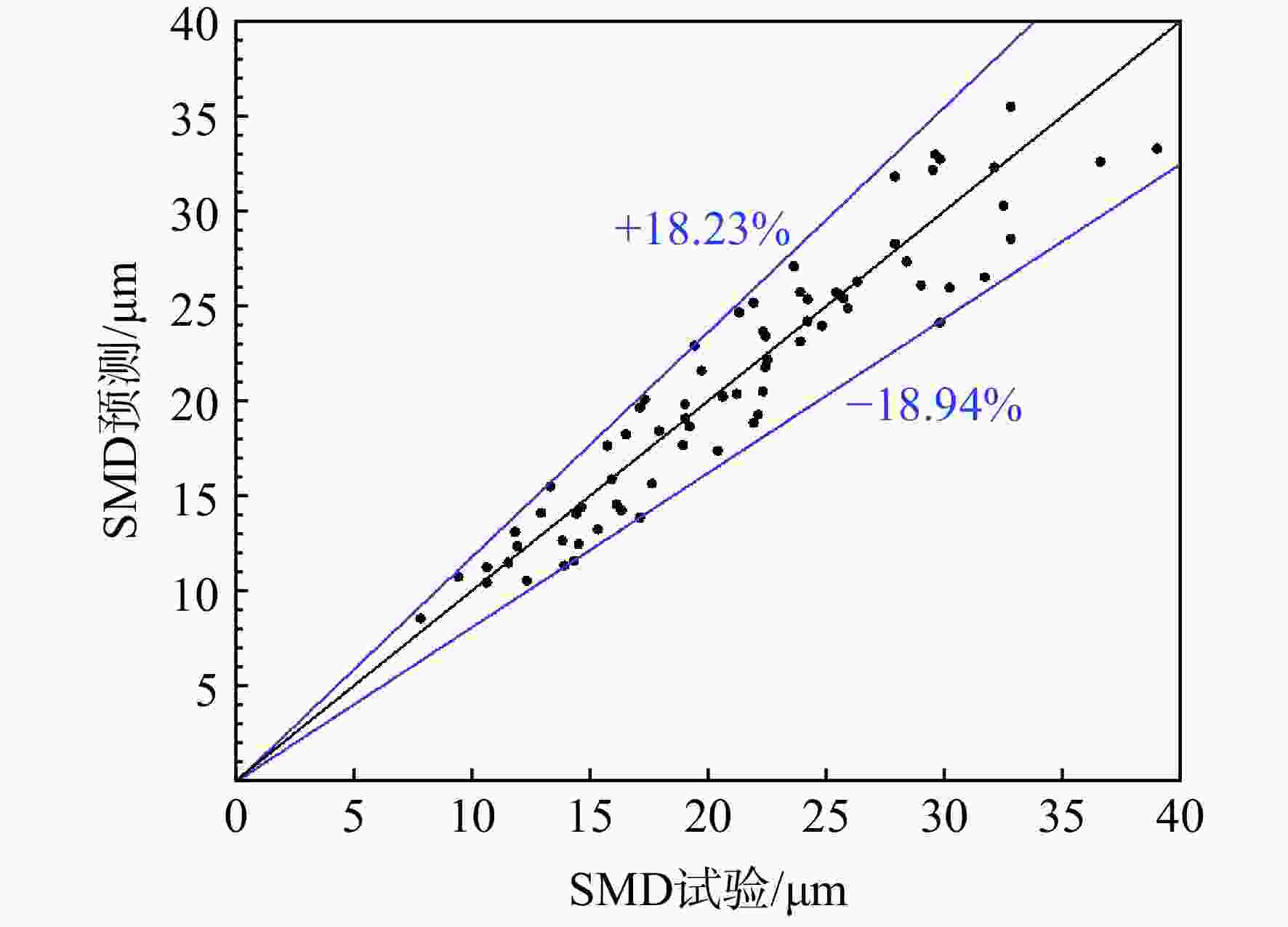

图 9 SMD模型的泛化能力检验

Figure 9. Test of the SMD model’s ability to generalize

下载: 全尺寸图片幻灯片

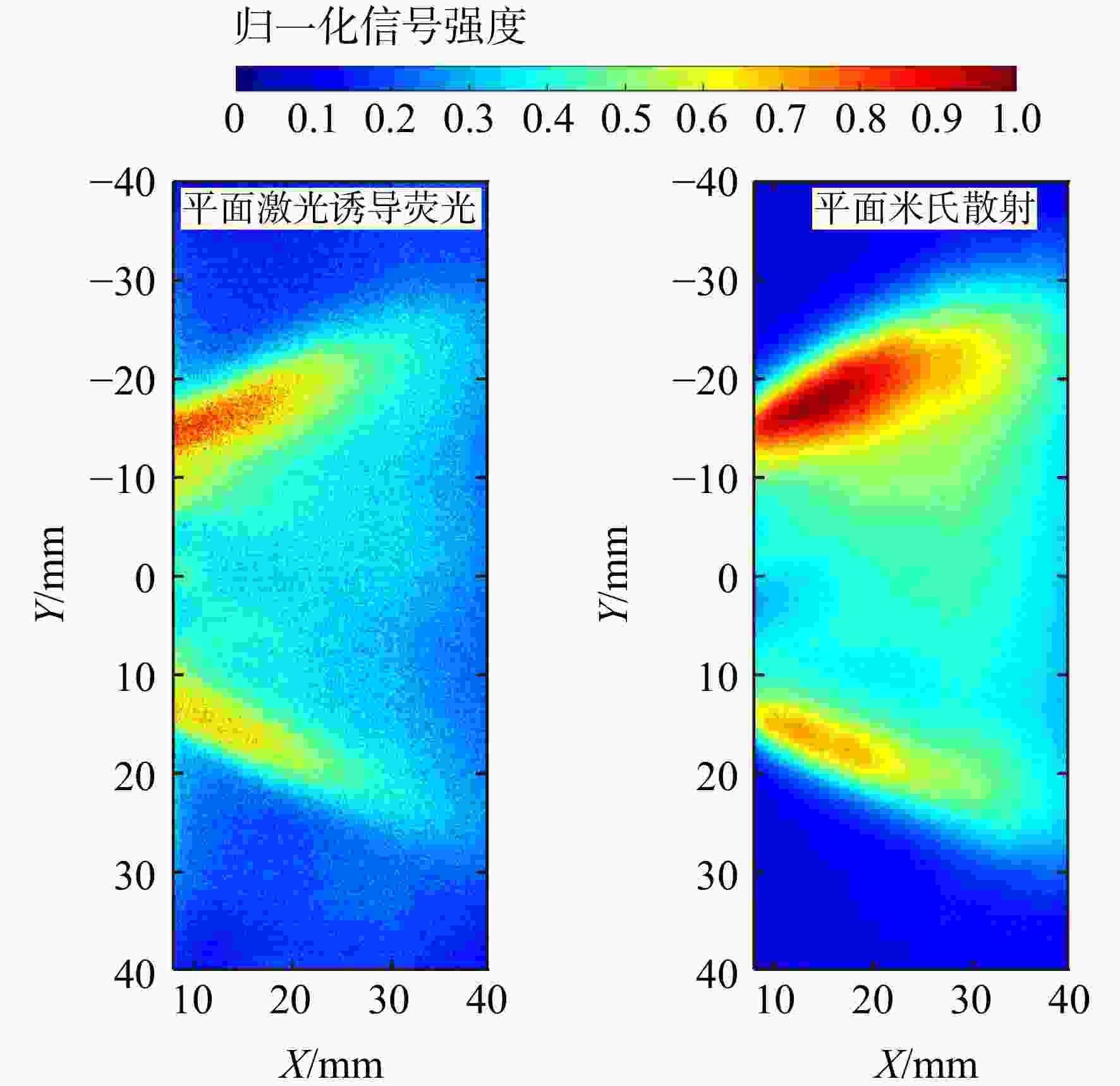

图 10 归一化PLIF与PMie信号对比

Figure 10. Comparison of normalized PLIF and PMie signals

下载: 全尺寸图片幻灯片

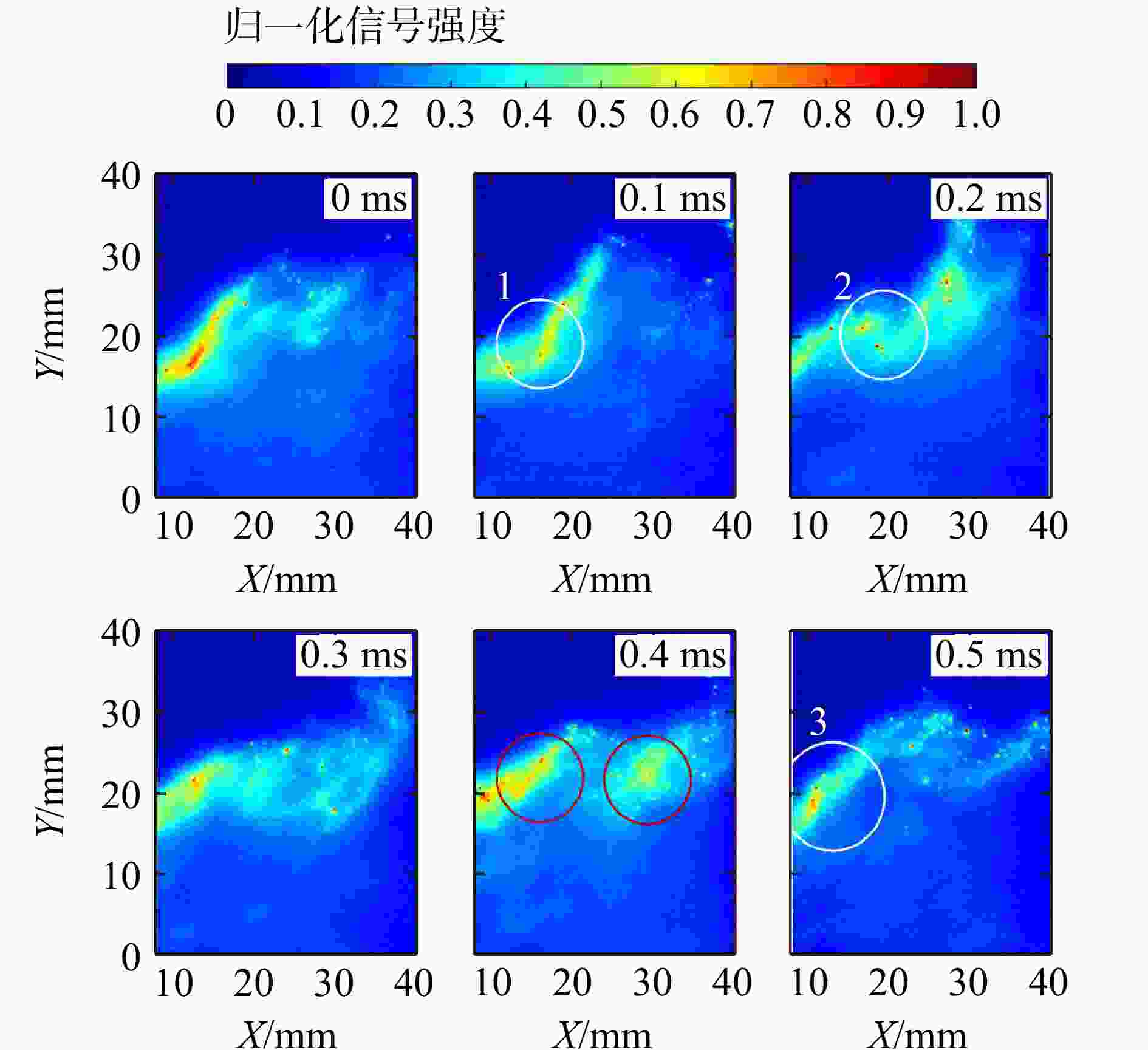

图 11 燃料分布瞬态演变

Figure 11. Instantaneous evolution of fuel distribution

下载: 全尺寸图片幻灯片

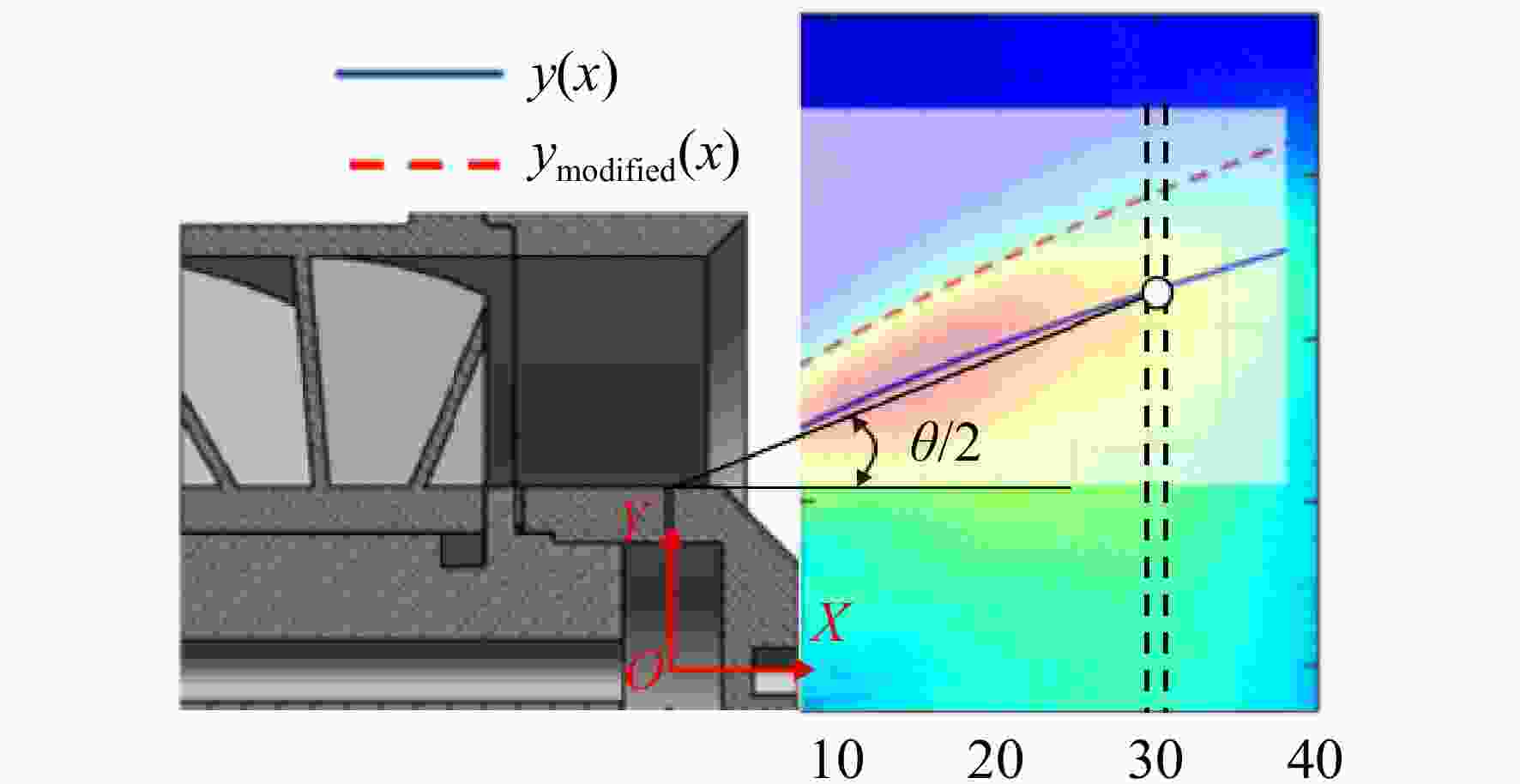

图 12 分布理论模型及锥角$ \theta $示意图验证

Figure 12. Validation of the theoretical model for distribution and the schematic diagram illustrating the cone angle $ \mathrm{\theta } $

下载: 全尺寸图片幻灯片

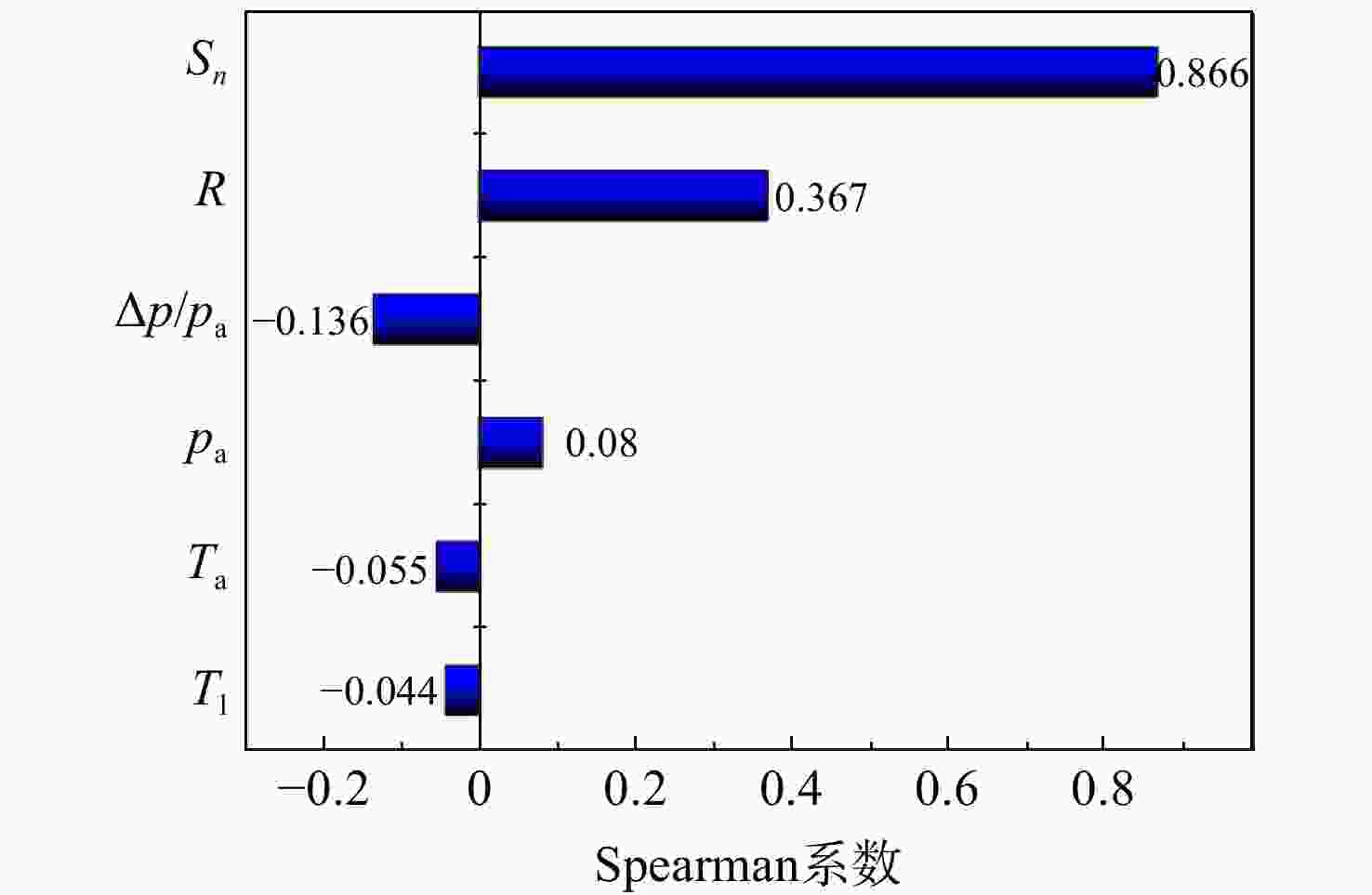

图 13 锥角自变量的Spearman系数

Figure 13. Spearman coefficient of the independent variables of the cone angle

下载: 全尺寸图片幻灯片

图 14 油雾锥角θ的预测分布

Figure 14. Distribution of predicted spray cone angle θ

下载: 全尺寸图片幻灯片

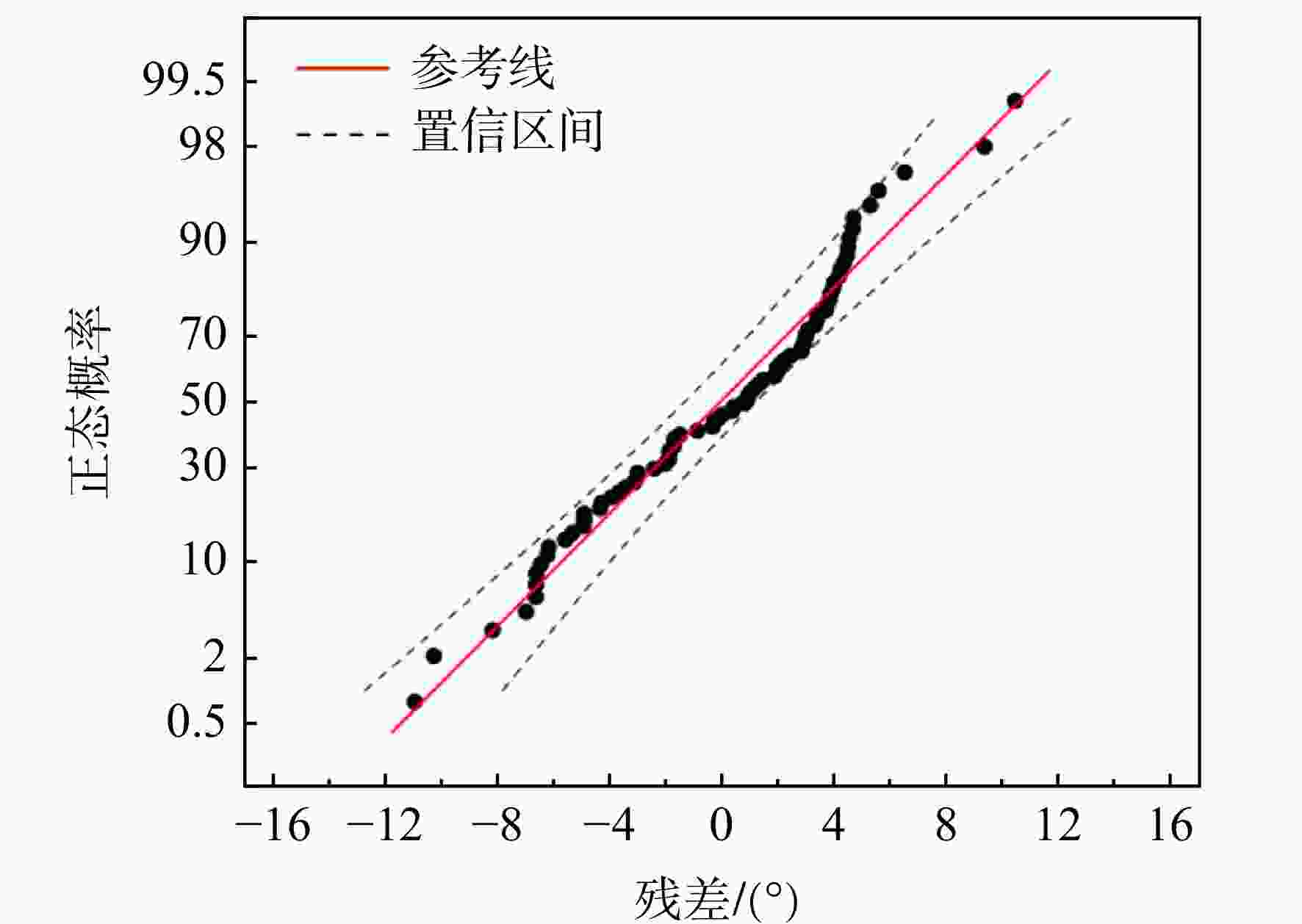

图 15 油雾锥角残差的正态概率分布

Figure 15. Normal probability plots of spray angle residuals

下载: 全尺寸图片幻灯片

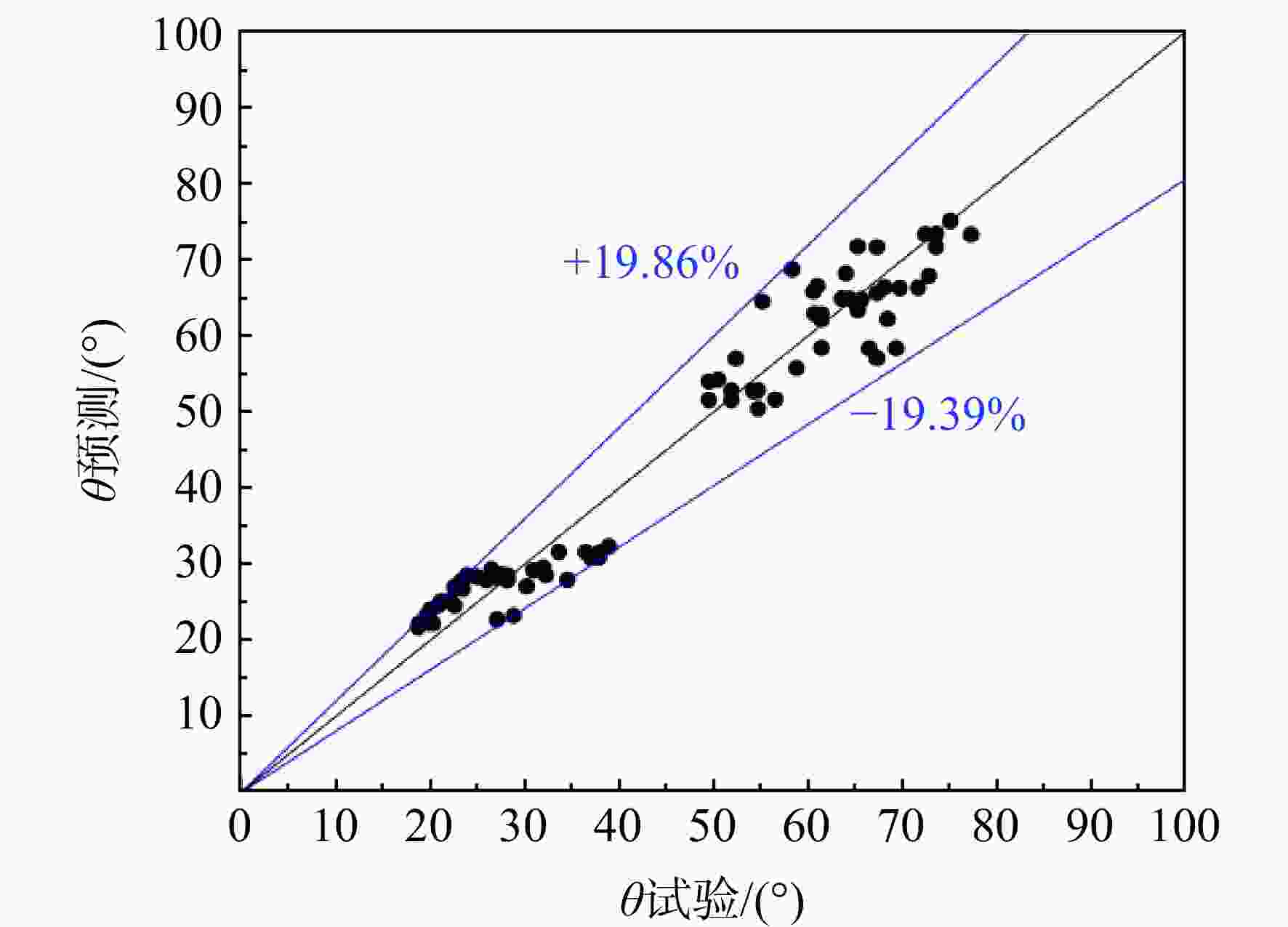

图 16 喷雾锥角模型的泛化能力检验

Figure 16. Test of the spray angle model’s ability to generalize

下载: 全尺寸图片幻灯片

表 1 SN055工况条件表

Table 1. Operating conditions of SN055

序号	p_a/MPa	T_a/K	（Δp/p_a）/%	T_l/K	R
1	0.3	450	4	316	0.040
2	0.3	450	4	346	0.040
3	0.3	450	6	316	0.040
4	0.3	350	4	316	0.040
5	0.3	450	2	316	0.040
6	0.3	550	4	316	0.040
7	0.3	450	4	286	0.040
8	0.3	450	4	316	0.020
9	0.3	450	4	316	0.050
10	0.5	450	4	316	0.040
11	0.1	450	4	316	0.040
12	0.4	490	6	331	0.020
13	0.4	490	6	331	0.050
14	0.2	490	6	331	0.05
15	0.4	410	6	331	0.05
16	0.4	490	2	301	0.02
17	0.4	410	6	301	0.02
18	0.2	410	2	301	0.05
19	0.4	490	2	301	0.05
20	0.2	410	2	301	0.02
21	0.2	410	6	301	0.02
22	0.4	410	2	331	0.05
23	0.4	410	2	301	0.05
24	0.2	490	2	301	0.05
25	0.2	490	6	301	0.05
26	0.4	490	2	331	0.02
27	0.4	410	2	331	0.02
28	0.2	410	6	301	0.05
29	0.4	410	6	301	0.05
30	0.4	410	6	331	0.02
31	0.2	410	6	331	0.02
32	0.4	490	6	301	0.02
33	0.2	490	2	331	0.02
34	0.2	490	6	331	0.02
35	0.2	410	2	331	0.02
36	0.2	490	6	301	0.02
37	0.4	490	6	301	0.05
38	0.2	410	6	331	0.05
39	0.4	490	2	331	0.05
40	0.2	410	2	331	0.02
41	0.2	490	2	301	0.02
42	0.4	410	2	301	0.02
43	0.2	490	2	331	0.05
44	0.1	303	4	316	0.04
45	0.8	550	4	316	0.05
46	0.2	340	4	316	0.04
47	0.45	500	4	316	0.04

下载: 导出CSV

表 2 工况水平度取值

Table 2. Values of the level for operating conditions

工况条件	水平度
p_a/MPa	0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8
T_a/K	303, 340, 350, 410, 450, 490, 500, 550
（Δp/p_a）/%	2, 4, 6
T_l/K	286, 301, 316, 331, 346
R	0.02, 0.04, 0.05

下载: 导出CSV

表 3 SMD相关变量系数值及方差

Table 3. SMD’s values of the coefficients and the variance R²

系数	数值
A	5.6689
B	−0.7739
C	0.0240
D	−0.0723
E	−0.0061
F	−0.4014
R²	0.983
平均误差/%	8.22

下载: 导出CSV

表 4 锥角相关系数值及方差

Table 4. Cone angle’s values of the coefficients and the variance R²

参数	数值
$ \alpha $	6.274
$ \beta $	4.140
$ \gamma $	0.125
$ \delta $	−0.091
$ \varepsilon $	0.022
$ {R}^{2} $	0.945
平均误差/%	9.84

下载: 导出CSV
