Analysis method for oxygen volume fraction in inerting process of multi-compartment fuel tanks in civil aircraft
-
摘要:
针对民机多隔舱燃油箱惰化过程中氧气体积分数分析的难题，提出了一种基于流动模式识别并引入掺混修正项的氧气体积分数分析模型。通过将相邻隔舱间的气体掺混效应纳入建模过程，使得模型更加适配工程实际场景，通过某民用支线飞机平台的工程化应用，基于16架次研发试飞和4架次符合性试飞完成掺混系数修正与模型仿真精度验证，结果表明模型仿真误差下限不超过−0.26%，满足工程需求。研究发现，航后地面阶段相邻隔舱因掺混作用可在15 min内实现氧气体积分数趋同，验证了掺混效应对惰化均匀性的促进作用。忽略掺混将导致下降阶段仿真数据与试飞数据显著偏离，航后地面阶段前隔舱氧气体积分数误差达1.5%。研究成果为惰化系统设计及适航符合性验证提供了可靠技术支撑，已获多国适航机构认可。
Abstract:To address the challenge of oxygen volume fraction analysis in the inerting process of multi-compartment fuel tanks for civil aircraft, an oxygen volume fraction analysis model based on flow pattern recognition with the incorporation of a gas blending correction term was proposed. By incorporating the gas blending effect between adjacent compartments into the modeling process, the model became more adaptable to real-world engineering scenarios. Through engineering applications on a certain regional airliner platform, the blending coefficient correction and model simulation accuracy verification were completed based on 16 development test flights and 4 compliance test flights. The results demonstrated that the model’s simulation error remained within a lower limit of −0.26%, meeting engineering requirements. It revealed that during the post-flight ground phase, adjacent compartments can achieve oxygen volume fraction convergence within 15 min due to mixing effects, verifying the promoting role of blending in inerting uniformity. Neglecting blending effects could lead to significant deviations between simulation data and flight test data during the descent phase, with oxygen volume fraction errors reaching 1.5% in the forward compartment during the post-flight ground phase. The research outcomes could provide a reliable technical support for inerting system design and airworthiness compliance verification, helping to gain recognition from multiple national airworthiness authorities.
-
Key words:
- multi-compartment fuel tank /
- inerting process /
- oxygen volume fraction /
- gas blending /
- flight test
-

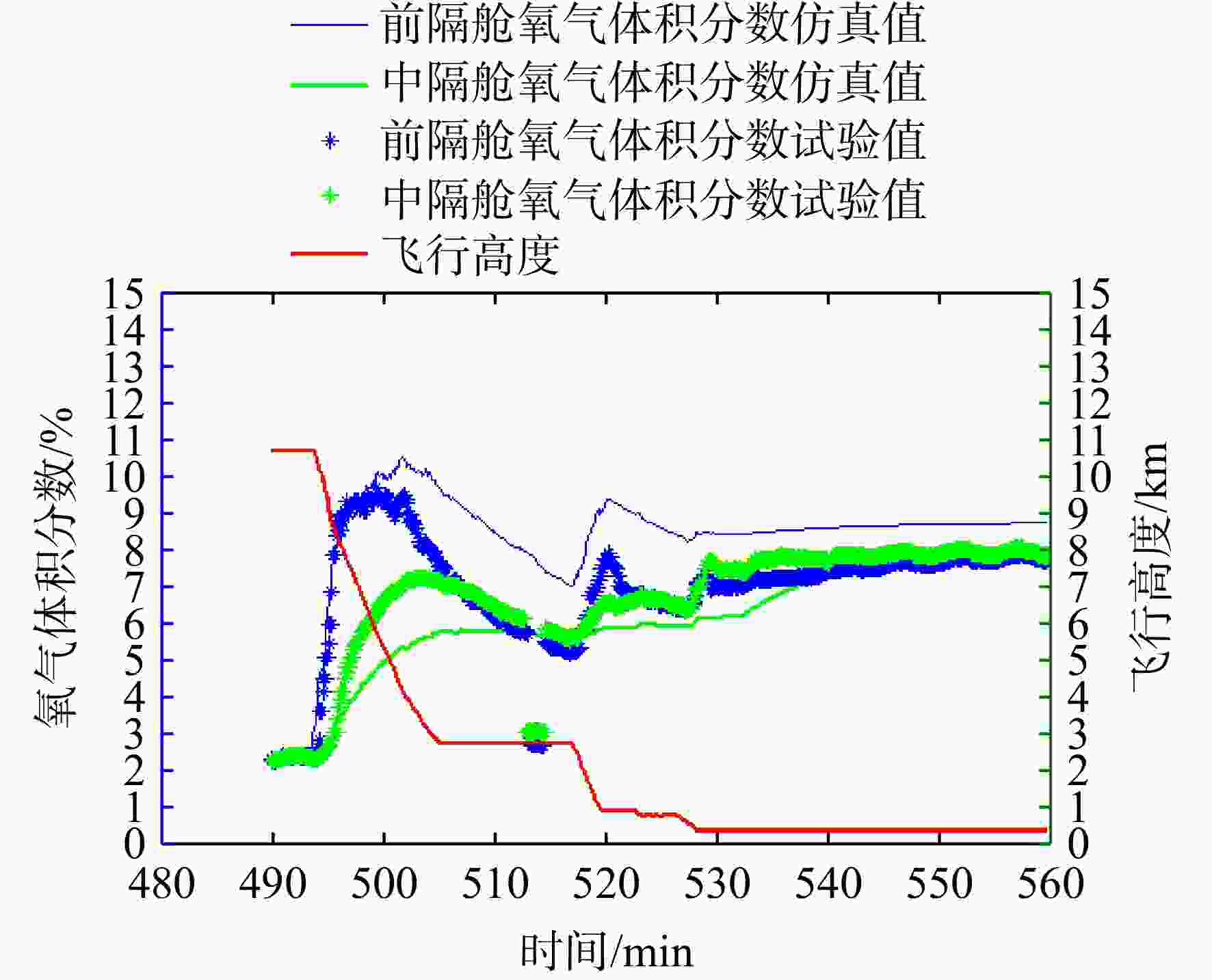

图 8 常温天长航程试飞架次模型验证（不考虑掺混）
Figure 8. Standard day long range flight test validation （without considering gas blending effect）

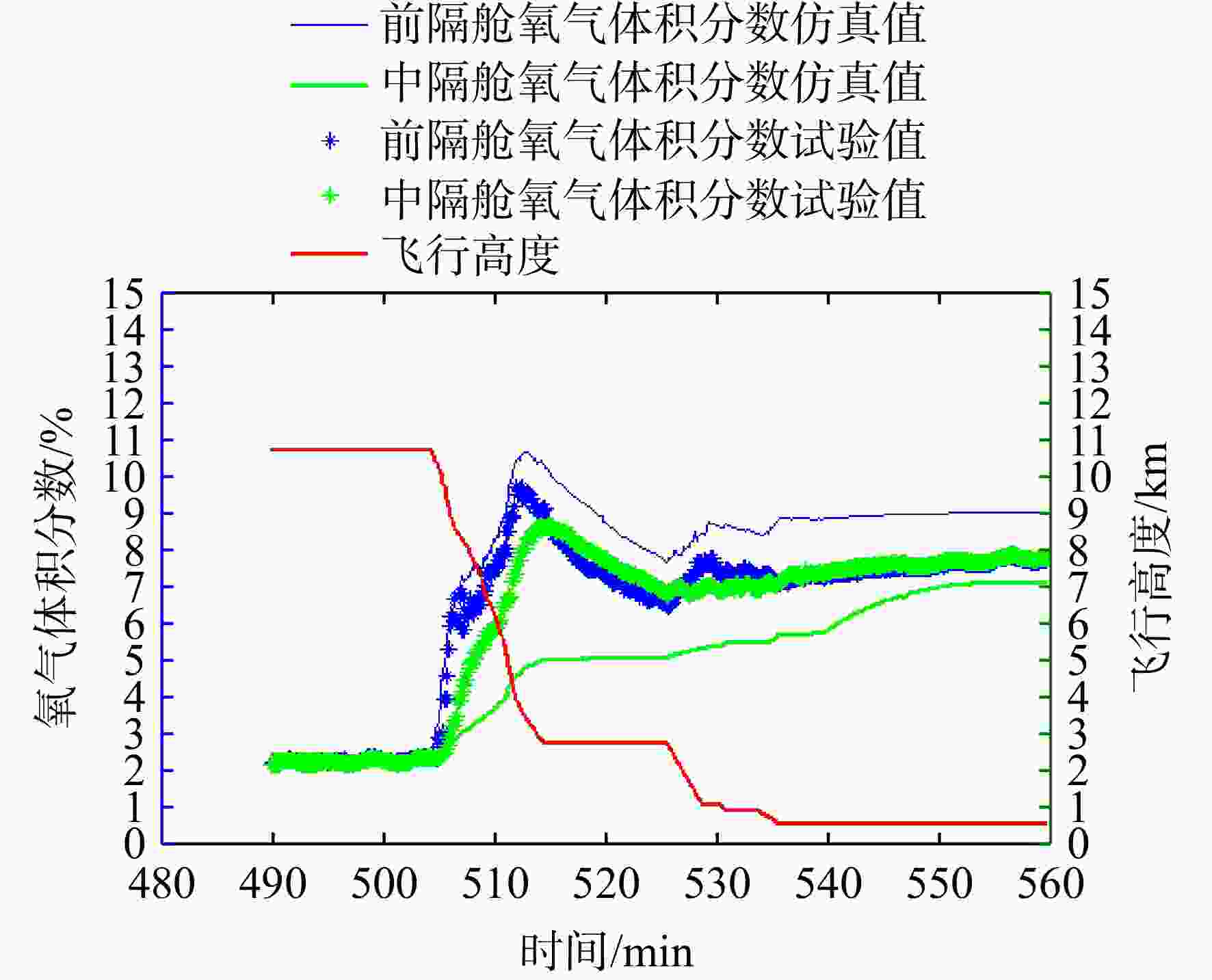

图 9 暖天长航程试飞架次模型验证（不考虑掺混）
Figure 9. Warm day long range flight test validation （without considering gas blending effect）

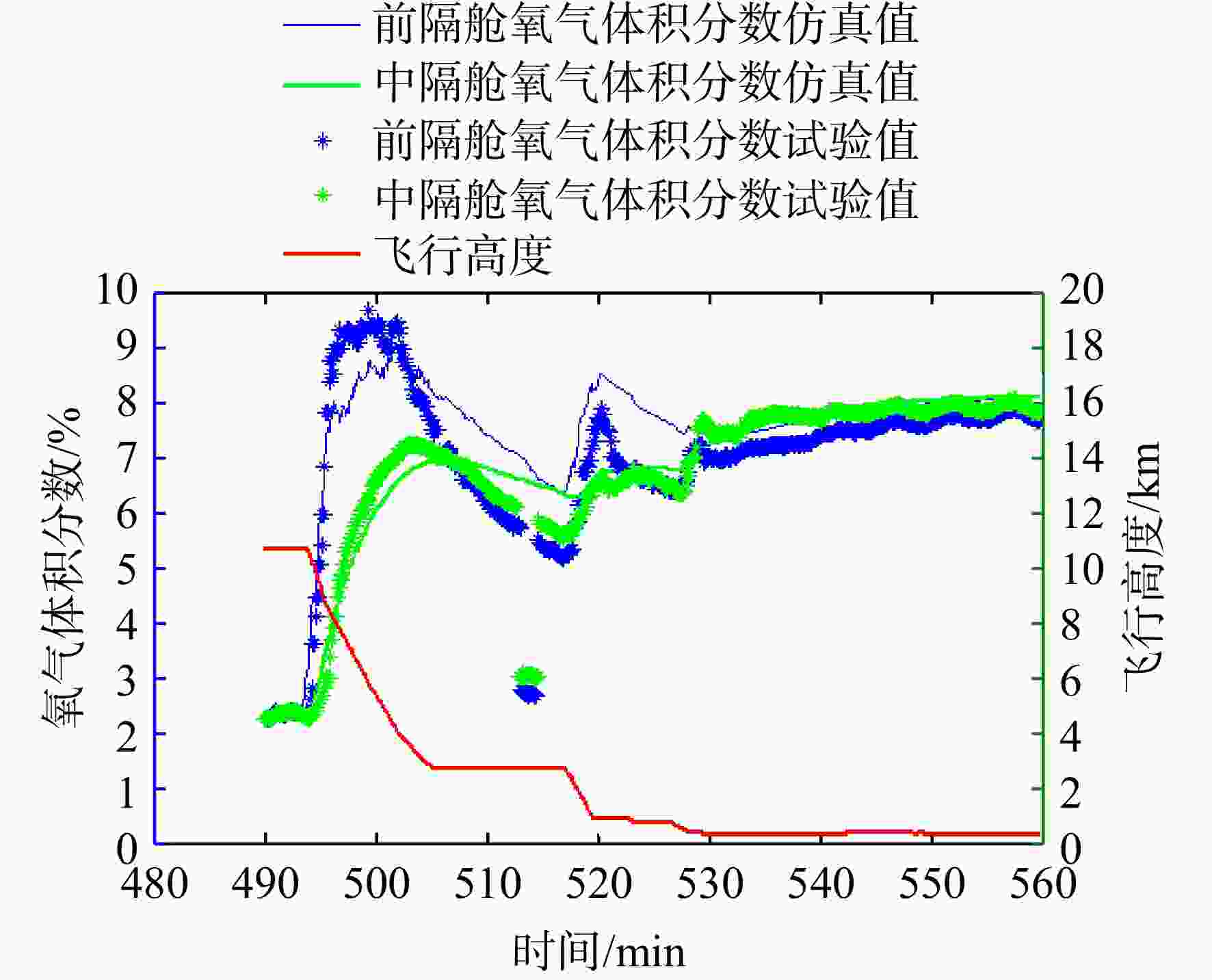

图 10 常温天长航程试飞架次模型验证（考虑掺混）
Figure 10. Standard day long range flight test validation （considering gas blending effect）

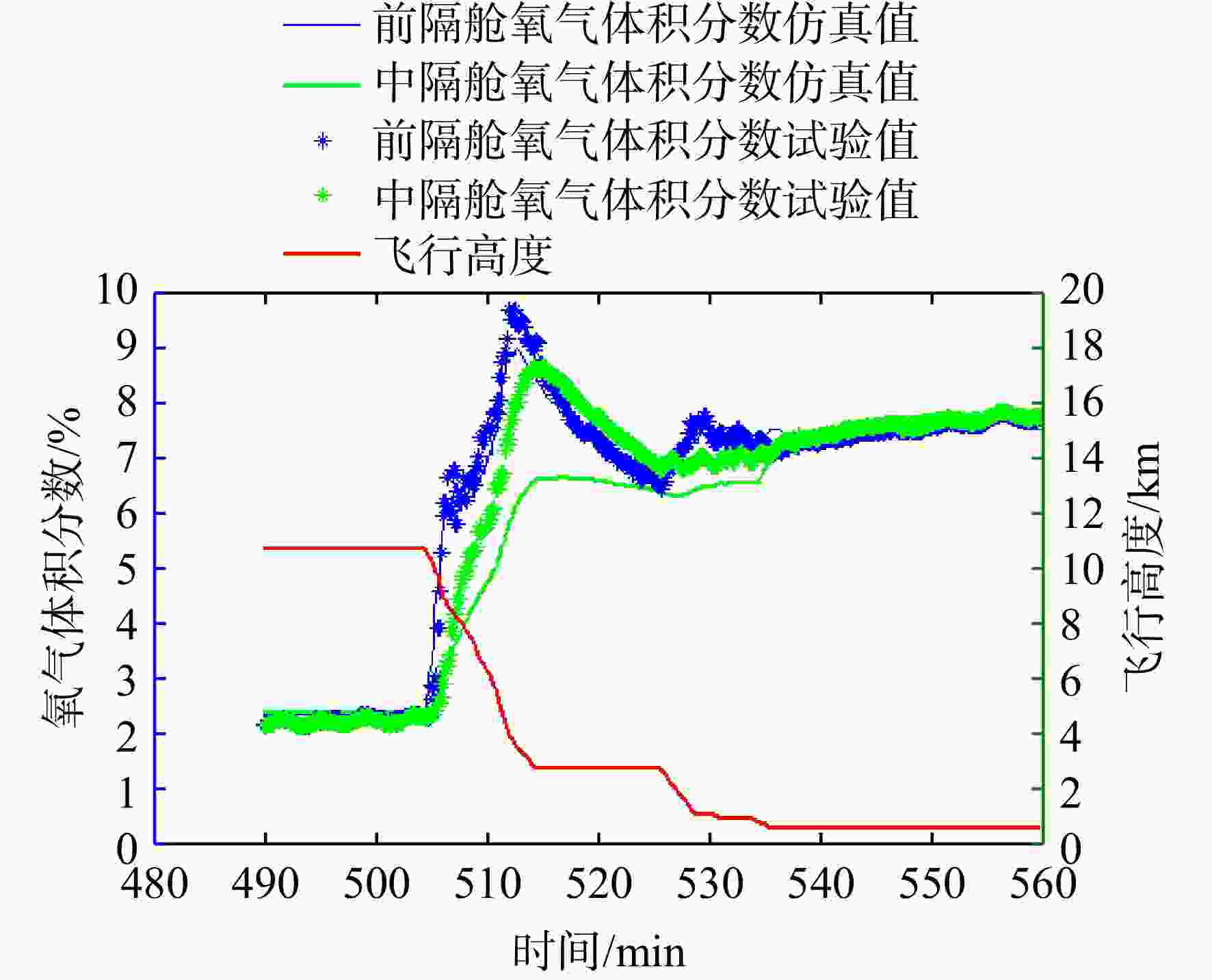

图 11 暖天长航程试飞架次模型验证（考虑掺混）
Figure 11. Warm day long range flight test validation （considering gas blending effect）
表 1 符合性试飞架次信息
Table 1. Compliance flight test information
试飞架次 飞行时长 航前场温/℃ 测点位置 暖天短航程 2 h20 min 29.2 中央翼油箱 暖天长航程 7 h 24.1 中央翼油箱 常温天短航程 2 h9 min 10.4 中央翼油箱 常温天长航程 6 h33 min 10.5 中央翼油箱
下载: 导出CSV
表 2 仿真误差
Table 2. Simulation error
试飞架次 氧气体积分数仿真误差/% 左中央翼油箱隔舱 右中央翼油箱隔舱 暖天短航程 +1.67 +0.99 暖天长航程 +0.31 −0.26 常温天短航程 +0.34 +0.08 常温天长航程 +0.69 +0.21
下载: 导出CSV
-
[1] 张瑞华, 刘卫华, 刘春阳, 等. 运输类飞机燃油箱可燃性适航符合性方法[J]. 航空动力学报, 2020, 35(5): 1099-1108. ZHANG Ruihua, LIU Weihua, LIU Chunyang, et al. Combustibility airworthiness compliance method for fuel tank of transport aircraft[J]. Journal of Aerospace Power, 2020, 35(5): 1099-1108. (in ChineseZHANG Ruihua, LIU Weihua, LIU Chunyang, et al. Combustibility airworthiness compliance method for fuel tank of transport aircraft[J]. Journal of Aerospace Power, 2020, 35(5): 1099-1108. (in Chinese) [2] 冯诗愚, 刘冠男, 江荣杰, 等. 飞机燃油箱机载惰化技术研究现状与发展趋势[J]. 航空动力学报, 2021, 36(3): 616-625. FENG Shiyu, LIU Guannan, JIANG Rongjie, et al. Research status and development trend of airborne inerting technology for aircraft fuel tank[J]. Journal of Aerospace Power, 2021, 36(3): 616-625. (in ChineseFENG Shiyu, LIU Guannan, JIANG Rongjie, et al. Research status and development trend of airborne inerting technology for aircraft fuel tank[J]. Journal of Aerospace Power, 2021, 36(3): 616-625. (in Chinese) [3] MICHAEL B, WILLIAM M C. Inerting of a vented aircraft fuel tank test article with nitrogen enriched air[R]. DOT/FAA/AR-01/6, 2001. [4] CAVAGE W M, KILS O. Inerting a Boeing 747SP center wing tank scale model with nitrogen-enriched air[R]. DOT/FAA/AR-02/51, 2002 [5] MICHAEL B, WILLIAM M C, ROBERT M, et al. Evaluation of fuel tank flammability and the FAA inerting system on the NASA 747 SCA[R]. DOT/FAA/AR-04/41, 2004. [6] MICHAEL B, WILLIAM M C. Ground and flight testing of a Boeing 737 center wing fuel tank inerted with nitrogen-enriched air[R]. DOT/FAA/AR-01/63, 2001. [7] MICHAEL B, WILLIAM M C, RICHARD H, et al. Flight-testing of the FAA onboard inert gas generation system on an Airbus A320[R]. DOT/FAA/AR-03/58, 2004. [8] 白文涛, 刘国田, 邹博, 等. 不同温控模式下直升机惰化系统性能对比[J]. 北京航空航天大学学报, 2022, 48(10): 2040-2047. BAI Wentao, LIU Guotian, ZOU Bo, et al. Performance comparison of helicopter inerting system under different temperature control modes[J]. Journal of Beijing University of Aeronautics and Astronautics, 2022, 48(10): 2040-2047. (in ChineseBAI Wentao, LIU Guotian, ZOU Bo, et al. Performance comparison of helicopter inerting system under different temperature control modes[J]. Journal of Beijing University of Aeronautics and Astronautics, 2022, 48(10): 2040-2047. (in Chinese) [9] 冯诗愚, 李超越, 邵垒, 等. 一种燃油箱绿色惰化系统地面惰化性能分析[J]. 航空动力学报, 2017, 32(2): 268-274. FENG Shiyu, LI Chaoyue, SHAO Lei, et al. Ground inerting performance analysis of a fuel tank green inerting system[J]. Journal of Aerospace Power, 2017, 32(2): 268-274. (in ChineseFENG Shiyu, LI Chaoyue, SHAO Lei, et al. Ground inerting performance analysis of a fuel tank green inerting system[J]. Journal of Aerospace Power, 2017, 32(2): 268-274. (in Chinese) [10] 冯诗愚, 谢辉辉, 彭孝天, 等. 耗氧型惰化反应器操作范围及性能分析[J]. 航空动力学报, 2020, 35(2): 318-324. FENG Shiyu, XIE Huihui, PENG Xiaotian, et al. Operating range and performance analysis of oxygen consumption based inerting reactor[J]. Journal of Aerospace Power, 2020, 35(2): 318-324. (in ChineseFENG Shiyu, XIE Huihui, PENG Xiaotian, et al. Operating range and performance analysis of oxygen consumption based inerting reactor[J]. Journal of Aerospace Power, 2020, 35(2): 318-324. (in Chinese) [11] 彭孝天, 冯诗愚, 周利彪, 等. 温度对耗氧型惰化系统产水性能影响[J]. 航空动力学报, 2020, 35(8): 1622-1627. PENG Xiaotian, FENG Shiyu, ZHOU Libiao, et al. Effect of temperature on water production performance of oxygen-consuming inerting system[J]. Journal of Aerospace Power, 2020, 35(8): 1622-1627. (in ChinesePENG Xiaotian, FENG Shiyu, ZHOU Libiao, et al. Effect of temperature on water production performance of oxygen-consuming inerting system[J]. Journal of Aerospace Power, 2020, 35(8): 1622-1627. (in Chinese) [12] 刘冠男, 王立群, 王悦, 等. 基于耗氧惰化技术的飞机燃油箱热模型[J]. 北京航空航天大学学报, 2023, 49(12): 3520-3527. LIU Guannan, WANG Liqun, WANG Yue, et al. Thermal model of aircraft fuel tank based on oxygen consumption inerting technology[J]. Journal of Beijing University of Aeronautics and Astronautics, 2023, 49(12): 3520-3527. (in ChineseLIU Guannan, WANG Liqun, WANG Yue, et al. Thermal model of aircraft fuel tank based on oxygen consumption inerting technology[J]. Journal of Beijing University of Aeronautics and Astronautics, 2023, 49(12): 3520-3527. (in Chinese) [13] 刘冠男, 王立群, 王宏明, 等. 飞机燃油箱冷却惰化系统地面性能分析[J]. 航空动力学报, 2021, 36(12): 2578-2585. LIU Guannan, WANG Liqun, WANG Hongming, et al. Ground performance analysis of aircraft fuel tank cooling inerting system[J]. Journal of Aerospace Power, 2021, 36(12): 2578-2585. (in ChineseLIU Guannan, WANG Liqun, WANG Hongming, et al. Ground performance analysis of aircraft fuel tank cooling inerting system[J]. Journal of Aerospace Power, 2021, 36(12): 2578-2585. (in Chinese) [14] 李超越, 冯诗愚, 彭孝天, 等. 无人机油箱地面洗涤惰化性能[J]. 航空动力学报, 2022, 37(3): 457-464. LI Chaoyue, FENG Shiyu, PENG Xiaotian, et al. Inerting performance of UAV fuel tank ground washing[J]. Journal of Aerospace Power, 2022, 37(3): 457-464. (in ChineseLI Chaoyue, FENG Shiyu, PENG Xiaotian, et al. Inerting performance of UAV fuel tank ground washing[J]. Journal of Aerospace Power, 2022, 37(3): 457-464. (in Chinese) [15] 邵垒, 刘卫华, 孙兵, 等. 中空纤维膜分离性能实验与预测[J]. 航空动力学报, 2015, 30(4): 800-806. SHAO Lei, LIU Weihua, SUN Bing, et al. Experiment and prediction of separation performance of hollow fiber membrane[J]. Journal of Aerospace Power, 2015, 30(4): 800-806. (in ChineseSHAO Lei, LIU Weihua, SUN Bing, et al. Experiment and prediction of separation performance of hollow fiber membrane[J]. Journal of Aerospace Power, 2015, 30(4): 800-806. (in Chinese) [16] 耿雷铭, 张瑞华, 刘卫华, 等. 中空纤维膜极化系数影响因素分析[J]. 航空动力学报, 2025, 40(3): 20220087. GENG Leiming, ZHANG Ruihua, LIU Weihua, et al. Analysis of influencing factors on polarization coefficient of hollow fiber membrane[J]. Journal of Aerospace Power, 2025, 40(3): 20220087. (in ChineseGENG Leiming, ZHANG Ruihua, LIU Weihua, et al. Analysis of influencing factors on polarization coefficient of hollow fiber membrane[J]. Journal of Aerospace Power, 2025, 40(3): 20220087. (in Chinese) [17] 冯晨曦, 刘卫华, 鹿世化, 等. 气体分配方式对多隔仓燃油箱地面惰化的影响[J]. 航空动力学报, 2011, 26(11): 2528-2533. FENG Chenxi, LIU Weihua, LU Shihua, et al. Study on ground-based inerting process influenced by different gas distribution for multi-bay fuel tank[J]. Journal of Aerospace Power, 2011, 26(11): 2528-2533. (in ChineseFENG Chenxi, LIU Weihua, LU Shihua, et al. Study on ground-based inerting process influenced by different gas distribution for multi-bay fuel tank[J]. Journal of Aerospace Power, 2011, 26(11): 2528-2533. (in Chinese) [18] 冯诗愚, 冯晨曦, 汪其祥, 等. 气体分配方式对民机多隔仓燃油箱惰化的影响[J]. 北京航空航天大学学报, 2012, 38(5): 595-600. FENG Shiyu, FENG Chenxi, WANG Qixiang, et al. Influent of inerting process of multi-bays central fuel tank for civil passenger airplane under various gas distributions[J]. Journal of Beijing University of Aeronautics and Astronautics, 2012, 38(5): 595-600. (in ChineseFENG Shiyu, FENG Chenxi, WANG Qixiang, et al. Influent of inerting process of multi-bays central fuel tank for civil passenger airplane under various gas distributions[J]. Journal of Beijing University of Aeronautics and Astronautics, 2012, 38(5): 595-600. (in Chinese) [19] 王学德, 王志伟, 刘卫华, 等. 某中央翼燃油箱惰化流场的数值模拟及特性分析[J]. 航空动力学报, 2012, 27(12): 2641-2647. WANG Xuede, WANG Zhiwei, LIU Weihua, et al. Numerical simulation and analysis of nitrogen-enriched air flow in a center wing tank[J]. Journal of Aerospace Power, 2012, 27(12): 2641-2647. (in ChineseWANG Xuede, WANG Zhiwei, LIU Weihua, et al. Numerical simulation and analysis of nitrogen-enriched air flow in a center wing tank[J]. Journal of Aerospace Power, 2012, 27(12): 2641-2647. (in Chinese) [20] 杨家豪, 喻成璋, 刘卫华, 等. 多隔舱油箱惰化流量动态分配方法[J]. 航空动力学报, 2025, 40(6): 20240004. YANG Jiahao, YU Chengzhang, LIU Weihua, et al. Dynamic distribution method of inert gas flow rate for multi-bay fuel tanks[J]. Journal of Aerospace Power, 2025, 40(6): 20240004. (in ChineseYANG Jiahao, YU Chengzhang, LIU Weihua, et al. Dynamic distribution method of inert gas flow rate for multi-bay fuel tanks[J]. Journal of Aerospace Power, 2025, 40(6): 20240004. (in Chinese) [21] 邵垒, 彭阳, 卢夏, 等. 不规则燃油箱惰化系统进出口优化方法[J]. 北京航空航天大学学报, 2023, 49(10): 2628-2634. SHAO Lei, PENG Yang, LU Xia, et al. Optimization method for inlet and outlet of irregular fuel tank inerting system[J]. Journal of Beijing University of Aeronautics and Astronautics, 2023, 49(10): 2628-2634. (in ChineseSHAO Lei, PENG Yang, LU Xia, et al. Optimization method for inlet and outlet of irregular fuel tank inerting system[J]. Journal of Beijing University of Aeronautics and Astronautics, 2023, 49(10): 2628-2634. (in Chinese) [22] 邵垒, 彭阳, 张超, 等. 基于熵权改进TOPSIS理论的富氮气体最优分配方式研究[J]. 航空动力学报, 2024, 39(3): 20210486. SHAO Lei, PENG Yang, ZHANG Chao, et al. Research on nitrogen-enrich air optimal distribution mode based on entropy-weight improvement TOPSIS method[J]. Journal of Aerospace Power, 2024, 39(3): 20210486. (in ChineseSHAO Lei, PENG Yang, ZHANG Chao, et al. Research on nitrogen-enrich air optimal distribution mode based on entropy-weight improvement TOPSIS method[J]. Journal of Aerospace Power, 2024, 39(3): 20210486. (in Chinese) [23] 刘冠男, 冯诗愚, 王立群, 等. 航空燃油闪点对油箱可燃性暴露时间的影响[J]. 航空动力学报, 2023, 38(8): 1995-2000. LIU Guannan, FENG Shiyu, WANG Liqun, et al. Influence of aviation fuel flash point on fuel tank flammability exposure time[J]. Journal of Aerospace Power, 2023, 38(8): 1995-2000. (in ChineseLIU Guannan, FENG Shiyu, WANG Liqun, et al. Influence of aviation fuel flash point on fuel tank flammability exposure time[J]. Journal of Aerospace Power, 2023, 38(8): 1995-2000. (in Chinese) [24] 王悦, 刘屹, 高经诚, 等. RP-3航空燃油在惰化气体条件下的闭口闪点测定[J]. 航空动力学报, 2025, 40(9): 20230186. WANG Yue, LIU Yi, GAO Jingcheng, et al. Closed cup flash point determination of RP-3 aviation fuel under inerting gas conditions[J]. Journal of Aerospace Power, 2025, 40(9): 20230186. (in ChineseWANG Yue, LIU Yi, GAO Jingcheng, et al. Closed cup flash point determination of RP-3 aviation fuel under inerting gas conditions[J]. Journal of Aerospace Power, 2025, 40(9): 20230186. (in Chinese) [25] 周鹏鹤, 刘文怡, 刘卫华. 飞机燃油箱惰化中氧体积分数控制指标分析[J]. 航空动力学报, 2020, 35(9): 1856-1865. ZHOU Penghe, LIU Wenyi, LIU Weihua. Analysis on oxygen volume fraction control index in aircraft fuel tank inerting[J]. Journal of Aerospace Power, 2020, 35(9): 1856-1865. (in ChineseZHOU Penghe, LIU Wenyi, LIU Weihua. Analysis on oxygen volume fraction control index in aircraft fuel tank inerting[J]. Journal of Aerospace Power, 2020, 35(9): 1856-1865. (in Chinese) [26] 吕旭飞, 姚尚宏, 杜明杰. 飞机燃油箱惰化能力降级指标分析[J]. 航空动力学报, 2023, 38(5): 1067-1074. LÜ Xufei, YAO Shanghong, DU Mingjie. Analysis of inerting index when inerting capability of aircraft fuel tank was degraded[J]. Journal of Aerospace Power, 2023, 38(5): 1067-1074. (in ChineseLÜ Xufei, YAO Shanghong, DU Mingjie. Analysis of inerting index when inerting capability of aircraft fuel tank was degraded[J]. Journal of Aerospace Power, 2023, 38(5): 1067-1074. (in Chinese) [27] STEVEN M S. Fuel tank flammability assessment method user’s manual: updated for version 11[R]. DOT/FAA/TC-21/3, 2021. [28] 吕旭飞, 姚尚宏, 杜明杰. 飞机燃油箱无油空间氧气浓度测量系统研究和发展综述[J]. 测控技术, 2022, 41(10): 7-16. LYU Xufei, YAO Shanghong, DU Mingjie. Overview of research and development of oxygen concentration measurement system for monitoring of aircraft fuel tank ullage[J]. Measurement & Control Technology, 2022, 41(10): 7-16. (in ChineseLYU Xufei, YAO Shanghong, DU Mingjie. Overview of research and development of oxygen concentration measurement system for monitoring of aircraft fuel tank ullage[J]. Measurement & Control Technology, 2022, 41(10): 7-16. (in Chinese) -
