Research on effect of inlet bend on aerodynamic excitation force in centrifugal compressor based on nonlinear harmonic method
-
摘要:
基于非线性谐波法研究了进气弯管对离心压气机气动激振力的影响，通过数值模拟分析了弯管诱导的流动畸变与蜗壳几何非均匀性的耦合作用。结果表明，当弯管安装角度与蜗壳0截面一致时，弯管进气显著强化了叶片表面1阶脉动压力（最大压力增幅达77%），但对2阶激振力表现出抑制效应（压力幅值降低27%），且高压力幅值激振区域集中于主叶片及分流叶片前缘叶顶附近。质量流量工况分析显示，小质量流量工况下弯管使1阶脉动压力幅值最高增加78%，而大质量流量工况下跨声速流动导致激振力高压力幅值区向叶片下游移动，且弯管对吸力面叶顶前缘的扰动显著增强（增幅为800%）。机理分析表明，弯管与蜗壳的协同效应通过周向压力畸变和扰动相位干涉影响激振力，而马赫数变化（亚声速/跨声速）决定了扰动传播路径及耦合强度。此外，弯管安装角度对激振力的阶次特性具有显著影响，叶片入口区域对安装角度变化最为敏感，随着流动向下游发展，蜗壳势流效应逐渐削弱了弯管的影响。
Abstract:The impact of inlet bends on the aerodynamic excitation forces in a centrifugal compressor was investigated using the nonlinear harmonic method. Numerical simulations were conducted to analyze the coupling effects between flow distortions induced by the bend and the geometric non-uniformity of the volute. The results showed that when the installation angle of the bend aligned with the 0-section of the volute, the bend inlet significantly amplified the first-order fluctuating pressure on the blade surface (with a maximum increase of 77%) but suppressed the second-order excitation force (amplitude reduction of 27%). High-amplitude excitation regions were concentrated near the leading edge of the main and splitter blades at the tip. Flow condition analysis revealed that under low-flow conditions, the bend increased the first-order fluctuating pressure amplitude by up to 78%, while under high-flow conditions, transonic flow shifted the high-amplitude excitation region toward the downstream part of the blade. Additionally, the bend's disturbance to the suction side near the leading edge of the blade tip was significantly enhanced (an increase of 800%). Mechanism analysis indicated that the synergistic effect of the bend and volute influenced the excitation forces through circumferential pressure distortion and disturbance phase interference, while the Mach number variation (subsonic/transonic) determined the disturbance propagation path and coupling intensity. Furthermore, the installation angle of the bend had a significant impact on the order characteristics of excitation forces. The blade inlet region was most sensitive to changes in the installation angle, and as the flow developed downstream, the potential flow effect of the volute gradually diminished the influence of the bend.
-
Key words:
- nonlinear harmonic method /
- centrifugal compressor /
- inlet bend /
- distortion /
- excitation force
-

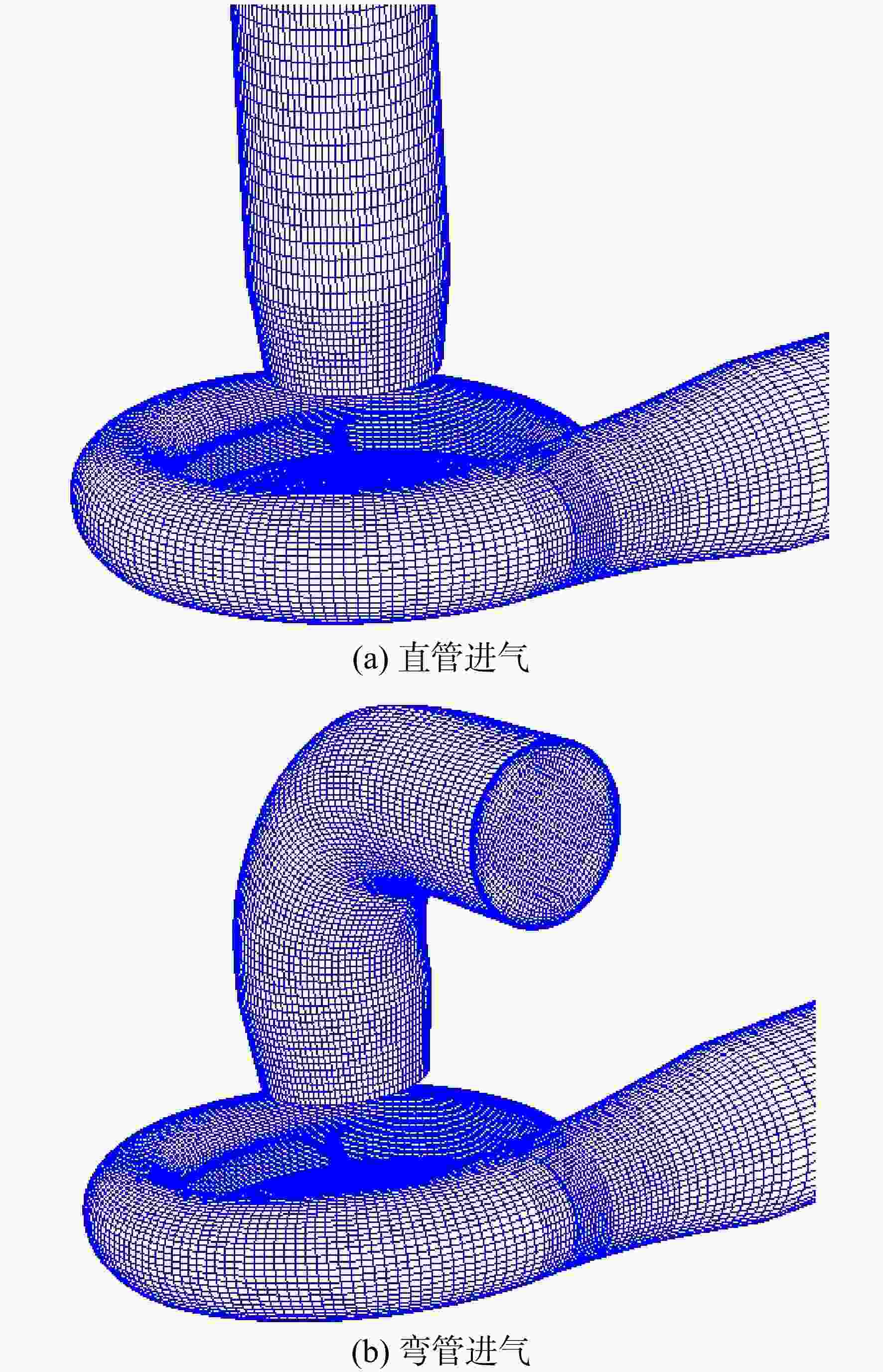

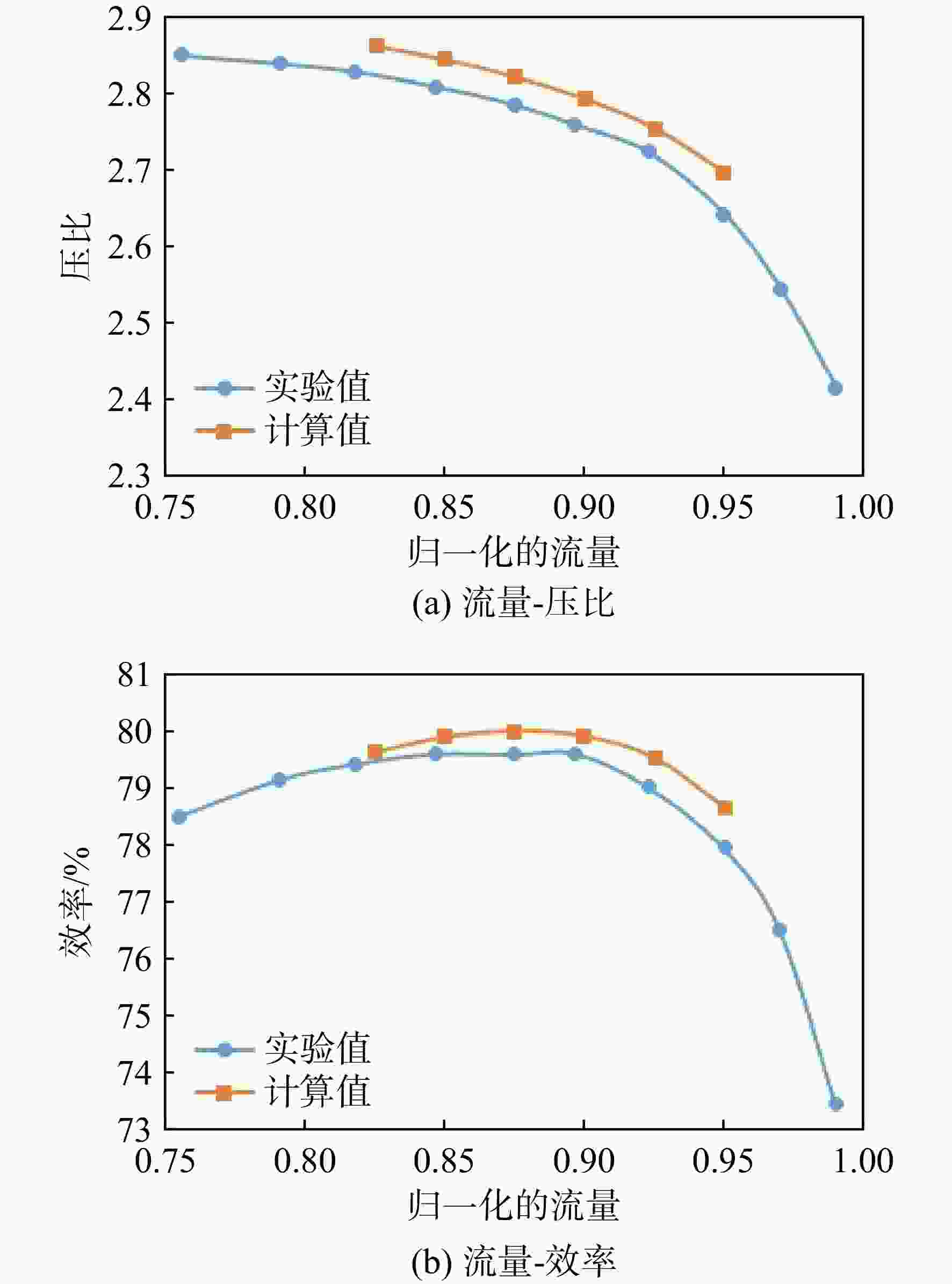

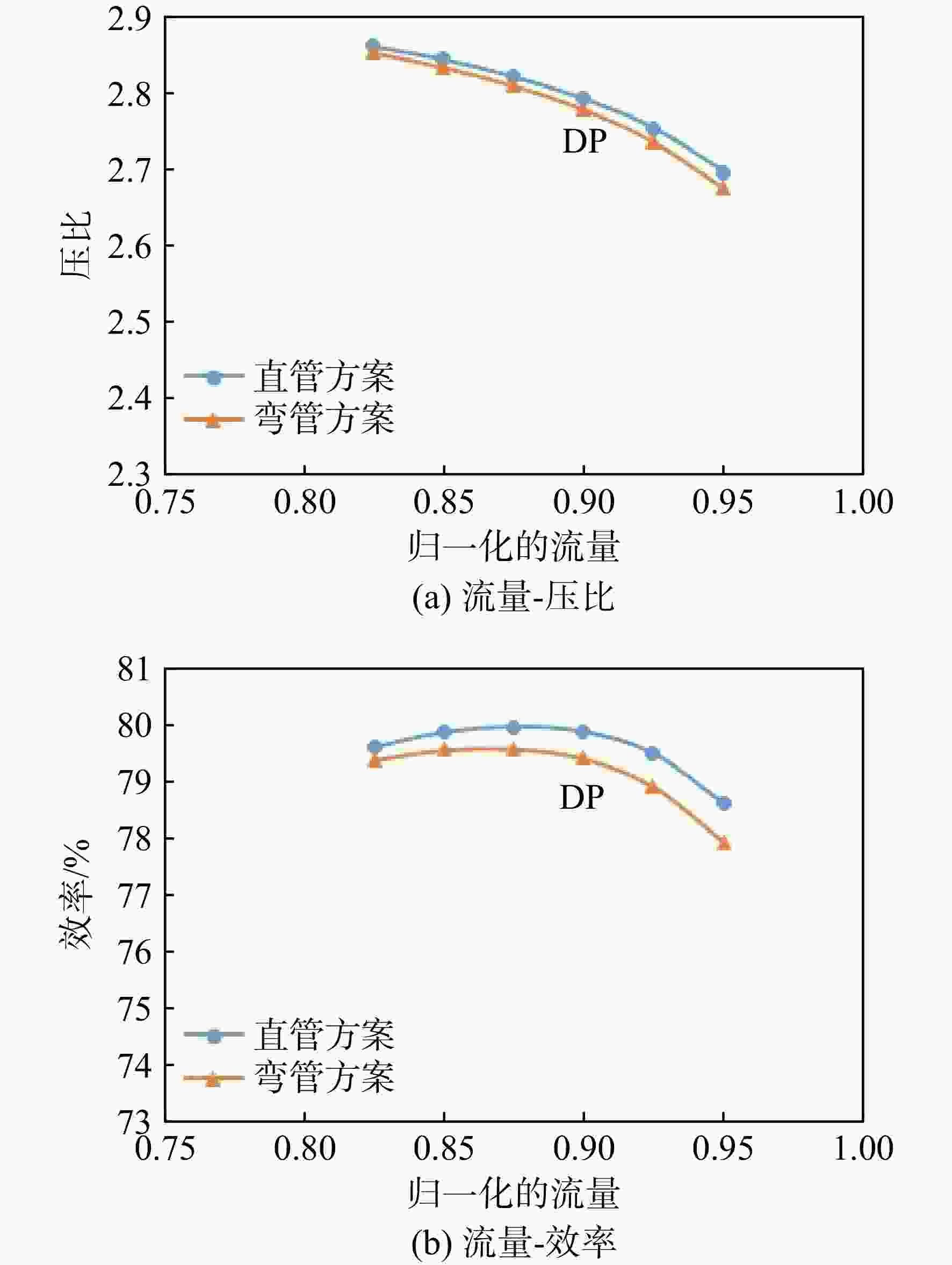

图 3 压气机特性线（直管vs.弯管）
Figure 3. Compressor performance curves（straight pipe vs. bend pipe）

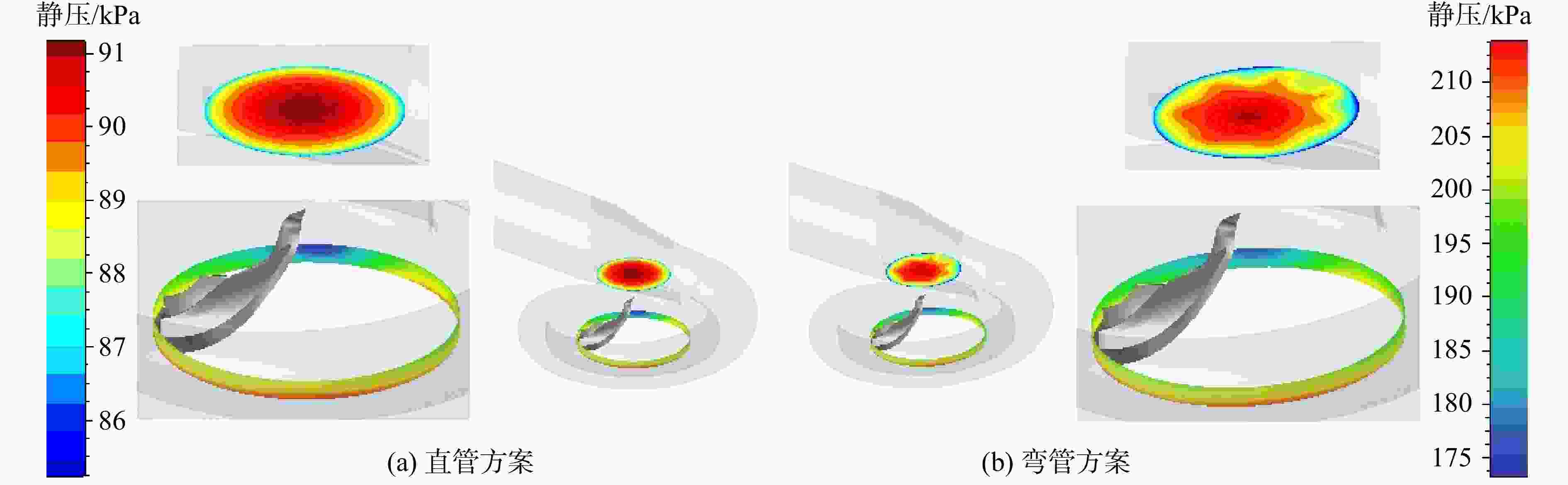

图 4 进气管出口及无叶扩压器入口时均静压分布对比
Figure 4. Comparison of time-averaged static pressure distribution at the intake pipe outlet and vaneless diffuser inlet

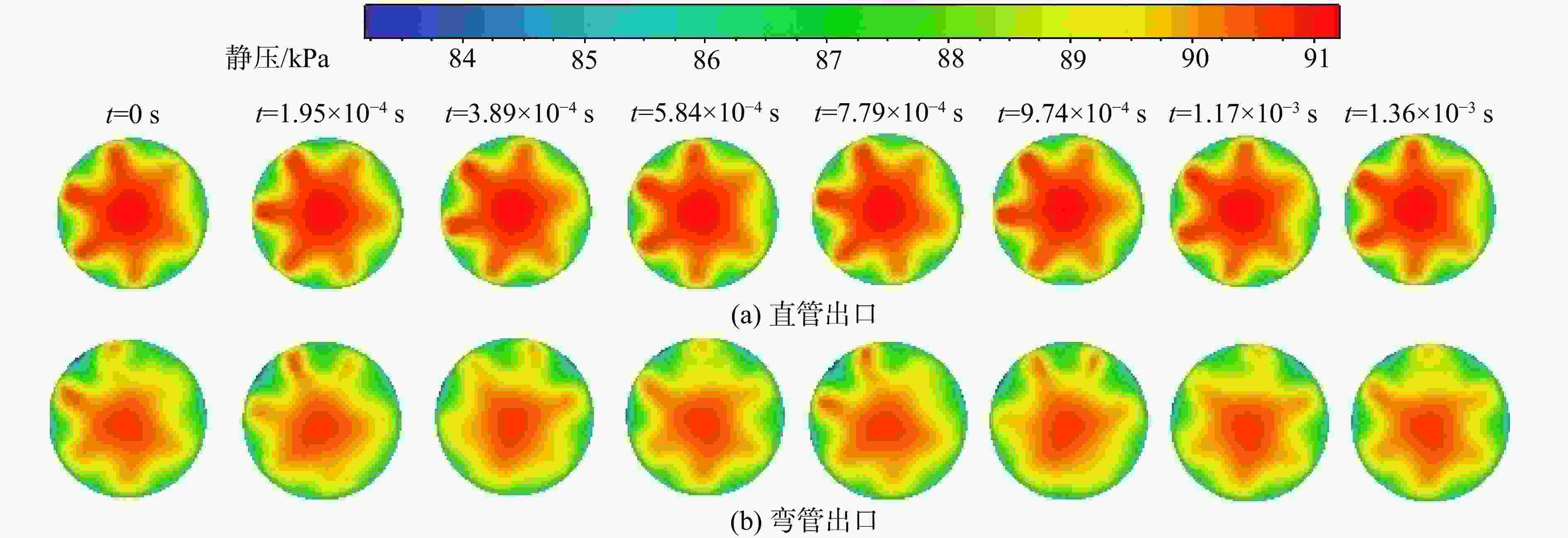

图 5 不同时刻进气管出口静压分布
Figure 5. Temporal variation of static pressure distribution at the intake pipe outlet

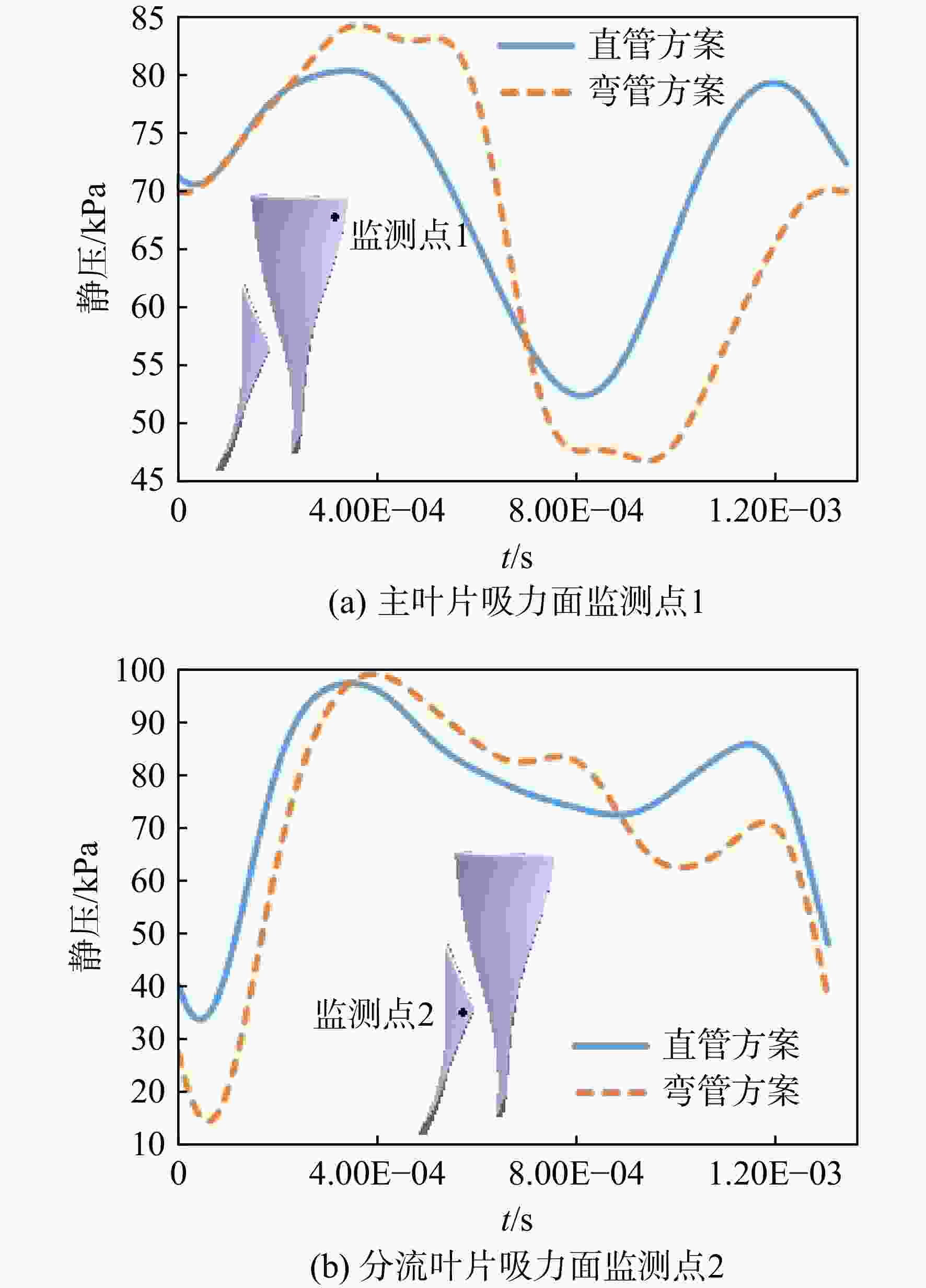

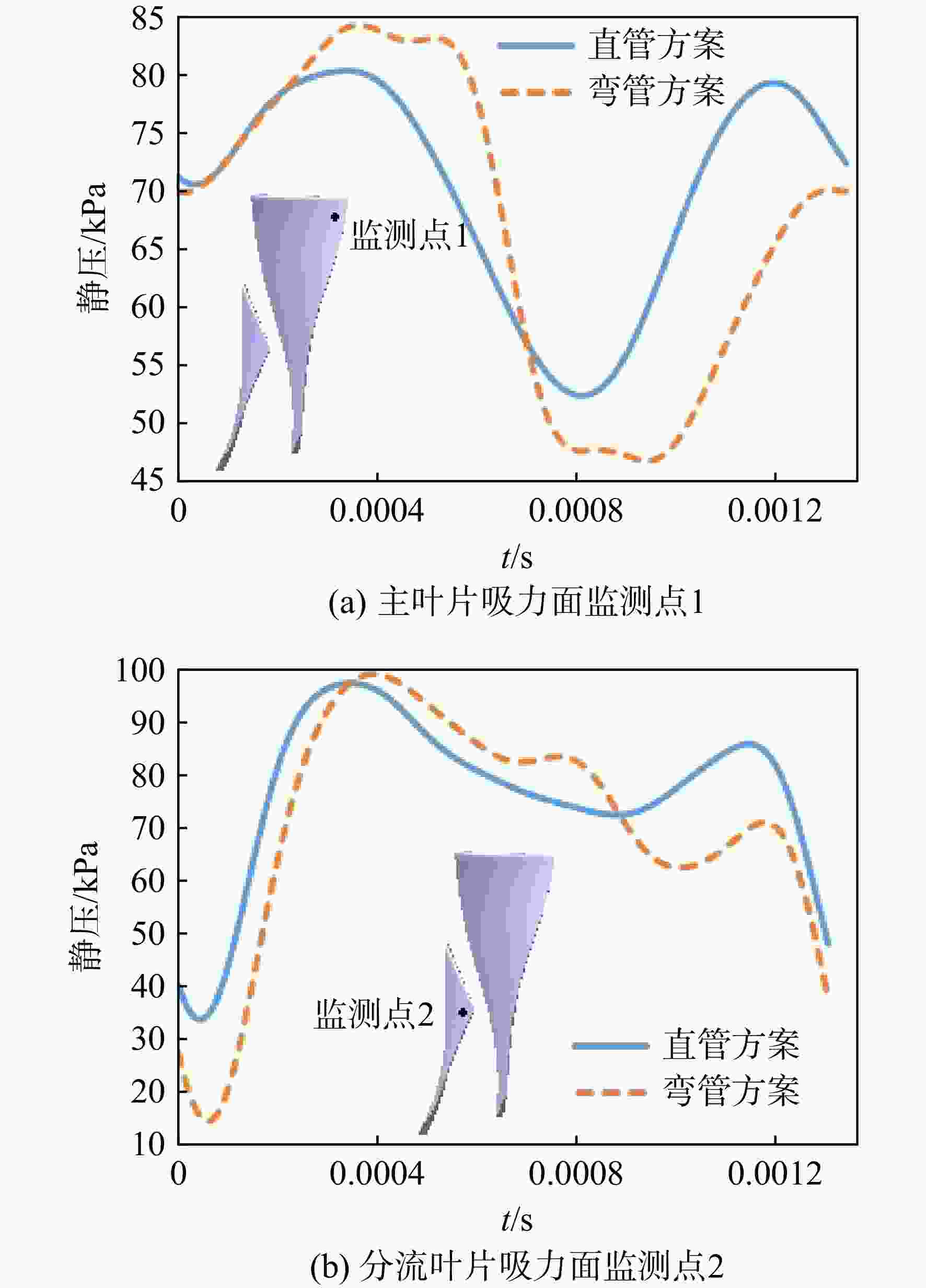

图 6 叶片监测点静压随时间的变化
Figure 6. Static pressure fluctuations at the blade monitoring points

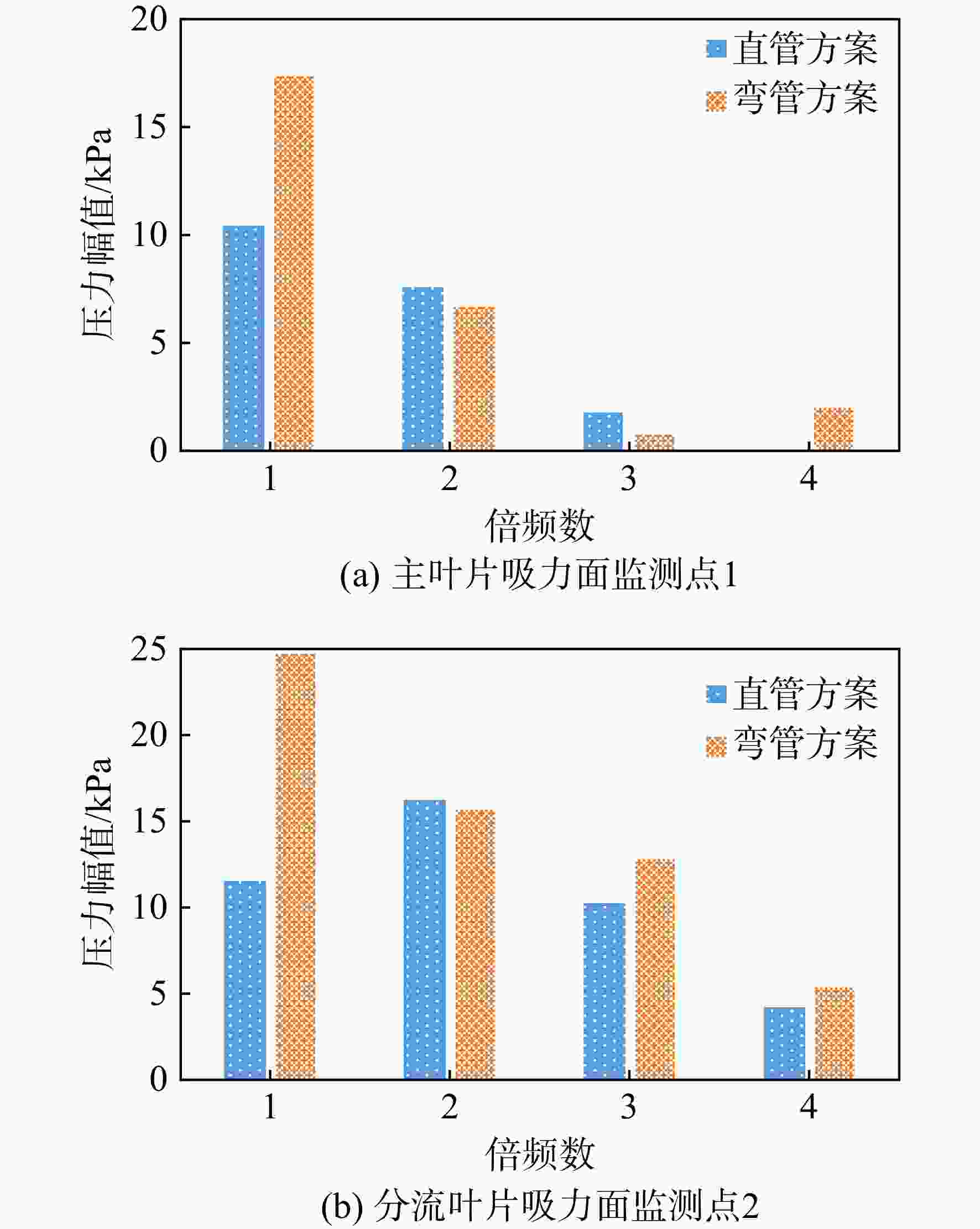

图 7 叶片监测点脉动压力幅值频谱
Figure 7. Amplitude spectrum of static pressure at the blade monitoring points

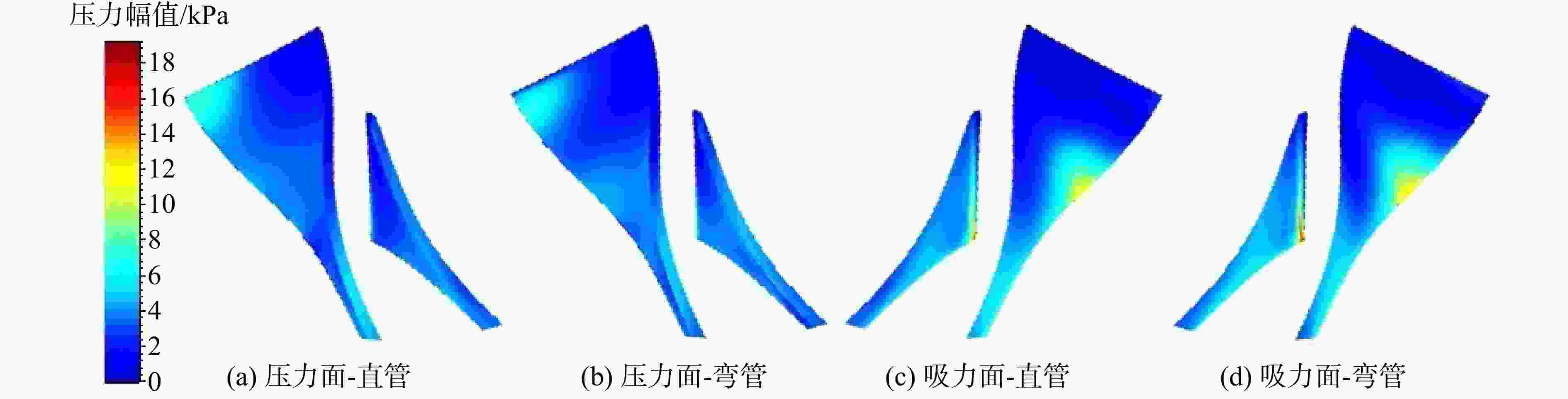

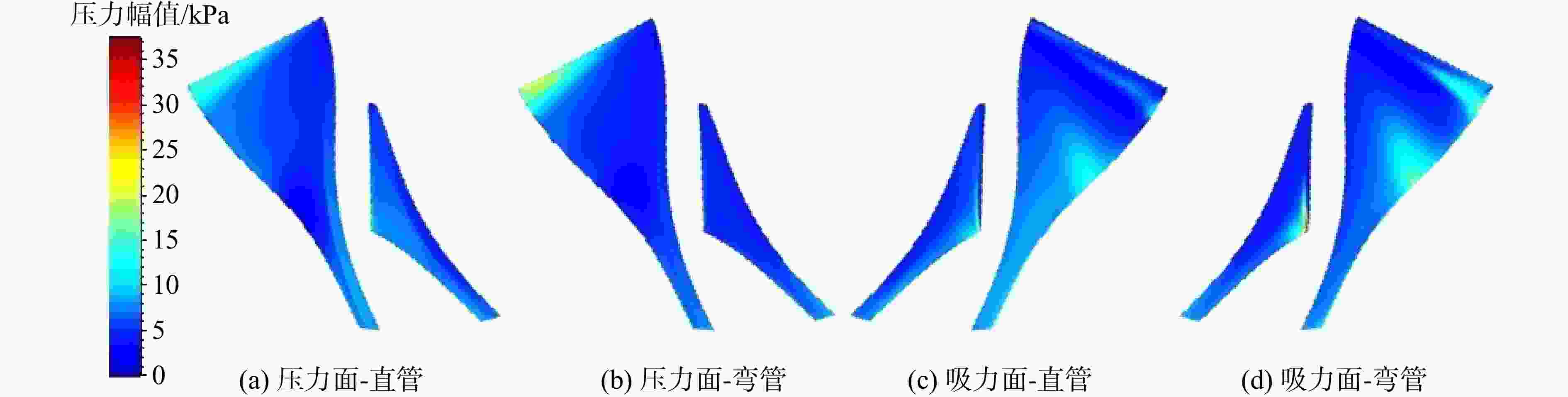

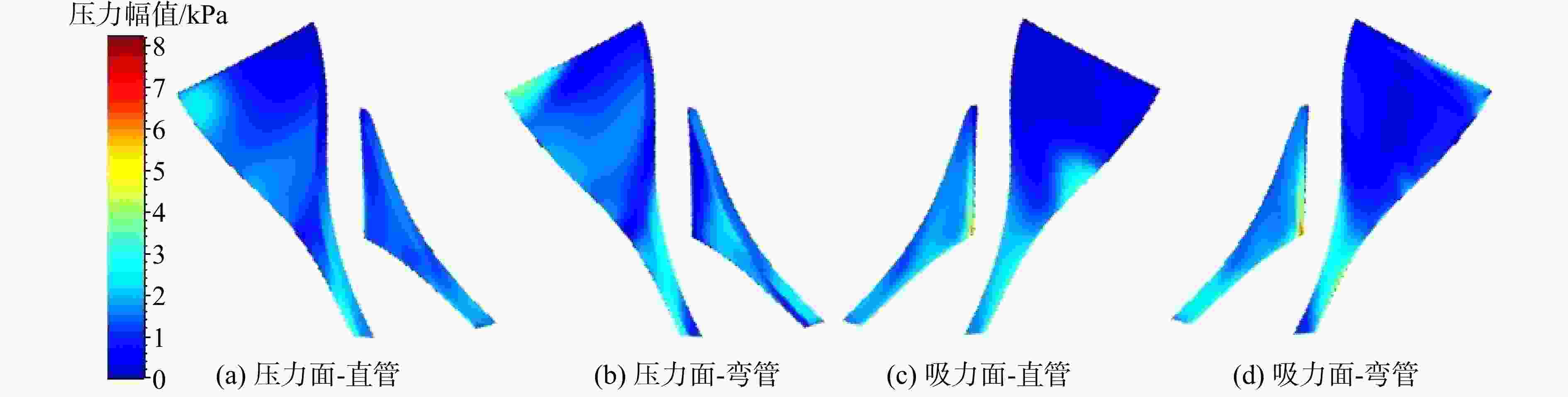

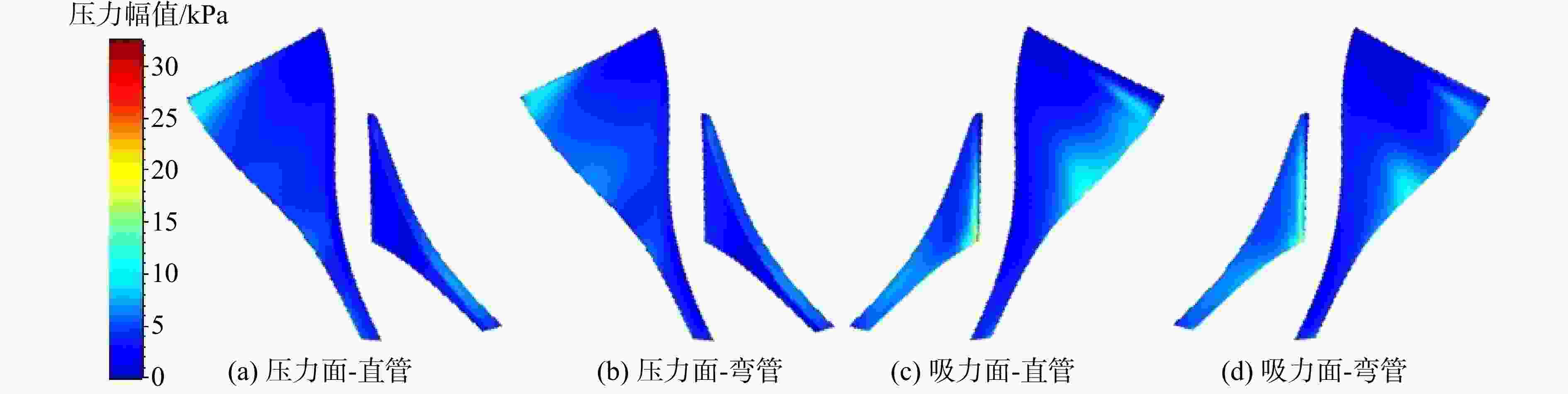

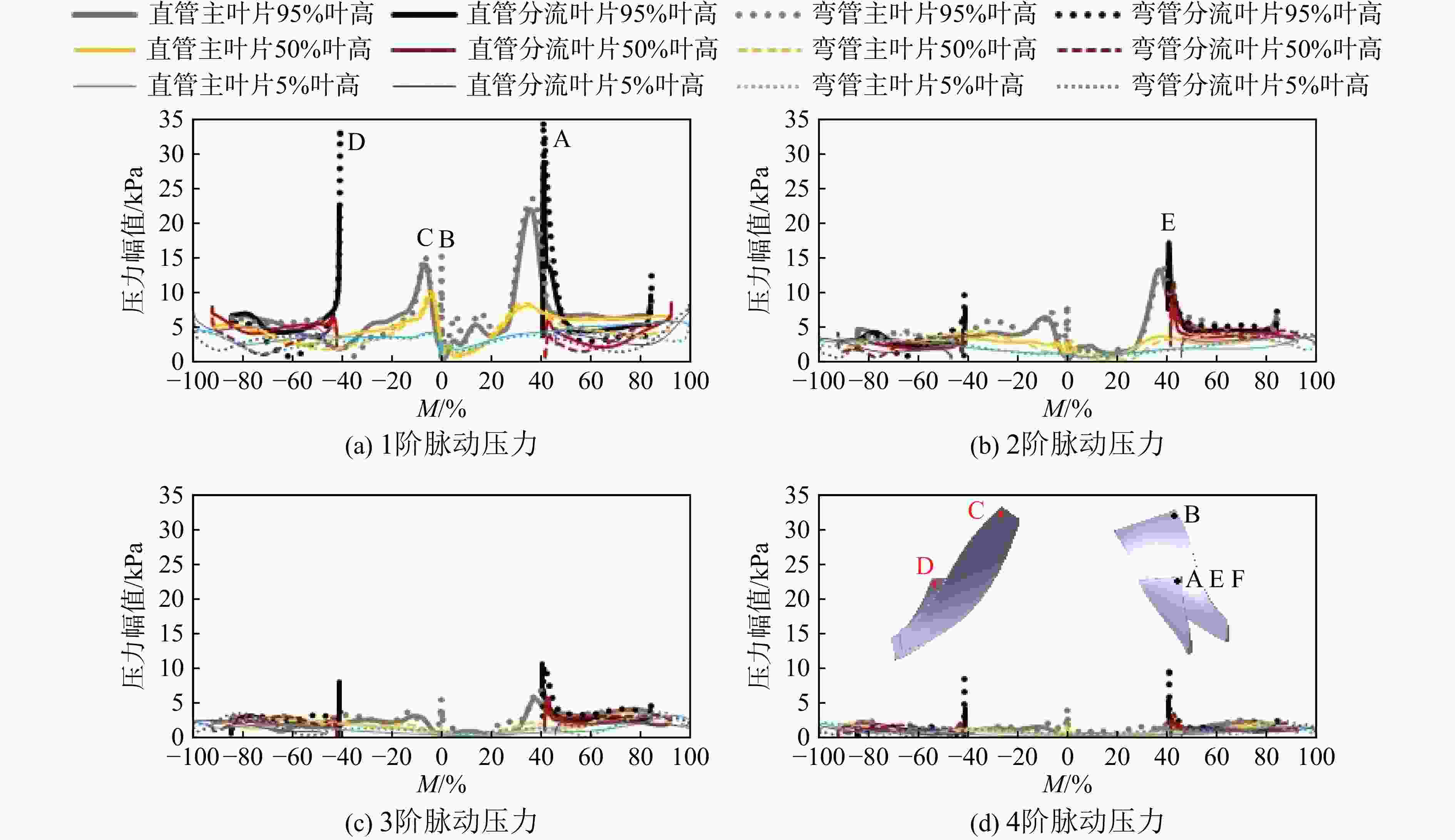

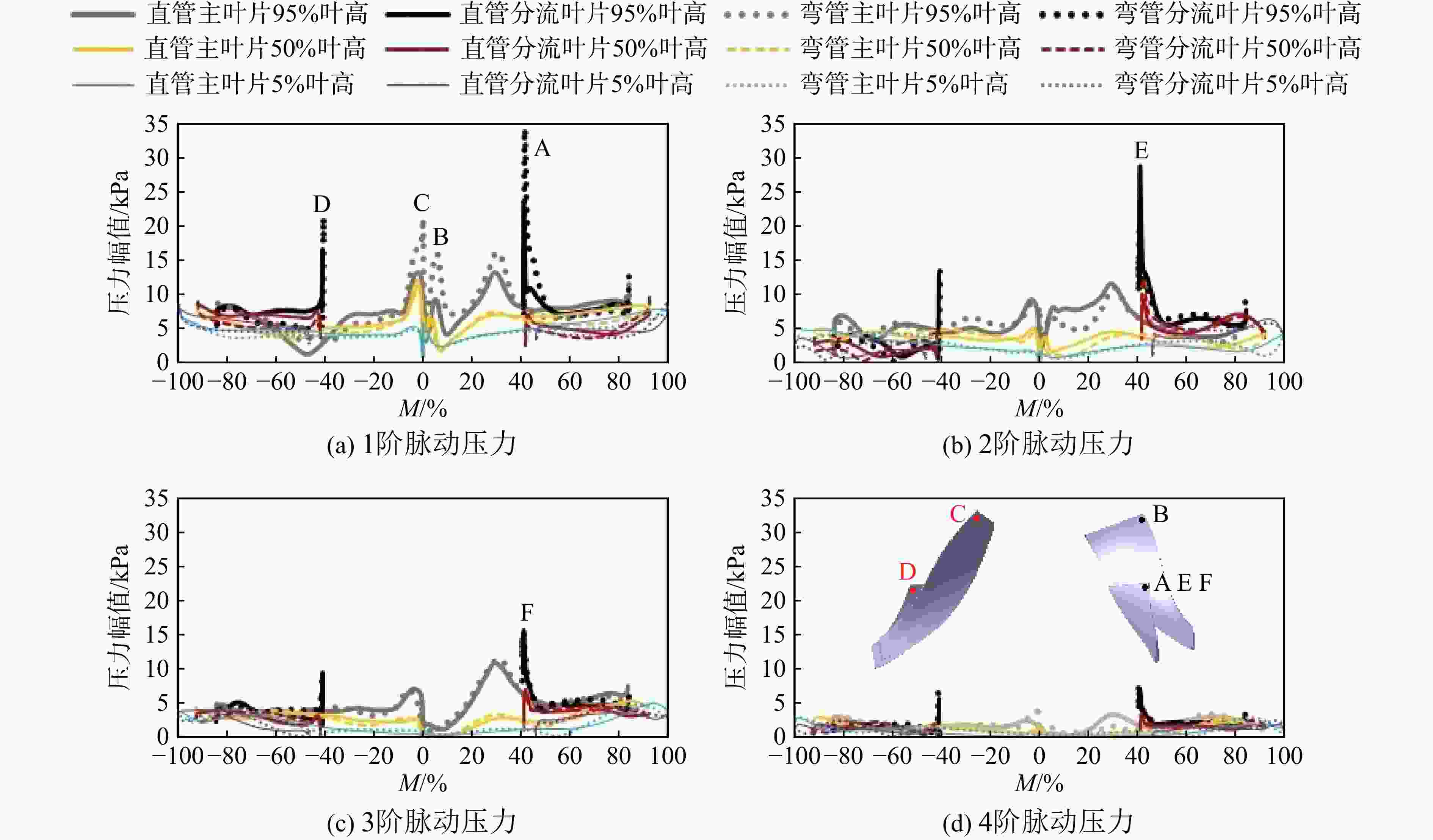

图 12 设计工况点脉动压力子午坐标分布
Figure 12. Harmonic pressure distribution along meridional coordinate at design point

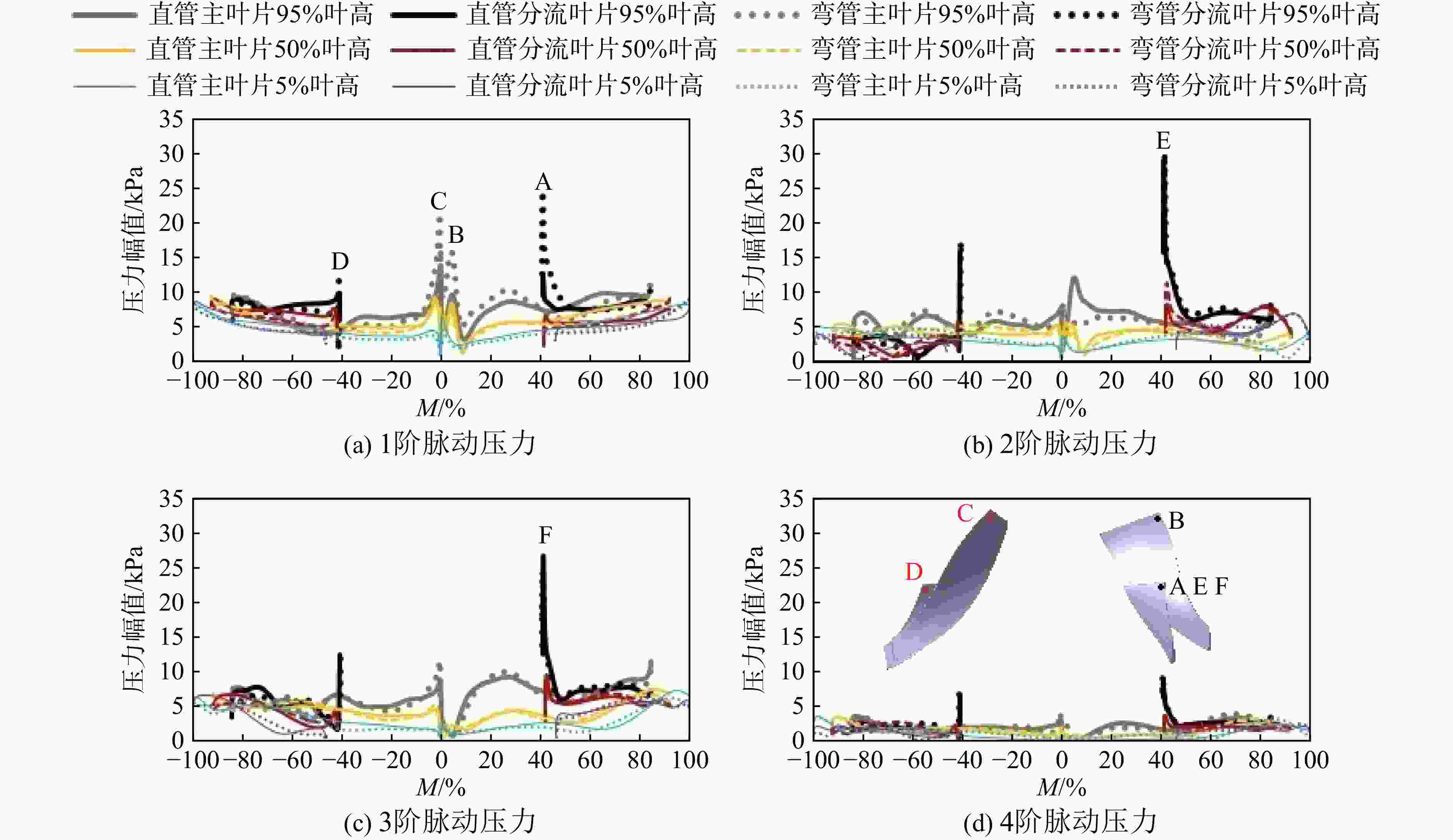

图 13 小流量工况脉动压力子午坐标分布
Figure 13. Harmonic pressure distribution along meridional coordinate at low flow regime
图 14 大流量工况脉动压力子午坐标分布
Figure 14. Harmonic pressure distribution along meridional coordinate at high flow regime

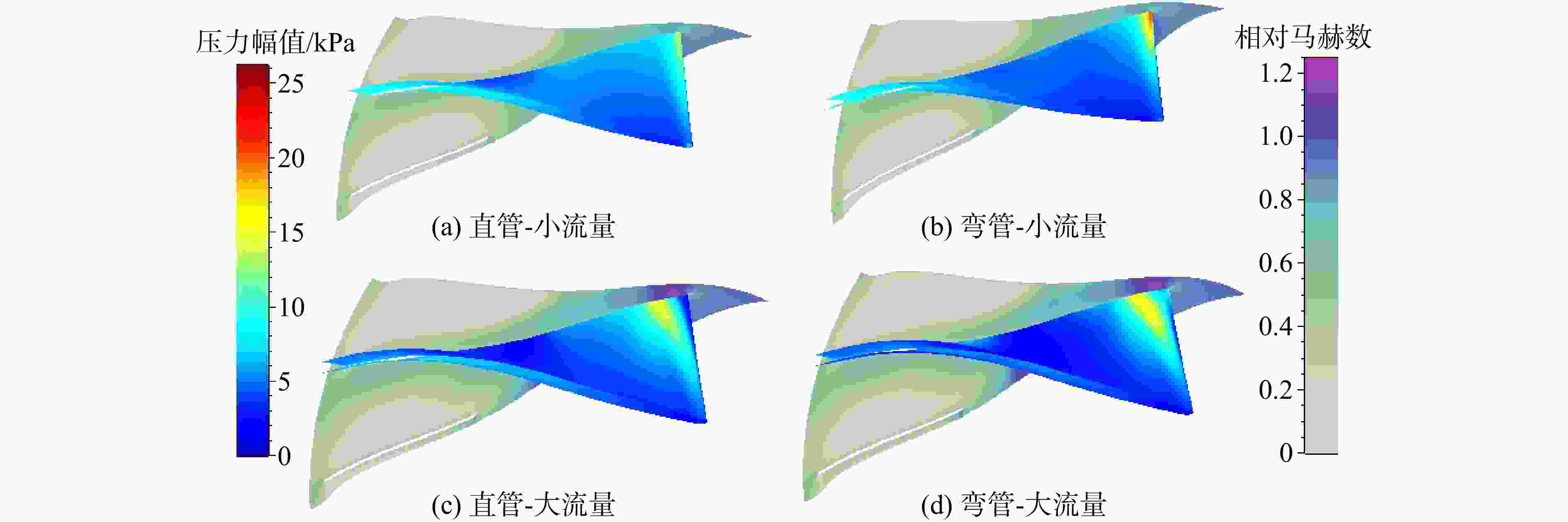

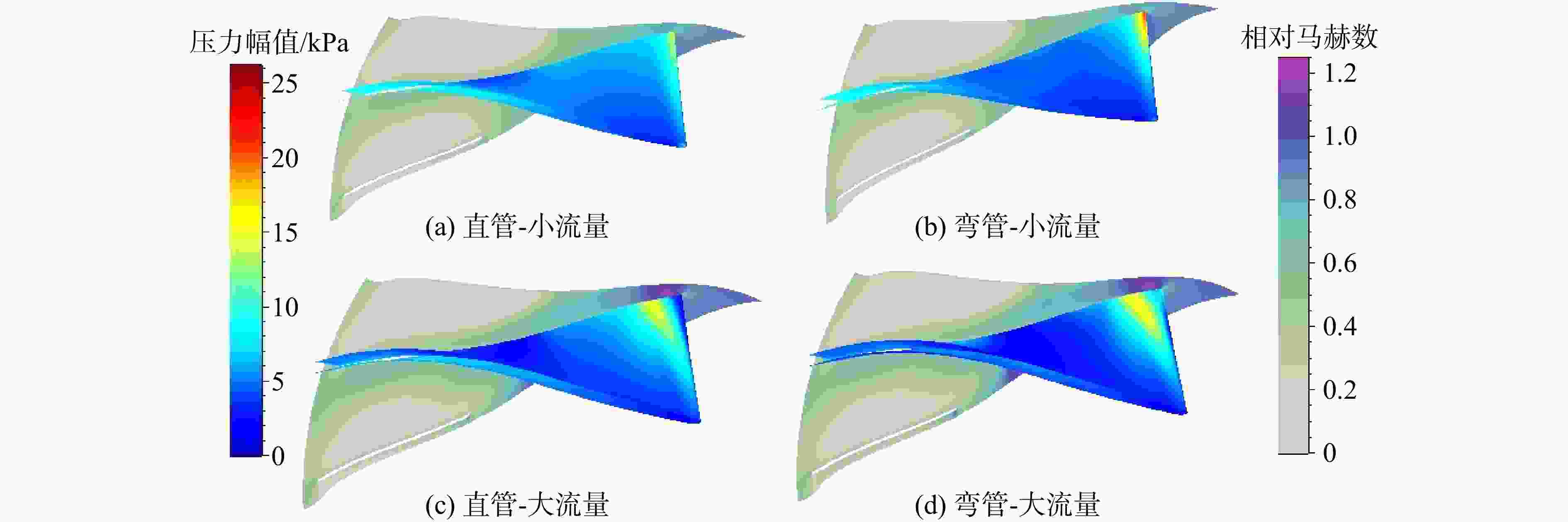

图 15 95%B2B截面马赫数云图及主叶片压力面1阶脉动压力分布
Figure 15. Mach number contours at 95% B2B span with 1st harmonic pressure distribution on pressure side of the main blade

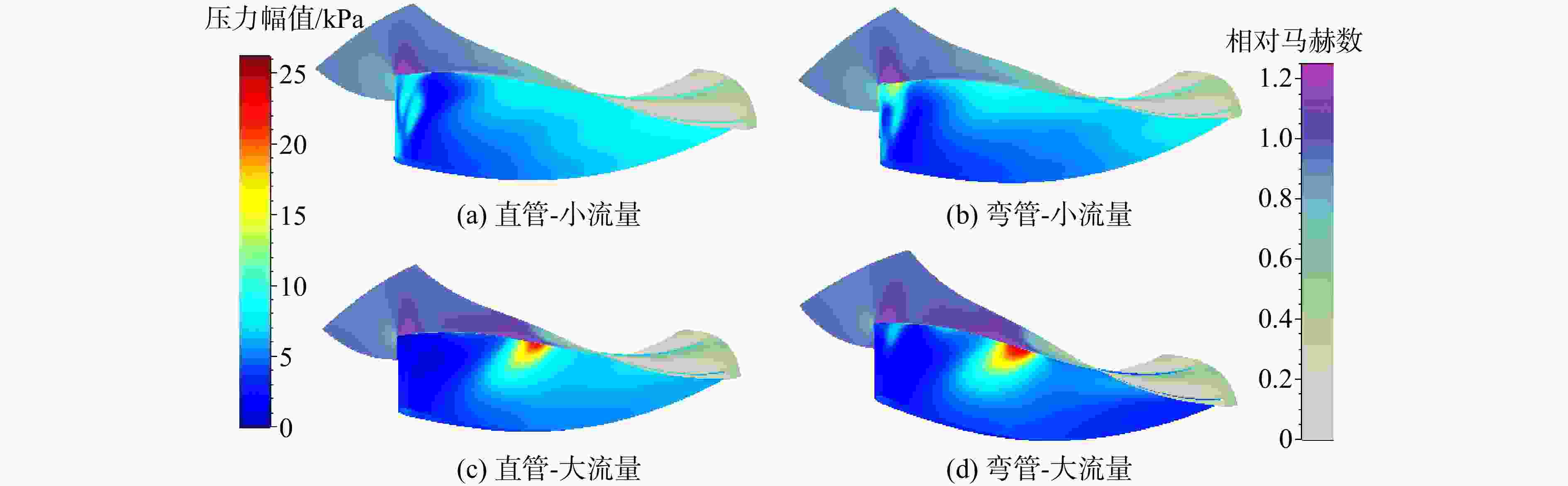

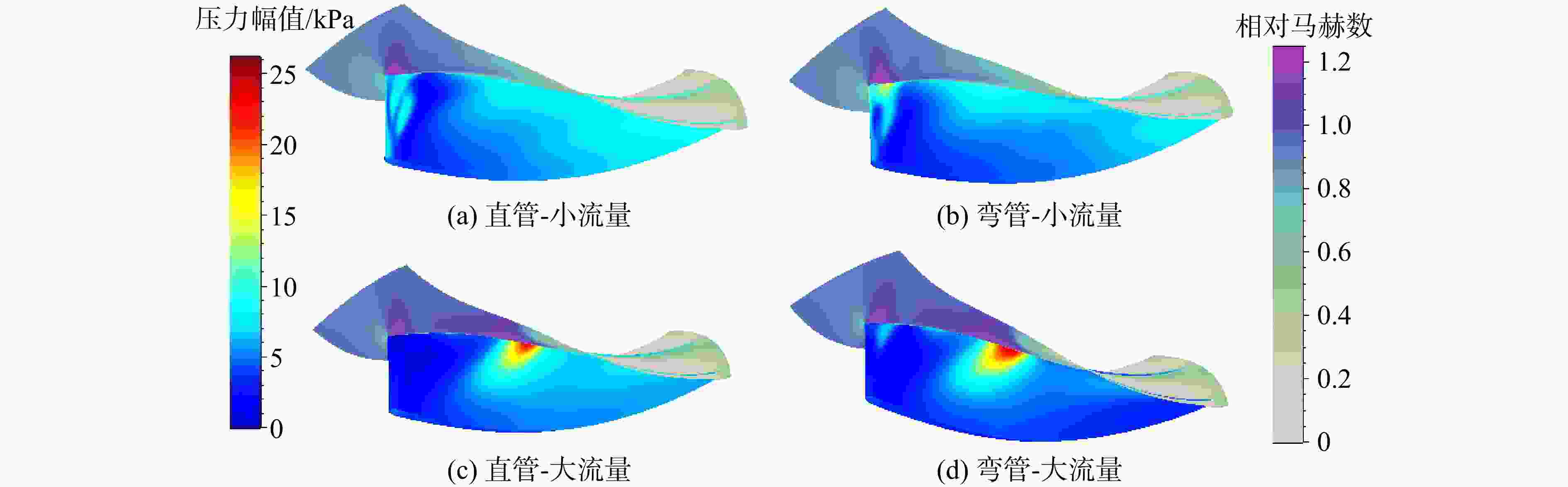

图 16 95%B2B截面马赫数云图及主叶片吸力面1阶脉动压力分布
Figure 16. Mach number contours at 95% B2B span with 1st harmonic pressure distribution on suction side of the main blade

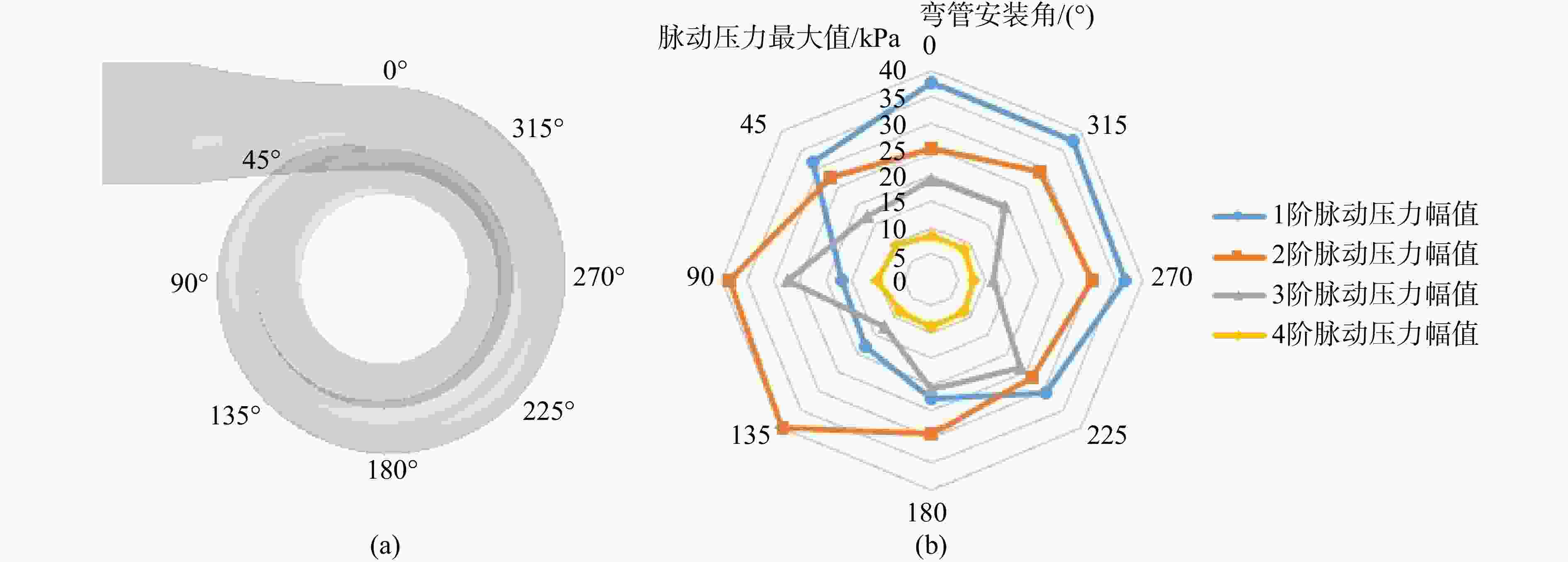

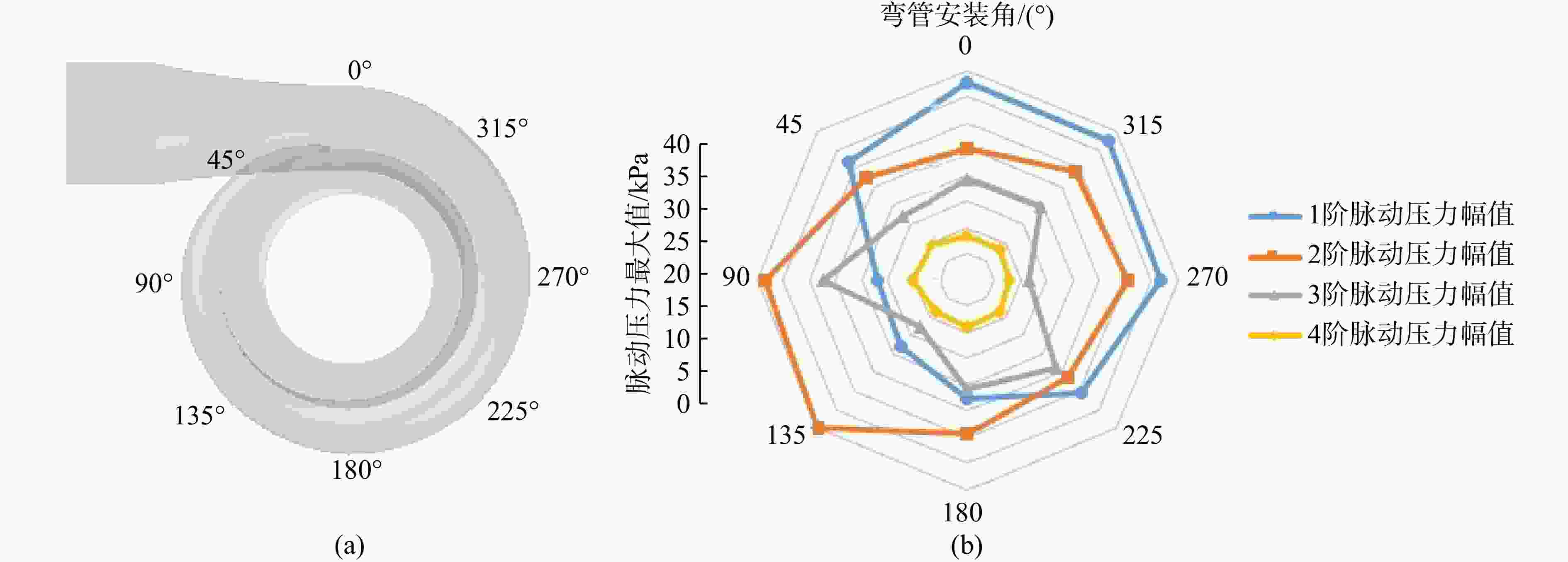

图 17 弯管安装角vs.前4阶脉动压力最大值
Figure 17. Installation angle of bent pipe vs. maximum values of the first four harmonic pressures

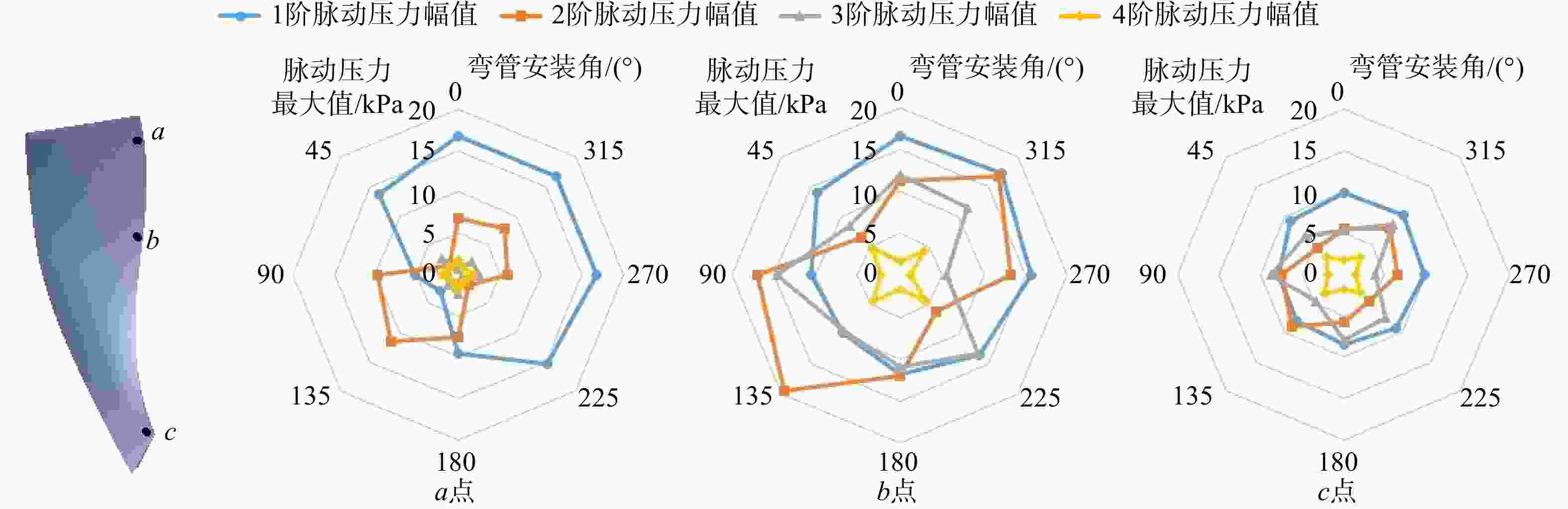

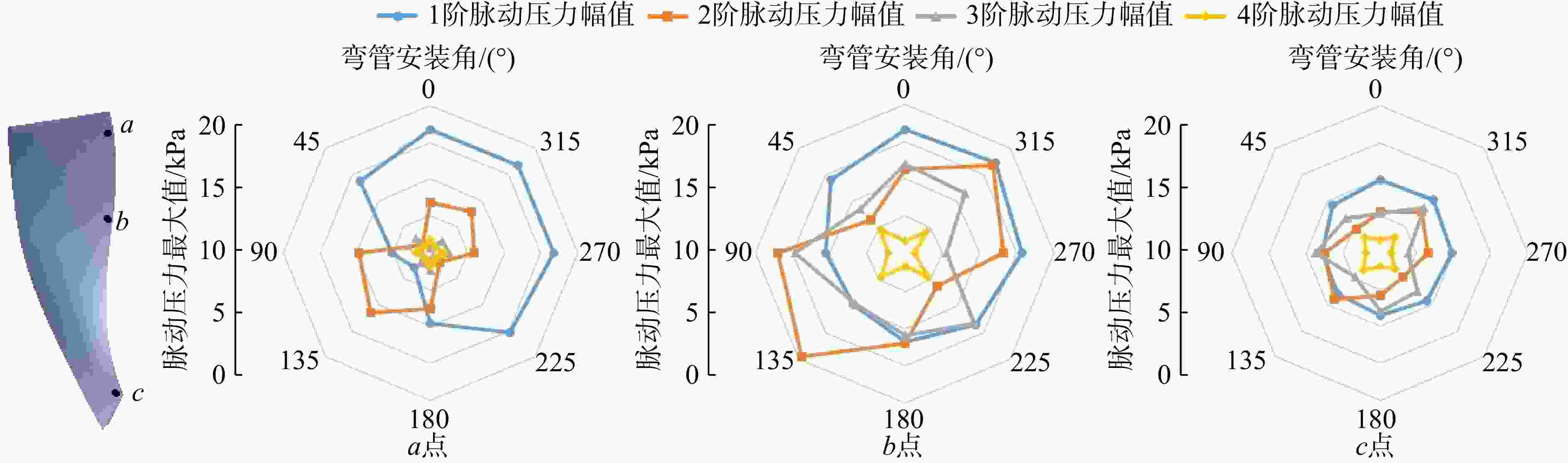

图 18 弯管安装角vs.主叶片监测点前4阶脉动压力
Figure 18. Installation angle of bent pipe vs. the first four harmonic pressures at the monitoring points of the main blade
表 1 不同阶次谐波计算值与实测值对比
Table 1. Harmonic independence verification
谐波阶次 压比 压比偏差% 效率% 效率偏差% 内存/MB 实测 2.755 79.52 2 2.801 1.67 80.29 0.97 3716 3 2.797 1.52 80.1 0.73 4789 4 2.794 1.42 79.97 0.57 5861 5 2.794 1.42 79.93 0.52 6934 6 2.794 1.42 79.92 0.50 8006
下载: 导出CSV
-
[1] 李杜, 杨策, 陈山, 等. 离心压气机弯管进口畸变非定常特性[J]. 内燃机学报, 2011, 29(5): 468-474. Li Du, Yang Ce, Chen Shan, et al. Unsteady characteristics on inlet distortion of bend-pipe of centrifugal compressor[J]. Transactions of CSICE, 2011, 29(5): 468-474. (in Chinese doi: 10.16236/j.cnki.nrjxb.2011.05.002Li Du, Yang Ce, Chen Shan, et al. Unsteady characteristics on inlet distortion of bend-pipe of centrifugal compressor[J]. Transactions of CSICE, 2011, 29(5): 468-474. (in Chinese) doi: 10.16236/j.cnki.nrjxb.2011.05.002 [2] Wang Leilei, Yang Ce, Zhao Ben, et al. The change of the inlet geometry of a centrifugal compressor stage and its influence on the compressor performance[J]. Journal of Thermal Science, 2013, 22(3): 197-208. doi: 10.1007/s11630-013-0613-2 [3] 老大中, 朱清淋, 王磊磊, 等. 180°弯管与离心压气机蜗壳的耦合作用分析[J]. 推进技术, 2017, 38(4): 797-807. Lao Dazhong, Zhu Qinglin, Wang Leilei, et al. Coupling analysis of 180° bend and volute of a centrifugal compressor[J]. Journal of Propulsion Technology, 2017, 38(4): 797-807. (in Chinese doi: 10.13675/j.cnki.tjjs.2017.04.010Lao Dazhong, Zhu Qinglin, Wang Leilei, et al. Coupling analysis of 180° bend and volute of a centrifugal compressor[J]. Journal of Propulsion Technology, 2017, 38(4): 797-807. (in Chinese) doi: 10.13675/j.cnki.tjjs.2017.04.010 [4] 王磊磊, 老大中, 刘恒, 等. 180°进气弯管安装角度对离心压气机的性能影响[J]. 工程热物理学报, 2014, 35(9): 1717-1721. Wang Leilei, Lao Dazhong, Liu Heng, et al. The influence of different installation angles of the 180° inlet bend pipe on the centrifugal compressor performance[J]. Journal of Engineering Thermophysics, 2014, 35(9): 1717-1721. (in ChineseWang Leilei, Lao Dazhong, Liu Heng, et al. The influence of different installation angles of the 180° inlet bend pipe on the centrifugal compressor performance[J]. Journal of Engineering Thermophysics, 2014, 35(9): 1717-1721. (in Chinese) [5] Zhang Meijie, Zheng Xinqian. Criteria for the matching of inlet and outlet distortions in centrifugal compressors[J]. Applied Thermal Engineering, 2018, 131: 933-946. doi: 10.1016/j.applthermaleng.2017.11.140 [6] Zhang Hanzhi, Yang Ce, Yang Changmao, et al. Inlet bent torsional pipe effect on the performance and stability of a centrifugal compressor with volute[J]. Aerospace Science and Technology, 2019, 93: 105322. doi: 10.1016/j.ast.2019.105322 [7] Grimaldi A, Michelassi V. The impact of inlet distortion and reduced frequency on the performance of centrifugal compressors[J]. Journal of Engineering for Gas Turbines and Power, 2019, 141(2): 021012. doi: 10.1115/1.4040907 [8] Engeda A, Kim Y, Aungier R, et al. The inlet flow structure of a centrifugal compressor stage and its influence on the compressor performance[J]. Journal of Fluids Engineering, 2003, 125(5): 779-785. doi: 10.1115/1.1601255 [9] Sitaram N, Govardhan M, Murali K V. Effects of inlet pressure distortion on the performance and flow field of a centrifugal compressor at off-design conditions[R]. Mumbai, India: ASME 2012 Gas Turbine India Conference, 2012. [10] Reichl A, Dickmann H P, Kuehnel J. Calculation methods for the determination of blade excitation due to suction elbows in centrifugal compressors[R]. ASME GT2009-59178, 2009. [11] 马朝臣, 洪舟振森, 张虹, 等. 动静干涉下压气机叶轮气动激励与振动分析[J]. 北京理工大学学报, 2021, 41(9): 935-942. Ma Chaochen, Hong Zhouzhensen, Zhang Hong, et al. Aerodynamic excitation and vibration analysis of centrifugal compressor impeller under dynamic and static interference[J]. Transactions of Beijing Institute of Technology, 2021, 41(9): 935-942. (in Chinese doi: 10.15918/j.tbit1001-0645.2020.109Ma Chaochen, Hong Zhouzhensen, Zhang Hong, et al. Aerodynamic excitation and vibration analysis of centrifugal compressor impeller under dynamic and static interference[J]. Transactions of Beijing Institute of Technology, 2021, 41(9): 935-942. (in Chinese) doi: 10.15918/j.tbit1001-0645.2020.109 [12] 李其汉, 王延荣. 航空发动机结构强度设计问题[M]. 上海: 上海交通大学出版社, 2014: 33-37. [13] Hall K C, Crawley E F. Calculation of unsteady flows in turbomachinery using the linearized Euler equations[J]. AIAA Journal, 1989, 27(6): 777-787. doi: 10.2514/3.10178 [14] He L, Ning W. Efficient approach for analysis of unsteady viscous flows in turbomachines[J]. AIAA Journal, 1998, 36(11): 2005-2012. doi: 10.2514/2.328 [15] Hall K C, Thomas J P, Clark W S. Computation of unsteady nonlinear flows in cascades using a harmonic balance technique[J]. AIAA Journal, 2002, 40(5): 879-886. doi: 10.2514/2.1754 [16] Application of a non-linear frequency domain solver to the Euler and Navier-Stokes equations[R]. AIAA-2002-0120, 2002. [17] Vilmin S, Lorrain E, Hirsch C, et al. Unsteady flow modeling across the rotor/stator interface using the nonlinear harmonic method[R]. ASME GT- 2006-90210, 2006. [18] Vilmin S, Lorrain é, Tartinville B, et al. The nonlinear harmonic method: from single stage to multi-row effects[J]. International Journal of Computational Fluid Dynamics, 2013, 27(2): 88-99. doi: 10.1080/10618562.2012.752074 [19] Vilmin S, Lorrain E, Debrabandere F, et al. The nonlinear harmonic method applied to the combined effects of multi-row unsteady flows[R]. ASME GT2013-94847, 2013. [20] Mehdizadeh O Z, Vilmin S, Tartinville B, et al. Efficient simulation of inlet distortion in engine fan stage using nonlinear harmonic method[R]. Lausanne, Switzerland: 13th European Conference on Turbomachinery Fluid Dynamics and Thermodynamics, 2019. [21] Kovachev N, Waldherr C U, Mayer J F, et al. Prediction of aerodynamically induced blade vibrations in a radial turbine rotor using the nonlinear harmonic approach[J]. Journal of Engineering for Gas Turbines and Power, 2019, 141(2): 021007. doi: 10.1115/1.4040856 [22] Giri R, Turner M, Celestina M. Application of non-linear harmonic and time marching techniques to analyze aerodynamics of inlet distortion in a tail-cone thruster fan stage[R]. AIAA-2020-0385, 2020. [23] 曹林, 祁明旭, 张继忠, 等. 基于非线性谐波法的离心压气机确定应力场分析[J]. 工程热物理学报, 2012, 33(3): 397-400. Cao Lin, Qi Mingxu, Zhang Jizhong, et al. Deterministic stress analysis in centrifugal compressor using non-linear harmonic method[J]. Journal of Engineering Thermophysics, 2012, 33(3): 397-400. (in ChineseCao Lin, Qi Mingxu, Zhang Jizhong, et al. Deterministic stress analysis in centrifugal compressor using non-linear harmonic method[J]. Journal of Engineering Thermophysics, 2012, 33(3): 397-400. (in Chinese) [24] 赵军, 刘宝杰. 基于非线性谐波法的跨声速压气机确定应力建模[J]. 航空动力学报, 2015, 30(10): 2440-2449. Zhao Jun, Liu Baojie. Deterministic stress modelling in transonic compressor based on nonlinear harmonic method[J]. Journal of Aerospace Power, 2015, 30(10): 2440-2449. (in Chinese doi: 10.13224/j.cnki.jasp.2015.10.018Zhao Jun, Liu Baojie. Deterministic stress modelling in transonic compressor based on nonlinear harmonic method[J]. Journal of Aerospace Power, 2015, 30(10): 2440-2449. (in Chinese) doi: 10.13224/j.cnki.jasp.2015.10.018 [25] 刘波, 王雷, 黄建. 非线性谐波法在双级对转压气机中的进一步校检[J]. 航空动力学报, 2013, 28(6): 1333-1341. Liu Bo, Wang Lei, Huang Jian. Further validation of NHM in two-stage counter-rotating compressor[J]. Journal of Aerospace Power, 2013, 28(6): 1333-1341. (in Chinese doi: 10.13224/j.cnki.jasp.2013.06.033Liu Bo, Wang Lei, Huang Jian. Further validation of NHM in two-stage counter-rotating compressor[J]. Journal of Aerospace Power, 2013, 28(6): 1333-1341. (in Chinese) doi: 10.13224/j.cnki.jasp.2013.06.033 [26] 赵军, 柳阳威, 刘宝杰. NASA67级非定常流场的频域分析[J]. 航空动力学报, 2007, 22(8): 1371-1377. Zhao Jun, Liu Yangwei, Liu Baojie. Frequency-domain analysis of NASA67 unsteady flow field[J]. Journal of Aerospace Power, 2007, 22(8): 1371-1377. (in Chinese doi: 10.13224/j.cnki.jasp.2007.08.029Zhao Jun, Liu Yangwei, Liu Baojie. Frequency-domain analysis of NASA67 unsteady flow field[J]. Journal of Aerospace Power, 2007, 22(8): 1371-1377. (in Chinese) doi: 10.13224/j.cnki.jasp.2007.08.029 [27] 罗楚威, 陈江. 单级轴流压气机确定应力场计算精度分析[J]. 推进技术, 2017, 38(12): 2716-2724. Luo Chuwei, Chen Jiang. Calculation accuracy analysis of deterministic stress field in single-stage axial flow compressor[J]. Journal of Propulsion Technology, 2017, 38(12): 2716-2724. (in Chinese doi: 10.13675/j.cnki.tjjs.2017.12.010Luo Chuwei, Chen Jiang. Calculation accuracy analysis of deterministic stress field in single-stage axial flow compressor[J]. Journal of Propulsion Technology, 2017, 38(12): 2716-2724. (in Chinese) doi: 10.13675/j.cnki.tjjs.2017.12.010 [28] 药晓江, 董景新, 尚捷, 等. 非线性谐波法在叶轮机械非定常计算中的应用[J]. 推进技术, 2016, 37(4): 632-639. Yao Xiaojiang, Dong Jingxin, Shang Jie, et al. Application of non-linear harmonic in turbomarchinery 3D flow field unsteady simulation[J]. Journal of Propulsion Technology, 2016, 37(4): 632-639. (in Chinese doi: 10.13675/j.cnki.tjjs.2016.04.005Yao Xiaojiang, Dong Jingxin, Shang Jie, et al. Application of non-linear harmonic in turbomarchinery 3D flow field unsteady simulation[J]. Journal of Propulsion Technology, 2016, 37(4): 632-639. (in Chinese) doi: 10.13675/j.cnki.tjjs.2016.04.005 [29] 王雷, 刘波. 非线性谐波法在对转压气机中的校检分析[J]. 航空动力学报, 2012, 27(7): 1448-1455. Wang Lei, Liu Bo. Validation of nonlinear harmonic method in dual-stage counter-rotating compressor[J]. Journal of Aerospace Power, 2012, 27(7): 1448-1455. (in Chinese doi: 10.13224/j.cnki.jasp.2013.06.033Wang Lei, Liu Bo. Validation of nonlinear harmonic method in dual-stage counter-rotating compressor[J]. Journal of Aerospace Power, 2012, 27(7): 1448-1455. (in Chinese) doi: 10.13224/j.cnki.jasp.2013.06.033 [30] Hembera M, Danner F, Kainz M, et al. Comparing frequency-based flow solutions to traditional unsteady fluid dynamics analysis in turbomachinery[M]//High performance computing in science and engine王ering, Garching/Munich 2009. Berlin, Heidelberg: Springer, 2010: 161-174. -
