Numerical simulation study on labyrinth seal in compressor with FLADE structure of adaptive cycle engines
-
摘要:
自适应循环发动机叶尖风扇（fan on blade, FLADE）涵道转子叶片与内涵道转子叶片共用旋转轮盘，转静部件间隙导致了从FLADE涵道至内涵道的泄漏流，为发动机内外涵间封严措施带来了新的挑战。当FLADE结构被用于压气机时，内外涵间的封严泄漏流对质量流量变化影响更为突出，对气动性能影响更加显著。以某自适应循环发动机采用FLADE结构的压气机为研究对象，建立了包含内外涵间封严篦齿结构的1.5级压气机计算模型，采用数值模拟方法分析内外涵间篦齿泄漏流动对压气机气动性能的影响。研究结果表明：内外涵间封严篦齿泄漏使得内涵总压比升高0.519%，而FLADE涵道总压比降低0.264%；封严篦齿结构在封严腔内形成局部高压区域，对泄漏流起到抑制作用；封严篦齿泄漏流主要影响内涵静子前缘，其对主流的掺混作用主要作用在80%～99%叶高区，导致静子叶尖形成低能区，从而使内涵静子总压恢复系数降低，转子总压比升高进而影响1.5级压气机整体气动性能。
-
关键词:
- 自适应循环发动机 /
- 叶尖风扇(FLADE) /
- 封严篦齿 /
- 叶尖间隙 /
- 泄漏流
Abstract:In the adaptive cycle engine, the fan on blade (FLADE) bypass rotor blades and the inner bypass rotor blades share a common rotating disk. The clearance between the rotating and stationary components results in leakage flow from the FLADE bypass duct to the core duct, posing new challenges for sealing between the engine’s bypass and core flows. When the FLADE configuration is applied to a compressor, the sealing leakage flow between the bypass and core ducts has a more pronounced impact on mass flow variation and aerodynamic performance. Taking the compressor of a certain adaptive cycle engine with the FLADE structure as the research object, a 1.5-stage compressor computational model considering the labyrinth seal structure between the core and bypass ducts was established. Numerical simulation was employed to investigate the effect of leakage flow through the labyrinth seal on the aerodynamic performance of the compressor. The results indicated that the leakage through the labyrinth seal between the core and bypass streams increased the total pressure ratio 0.519% in the core duct while reducing it 0.264% in the FLADE bypass duct. Additionally, the labyrinth seal structure created a local high-pressure region within the seal cavity, effectively suppressing leakage flow. The leakage flow primarily affected the blade tip region of the inner stator blades, with significant mixing effects occurring predominantly at 80% to 90% blade span. This interaction resulted in a low-energy region at the stator leading edge, causing a decrease in stator total pressure recovery coefficient while increasing the rotor total pressure ratio, thus impacting the overall aerodynamic performance of the 1.5-stage compressor.
-
Key words:
- adaptive cycle engine /
- fan on blade (FLADE) /
- labyrinth seal /
- tip clearance /
- leakage flow
-

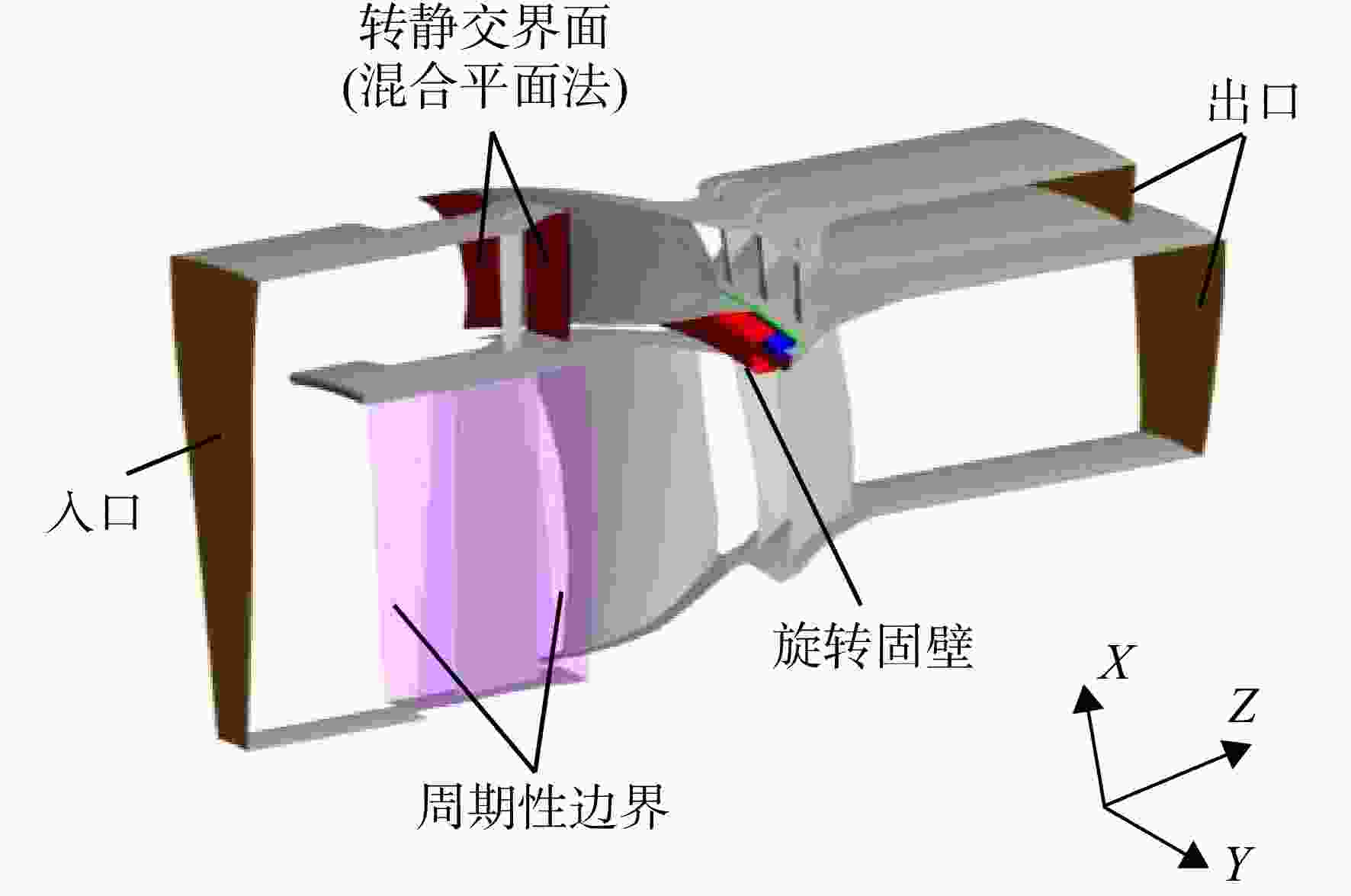

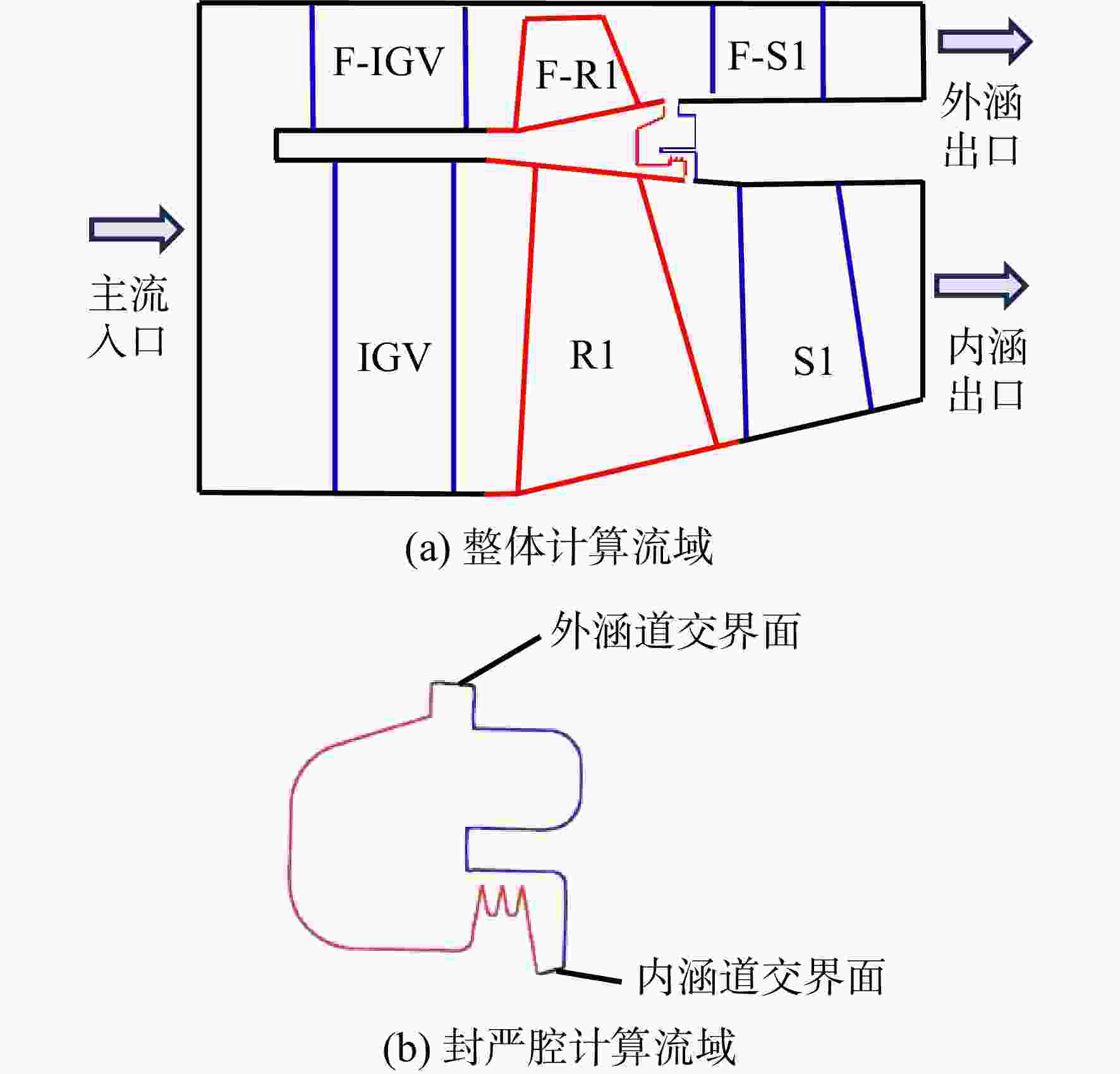

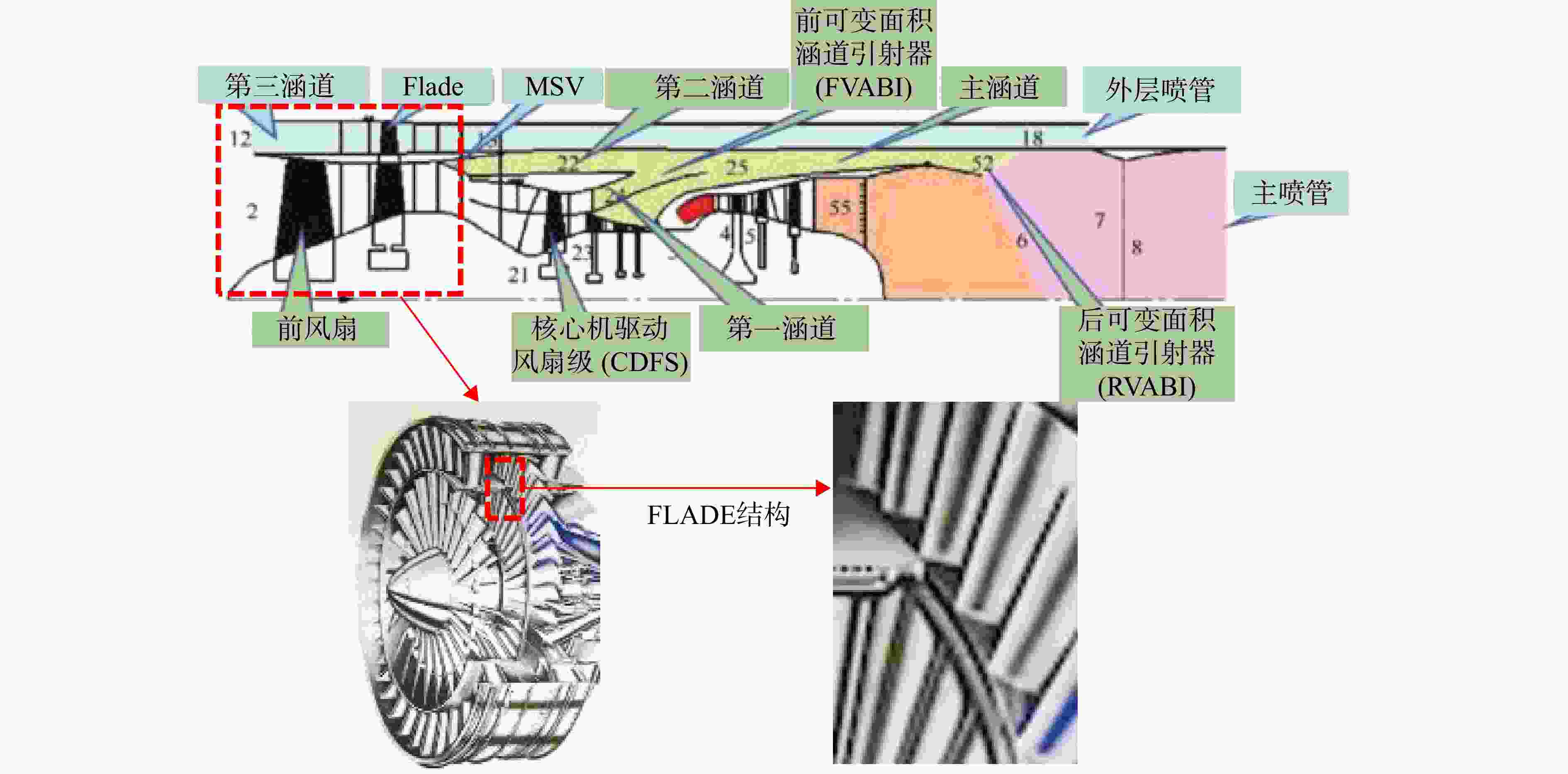

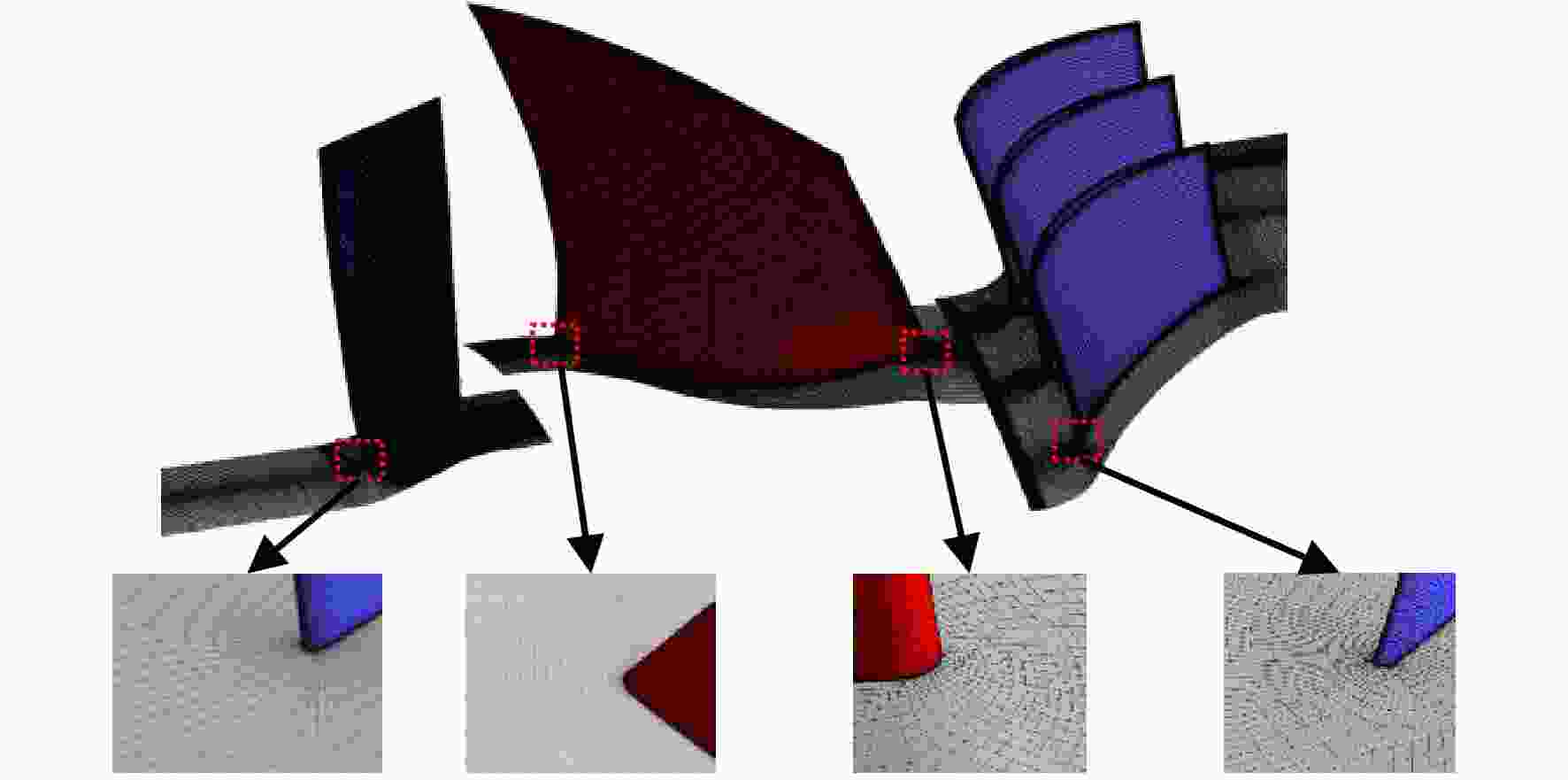

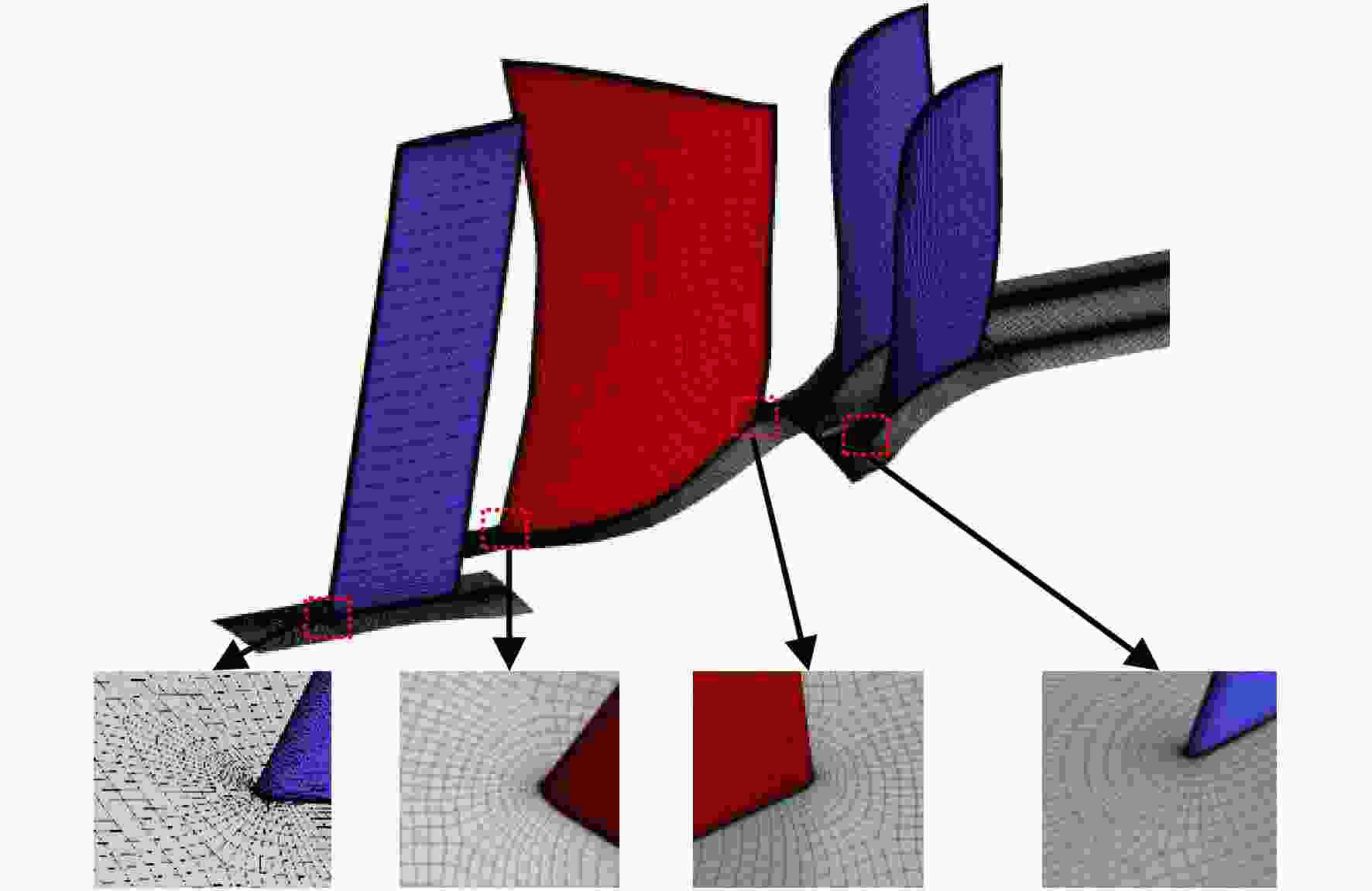

图 4 1.5级压气机内涵道网格示意图
Figure 4. Schematic diagram of 1.5-stage compressor grids in the inner duct
图 5 1.5级压气机外涵道网格示意图
Figure 5. Schematic diagram of 1.5-stage compressor grids in the outer duct

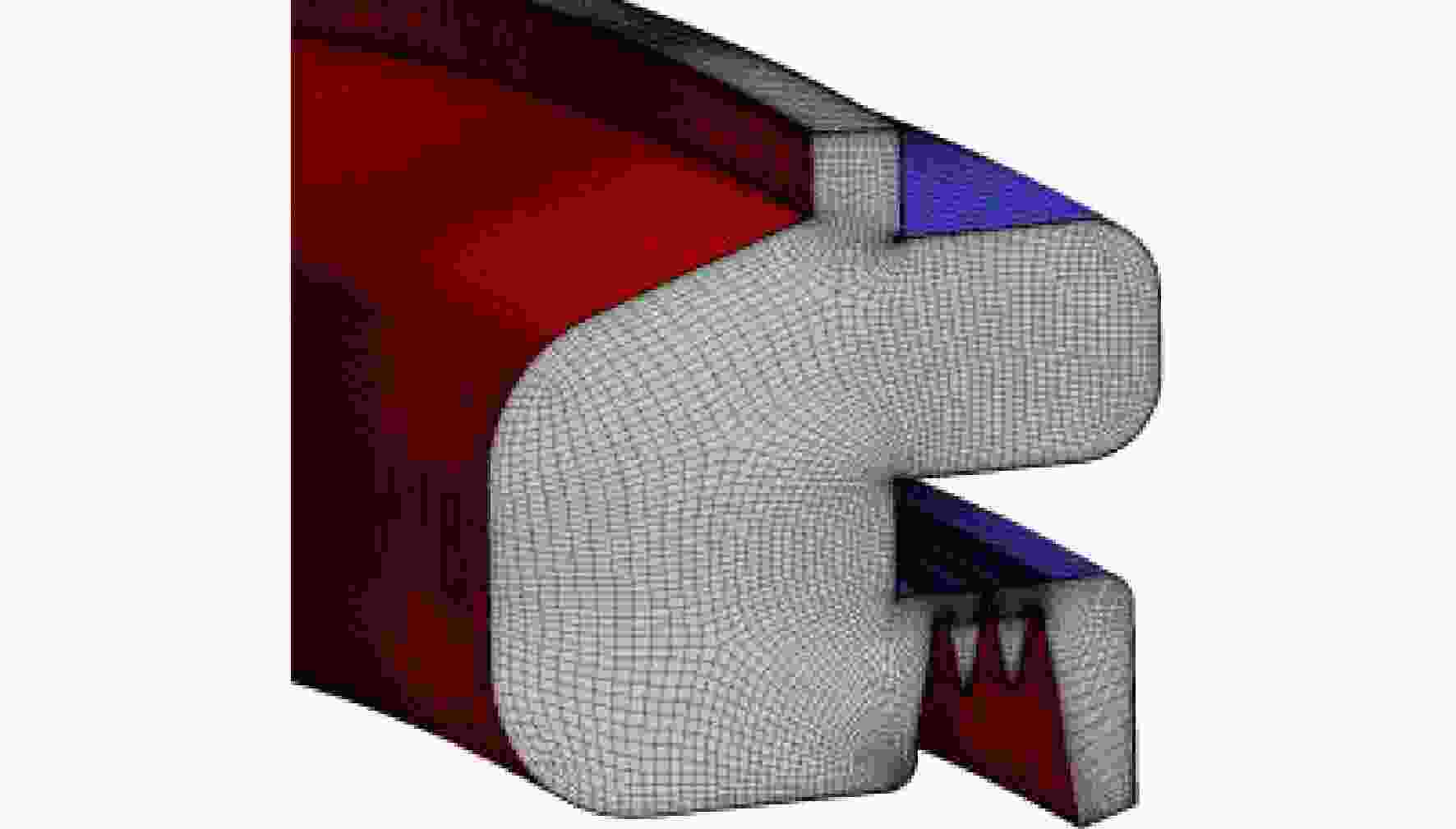

图 6 1.5级压气机封严腔网格示意图
Figure 6. Schematic diagram of grids in the sealing cavity of1.5-stage compressor

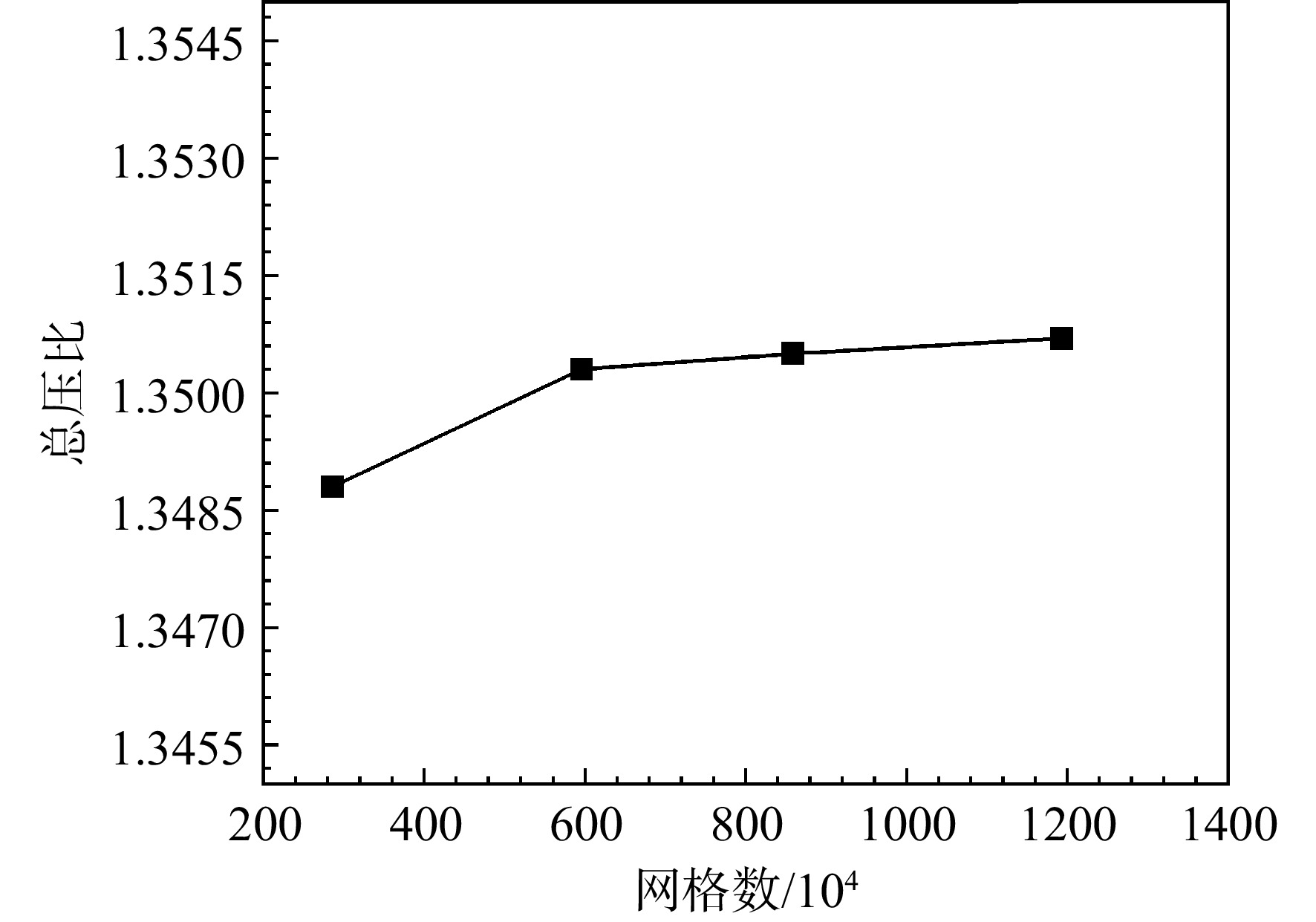

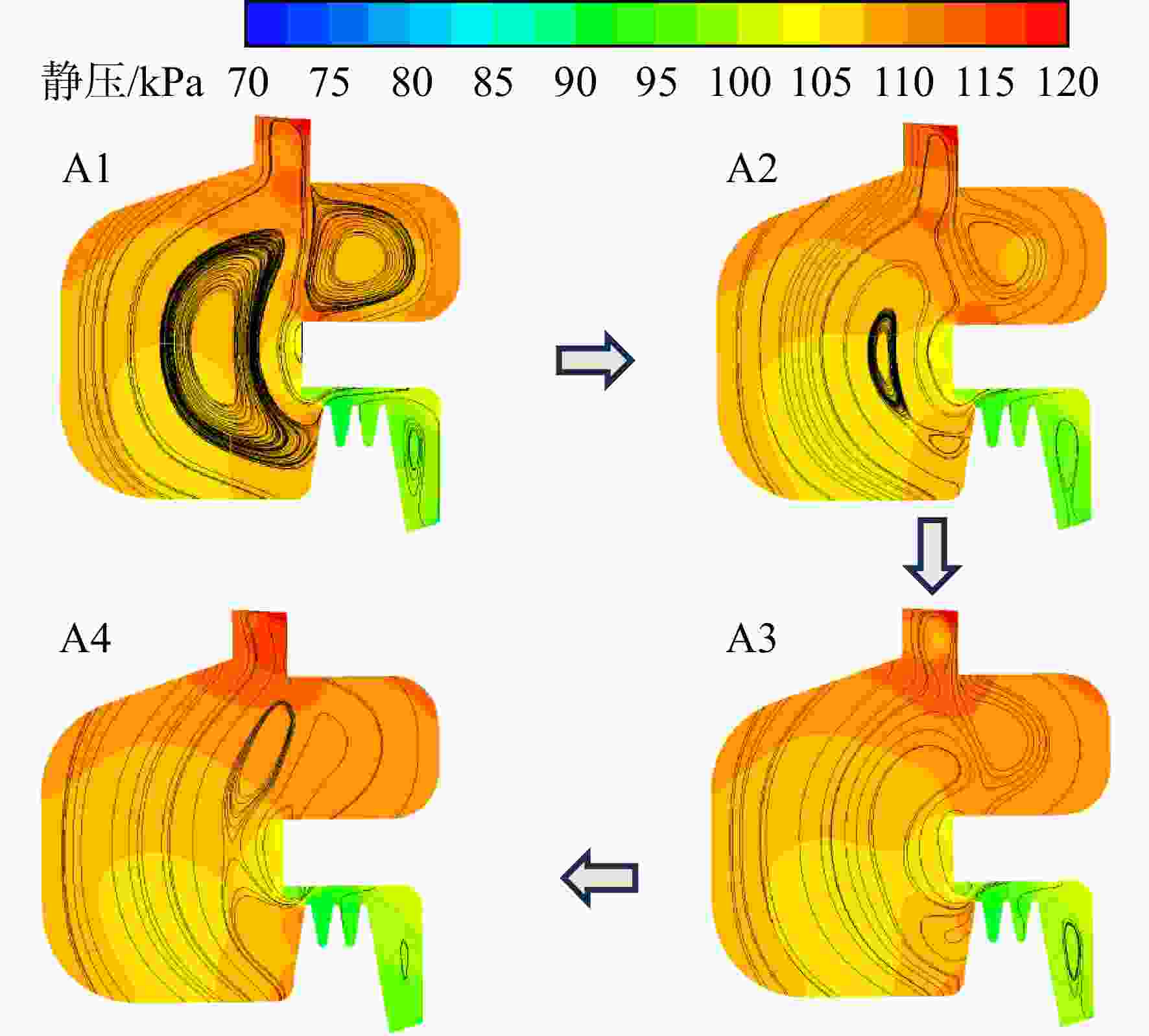

图 10 封严腔静压云图及流线分布
Figure 10. Contour plot of static pressure and streamline distribution in the sealing cavity

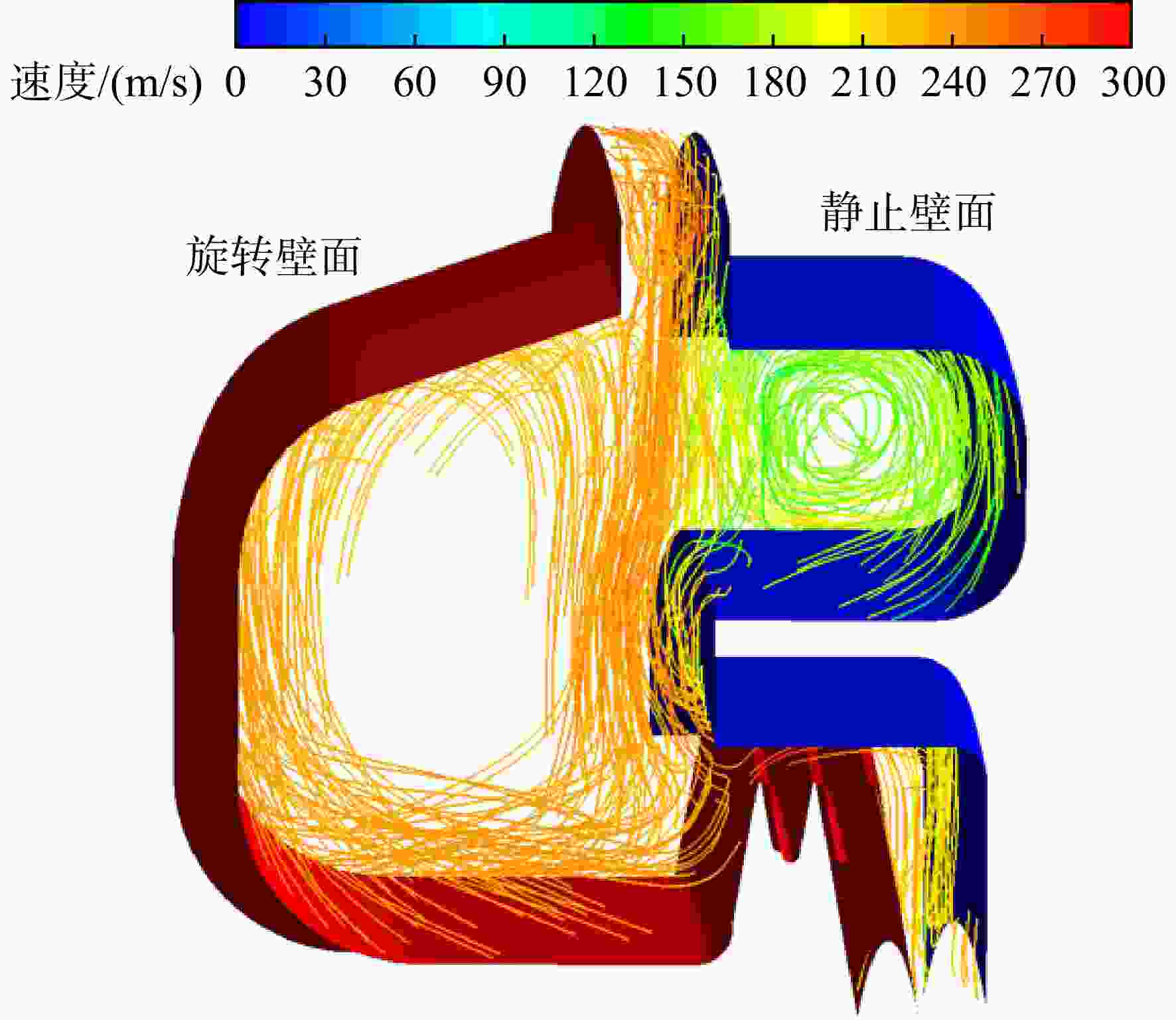

图 11 封严腔三维流线分布
Figure 11. Three-dimensional streamline distribution in the sealing cavity

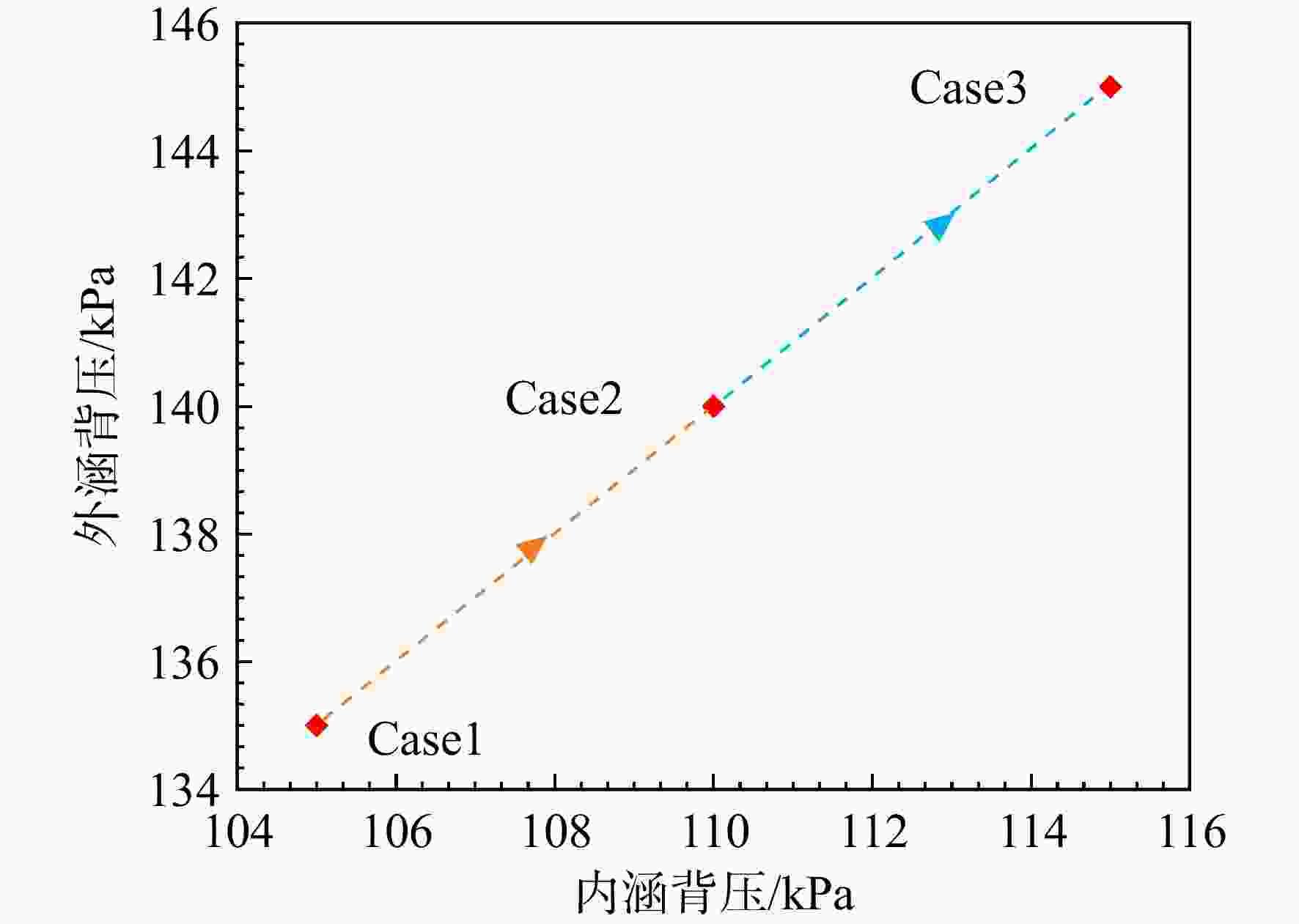

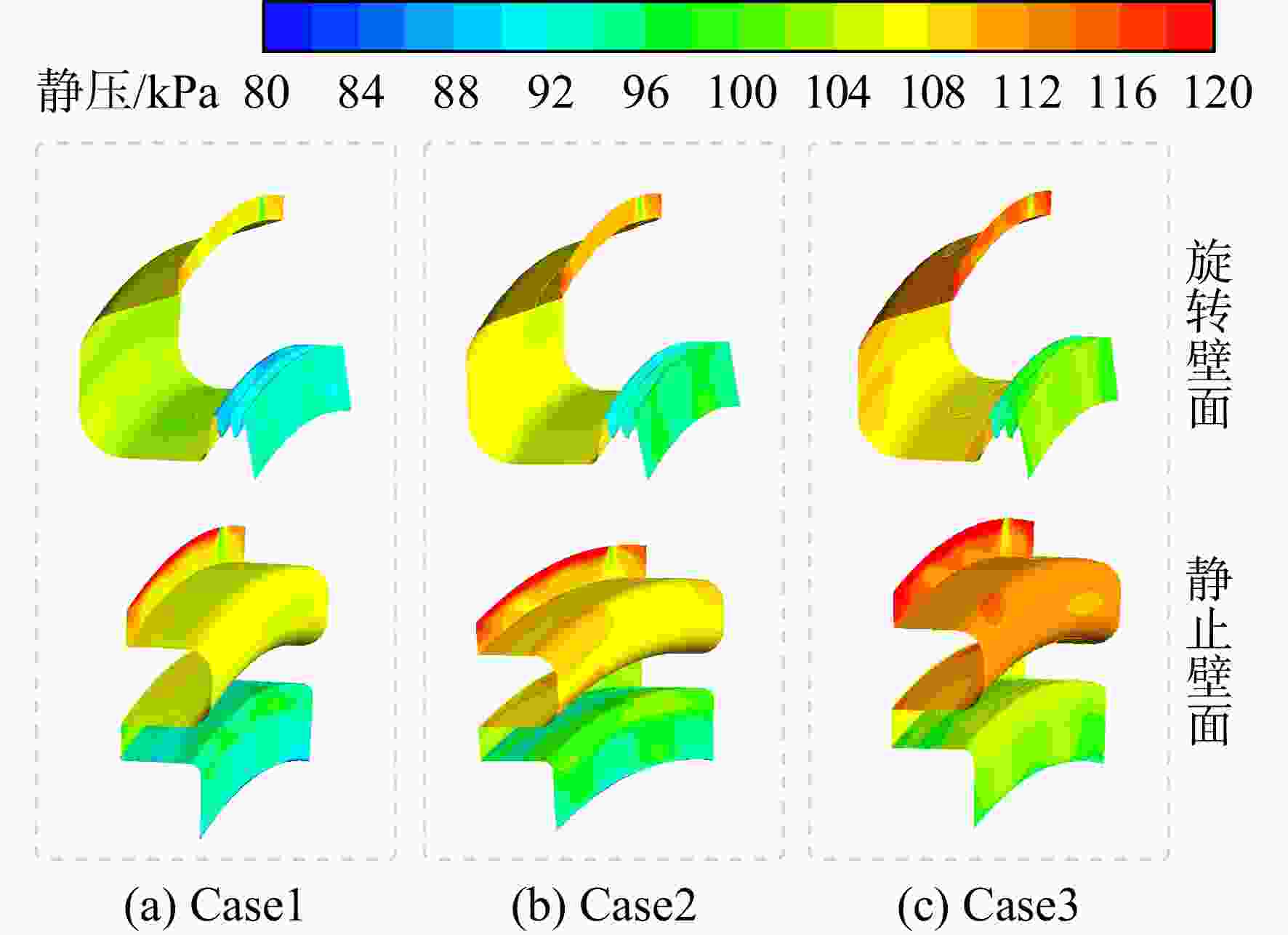

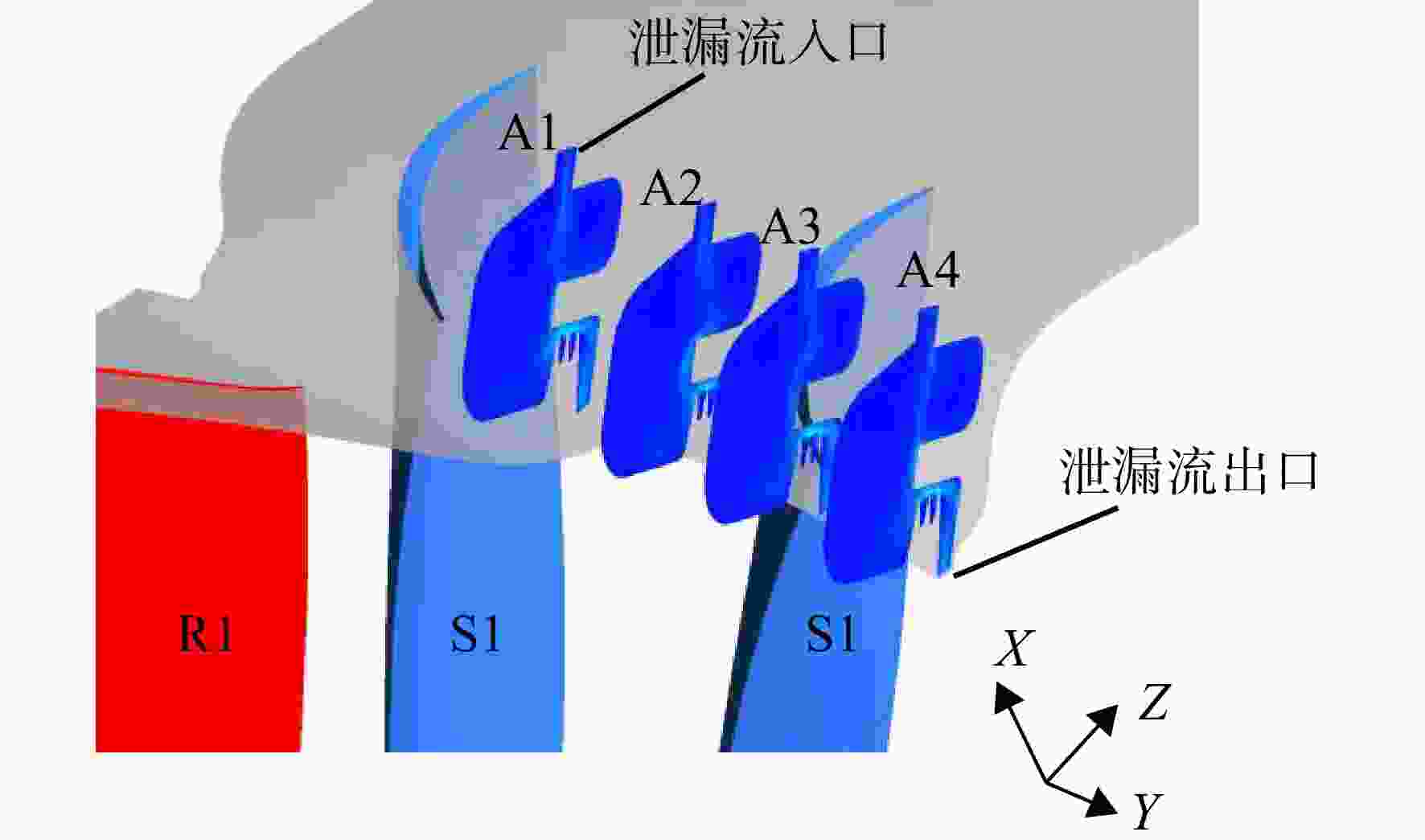

图 12 封严腔壁面在多运行工况下的静压云图
Figure 12. Contour plot of static pressure on sealing cavity walls under multiple operating conditions

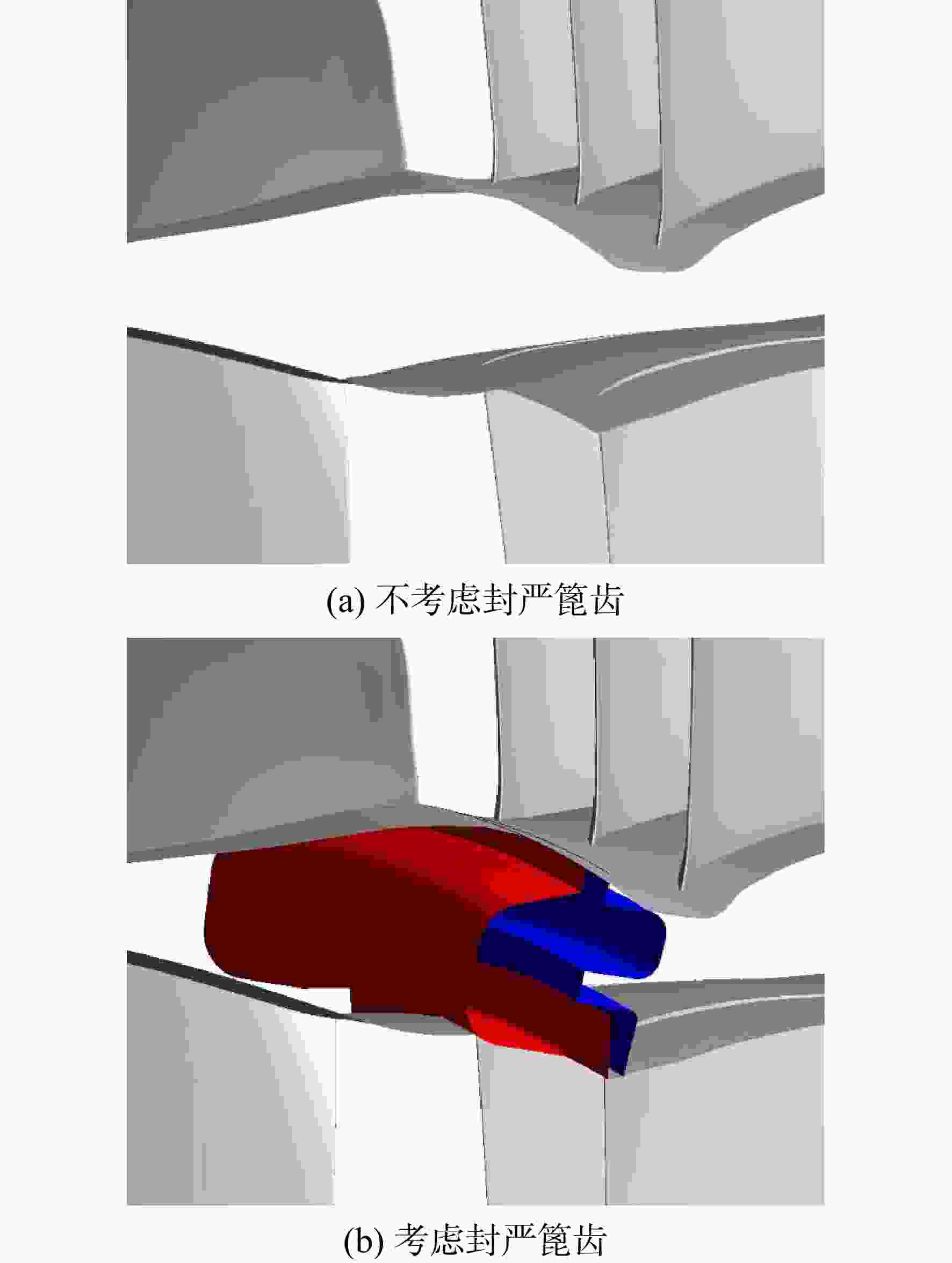

图 13 有无封严篦齿结构的数值模型示意图
Figure 13. Schematic diagram of the numerical model with and without labyrinth seal

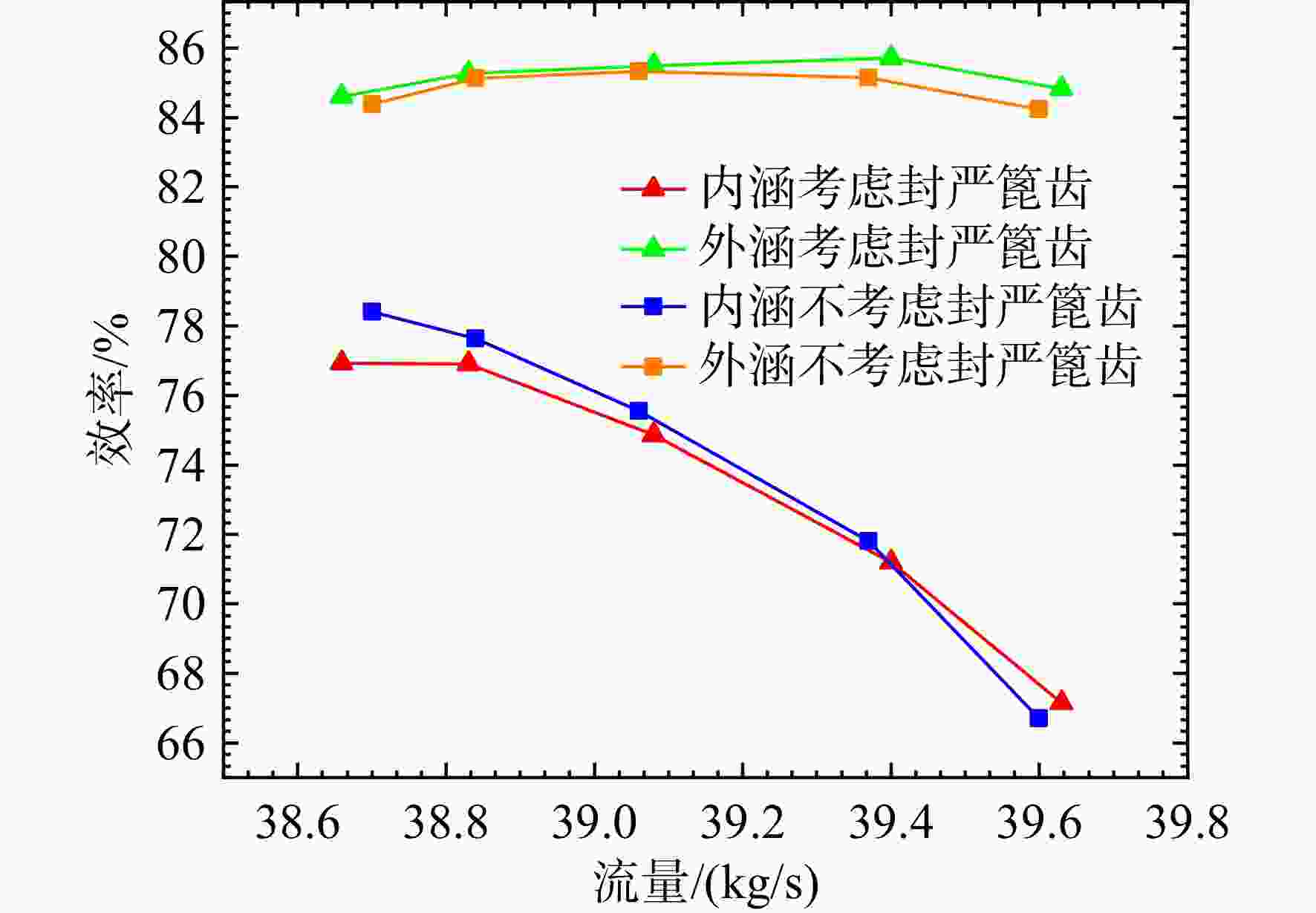

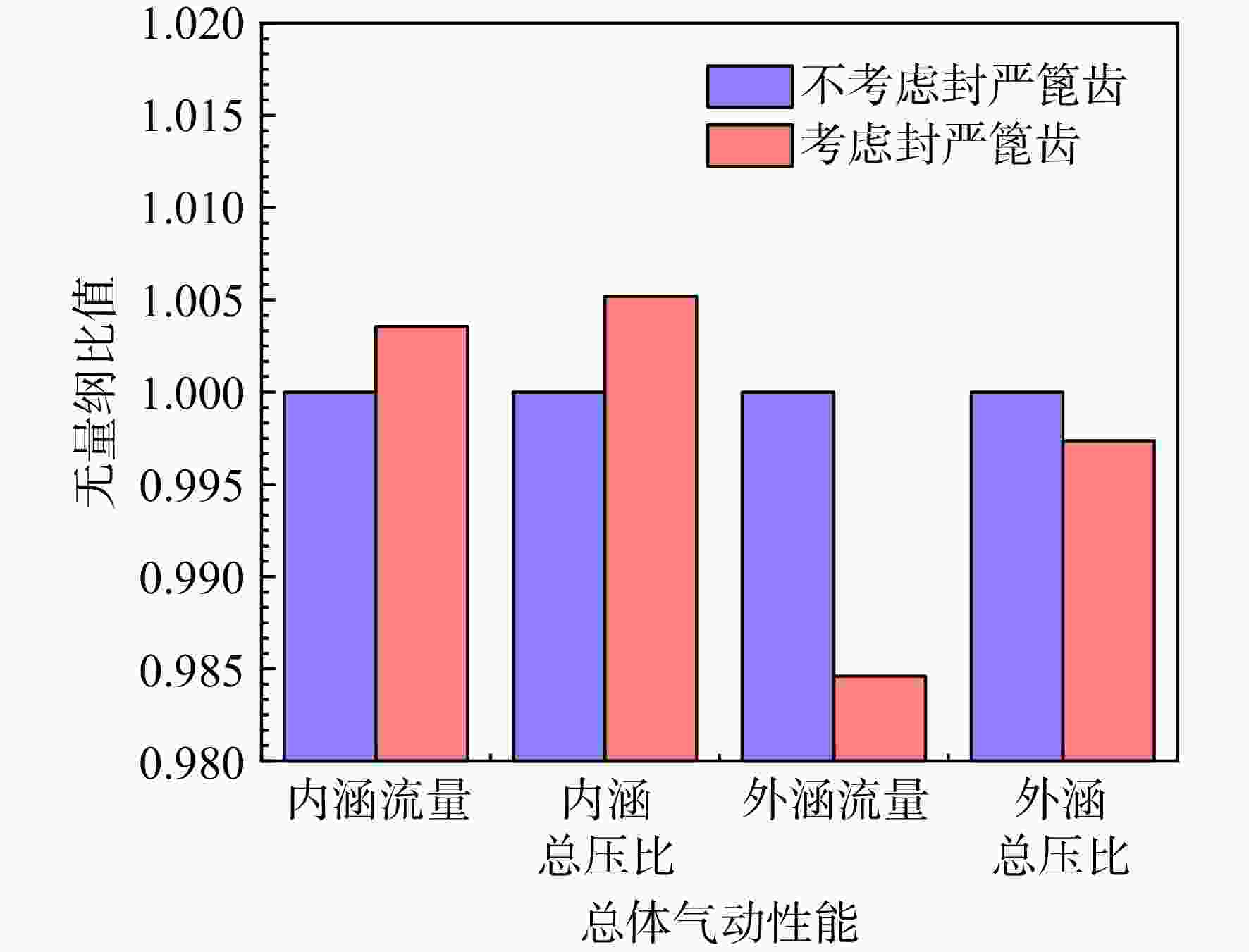

图 16 1.5级压气机总体气动性能对比
Figure 16. Comparison of overall aerodynamic performance of the 1.5-stage compressor

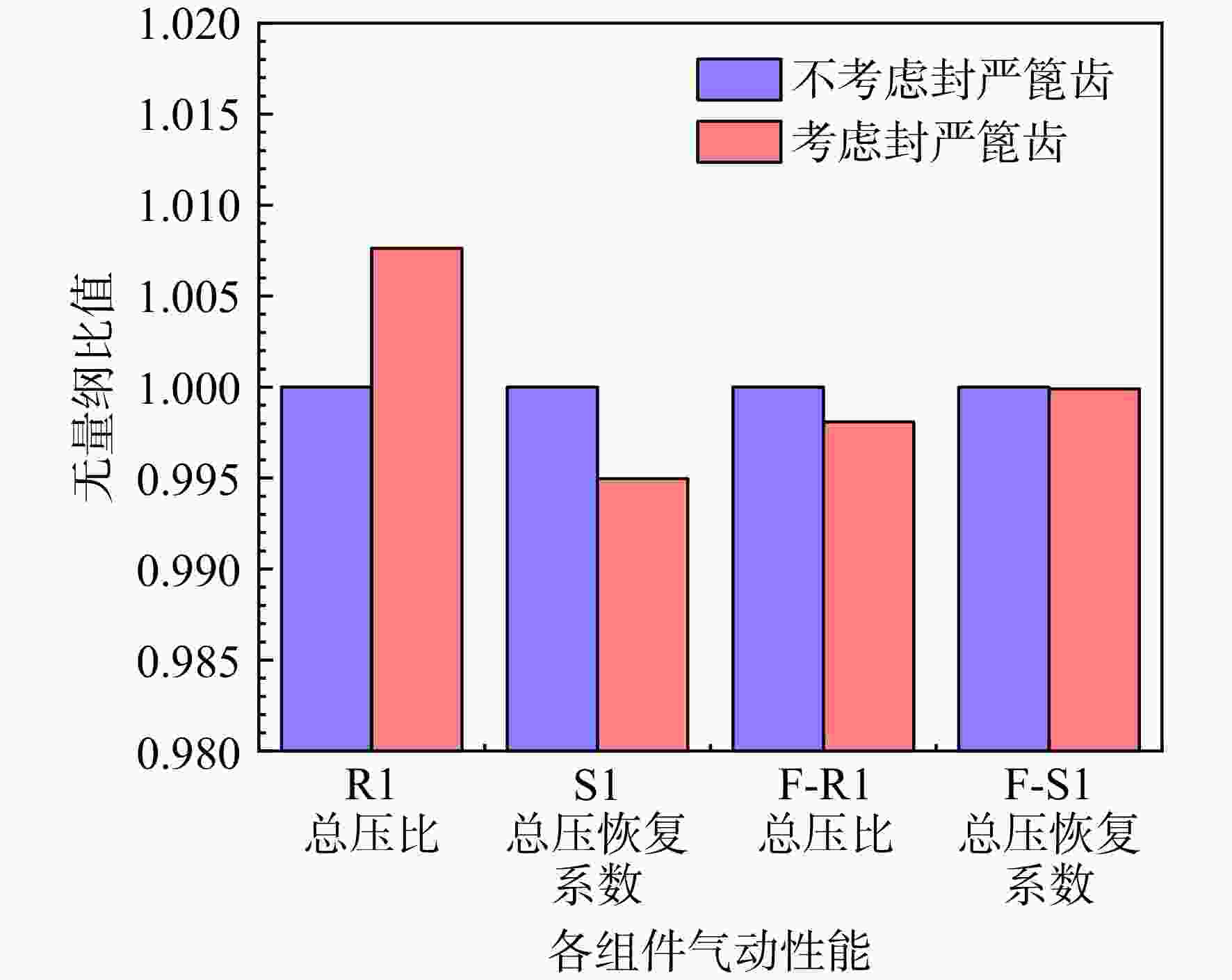

图 17 1.5级压气机各部分组件气动性能对比
Figure 17. Comparison of aerodynamic performance across each component of the 1.5-stage compressor

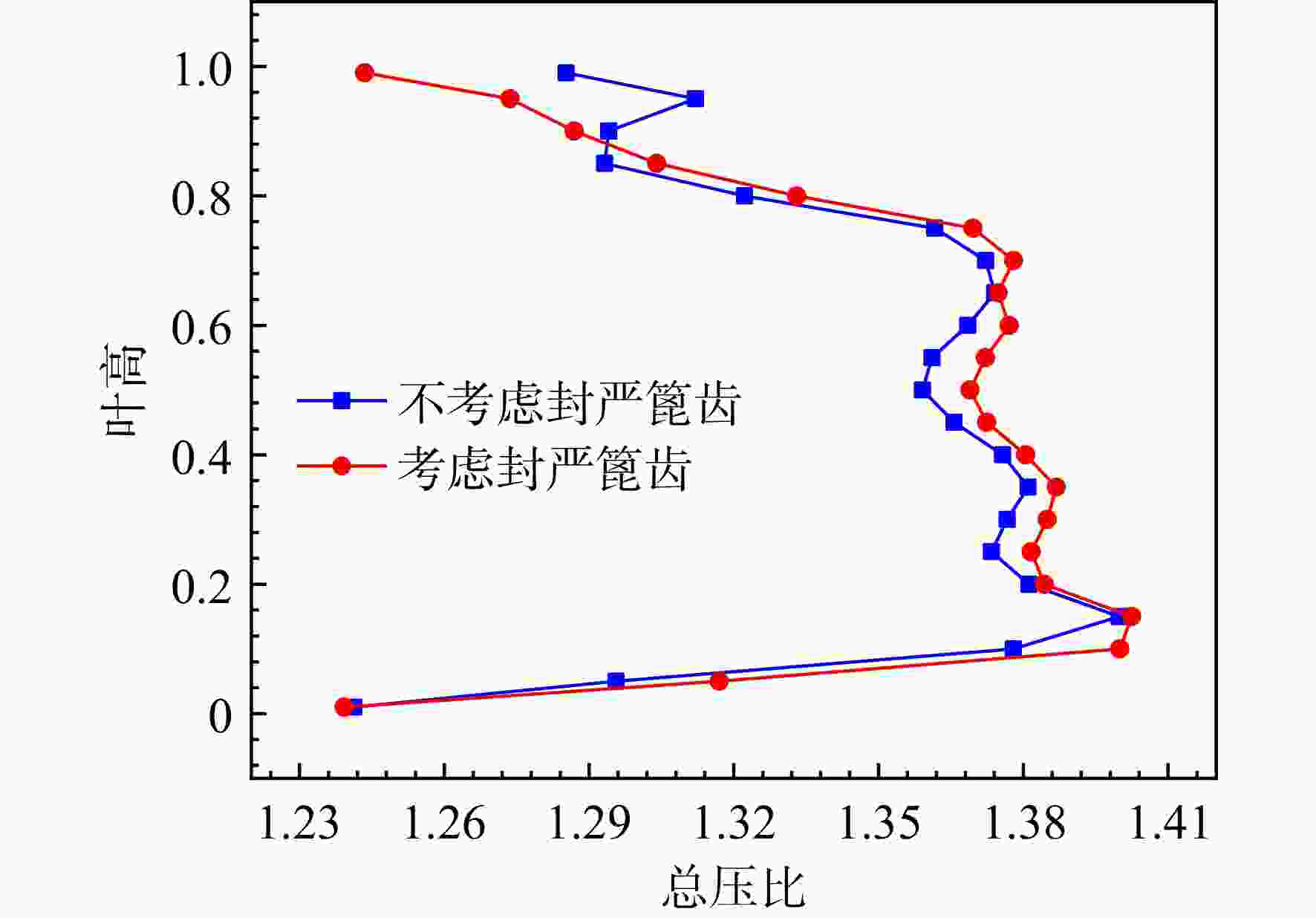

图 19 内涵总压比径向分布
Figure 19. Radial distribution of total pressure ratio at the inner duct

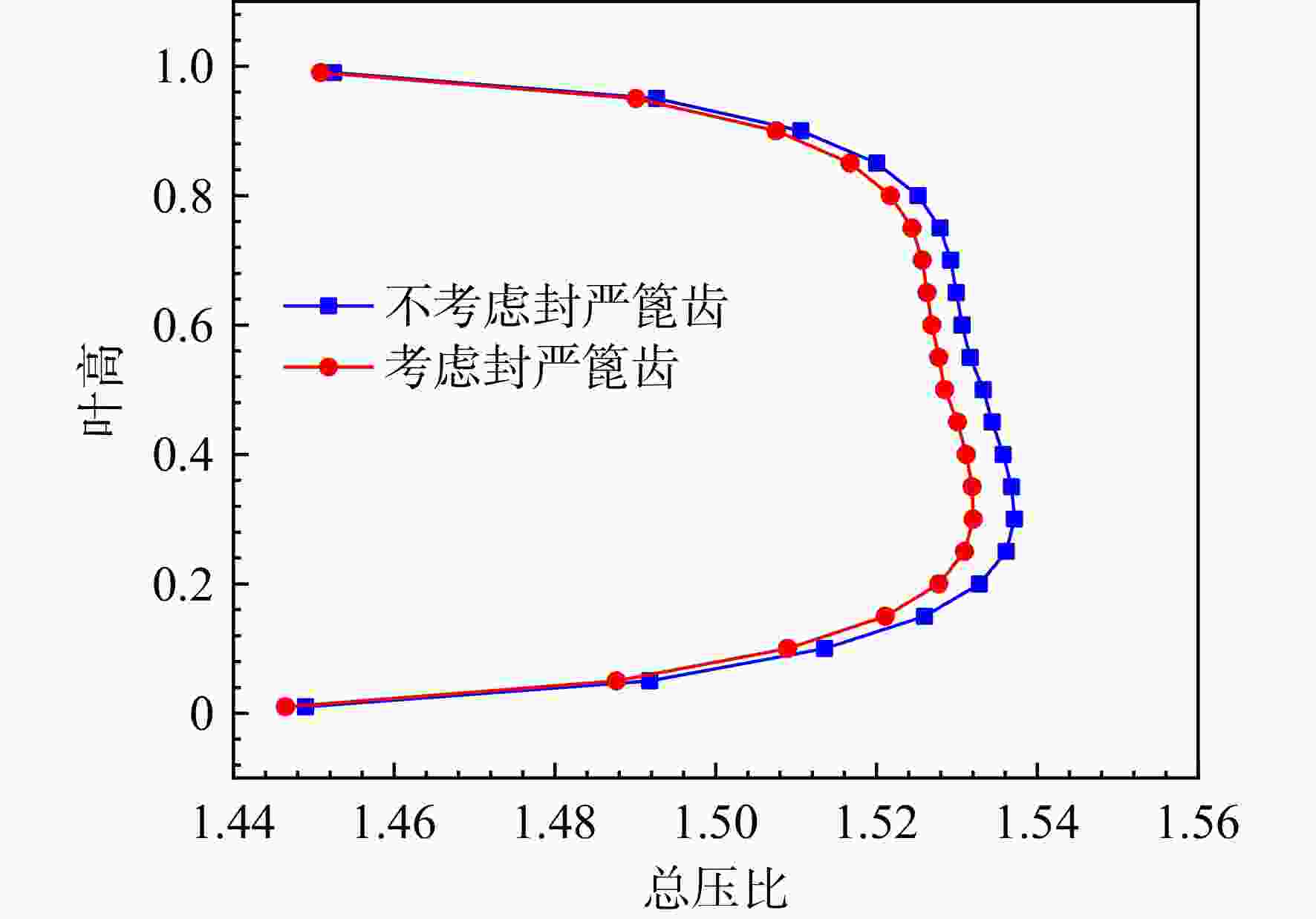

图 20 外涵总压比径向分布
Figure 20. Radial distribution of total pressure ratio at the outer duct

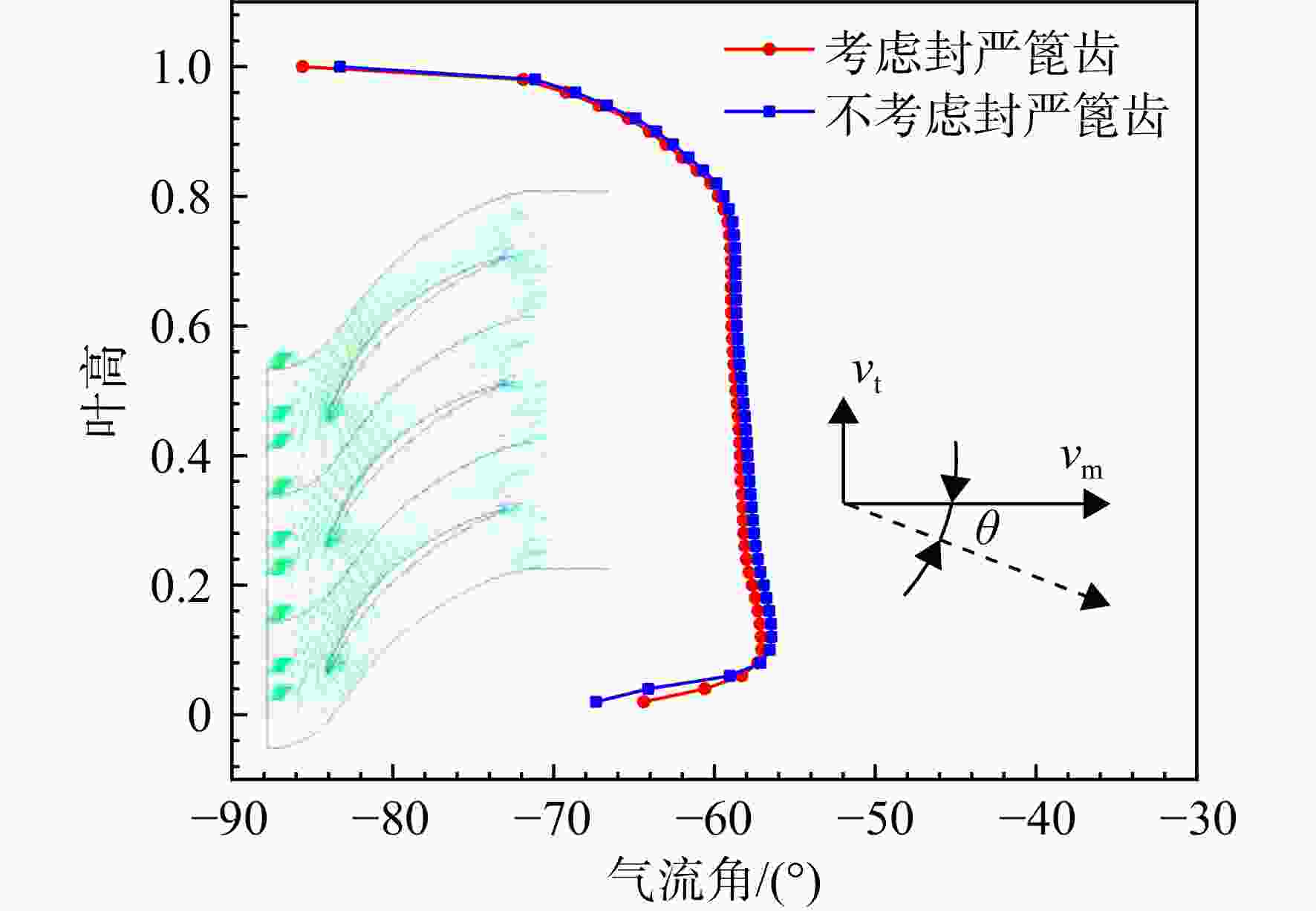

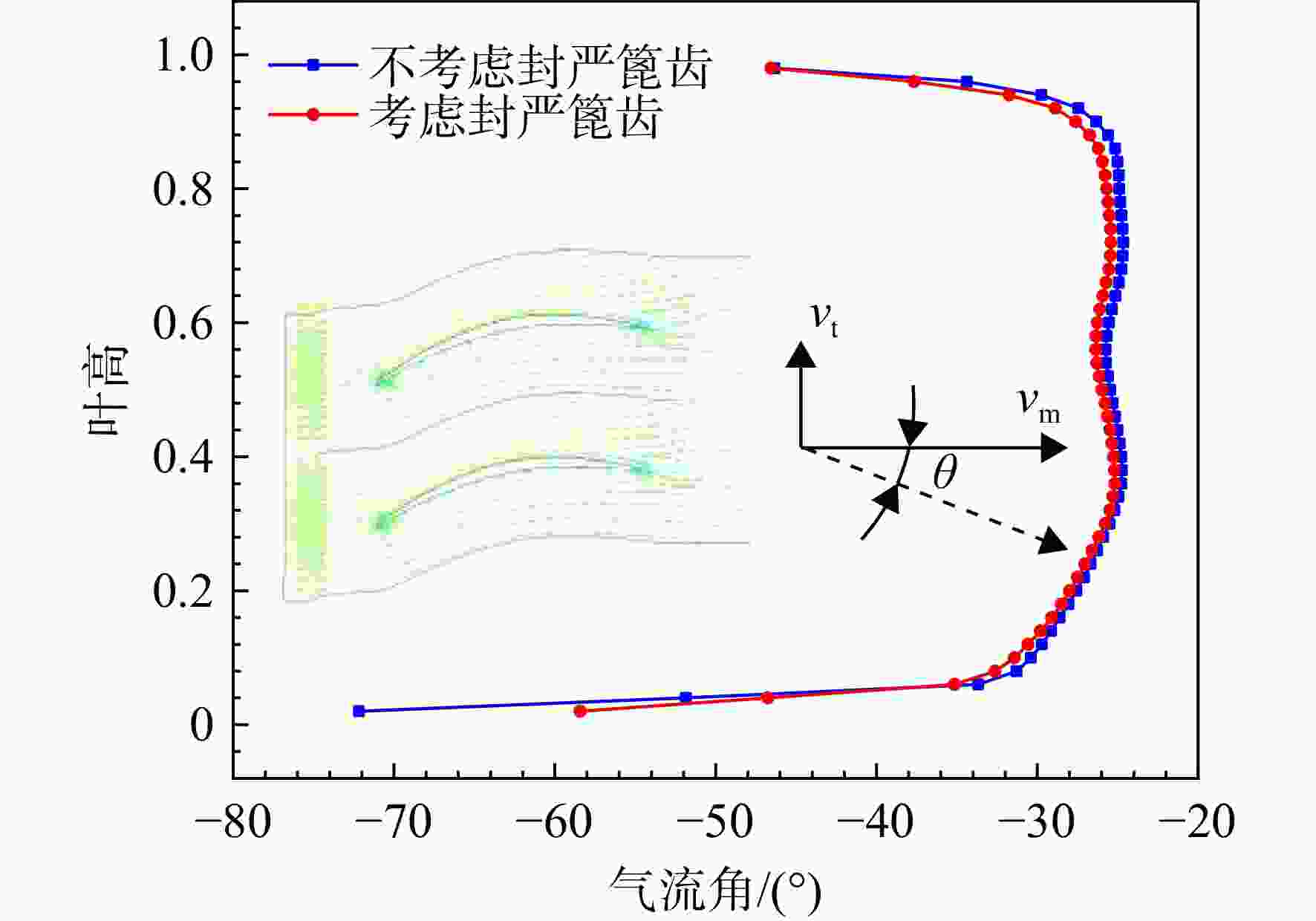

图 21 内涵静子入口气流角径向分布
Figure 21. Flow angel radial distribution at stator inlet of inner duct
图 22 外涵静子入口气流角径向分布
Figure 22. Flow angel radial distribution at stator inlet of outer duct

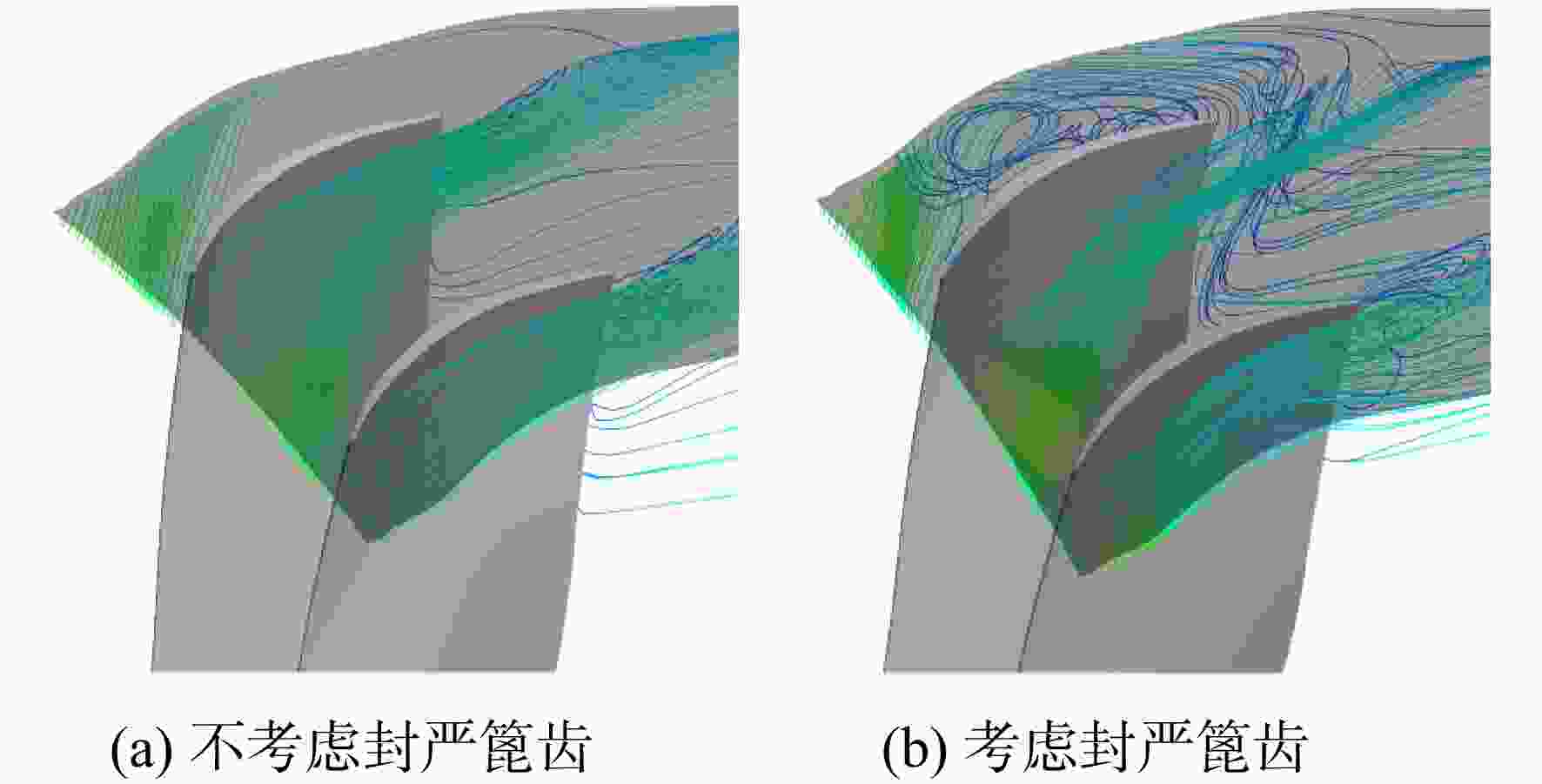

图 23 内涵静子叶尖流域流线分布
Figure 23. Streamline distribution at stator blade tip region in the inner duct
图 24 内涵静子前缘面静压分布云图
Figure 24. Contour plot of static pressure on the leading edge surface of the stator in inner duct

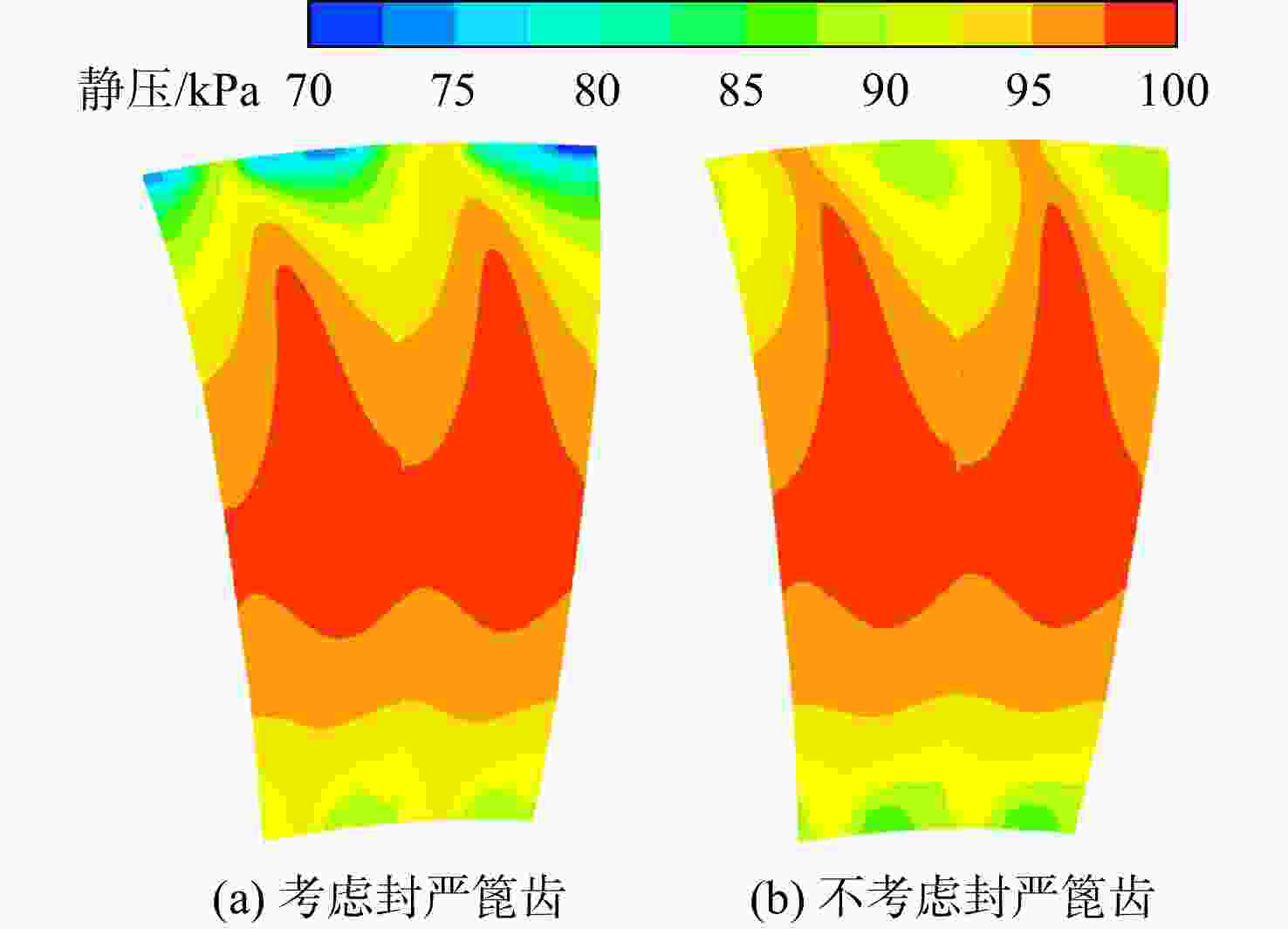

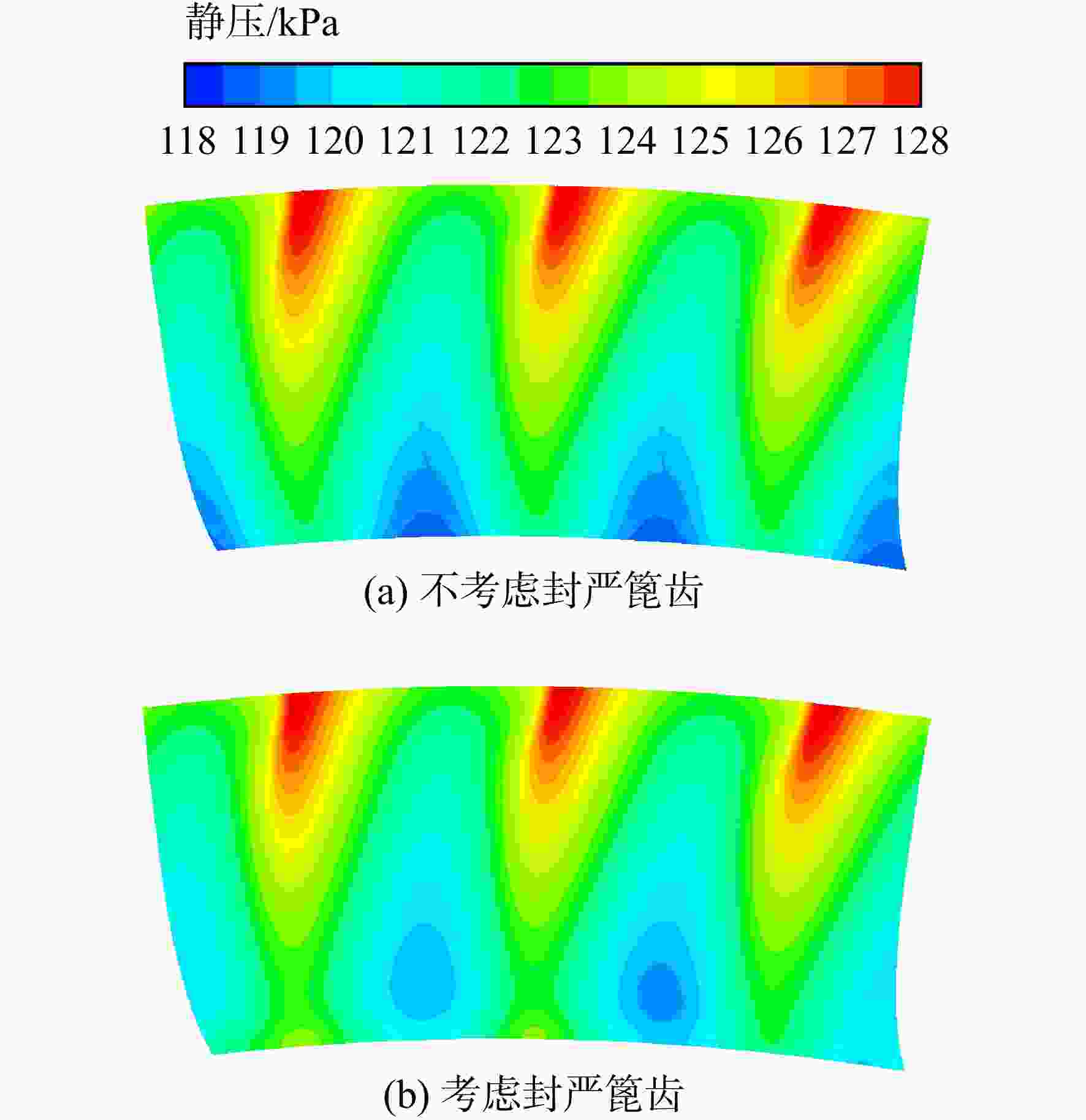

图 25 外涵静子前缘面静压分布云图
Figure 25. Contour plot of static pressure on the leading edge surface of the stator in outer duct

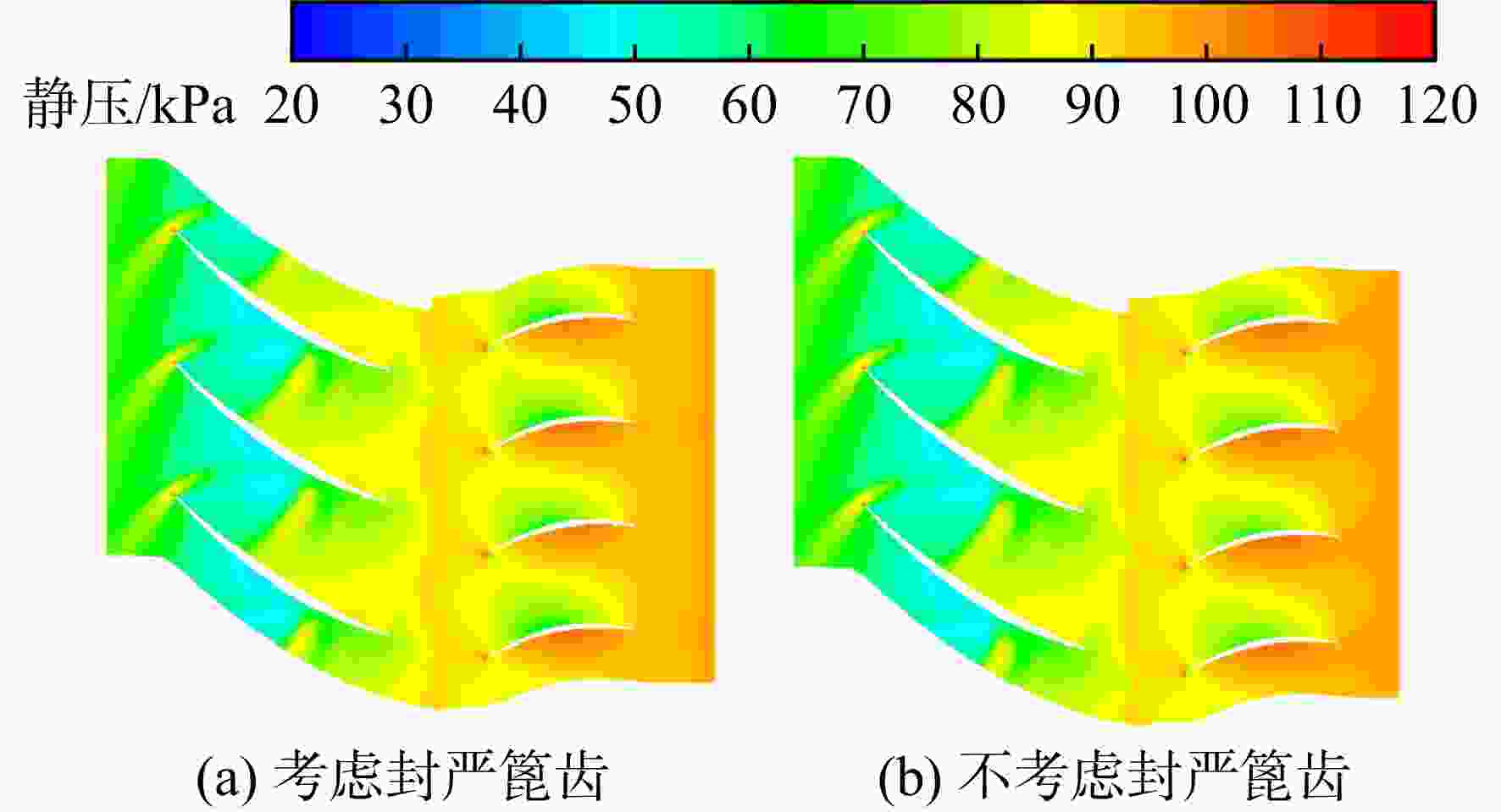

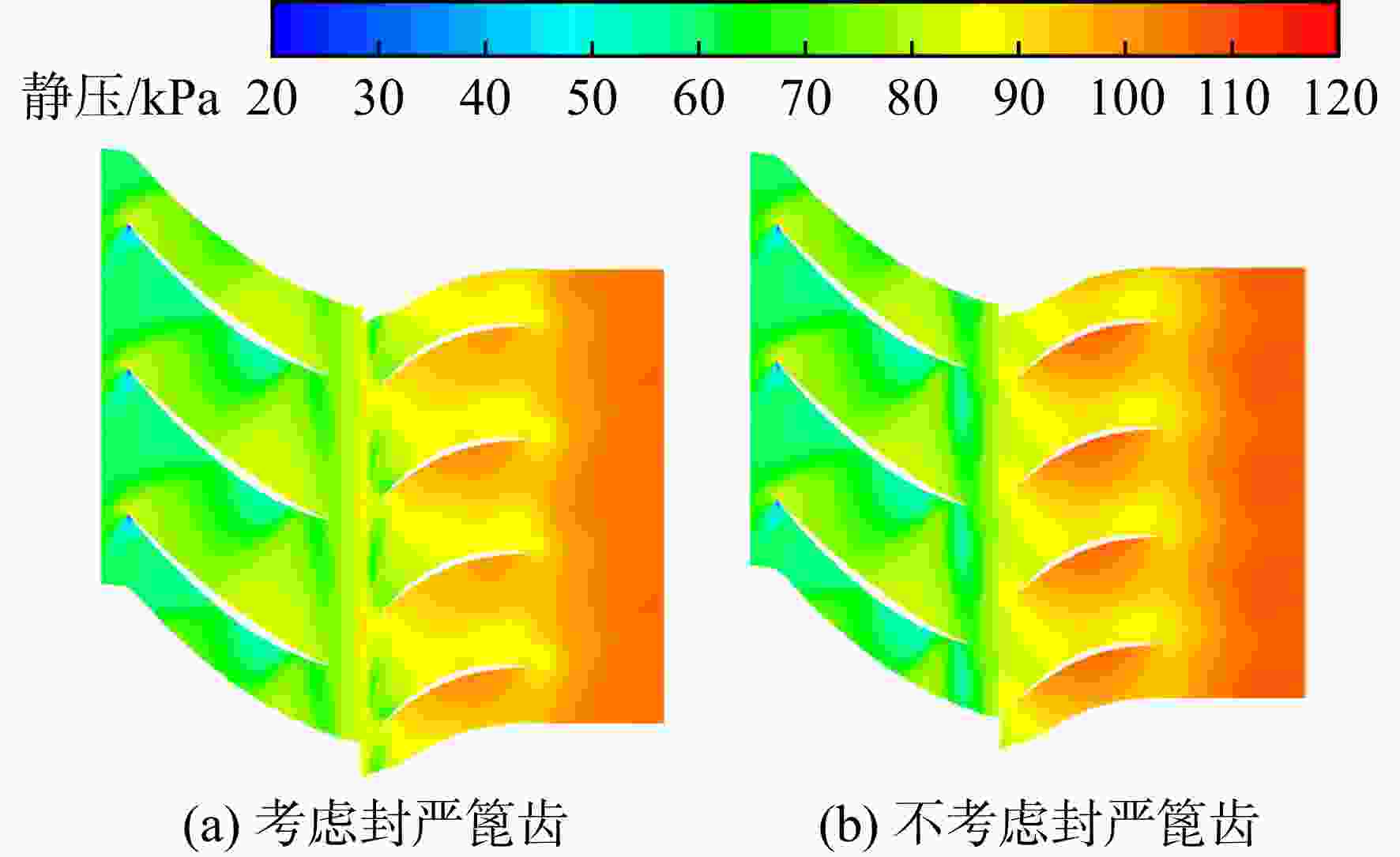

图 26 内涵99%叶高静压分布云图
Figure 26. Contour plot of static pressure at 99% span in inner duct
图 27 内涵50%叶高静压分布云图
Figure 27. Contour plot of static pressure at 50% span in inner duct
表 2 有无封严篦齿结构气动性能对比
Table 2. Comparison of aerodynamic performance with and without labyrinth seal structure
气动性能 不考虑封严篦齿 考虑封严篦齿 内涵流量/（kg/s） 30.540 30.690 外涵流量/（kg/s） 8.601 8.475 入口流量/（kg/s） 39.140 39.170 内涵总压比 1.350 1.357 外涵总压比 1.515 1.511 内涵转子总压比 1.442 1.453 内涵静子总压恢复系数 0.9737 0.9688 外涵转子总压比 1.570 1.567 外涵静子总压恢复系数 0.9827 0.9826
下载: 导出CSV
-
