Dynamic characteristics of spline couplings considering the influence of tooth surface topography
-
摘要:
为提高航空发动机花键连接转子动力学建模的准确性，研究齿面粗糙度对结构动力学特性的影响机制。建立含粗糙表面的花键单对齿啮合仿真模型，揭示法向与切向啮合刚度随位移载荷的变化规律；提出基于虚拟材料法的花键连接结构动力学建模方法，构建考虑表面形貌的整体有限元模型。结果表明：齿面粗糙度降低可提升接触应力分布的均匀性与接触刚度，高粗糙度则导致接触面积损失并引发齿根滑移损伤；粗糙度通过刚度软化效应降低系统固有频率并增大振动响应，其中一阶固有频率对表面状态最为敏感，具体影响程度分别约为7%与11.8%；扭矩载荷通过改善接触状态可部分抵消粗糙度的负面效应。构建的跨尺度分析框架阐明了微观形貌对局部接触行为与整体动力学响应的影响规律，为花键连接转子性能预测与制造工艺优化提供理论依据。
Abstract:To improve the accuracy of dynamic modeling for aeroengine spline connected rotors, the influence mechanism of tooth surface roughness on structural dynamic characteristics was investigated. A simulation model of single-tooth-pair engagement with rough surfaces was established to reveal the evolution of normal and tangential meshing stiffness with displacement loads. A dynamic modeling method based on the virtual material method was proposed, and a finite element model of the overall structure considering surface topography was constructed. Results showed that lower roughness improved the uniformity of contact stress distribution and contact stiffness, whereas higher roughness caused contact area loss and induced tooth root slip damage. Roughness reduced the natural frequency and increased the vibration response through stiffness softening, with the first natural frequency being the most sensitive to surface conditions. The specific influence was about 7% on the first natural frequency and 11.8% on the radial vibration amplitude. In contrast, torque loading partially offset the negative effect of roughness by improving the contact state. The established cross-scale analysis framework clarified the influence of micro-topography on local contact behavior and global dynamic response, providing theoretical support for performance prediction and manufacturing process optimization of aeroengine spline connected rotors.
-
Key words:
- aeroengine /
- spline /
- rough surface /
- contact mechanics /
- dynamics /
- finite element analysis
-

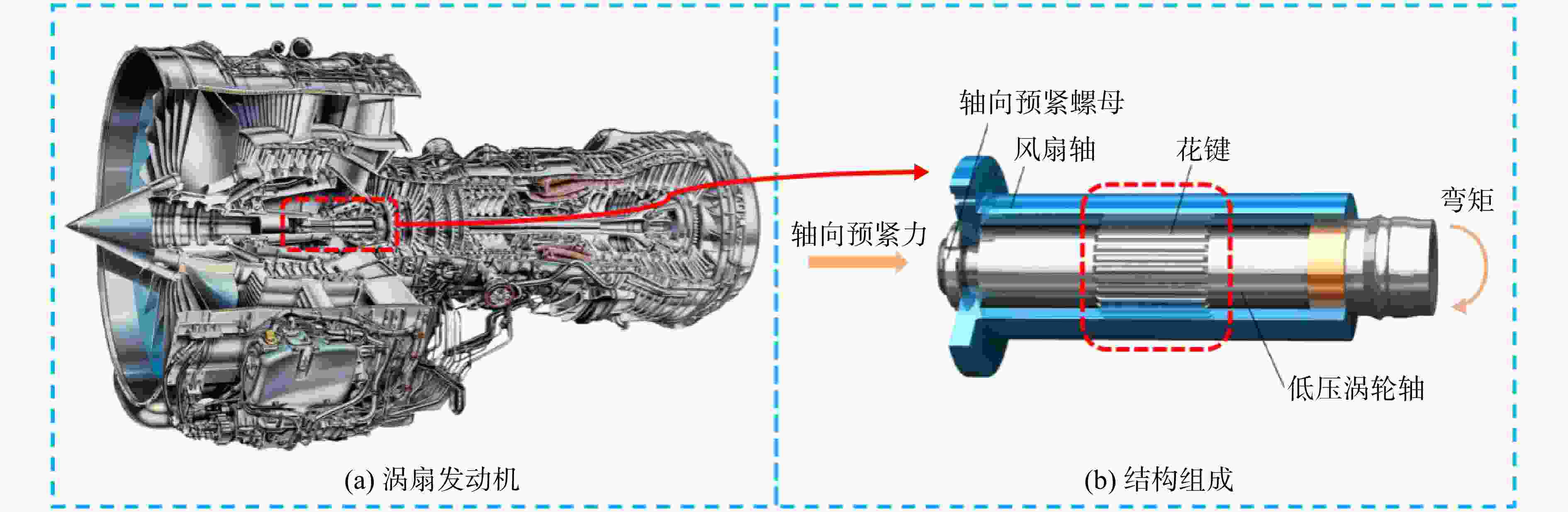

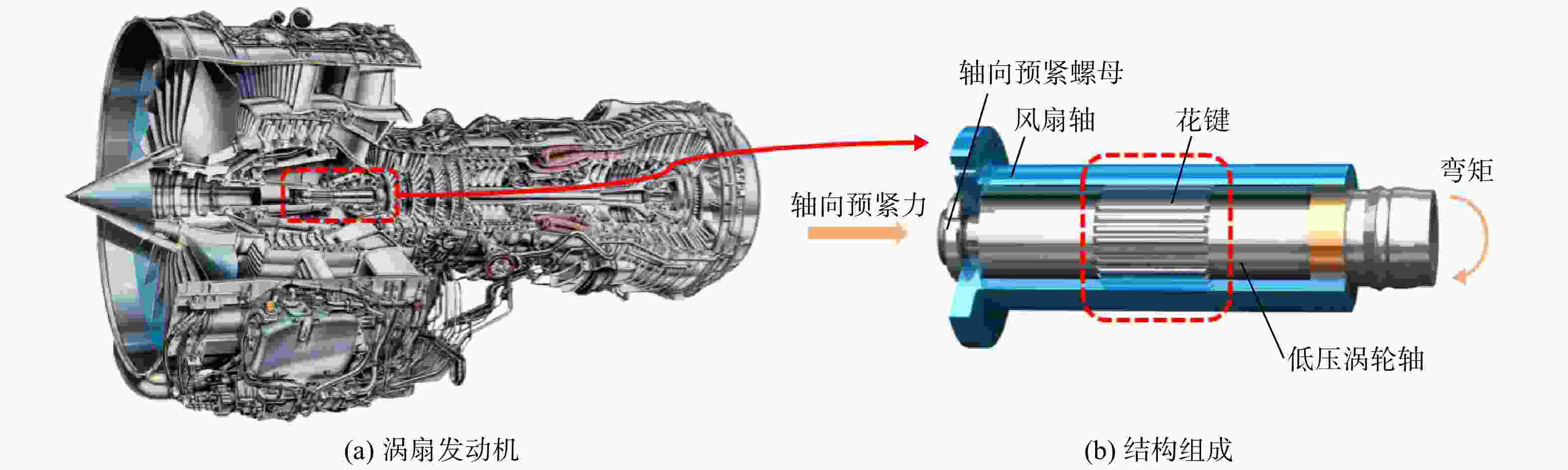

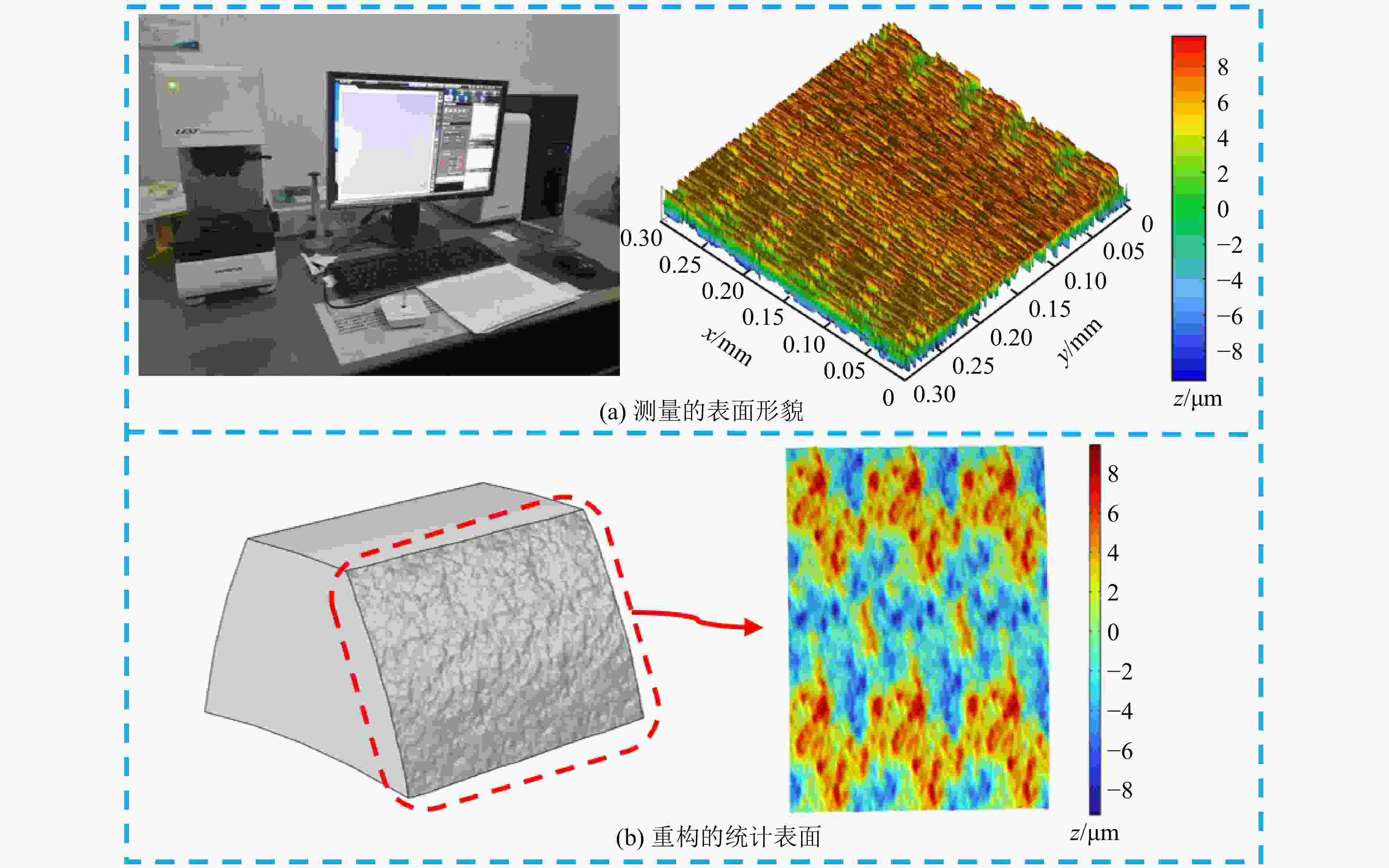

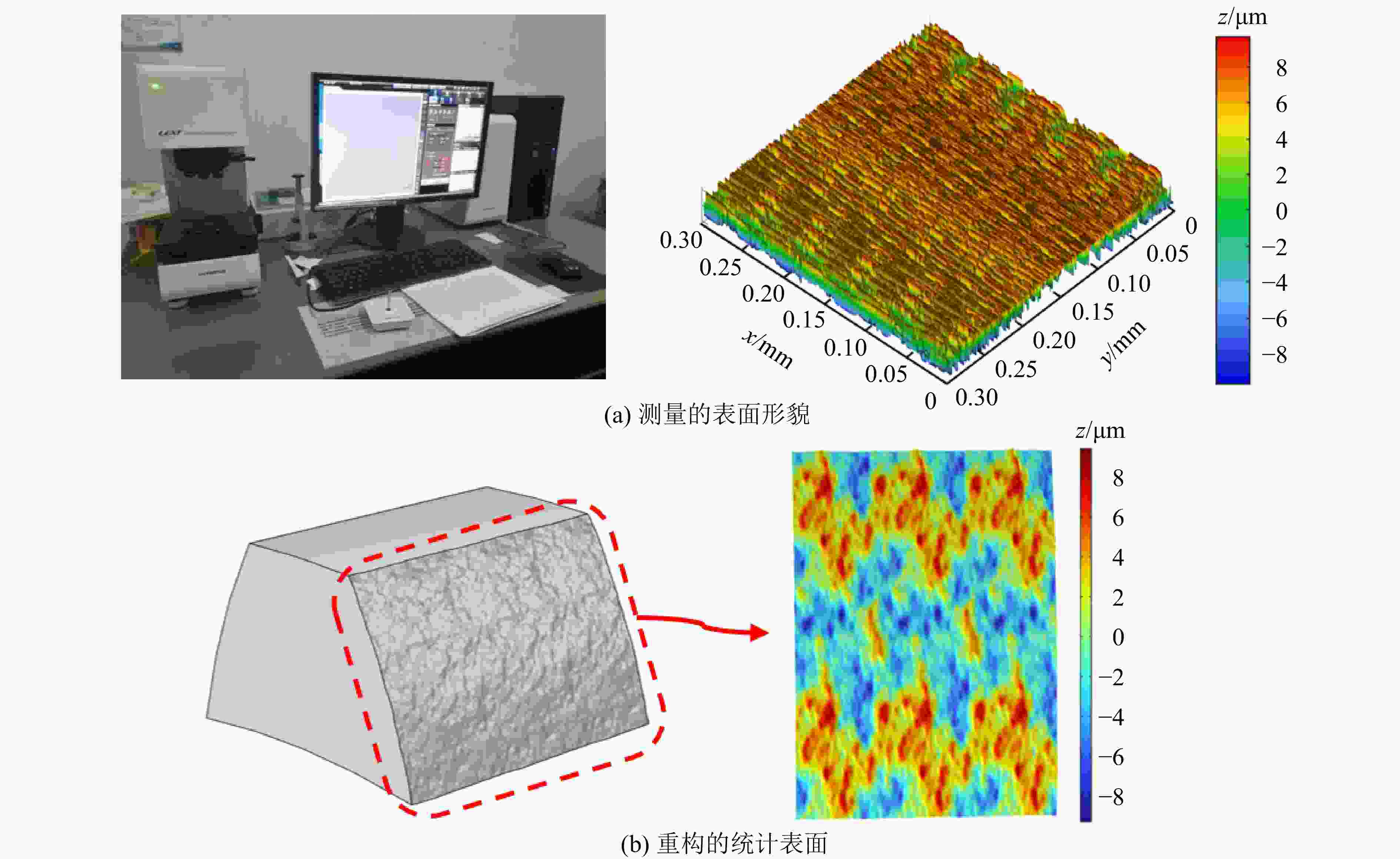

图 2 外花键齿面形貌测量与重构
Figure 2. Measurement and reconstruction of the surface topography of external Splines

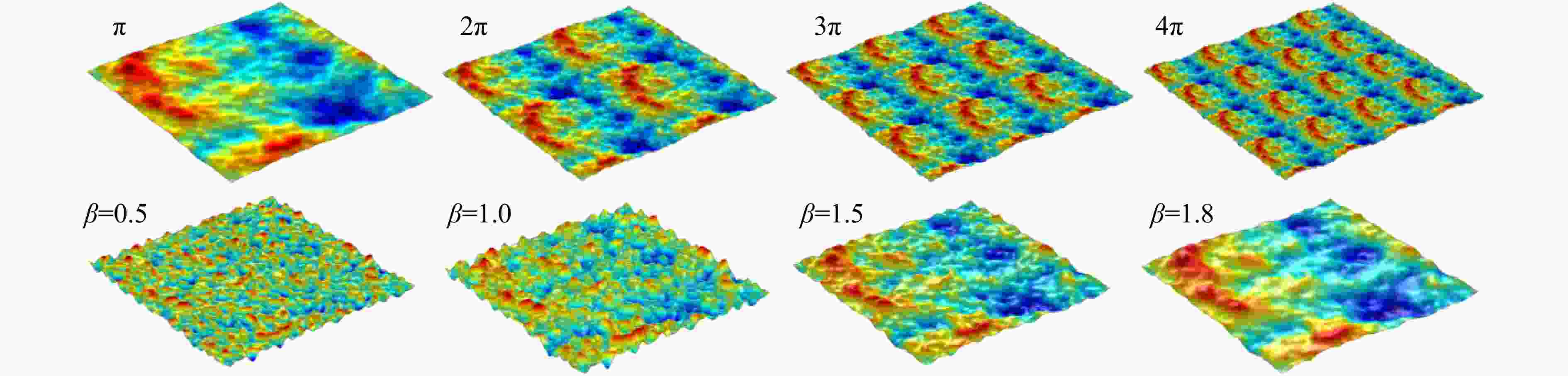

图 3 周期和振幅谱指数对表面形貌的影响
Figure 3. The influence of period and amplitude spectrum index on surface topography

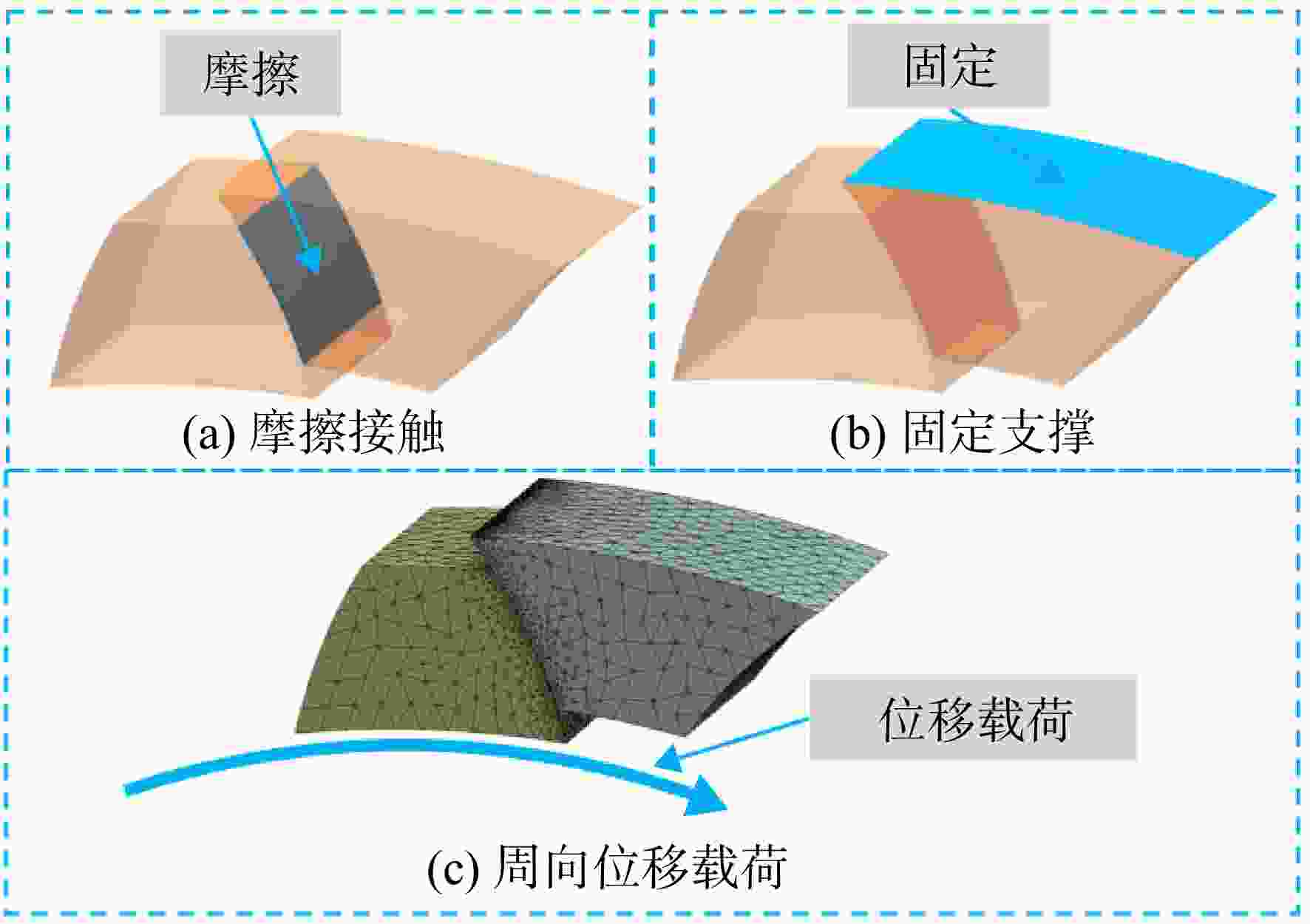

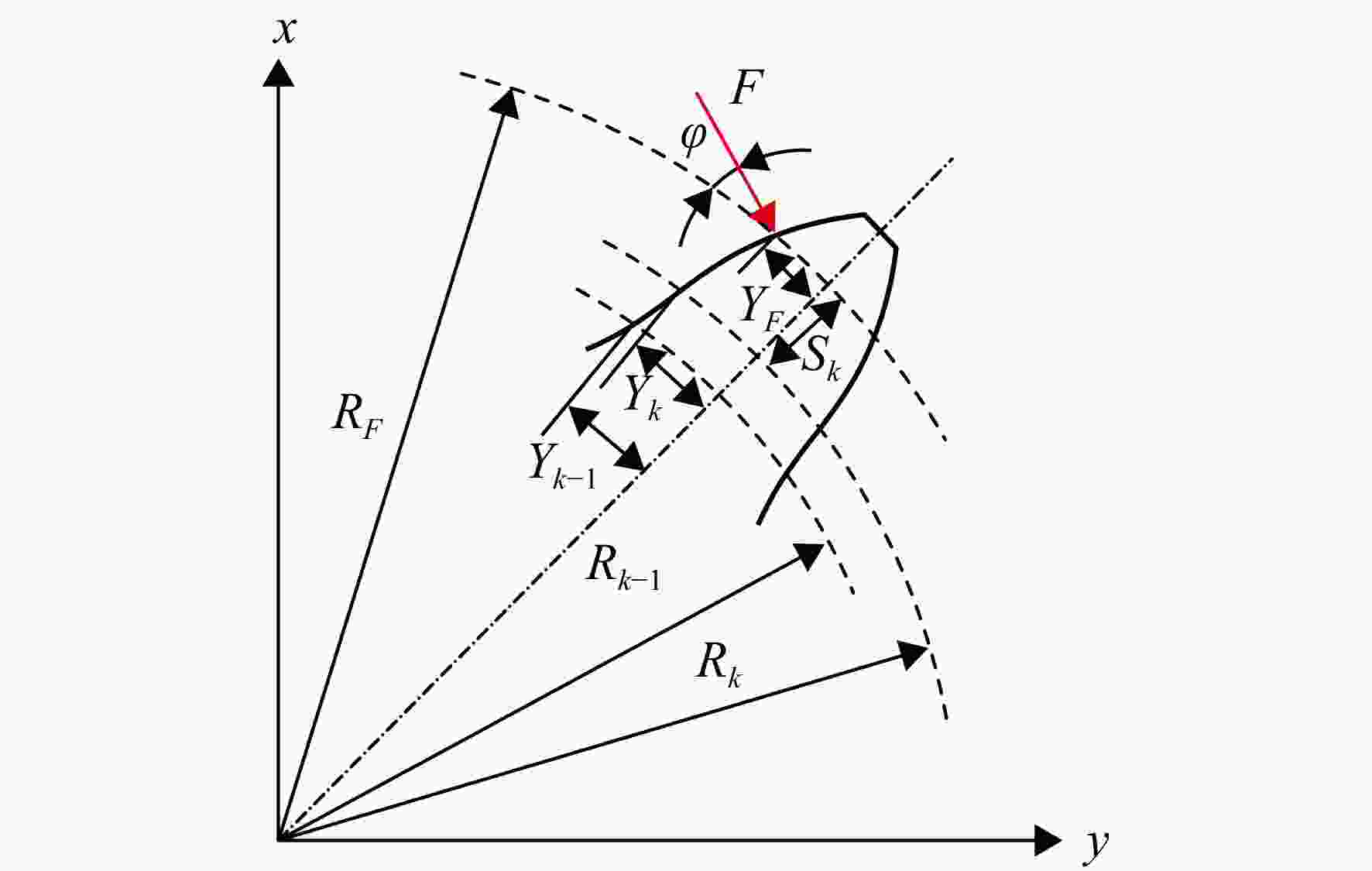

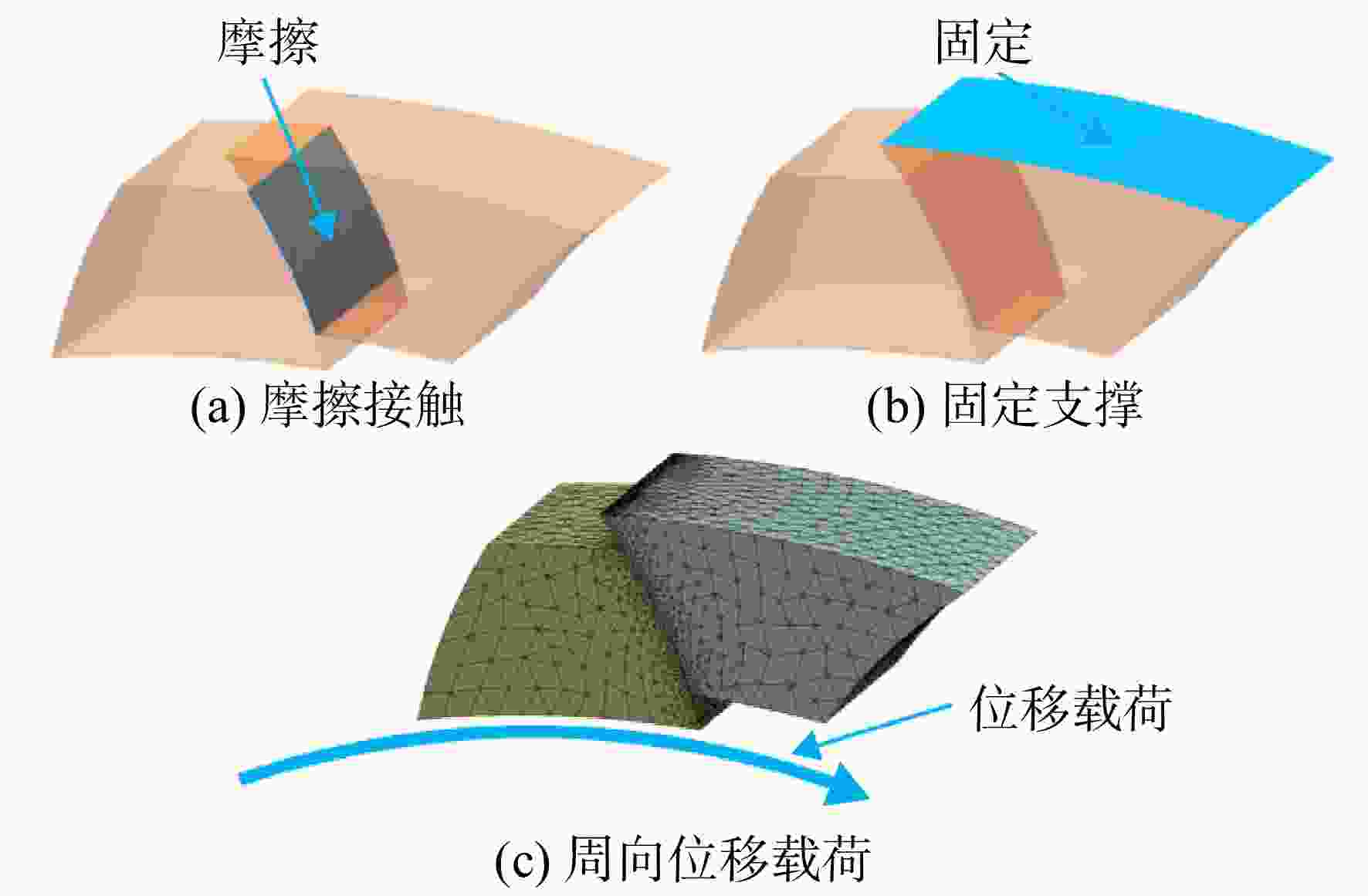

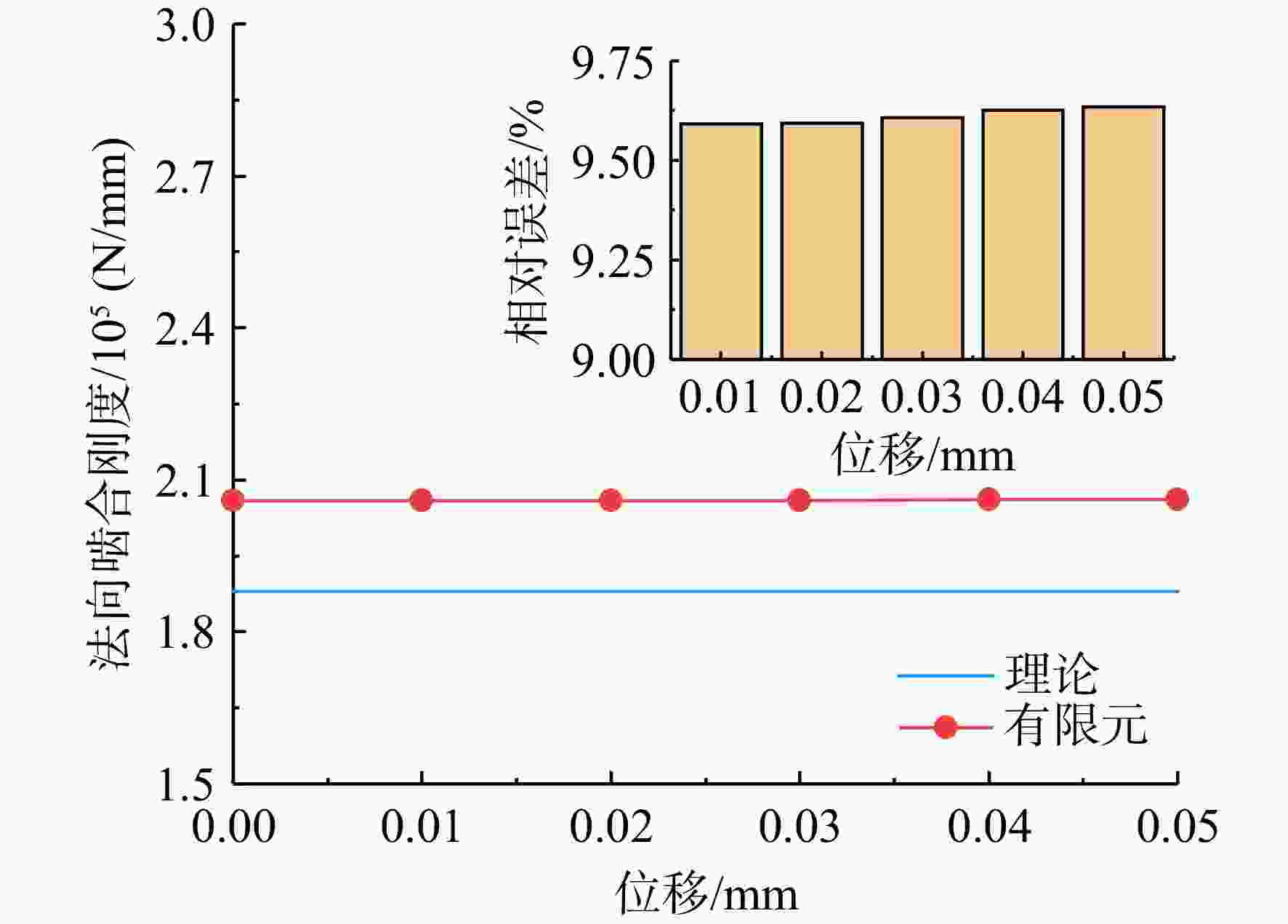

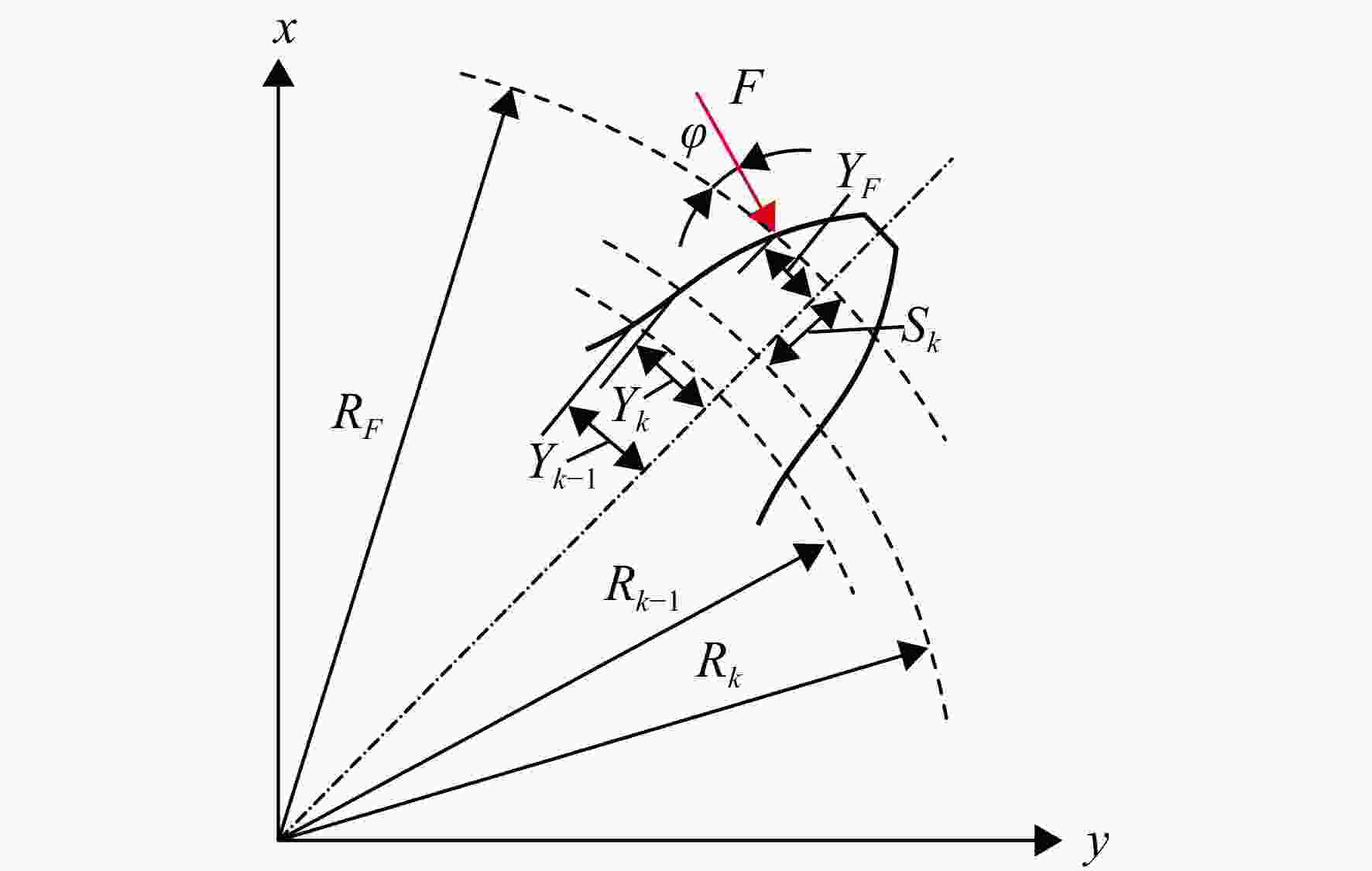

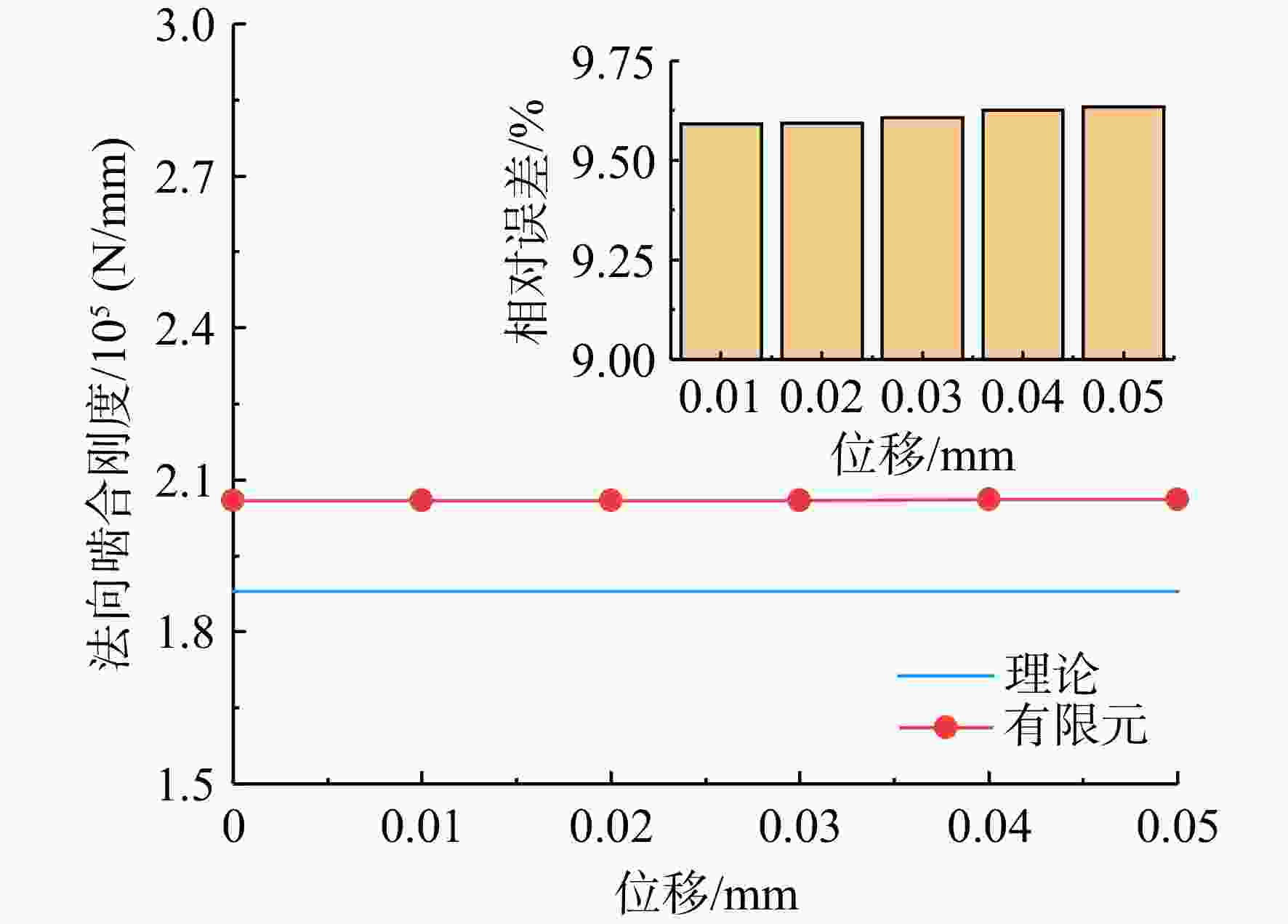

图 6 法向啮合刚度理论值与仿真值
Figure 6. Theoretical value and simulation value of normal meshing stiffness

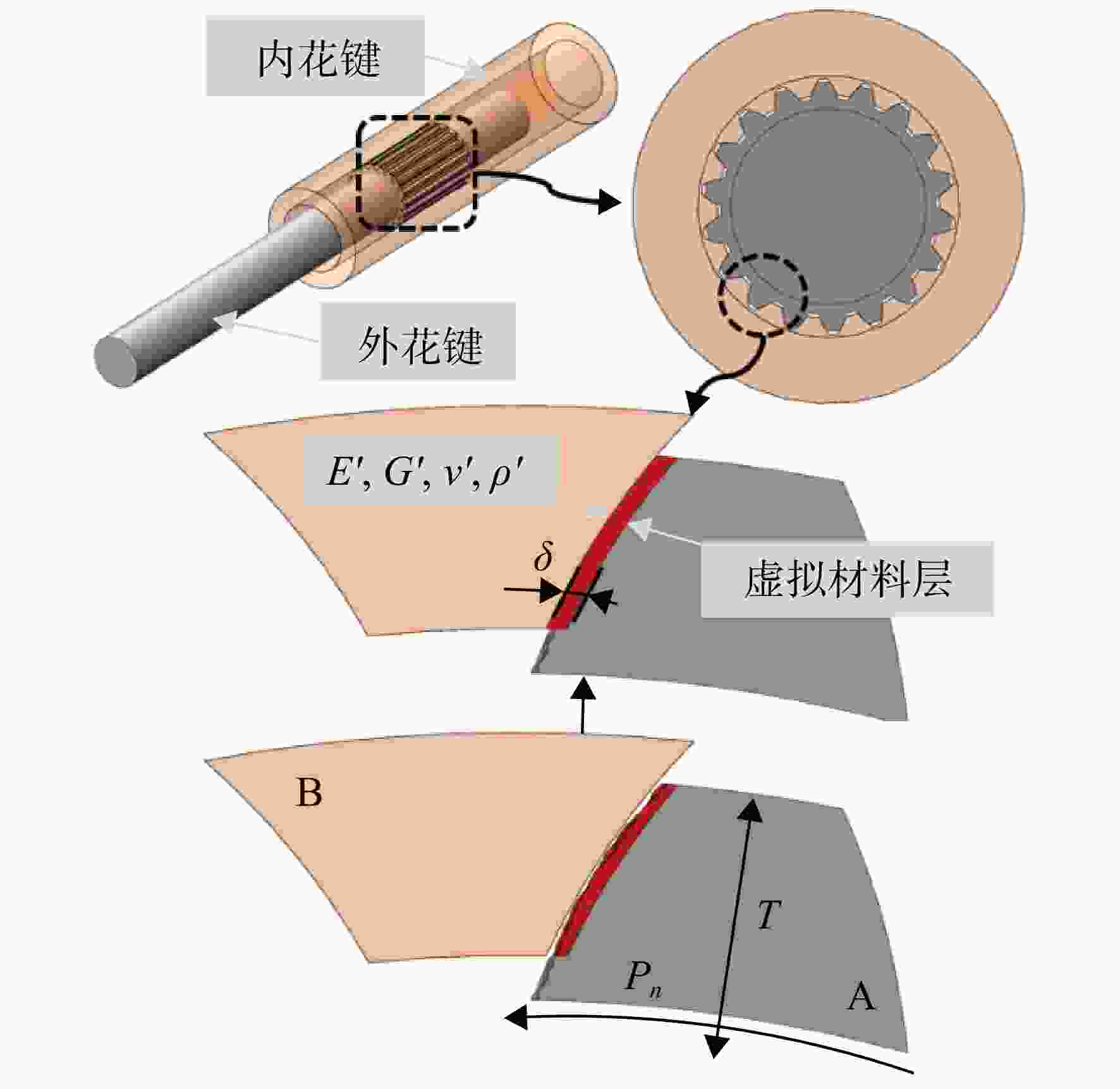

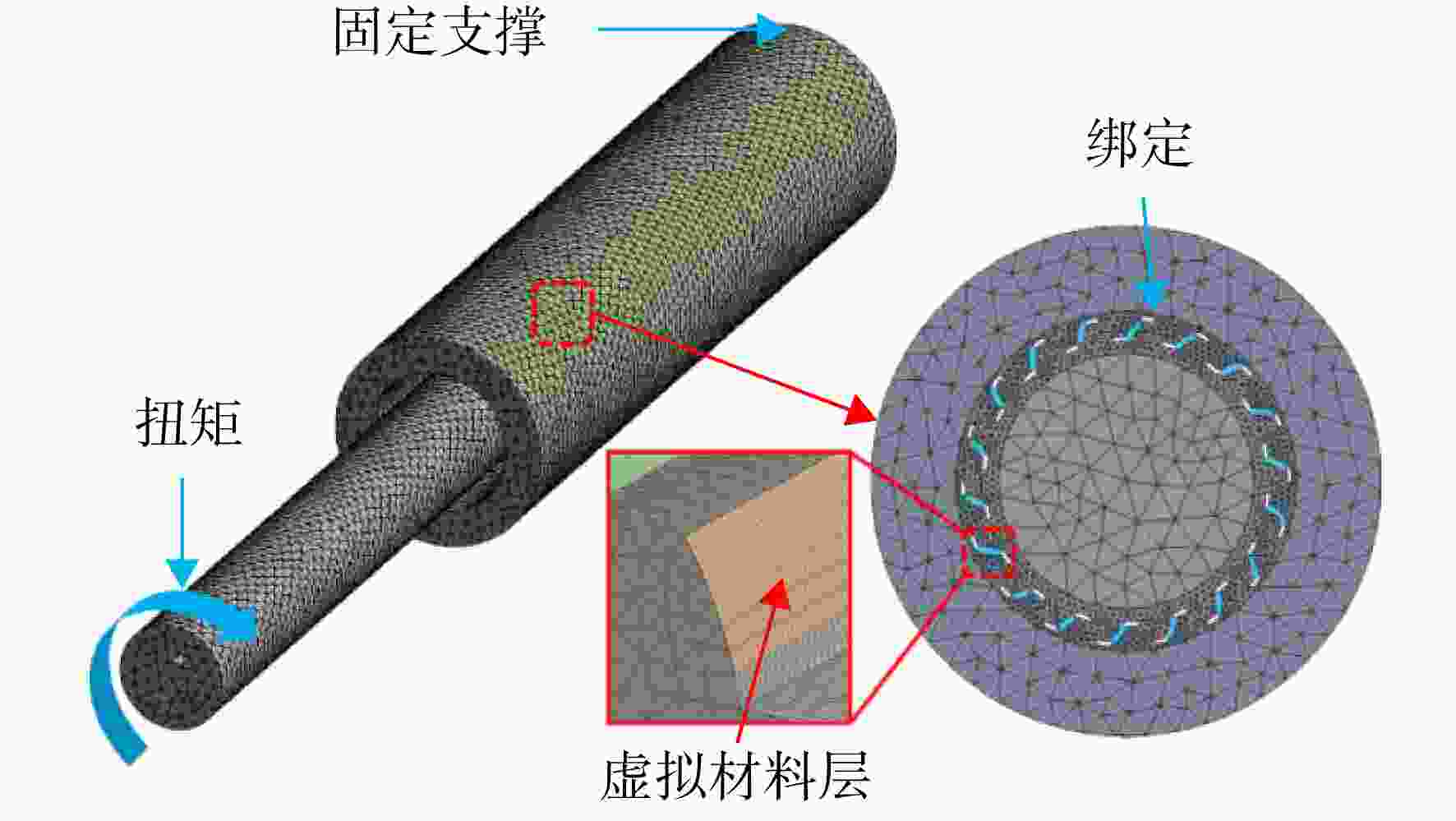

图 7 花键连接结构的虚拟材料等效模型
Figure 7. Virtual material equivalent model of the spline connection structure

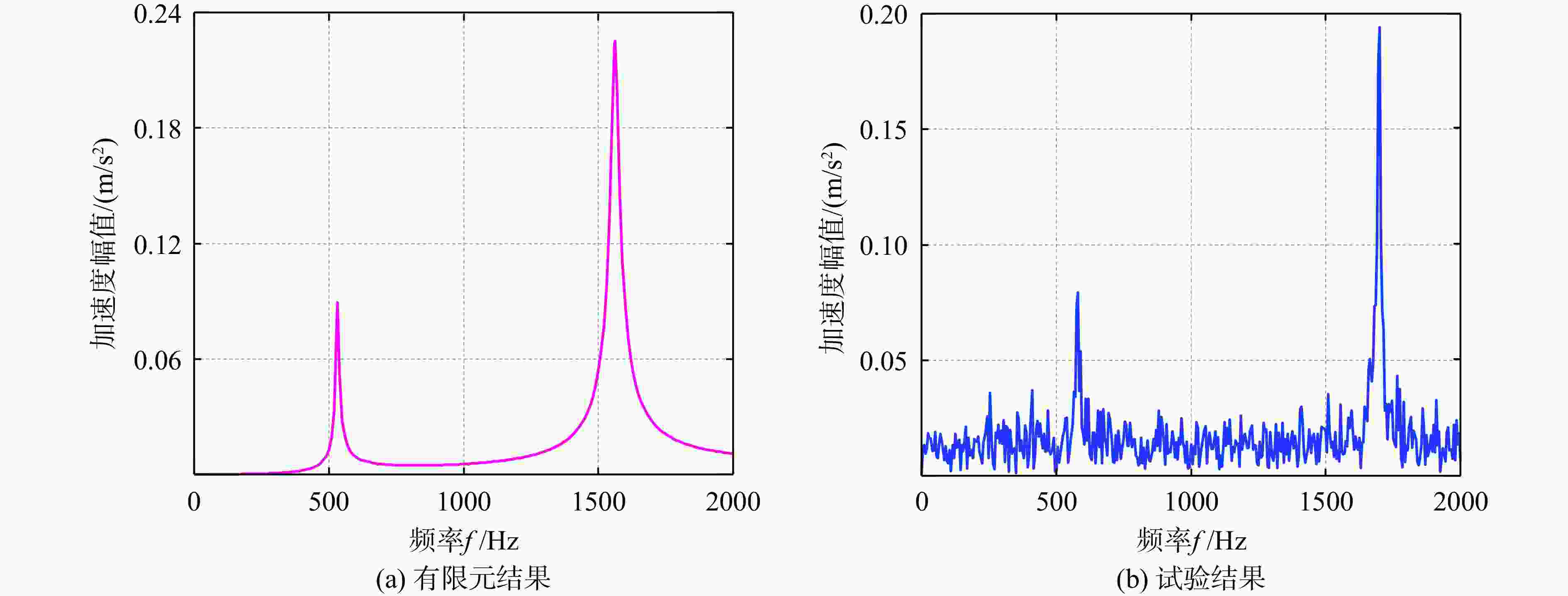

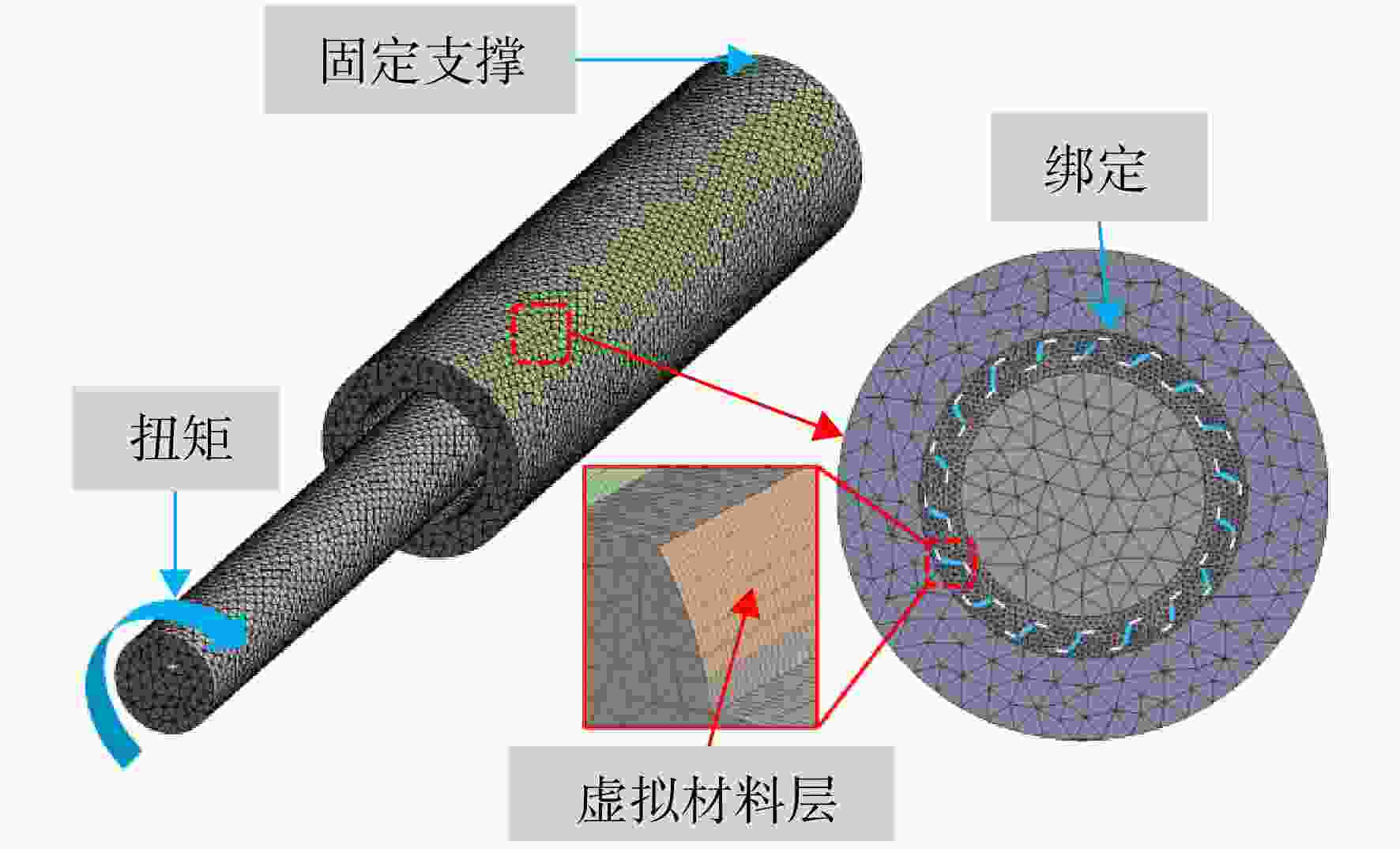

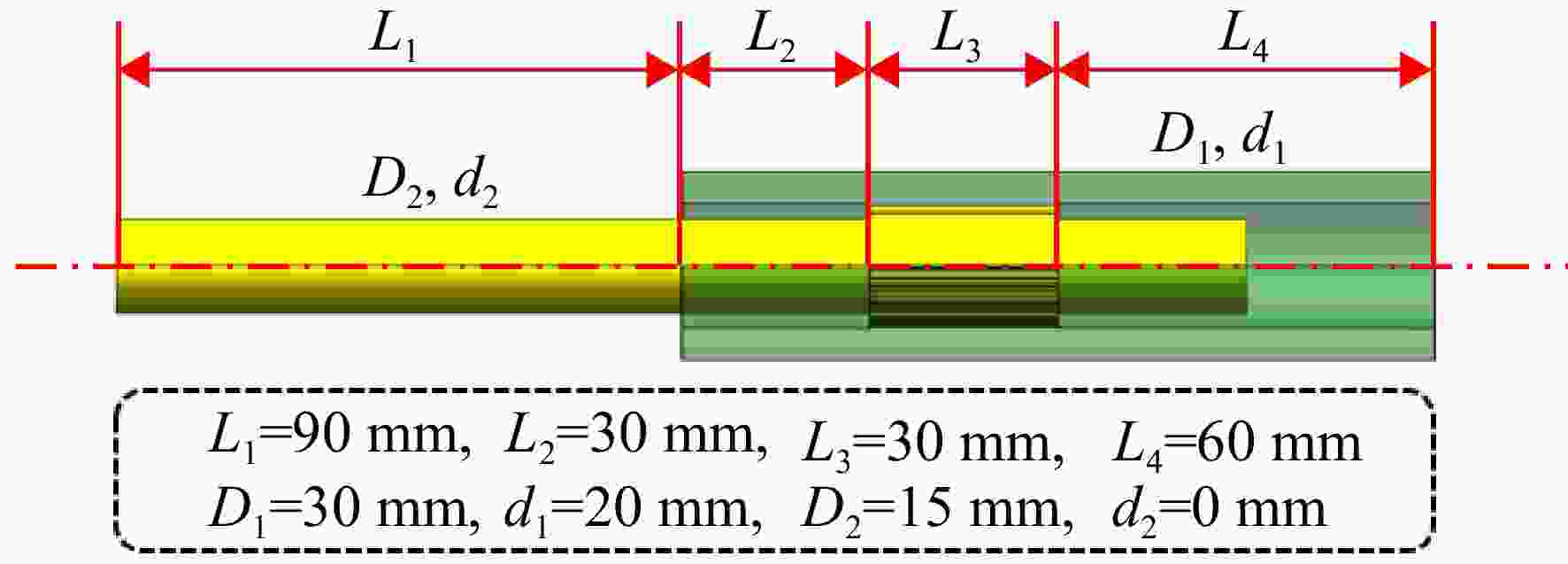

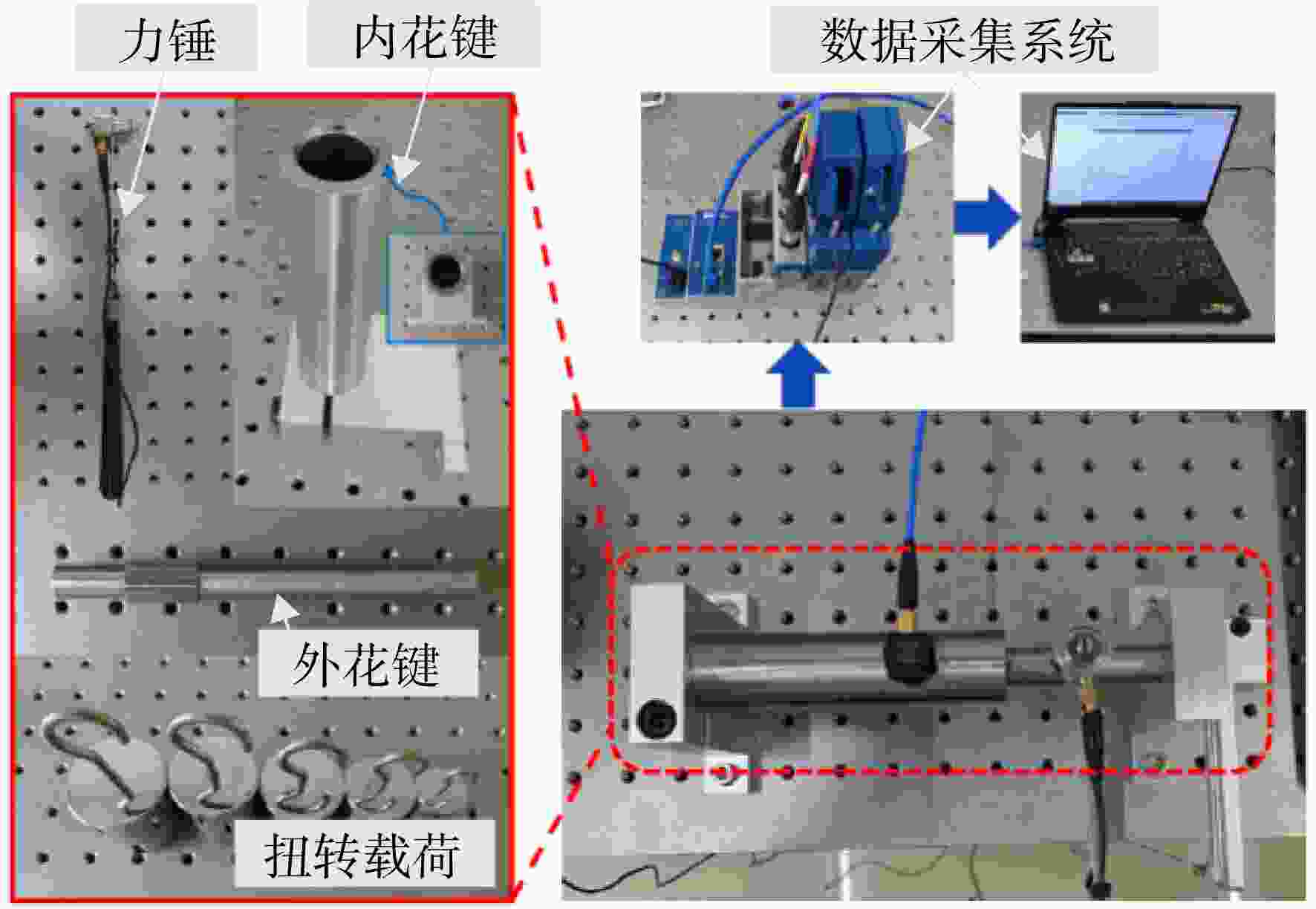

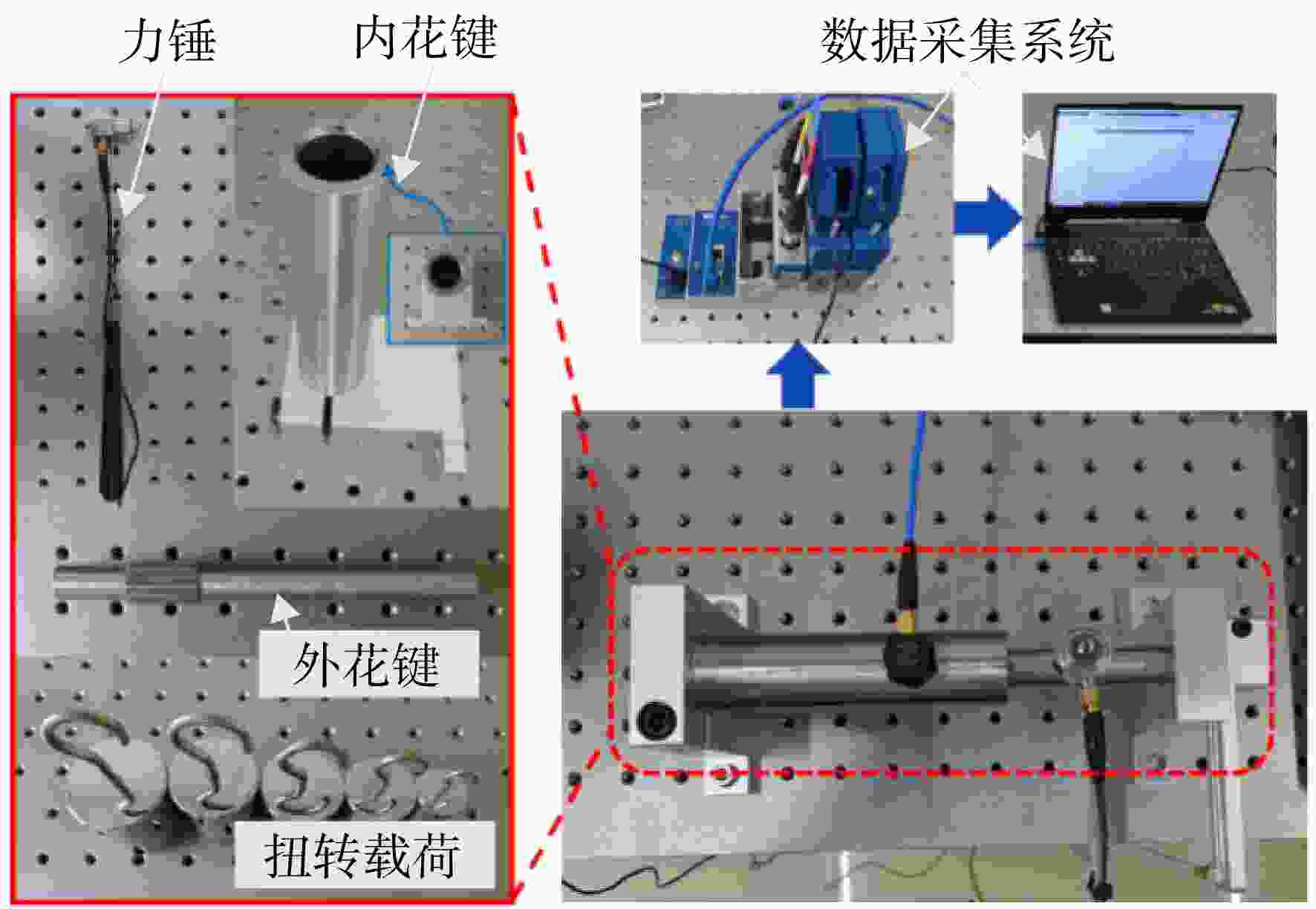

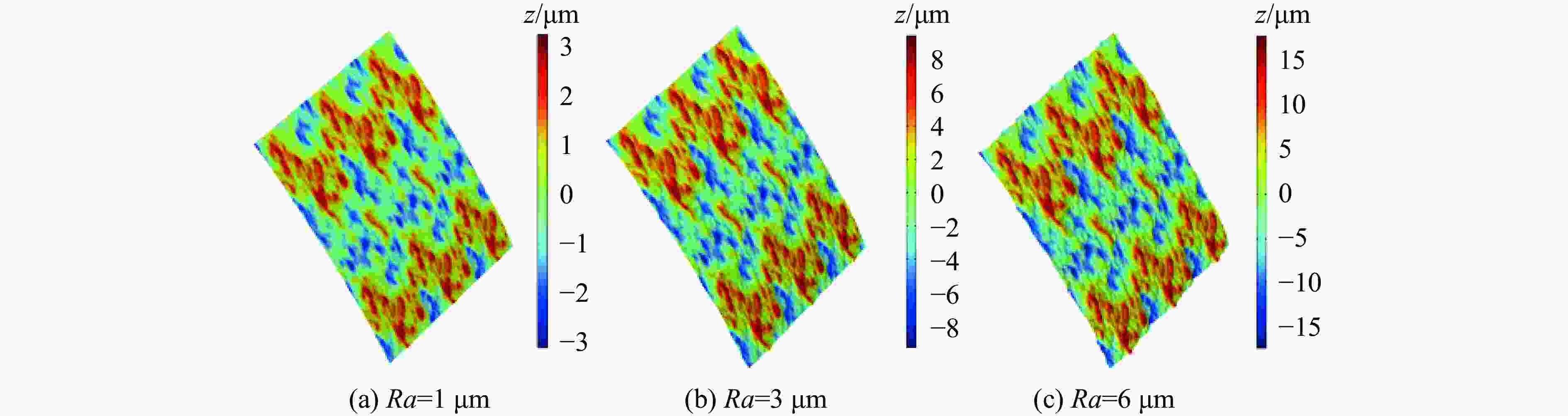

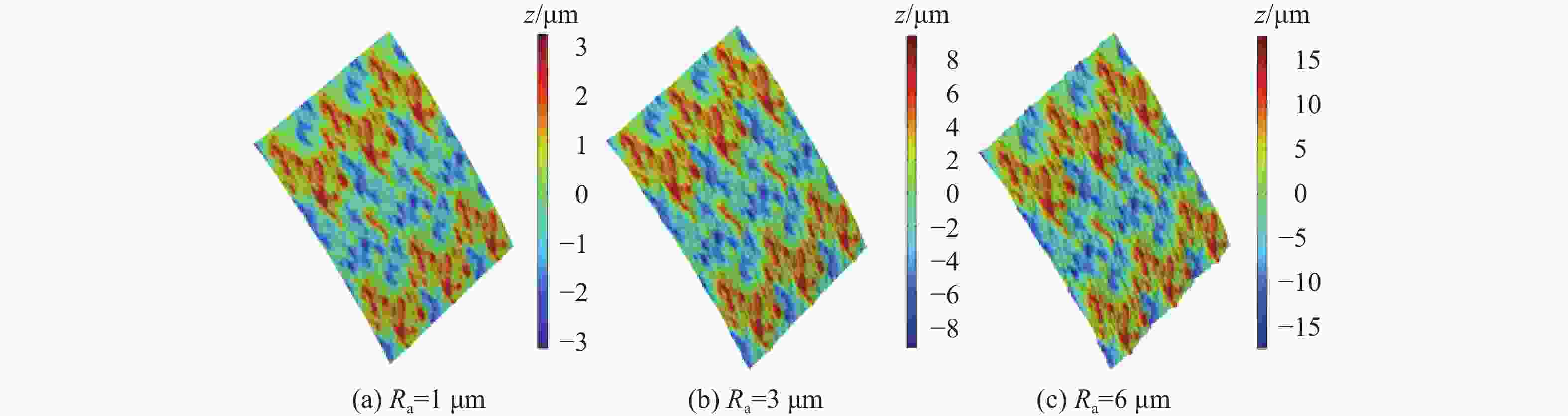

图 12 三种不同粗糙度的统计粗糙齿面
Figure 12. Statistical roughened tooth surfaces with three different roughness levels

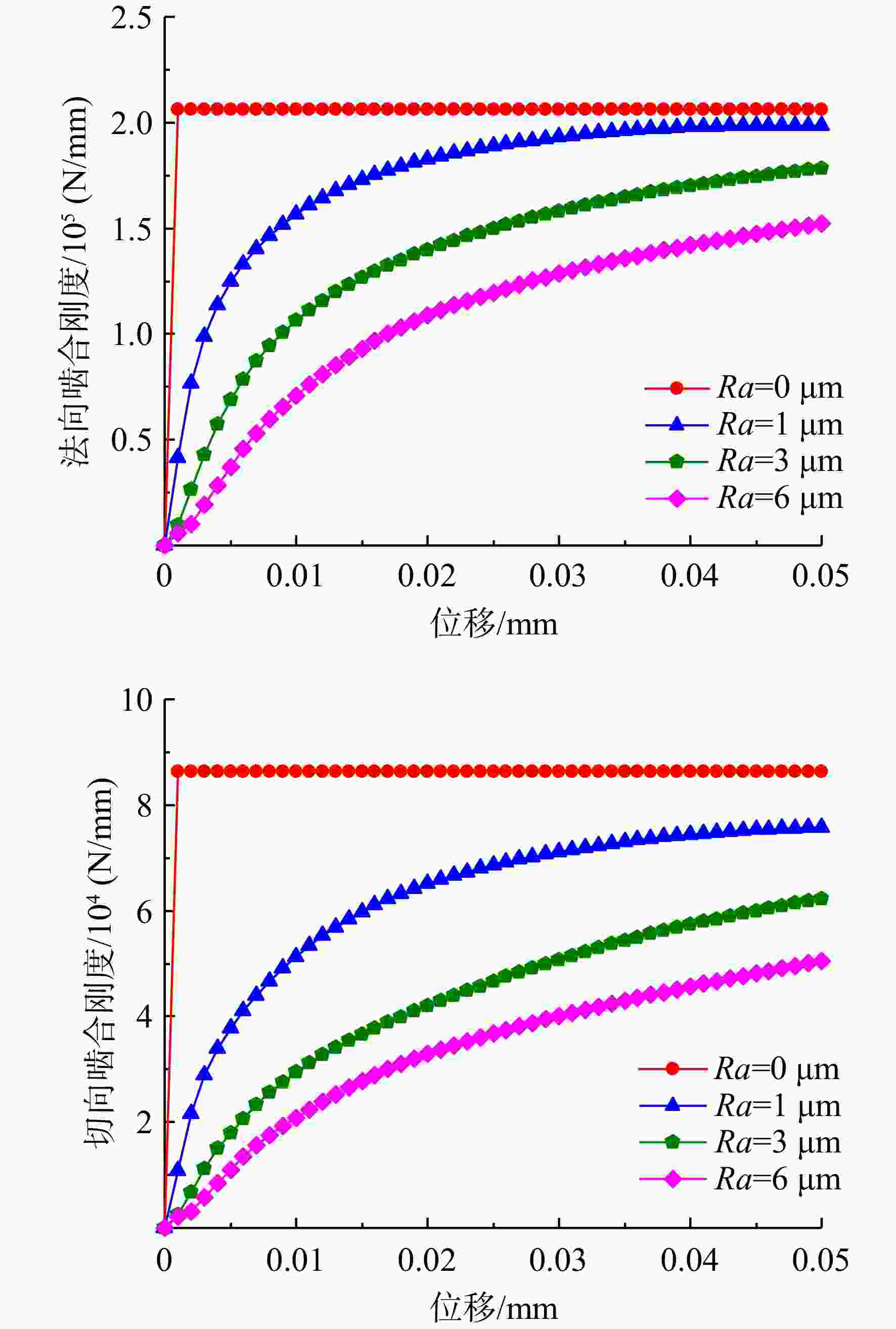

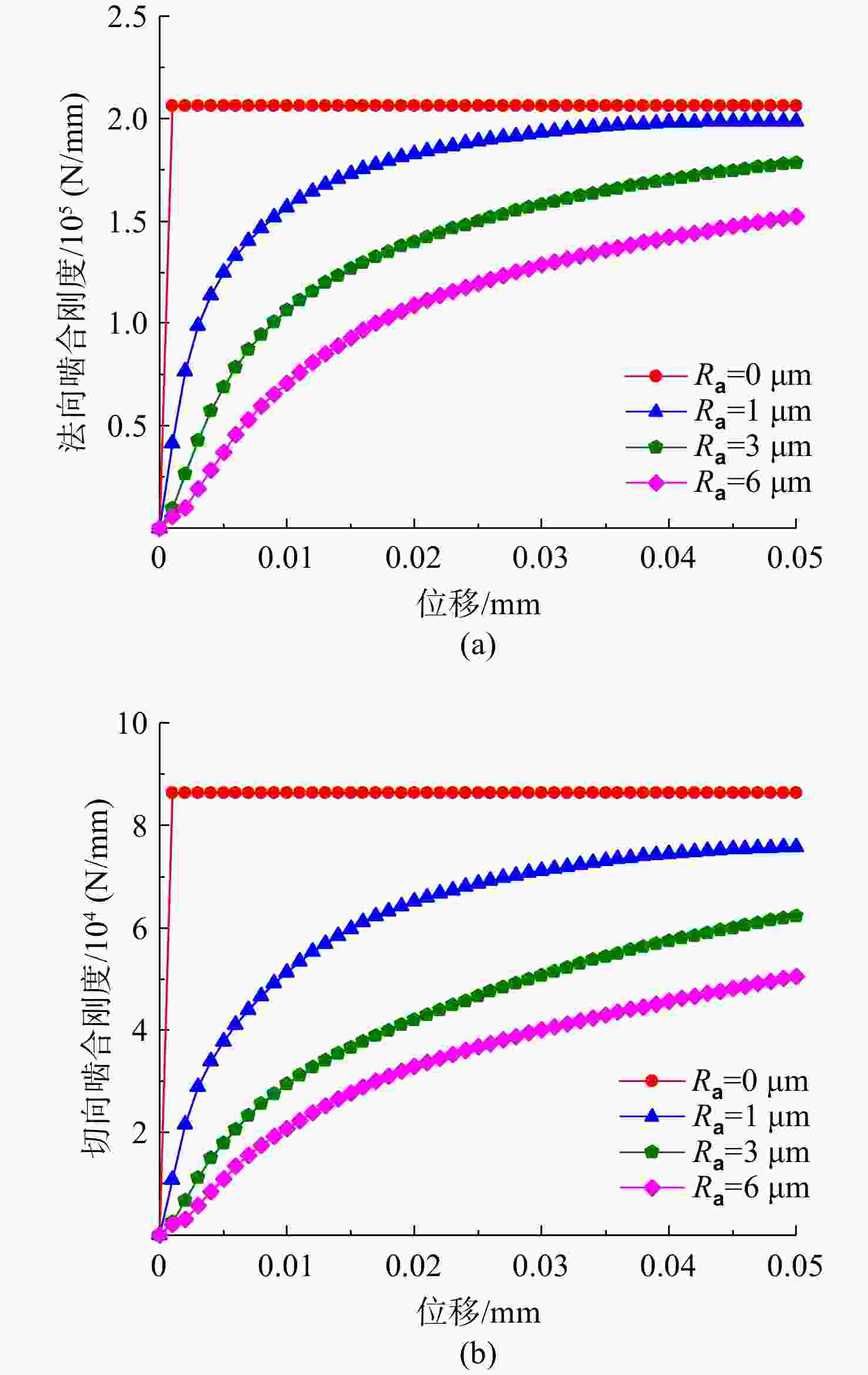

图 13 单对齿结合面的法向啮合刚度与切向啮合刚度
Figure 13. Normal and tangential meshing stiffness of the single tooth contact surface

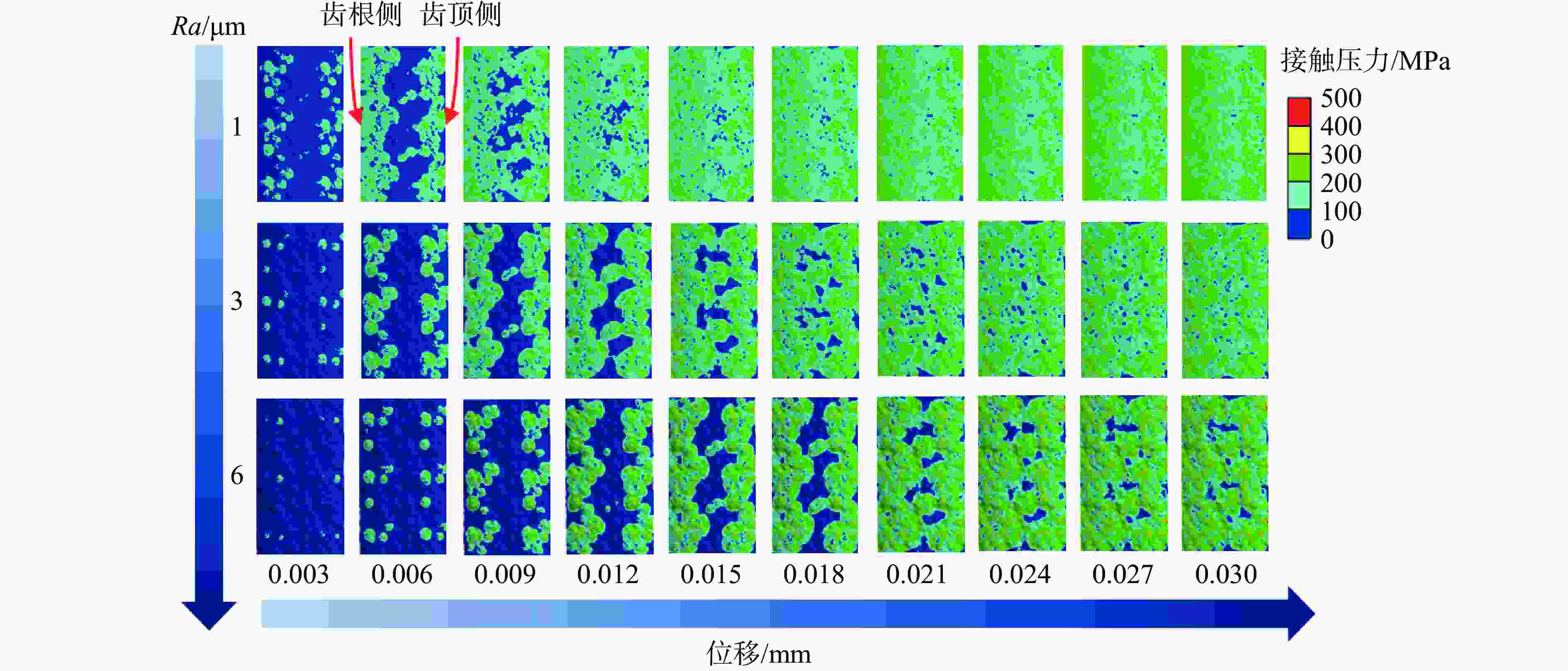

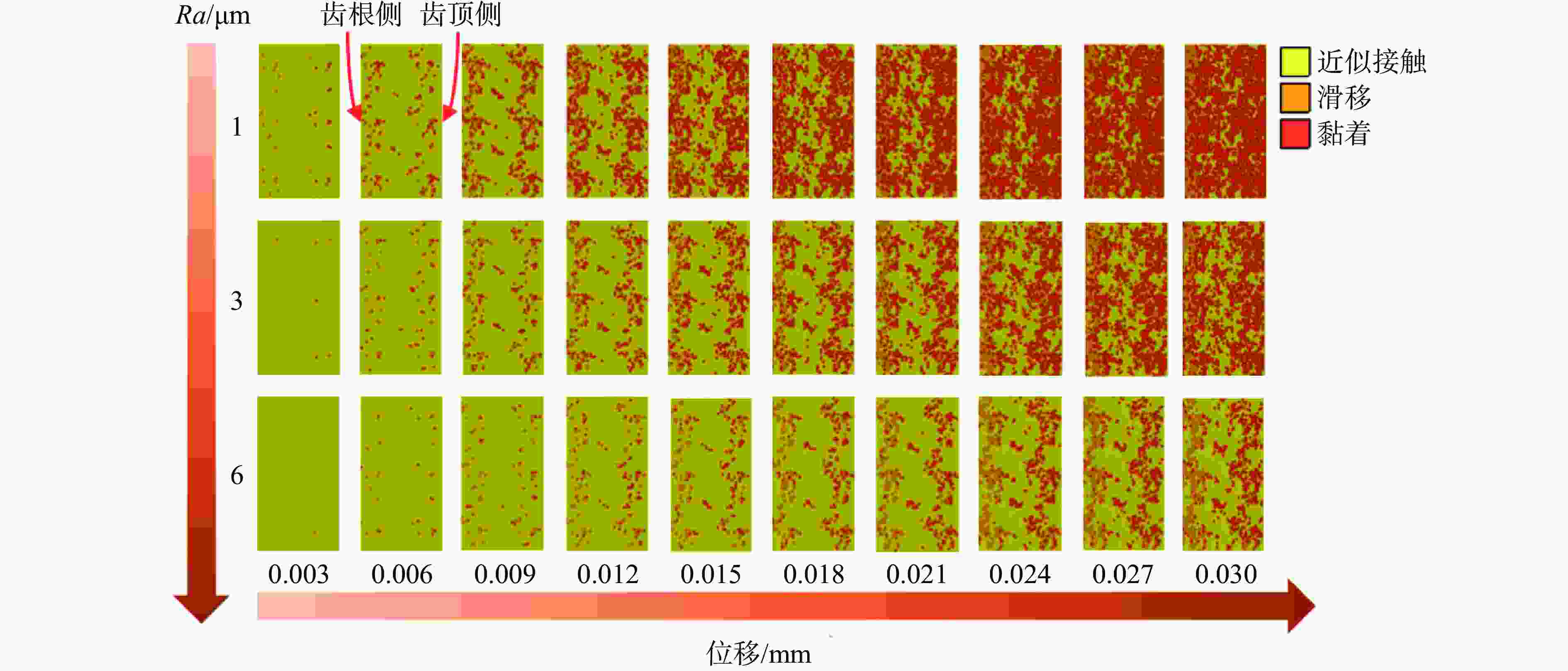

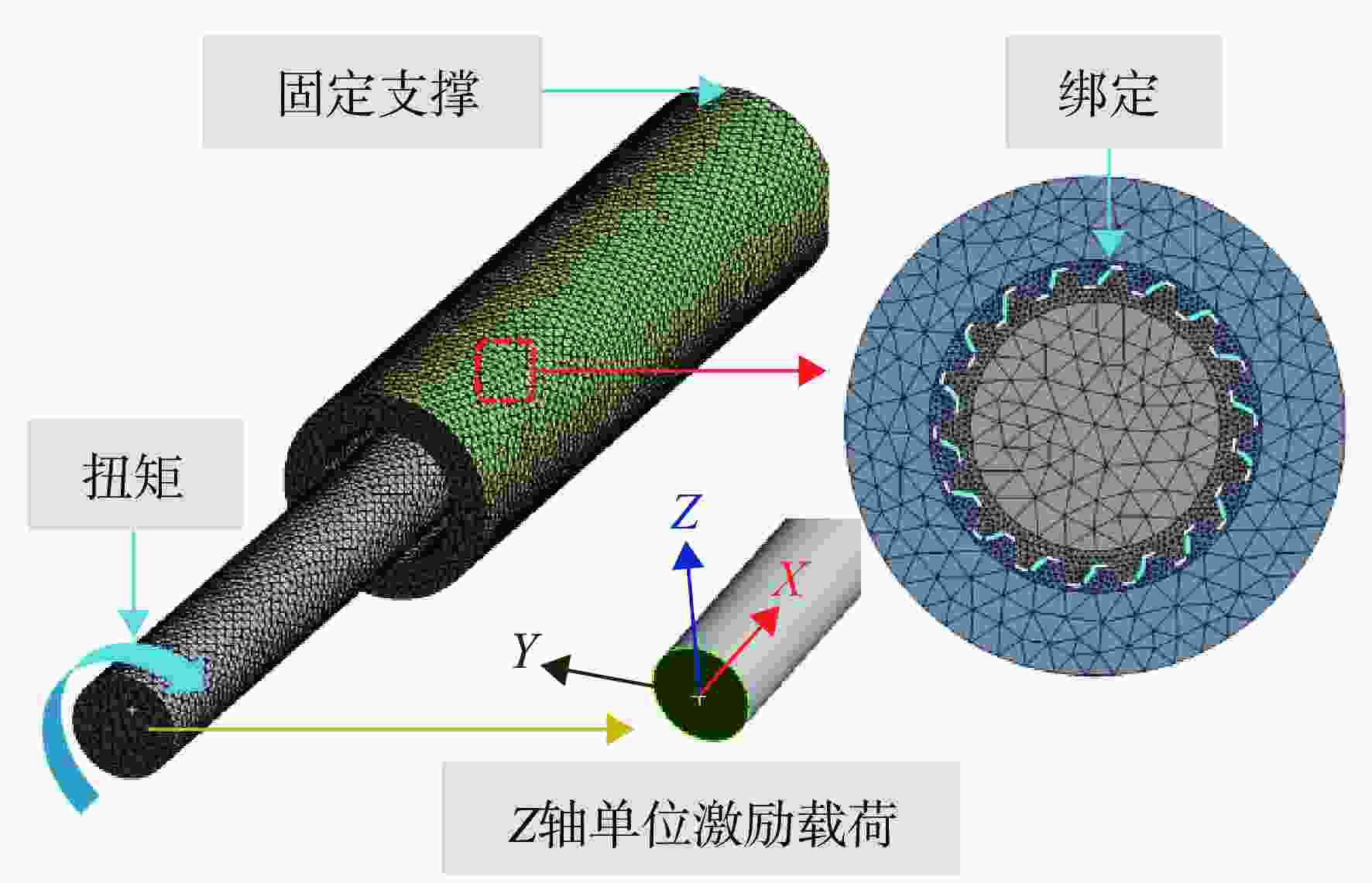

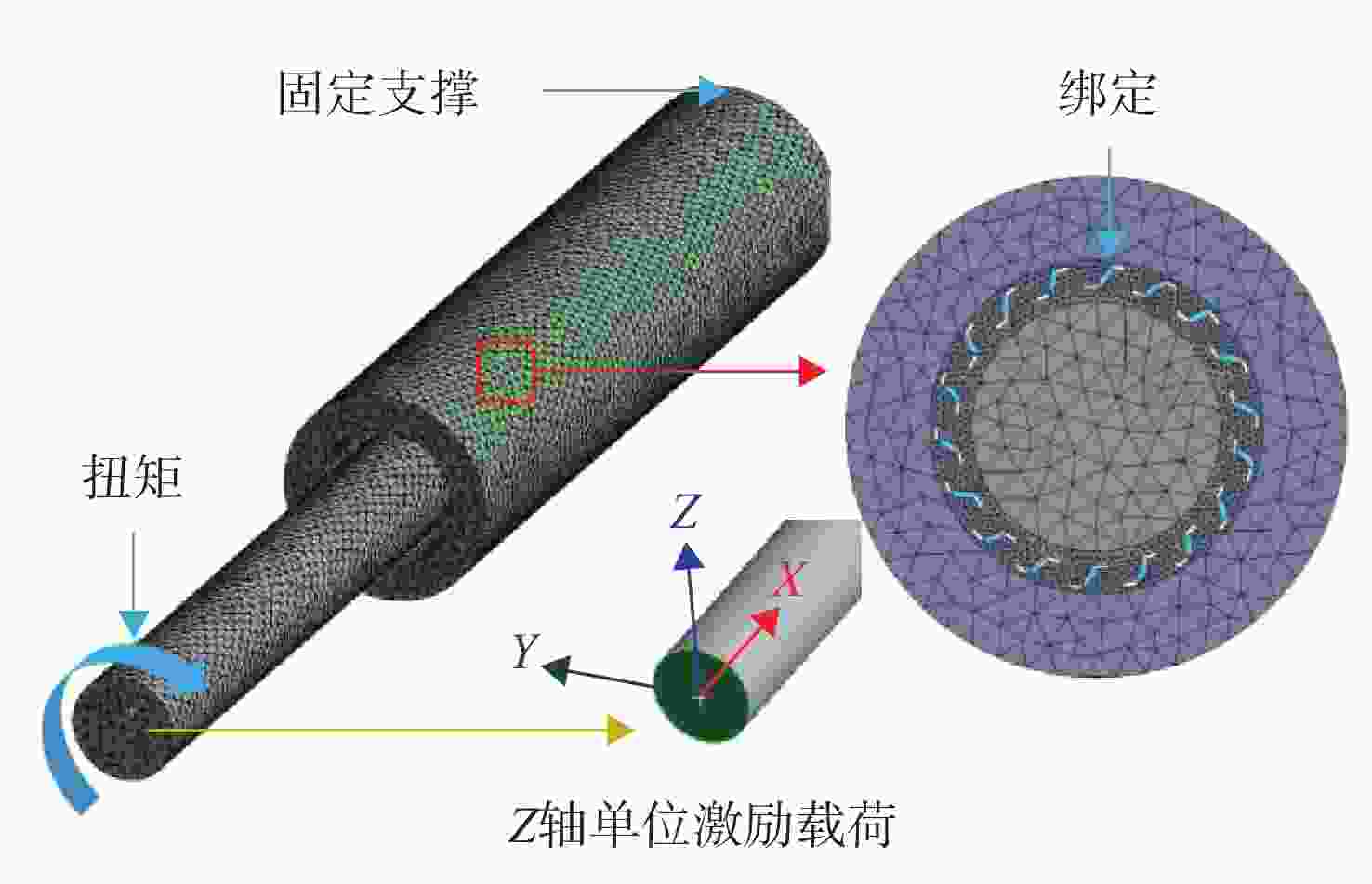

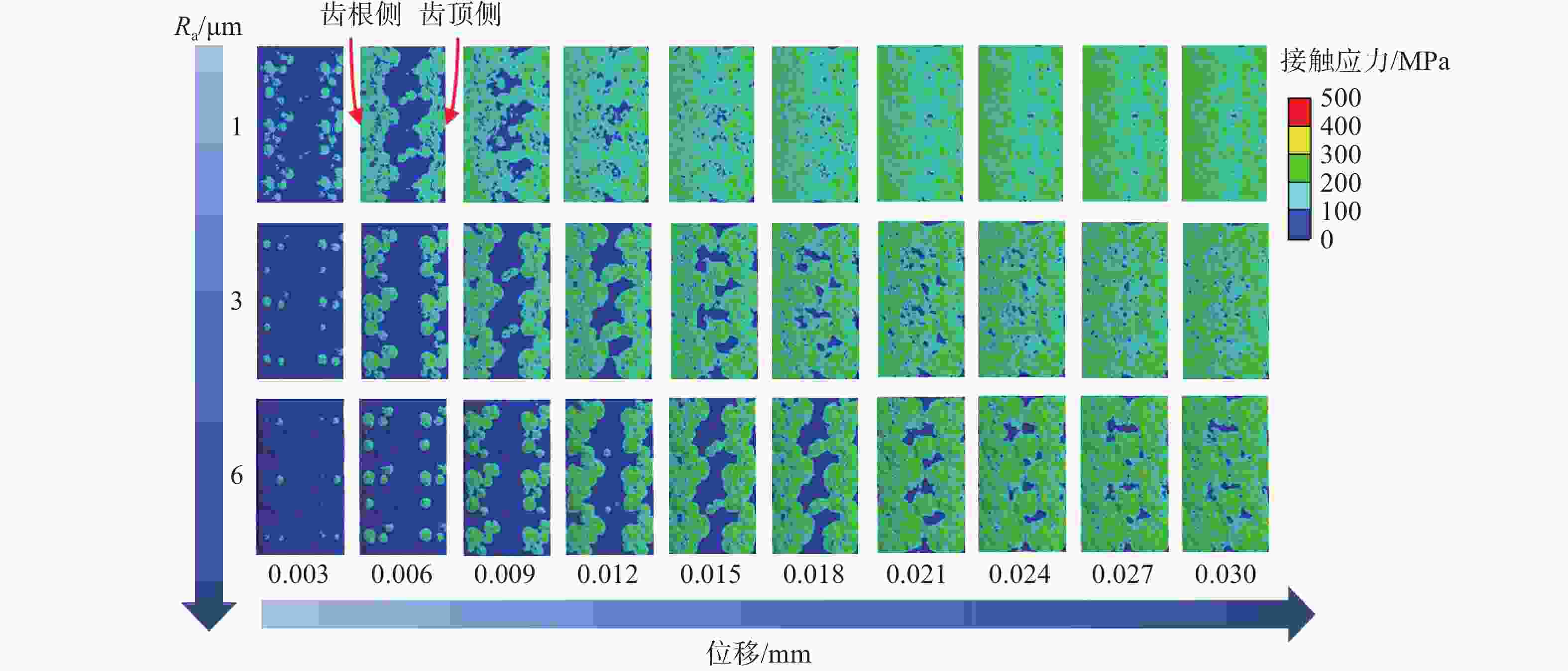

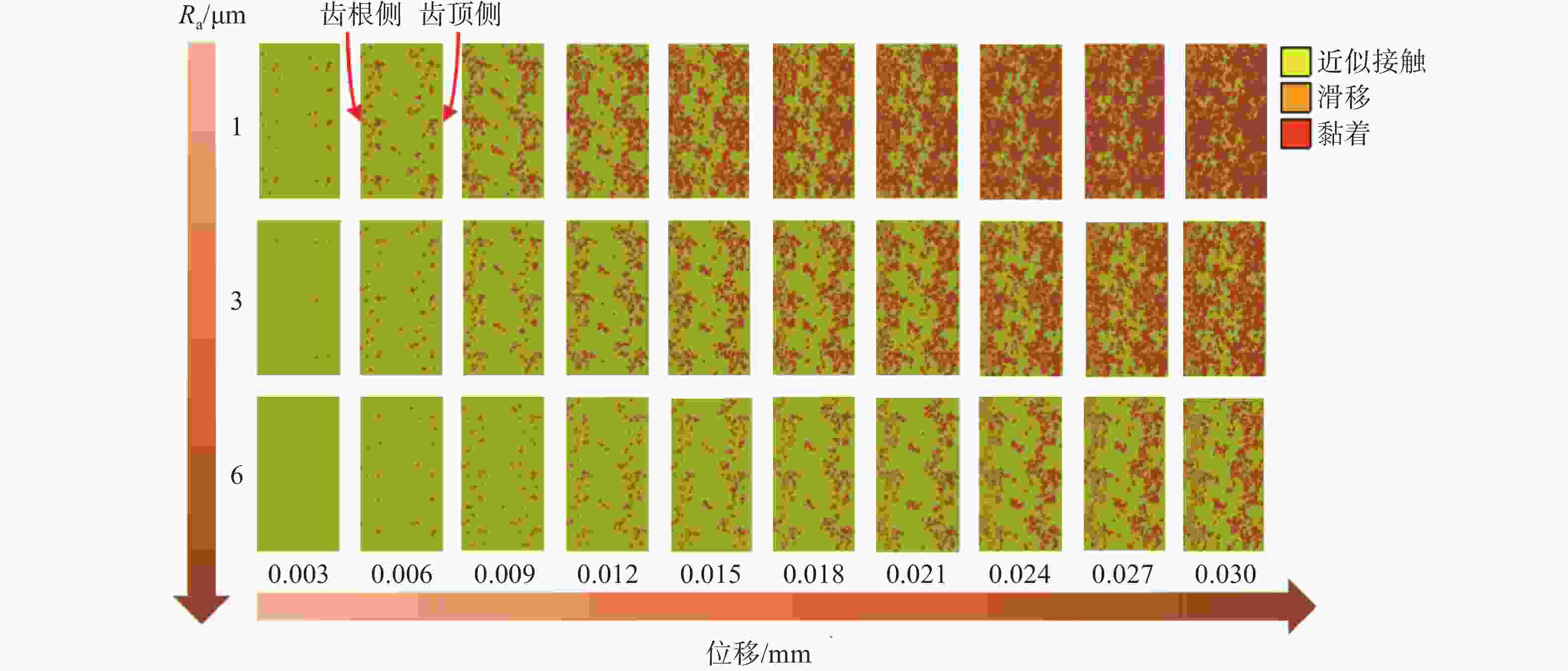

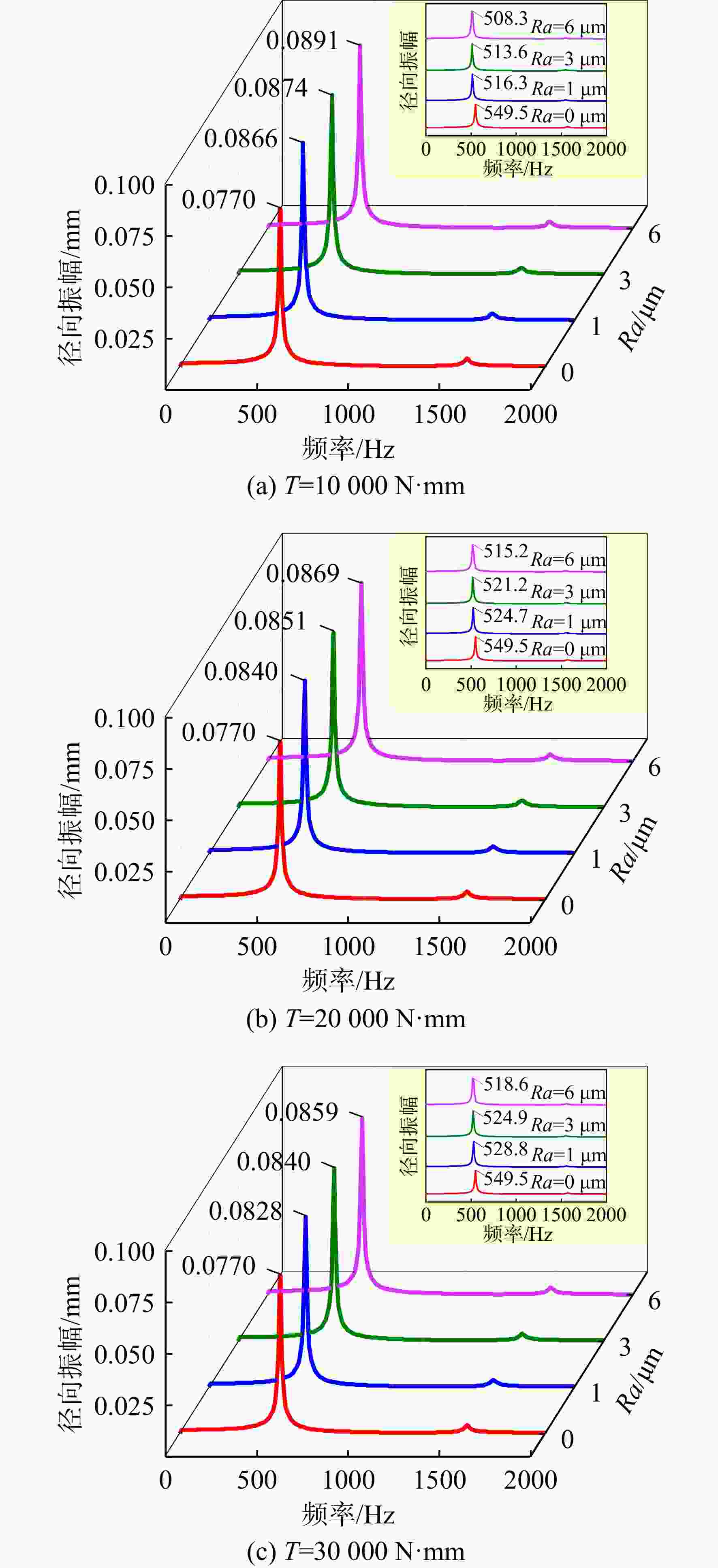

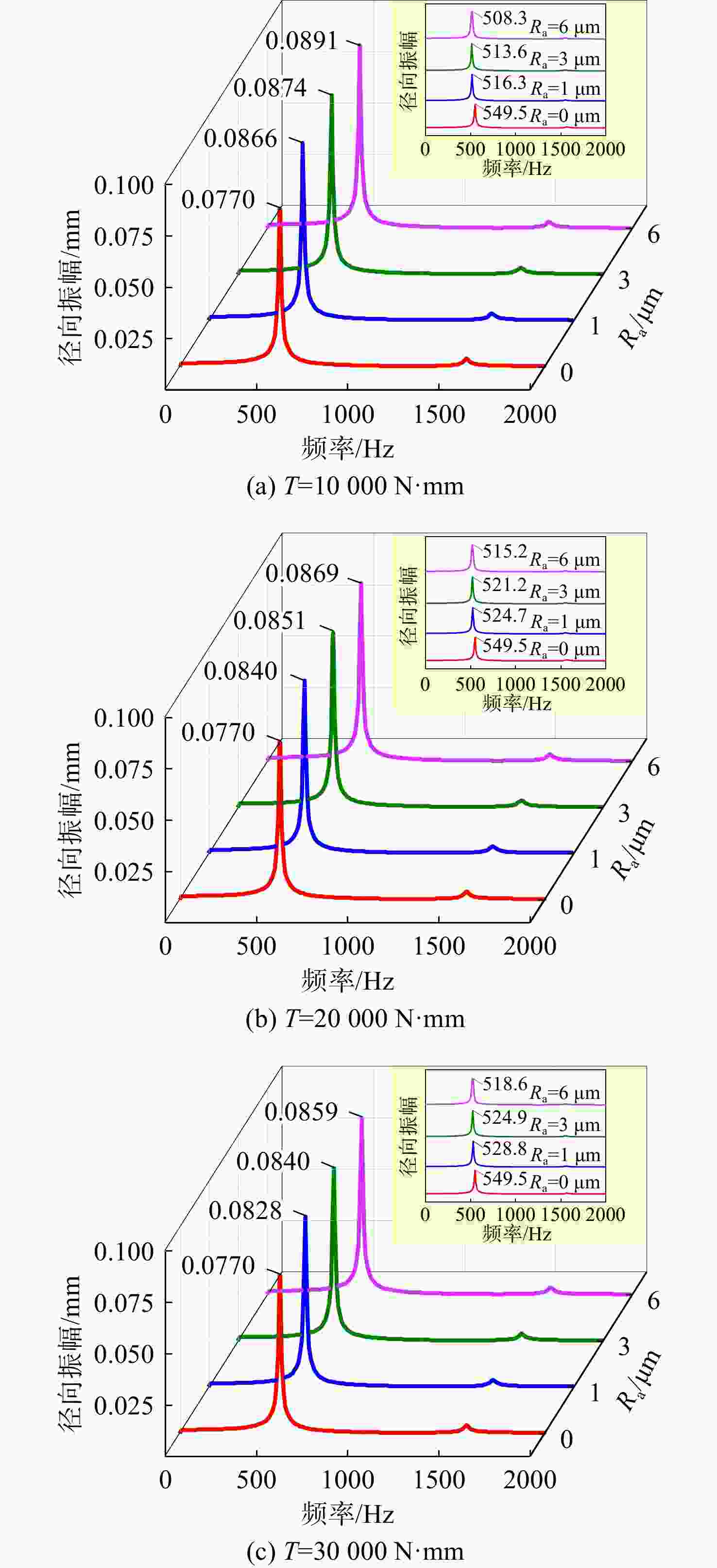

图 17 不同粗糙度下振动响应的频域特性
Figure 17. Frequency domain characteristics of vibration responses under different roughness levels
表 1 花键的结构参数和材料参数
Table 1. The structural parameters and material parameters of the spline
参数 数值 内花键 外花键 模数/mm 1 1 齿数 18 18 压力角/（°） 30 30 齿宽/mm 2 2 大径（mm） 19.5 19 小径/mm 17 16.5 泊松比 0.3 弹性模量/GPa 205
下载: 导出CSV
表 2 虚拟材料层的材料属性
Table 2. Material properties of the virtual material layer
参数 Ra=1 μm Ra=3 μm Ra=6 μm 弹性模量$ E' $/MPa 419 386 330 切变模量$ G' $/MPa 154 135 113 泊松比$ \nu ' $ 0.357 0.432 0.46 密度$ {\rho }{'} $/（kg/m−3） 1570 厚度δ/μm 5 15 30
下载: 导出CSV
-
