Geometric-flow synergistic design for low-Mach-number self-starting inward turning inlet
-
摘要:
为解决高超声速内收缩进气道低马赫数自起动困难及隔离段内涡流区显著的问题，提出了一种基于几何结构与流动控制的协同设计方法。该方法将“侧板分割-前掠-外移”的几何重构与受控侧向溢流策略相结合，显著降低了进气道有效内收缩比，并实现了对分离流和附面层的协同抑制与排除。三维数值计算结果表明：与常规唇口后切方案相比，新型进气道宽马赫数范围内的性能显著提升：自起动马赫数由3.9降至3.2，起动马赫数由3.3降至3.1；在来流马赫数为4.0和6.0工况下，实际捕获流量分别提高9.74%和6.54%，出口总压恢复系数分别提高9.91%和4.45%。此外，出口畸变指数显著降低（≥13%），并且在来流马赫数为4.0时出口截面的涡流区基本消失。
Abstract:A synergistic design method combining geometric configuration and flow control was proposed to enhance the low-Mach-number self-starting capability and mitigate vortex region in hypersonic inward-turning inlets. The method combined geometric reconstruction of “side wall segmentation, forward sweep, and outward translation” with a controlled side overflow strategy, significantly reducing the effective internal contraction ratio and achieving coordinated suppression and removal of separated flow and boundary layer. Three-dimensional numerical results show that, compared with the conventional rear-cut-lip configuration, the novel inlet achieves significant performance improvements over a wide Mach number range. The self-starting Mach number decreases from 3.9 to 3.2 and the starting Mach number decreases from 3.3 to 3.1. When the inflow Mach number is 4.0 and 6.0, the actual captured mass flow increases by 9.74% and 6.54%, respectively, and the exit total pressure recovery coefficient increases by 9.91% and 4.45%. Additionally, the exit distortion index is reduced by at least 13%, and at an inflow Mach number of 4.0, the vortex region is essentially eliminated.
-
Key words:
- hypersonic /
- inward turning inlet /
- starting performance /
- flow control /
- wide Mach number adaptability
-

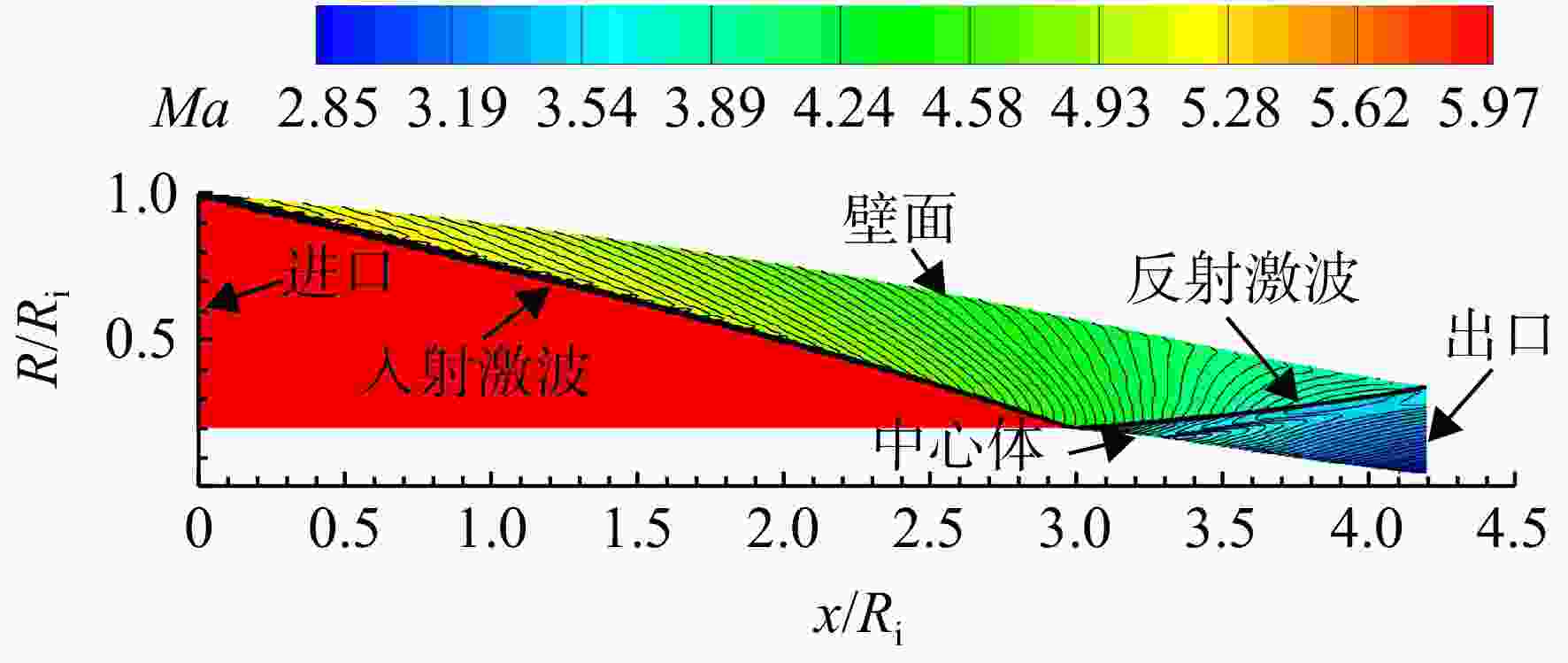

图 1 设计点时激波配置和马赫数分布双控基准流场结构（Ma∞=6.0）
Figure 1. Basic flowfield structure with dual control of shock configuration and Mach number distribution at design point （Ma∞=6.0）

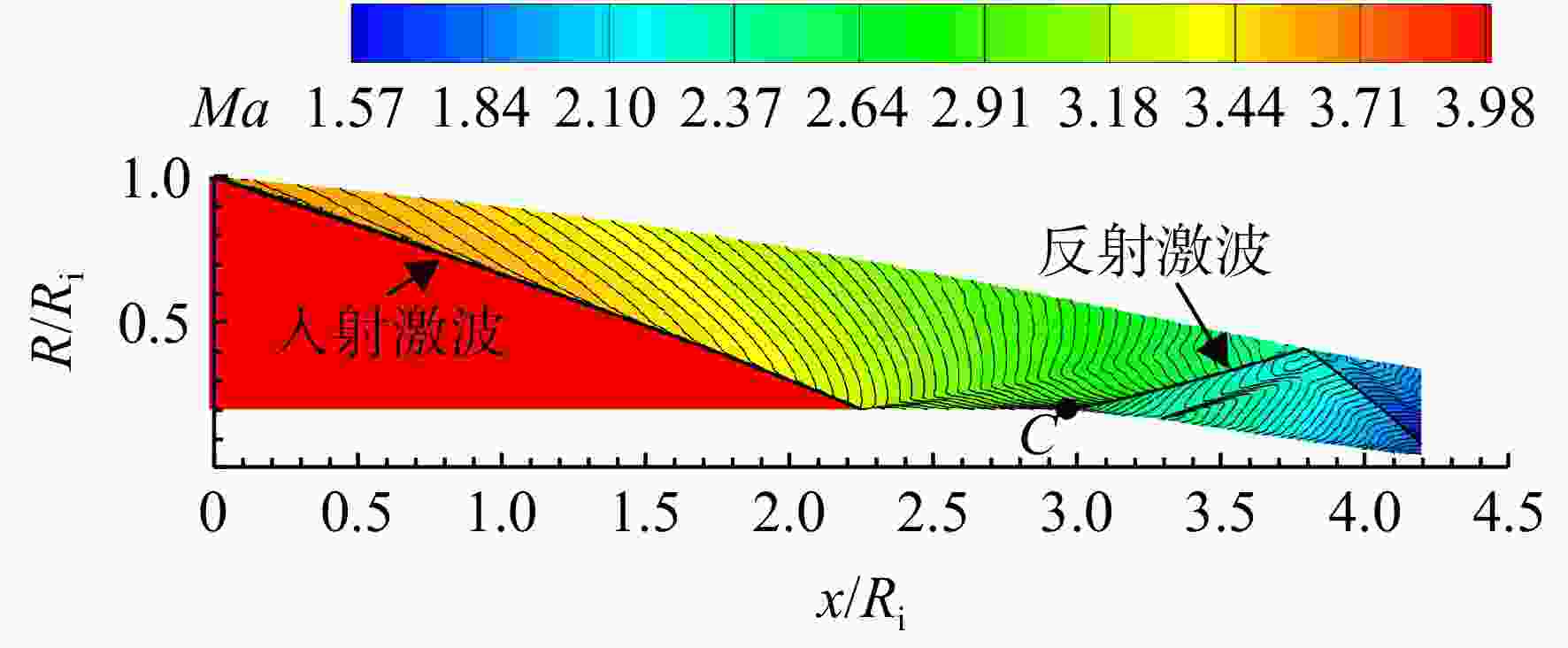

图 2 接力点时激波配置和马赫数分布双控基准流场结构（Ma∞=4.0）
Figure 2. Basic flowfield structure with dual control of shock configuration and Mach number distribution at the relay point （Ma∞=4.0）

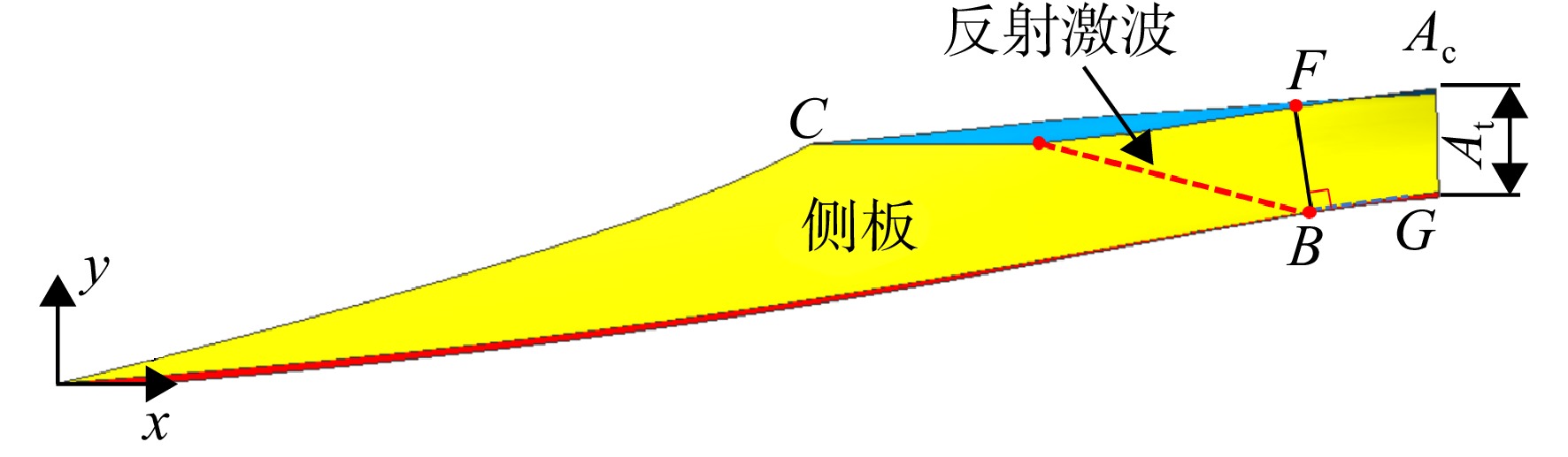

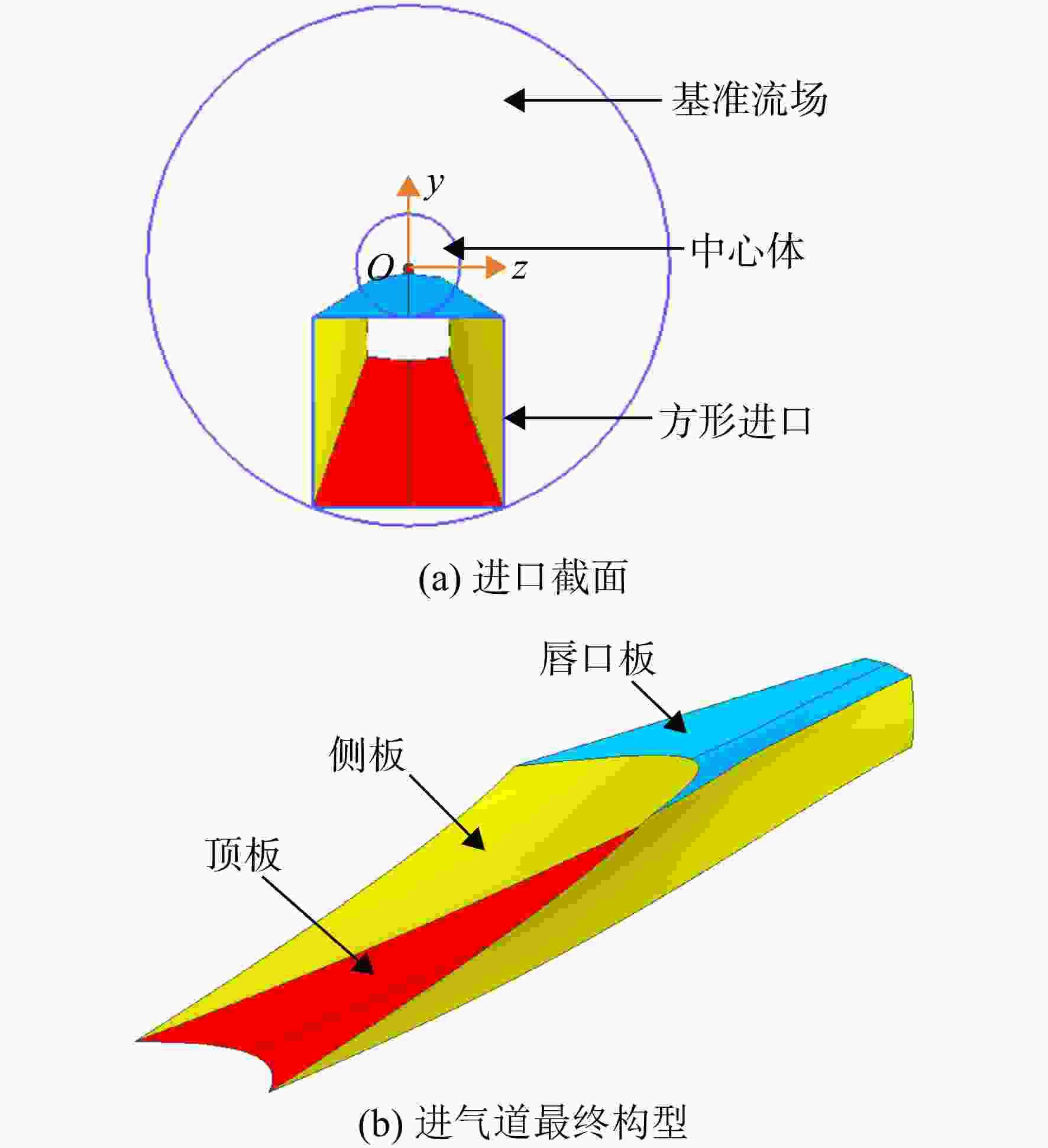

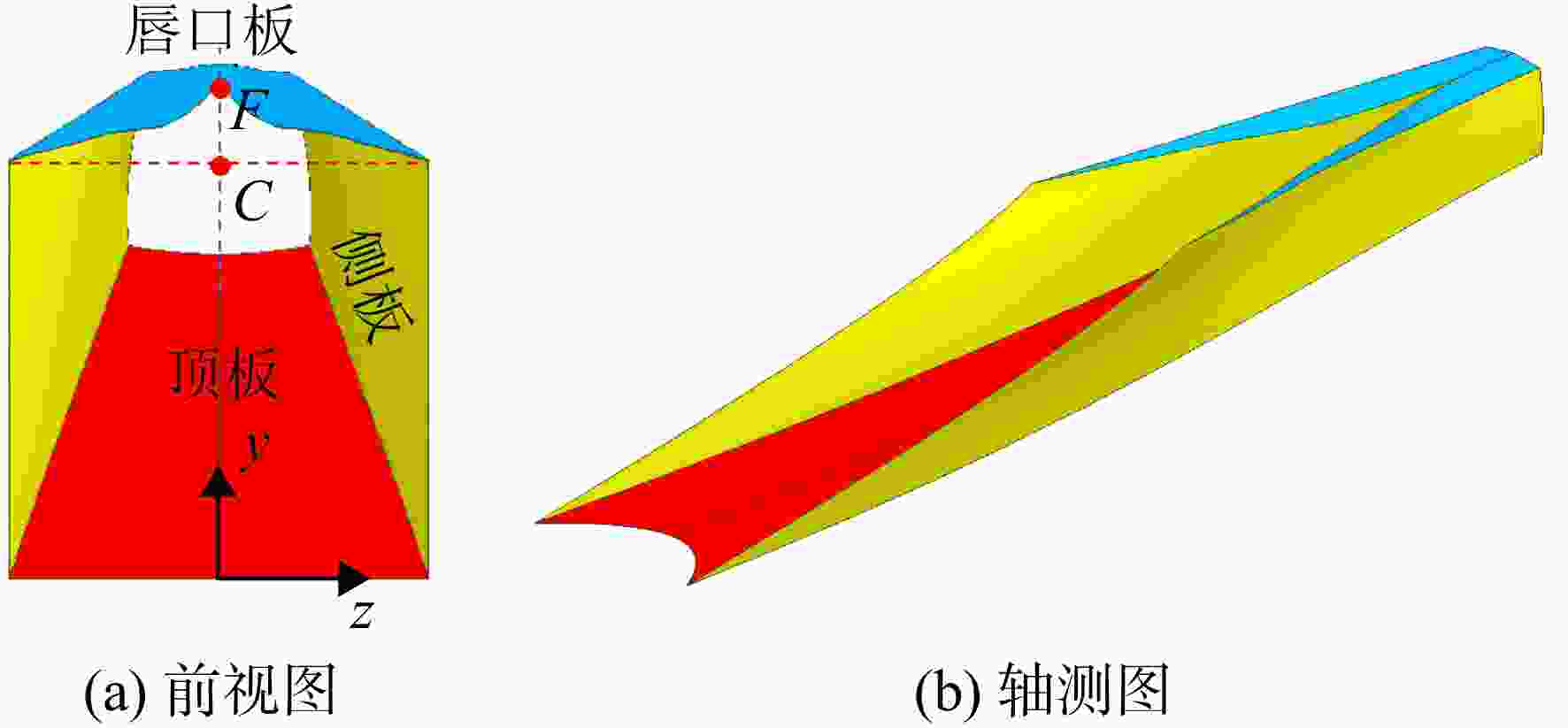

图 3 基准进气道的进口截面及气动构型
Figure 3. Intake section and aerodynamic configuration of the reference inlet

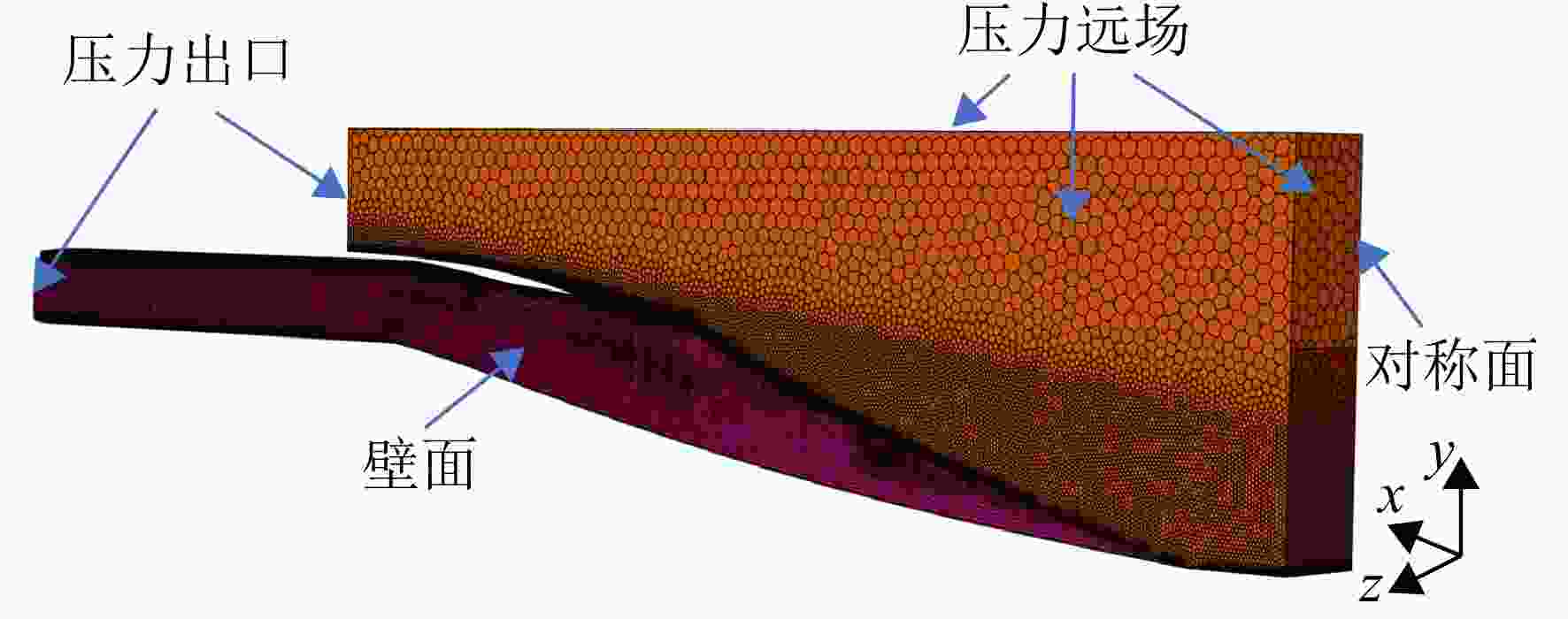

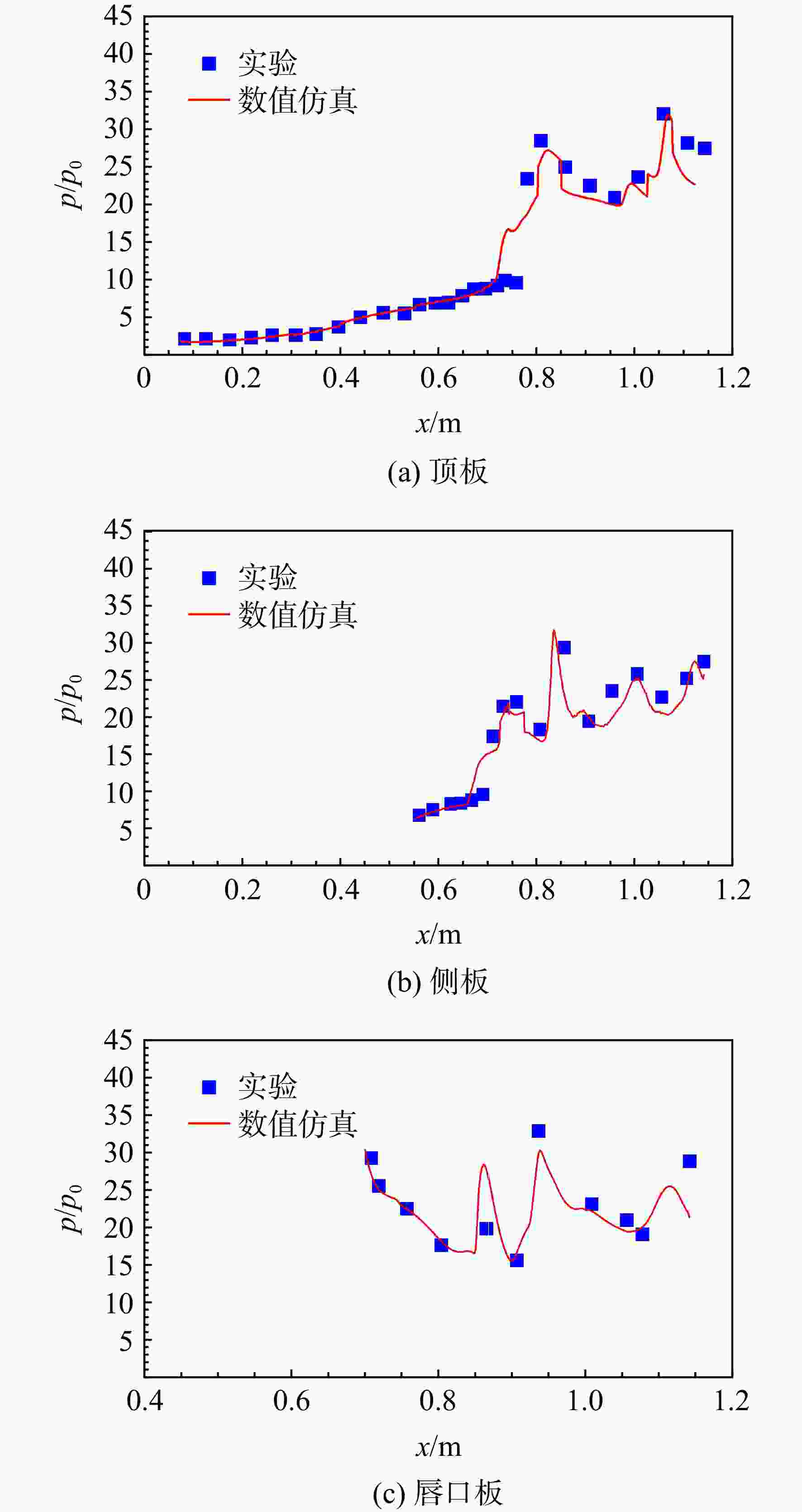

图 7 进气道壁面沿程静压分布数值结果与实验数据对比（Ma∞=6.0）
Figure 7. Comparison of numerical and experimental static pressure distributions along the wall （Ma∞=6.0）

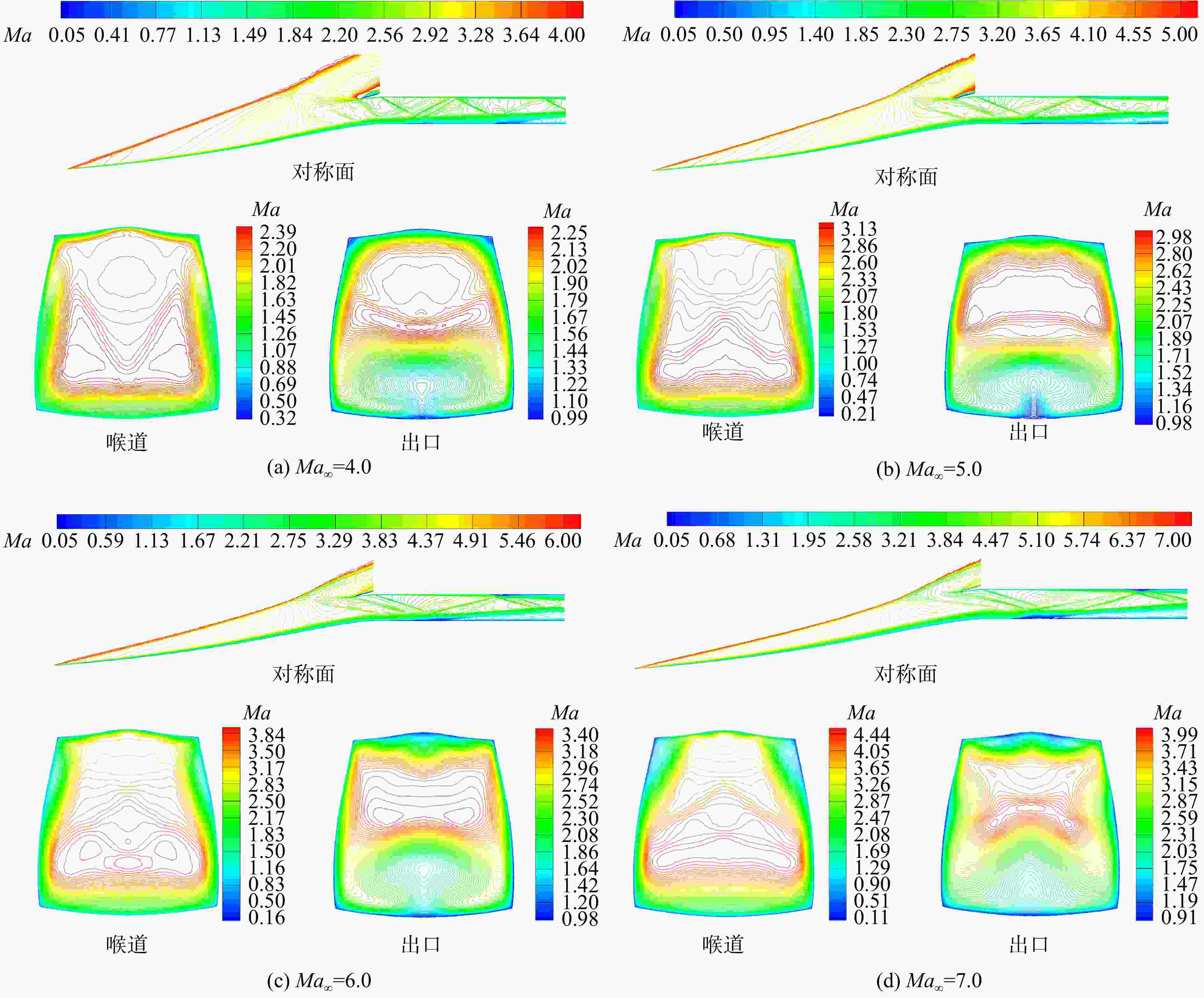

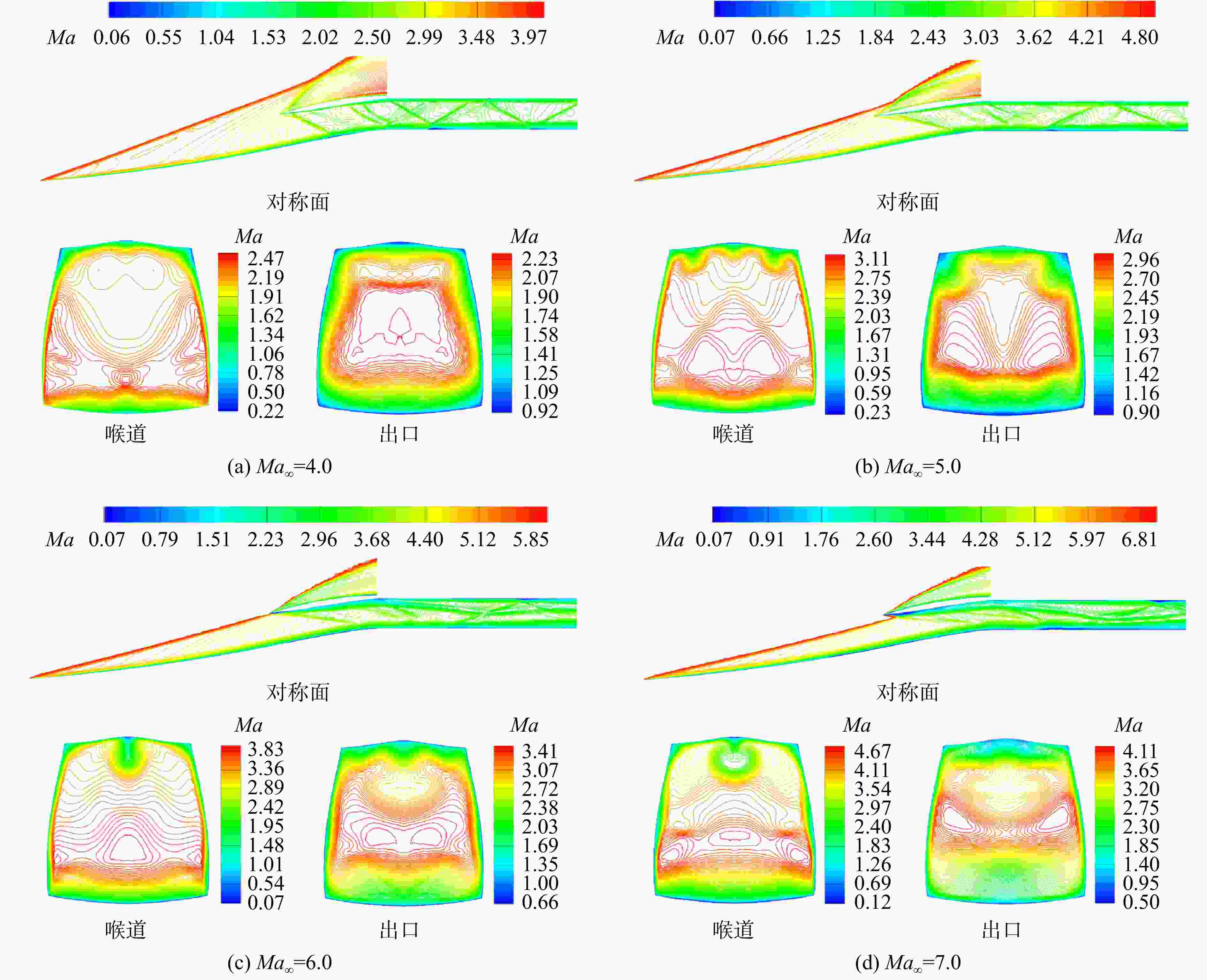

图 8 不同来流马赫数时Inlet 1对称面、喉道和出口截面马赫数等值线图
Figure 8. Mach number contours on the symmetry plane, throat, and exit sections of Inlet 1 at various Mach number

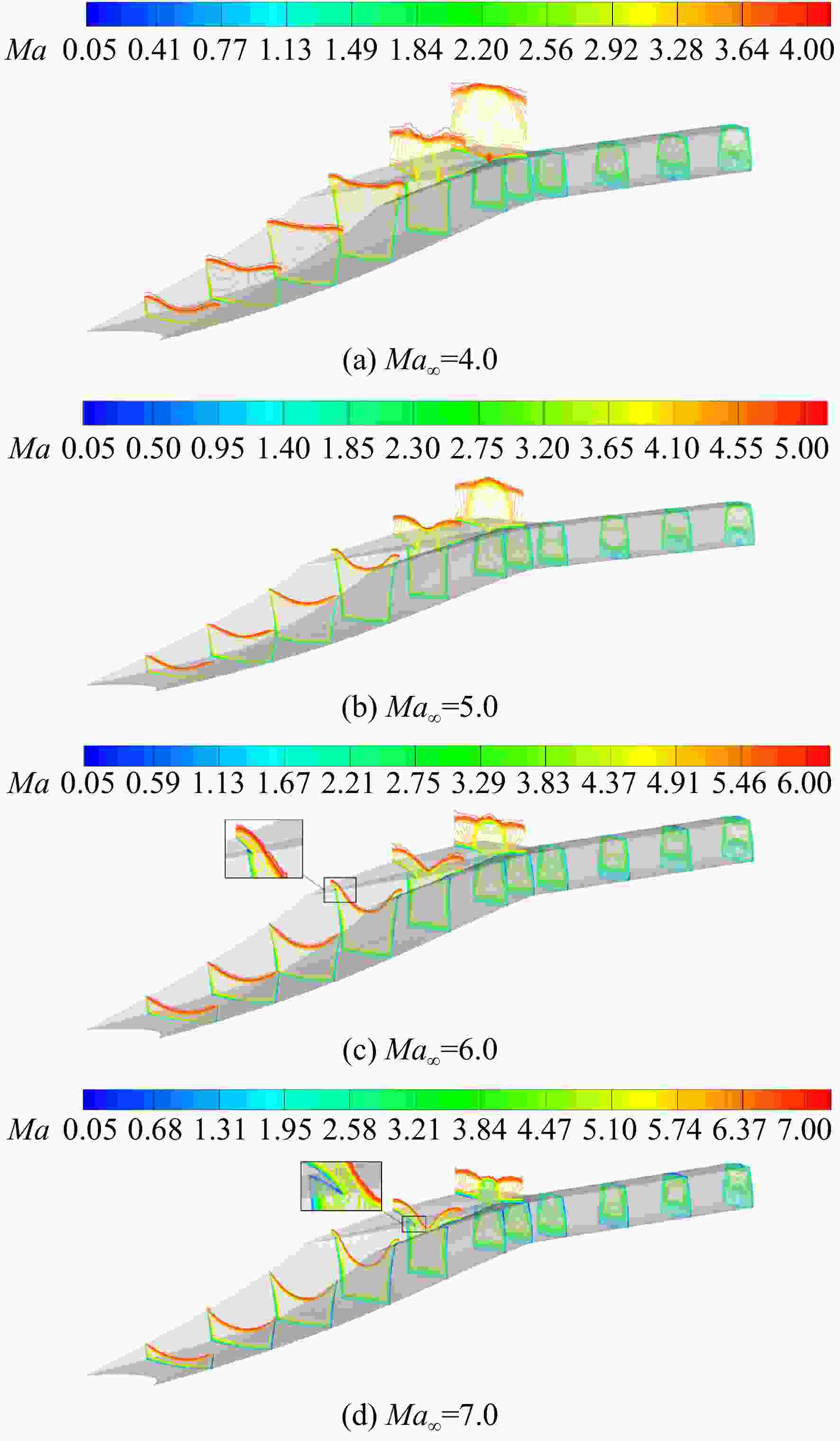

图 9 不同来流马赫数时Inlet 1沿程横截面流场
Figure 9. Cross-sectional flow fields along flow path of Inlet 1 at various Mach number

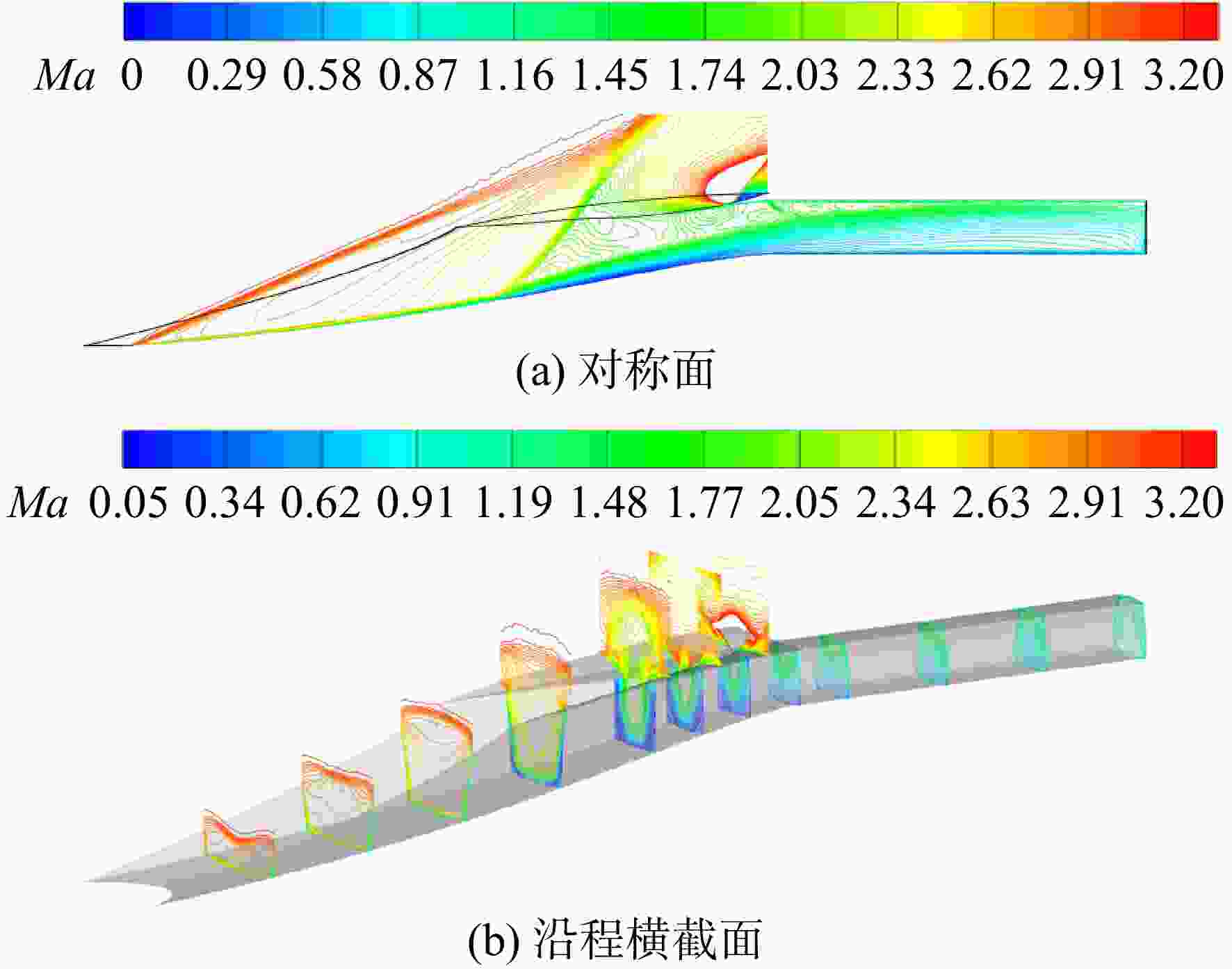

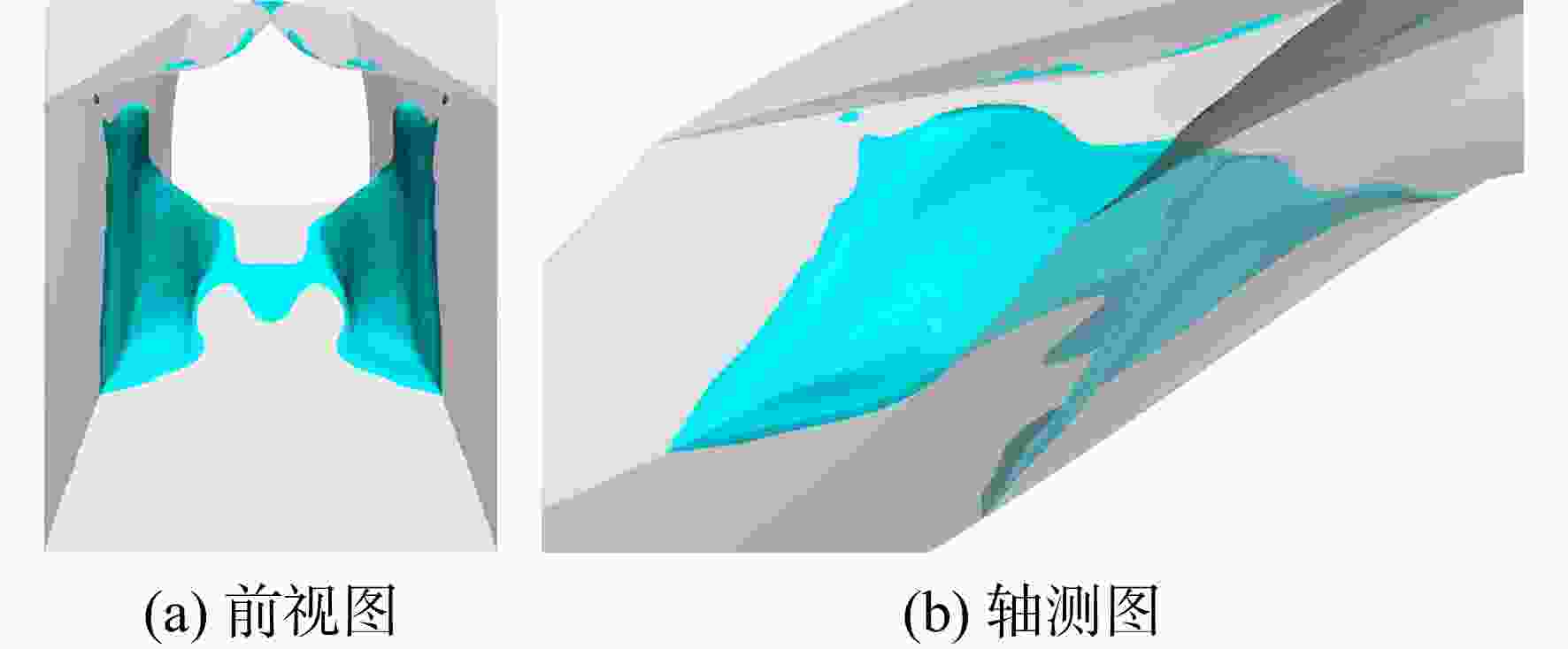

图 11 Inlet 1不起动流场的分离包形态
Figure 11. Separation-bubble morphology in the unstarted flow field of Inlet 1

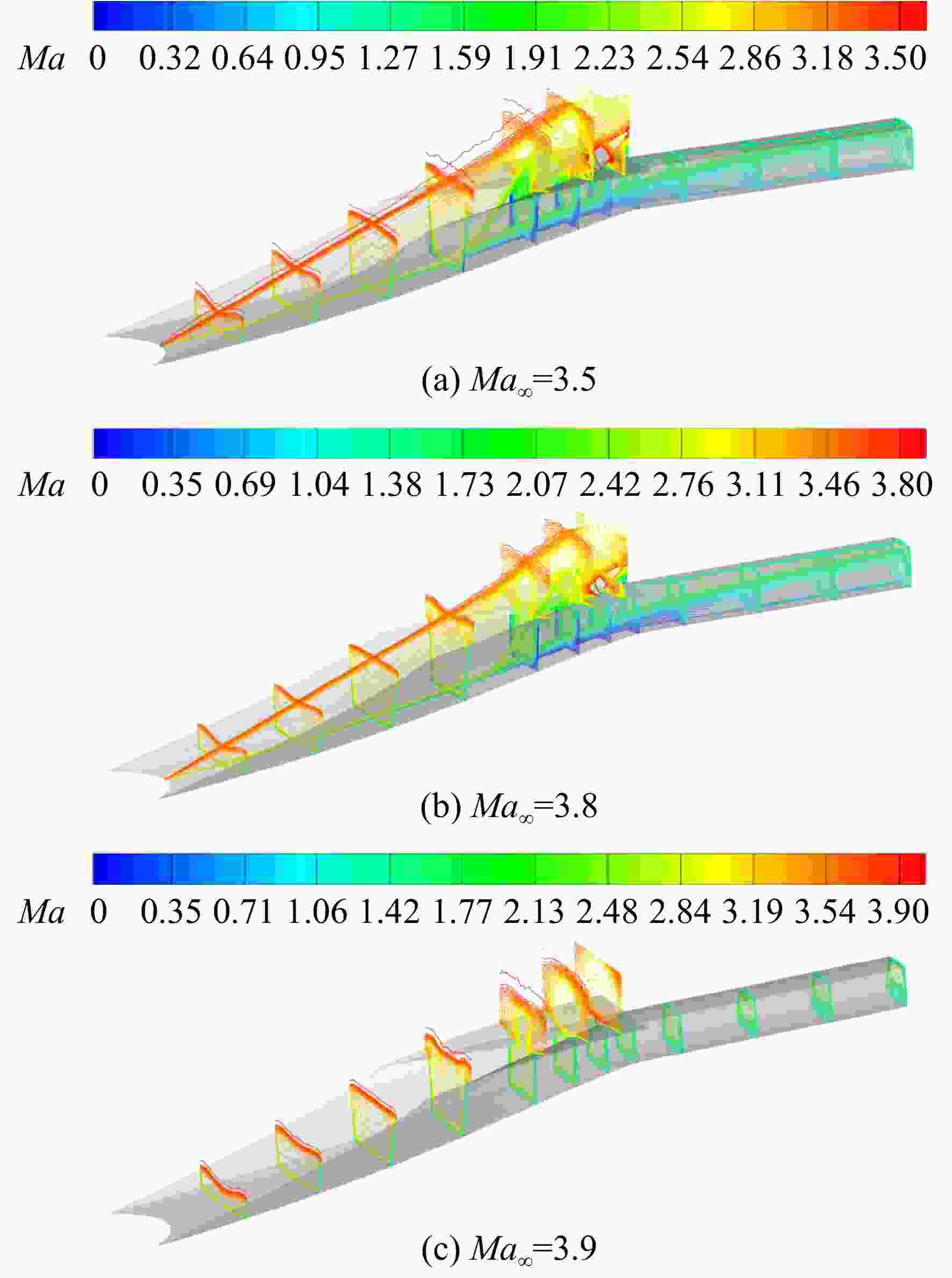

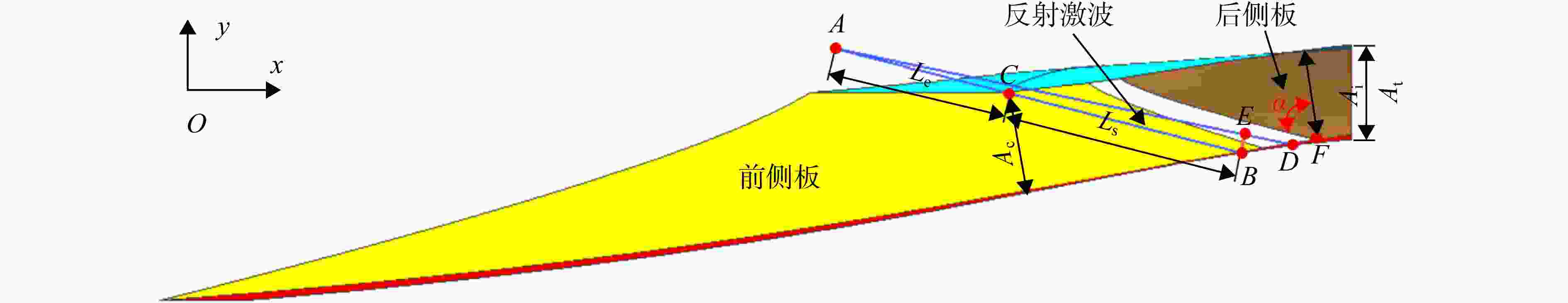

图 14 进气道侧板分割设计示意图（侧视图）
Figure 14. Design schematic of sidewall-splitting for the inlet（side view）

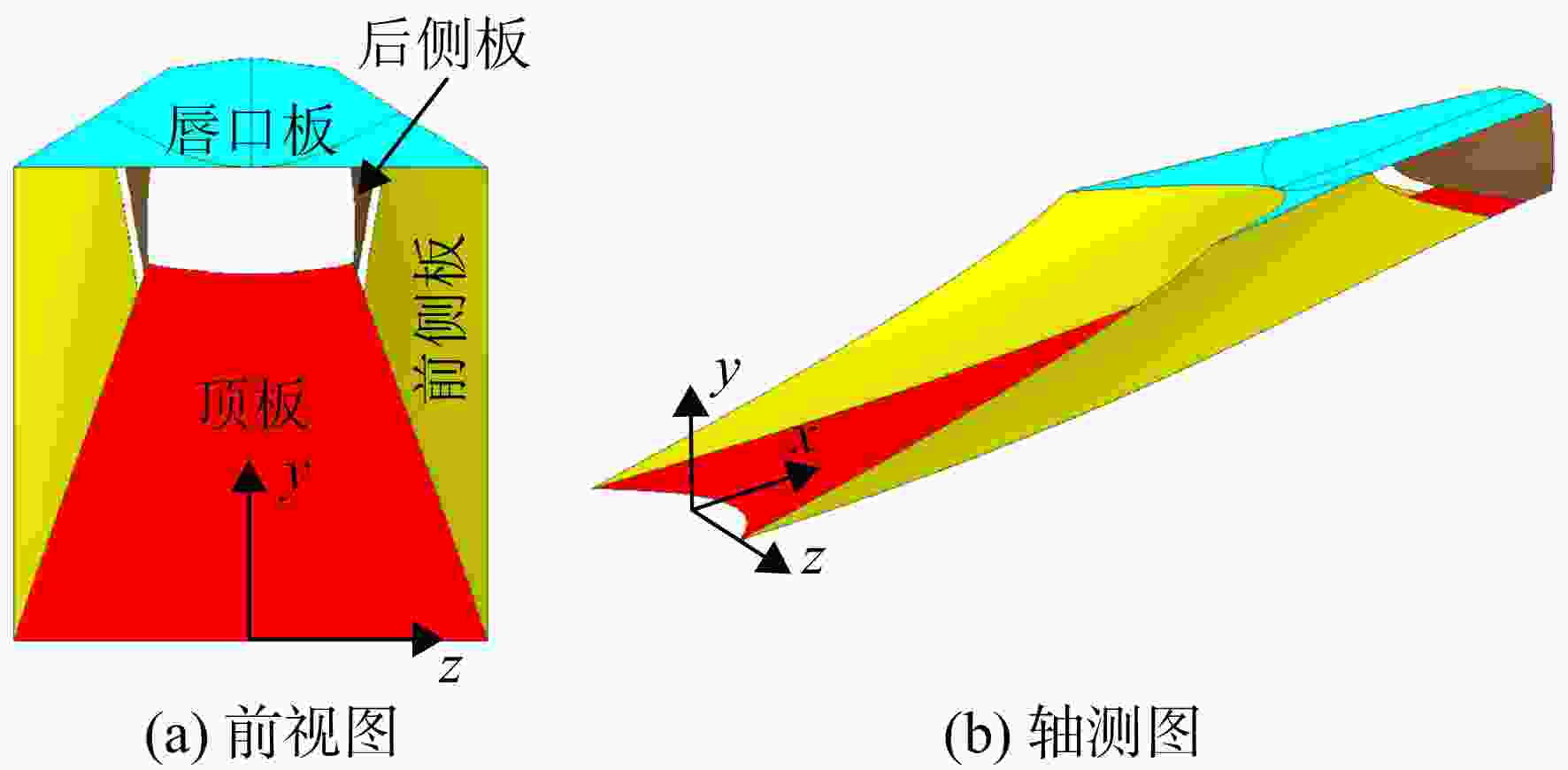

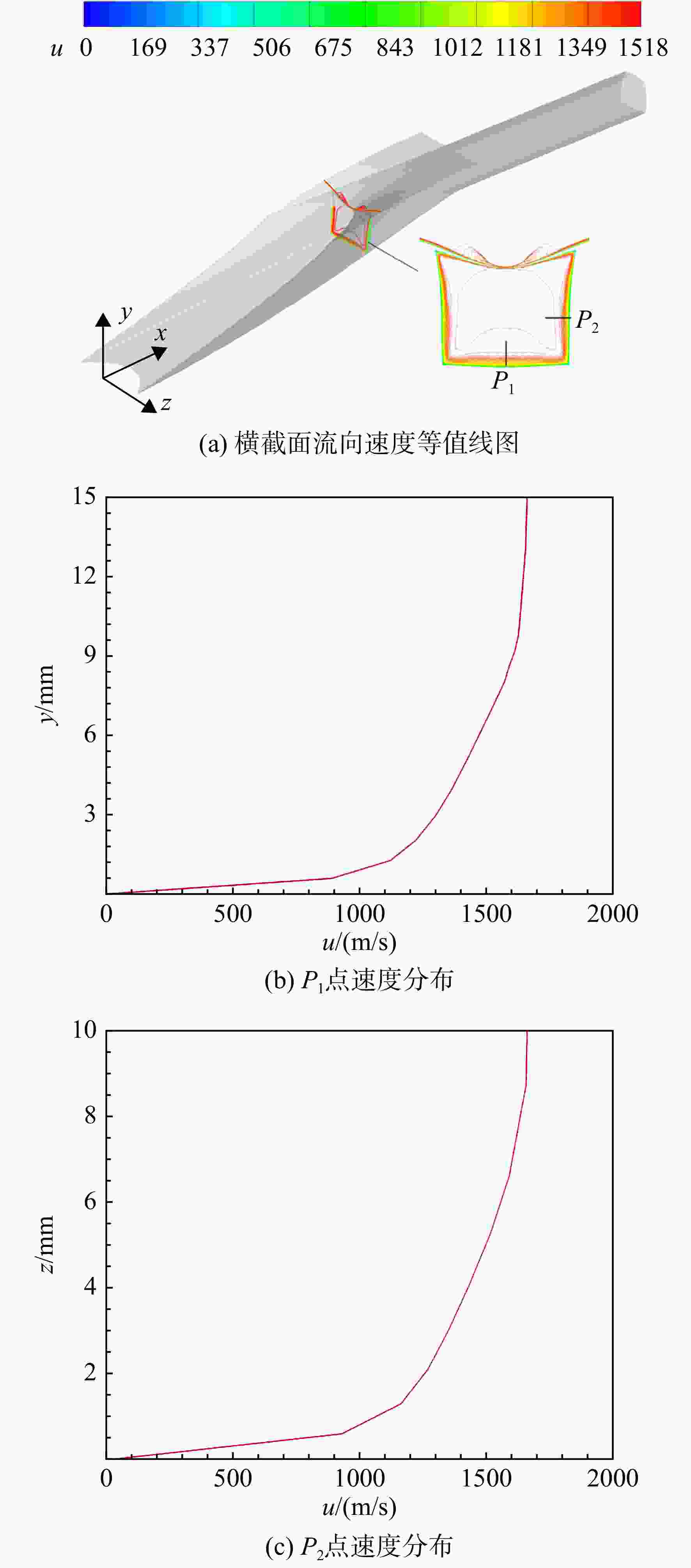

图 16 基准进气道V型唇口点横截面速度分布
Figure 16. Cross-sectional velocity distribution at the V-shaped lip point of the reference inlet

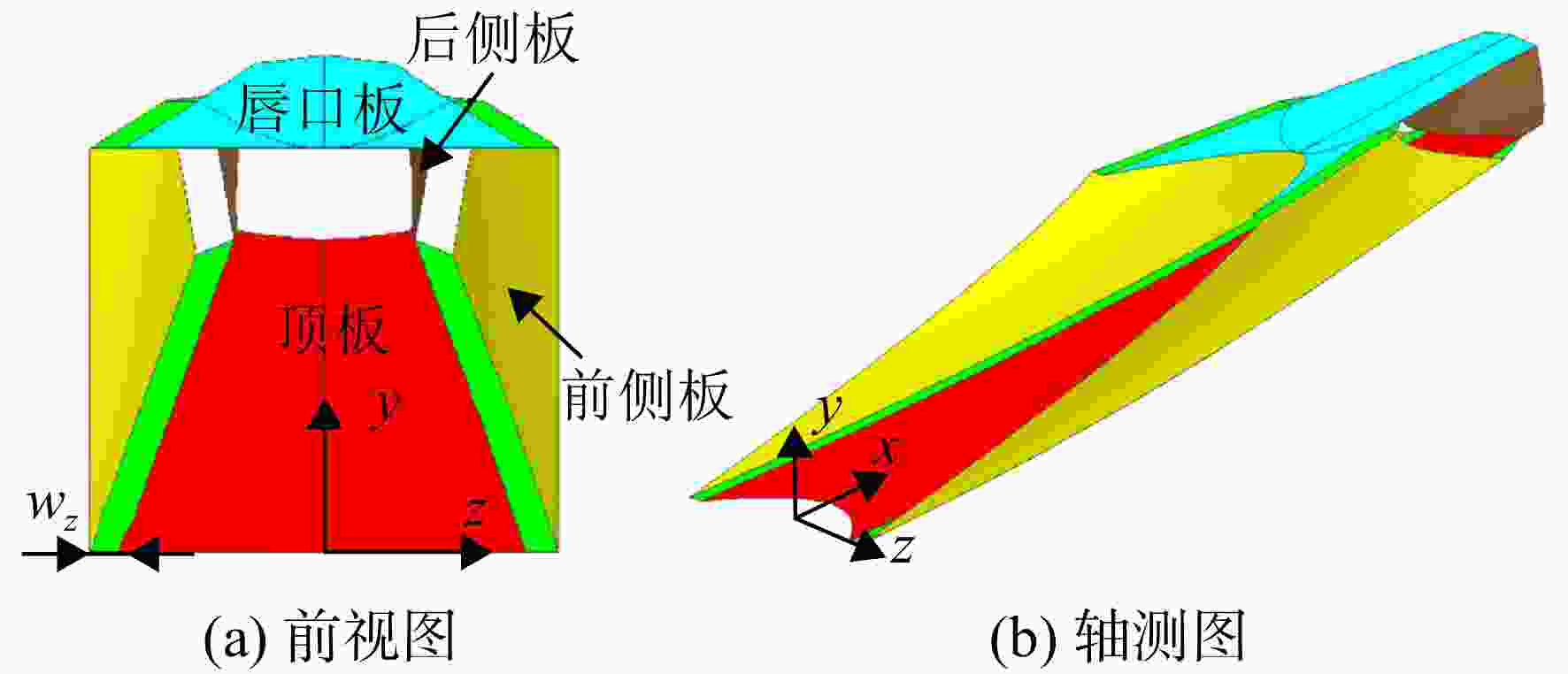

图 18 不同来流马赫数时Inlet 2对称面、喉道及出口截面马赫数等值线图
Figure 18. Mach number contours on the symmetry plane, throat, and exit sections of Inlet 2 at various Mach number

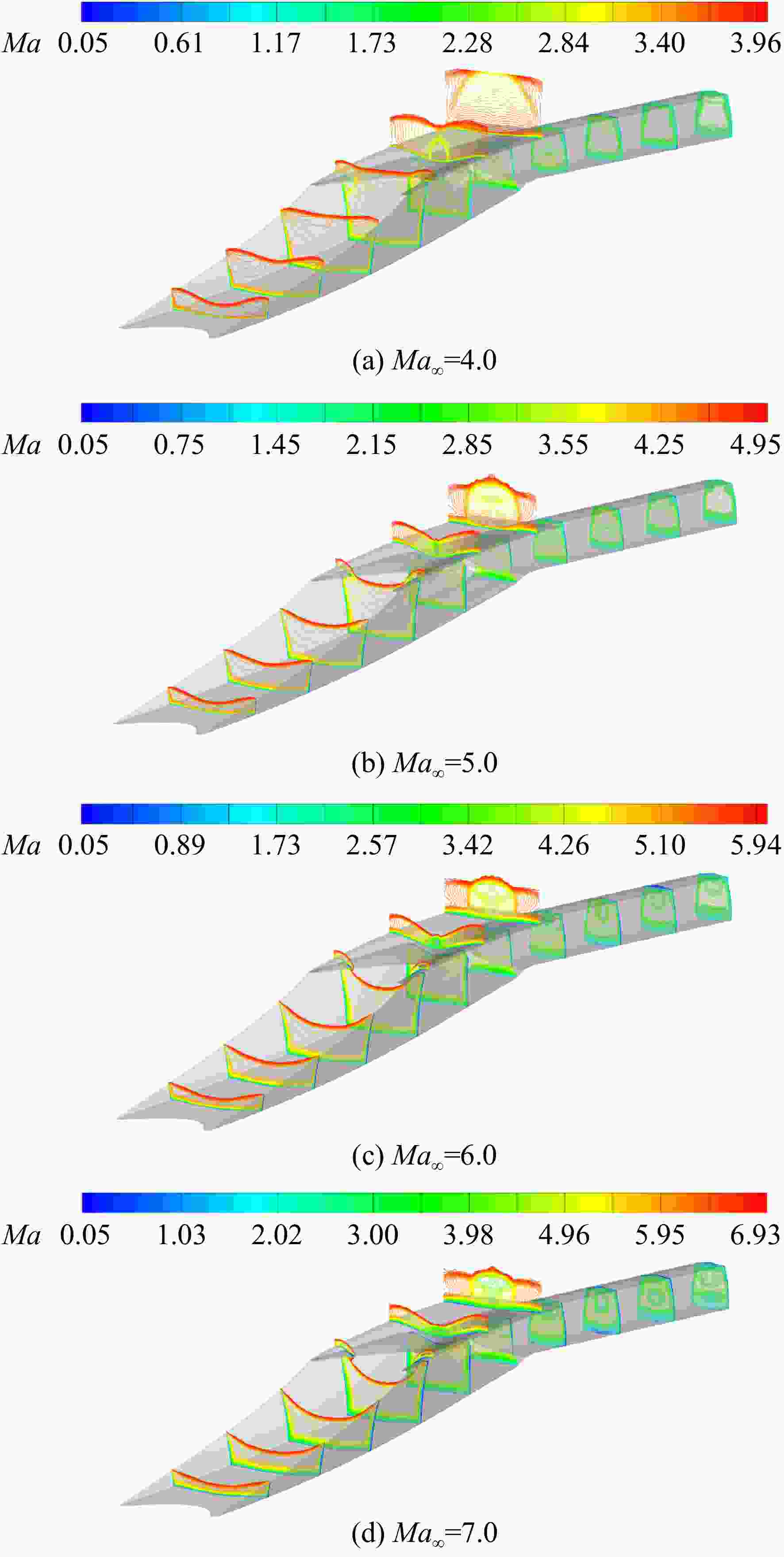

图 19 不同来流马赫数时Inlet 2沿程横截面流场
Figure 19. Cross-sectional flow fields along flow path of Inlet 2 at various Mach number

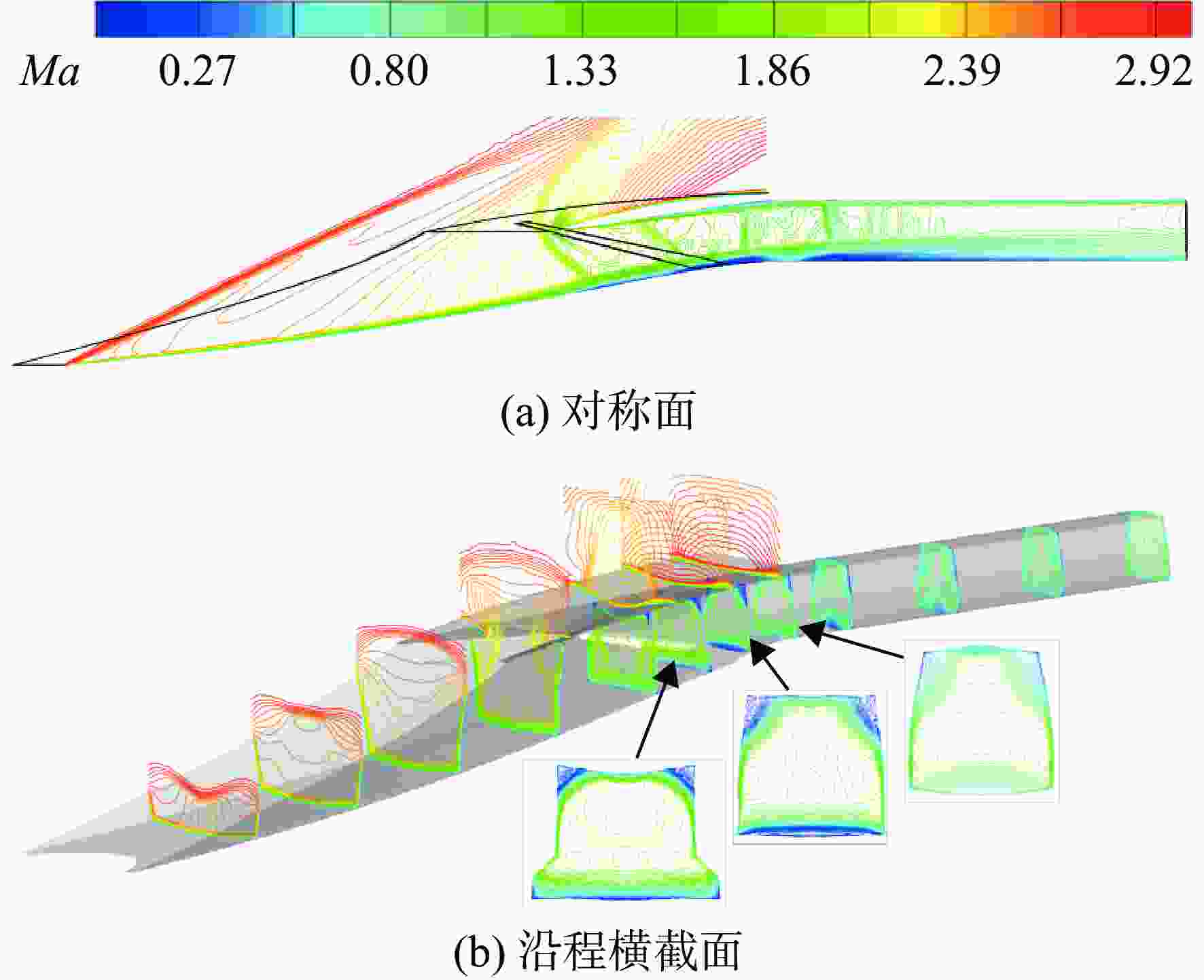

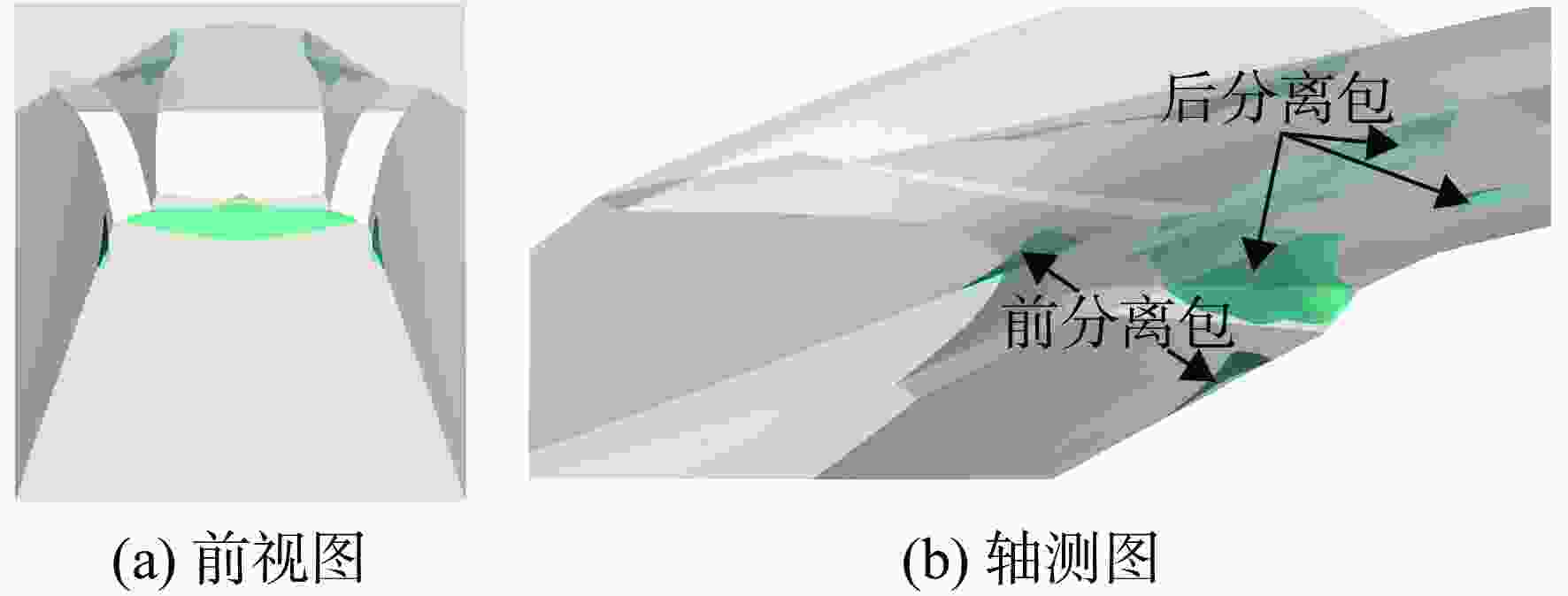

图 21 Ma∞=3.0时Inlet 2不起动流场中的分离包形态
Figure 21. Separation-bubble morphology in the unstarted flow field of Inlet 2 at Ma∞= 3.0

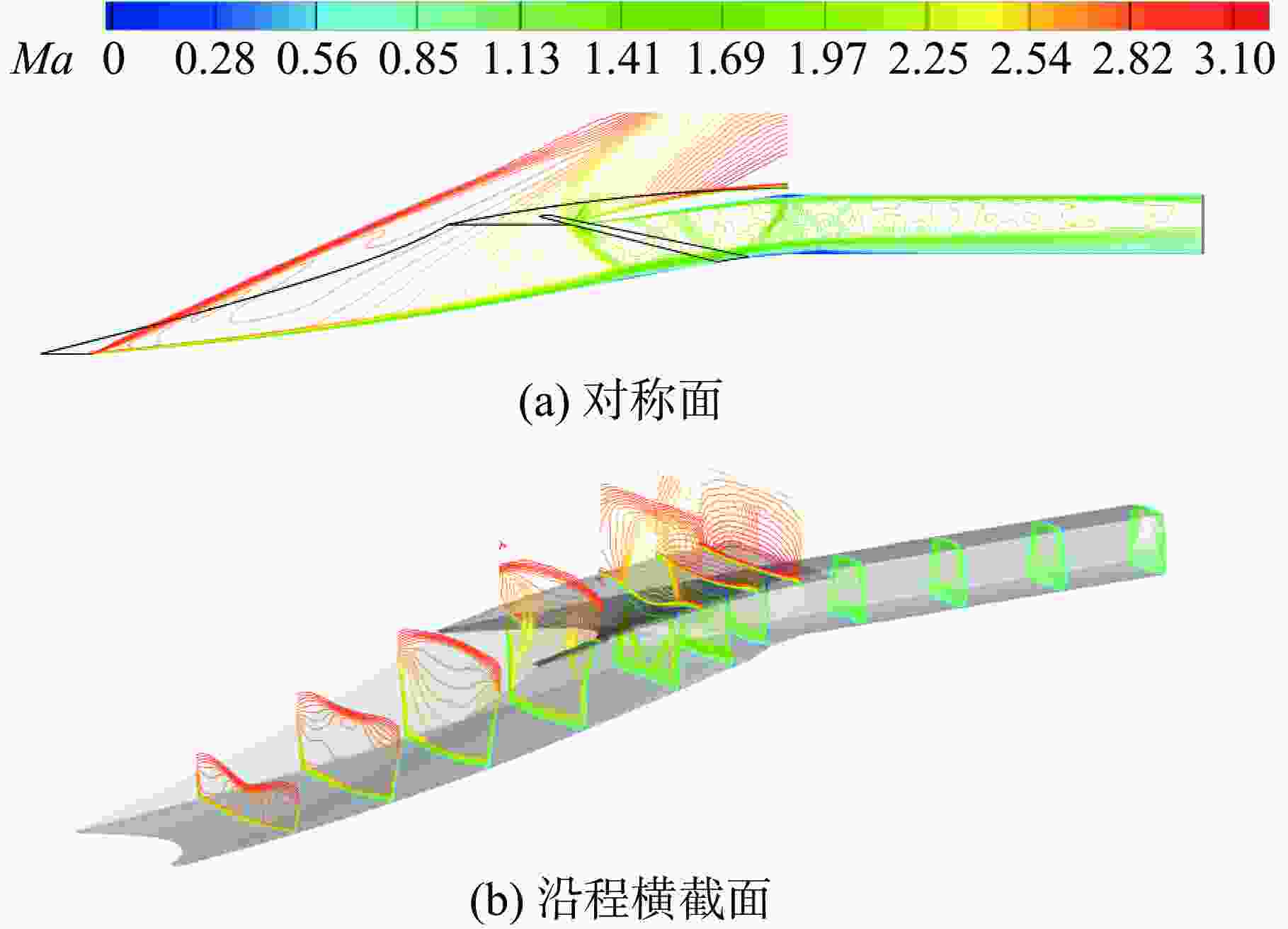

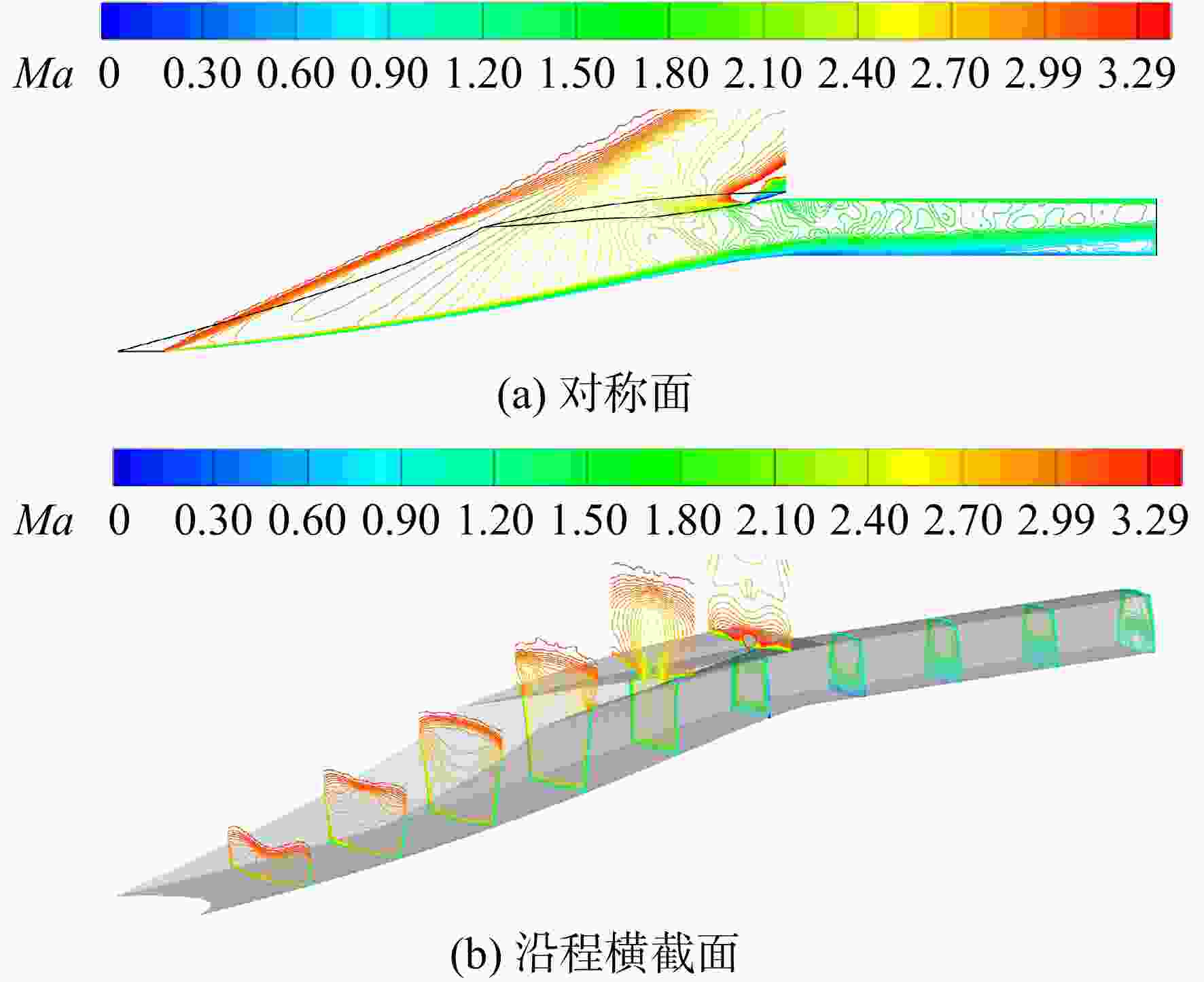

图 22 Ma∞=3.1时Inlet 2的起动流场波系结构
Figure 22. Shock-system structure of the starting flow field in Inlet 2 at Ma∞=3.1

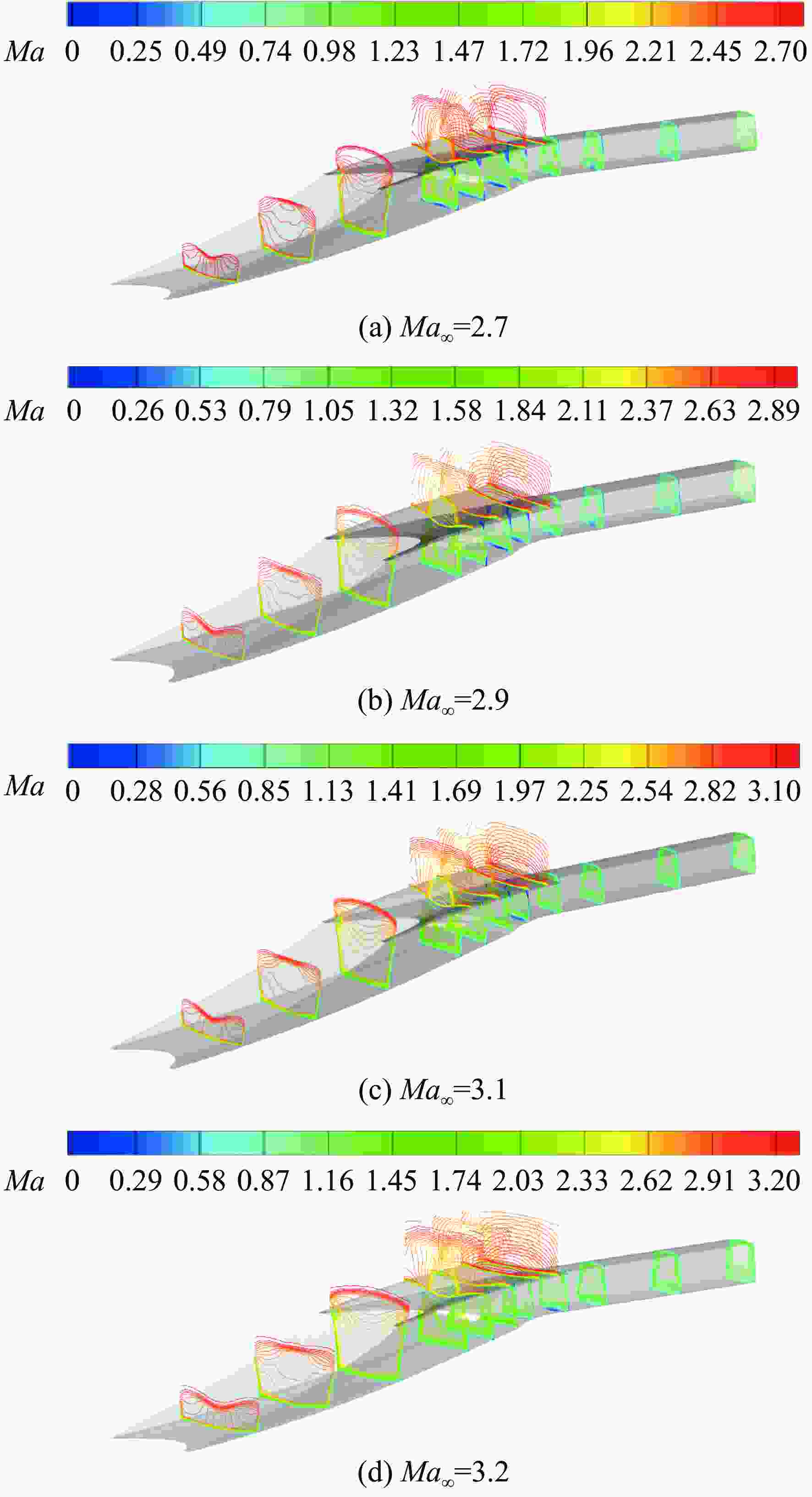

表 1 不同马赫数下的来流参数
Table 1. Freestream parameters at different Mach number
Ma∞ H/km p∞/Pa T∞/K 4.0 17 8850 216.6 5.0 21 4729 217.6 6.0 25 2549 221.6 7.0 29 1390 225.5
下载: 导出CSV
表 2 不同网格密度下Inlet 1的出口性能参数
Table 2. Exit performance parameters of Inlet 1 under different grid densities
网格密度 σe pe/p0 粗网格 0.532 20.21 中等网格 0.539 20.11 细网格 0.539 20.13
下载: 导出CSV
表 3 不同来流马赫数下两种进气道总体性能参数
Table 3. Overall performance parameters of the inlets at various Mach number
进气道 Ma∞ φth φb qm/（kg/s） σth pth/p∞ Math σe pe/p∞ Mae εe Dt/N Inlet 1 4.0 0.651 3.90 0.828 11.3 2.19 0.696 12.9 1.97 1.47 807 5.0 0.762 3.04 0.790 14.0 2.82 0.625 15.7 2.55 1.76 597 6.0 0.841 2.14 0.735 17.5 3.36 0.539 20.1 2.97 2.34 507 7.0 0.896 1.44 0.666 21.3 3.85 0.442 25.7 3.30 2.94 352 Inlet 2 4.0 0.657 0.203 4.28 0.892 11.7 2.25 0.765 13.0 2.06 1.21 1043 5.0 0.766 0.186 3.34 0.839 13.9 2.89 0.694 16.0 2.63 1.52 711 6.0 0.811 0.187 2.28 0.773 16.6 3.46 0.563 20.0 3.06 2.03 491 7.0 0.825 0.175 1.46 0.694 19.5 3.99 0.428 23.2 3.43 2.47 351
下载: 导出CSV
表 4 进气道起动马赫数和自起动马赫数
Table 4. Starting and self-starting Mach number of the inlets
进气道 Mas Mars Inlet 1 3.3 3.9 Inlet 2 3.1 3.2
下载: 导出CSV
-
[1] Billig F S, Jacobsen L S. Comparison of planar and axisymmetric flow paths for hydrogen fueled space access vehicle[R]. AIAA-2003-4407, 2003. [2] Zhang Kunyuan. Research progress of hypersonic inlet inverse design based on curved shock compression system[R]. AIAA-2015-3647, 2015. [3] 朱呈祥, 黄国平, 尤延铖, 等. 内乘波式进气道与典型侧压式进气道的性能对比[J]. 推进技术, 2011, 32(2): 151-158. Zhu Chengxiang, Huang Guoping, You Yancheng, et al. Performance comparison between internal waverider inlet and typical sidewall compression inlet[J]. Journal of Propulsion Technology, 2011, 32(2): 151-158. (in ChineseZhu Chengxiang, Huang Guoping, You Yancheng, et al. Performance comparison between internal waverider inlet and typical sidewall compression inlet[J]. Journal of Propulsion Technology, 2011, 32(2): 151-158. (in Chinese) [4] Molder S, Szpiro E J. Busemann inlet for hypersonic speeds[J]. Journal of Spacecraft and Rockets, 1966, 3(8): 1303-1304. doi: 10.2514/3.28649 [5] Molder S. Internal, axisymmetric, conical flow[J]. AIAA Journal, 1967, 5(7): 1252-1255. [6] Smart M K. Design of three-dimensional hypersonic inlets with rectangular-to-elliptical shape transition[J]. Journal of Propulsion and Power, 1999, 15(3): 408-416. doi: 10.2514/2.5459 [7] Inverse waverider design for inward turning inlets[R]. AIAA-2005-3915, 2005. [8] Matthews A J, Jones T V. Design and test of a modular waverider hypersonic intake[J]. Journal of Propulsion and Power, 2006, 22(4): 913-920. doi: 10.2514/1.17874 [9] 尤延铖, 梁德旺. 基于内乘波概念的三维变截面高超声速进气道[J]. 中国科学(E辑), 2009, 39(8): 1483-1494. You Yancheng, Liang Dewang. Three-dimensional hypersonic inlet with variable cross-section based on the concept of internal multiplication wave[J]. Science in China (Series E), 2009, 39(8): 1483-1494. (in Chinese doi: 10.1007/s11431-009-0125-1You Yancheng, Liang Dewang. Three-dimensional hypersonic inlet with variable cross-section based on the concept of internal multiplication wave[J]. Science in China (Series E), 2009, 39(8): 1483-1494. (in Chinese) doi: 10.1007/s11431-009-0125-1 [10] 郭军亮, 黄国平, 尤延铖, 等. 改善内乘波式进气道出口均匀性的内收缩基本流场研究[J]. 宇航学报, 2009, 30(5): 1934-1940, 1952. Guo Junliang, Huang Guoping, You Yancheng, et al. Study of internal compression flowfield for improving the outflow uniformity of internal waverider inlet[J]. Journal of Astronautics, 2009, 30(5): 1934-1940, 1952. (in ChineseGuo Junliang, Huang Guoping, You Yancheng, et al. Study of internal compression flowfield for improving the outflow uniformity of internal waverider inlet[J]. Journal of Astronautics, 2009, 30(5): 1934-1940, 1952. (in Chinese) [11] Otto S E, Trefny C J, Slater J W. Inward-turning streamline-traced supersonic inlet design method for low-boom, low-drag applications[R]. AIAA-2015-3700, 2015. [12] Yue Lianjie, Xiao Yabin, Chen Lihong, et al. Design of base flow for streamline-traced hypersonic inlet[R]. AIAA 2009-7422, 2009. [13] 南向军. 压升规律可控的高超声速内收缩进气道设计方法研究[D]. 南京: 南京航空航天大学, 2012. Nan Xiangjun. Study on design method of hypersonic internal contraction inlet with controllable pressure rise law[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2012. (in ChineseNan Xiangjun. Study on design method of hypersonic internal contraction inlet with controllable pressure rise law[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2012. (in Chinese) [14] 李永洲. 马赫数分布可控的高超声速内收缩进气道及其一体化设计研究[D]. 南京: 南京航空航天大学, 2014. Li Yongzhou. Study on hypersonic internal contraction inlet with controllable Mach number distribution and its integrated design[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2014. (in ChineseLi Yongzhou. Study on hypersonic internal contraction inlet with controllable Mach number distribution and its integrated design[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2014. (in Chinese) [15] 李永洲, 孙迪, 王仁华, 等. 非均匀来流的马赫数可控内收缩进气道设计[J]. 航空学报, 2023, 44(12): 127857. Li Yongzhou, Sun Di, Wang Renhua, et al. Design of inward turning inlet with controlled Mach number under non-uniform inflow[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44(12): 127857. (in Chinese doi: 10.7527/S1000-6893.2022.27857Li Yongzhou, Sun Di, Wang Renhua, et al. Design of inward turning inlet with controlled Mach number under non-uniform inflow[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44(12): 127857. (in Chinese) doi: 10.7527/S1000-6893.2022.27857 [16] Zhou Hang, Jin Zhiguang, Deng Shiyu, et al. Design studies on NAGIC flowfield with application to integrated irregular-shaped supersonic inlet[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2023, 237(6): 1286-1297. doi: 10.1177/09544100221123735 [17] Hao Changkai, Luo Wenguo, Yu Zonghan, et al. Novel design method for inward-turning inlets with non-uniform inflow[J]. Aerospace Science and Technology, 2024, 148: 109098. doi: 10.1016/j.ast.2024.109098 [18] Billig F, Baurle R, Tam C J, et al. Design and analysis of streamline traced hypersonic inlets[R]. AIAA 1999-4974, 1999. [19] Smart M, Trexler C. Mach 4 performance of a fixed-geometry hypersonic inlet with rectangular-to-elliptical shape transition[R]. AIAA-2003-12, 2003. [20] 孙波, 张堃元, 金志光. 流线追踪Busemann进气道马赫数3.85实验研究[J]. 航空动力学报, 2007, 22(3): 396-399. Sun Bo, Zhang Kunyuan, Jin Zhiguang. Experimental research of Mach 3.85 performance of a streamline traced hypersonic Busemann inlet[J]. Journal of Aerospace Power, 2007, 22(3): 396-399. (in ChineseSun Bo, Zhang Kunyuan, Jin Zhiguang. Experimental research of Mach 3.85 performance of a streamline traced hypersonic Busemann inlet[J]. Journal of Aerospace Power, 2007, 22(3): 396-399. (in Chinese) [21] Jacobsen L, Tam C J, Behdadnia R, et al. Starting and operation of a streamline-traced busemann inlet at Mach 4[R]. AIAA 2006-4508, 2006. [22] 田方超. 内转式高超声速进气道的不起动问题研究[D]. 南京: 南京航空航天大学, 2013. Tian Fangchao. Study on starting problem of internal rotating hypersonic inlet[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2013. (in ChineseTian Fangchao. Study on starting problem of internal rotating hypersonic inlet[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2013. (in Chinese) [23] 郑晓刚, 施崇广, 张加乐, 等. 高超声速三维内转进气道研究进展综述[J]. 航空学报, 2025, 46(8): 631245. Zheng Xiaogang, Shi Chongguang, Zhang Jiale, et al. Research progress review on hypersonic three-dimensional inward-turning inlet[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(8): 631245. (in ChineseZheng Xiaogang, Shi Chongguang, Zhang Jiale, et al. Research progress review on hypersonic three-dimensional inward-turning inlet[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(8): 631245. (in Chinese) [24] 李永洲, 张堃元, 张留欢. 抽吸对高超声速内收缩进气道涡流区及起动性能的影响[J]. 航空动力学报, 2016, 31(7): 1630-1637. Li Yongzhou, Zhang Kunyuan, Zhang Liuhuan. Effect of bleeding on vortex region and starting performance of hypersonic inward turning inlet[J]. Journal of Aerospace Power, 2016, 31(7): 1630-1637. (in Chinese doi: 10.13224/j.cnki.jasp.2016.07.012Li Yongzhou, Zhang Kunyuan, Zhang Liuhuan. Effect of bleeding on vortex region and starting performance of hypersonic inward turning inlet[J]. Journal of Aerospace Power, 2016, 31(7): 1630-1637. (in Chinese) doi: 10.13224/j.cnki.jasp.2016.07.012 [25] Drayna T, Nompelis I, Candler G. Hypersonic inward turning inlets: design and optimization[R]. AIAA 2006-297, 2006. [26] 曾宇, 汪洪波, 孙明波, 等. SST湍流模型改进研究综述[J]. 航空学报, 2023, 44(9): 027411. Zeng Yu, Wang Hongbo, Sun Mingbo, et al. SST turbulence model improvements: Review[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44(9): 027411. (in ChineseZeng Yu, Wang Hongbo, Sun Mingbo, et al. SST turbulence model improvements: Review[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44(9): 027411. (in Chinese) [27] Li Yongzhou, Sun Di, Wu Zejun, et al. Flow coefficient and starting performance prediction of variable geometry curved axisymmetric inlet[J]. Aerospace, 2023, 10(6): 506. doi: 10.3390/aerospace10060506 [28] 潘瑾. 侧压式进气道自起动特性数值模拟和实验研究[D]. 南京: 南京航空航天大学, 2005. Pan Jin. Tests and numerical simulation on characteristics of self-starting for sidewall compression inlets[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2005. (in ChinesePan Jin. Tests and numerical simulation on characteristics of self-starting for sidewall compression inlets[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2005. (in Chinese) [29] 杨大伟, 余安远, 韩亦宇, 等. 内转式进气道自起动性能研究[J]. 推进技术, 2019, 40(1): 76-83. Yang Dawei, Yu Anyuan, Han Yiyu, et al. Study on self-starting characteristics of an inward turning inlet[J]. Journal of Propulsion Technology, 2019, 40(1): 76-83. (in ChineseYang Dawei, Yu Anyuan, Han Yiyu, et al. Study on self-starting characteristics of an inward turning inlet[J]. Journal of Propulsion Technology, 2019, 40(1): 76-83. (in Chinese) [30] Starting in hypersonic intakes[R]. AIAA-2006-4510, 2006. [31] 李一鸣, 李祝飞, 杨基明, 等. 典型高超声速内转式进气道激光散射流场显示[J]. 航空学报, 2017, 38(12): 121414. Li Yiming, Li Zhufei, Yang Jiming, et al. Flow visualization of a typical hypersonic inward-turning inlet using laser scattering[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(12): 121414. (in Chinese doi: 10.7527/S1000-6893.2017.121414Li Yiming, Li Zhufei, Yang Jiming, et al. Flow visualization of a typical hypersonic inward-turning inlet using laser scattering[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(12): 121414. (in Chinese) doi: 10.7527/S1000-6893.2017.121414 [32] Van Wie D, Kwok F, Walsh R. Starting characteristics of supersonic inlets[R]. AIAA 1996-2914, 1996. [33] 张龙冬, 张堃元, 南向军. 无侧滑二元超声速进气道侧板遮挡度对其性能影响[J]. 航空动力学报, 2010, 25(7): 1581-1587. Zhang Longdong, Zhang Kunyuan, Nan Xiangjun. Effects of degree of sidewall shade on performance of two-dimentional supersonic inlet with non-sideslip[J]. Journal of Aerospace Power, 2010, 25(7): 1581-1587. (in Chinese doi: 10.13224/j.cnki.jasp.2010.07.022Zhang Longdong, Zhang Kunyuan, Nan Xiangjun. Effects of degree of sidewall shade on performance of two-dimentional supersonic inlet with non-sideslip[J]. Journal of Aerospace Power, 2010, 25(7): 1581-1587. (in Chinese) doi: 10.13224/j.cnki.jasp.2010.07.022 [34] 王翼, 范晓樯, 何继宏, 等. 侧板构型对二维高超声速进气道启动性能的影响[J]. 航空学报, 2010, 31(2): 217-222. Wang Yi, Fan Xiaoqiang, He Jihong, et al. Effect of sidewall geometry on starting characteristics of two-dimensional hypersonic inlet[J]. Acta Aeronautica et Astronautica Sinica, 2010, 31(2): 217-222. (in ChineseWang Yi, Fan Xiaoqiang, He Jihong, et al. Effect of sidewall geometry on starting characteristics of two-dimensional hypersonic inlet[J]. Acta Aeronautica et Astronautica Sinica, 2010, 31(2): 217-222. (in Chinese) [35] Hank J, Murphy J, Mutzman R. The X-51A scramjet engine flight demonstration program[R]. AIAA 2008-2540, 2008. [36] 钟亚飞, 马宏伟, 郭君德, 等. 航空发动机进气总压畸变地面试验数据处理方法综述[J]. 航空发动机, 2021, 47(1): 72-85. Zhong Yafei, Ma Hongwei, Guo Junde, et al. Review of ground test data processing method of aeroengine inlet total pressure distortion[J]. Aeroengine, 2021, 47(1): 72-85. (in Chinese doi: 10.13477/j.cnki.aeroengine.2021.01.014Zhong Yafei, Ma Hongwei, Guo Junde, et al. Review of ground test data processing method of aeroengine inlet total pressure distortion[J]. Aeroengine, 2021, 47(1): 72-85. (in Chinese) doi: 10.13477/j.cnki.aeroengine.2021.01.014 -
