Analysis of circumferential equidistant rubbing fault between engine rotor and case
-
摘要:
针对发动机研制中出现的转子与壳体周向等间距碰摩故障，介绍了圆柱壳体振动的基本理论，剖析了转子与圆柱壳体周向等间距碰摩的形式和原因，揭示了转子与圆柱壳体周向等间距碰摩的机理，提出了转子与圆柱壳体周向等间距碰摩的条件，建立了周向等间距碰摩的通用识别方法，利用发动机中的转子与密封座周向等间距碰摩故障实例对识别方法进行了验证。研究表明：转子与圆柱壳体的周向等间距碰摩通常为两种独立激励源所激励的两种振动相互作用的结果；流体会激起圆柱壳体的节径型共振，转子振动频率和幅值满足一定条件时，转子与圆柱壳体会发生周向等间距碰摩，碰摩的点数取决于壳体振动的节径数以及转子转速与壳体对应节径共振频率的比值。发动机转子与密封座周向等间距碰摩的故障实例证明了周向等间距碰摩通用识别方法是可行、有效的，可为碰摩故障诊断和壳体动力学设计提供指导。
Abstract:Aiming at the circumferential equidistant rubbing fault between the rotor and the case in the development process of the engine, the basic theory of the vibration of the cylindrical case was introduced. The form and reason for circumferential equidistant rubbing between the rotor Sand the cylindrical case were analyzed. The mechanism of the circumferential equidistant rubbing between the rotor and the cylindrical case was revealed. The conditions of circumferential equidistant rubbing between the rotor and cylindrical case were proposed. A general identification method for circumferential equidistant rubbing is established. The identification method was illustrated using an example of a circumferential equidistant rubbing fault between the rotor and the seal seat in the engine. The research has shown that the circumferential equidistant rubbing between the rotor and the cylindrical case is usually the result of two vibration interactions excited by two independent excitation sources. The fluid will excite the pitch diameter travelling wave resonance of the cylindrical case. When the pitch diameter travelling wave resonance and the rotor vibration satisfy some conditions, the circumferential equidistant rubbing will occur. The number of rubbing points depends on the pitch diameter number and the ratio of the rotor speed to the pitch diameter resonance frequency of the cylindrical case. The example of a circumferential equidistant rubbing fault between the rotor and seal seat in the real aero-engine proves the effectiveness of the general identification method for circumferential equidistant rubbing. The general identification method can guide rubbing fault diagnosis and case dynamics design.
-

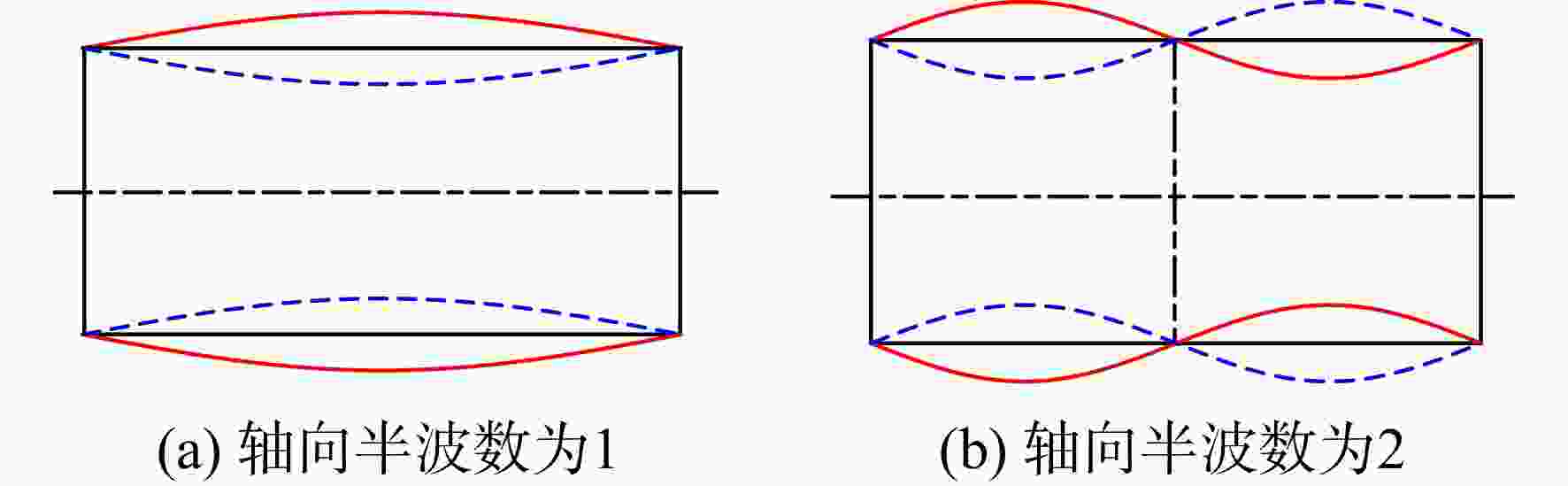

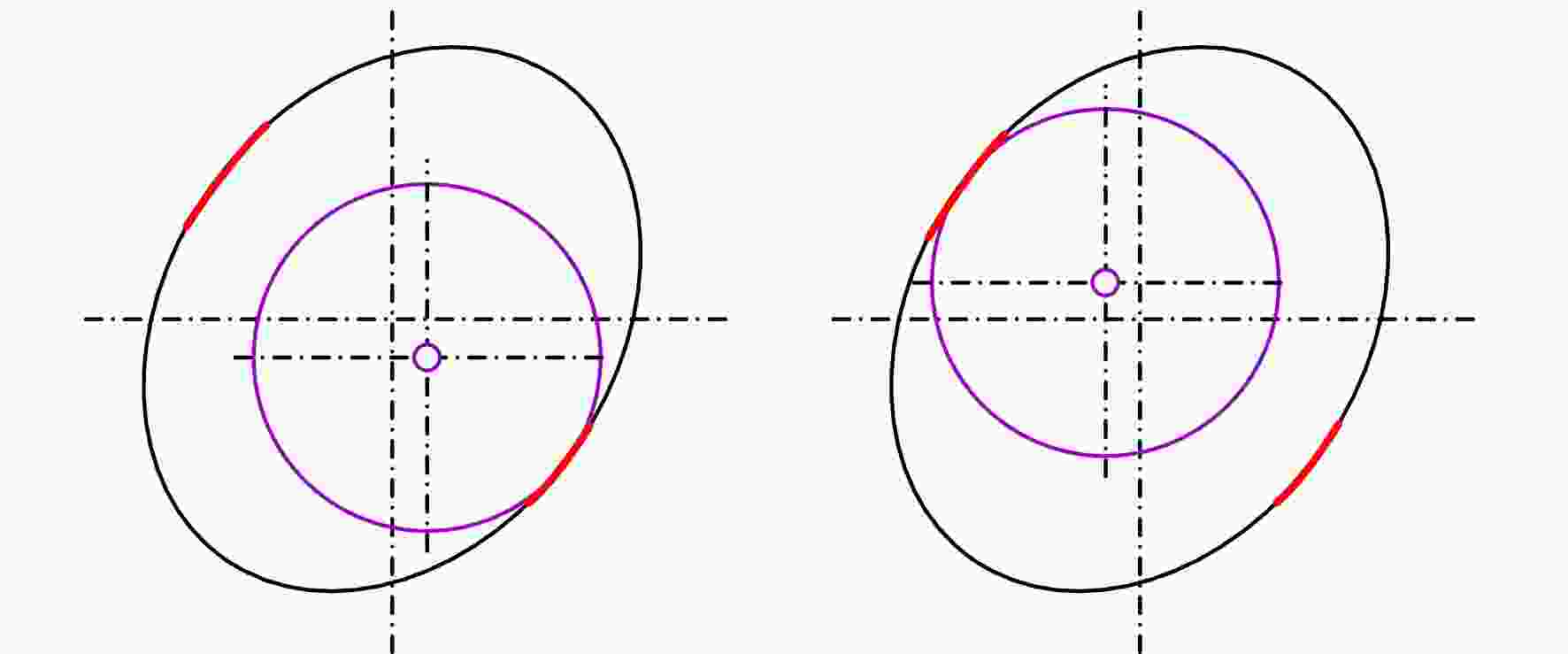

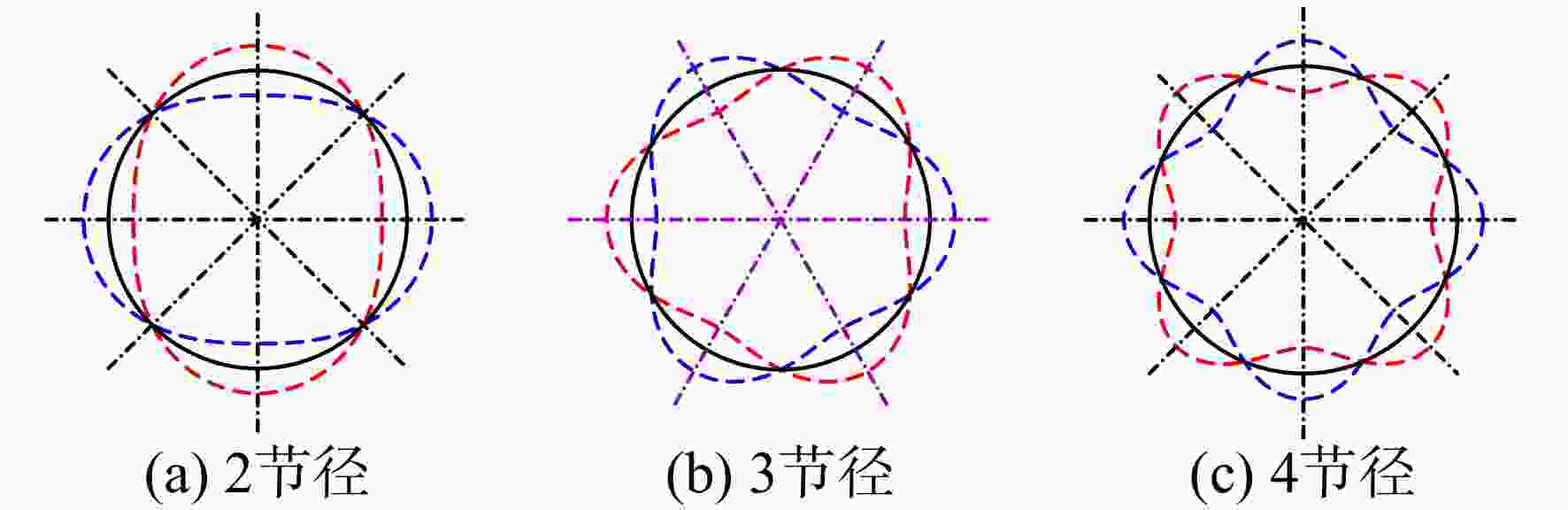

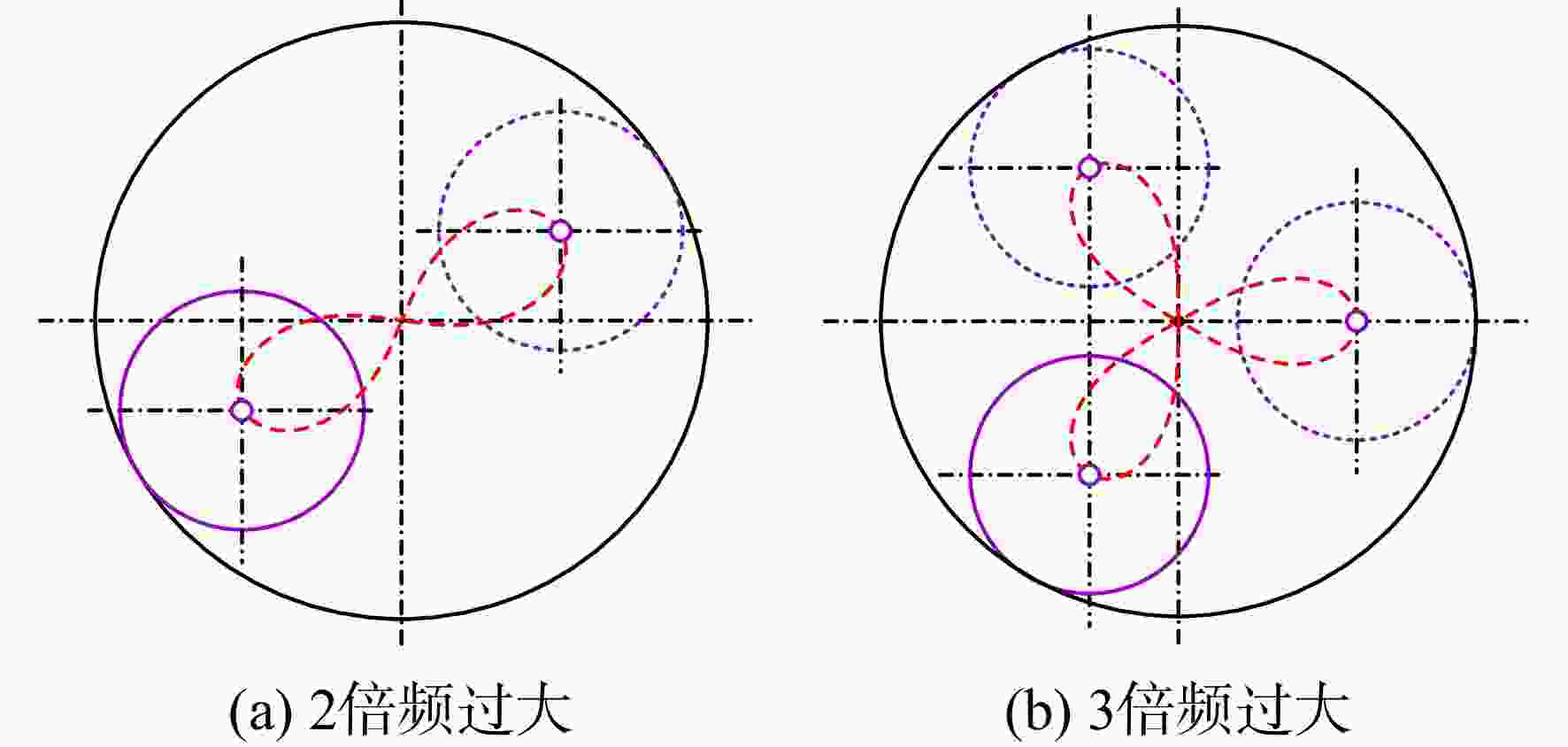

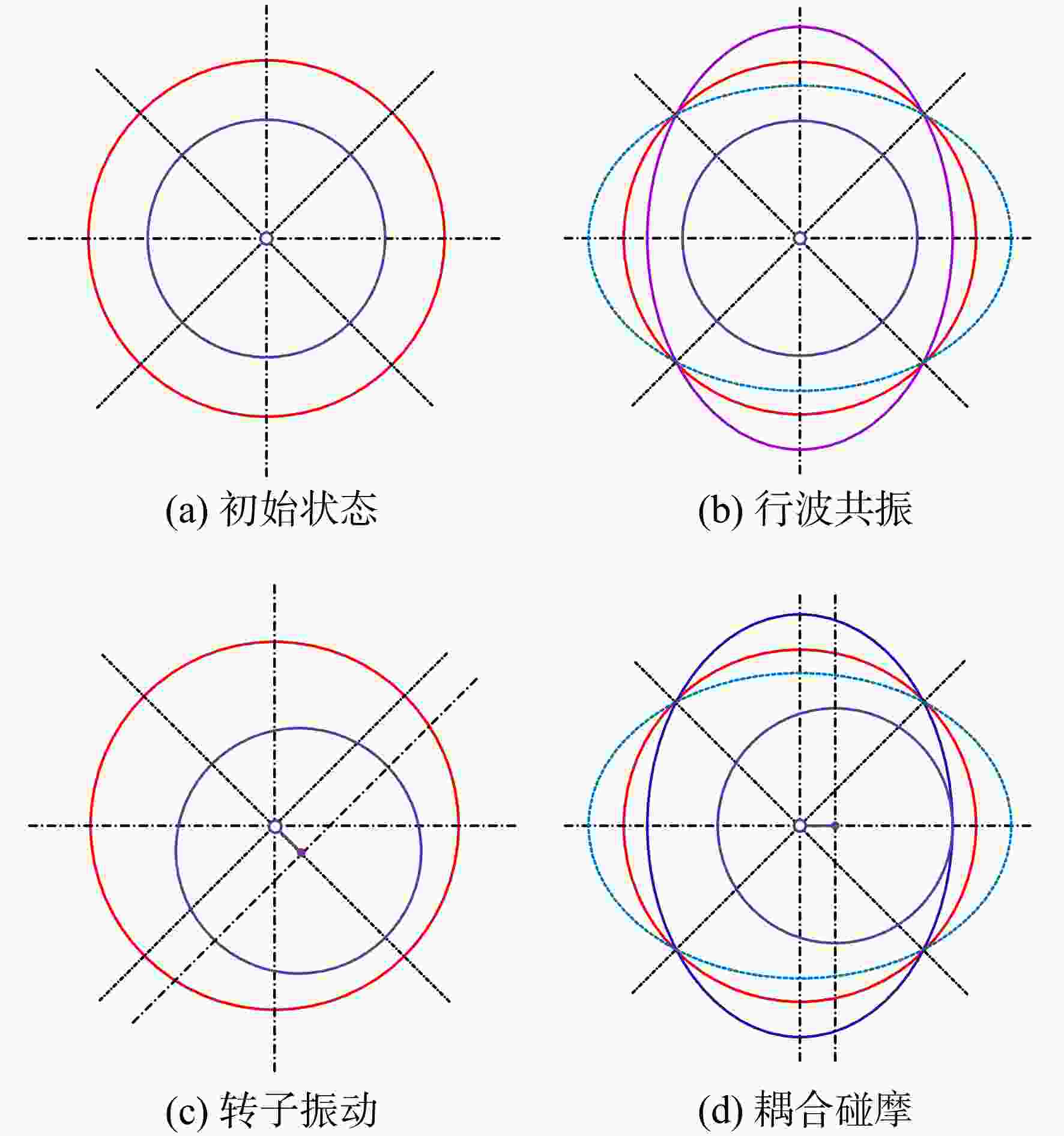

图 5 转子振动与壳体行波共振耦合过程
Figure 5. Rotor vibration and case traveling wave resonance coupling process

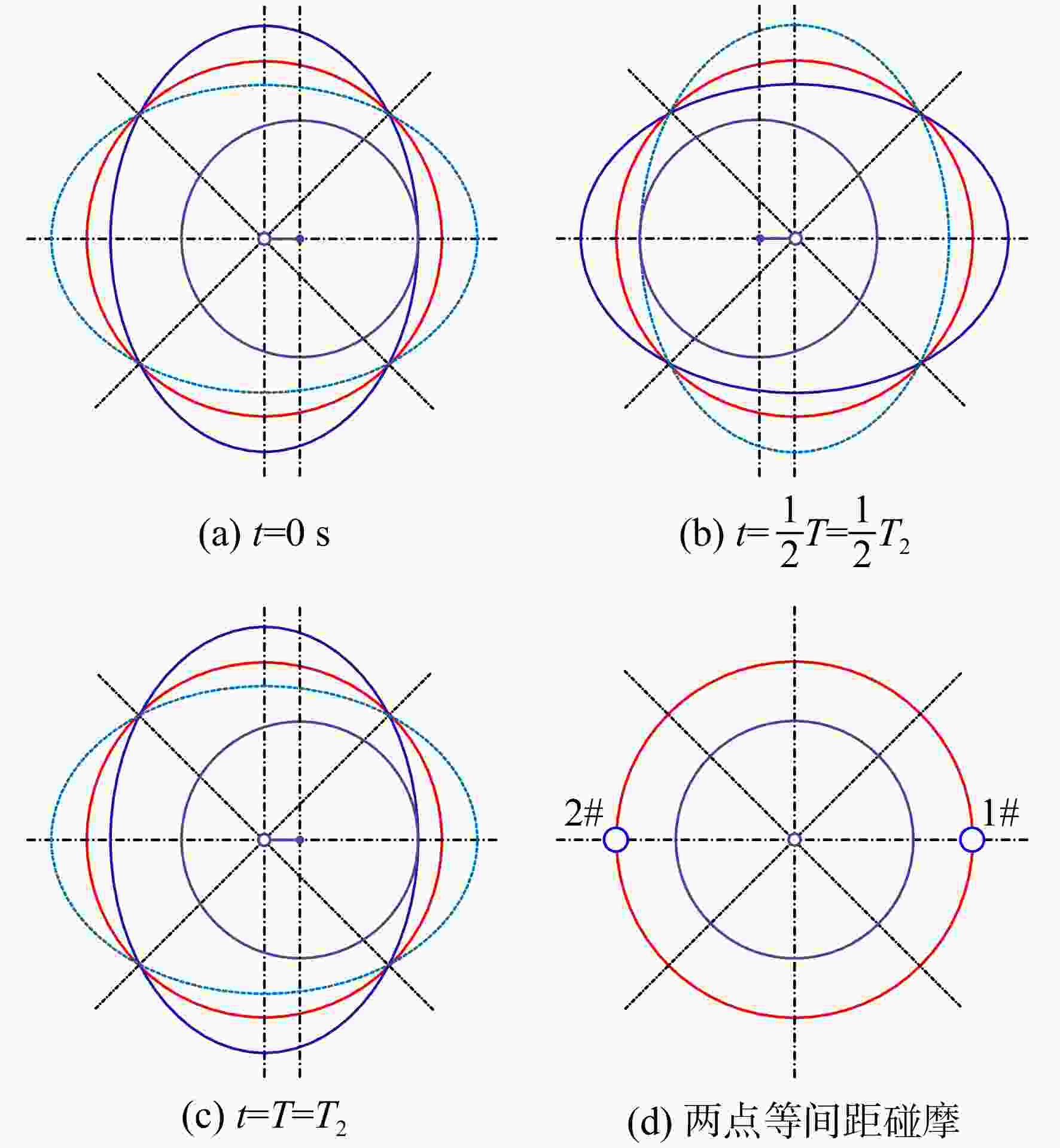

图 6 $ \varOmega /{\omega }_{2}=1 $时的碰摩过程
Figure 6. Rubbing process when $ \varOmega /{\omega }_{2}=1 $

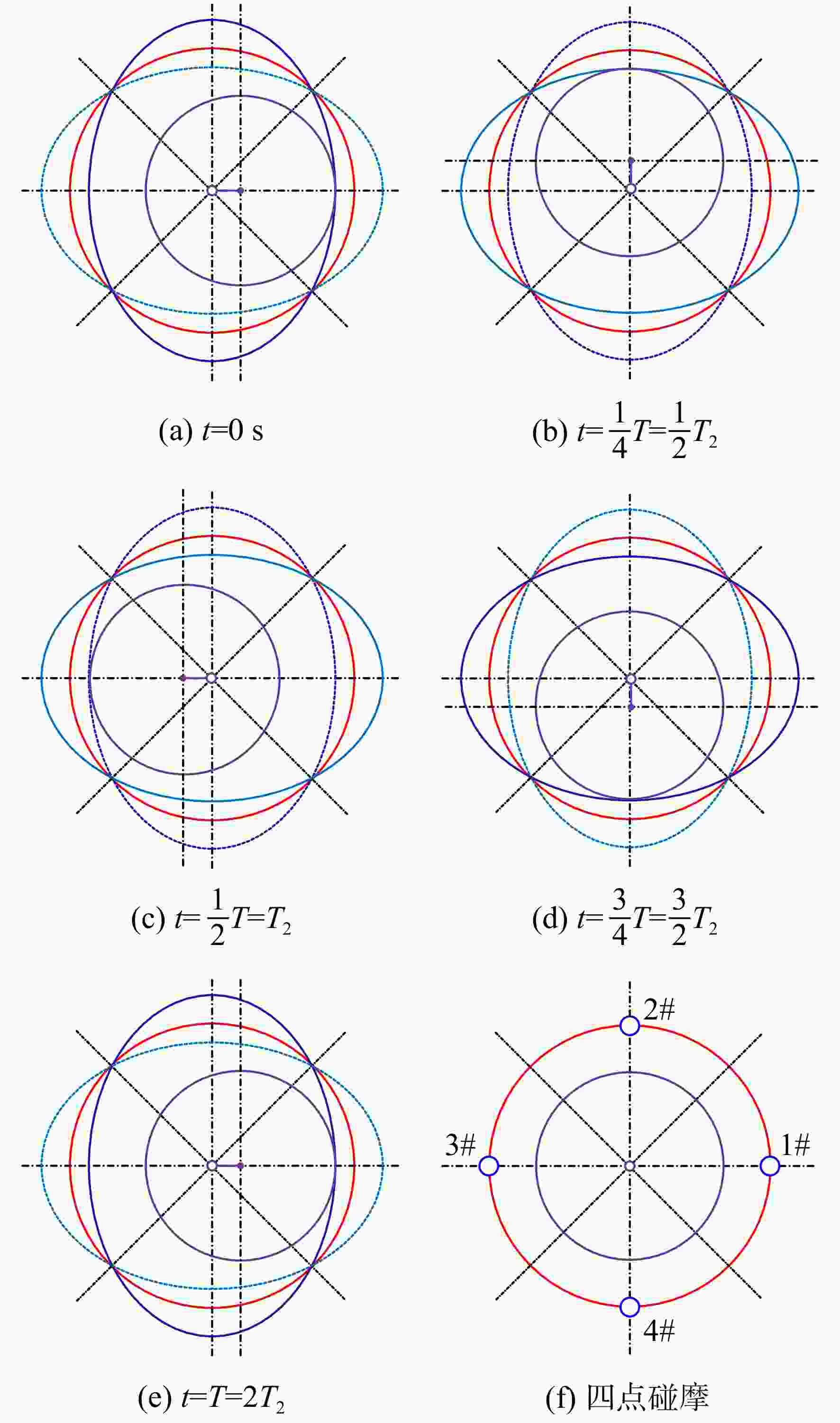

图 7 $ \varOmega /{\omega }_{2}=1/2 $时的碰摩过程
Figure 7. Rubbing process when $ \varOmega /{\omega }_{2}=1/2 $

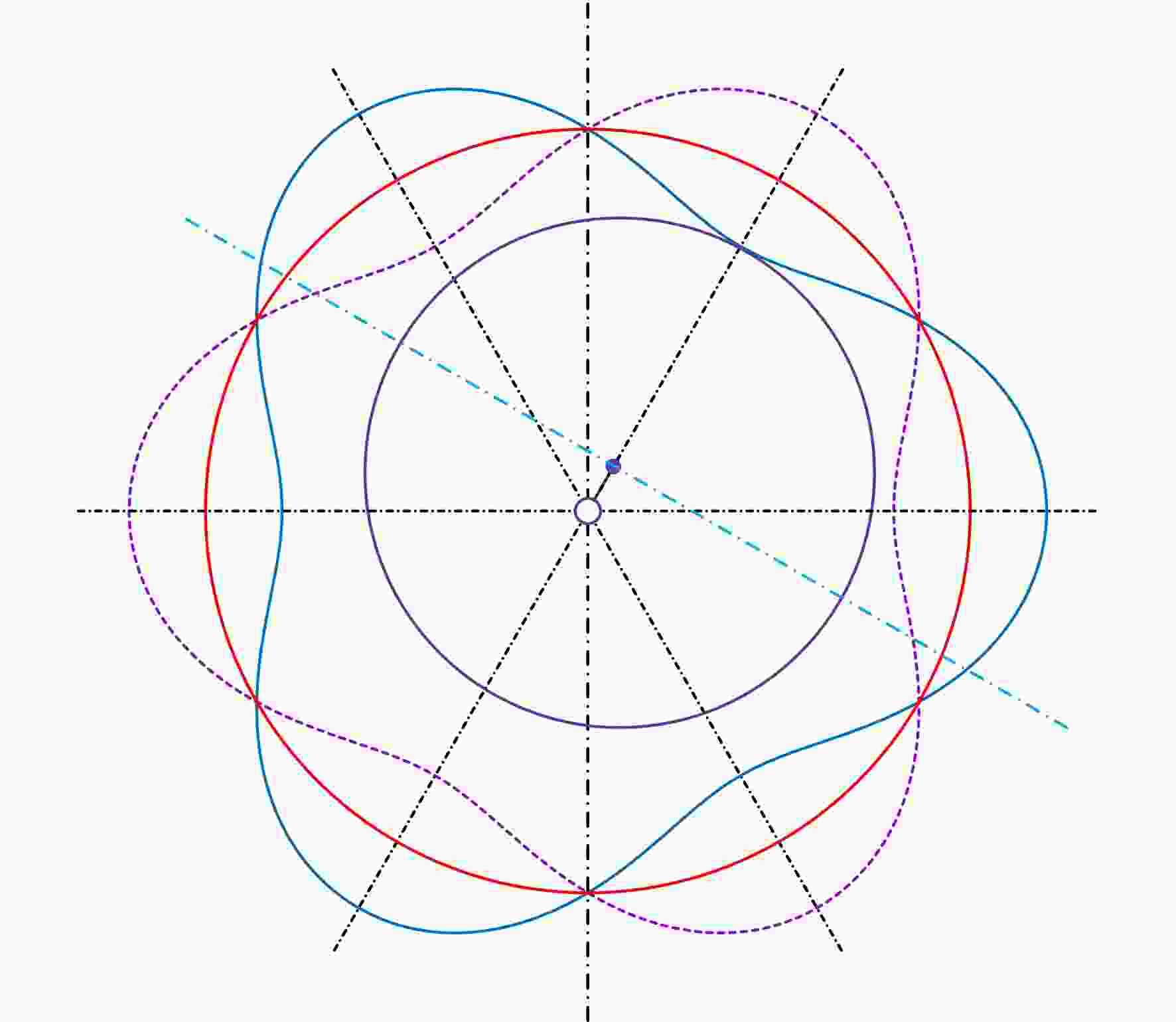

图 8 转子与3节径行波共振圆柱壳体接触
Figure 8. Rubbing between rotor and 3 pitch diameter traveling wave resonance case

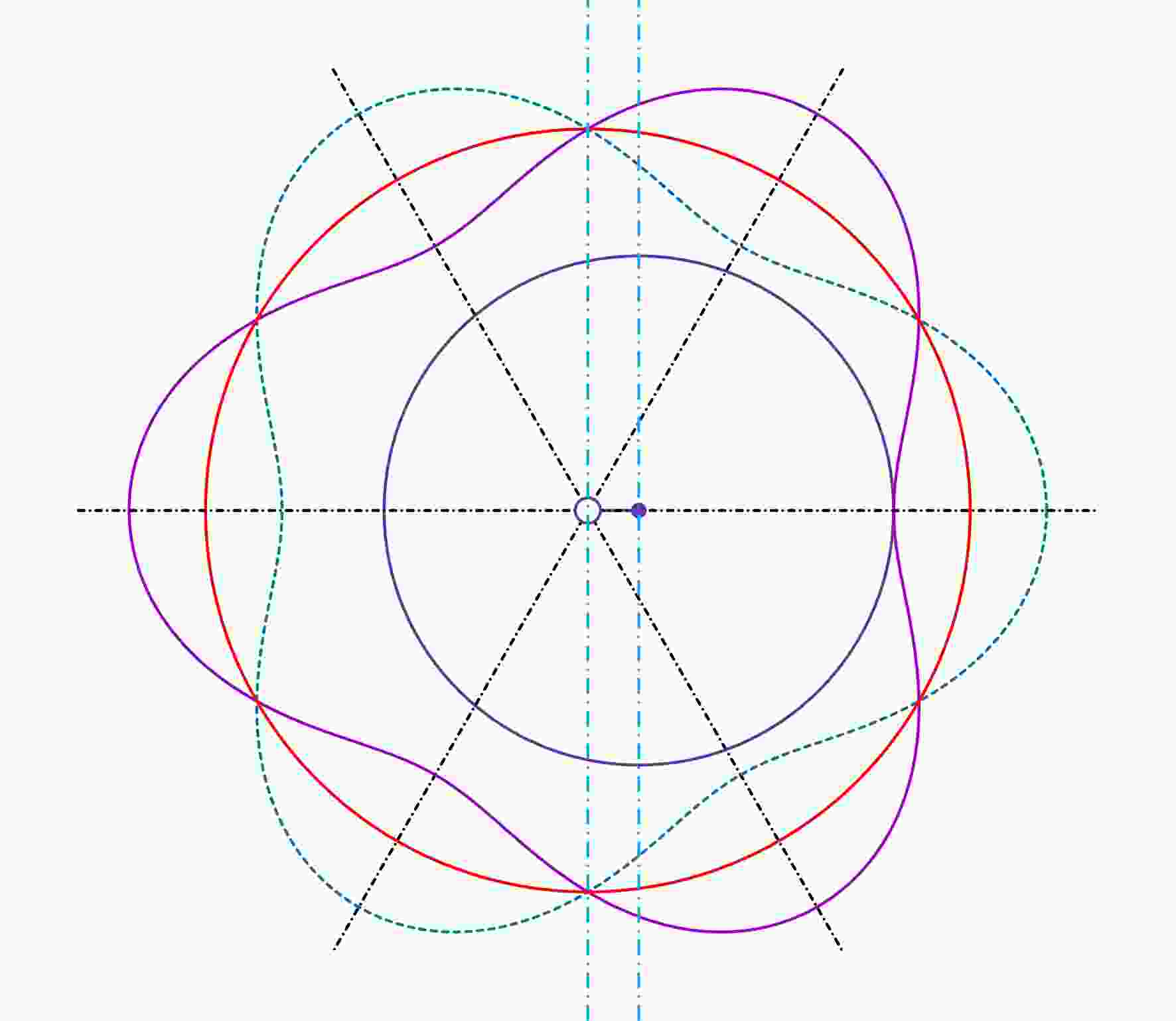

图 9 转子与3节径行波共振壳体初次碰摩
Figure 9. The first rubbing between rotor and 3 pitch diameter traveling wave resonance case

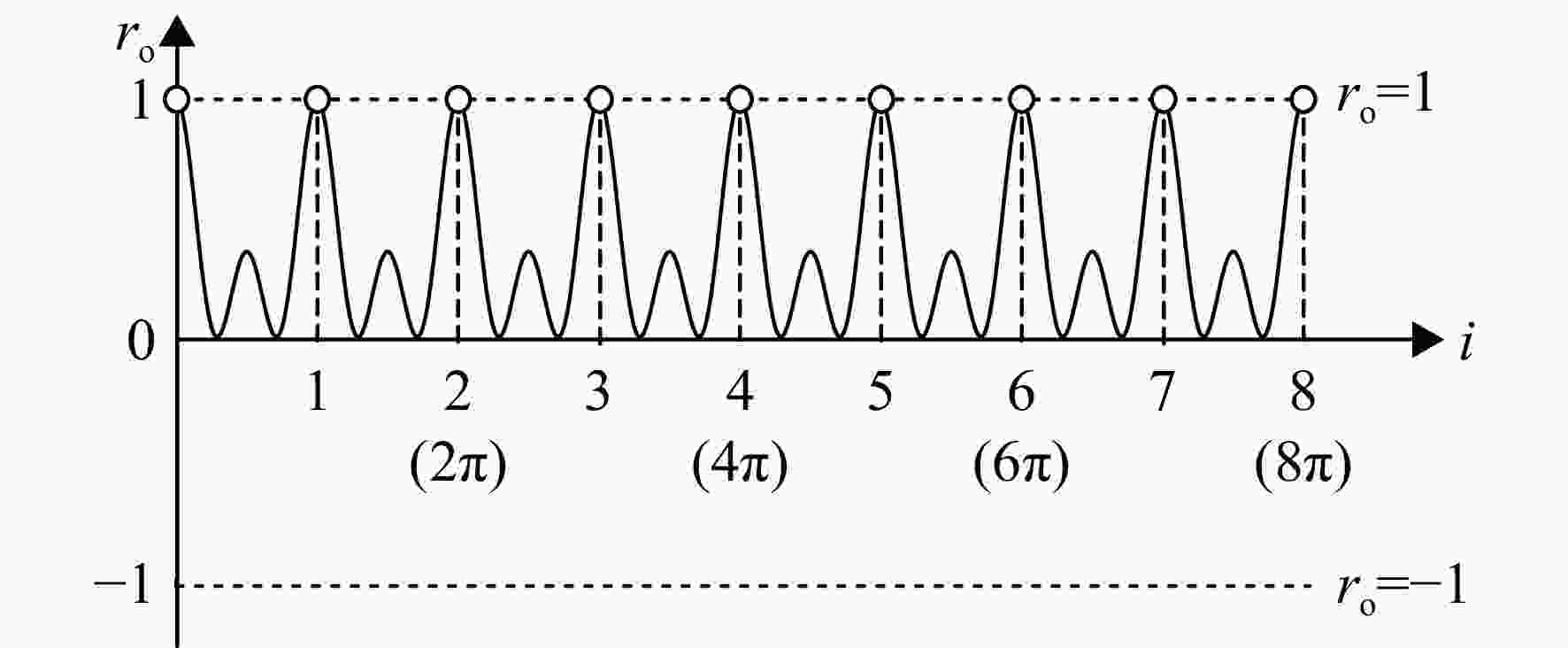

图 10 m=3, $ \varOmega /{\omega }_{m}=\text{1} $计算结果
Figure 10. Calculation results when m=3, $ \varOmega /{\omega }_{m}=\text{1} $

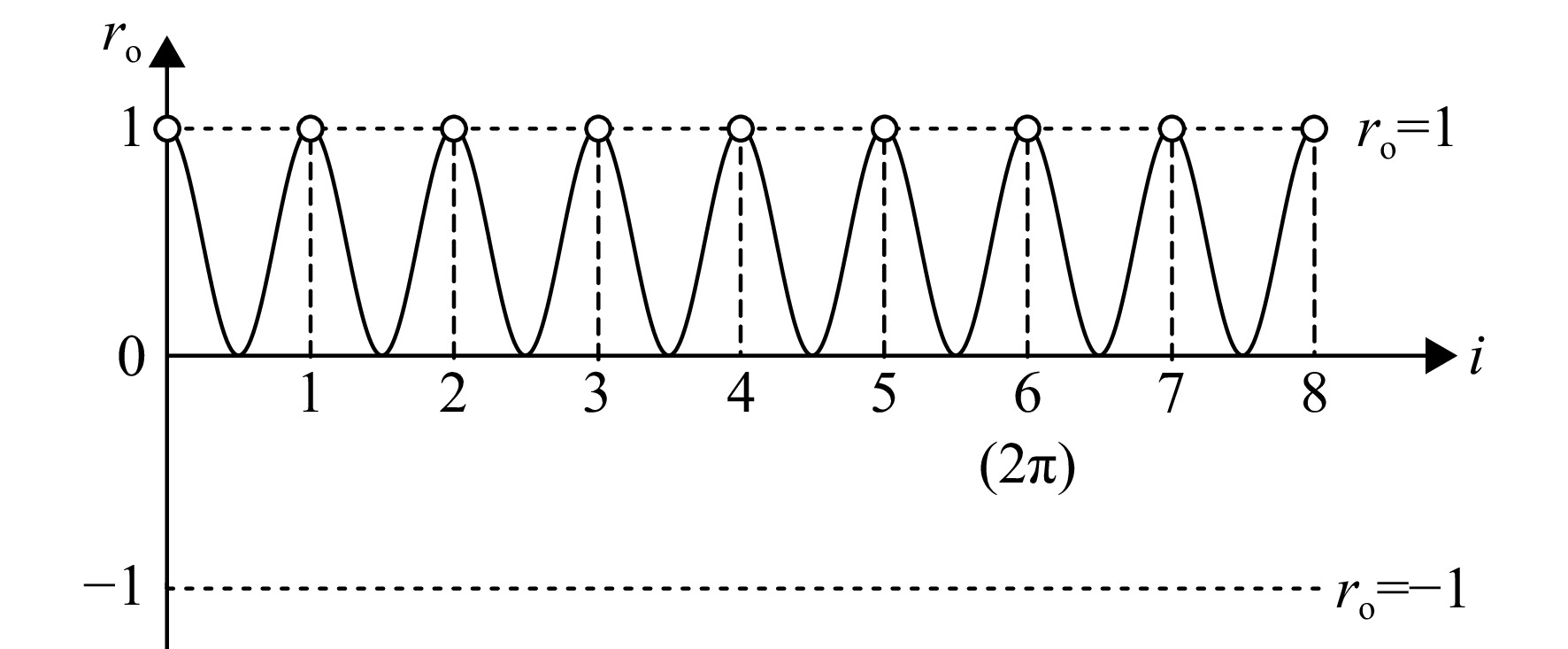

图 11 m=3, $ \varOmega /{\omega }_{m}=1/3 $计算结果
Figure 11. Calculation results when m=3, $ \varOmega /{\omega }_{m}=1/3 $

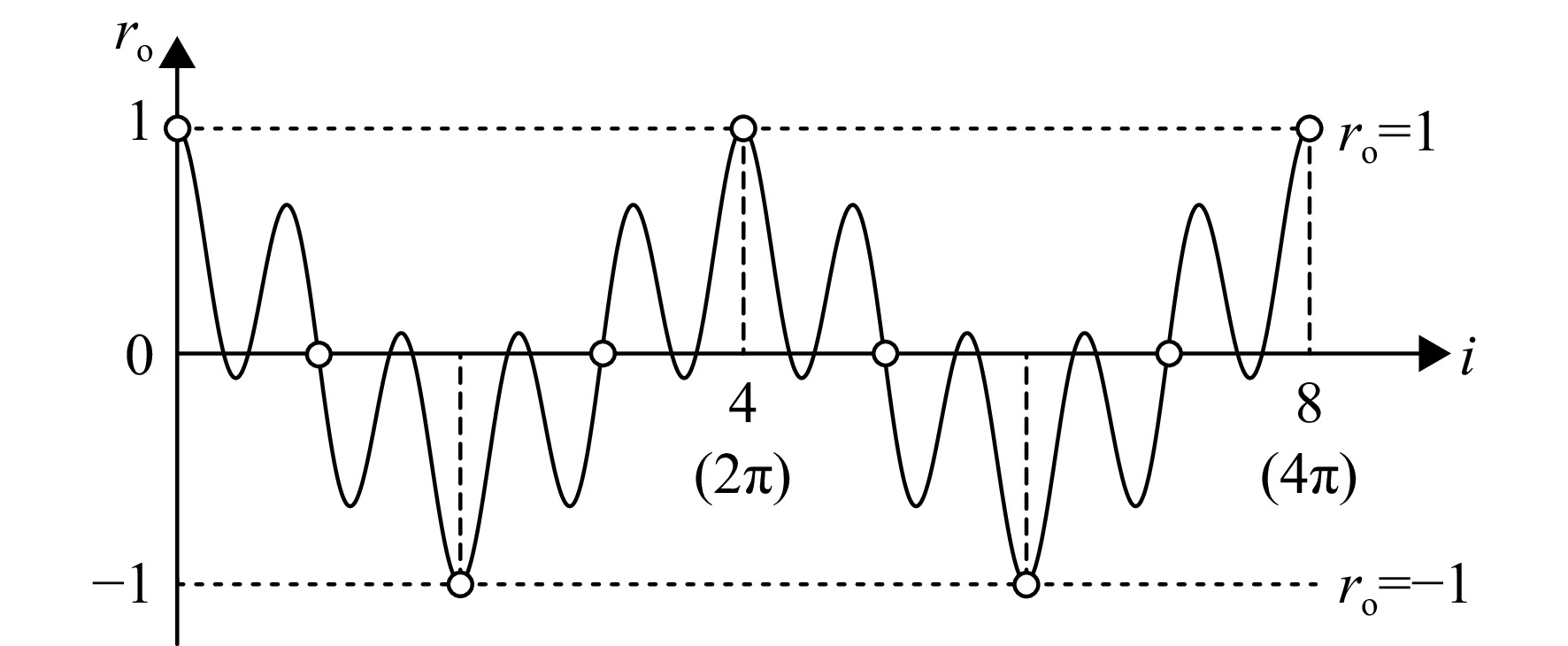

图 12 m=3, $ \varOmega /{\omega }_{m}=1/2 $计算结果
Figure 12. Calculation results when m=2, $ \varOmega /{\omega }_{m}=1/2 $

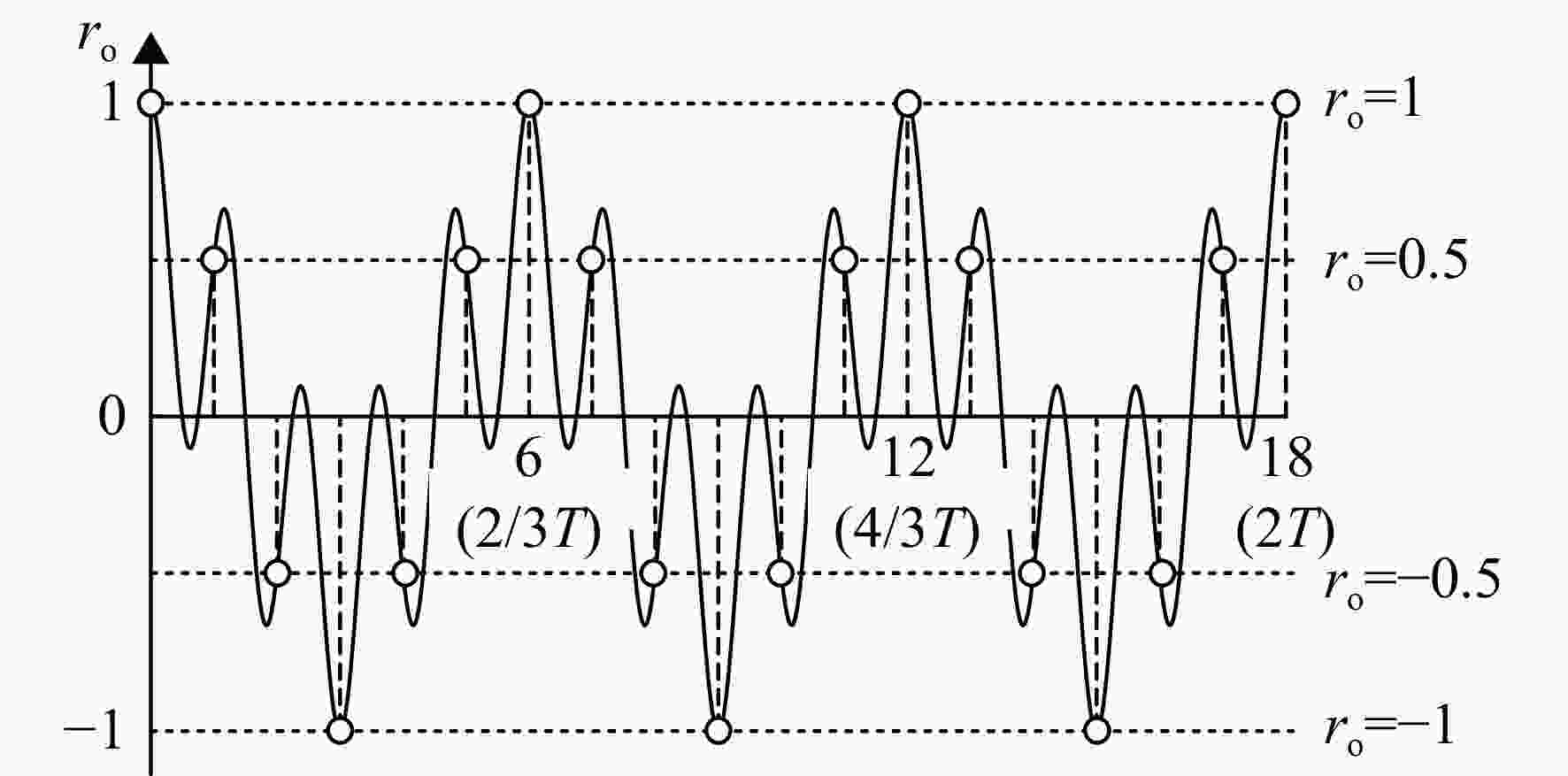

图 16 m=3, $ \varOmega /{\omega }_{m}=\text{2}/9 $计算结果
Figure 16. Calculation results when m=3, $ \varOmega /{\omega }_{m}=\text{2}/9 $

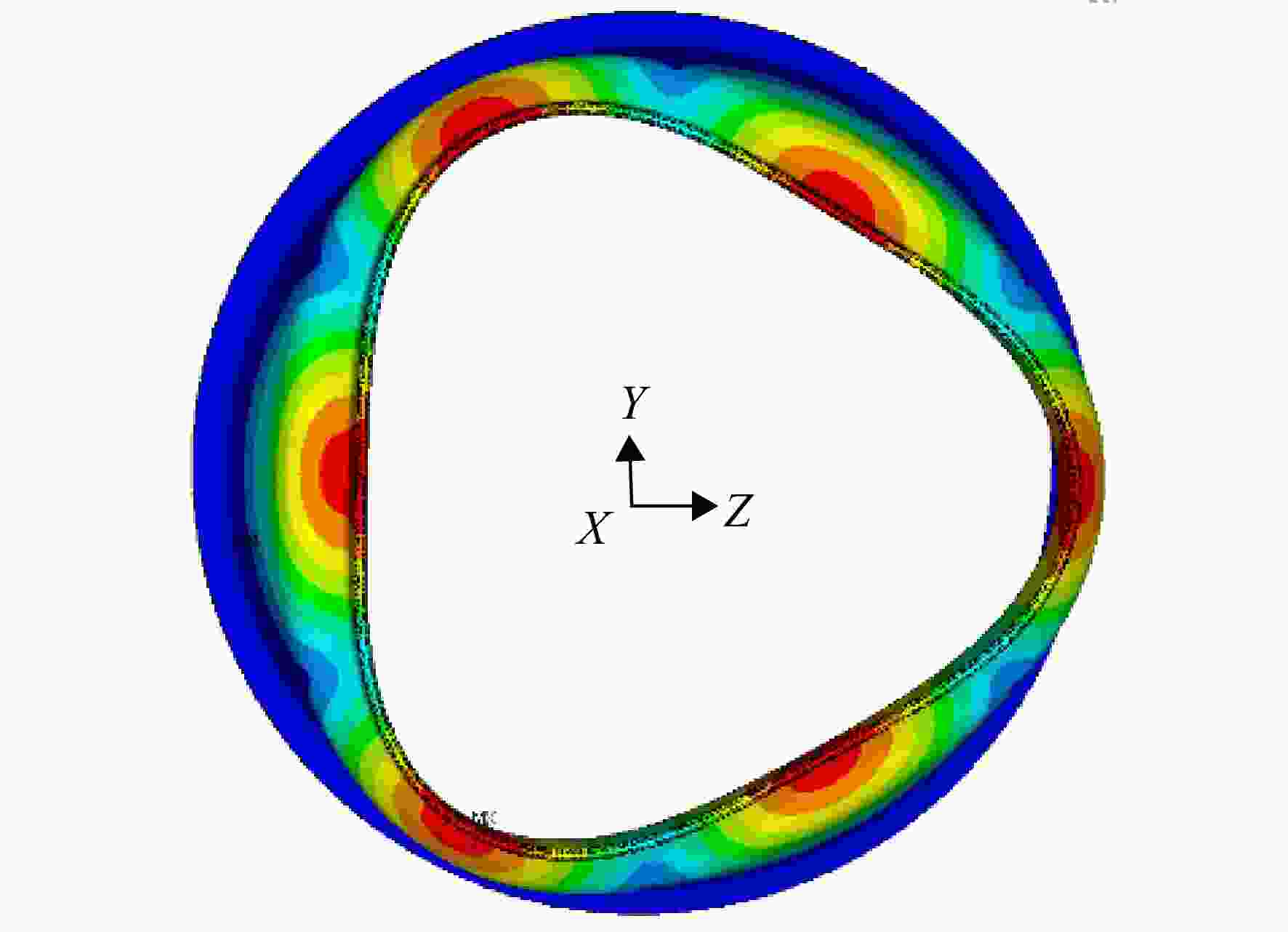

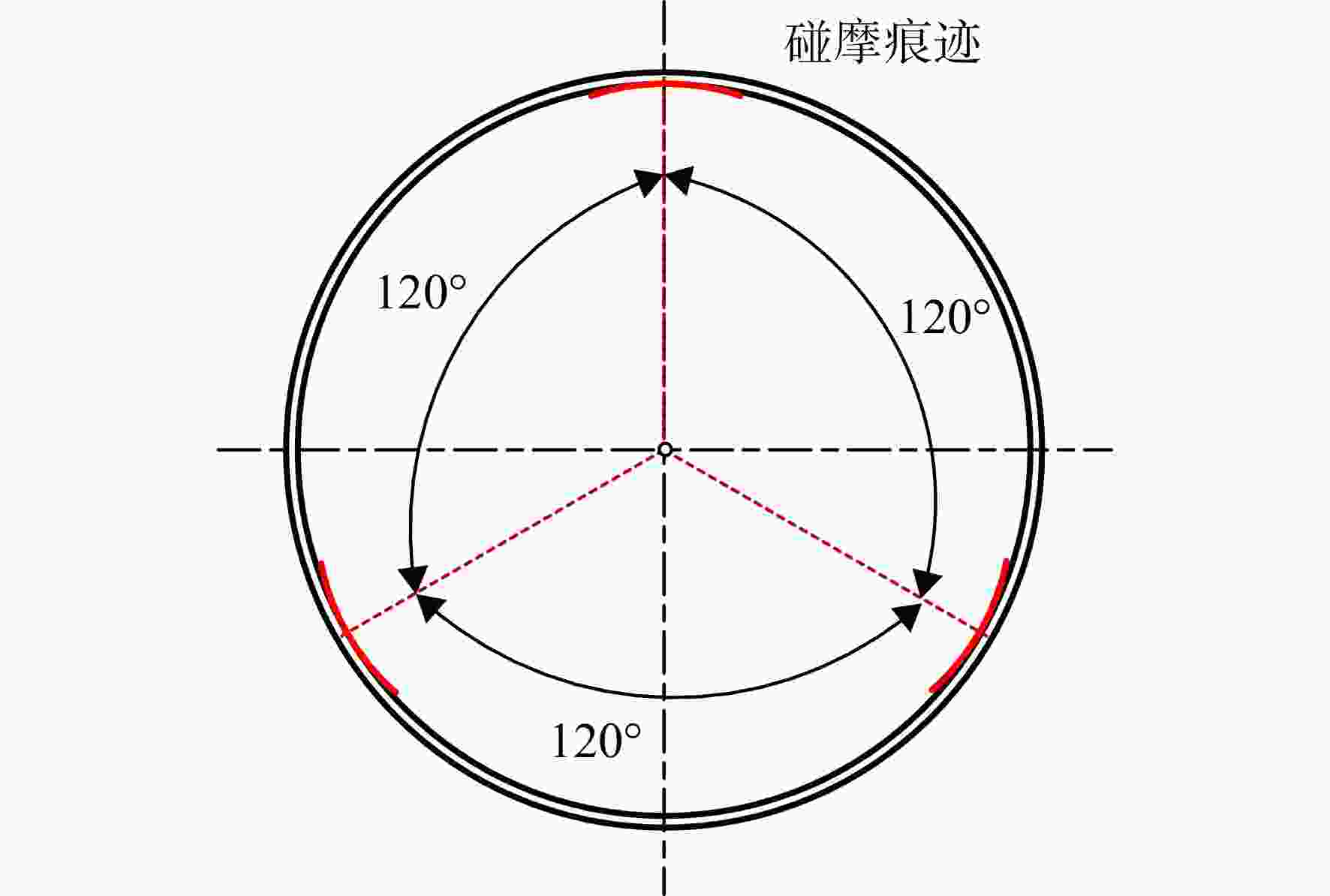

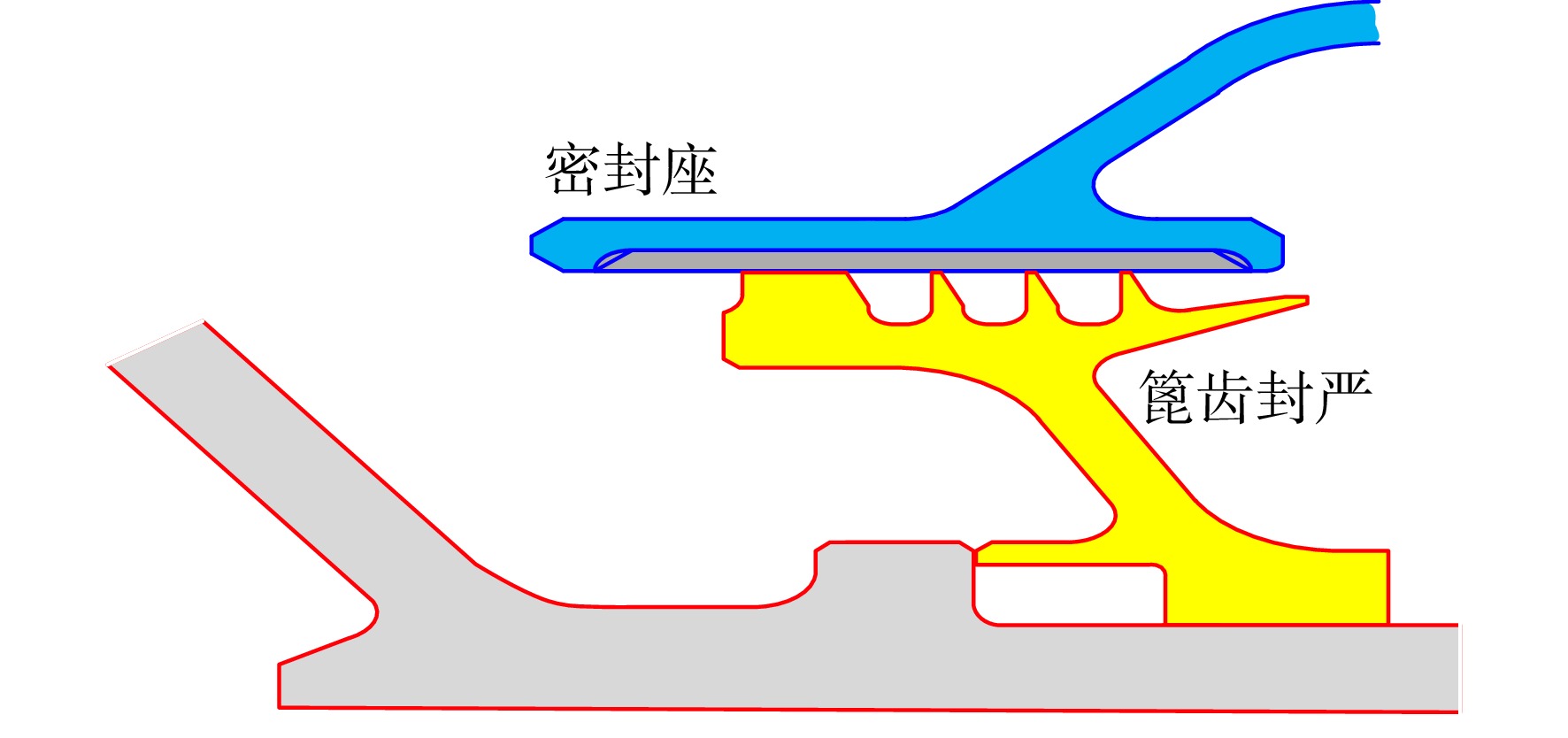

表 1 密封座节径振型对应的自振频率
Table 1. Natural vibration frequency corresponding to the pitch diameter vibration mode of the seal seat
节径数/m 自振频率/Hz 1 4746 2 2 041 3 1656
下载: 导出CSV
-
[1] 廖明夫, 宋明波, 张霞妹. 转子/机匣碰摩引起的转子弯扭耦合振动[J]. 振动、测试与诊断, 2016, 36(5): 1009-1017. Liao Mingfu, Song Mingbo, Zhang Xiamei. Coupled bending and torsional vibration due to rotor-casing contact[J]. Journal of Vibration, Measurement & Diagnosis, 2016, 36(5): 1009-1017. (in ChineseLiao Mingfu, Song Mingbo, Zhang Xiamei. Coupled bending and torsional vibration due to rotor-casing contact[J]. Journal of Vibration, Measurement & Diagnosis, 2016, 36(5): 1009-1017. (in Chinese) [2] Rietz P, Segebart P, Liao M F. Diagnosehinweise aus der numerischen simulation von Anstreifvorgaengen von rotierenden wellen[C]//VDI-Schwingung Stagung. [S.l.]: VDI Duesseldorf, Berichtband, 1999. [3] 廖明夫, 汪玉, 谭大力. 转子进动分析的4个定理[J]. 航空动力学报, 2008, 23(2): 281-285. Liao Mingfu, Wang Yu, Tan Dali. 4 theorems on whirl transform of rotor vibration[J]. Journal of Aerospace Power, 2008, 23(2): 281-285. (in ChineseLiao Mingfu, Wang Yu, Tan Dali. 4 theorems on whirl transform of rotor vibration[J]. Journal of Aerospace Power, 2008, 23(2): 281-285. (in Chinese) [4] 邓小文, 廖明夫, Robert Liebich, 等. 碰摩转子的弯曲和扭转振动分析[J]. 航空动力学报, 2002, 17(1): 97-104. Deng Xiaowen, Liao Mingfu, Liebich Robert, et al. Coupled bending and torsional vibrations due to rotor-to-stator contacts[J]. Journal of Aerospace Power, 2002, 17(1): 97-104. (in Chinese doi: 10.3969/j.issn.1000-8055.2002.01.018Deng Xiaowen, Liao Mingfu, Liebich Robert, et al. Coupled bending and torsional vibrations due to rotor-to-stator contacts[J]. Journal of Aerospace Power, 2002, 17(1): 97-104. (in Chinese) doi: 10.3969/j.issn.1000-8055.2002.01.018 [5] 邓小文, 廖明夫, Robert Liebich, 等. 双盘转子碰摩的弯曲和扭转振动实验研究[J]. 航空动力学报, 2002, 17(2): 205-211. Deng Xiaowen, Liao Mingfu, Liebich Robert, et al. Experimental research of bending and torsional vibrations of a double disc rotor due to rotor-to-stator contacts[J]. Journal of Aerospace Power, 2002, 17(2): 205-211. (in Chinese doi: 10.3969/j.issn.1000-8055.2002.02.014Deng Xiaowen, Liao Mingfu, Liebich Robert, et al. Experimental research of bending and torsional vibrations of a double disc rotor due to rotor-to-stator contacts[J]. Journal of Aerospace Power, 2002, 17(2): 205-211. (in Chinese) doi: 10.3969/j.issn.1000-8055.2002.02.014 [6] 陈果, 李成刚, 王德友. 航空发动机转子-滚动轴承-支承-机匣耦合系统的碰摩故障分析与验证[J]. 航空动力学报, 2008, 23(7): 1304-1311. Chen Guo, Li Chenggang, Wang Deyou. Nonlinear dynamic analysis and experiment verification of rubbing faults of rotor-ball bearing-support-stator coupling system for aero-engine[J]. Journal of Aerospace Power, 2008, 23(7): 1304-1311. (in Chinese doi: 10.13224/j.cnki.jasp.2008.07.014Chen Guo, Li Chenggang, Wang Deyou. Nonlinear dynamic analysis and experiment verification of rubbing faults of rotor-ball bearing-support-stator coupling system for aero-engine[J]. Journal of Aerospace Power, 2008, 23(7): 1304-1311. (in Chinese) doi: 10.13224/j.cnki.jasp.2008.07.014 [7] 马辉, 吴志渊, 太兴宇, 等. 含碰摩故障的转子-盘片-机匣系统动力学特性分析[J]. 航空动力学报, 2015, 30(8): 1950-1957. Ma Hui, Wu Zhiyuan, Tai Xingyu, et al. Dynamic characteristic analysis of rotor-blade-casing system with rub-impact fault[J]. Journal of Aerospace Power, 2015, 30(8): 1950-1957. (in ChineseMa Hui, Wu Zhiyuan, Tai Xingyu, et al. Dynamic characteristic analysis of rotor-blade-casing system with rub-impact fault[J]. Journal of Aerospace Power, 2015, 30(8): 1950-1957. (in Chinese) [8] 马辉, 李焕军, 刘杨, 等. 转子系统耦合故障研究进展与展望[J]. 振动与冲击, 2012, 31(17): 1-11. Ma Hui, Li Huanjun, Liu Yang, et al. Review and prospect for research of coupling faults in rotor systems[J]. Journal of Vibration and Shock, 2012, 31(17): 1-11. (in Chinese doi: 10.3969/j.issn.1000-3835.2012.17.001Ma Hui, Li Huanjun, Liu Yang, et al. Review and prospect for research of coupling faults in rotor systems[J]. Journal of Vibration and Shock, 2012, 31(17): 1-11. (in Chinese) doi: 10.3969/j.issn.1000-3835.2012.17.001 [9] 马辉, 孙祺, 太兴宇, 等. 旋转叶片-机匣碰摩振动响应分析[J]. 振动与冲击, 2017, 36(14): 26-32. Ma Hui, Sun Qi, Tai Xingyu, et al. Vibration response analysis on the rotating blade-casing rubbing[J]. Journal of Vibration and Shock, 2017, 36(14): 26-32. (in Chinese doi: 10.13465/j.cnki.jvs.2019.05.023Ma Hui, Sun Qi, Tai Xingyu, et al. Vibration response analysis on the rotating blade-casing rubbing[J]. Journal of Vibration and Shock, 2017, 36(14): 26-32. (in Chinese) doi: 10.13465/j.cnki.jvs.2019.05.023 [10] 郭旭民, 孙祺, 马辉, 等. 旋转叶片-柔性机匣碰摩振动响应分析[J]. 振动与冲击, 2019, 38(5): 162-168. Guo Xumin, Sun Qi, Ma Hui, et al. Rub vibration responses of rotating blade and flexible casing[J]. Journal of Vibration and Shock, 2019, 38(5): 162-168. (in Chinese doi: 10.13465/j.cnki.jvs.2019.05.023Guo Xumin, Sun Qi, Ma Hui, et al. Rub vibration responses of rotating blade and flexible casing[J]. Journal of Vibration and Shock, 2019, 38(5): 162-168. (in Chinese) doi: 10.13465/j.cnki.jvs.2019.05.023 [11] 刘昕, 张华彪, 孙小磊, 等. 叶轮转子碰摩的非线性动力学响应[J]. 振动与冲击, 2016, 35(20): 172-177, 202. Liu Xin, Zhang Huabiao, Sun Xiaolei, et al. Nonlinear dynamics on rubbing of a blade-rotor system[J]. Journal of Vibration and Shock, 2016, 35(20): 172-177, 202. (in Chinese doi: 10.13465/j.cnki.jvs.2016.20.028Liu Xin, Zhang Huabiao, Sun Xiaolei, et al. Nonlinear dynamics on rubbing of a blade-rotor system[J]. Journal of Vibration and Shock, 2016, 35(20): 172-177, 202. (in Chinese) doi: 10.13465/j.cnki.jvs.2016.20.028 [12] 许琦, 姚红良, 刘子良, 等. 双碰摩故障转子系统碰摩位置定量诊断方法[J]. 振动与冲击, 2014, 33(12): 24-27. Xu Qi, Yao Hongliang, Liu Ziliang, et al. Quantitative diagnosis method for double rubbing fault locations in a rotor system[J]. Journal of Vibration and Shock, 2014, 33(12): 24-27. (in Chinese doi: 10.13465/j.cnki.jvs.2014.12.004Xu Qi, Yao Hongliang, Liu Ziliang, et al. Quantitative diagnosis method for double rubbing fault locations in a rotor system[J]. Journal of Vibration and Shock, 2014, 33(12): 24-27. (in Chinese) doi: 10.13465/j.cnki.jvs.2014.12.004 [13] 侯理臻, 廖明夫, 王四季, 等. 航空发动机转子不平衡下转静碰摩试验研究[J]. 振动与冲击, 2019, 38(22): 14-20, 43. Hou Lizhen, Liao Mingfu, Wang Siji, et al. Experimental study on the aero-engine rotor-stator rubbing in imbalance[J]. Journal of Vibration and Shock, 2019, 38(22): 14-20, 43. (in Chinese doi: 10.13465/j.cnki.jvs.2019.22.003Hou Lizhen, Liao Mingfu, Wang Siji, et al. Experimental study on the aero-engine rotor-stator rubbing in imbalance[J]. Journal of Vibration and Shock, 2019, 38(22): 14-20, 43. (in Chinese) doi: 10.13465/j.cnki.jvs.2019.22.003 [14] 刘棣, 李超, 马艳红, 等. 光滑时变约束转子动力特性分析[J]. 北京航空航天大学学报, 2021, 47(11): 2331-2343. Liu Di, Li Chao, Ma Yanhong, et al. Dynamic characteristics of smooth time-varying constrained rotor[J]. Journal of Beijing University of Aeronautics and Astronautics, 2021, 47(11): 2331-2343. (in Chinese doi: 10.13700/j.bh.1001-5965.2020.0384Liu Di, Li Chao, Ma Yanhong, et al. Dynamic characteristics of smooth time-varying constrained rotor[J]. Journal of Beijing University of Aeronautics and Astronautics, 2021, 47(11): 2331-2343. (in Chinese) doi: 10.13700/j.bh.1001-5965.2020.0384 [15] Liu Di, Hong Jie. Failure analysis of backward whirl motion in an aero-engine rotor[J]. Engineering Failure Analysis, 2021, 128: 105620. doi: 10.1016/j.engfailanal.2021.105620 [16] 刘棣, 李超, 杨海, 等. 突加不平衡激励碰摩转子反向涡动分析[J]. 航空动力学报, 2021, 36(7): 1509-1519. Liu Di, Li Chao, Yang Hai, et al. Analysis of backward whirl for rubbing rotor caused by excitation of sudden unbalance[J]. Journal of Aerospace Power, 2021, 36(7): 1509-1519. (in Chinese doi: 10.13224/j.cnki.jasp.20200366Liu Di, Li Chao, Yang Hai, et al. Analysis of backward whirl for rubbing rotor caused by excitation of sudden unbalance[J]. Journal of Aerospace Power, 2021, 36(7): 1509-1519. (in Chinese) doi: 10.13224/j.cnki.jasp.20200366 [17] 阳刚, 王存, 刘巧英. 薄壁圆柱壳体的行波振动设计分析[C]//第五届空天动力联合会议暨中国航天第三专业信息网第41届技术交流会论文集(第四册). 南京, 2020: 266-273. Yang Gang, Wang Cun, Liu Qiaoying. Traveling wave vibration design analysis of thin-walled cylindrical cases[C]//The 5th Joint Conference on Aerospace Power and the 41st Technical Exchange Conference of China Aerospace Third Professional Information Network (Volume 4). Nanjing, 2020: 266-273. (in ChineseYang Gang, Wang Cun, Liu Qiaoying. Traveling wave vibration design analysis of thin-walled cylindrical cases[C]//The 5th Joint Conference on Aerospace Power and the 41st Technical Exchange Conference of China Aerospace Third Professional Information Network (Volume 4). Nanjing, 2020: 266-273. (in Chinese) [18] 沈达宽. 航空发动机强度计算[M]. 北京: 国防工业出版社, 1980. Shen Dakuan. Strength calculation of aero-engine[M]. Beijing: National Defense Industry Press, 1980. (in ChineseShen Dakuan. Strength calculation of aero-engine[M]. Beijing: National Defense Industry Press, 1980. (in Chinese) [19] 秦宁京. 航空燃气涡轮发动机构造及强度计算[M]. 北京: 北京科学教育编辑室, 1962. Qin Ningjing. Structure and strength calculation of aviation gas turbine engine[M]. Beijing: Beijing Science Education Editorial Office, 1962. (in ChineseQin Ningjing. Structure and strength calculation of aviation gas turbine engine[M]. Beijing: Beijing Science Education Editorial Office, 1962. (in Chinese) [20] 孙述鹏. 转动薄壁圆柱壳的动力学特性研究[D]. 哈尔滨: 哈尔滨工业大学, 2013. Sun Shupeng. Study on dynamic characteristics of rotating thin-walled cylindrical shells[D]. Harbin: Harbin Institute of Technology, 2013. (in ChineseSun Shupeng. Study on dynamic characteristics of rotating thin-walled cylindrical shells[D]. Harbin: Harbin Institute of Technology, 2013. (in Chinese) [21] Bryan G H. On the beats in the vibrations of a revolving cylinder or bell. Proc Cambridge Philos Soc, 1890, 7(3): 101-111. [22] Srinivasan A V, Lauterbach G F. Traveling waves in rotating cylindrical shells[J]. Journal of Engineering for Industry, 1971, 93(4): 1229-1232. doi: 10.1115/1.3428067 [23] Zohar A, Aboudi J. The free vibrations of a thin circular finite rotating cylinder[J]. International Journal of Mechanical Sciences, 1973, 15(4): 269-278. doi: 10.1016/0020-7403(73)90009-X [24] Wang S S, Chen Yu. Effects of rotation on vibrations of circular cylindrical shells[J]. The Journal of the Acoustical Society of America, 1974, 55(6): 1340-1342. doi: 10.2172/4164813 [25] 郭宝亭. 高速旋转壳体的振动特性分析[D]. 北京: 北京航空航天大学, 1997. Guo Baoting. Vibration characteristics analysis of high-speed rotating shell[D]. Beijing: Beihang University, 1997. (in ChineseGuo Baoting. Vibration characteristics analysis of high-speed rotating shell[D]. Beijing: Beihang University, 1997. (in Chinese) [26] 王四季, 廖明夫, 蒋云帆, 等. 对转双转子局部碰摩故障实验[J]. 推进技术, 2013, 34(1): 31-36. Wang Siji, Liao Mingfu, Jiang Yunfan, et al. Experimental study on local rub-impact fault of counter-rotating dual-rotor[J]. Journal of Propulsion Technology, 2013, 34(1): 31-36. (in Chinese doi: 10.13675/j.cnki.tjjs.2013.01.009Wang Siji, Liao Mingfu, Jiang Yunfan, et al. Experimental study on local rub-impact fault of counter-rotating dual-rotor[J]. Journal of Propulsion Technology, 2013, 34(1): 31-36. (in Chinese) doi: 10.13675/j.cnki.tjjs.2013.01.009 [27] 陈光. 航空发动机结构设计分析[M]. 2版. 北京: 北京航空航天大学出版社, 2014. Chen Guang. Aero-engine structural design and analysis[M]. 2nd ed. Beijing: Beijing University of Aeronautics and Astronautics Press, 2014. (in ChineseChen Guang. Aero-engine structural design and analysis[M]. 2nd ed. Beijing: Beijing University of Aeronautics and Astronautics Press, 2014. (in Chinese) [28] 王桂华, 李琳. 旋转脉动激励下壳体的行波振动[J]. 航空发动机, 1999, 25(1): 30-33. Wang Guihua, Li Lin. Traveling wave vibration of shell excited by rotating pulsation[J]. Aeroengine, 1999, 25(1): 30-33. (in ChineseWang Guihua, Li Lin. Traveling wave vibration of shell excited by rotating pulsation[J]. Aeroengine, 1999, 25(1): 30-33. (in Chinese) -
