Research on acceleration methods for performance simulation of adaptive variable cycle engines based on principle-data fusion drive
-
摘要:
自适应变循环发动机（ACE）基于各部件调节机构的协同调节，面向复合型飞行任务需求具备综合性能优势。然而，ACE多调节机构和工作状态变化剧烈的特点导致其性能仿真模型在收敛性和计算效率方面存在严重不足，难以满足飞机-发动机协同设计中对ACE开展大规模性能优化设计的需求。提出一种原理-数据联合驱动的性能仿真加速方法，构建基于原理分析的通用全局初猜值预测模型与基于数据的自扩展初猜值变可信度代理模型，形成原理-数据联合驱动的发动机初猜值预测框架，解决多构型、多设计方案下，ACE性能仿真模型难以合理选择初猜值所造成的收敛性差和计算效率低的问题。针对ACE特有的等进口流量节流状态控制规律优化问题开展数值仿真验证，结果表明：所提出方法相较于传统方法的收敛能力提高38%以上，仿真计算速度提高45%以上。该方法可有效支撑飞/发协同设计中针对各类ACE设计参数和控制规律的大规模仿真优化，具有重要的工程应用价值。
Abstract:The adaptive cycle engine (ACE) achieves comprehensive performance advantages for various flight missions through the collaborative regulation of variable mechanisms. However, the numerous variable mechanisms and intense changes in the operating states of ACE results in significant shortcomings in the convergence and computational efficiency of the existing performance simulation model. These shortcomings make it difficult to meet the demands for large-scale performance optimization design of ACE in the aircraft-engine co-design. A performance simulation acceleration method driven by both principles and data is proposed. This method constructs a general global initial guess prediction model based on principle analysis and a data-driven self-expanding initial guess variable fidelity surrogate model, forming a principle-data joint-driven engine initial guess prediction framework. This framework addresses the problems of poor convergence and low computational efficiency caused by the difficulty in reasonably selecting initial guesses for the performance simulation models under various configurations and design schemes. Numerical simulation verification is conducted to optimize the ACE control laws at equal-inlet flow throttle state, and the results demonstrate that the proposed method achieves more than a 38% improvement in convergence capability and a 45% increase in simulation computation speed compared to traditional methods. This method effectively supports large-scale simulation optimization of ACE design parameters and control laws in aircraft-engine co-design, holding significant engineering application value.
-

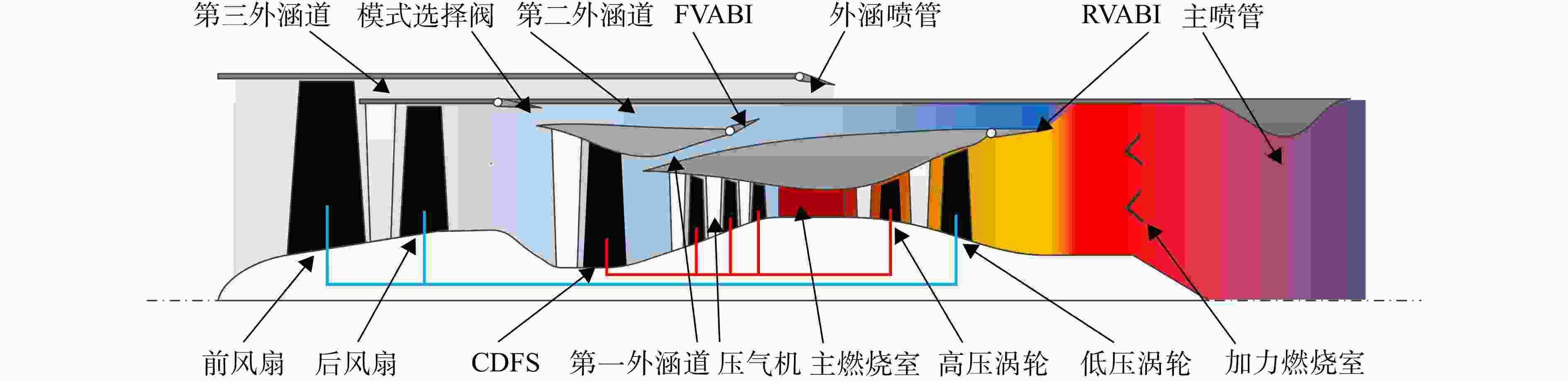

图 1 带核心机驱动风扇级的ACE结构示意图
Figure 1. Schematic diagram of the ACE with core-driven fan stage

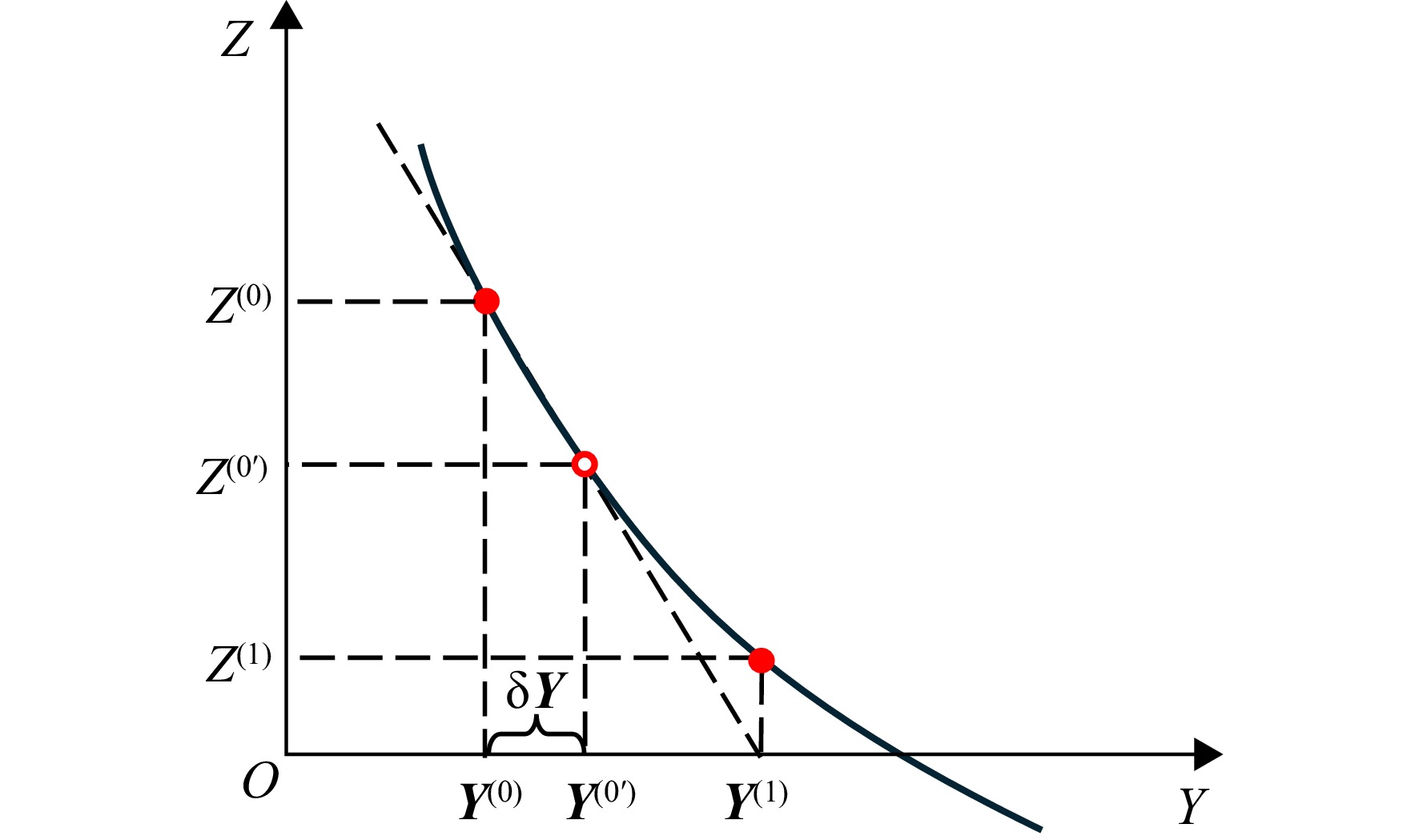

图 2 N-R法迭代求解示意图
Figure 2. Schematic diagram of the iterative solution using the Newton-Raphson method

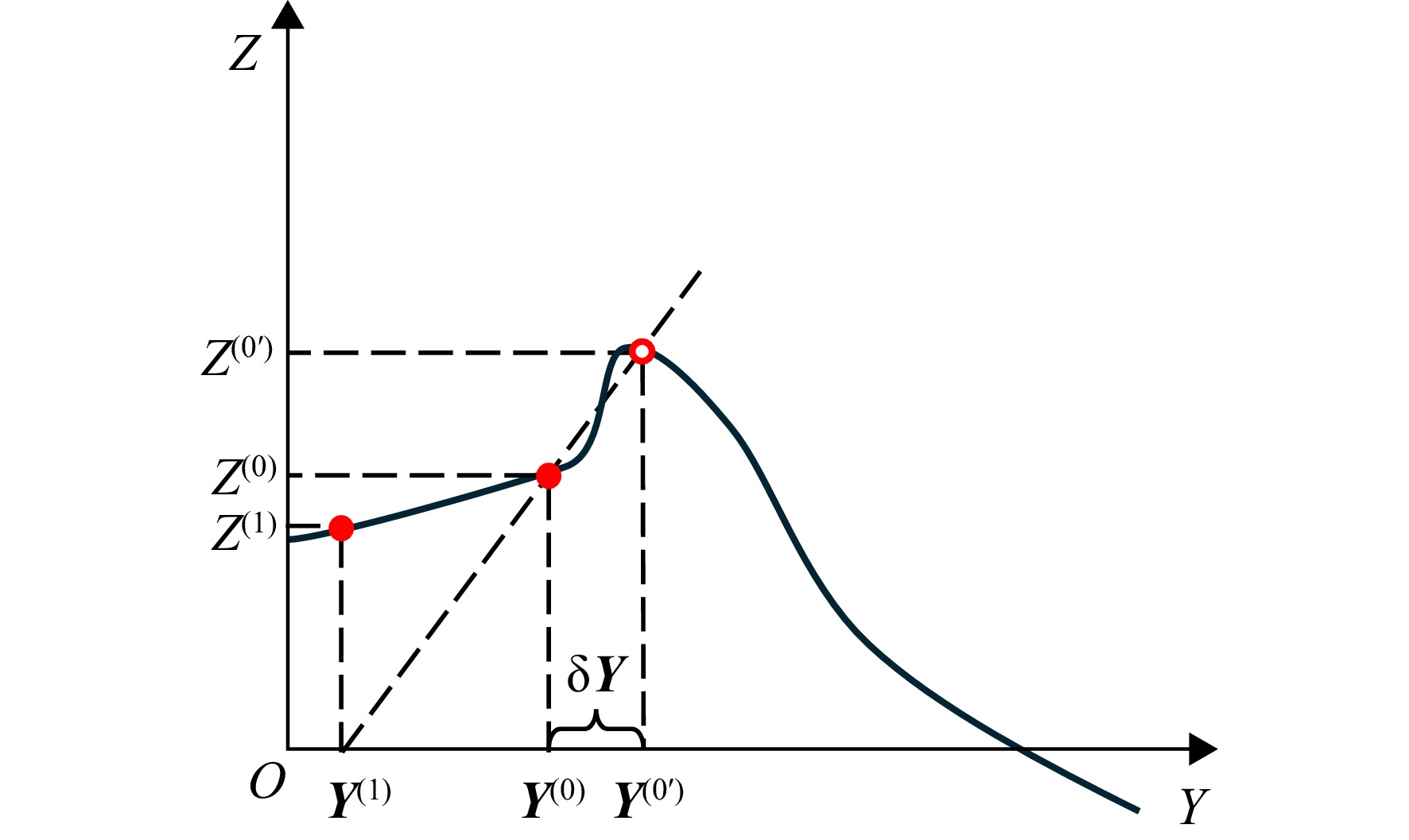

图 3 N-R法迭代求解陷入局部最优示意图
Figure 3. Schematic diagram of the Newton-Raphson method converging to a local optimum

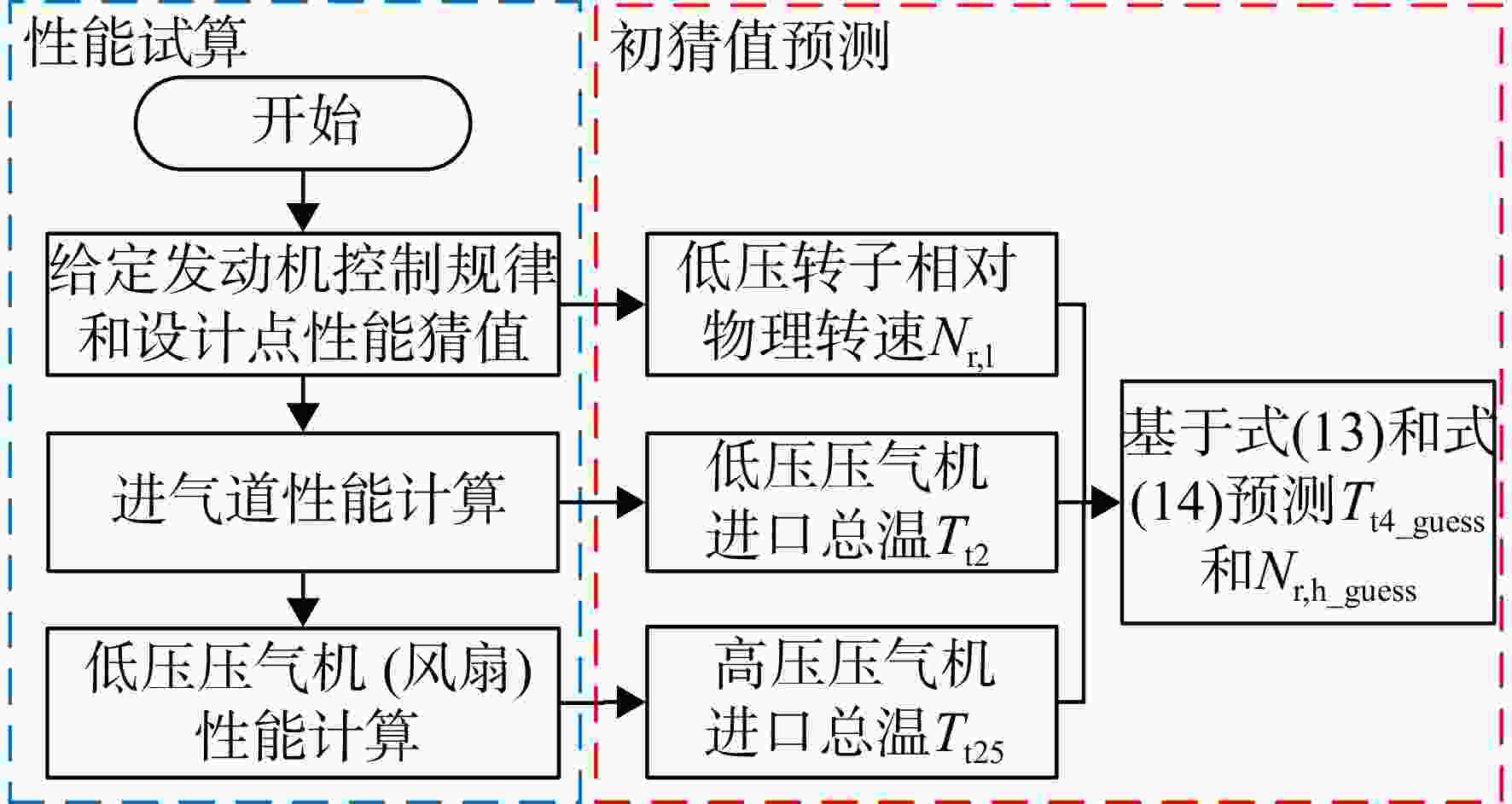

图 4 DYNGEN初猜值预测流程
Figure 4. Prediction process of DYNGEN initial guess value estimation

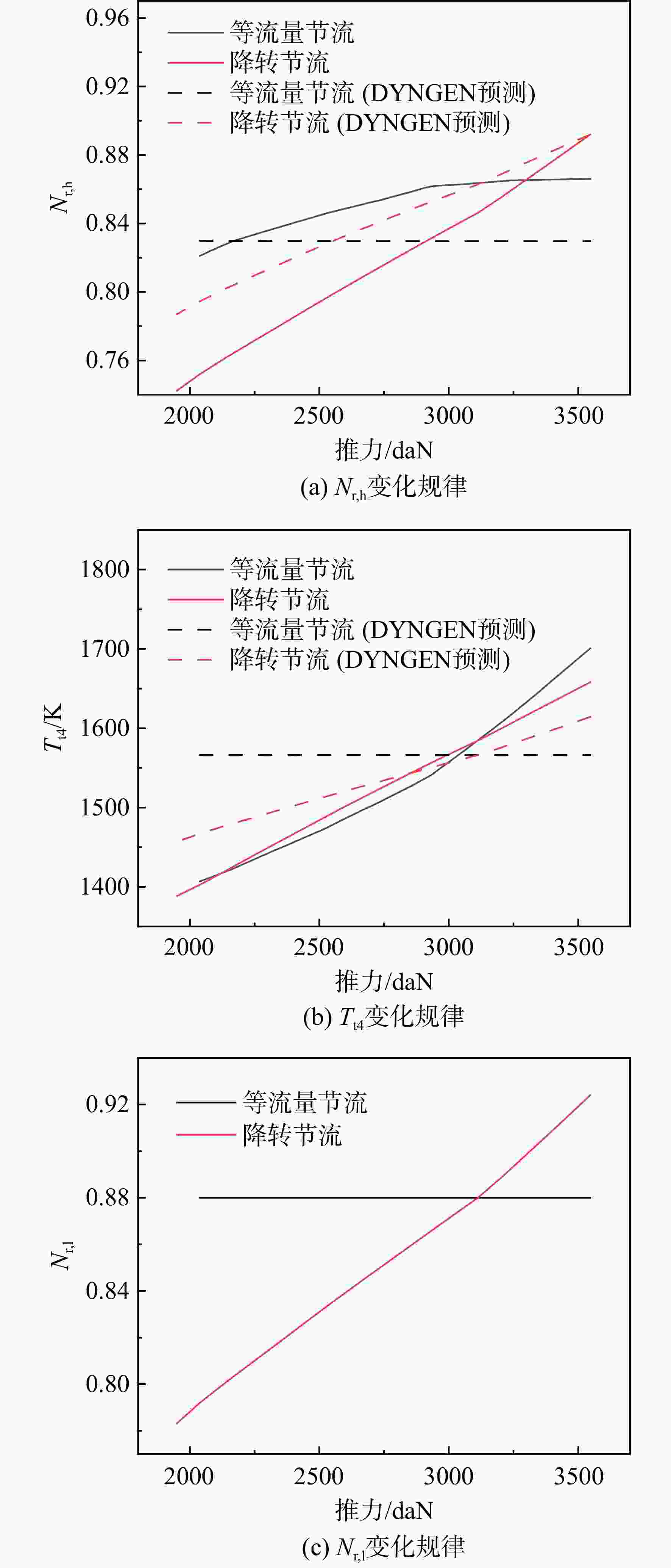

图 5 ACE等流量节流发动机推力和主要猜值变化规律
Figure 5. Variation trends of engine thrust and main guess values during the ACE constant-flow throttling process

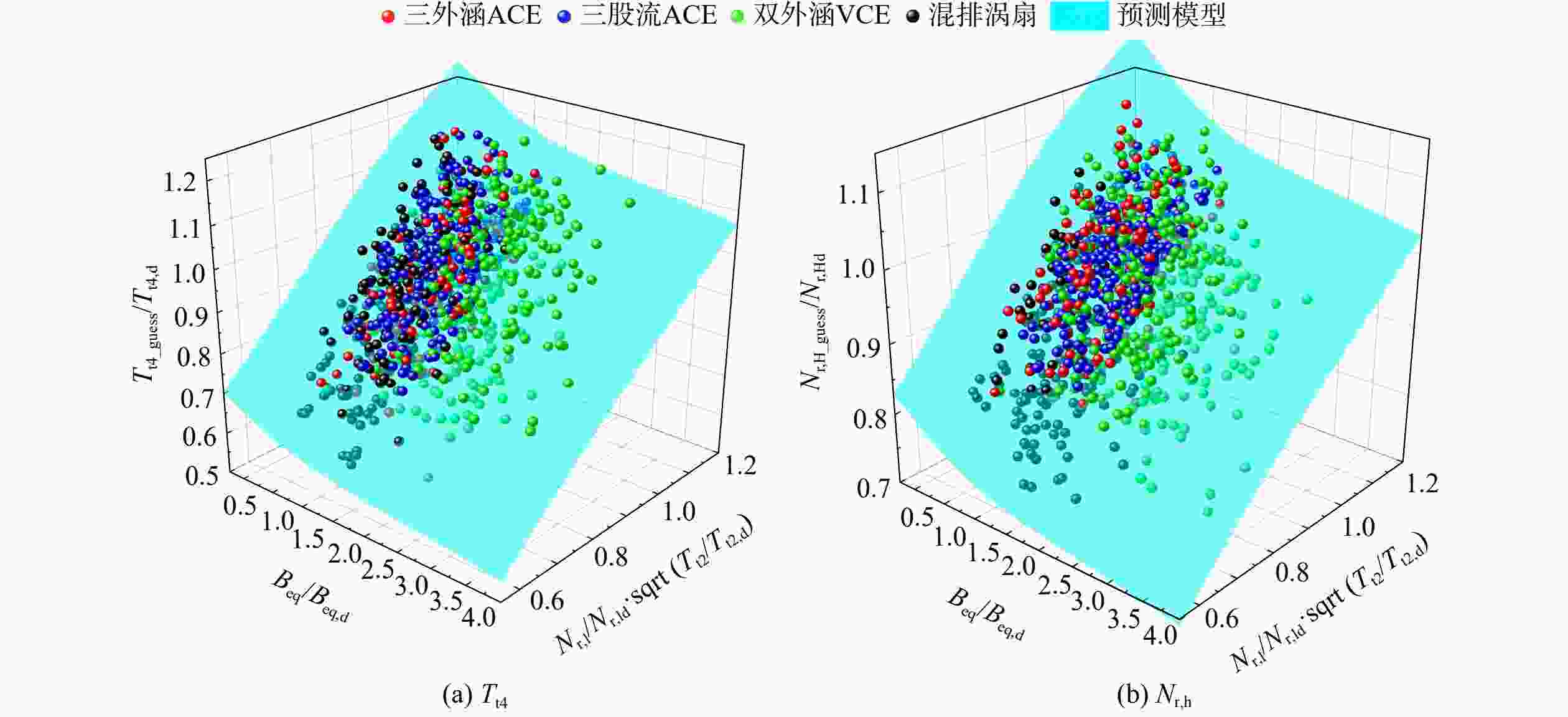

图 6 高通用初猜值预测模型样本点拟合情况
Figure 6. Fitting results of sample points in the high-universality initial guess value prediction model

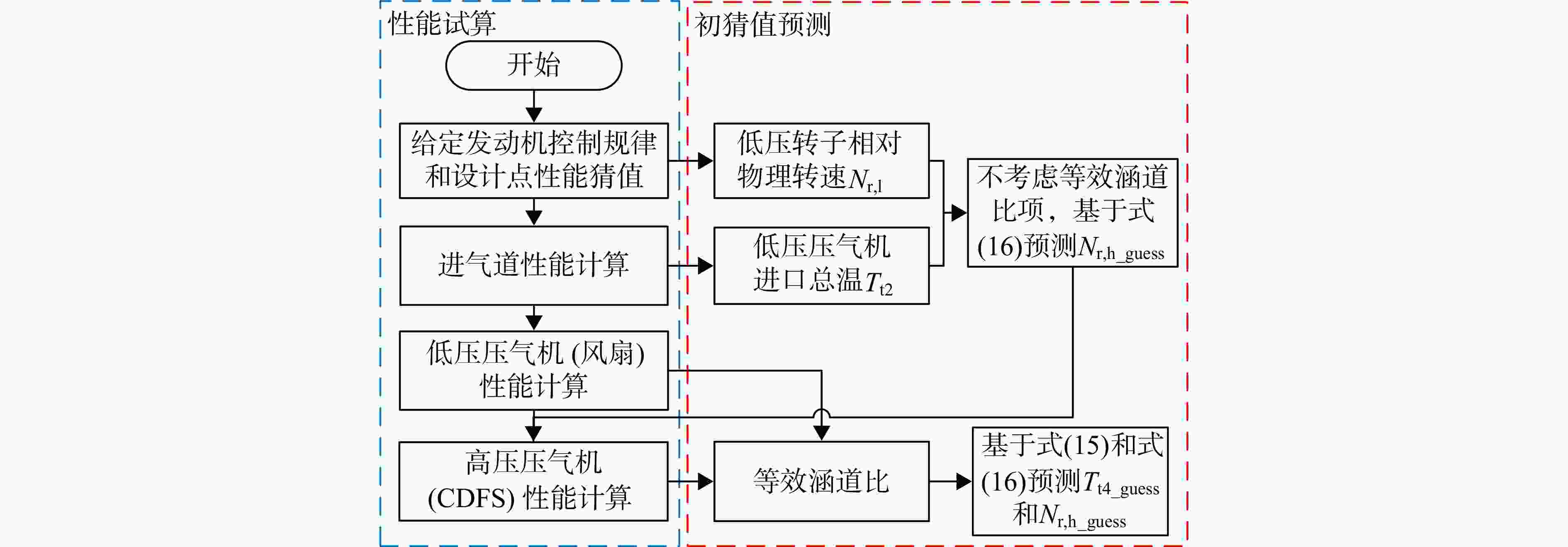

图 7 高通用全局初猜值预测公式应用流程
Figure 7. Application process of the high-universality global initial guess value prediction formula

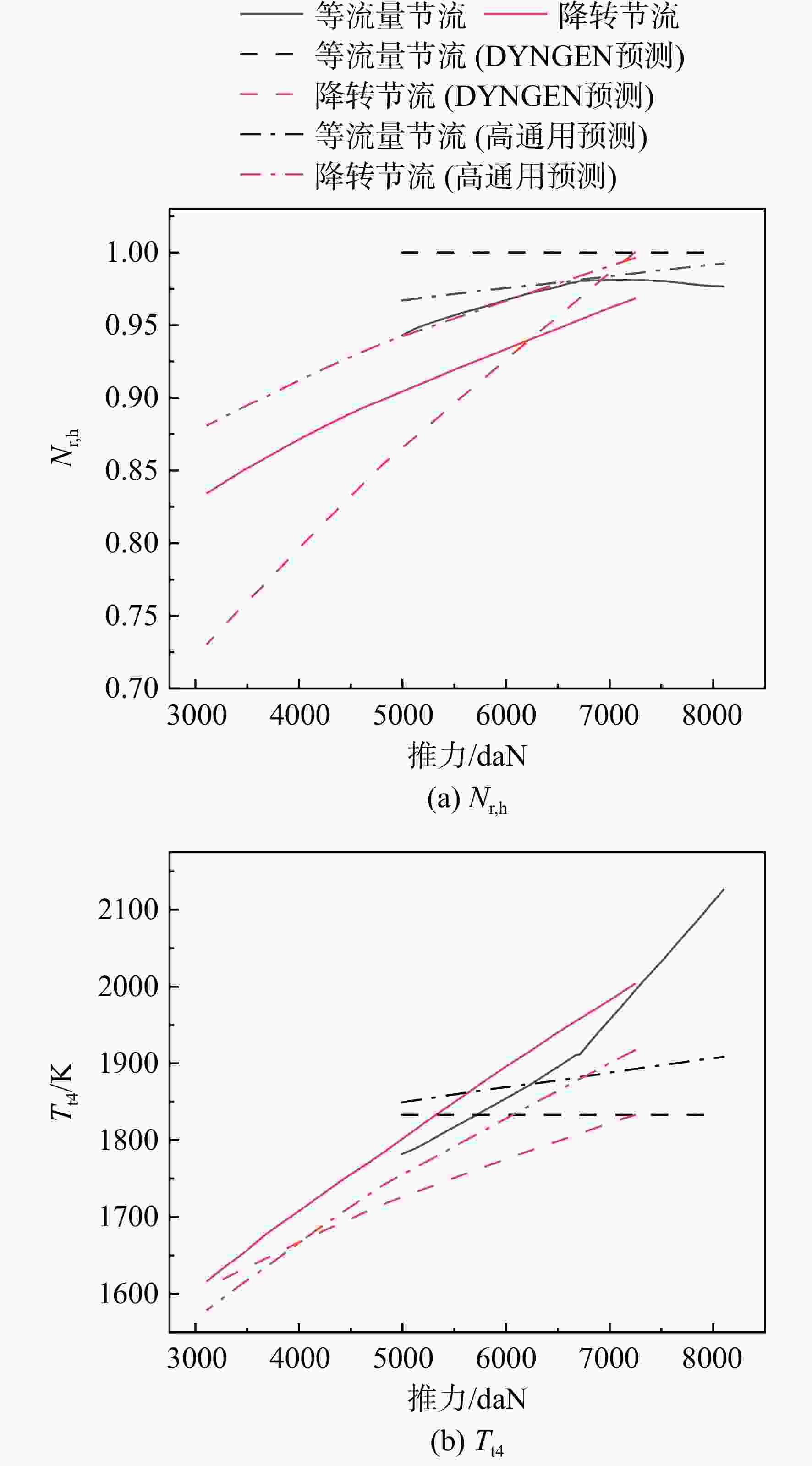

图 8 高通用初猜值预测方法效果对比
Figure 8. Performance comparison of high-universality initial value prediction methods

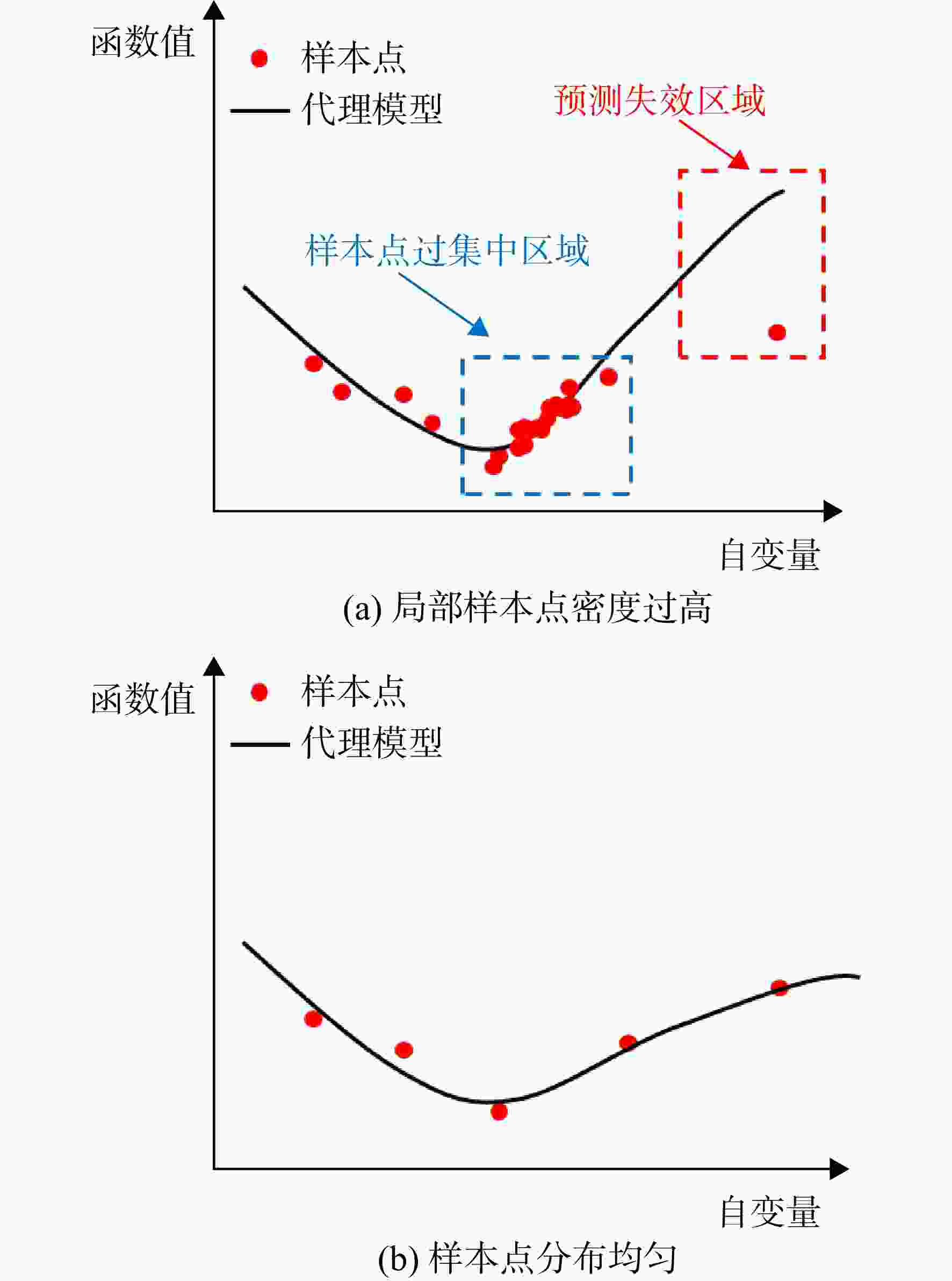

图 9 样本分布对预测效果影响示意图
Figure 9. Schematic diagram illustrating the impact of sample distribution on prediction performance

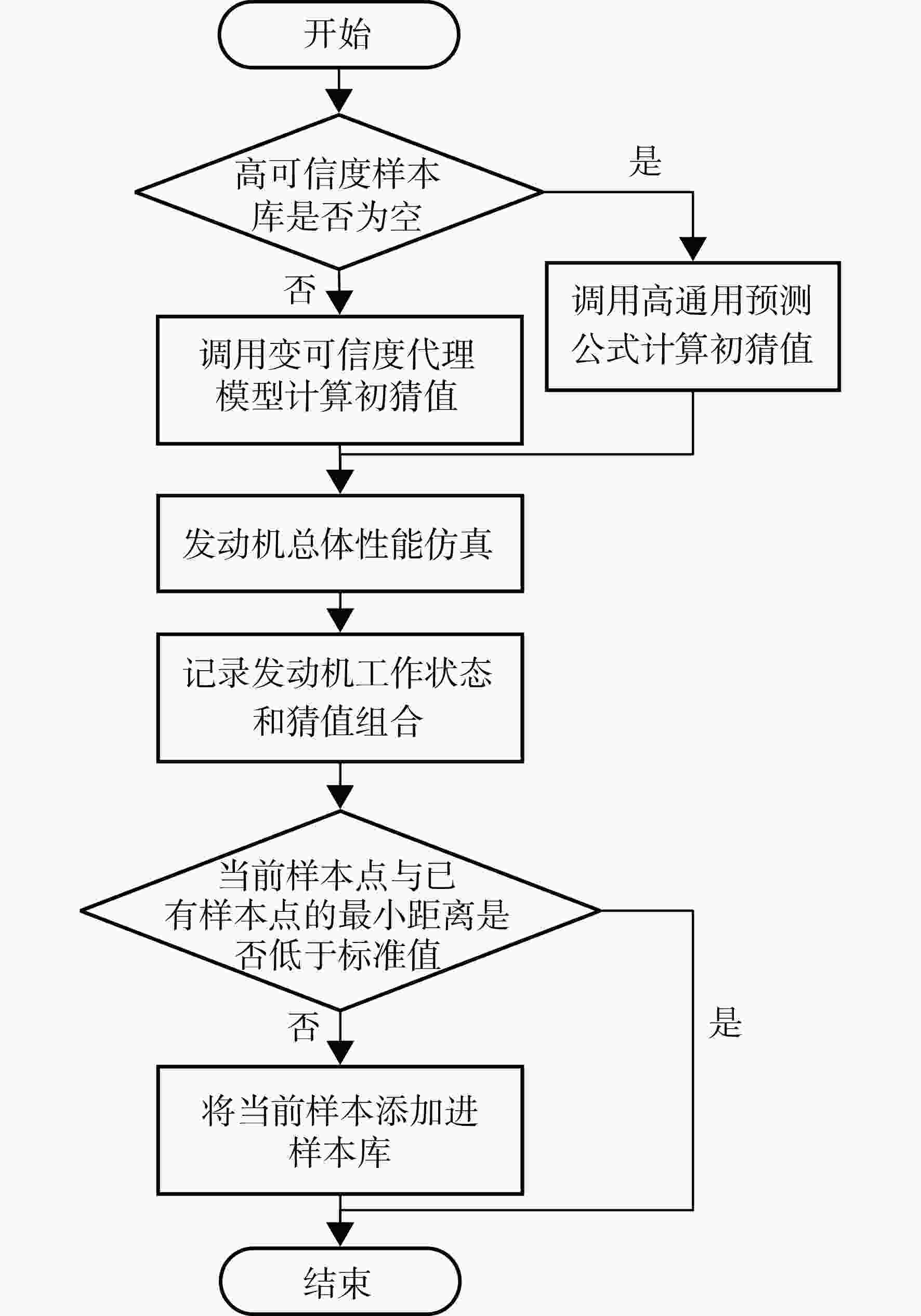

图 10 基于K-D树最近邻搜索的代理模型自扩展仿真流程
Figure 10. Self-expanding simulation process of the surrogate model based on K-D tree nearest neighbor search

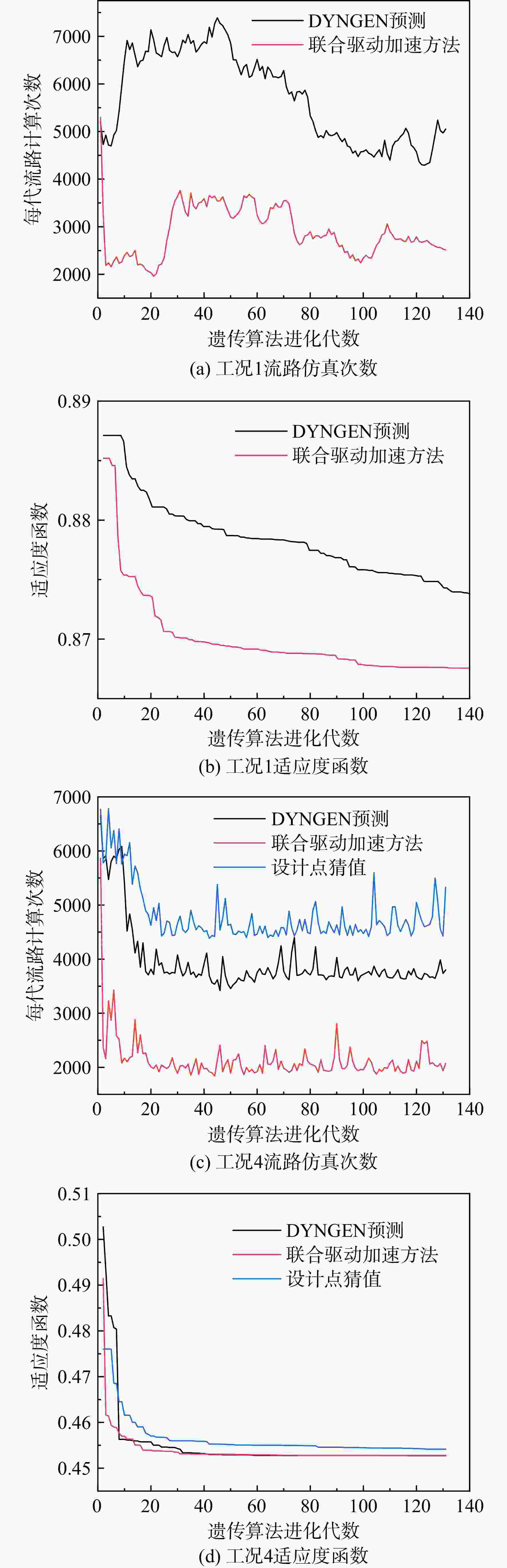

图 11 典型工况下控制规律优化过程性能对比
Figure 11. Performance comparison of control law optimization processes under typical operating conditions

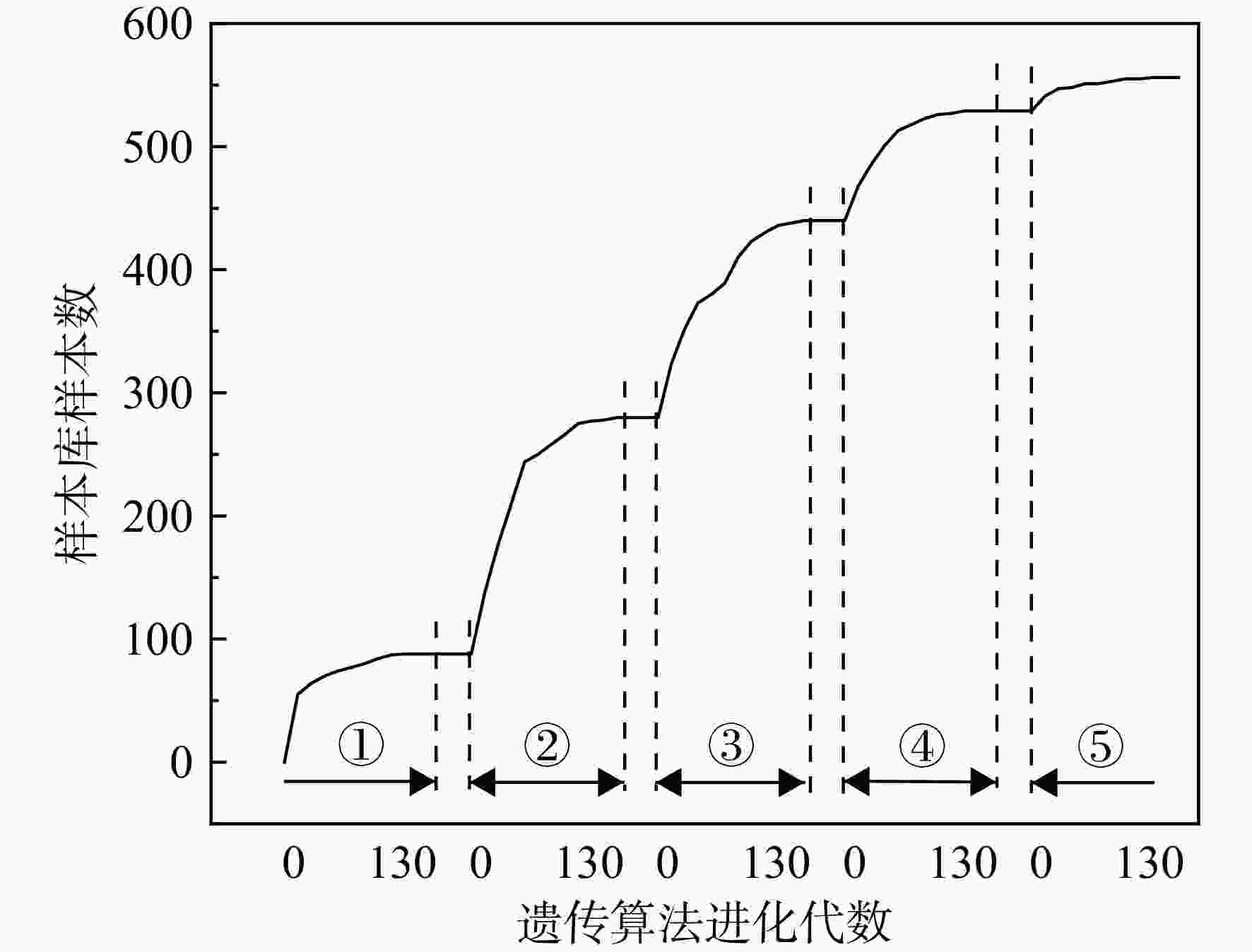

图 12 不同优化工况下联合驱动加速方法样本库数据更新情况
Figure 12. Data update status of the sample library using the joint-driven acceleration method under different optimization conditions
表 1 ACE总体性能模型部件性能猜值
Table 1. Guess values of component performance in the ACE overall performance model
变量 含义 Nr 转子相对物理转速 Tt4 主燃烧室出口总温 LFFAN FFAN辅助线值 LRFAN RFAN辅助线值 LCDFS CDFS辅助线值 LHPC HPC辅助线值 LHPT HPT辅助线值 LLPT LPT辅助线值
下载: 导出CSV
表 2 用于训练初猜值预测模型的发动机参数方案
Table 2. Engine parameter scheme for training the initial value prediction model
序号 构型 高度/km 马赫数 涡轮前
总温/K总涵道比 低压压缩
部件压比高压压缩
部件压比低压压缩
部件数量高压压缩
部件数量1 三外涵ACE 11 1.5 1833 0.981 2.88 6.37 2 2 2 三股流ACE 0 0 1900 0.6 4.72 6.8 2 1 3 双外涵VCE 0 0 1650 0.656 3.86 6 1 2 4 常规混排涡扇发动机 0 0 1800 0.5 4 7.5 1 1
下载: 导出CSV
表 3 初猜值预测方法收敛能力对比
Table 3. Convergence capability comparison of initial value prediction methods
初猜值预测方法 三外涵ACE 双外涵VCE 三股流ACE 三股流ACE（改变设计参数）* 高通用预测方法 628 674 1049 1141 DYNGEN预测方法 439 485 648 691 设计点初猜值 331 377 583 577 注：*设计点高度为0 km, 马赫数为0，总涵道比为0.55，涡轮前总温为 2100 K，低压压气机总压比为5.75，高压压缩部件压比为7。
下载: 导出CSV
表 4 不同初猜值预测方法对控制规律优化仿真计算量的影响对比
Table 4. Comparison of the impact of different initial value prediction methods on the computational cost of control law optimization simulation
序号 发动机工况 优化目标 总流路计算次数 设计点初猜值 DYNGEN 联合驱动加速方法 1 H=11 km, Ma=0.8* 45%中间推力，耗油率最低 无法计算** 750483 378225 2 H=11 km, Ma=0.8* 60%中间推力，耗油率最低 无法计算** 734517 318528 3 H=11 km, Ma=1.5* 80%中间推力，耗油率最低 543789 742779 267534 4 H=11 km, Ma=2* 中间状态推力最大 629793 517131 279603 5 H=0 km, Ma=0* 中间状态推力最大 699651 705834 241929 注：* H为飞行高度，Ma为飞行马赫数；**给定设计点猜值作为仿真初猜值，由于偏离收敛猜值过多，发动机总体性能仿真无法收敛。
下载: 导出CSV
表 5 典型仿真任务下联合驱动加速方法效果验证
Table 5. Validation of the acceleration effect of the joint-driven acceleration method under typical simulation tasks
初猜值
预测方法速度高度特性流路
计算次数节流特性流路
计算次数DYNGEN 9 630 2 565 联合驱动加速方法 6 363 882
下载: 导出CSV
-
[1] 闫晓婧, 杨涛, 药红红. 国外第六代战斗机概念方案与关键技术[J]. 航空科学技术, 2018, 29(4): 18-26. Yan Xiaojing, Yang Tao, Yao Honghong. Conceptual scheme and key technologies of sixth generation fighters abroad[J]. Aeronautical Science and Technology, 2018, 29(4): 18-26. (in ChineseYan Xiaojing, Yang Tao, Yao Honghong. Conceptual scheme and key technologies of sixth generation fighters abroad[J]. Aeronautical Science and Technology, 2018, 29(4): 18-26. (in Chinese) [2] United States Air Force. U. S. Air force long-range strike aircraft white paper[R]. Lincoln: University of Nebraska, 2001: 4-5. [3] 王锴, 丁宇, 何大龙. 第六代战斗机发展动向及能力分析[J]. 光电技术应用, 2019, 34(5): 1-6, 15. Wang Kai, Ding Yu, He Dalong. Development trend and capability analysis of the sixth generation fighter[J]. Electro-Optic Technology Application, 2019, 34(5): 1-6, 15. (in ChineseWang Kai, Ding Yu, He Dalong. Development trend and capability analysis of the sixth generation fighter[J]. Electro-Optic Technology Application, 2019, 34(5): 1-6, 15. (in Chinese) [4] 陈敏, 张纪元, 唐海龙, 等. 自适应循环发动机总体设计技术探讨[J]. 航空动力学报, 2022, 37(10): 2046-2058. Chen Min, Zhang Jiyuan, Tang Hailong, et al. Discussion on overall performance design technology of adaptive cycle engine[J]. Journal of Aerospace Power, 2022, 37(10): 2046-2058. (in ChineseChen Min, Zhang Jiyuan, Tang Hailong, et al. Discussion on overall performance design technology of adaptive cycle engine[J]. Journal of Aerospace Power, 2022, 37(10): 2046-2058. (in Chinese) [5] 徐义皓, 董芃呈, 郑俊超, 等. 自适应循环推进系统总体性能优化方法[J]. 航空学报, 2025, 46(7): 230738. Xu Yihao, Dong Pengcheng, Zheng Junchao, et al. Overall performance optimization method of adaptive cycle propulsion system[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(7): 230738. (in ChineseXu Yihao, Dong Pengcheng, Zheng Junchao, et al. Overall performance optimization method of adaptive cycle propulsion system[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(7): 230738. (in Chinese) [6] 徐义皓, 郑俊超, 张纪元, 等. 三种自适应循环发动机总体性能优化对比[J]. 航空动力学报, 2025, 40(9): 20230425. Xu Yihao, Zheng Junchao, Zhang Jiyuan, et al. Comparison of overall performance optimization for three adaptive cycle engines[J]. Journal of Aerospace Power, 2025, 40(9): 20230425. (in ChineseXu Yihao, Zheng Junchao, Zhang Jiyuan, et al. Comparison of overall performance optimization for three adaptive cycle engines[J]. Journal of Aerospace Power, 2025, 40(9): 20230425. (in Chinese) [7] Chen Min, Zhang Jiyuan, Tang Hailong. Performance analysis of a three-stream adaptive cycle engine during throttling[J]. International Journal of Aerospace Engineering, 2018, 2018: 9237907. doi: 10.1155/2018/9237907 [8] Zheng Junchao, Tang Hailong, Chen Min, et al. Equilibrium running principle analysis on an adaptive cycle engine[J]. Applied Thermal Engineering, 2018, 132: 393-409. doi: 10.1016/j.applthermaleng.2017.12.102 [9] Cai Changpeng, Zheng Qiangang, Fang Juan, et al. Performance assessment for a novel supersonic turbine engine with variable geometry and fuel precooled: From feasibility, exergy, thermoeconomic perspectives[J]. Applied Thermal Engineering, 2023, 225: 120227. doi: 10.1016/j.applthermaleng.2023.120227 [10] 郝旺, 王占学, 张晓博, 等. 变循环发动机模态转换建模及控制规律设计方法研究[J]. 推进技术, 2022, 43(1): 210058. Hao Wang, Wang Zhanxue, Zhang Xiaobo, et al. Mode transition modeling and control law design method of variable cycle engine[J]. Journal of Propulsion Technology, 2022, 43(1): 210058. (in Chinese doi: 10.13675/j.cnki.tjjs.210058Hao Wang, Wang Zhanxue, Zhang Xiaobo, et al. Mode transition modeling and control law design method of variable cycle engine[J]. Journal of Propulsion Technology, 2022, 43(1): 210058. (in Chinese) doi: 10.13675/j.cnki.tjjs.210058 [11] 周红, 王占学, 刘增文, 等. 双外涵变循环发动机可变几何特性研究[J]. 航空学报, 2014, 35(8): 2126-2135. Zhou Hong, Wang Zhanxue, Liu Zengwen, et al. Variable geometry characteristics research of double bypass variable cycle engine[J]. Acta Aeronautica et Astronautica Sinica, 2014, 35(8): 2126-2135. (in ChineseZhou Hong, Wang Zhanxue, Liu Zengwen, et al. Variable geometry characteristics research of double bypass variable cycle engine[J]. Acta Aeronautica et Astronautica Sinica, 2014, 35(8): 2126-2135. (in Chinese) [12] Kurzke J, Halliwell I, Hill R. Propulsion and power: an exploration of gas turbine performance modeling[M]. Cham: Springer Nature Switzerland, 2025. [13] 朱鑫宇, 徐思远, 肖红亮, 等. 基于贝叶斯优化的自适应循环发动机性能寻优控制[J]. 航空动力学报, 2025, 40(7): 20240112. Zhu Xinyu, Xu Siyuan, Xiao Hongliang, et al. Performance seeking control of adaptive cycle engine based on Bayesian optimization[J]. Journal of Aerospace Power, 2025, 40(7): 20240112. (in ChineseZhu Xinyu, Xu Siyuan, Xiao Hongliang, et al. Performance seeking control of adaptive cycle engine based on Bayesian optimization[J]. Journal of Aerospace Power, 2025, 40(7): 20240112. (in Chinese) [14] 郝旺, 王占学, 张晓博, 等. 变循环发动机地面起动建模及控制规律设计方法[J]. 航空动力学报, 2022, 37(1): 152-164. Hao Wang, Wang Zhanxue, Zhang Xiaobo, et al. Ground starting modeling and control law design method of variable cycle engine[J]. Journal of Aerospace Power, 2022, 37(1): 152-164. (in Chinese doi: 10.13224/j.cnki.jasp.20210132Hao Wang, Wang Zhanxue, Zhang Xiaobo, et al. Ground starting modeling and control law design method of variable cycle engine[J]. Journal of Aerospace Power, 2022, 37(1): 152-164. (in Chinese) doi: 10.13224/j.cnki.jasp.20210132 [15] 李峰, 伊卫林. 变循环发动机变几何特性分析及其匹配优化[J]. 航空动力学报, 2026, 41(4): 20250082. Li Feng, Yi Weilin. Analysis of variable geometry characteristics and matching optimization of variable cycle engine[J]. Journal of Aerospace Power, 2026, 41(4): 20250082. (in ChineseLi Feng, Yi Weilin. Analysis of variable geometry characteristics and matching optimization of variable cycle engine[J]. Journal of Aerospace Power, 2026, 41(4): 20250082. (in Chinese) [16] 马松, 谭建国, 王光豪, 等. 基于飞发一体化的自适应循环发动机参数优化研究[J]. 推进技术, 2018, 39(8): 1703-1711. Ma Song, Tan Jianguo, Wang Guanghao, et al. Study on characteristics optimization of adaptive cycle engine based on aircraft-engine integrated analysis[J]. Journal of Propulsion Technology, 2018, 39(8): 1703-1711. (in ChineseMa Song, Tan Jianguo, Wang Guanghao, et al. Study on characteristics optimization of adaptive cycle engine based on aircraft-engine integrated analysis[J]. Journal of Propulsion Technology, 2018, 39(8): 1703-1711. (in Chinese) [17] Zhang Xiaobo, Wang Zhanxue, Shi Jingwei. Optimization of cycle parameters of variable cycle engine based on response surface model[C]//53rd AIAA/SAE/ASEE Joint Propulsion Conference. AIAA, 2017: AIAA2017-4899. [18] Millhouse P T. Improving the algorithmic efficiency of aircraft engine design for optimal performance[D]. Wright Patterson AFB, OH: Air Force Institute of Technology, 1998. [19] 叶纬, 陈玉春, 崔高锋, 等. 拟牛顿法在航空发动机特性仿真中的应用[J]. 计算机仿真, 2007, 24(10): 78-81. Ye Wei, Chen Yuchun, Cui Gaofeng, et al. Application of quasi-Newton method to aero-engine performance simulation[J]. Computer Simulation, 2007, 24(10): 78-81. (in ChineseYe Wei, Chen Yuchun, Cui Gaofeng, et al. Application of quasi-Newton method to aero-engine performance simulation[J]. Computer Simulation, 2007, 24(10): 78-81. (in Chinese) [20] 黄旭, 王占学, 张晓博. 基于Broyden改进算法的航空发动机性能模拟研究[J]. 科学技术与工程, 2012, 12(21): 5231-5234, 5252. Huang Xu, Wang Zhanxue, Zhang Xiaobo. Research of a corrected broyden’s method on the aero-engine performance simulation[J]. Science Technology and Engineering, 2012, 12(21): 5231-5234, 5252. (in ChineseHuang Xu, Wang Zhanxue, Zhang Xiaobo. Research of a corrected broyden’s method on the aero-engine performance simulation[J]. Science Technology and Engineering, 2012, 12(21): 5231-5234, 5252. (in Chinese) [21] 李松林, 孙健国, 李健民, 等. 求解涡扇发动机数学模型的有限域搜索方法[J]. 航空动力学报, 1997, 12(3): 276-278. Li Songlin, Sun Jianguo, Li Jianmin, et al. A limited domain searching method for solution of nonlinear mathematical model for turbofan engine[J]. Journal of Aerospace Power, 1997, 12(3): 276-278. (in ChineseLi Songlin, Sun Jianguo, Li Jianmin, et al. A limited domain searching method for solution of nonlinear mathematical model for turbofan engine[J]. Journal of Aerospace Power, 1997, 12(3): 276-278. (in Chinese) [22] 陈玉春, 徐思远, 杨云铠, 等. 改善航空发动机特性计算收敛性的方法[J]. 航空动力学报, 2008, 23(12): 2242-2248. Chen Yuchun, Xu Siyuan, Yang Yunkai, et al. Research on the method to solve convergence problem in aero turbo-engine performance computation[J]. Journal of Aerospace Power, 2008, 23(12): 2242-2248. (in Chinese doi: 10.13224/j.cnki.jasp.2008.12.027Chen Yuchun, Xu Siyuan, Yang Yunkai, et al. Research on the method to solve convergence problem in aero turbo-engine performance computation[J]. Journal of Aerospace Power, 2008, 23(12): 2242-2248. (in Chinese) doi: 10.13224/j.cnki.jasp.2008.12.027 [23] Jasa J P, Gray J S, Seidel J, et al. Multipoint variable cycle engine design using gradient-based optimization[R]. AIAA 2019-0172, 2019. [24] Sellers J F, Daniele C J. DYNGEN-a program for calculating steady-state and transient performance of turbojet and turbofan engines: NASA TN D-7901[R]. Washington DC: National Aeronautics and Space Administration, 1975: 1-208. [25] 胡晨. 基于K-D树的对象属性组织结构研究[D]. 武汉: 华中科技大学, 2009. Hu Chen. Research on the organization structure of object attributes based on K-D tree[D]. Wuhan: Huazhong University of Science and Technology, 2009. (in Chinese) object attributes based on K-D tree[D]. Wuhan: Huazhong University of Science and Technology, 2009: 55-67. (in ChineseHu Chen. Research on the organization structure of object attributes based on K-D tree[D]. Wuhan: Huazhong University of Science and Technology, 2009. (in Chinese) object attributes based on K-D tree[D]. Wuhan: Huazhong University of Science and Technology, 2009: 55-67. (in Chinese) -
