Design of impingement attenuation device for supersonic wind tunnel test models
-
摘要:

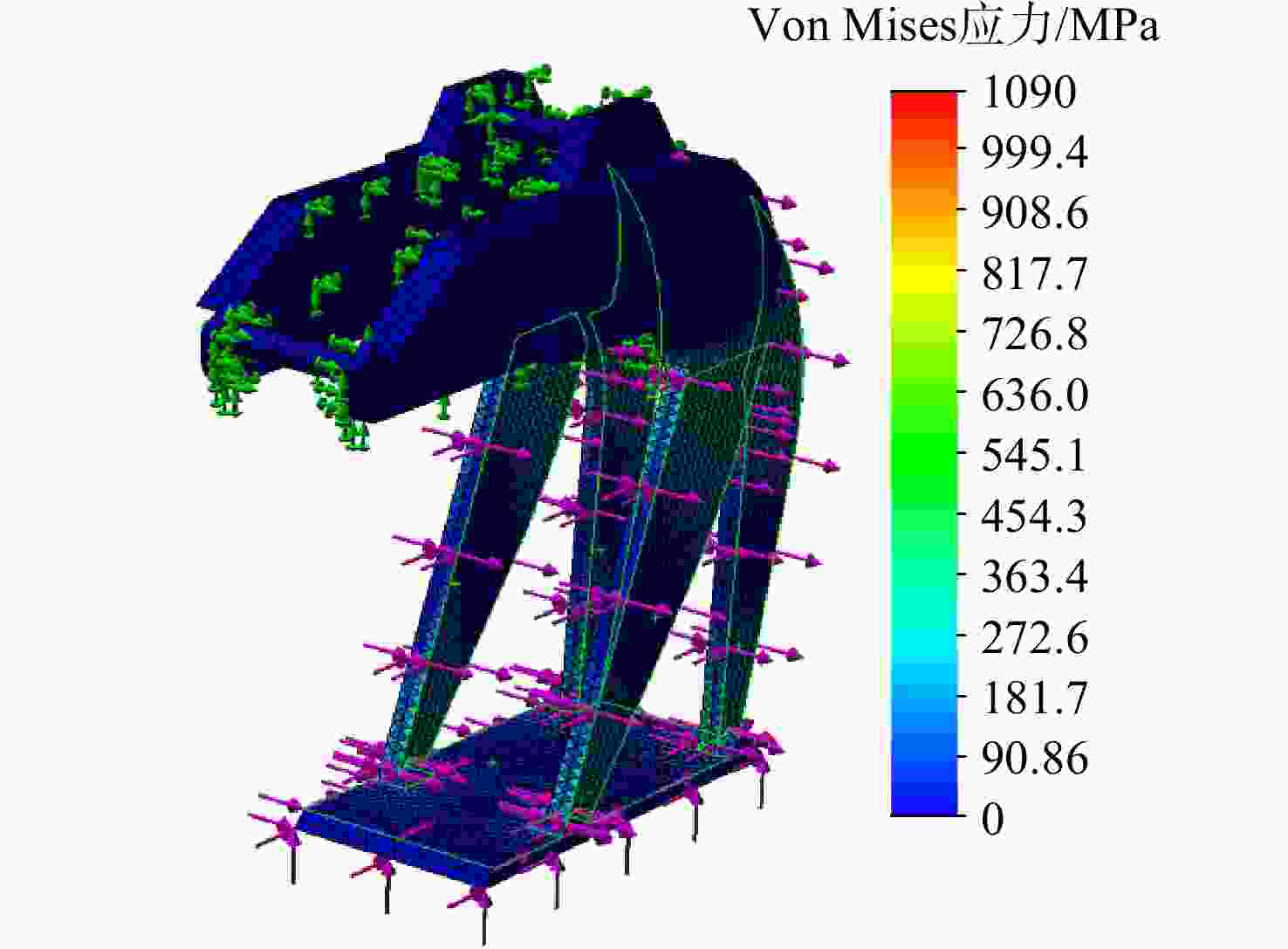

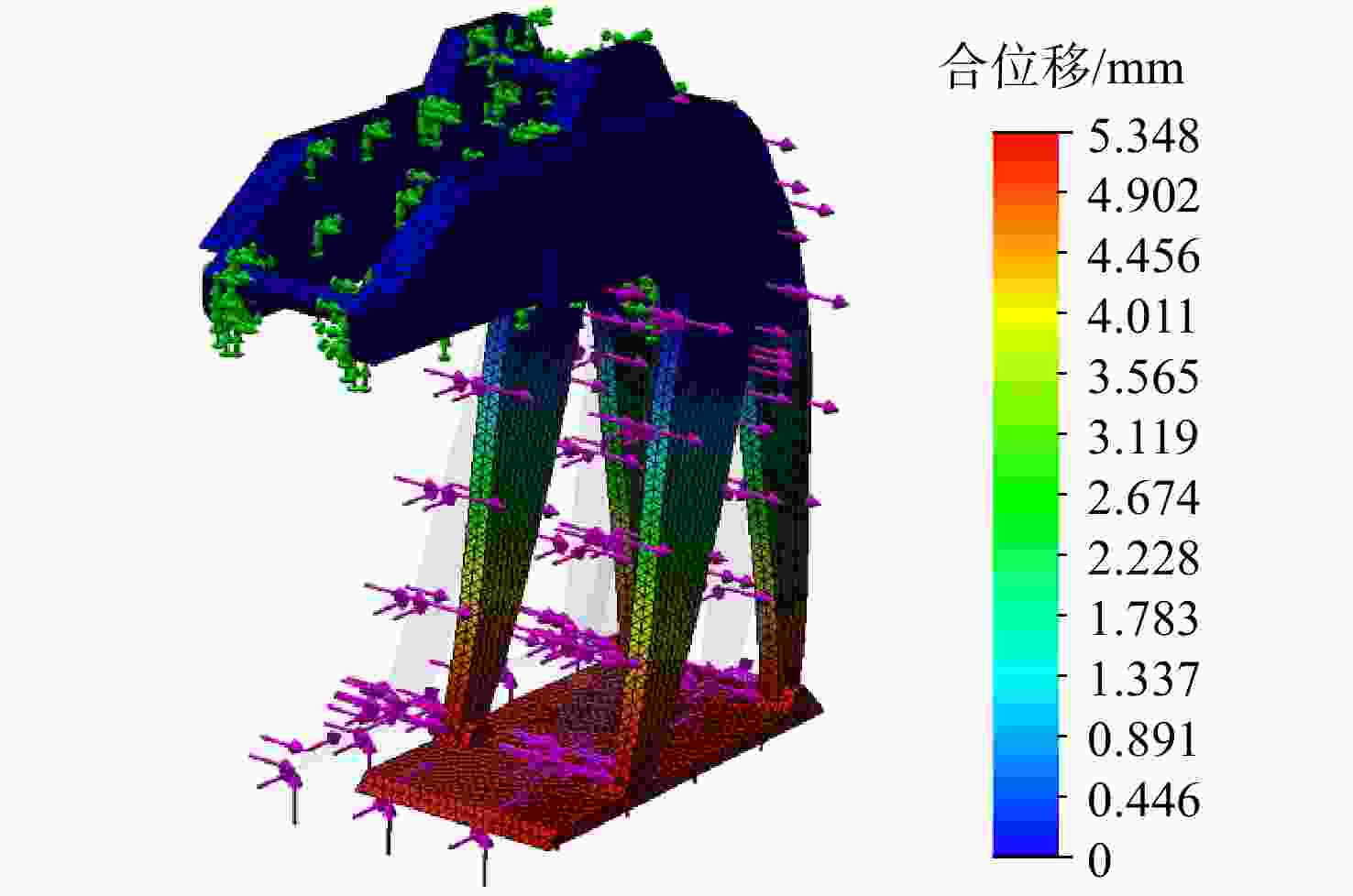

为降低暂冲式超声速风洞起动/关车过程中冲击载荷对试验模型和测量天平带来的风险，设计了一套冲击载荷抑制装置。装置由上下作动机构和平板等结构件组成，通过有限元方法对四连杆作动机构进行了受力分析，验证了结构的强度和刚度可靠性。开发了伺服控制系统及软件，结合结构动力学分析确定了控制系统参数，设计了与风洞试验过程兼容的抑制装置工作流程，定制了可视化软件界面。从结构稳定性和抑制效果两个方面对装置进行了试验验证，结果表明该装置对法向力和俯仰力矩受到的冲击载荷抑制效果较好，降幅分别可达78%和77%。

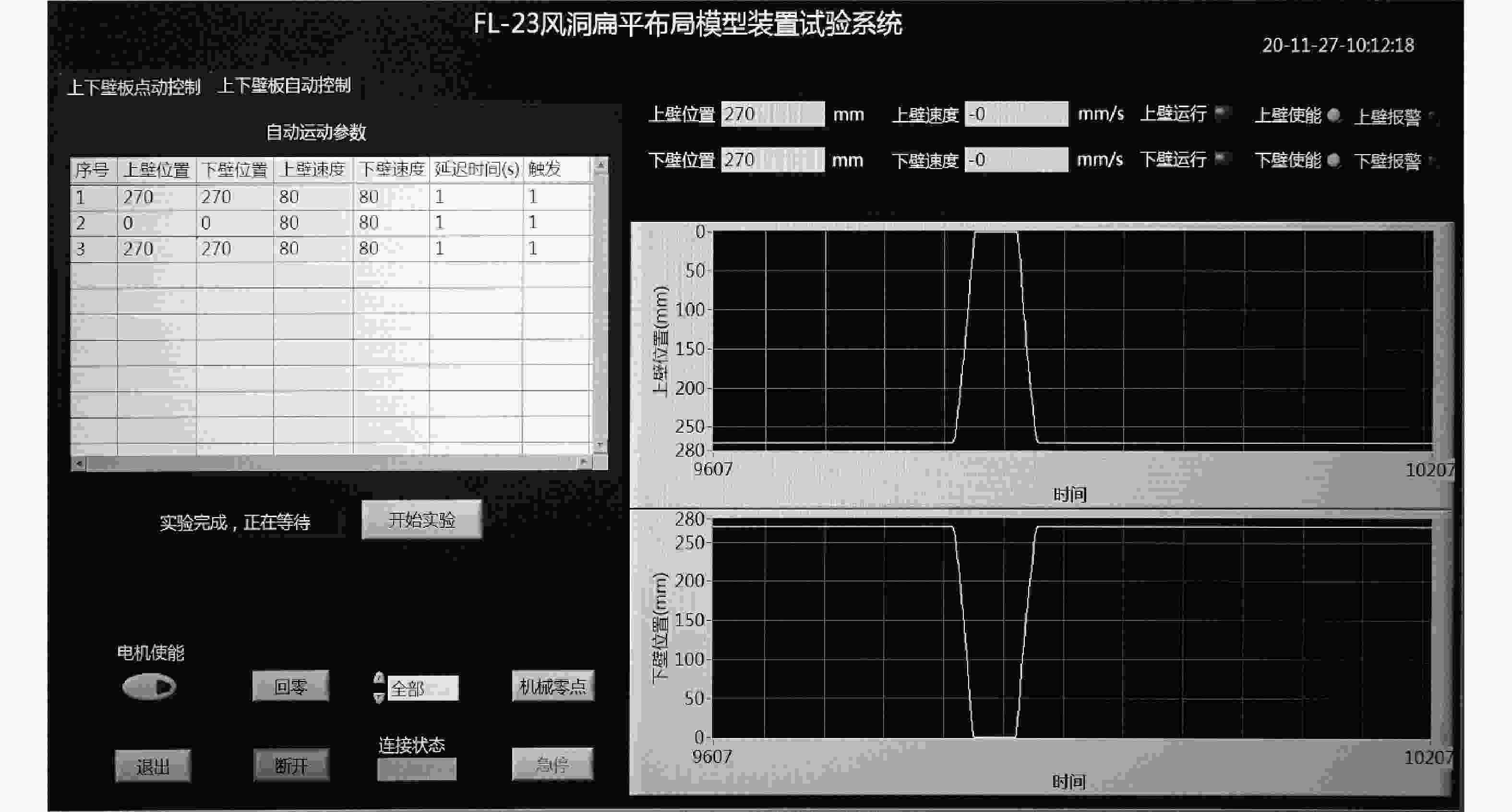

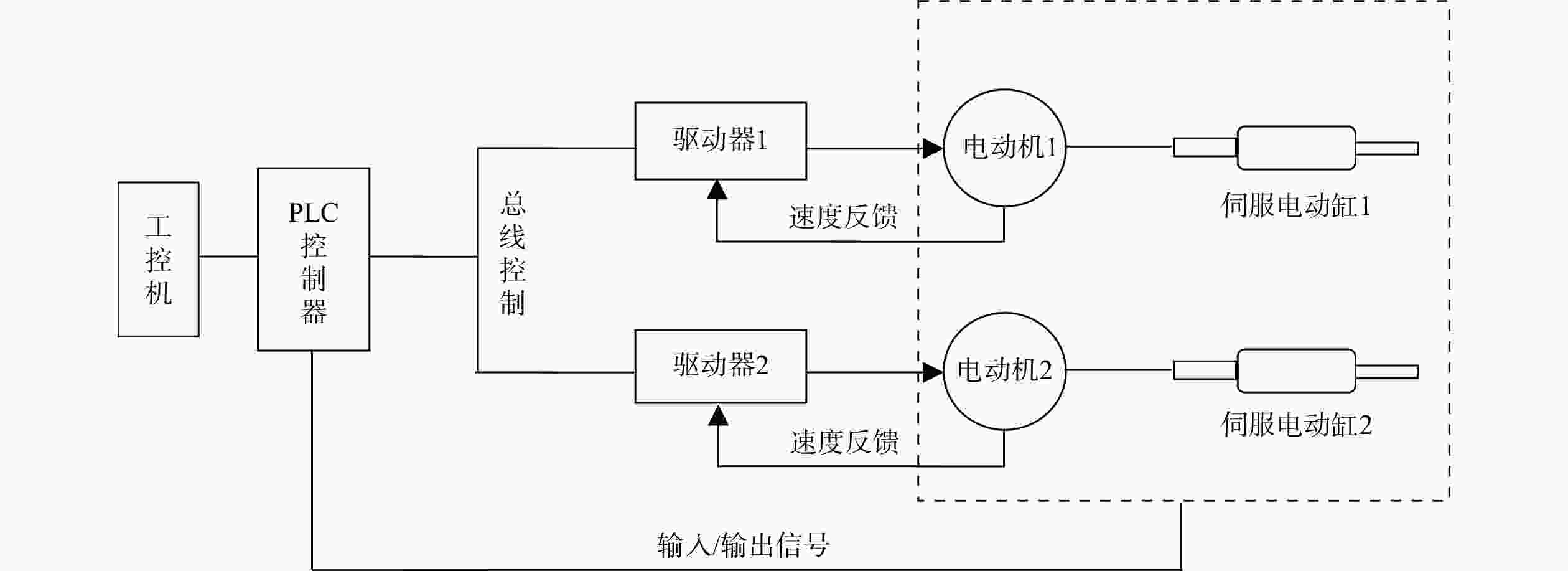

Abstract:In order to reduce the risk of test model and gauge balance damages induced by shock impingement during intermittent supersonic wind tunnel startup and shutdown, an impingement attenuation device was designed. Composed of upper/lower actuating facilities and flat plates, the four-part connecting rod device was analyzed by finite element method, validating the strength and stiffness of device structures. Servo control system and accompanying software were developed, and the control parameters were determined according to structural dynamics analysis. A working procedure compatible with the wind tunnel was devised, and visualized software interface was customized. The device effectiveness was tested from structural steadiness and attenuation effect. Test results indicated that the device had a favorable effect on impingement attenuation for the normal force and pitching moment, with a decrease of amplitude up to 78% and 77% separately.
-

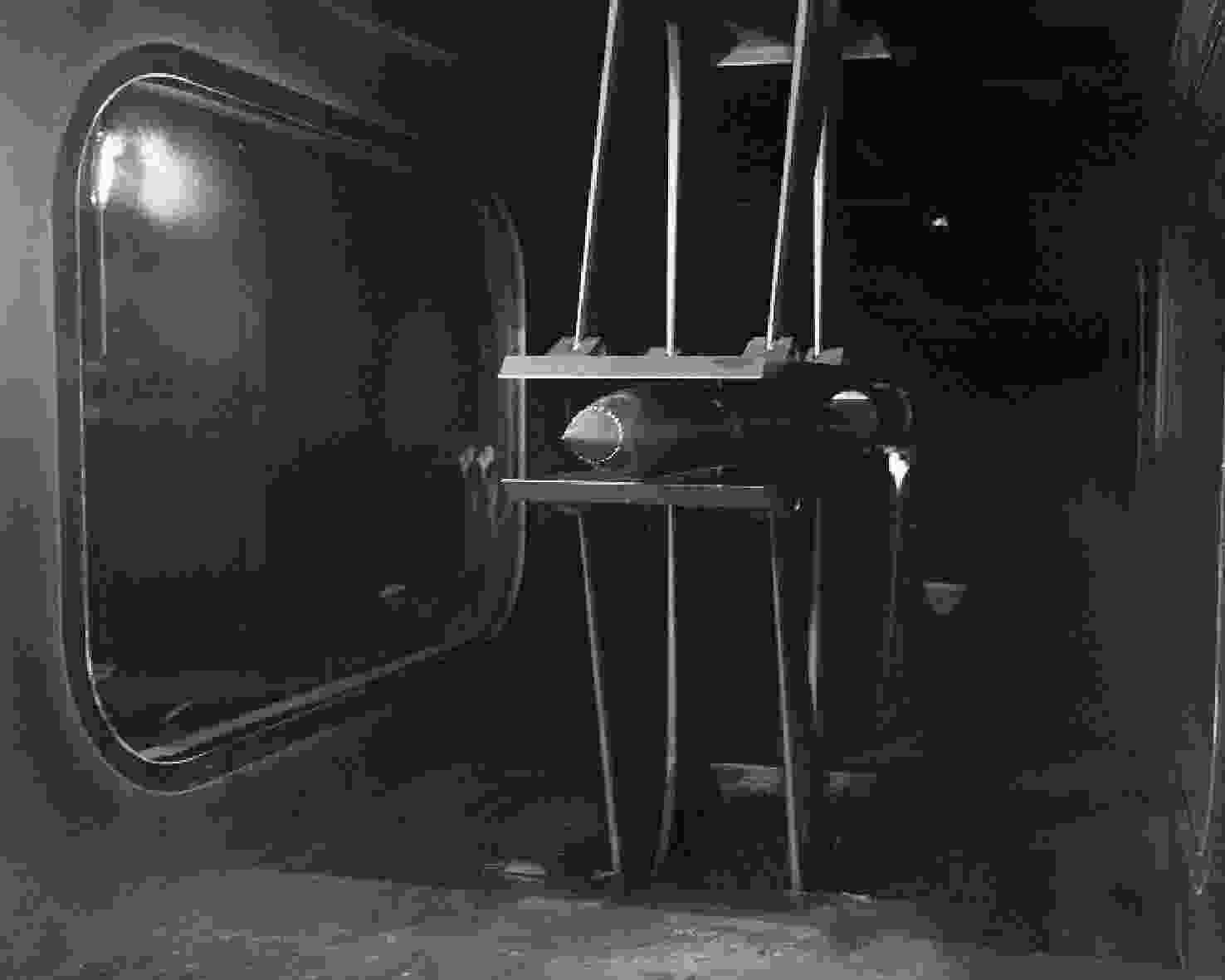

图 7 抑制装置和模型在风洞内的安装照片
Figure 7. Mountings of attenuation device and model in wind tunnel
表 1 优化选型试验结果
Table 1. Results of optimization tests
平板尺寸
（长×宽）/m×mNy /N mz /（N·m） Nx /N 0×0 1350 82 510 0.25×0.15 588 93 416 0.3×0.08 434 41 388 0.3×0.15 288 37 341 0.3×0.2 341 52 403 0.45×0.15 520 60 655
下载: 导出CSV
表 2 伺服系统参数
Table 2. Servo system parameters
参数 数值 丝杠参数 直径/m 0.028 导程/m 0.005 丝杠转速/（r/s） 13 减速比 8∶1 丝杠扭矩/（N·m） 80 电动机最大扭矩/（N·m） 9.5 额定扭矩/（N·m） 3.18
下载: 导出CSV
表 3 不同平板与模型间距下抑制效果对比结果
Table 3. Comparison results of attenuation effects with different spacings between flat plate and model
平板间距/m Ny /N mz /（N·m） Nx /N 0 1350 82 510 0.003 288 37 341 0.004 780 85 545 0.007 994 105 633 0.01 1053 121 570
下载: 导出CSV
-
[1] 波普, 戈因. 高速风洞试验[M]. 北京: 科学出版社, 1980. [2] 丛成华,任泽斌,李松,等. 高速风洞起动特性数值模拟[J]. 航空动力学报,2020,35(7): 1361-1368. doi: 10.13224/j.cnki.jasp.2020.07.003CONG Chenghua,REN Zebin,LI Song,et al. Numerical simulation about starting process characteristics of hypersonic wind tunnel[J]. Journal of Aerospace Power,2020,35(7): 1361-1368. (in Chinese) doi: 10.13224/j.cnki.jasp.2020.07.003 [3] SAKURANAKA N,SHIMURA T,MITANI T,et al. Starting loads in freejet-type wind tunnels[J]. Aeronautical and Space Sciences Japan,1996,44(508): 41-47. (in Japanese) [4] MINATO R,MIZOBATA K,KUWATA K. Experimental measurements of starting loads and model behaviors in the indraft supersonic wind tunnel[J]. Journal of the Japan Society for Aeronautical and Space Sciences,2008,56(659): 580-589. (in Japanese) [5] VUKOVIĆ D, ĆURČIĆ D, MARINKOVSKI D, et al. Living with supersonic starting loads in the T-38 trisonic wind tunnel of VTI[R]. St. Petersburg, Russia: 29th Congress of the International Council of the Aeronautical Sciences, 2014. [6] 熊波,林学东,杨洋,等. 2 m超声速风洞冲击载荷抑制方法研究[J]. 兵工自动化,2016,35(11): 16-19. doi: 10.7690/bgzdh.2016.11.005XIONG Bo,LIN Xuedong,YANG Yang,et al. Suppression method research of impact loads in 2 m supersonic wind tunnel[J]. Ordnance Industry Automation,2016,35(11): 16-19. (in Chinese) doi: 10.7690/bgzdh.2016.11.005 [7] MAYDEW R C. Compilation and correlation of model starting loads from several supersonic tunnels[R]. Sandia Corporation-4691, 1962. [8] 潘金柱, 张杰, 才义, 等. 超声速风洞起动冲击载荷问题研究[R]. 北京: 中国力学大会, 2017.PAN Jinzhu, ZHANG Jie, CAI Yi, et al. Research of shock loads in supersonic wind tunnel starting[R]. Beijing: Chinese Congress of Theoretical and Applied Mechanics, 2017. (in Chinese) [9] 刘奇, 刘常青, 荣祥森. 风洞起动激波冲击载荷抑制技术研究总结报告[R]. 四川 绵阳: 中国空气动力研究与发展中心高速空气动力研究所, 2018. [10] 凌忠伟, 夏明主, 何彬华. FL-23风洞性能与使用[R]. 四川 绵阳: 中国空气动力研究与发展中心高速空气动力研究所, 2007. [11] 褚卫华,汤更生,王帆. 2 m×2 m超声速风洞流场控制策略研究与实现[J]. 实验流体力学,2012,26(5): 98-102. doi: 10.3969/j.issn.1672-9897.2012.05.021CHU Weihua,TANG Gengsheng,WANG Fan. Research and realization on the control strategies of the 2 m×2 m supersonic wind tunnel[J]. Journal of Experiments in Fluids Mechanics,2012,26(5): 98-102. (in Chinese) doi: 10.3969/j.issn.1672-9897.2012.05.021 [12] 闫昱,余立,吕彬彬,等. 超声速颤振风洞试验技术研究[J]. 实验流体力学,2016,30(6): 76-80. doi: 10.11729/syltlx20160078YAN Yu,YU Li,LÜ Binbin,et al. Research on flutter test technique in supersonic wind tunnel[J]. Journal of Experiments in Fluids Mechanics,2016,30(6): 76-80. (in Chinese) doi: 10.11729/syltlx20160078 [13] 周波,涂清,高川. 超声速风洞模型插入机构控制系统设计[J]. 测控技术,2019,38(12): 122-125. doi: 10.19708/j.ckjs.2019.12.021ZHOU Bo,TU Qing,GAO Chuan. Design of model insertion mechanism control system in supersonic wind tunnel[J]. Measurement and Control Technology,2019,38(12): 122-125. (in Chinese) doi: 10.19708/j.ckjs.2019.12.021 [14] 王永寿,陈延辉. 超声速风洞的启动特性与流路形状的影响[J]. 飞航导弹,2012(7): 87-92. doi: 10.16338/j.issn.1009-1319.2012.07.008WANG Yongshou,CHEN Yanhui. Supersonic wind tunnel starting characteristics and influence of flow channel shape[J]. Winged Missiles Journal,2012(7): 87-92. (in Chinese) doi: 10.16338/j.issn.1009-1319.2012.07.008 [15] 刘秉斌,王杰,邱荣凯,等. 某超声速风洞投放试验段投放机构设计与研究[J]. 机械工程师,2019(5): 51-53. doi: 10.3969/j.issn.1002-2333.2019.05.017LIU Bingbin,WANG Jie,QIU Rongkai,et al. Design and research of a lauching mechanism for a supersonic wind tunnel[J]. Mechanical Engineer,2019(5): 51-53. (in Chinese) doi: 10.3969/j.issn.1002-2333.2019.05.017 [16] 李增军, 吴勇航, 刘常青, 等. 一种风洞超声速起动与关车模型抑振装置: ZL201820786433.8[P]. 2018-11-23. [17] 范洁川. 风洞试验手册[M]. 北京: 航空工业出版社, 2002. [18] 刘宏新, 王登宇. CATIA 有限元工程结构分析[M]. 北京: 机械工业出版社, 2020. [19] 宋戈,李剑锋,孙杰,等. AF1410超高强度钢硬质合金加工刀具的磨损机理[J]. 粉末冶金材料科学与工程,2020,15(6): 567-573.SONG Ge,LI Jianfeng,SUN Jie,et al. Wear mechanism in cutting AF1410 ultrahigh strength steel with cemented carbide tool[J]. Materials Science and Engineering of Power Metallurgy,2020,15(6): 567-573. (in Chinese) [20] 张强,李正丽,葛俊佐. 低压伺服驱动器设计及其在移动通信系统上的应用[J]. 兵工自动化,2019,38(1): 30-37.ZHANG Qiang,LI Zhengli,GE Junzuo. Low voltage servo drive design and its application on COTM[J]. Ordnance Industry Automation,2019,38(1): 30-37. (in Chinese) [21] 恽起麟. 实验空气动力学[M]. 北京: 国防工业出版社, 1991. -
