Wear performance of geometric parameters of V-shape pocket of cylindrical roller bearing
-
摘要:
为研究高速轻载工况下兜孔形面几何参数对V形兜孔圆柱滚子轴承保持架磨损性能的影响，建立了考虑兜孔处润滑影响的轴承动力学模型。以基于Masjedi磨损模型的时间平均磨损率作为磨损性能的评价标准，研究了兜孔形面几何参数对V形兜孔保持架磨损性能的影响规律，分析了在不同转速下兜孔壁倾角均为15°的V形兜孔保持架的磨损性能及打滑特性。结果表明：兜孔形面几何参数对保持架的磨损性能影响显著，通过对其优化可有效提升保持架的磨损性能；保持架的时间平均磨损率随内圈转速的增加而上升；在内圈转速的范围为5000～20000 r/min时，兜孔壁倾角均为15°的V形兜孔保持架的时间平均磨损率和打滑率均低于普通直兜孔轴承。
Abstract:To study the influence of geometrical parameters of pocket on the wear performance of V-shaped pocket cage of cylindrical roller bearing under high rotational speed and light load conditions, a bearing dynamic model considering the influence of lubrication at pocket was established. Based on the time-averaged wear rate of Masjedi wear model, the influence of geometric parameters of pocket on the wear performance of V-shaped pocket cage was studied. In addition, the wear and slip performances of V-shaped pocket cage with 15° inclination angle at different rotational speeds were analyzed. The results showed that the geometrical parameters of the pocket had remarkable effect on the wear performance of the cage, and the wear performance of the cage can be effectively raised by optimizing the geometrical parameters of the pocket. The time-averaged wear rate of cage increased with the inner ring rotational speed. When the inner ring rotational speed ranged from 5000 r/min to 20000 r/min, the time-averaged wear rate and slip rate of V-shaped pocket cage with 15° inclination angle were lower than those of ordinary straight pocket bearings.
-
Key words:
- cylindrical roller bearing /
- cage /
- V-shape pocket /
- dynamics model /
- wear performance
-

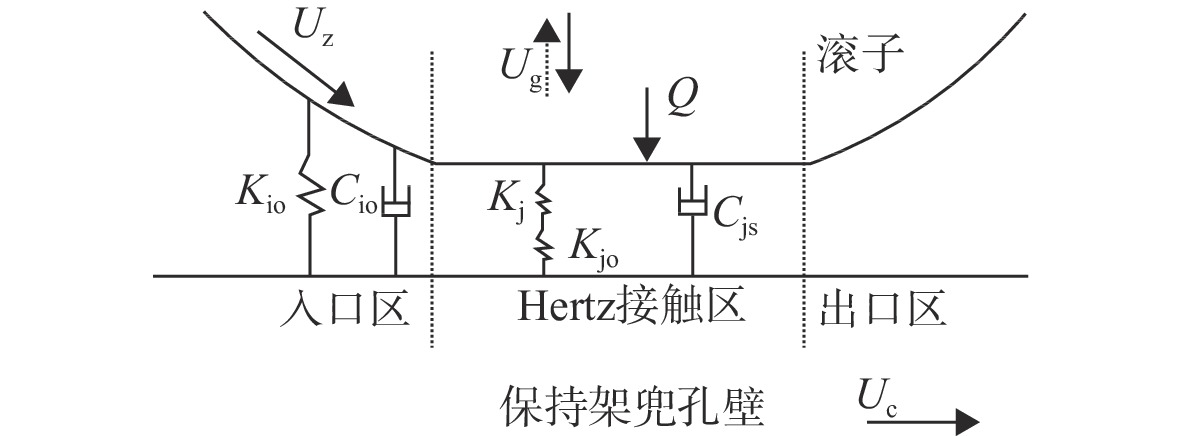

图 3 滚子与兜孔的接触刚度、阻尼及其接触区
Figure 3. Contact stiffness，damping and area of roller and pocket

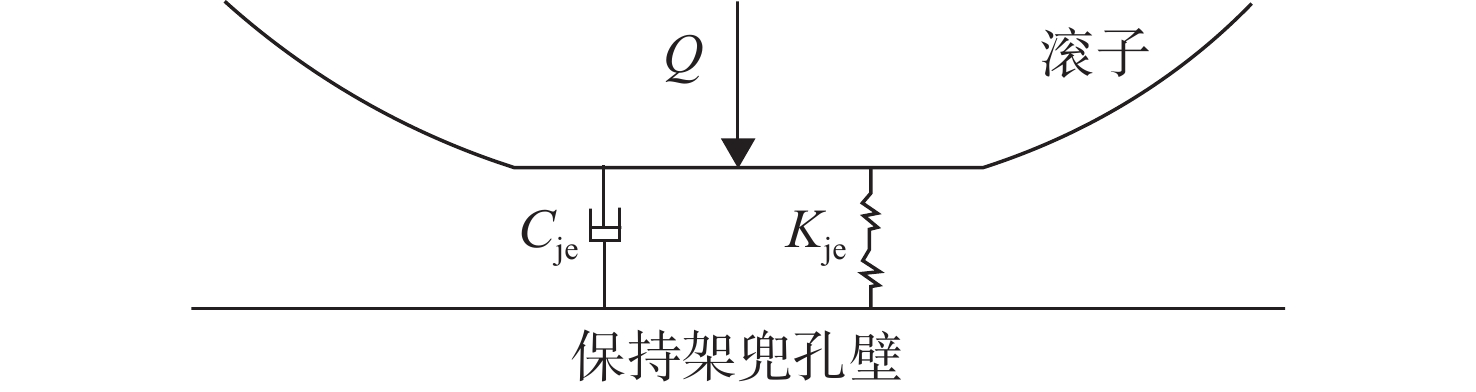

图 4 滚子与兜孔的等效接触刚度和阻尼
Figure 4. Equivalent contact stiffness and damping of the roller and pocket

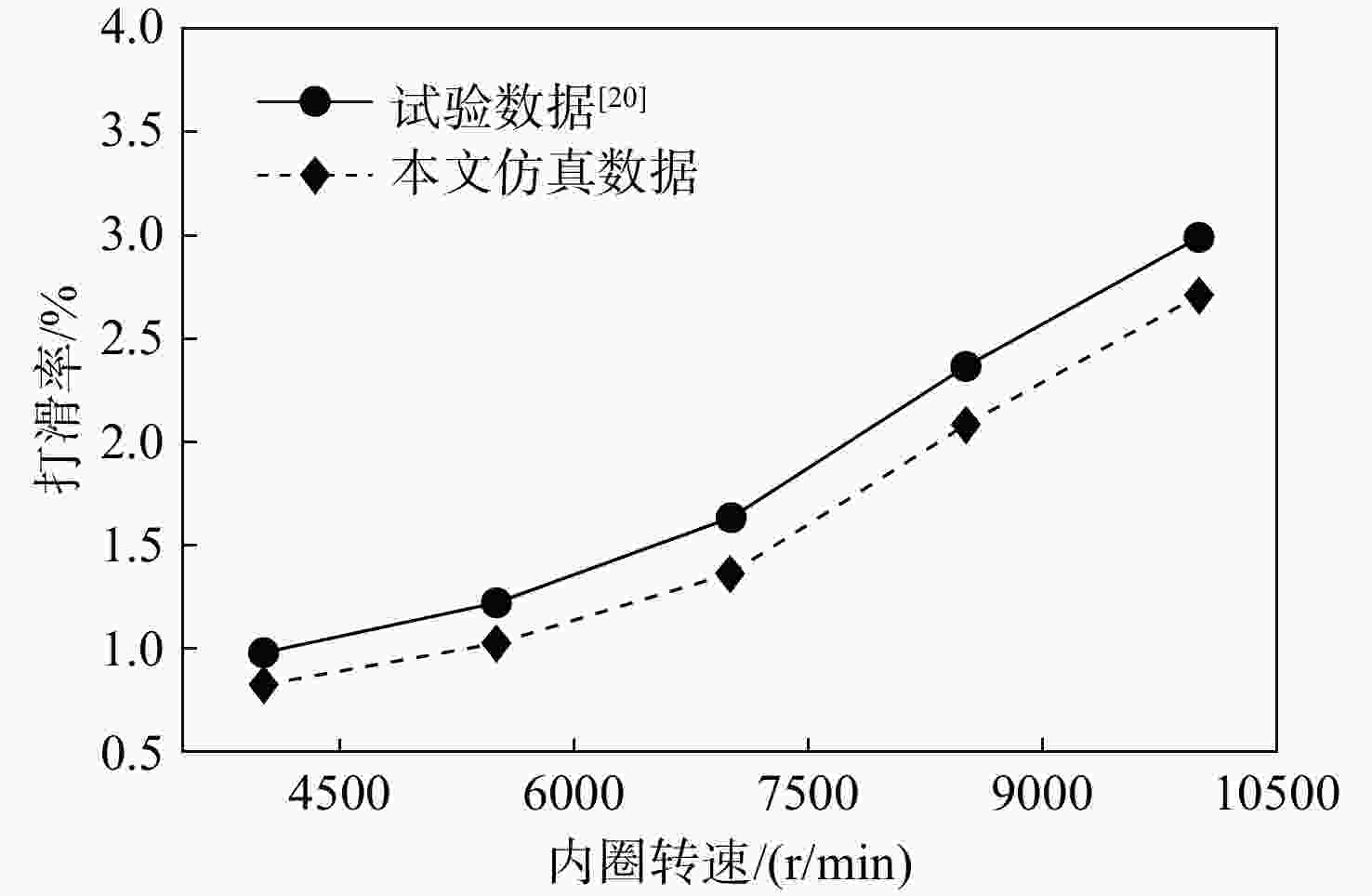

图 5 保持架打滑率在不同内圈转速下的变化曲线（径向载荷为2100 N）
Figure 5. Variation curves of cage slip rate under different inner ring rotational speeds （radial load is 2100 N ）

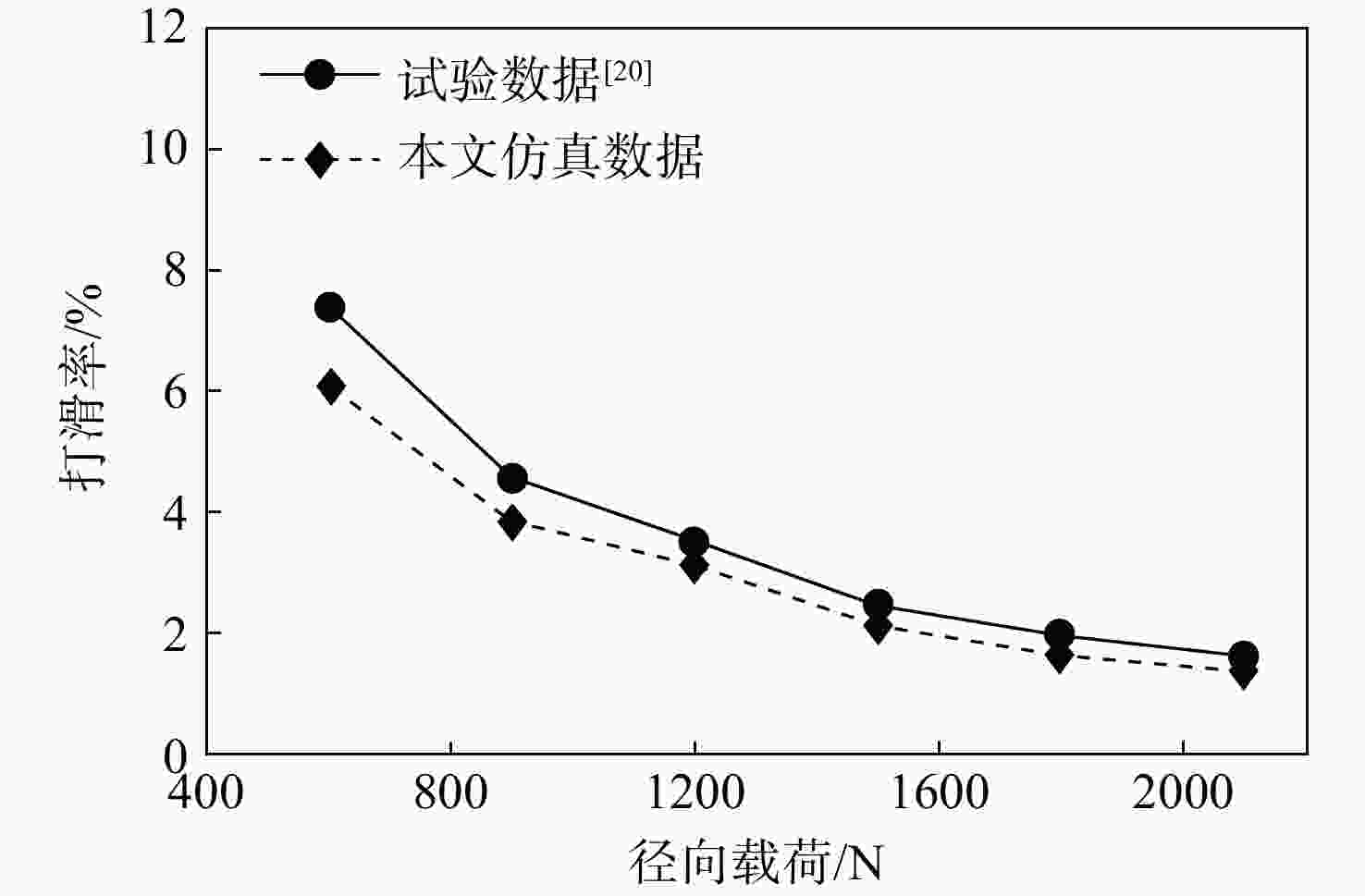

图 6 保持架打滑率在不同径向载荷下的变化曲线（内圈转速为7000 r/min）
Figure 6. Variation curves of cage slip rate under different radial loads （inner ring rotational speed is 7000 r/min）

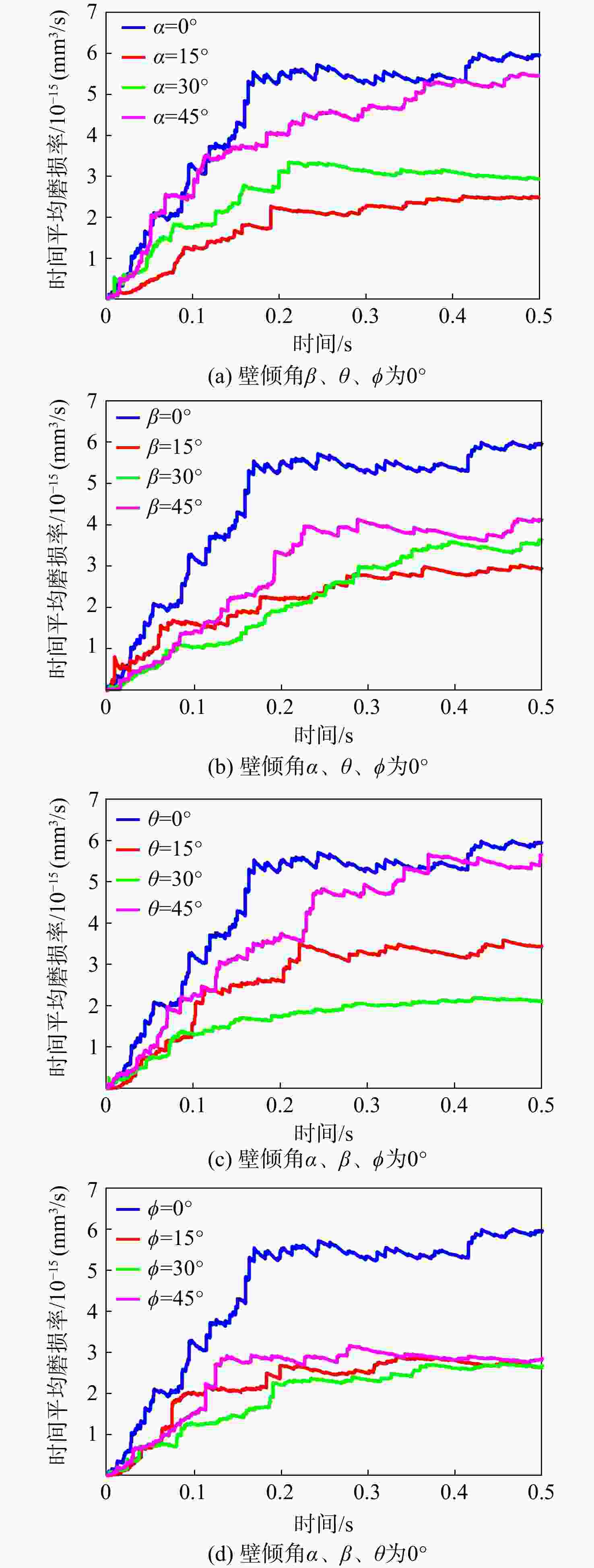

图 7 各个壁倾角取不同值时的时间平均磨损率
Figure 7. Time-averaged wear rate with variousinclination angles

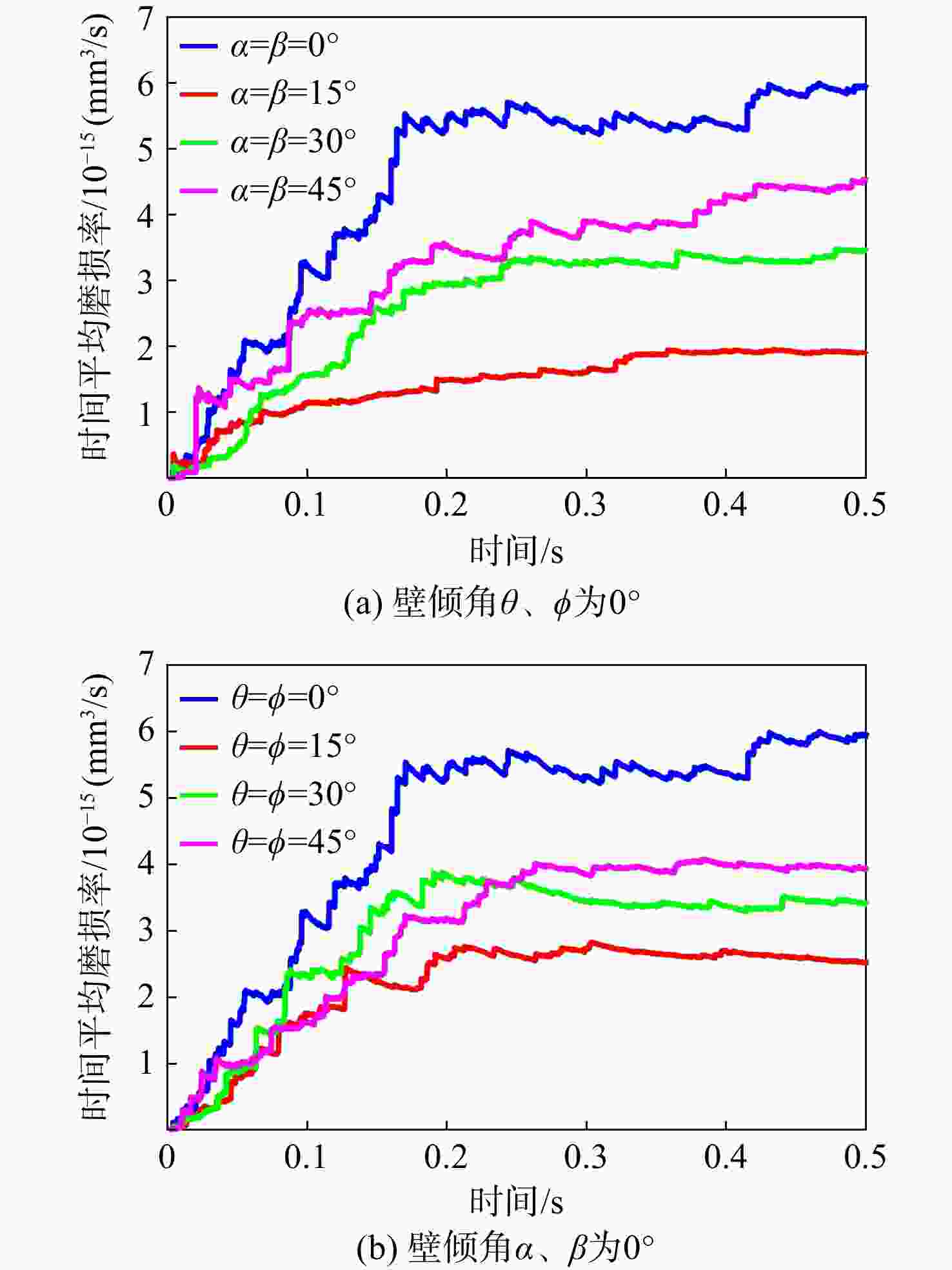

图 8 周向上两个壁倾角取不同值时的时间平均磨损率
Figure 8. Time-averaged wear rate of the two various inclination angles in circumferential direction

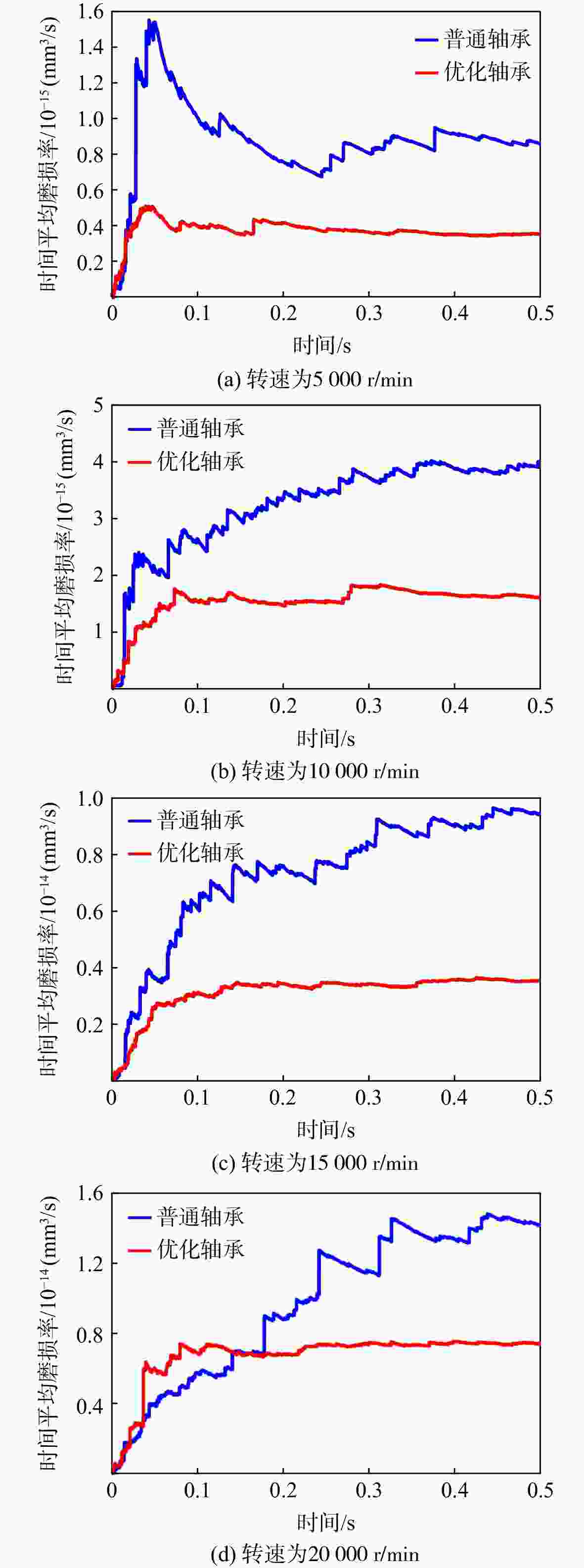

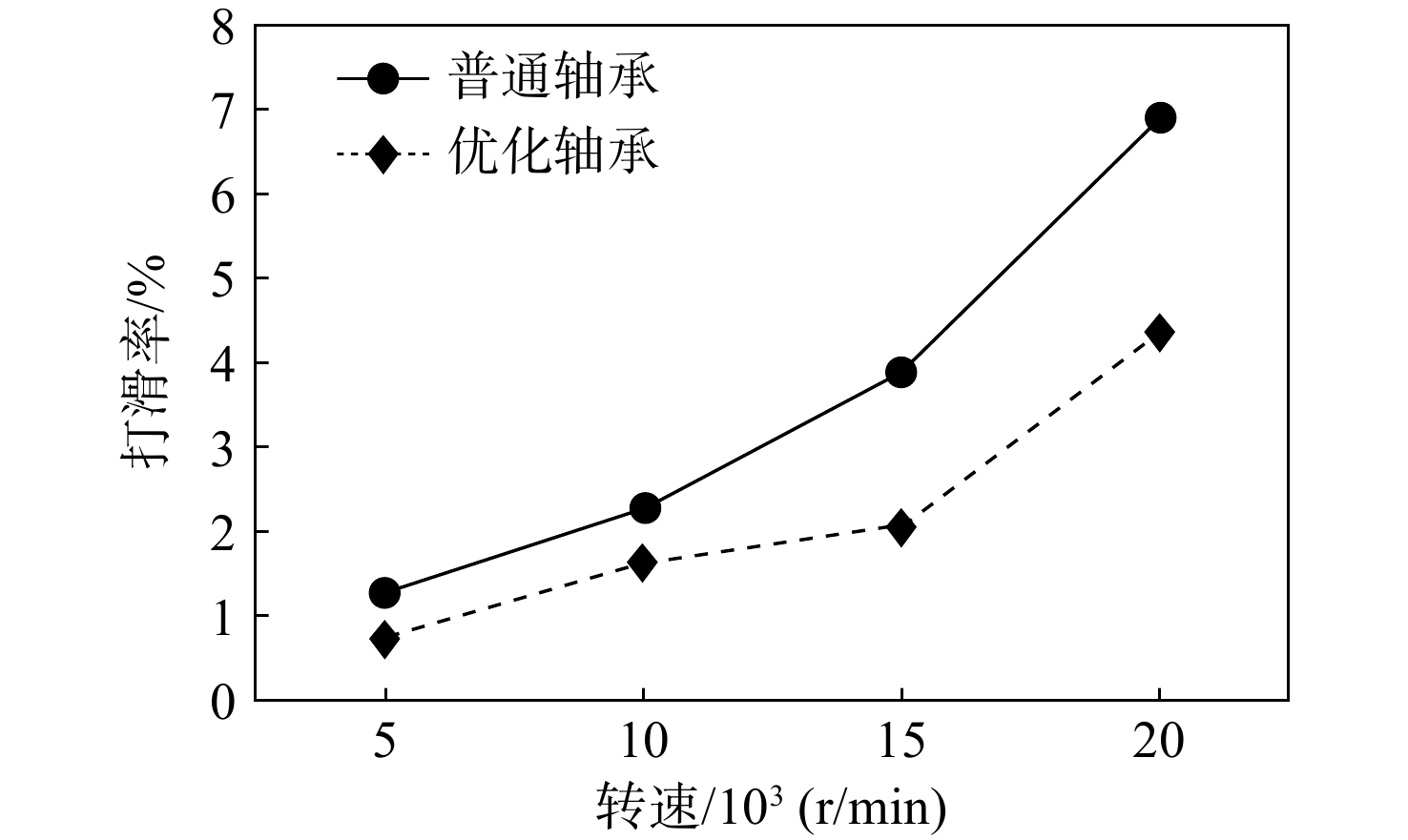

图 10 保持架打滑率在不同内圈转速下的变化曲线
Figure 10. Variation curves of cage slip rate under various inner ring rotational speeds
表 1 轴承结构参数
Table 1. Geometric parameters of bearing
参数 数值 轴承内径/mm 100 轴承外径/mm 140 轴承宽度/mm 20 滚子数量 26 滚子直径/mm 10 滚子宽度/mm 7 保持架内径/mm 114.46 保持架外径/mm 124.46
下载: 导出CSV
表 2 轴承材料特性参数
Table 2. Material performance parameters of bearing
元件 密度/
10−6 （kg/mm3）弹性模量/
105 （N/mm2）泊松比 内圈 7.801 2.07 0.290 外圈 7.801 2.07 0.290 滚子 7.801 2.07 0.290 保持架 8.545 1.06 0.324
下载: 导出CSV
表 3 4050航空润滑油参数
Table 3. Parameters of 4050 aviation lubricating oil
参数 数值 常温密度/10−6 （kg/mm3） 0.970 动力黏度/（Pa·s） 0.055 导热系数/（N/（m·K）） 0.0966 黏压系数/10−8 Pa−1 2.02
下载: 导出CSV
-
[1] 李鸿亮,郑艳伟,谷运龙,等. 300万DN值圆柱滚子轴承优化设计与试验[J]. 航空动力学报,2020,35(6): 1195-1203. doi: 10.13224/j.cnki.jasp.2020.06.009LI Hongliang,ZHENG Yanwei,GU Yunlong,et al. Optimization design and experiment for cylindrical roller bearings to 3 million DN[J]. Journal of Aerospace Power,2020,35(6): 1195-1203. (in Chinese) doi: 10.13224/j.cnki.jasp.2020.06.009 [2] 刘鲁,霍帅,郑凯,等. 高DN值滚子轴承保持架断裂分析[J]. 航空动力学报,2020,35(10): 2115-2122. doi: 10.13224/j.cnki.jasp.2020.10.011LIU Lu,HUO Shuai,ZHENG Kai,et al. Analysis of roller bearing cage broken under high DN value[J]. Journal of Aerospace Power,2020,35(10): 2115-2122. (in Chinese) doi: 10.13224/j.cnki.jasp.2020.10.011 [3] 张涛,陈晓阳,顾家铭,等. 高速角接触球轴承保持架不稳定运动机理分析[J]. 振动与冲击,2019,38(10): 233-241. doi: 10.13465/j.cnki.jvs.2019.10.035ZHANG Tao,CHEN Xiaoyang,GU Jiaming,et al. Analysis on the unstable movement mechanism of high-speed angular contact ball bearing cages[J]. Journal of Vibration and Shock,2019,38(10): 233-241. (in Chinese) doi: 10.13465/j.cnki.jvs.2019.10.035 [4] 杨晓蔚. 滚动轴承产品技术发展的现状与方向[J]. 轴承,2020(8): 65-70. doi: 10.19533/j.issn1000-3762.2020.08.015YANG Xiaowei. Current situation and direction fortechnology development of rolling bearing products[J]. Bearing,2020(8): 65-70. (in Chinese) doi: 10.19533/j.issn1000-3762.2020.08.015 [5] QIAN Weihua.Dynamic simulation of cylindrical roller bearings[D]. Aachen,Germany:RWTH Aachen University,2014. [6] LIU Y,ZHANG Z. Skidding research of a high-speed cylindrical roller bearing with beveled cage pockets[J]. Industrial Lubrication and Tribology,2020,72(7): 969-976. doi: 10.1108/ILT-10-2019-0414 [7] SATHYAN K,GOPINATH K,LEE S H,et al. Bearing retainer designs and retainer instability failures in spacecraft moving mechanical systems[J]. Tribology Transactions,2012,55(4): 503-511. doi: 10.1080/10402004.2012.675118 [8] 袁倩倩,朱永生,张进华,等. 考虑润滑碰撞的精密轴承保持架动态特性[J]. 西安交通大学学报,2021,55(1): 110-117. doi: 10.7652/xjtuxb202101014YUAN Qianqian,ZHU Yongsheng,ZHANG Jinhua,et al. Cage dynamic characteristic of precision rolling ball bearings considering lubrication collision[J]. Journal of Xi’an Jiaotong University,2021,55(1): 110-117. (in Chinese) doi: 10.7652/xjtuxb202101014 [9] DAHIWAL R,THIELEN S,SAUER B. Modeling and simulation of cage wear in solid-lubricated rolling bearings[J]. Tribology Online,2020,15(1): 25-35. doi: 10.2474/trol.15.25 [10] 刘延斌,邱明,张占立. 圆弧兜孔圆柱滚子轴承的动态不稳定规律特性研究[J]. 振动与冲击,2019,38(5): 53-59. doi: 10.13465/j.cnki.jvs.2019.05.008LIU Yanbin,QIU Ming,ZHANG Zhanli. Dynamic unstable law characteristics of cylindrical roller bearings with arc cage pocket[J]. Journal of Vibration and Shock,2019,38(5): 53-59. (in Chinese) doi: 10.13465/j.cnki.jvs.2019.05.008 [11] 刘延斌,张占立,刘红彬. 斜面兜孔圆柱滚子轴承的高速防打滑特性[J]. 航空动力学报,2020,35(1): 162-168. doi: 10.13224/j.cnki.jasp.2020.01.019LIU Yanbin,ZHANG Zhanli,LIU Hongbin. High-speed skidding suppression characteristics of cylindrical roller bearing with beveled cage pocket[J]. Journal of Aerospace Power,2020,35(1): 162-168. (in Chinese) doi: 10.13224/j.cnki.jasp.2020.01.019 [12] 温保岗,韩清凯,乔留春,等. 保持架间隙对角接触球轴承保持架磨损的影响研究[J]. 振动与冲击,2018,37(23): 9-14. doi: 10.13465/j.cnki.jvs.2018.23.002WEN Baogang,HAN Qingkai,QIAO Liuchun,et al. Effects of cage clearance on its wear in an angular contact ball bearing[J]. Journal of Vibration and Shock,2018,37(23): 9-14. (in Chinese) doi: 10.13465/j.cnki.jvs.2018.23.002 [13] 张乐宇,肖曙红,李琦. 角接触球轴承保持架兜孔形状对其稳定性的影响[J]. 润滑与密封,2017,42(6): 40-46. doi: 10.3969/j.issn.0254-0150.2017.06.009ZHANG Leyu,XIAO Shuhong,LI Qi. Effect of cage pocket hole shape on stability of angular contact ball bearing[J]. Lubrication Engineering,2017,42(6): 40-46. (in Chinese) doi: 10.3969/j.issn.0254-0150.2017.06.009 [14] 叶振环,李伟,曲祥君,等. 椭圆兜孔对高速球轴承保持架动态性能的影响分析[J]. 机械设计与制造,2016(6): 184-187. doi: 10.3969/j.issn.1001-3997.2016.06.049YE Zhenhuan,LI Wei,QU Xiangjun,et al. Effect of elliptical pocket on cage dynamic performance of high speed ball bearings[J]. Machinery Design and Manufacture,2016(6): 184-187. (in Chinese) doi: 10.3969/j.issn.1001-3997.2016.06.049 [15] 刘延斌,邓增辉,桑得雨. V形兜孔圆柱滚子轴承的高速动态性能[J]. 航空学报,2021,42(7): 579-590.LIU Yanbin,DENG Zenghui,SANG Deyu. High-speed dynamic performance of cylindrical roller bearing with V-shape pocket[J]. Acta Aeronautica et Astronautica Sinica,2021,42(7): 579-590. (in Chinese) [16] PALMGREN A. Ball and roller bearing engineering[M]. Philadelphia, US: SKF Industries Inc., 1959. [17] DOWSON D,HIGGINSON G R. Elastohydrodynamic lubrication[M]. London: Pergamon Press, 1977. [18] 温诗铸. 摩擦学原理[M]. 北京: 清华大学出版社, 1990. [19] 陈於学. 基于接触力学的圆柱滚子轴承振动研究[D].武汉: 华中科技大学, 2005.CHEN Yuxue. Research on vibrations of cyclindrical roller bearings based on contact mechanics[D].Wuhan: Huazhong University of Science and Technology, 2005. (in Chinese) [20] 张文虎. 圆柱滚子轴承动力学仿真及半物理试验研究[D]. 西安: 西北工业大学, 2017.ZHANG Wenhu. Study on the dynamics simulation and semi-physical experiment of cylindrical roller bearing[D]. Xi’an: Northwestern Polytechnical University, 2017. (in Chinese) [21] ARCHARD J F. Contact and rubbing of flat surfaces[J]. Journal of Applied Physics,1953,24(8): 981-988. doi: 10.1063/1.1721448 [22] GUPTA P K. Dynamicloads and cage wear in high-speed rolling bearings[J]. Wear,1991,147(1): 119-134. doi: 10.1016/0043-1648(91)90123-C [23] MASJEDI M,KHONSARI M M. An engineering approach for rapid evaluation of traction coefficient and wear in mixed EHL[J]. Tribology International,2015,92: 184-190. doi: 10.1016/j.triboint.2015.05.013 -
