Design and analysis of damping bearing with elastic waved ring
-
摘要:

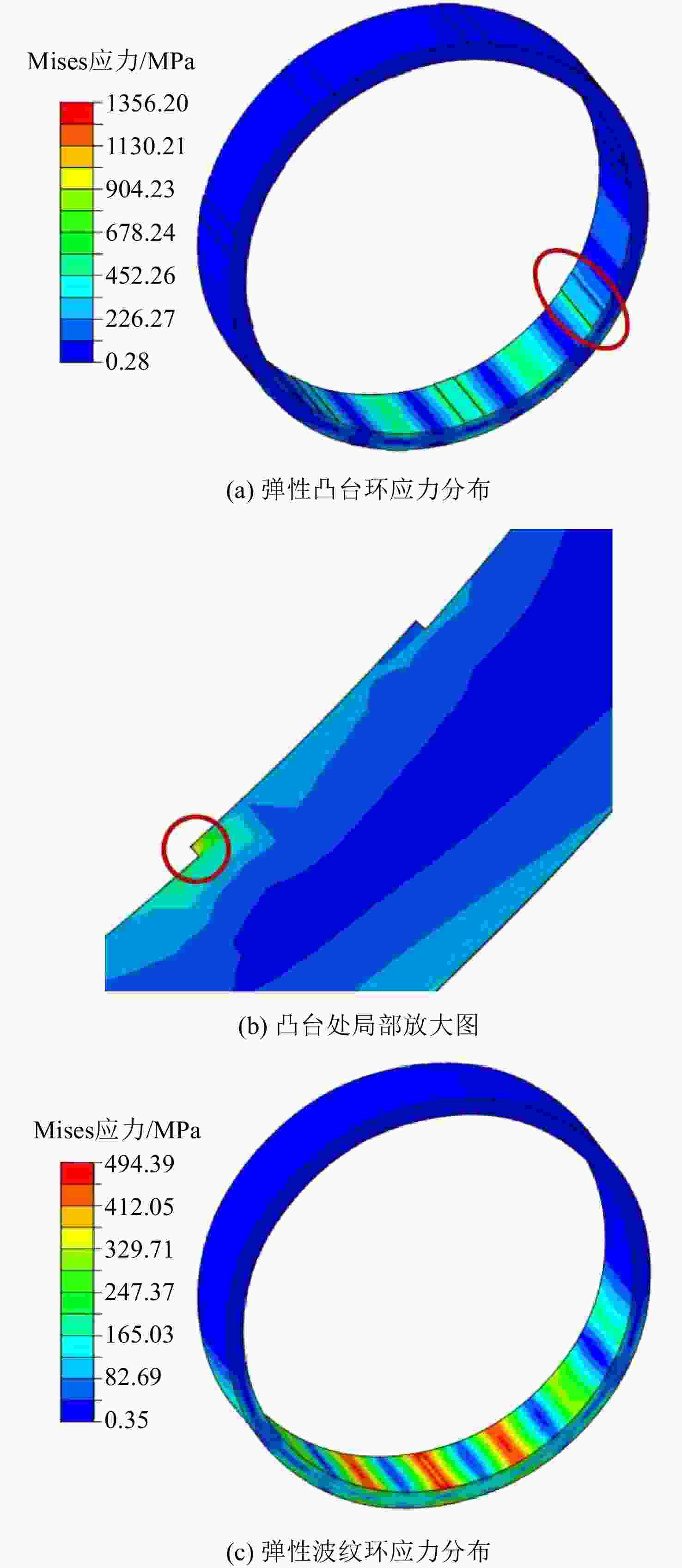

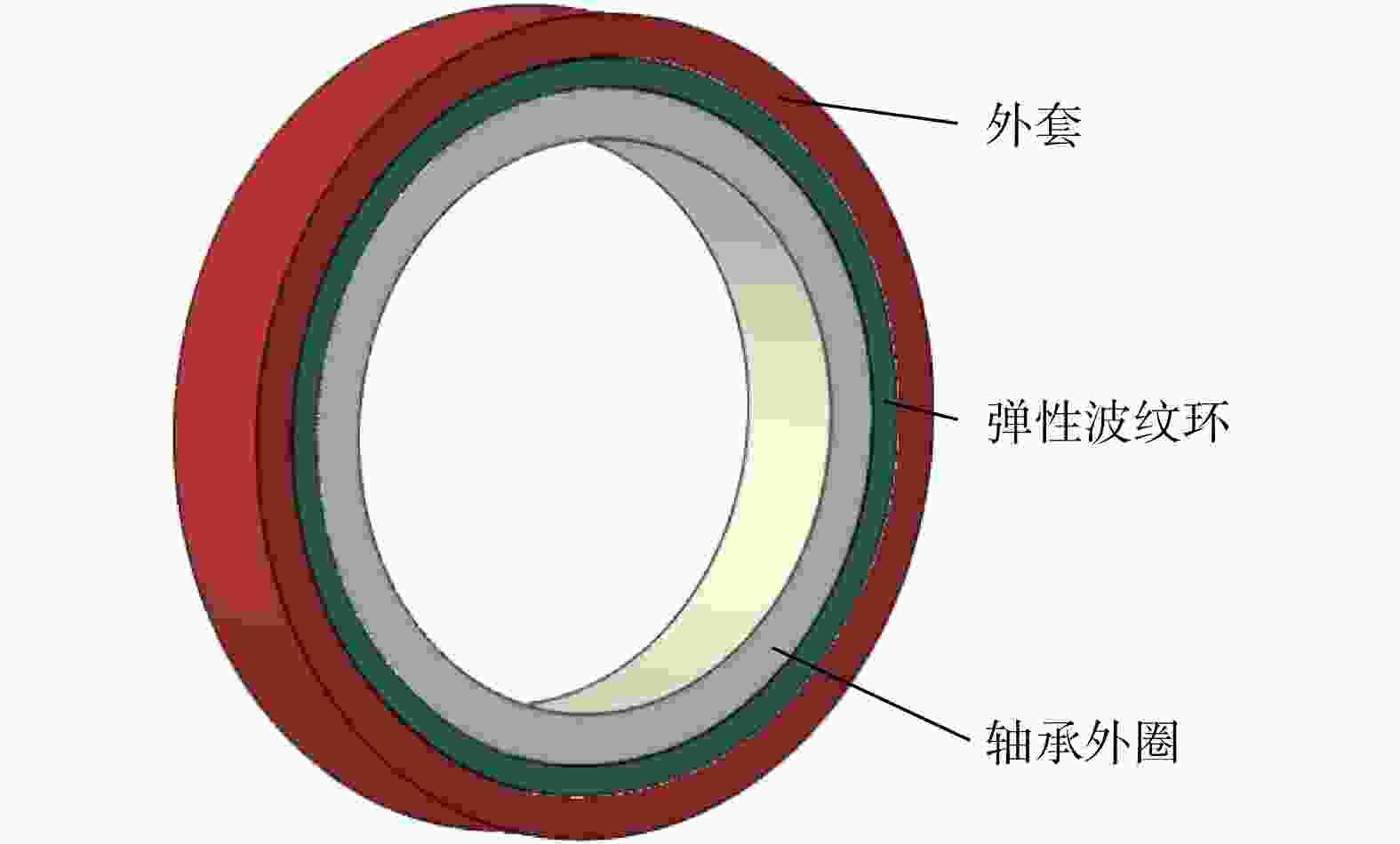

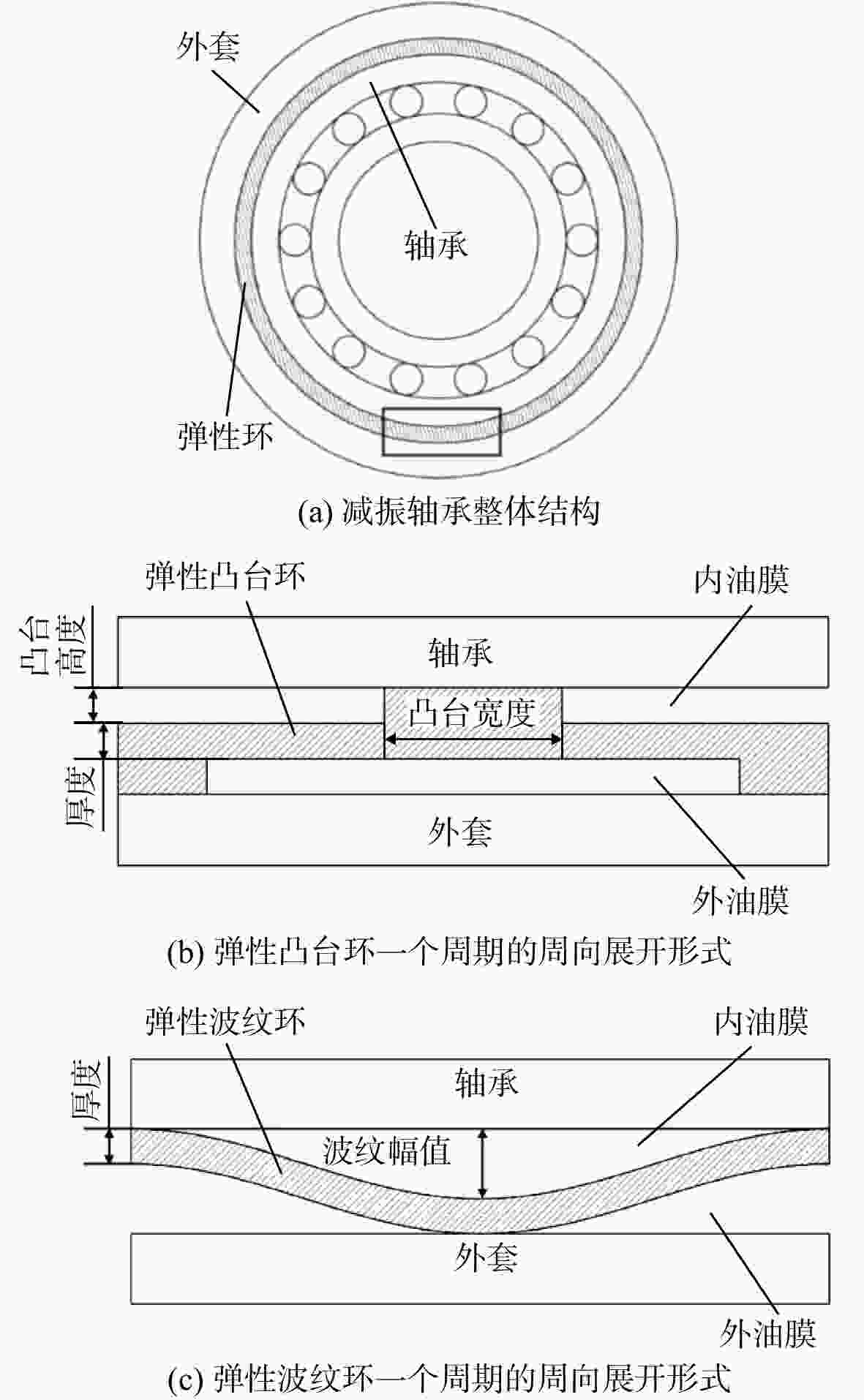

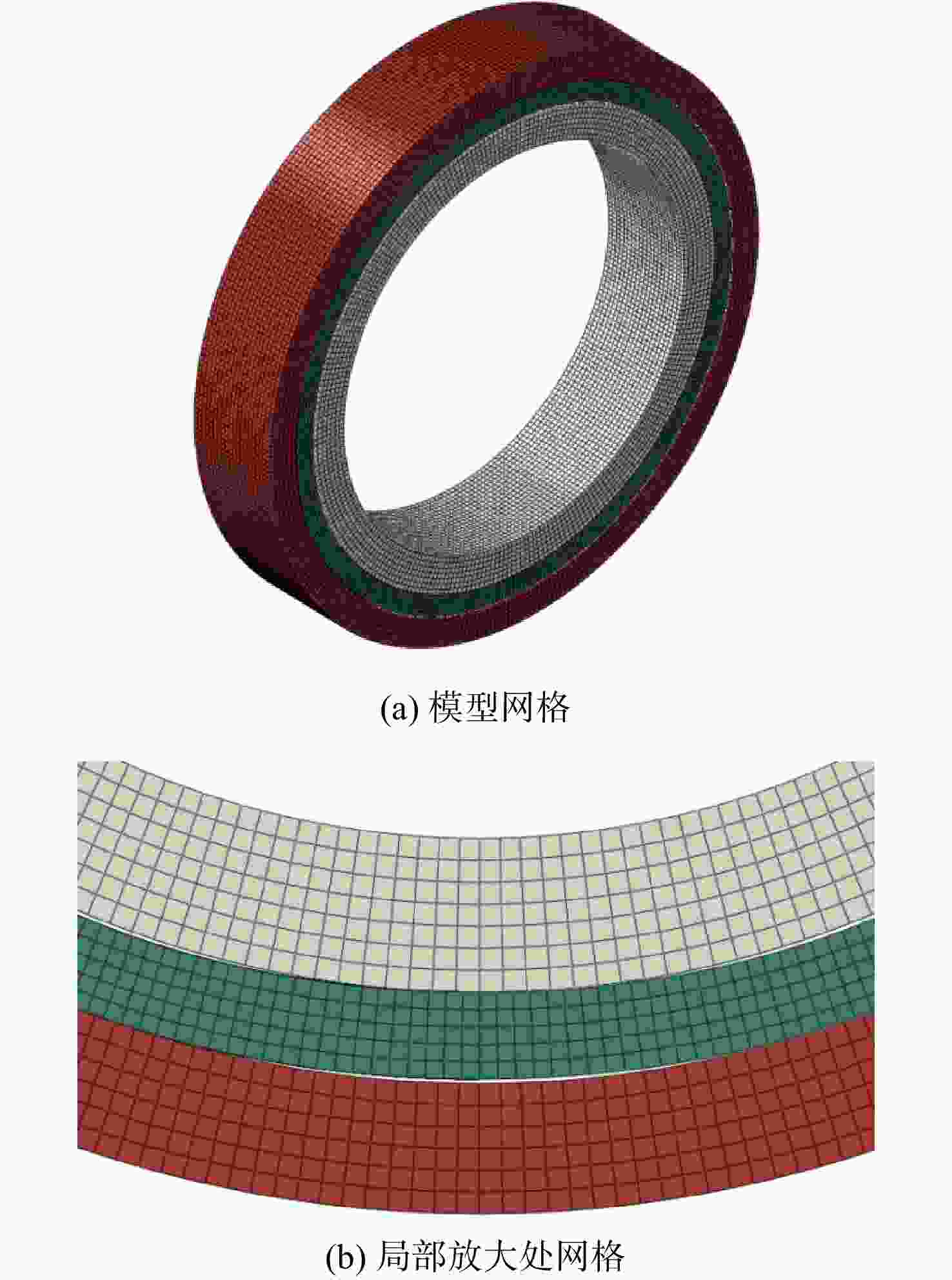

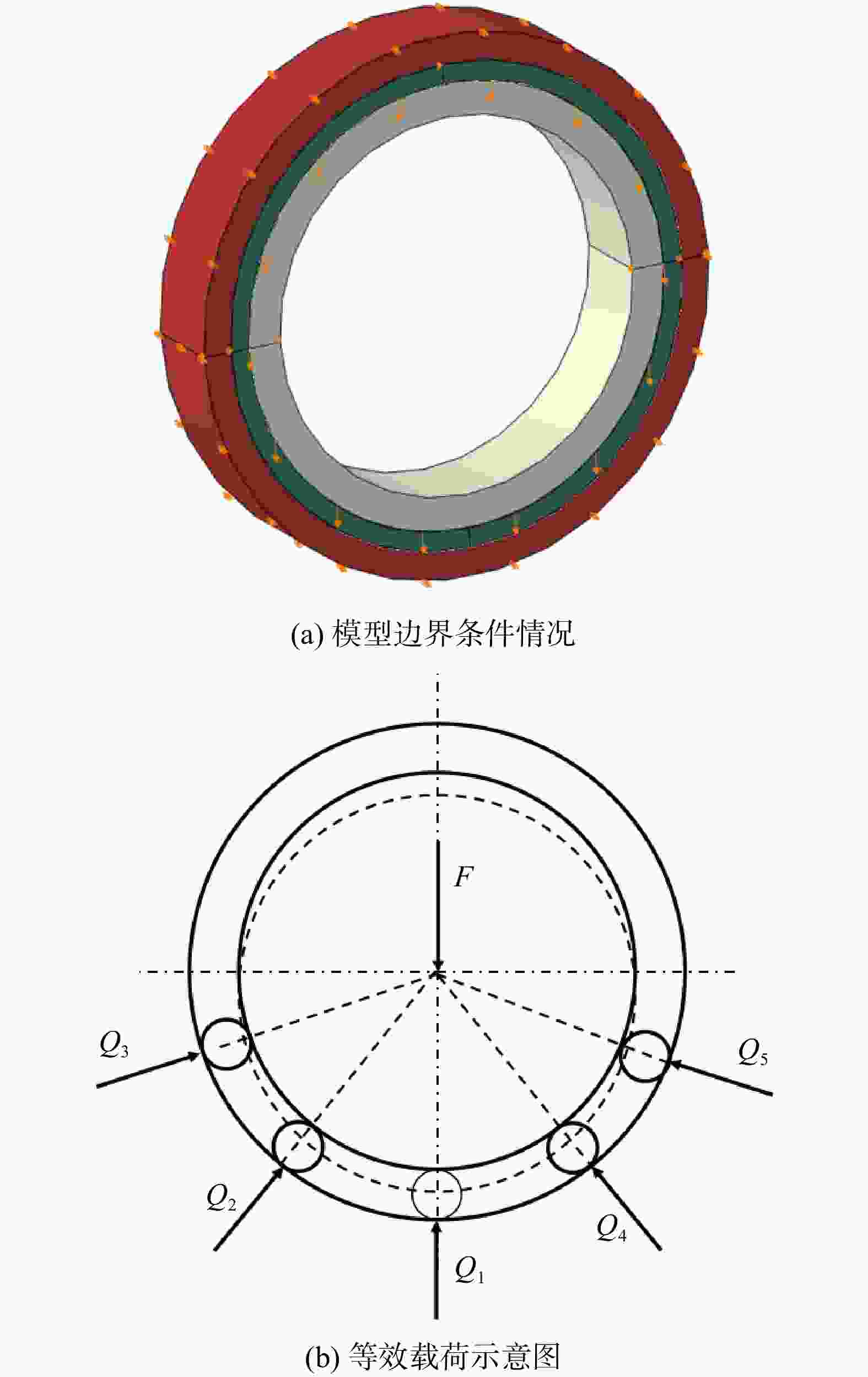

设计了一种圆周周向呈现正弦波纹状的弹性圆环轴承阻尼器，与滚动轴承耦合到一起，实现轴承减振吸能功能。建立了弹性波纹环减振轴承的力学模型，利用有限元方法对该减振轴承进行力学性能分析，研究了弹性波纹环几何参数对其应力分布和径向压缩刚度的影响以及弹性波纹环的减振吸能效果。结果表明：与弹性凸台环比较，弹性波纹环的应力分布有了很大改善，在给定工况下，最大Mises应力从1 356 MPa降低到464 MPa，应力减小了64%，消除了应力集中现象；弹性波纹环的厚度、波纹周期数和弹性环直径对弹性环的应力和刚度影响显著。弹性波纹环的引入大幅度降低了轴承在振动冲击时受到的冲击力。

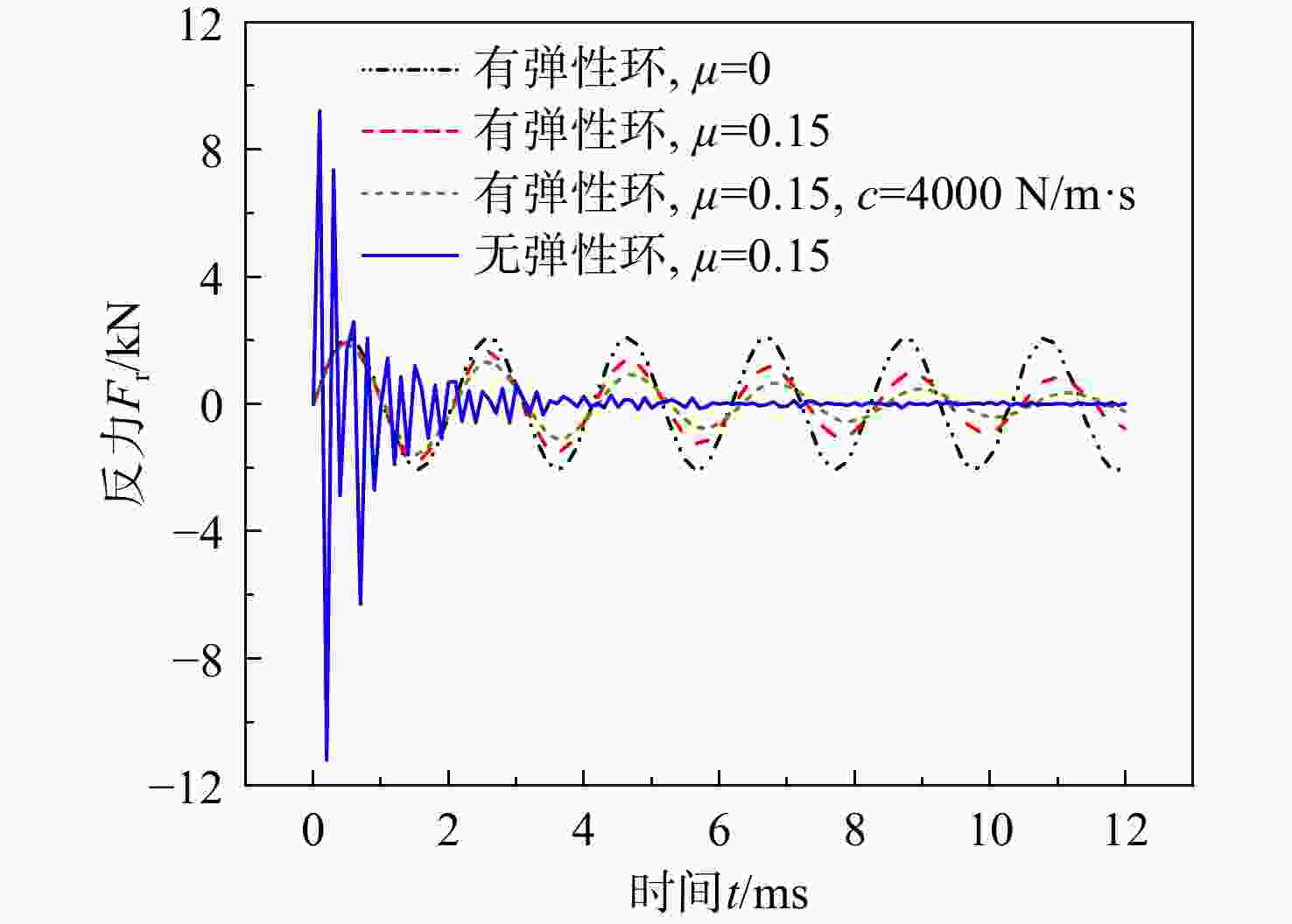

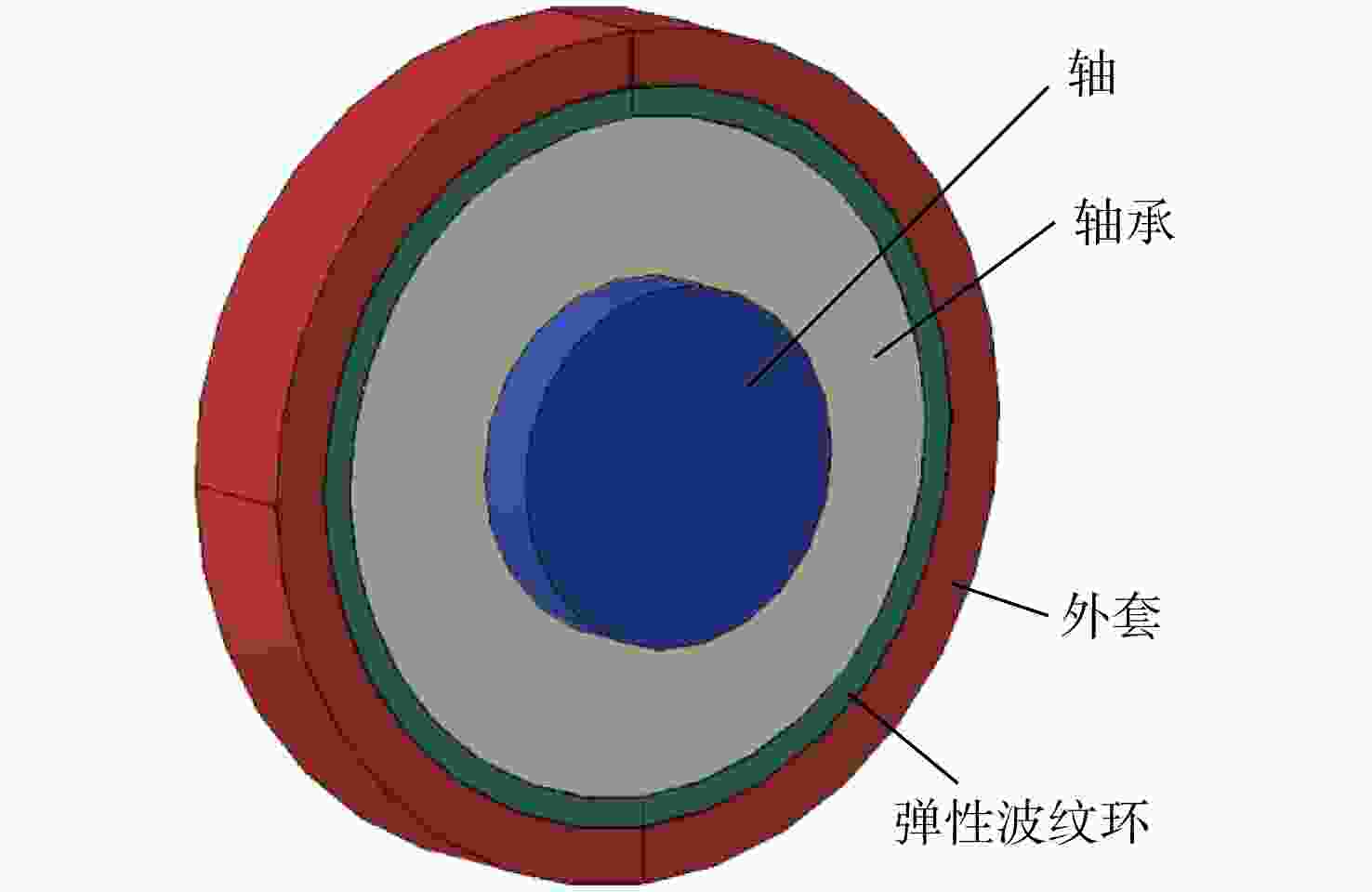

Abstract:An elastic ring bearing damper with sinusoidal corrugated shape was designed, and also coupled with rolling bearing to realize the function of vibration absorption and energy absorption. The mechanical model of elastic waved ring damping bearing was established, and damping bearing was analyzed by finite element method. Influences of geometric parameters of elastic waved ring on the stress distribution, radial compression stiffness, vibration reduction, and energy absorption were studied. Results indicated that stress distribution of elastic waved ring was greatly improved compared with the stepped elastic convex ring. In a given working condition, the maximum Mises stress was decreased by 64% from 1 356 MPa to 464 MP as stress concentration phenomenon was eliminated. Thickness of elastic ring, wave period and diameter of elastic ring all had significant influences on the stress and stiffness. Elastic waved ring also greatly reduced the impact force of the bearing under vibration impact.
-

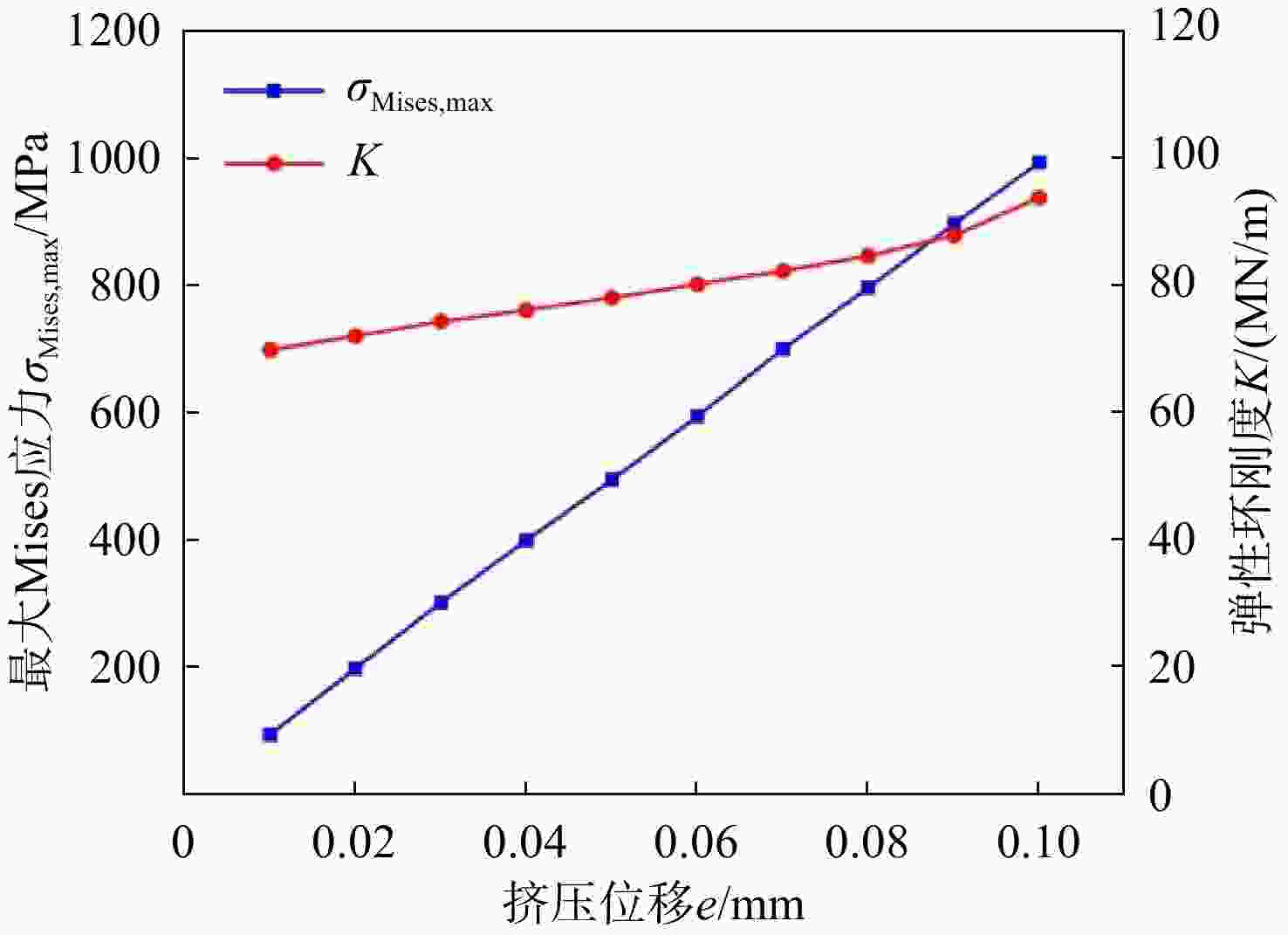

图 6 a=0.1 mm、 n=8、t=2 mm、D=47 mm时弹性环应力和刚度随位移变化曲线
Figure 6. Curve of stress and stiffness of elastic ring with displacement when a=0.1 mm, n=8, t=2 mm, D=47 mm

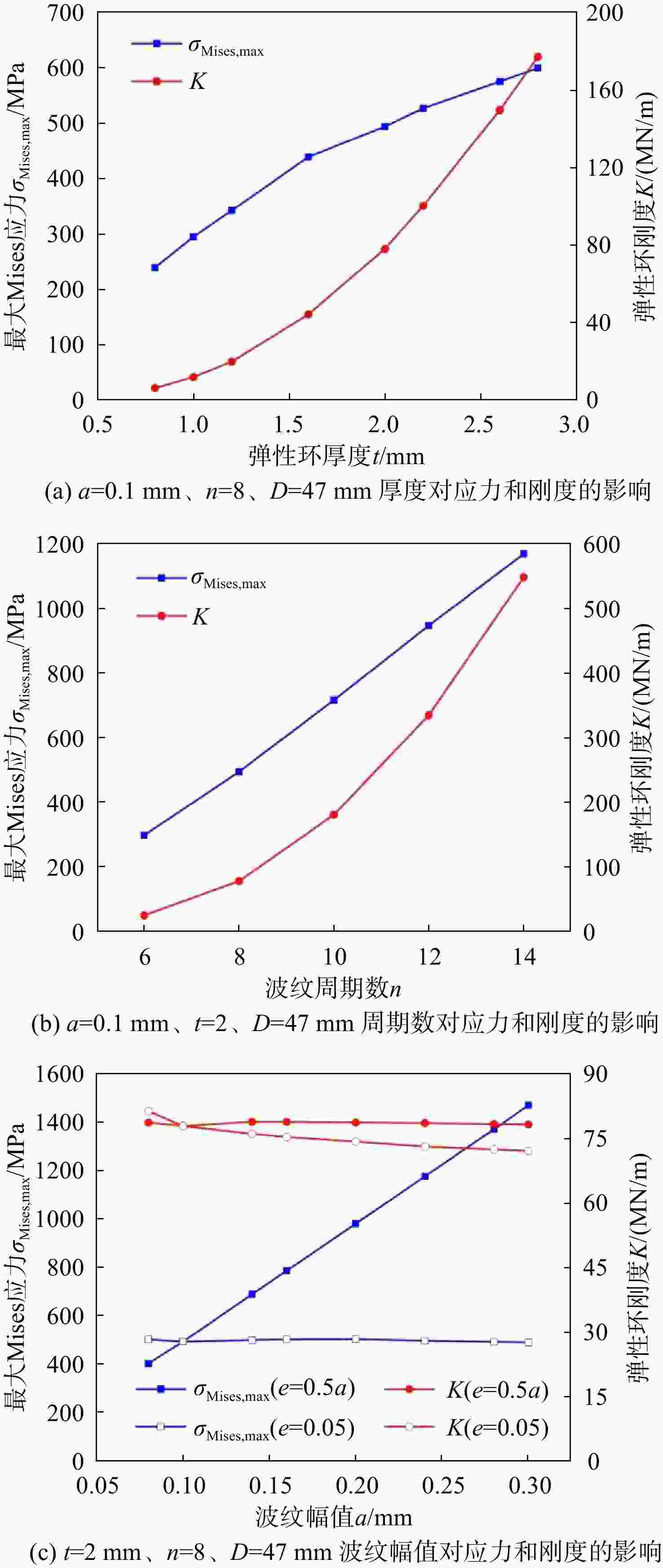

图 7 e=0.05 mm恒定位移时各几何参数对弹性环应力和刚度的影响
Figure 7. Influence of geometric parameters on stress and stiffness of elastic ring at e=0.05 mm constant displacement

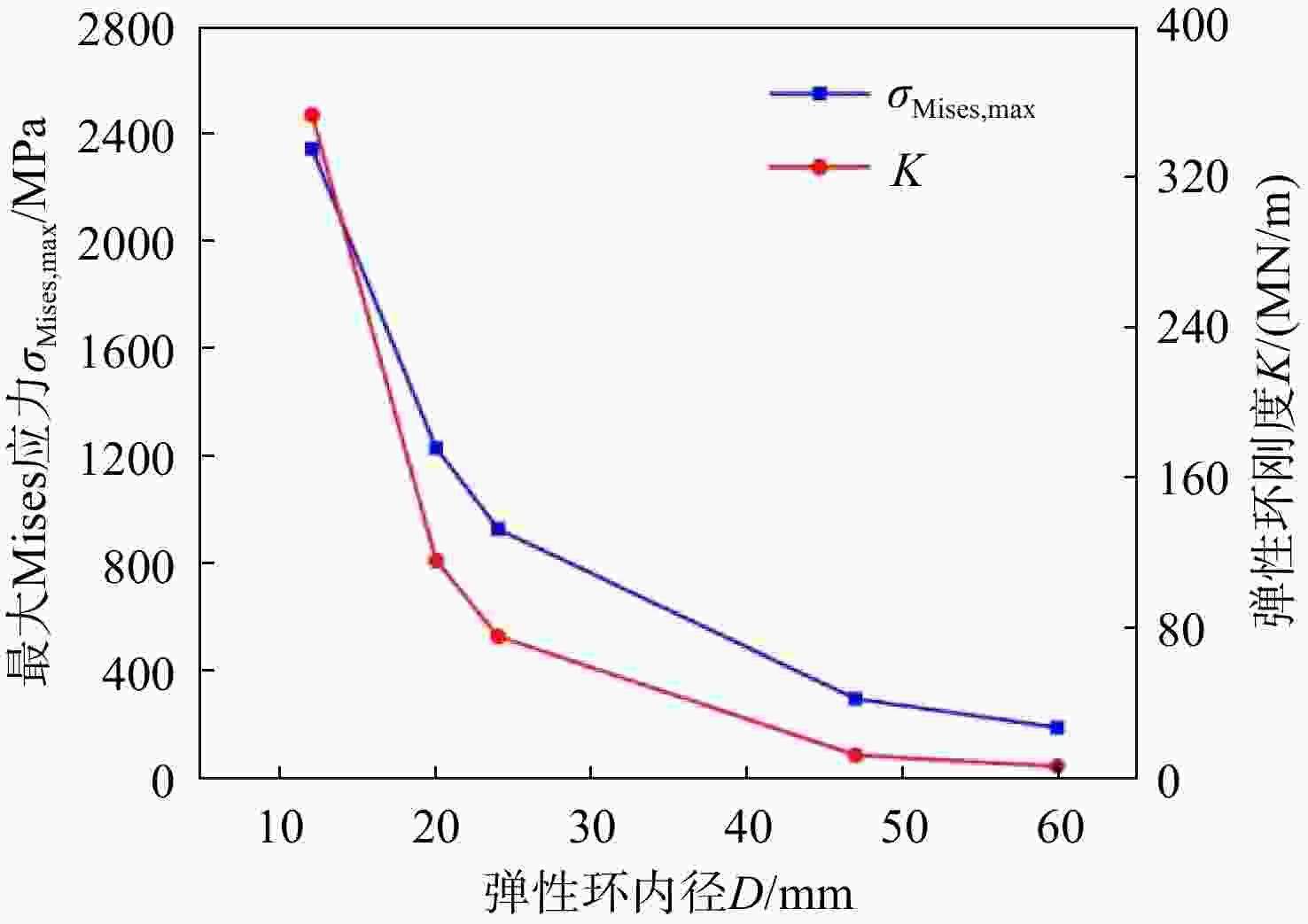

图 8 a=0.1 mm、 t=1 mm、 n=8尺寸下e=0.05mm恒定位移时弹性环内径D对应力和刚度的影响
Figure 8. Influence of inner diameter D of elastic ring on stress and stiffness at e=0.05 mm constant displacement when a=0.1 mm, t=1 mm, n=8

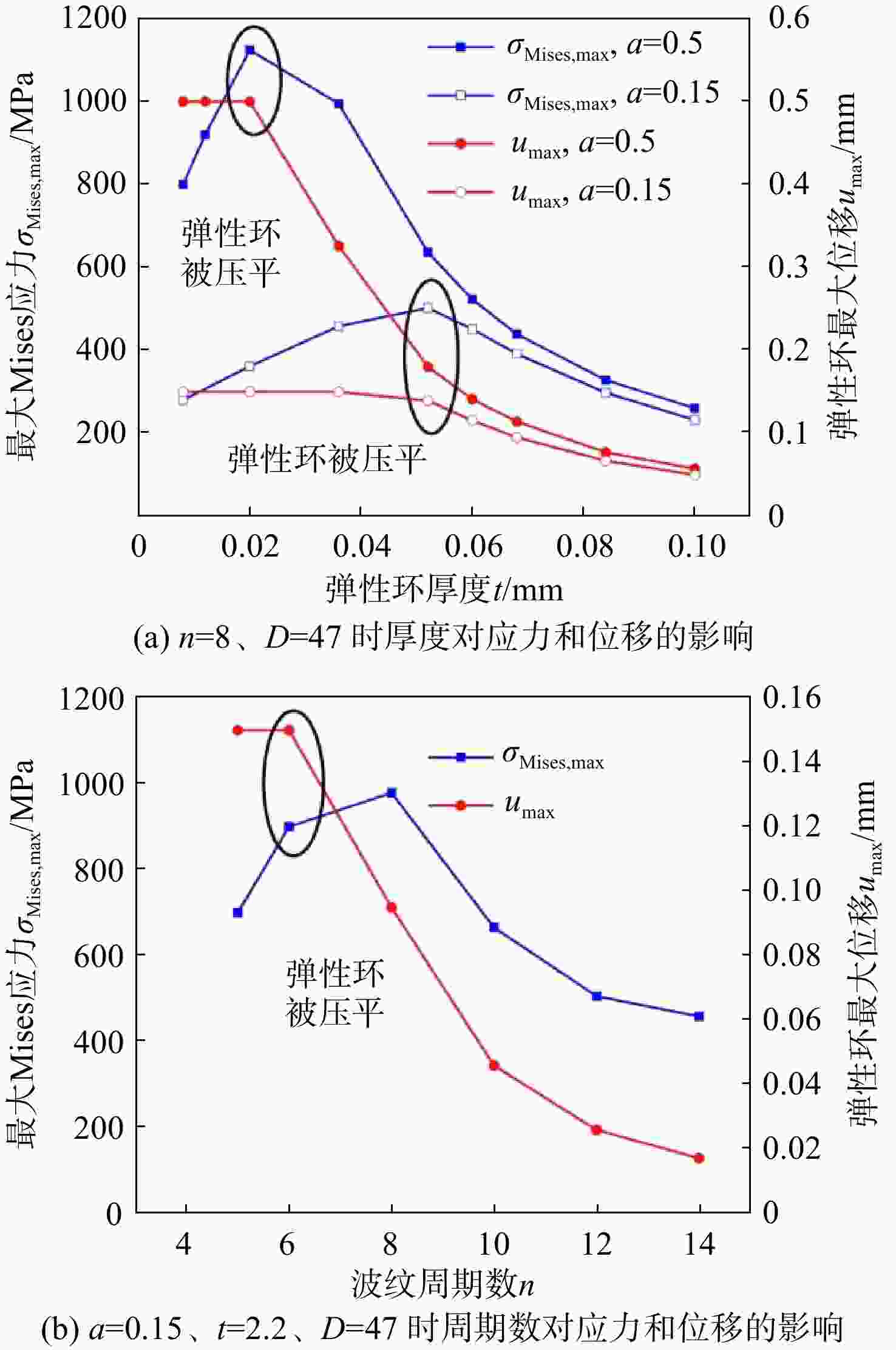

图 9 F=8 000 N恒定力载荷时各几何参数对弹性环应力和位移的影响
Figure 9. Influence of geometric parameters on stress and displacement of elastic ring at constant force load F=8 000 N
表 1 减振轴承几何参数
Table 1. Damping bearing geometric parameters
几何参数 数值 弹性环内径D/mm 47 轴承外圈外径Dw/mm 47 轴承外圈内径Dn/mm 39.9 波纹幅值a/mm 0.1 波纹周期数n 8 弹性环厚度t/mm 2.0 减振轴承宽度B/mm 12 附加外套厚度L/mm 3
下载: 导出CSV
表 2 材料参数
Table 2. Material parameter
参数 60Si2Mn弹簧钢 GCr15轴承钢 弹性模量/GPa 206 208 泊松比 0.3 0.3 密度/（$ \mathrm{k}\mathrm{g}/{\mathrm{m}}^{3} $） 7850 7800 屈服极限/MPa 1497 518
下载: 导出CSV
-
[1] 李伟健,潘存云,王荣吉,等. 滚动轴承减振降噪技术[J]. 轴承,2009,12: 60-64.LI Weijian,PAN Cunyun,WANG Rongji,et al. Vibration and noise reduction technology of rolling bearings[J]. Bearing,2009,12: 60-64. (in Chinese) [2] 刘文涛,张旭,王守仁,等. 保持架组合引导对滚动轴承减振作用研究[J]. 振动与冲击,2020,39(21): 21-33.LIU Wentao,ZHANG Xu,WANG Shouren,et al. Application of cage guided by combined action of outer race and balls in bearing vibration reduction[J]. Journal of Vibration and Shock,2020,39(21): 21-33. (in Chinese) [3] 刘旭辉,孙璐婵,杨光,等. 可控阻尼磁流体滑动轴承的设计及减振性能研究[J]. 润滑与密封,2020,45(3): 93-96. doi: 10.3969/j.issn.0254-0150.2020.03.016LIU Xuhui,SUN Luchan,YANG Guang,et al. Design and performance study of controllable damping ferrofluid bearing[J]. Lubrication Engineering,2020,45(3): 93-96. (in Chinese) doi: 10.3969/j.issn.0254-0150.2020.03.016 [4] 陈於学. 基于接触力学的圆柱滚子轴承振动研究[D]. 武汉: 华中科技大学, 2005.CHEN Yuxue. Research on vibration of cylindrical roller bearings based on contact mechanics[D]. Wuhan: Huazhong University of Science and Technology, 2005. (in Chinese) [5] OHTA H,SUGIMOTO N. Vibration characteristics of tapered roller bearings[J]. Journal of Sound and Vibration,1996,190(2): 137-147. doi: 10.1006/jsvi.1996.0052 [6] KYDYRBEKULY A,KHAJIYEVA L,GULAMA-GARYP A Y,et al. Nonlinear vibrations of a rotor-fluid-foundation system supported by rolling bearings[J]. Strojniski Vestnik-Journal of Mechanical Engineering,2016,62(6): 351-362. doi: 10.5545/sv-jme.2016.3423 [7] JIN Yong,LU Jianjun,OUYANG Wu,et al. Vibration reduction performance of damping-enhanced water-lubricated bearing using fluid-saturated perforated slabs[J]. Chinese Journal of Mechanical Engineering,2020,33(6): 228-237. [8] 王加春,李旦,董申. 机械振动主动控制技术的研究现状和发展综述[J]. 机械强度,2001,23(2): 156-160. doi: 10.3321/j.issn:1001-9669.2001.02.010WANG Jiachun,LI Dan,DONG Shen. Review of mechanical active vibration control technique[J]. Journal of Mechanical Strength,2001,23(2): 156-160. (in Chinese) doi: 10.3321/j.issn:1001-9669.2001.02.010 [9] 路凯华. 基于整体式挤压油膜阻尼器的转子及齿轮系统振动控制研究[D]. 北京: 北京化工大学, 2019.LU Kaihua. Research on vibration control of rotor and gear system based on integral squeeze film damper[D]. Beijing: Beijing University of Chemical Technology, 2019. (in Chinese) [10] 洪杰,邓吟,张大义. 弹性环式挤压油膜阻尼器动力设计方法[J]. 北京航空航天大学学报,2006,32(6): 649-653. doi: 10.3969/j.issn.1001-5965.2006.06.006HONG Jie,DENG Yin,ZHANG Dayi. Dynamic design method of elastic ring squeeze film damper[J]. Journal of Beijing University of Aeronautics and Astronautics,2006,32(6): 649-653. (in Chinese) doi: 10.3969/j.issn.1001-5965.2006.06.006 [11] 王震林,刘占生,徐宁,等. 基于双向流固耦合弹性环式挤压油膜阻尼器建模及动力特性研究[J]. 汽轮机技术,2020,62(1): 1-5.WANG Zhenlin,LIU Zhansheng,XU Ning,et al. Modeling and dynamic characteristic investigation of elastic ring squeeze film damper by fluid-structure interaction approach[J]. Turbine Technology,2020,62(1): 1-5. (in Chinese) [12] 乔志斌. 静偏心挤压油膜阻尼器-转子系统减振特性分析[D]. 哈尔滨: 哈尔滨工业大学, 2017.QIAO Zhibin. Vibration reduction characteristics analysis of static eccentric squeeze film damper-rotor system[D]. Harbin: Harbin Institute of Technology, 2017. (in Chinese) [13] 杨期江. 柔性阻尼支承可倾瓦轴承油膜动力及减振特性研究[D]. 广州: 华南理工大学, 2016.YANG Qijiang. Research on oil film dynamic and vibration reduction characteristics of flexible damping pivot tilting pad bearing[D]. Guangzhou: South China University of Technology, 2016. (in Chinese) [14] 曹磊,高德平,江和甫. 弹性环式挤压油膜阻尼器-转子系统临界转速特性[J]. 推进技术,2008,29(2): 235-239. doi: 10.3321/j.issn:1001-4055.2008.02.021CAO Lei,GAO Deping,JIANG Hefu. Investigation on critical speed characteristics of elastic ring SFD-rotor system[J]. Journal of Propulsion Technology,2008,29(2): 235-239. (in Chinese) doi: 10.3321/j.issn:1001-4055.2008.02.021 [15] INAYAT-HUSSAIN J I. Bifurcations in the response of a flexible rotor in squeeze-film dampers with retainer springs[J]. Chaos, Solitons and Fractals,2009,39(2): 519-532. doi: 10.1016/j.chaos.2007.01.086 [16] 曹磊,高德平,江和甫. 弹性环式挤压油膜阻尼器减振机理初探[J]. 振动工程学报,2007,20(6): 584-588. doi: 10.3969/j.issn.1004-4523.2007.06.006CAO Lei,GAO Deping,JIANG Hefu. Damping mechanism of elastic ring squeeze film damper[J]. Journal of Vibration Engineering,2007,20(6): 584-588. (in Chinese) doi: 10.3969/j.issn.1004-4523.2007.06.006 [17] 王震林,刘占生,张广辉,等. 基于厚板的弹性环式挤压油膜阻尼器建模及动力学特性系数识别[J]. 航空动力学报,2019,34(3): 635-642.WANG Zhenlin,LIU Zhansheng,ZHANG Guanghui,et al. Numerical modelling of elastic ring squeeze film damper based on thick plate and force coefficient identification[J]. Journal of Aerospace Power,2019,34(3): 635-642. (in Chinese) [18] HAN Zhifei,DING Qian,ZHANG Wei. Dynamical analysis of an elastic ring squeeze film damper-rotor system[J]. Mechanism and Machine Theory,2019,131: 406-419. doi: 10.1016/j.mechmachtheory.2018.10.011 [19] ZHANG Wei,DING Qian. Elastic ring deformation and pedestal contact status analysis of elastic ring squeeze film damper[J]. Journal of Sound and Vibration,2015,346: 314-327. doi: 10.1016/j.jsv.2015.02.015 [20] 季顺迎. 材料力学[M]. 北京: 科学出版社, 2013. [21] 王勖成. 有限单元法[M]. 北京: 清华大学出版社, 2003. [22] GOURGIOTIS P A,ZISIS T,GIANNAKOPOULOS A E,et al. The Hertz contact problem in couple-stress elasticity[J]. International Journal of Solids and Structures,2019,168: 228-237. doi: 10.1016/j.ijsolstr.2019.03.032 [23] 李海梅,宋刚,刘永志. 金属材料疲劳极限的估算[J]. 郑州大学学报,2002,23(4): 26-29.LI Haimei,SONG Gang,LIU Yongzhi. Estimating formula of fatigue limits for metallic materials[J]. Journal of Zhengzhou University,2002,23(4): 26-29. (in Chinese) -
