Fractal analysis of friction torque performance evolution of rolling bearing
-
摘要:

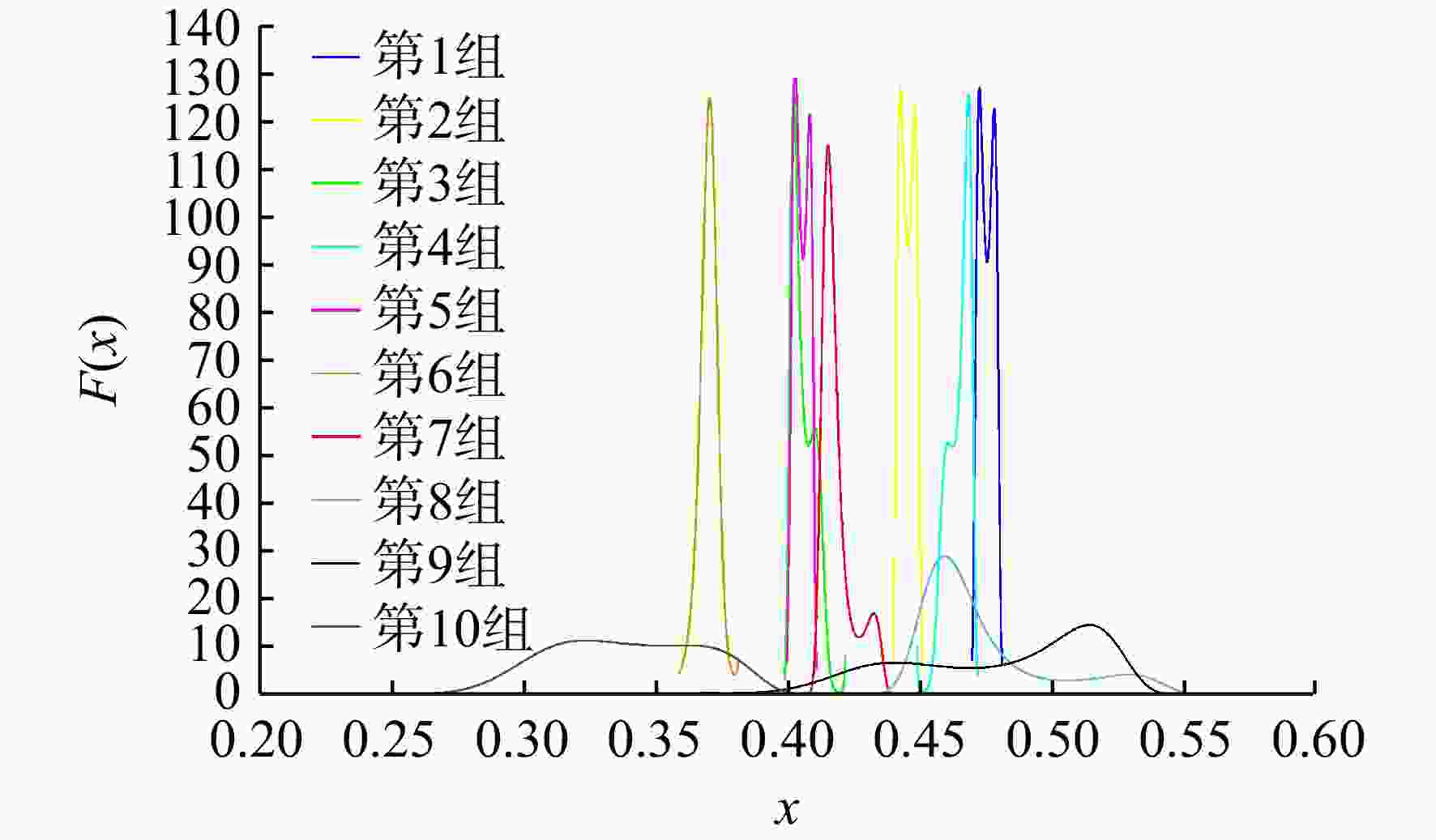

以轴承全周期摩擦力矩时间序列为分析对象，以分形理论为主要分析方法，通过互信息法确定最佳延迟时间，通过观察法确定最佳嵌入维数，最终得到关联维数。结果表明：轴承摩擦力矩性能具有混沌特性；嵌入维数与系统非线性及混沌程度呈正相关，而关联维数则呈负相关；关联维数可以作为轴承性能衡量指标，A、B轴承可分别提前120、160 min预报轴承失效；基于最大熵原理验证A轴承与分形理论预测的失效时间相差12 min，仅占预报时间120 min的10%，偏离误差处于较低水平，充分验证了分形理论表征轴承性能演变的有效性和可靠性。
Abstract:The time series of the full-cycle friction torque of the bearing were taken as the analysis object, the fractal theory was used as the main analysis method, the optimal delay time was determined through the mutual information method, and the optimal embedding dimension was determined through the observation method, finally the correlation dimension was obtained. The results showed that the friction torque performance of the bearing had chaotic characteristics; the embedding dimension was positively correlated with the nonlinearity and chaos degree of the system, while the correlation dimension was negatively correlated. The correlation dimension can be used as an indicator for measuring the performance of bearings. Bearings A and B can predict bearing failure 120 min and 160 min in advance respectively. Based on the principle of maximum entropy, it was verified that the failure time of bearing A differed from that predicted by the fractal theory by 12 min, accounting for only 10% of the predicted time of 120 min. The deviation error was at a relatively small level, fully verifying the effectiveness and reliability of the fractal theory in characterizing the performance evolution of bearings.
-

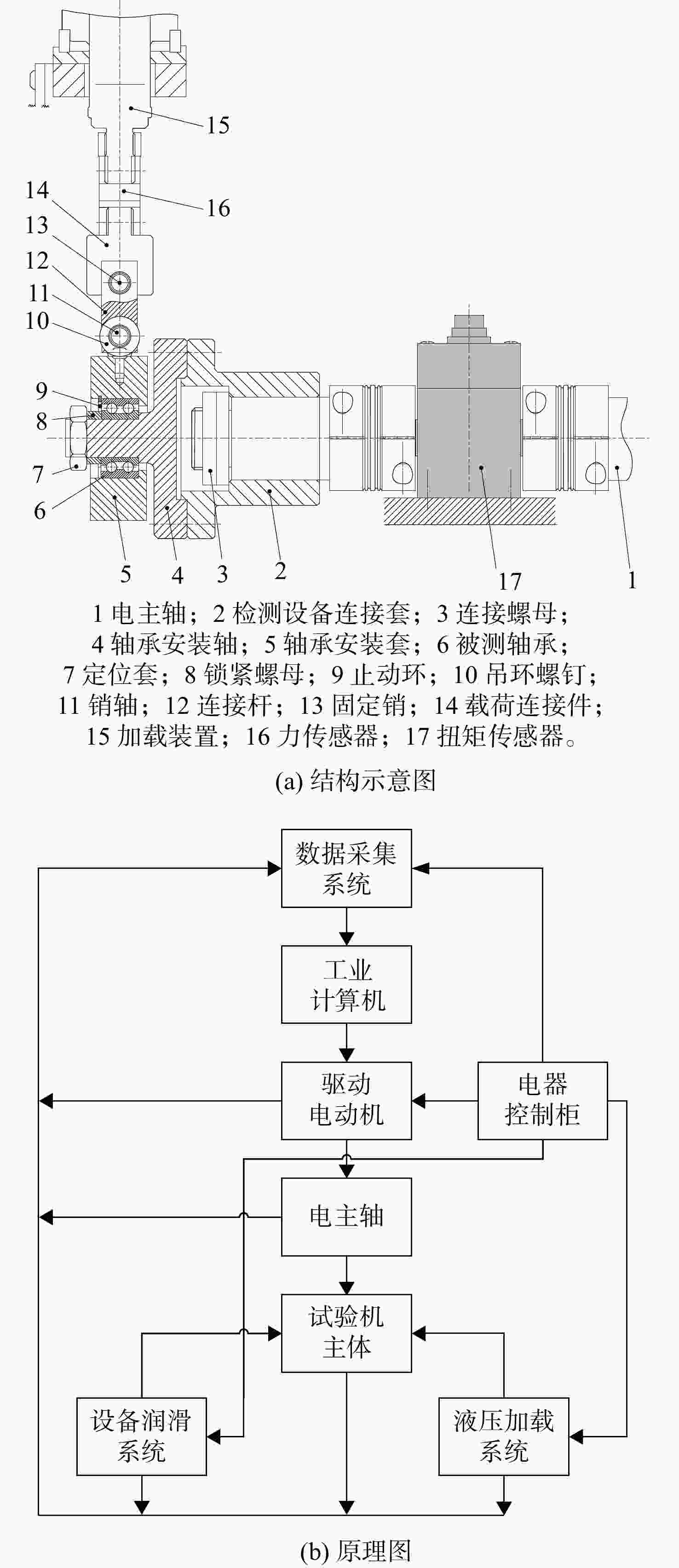

图 1 轴承摩擦力矩试验机结构示意图及原理图
Figure 1. Schematic diagram and principle diagram of bearing friction torque testing machine

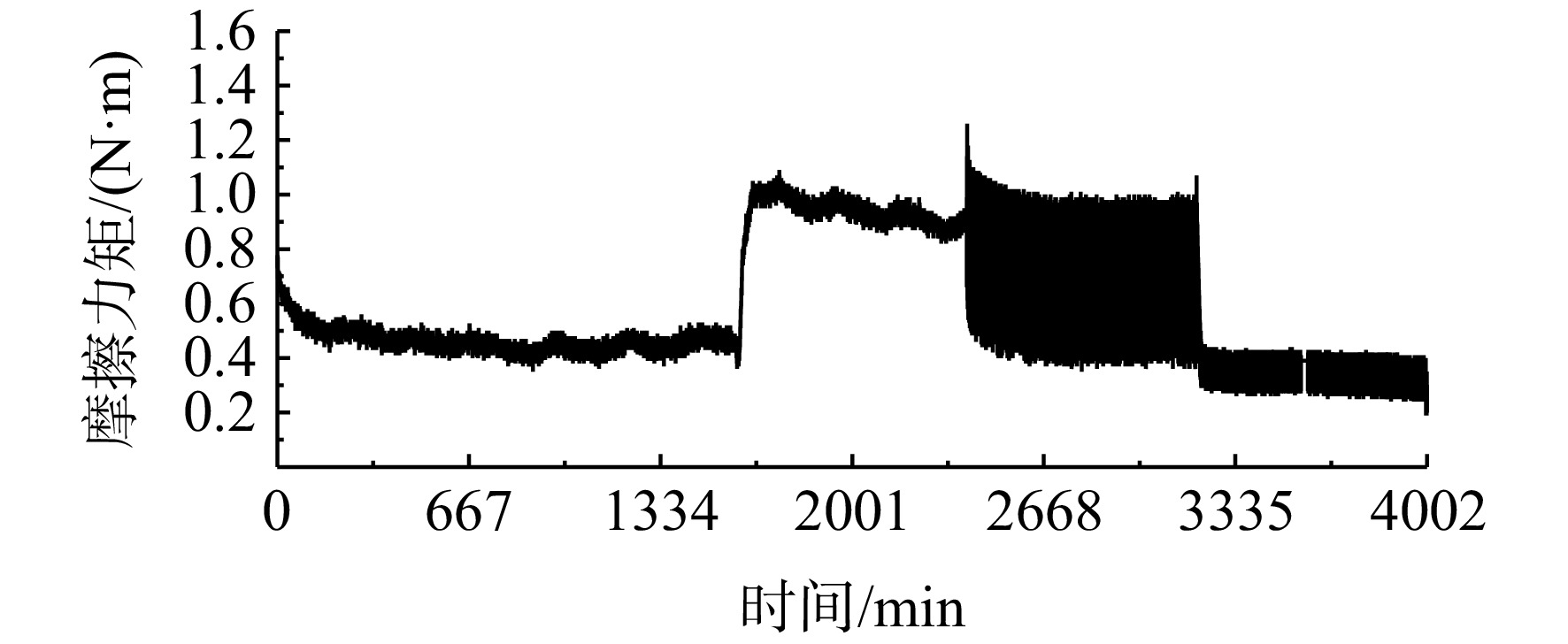

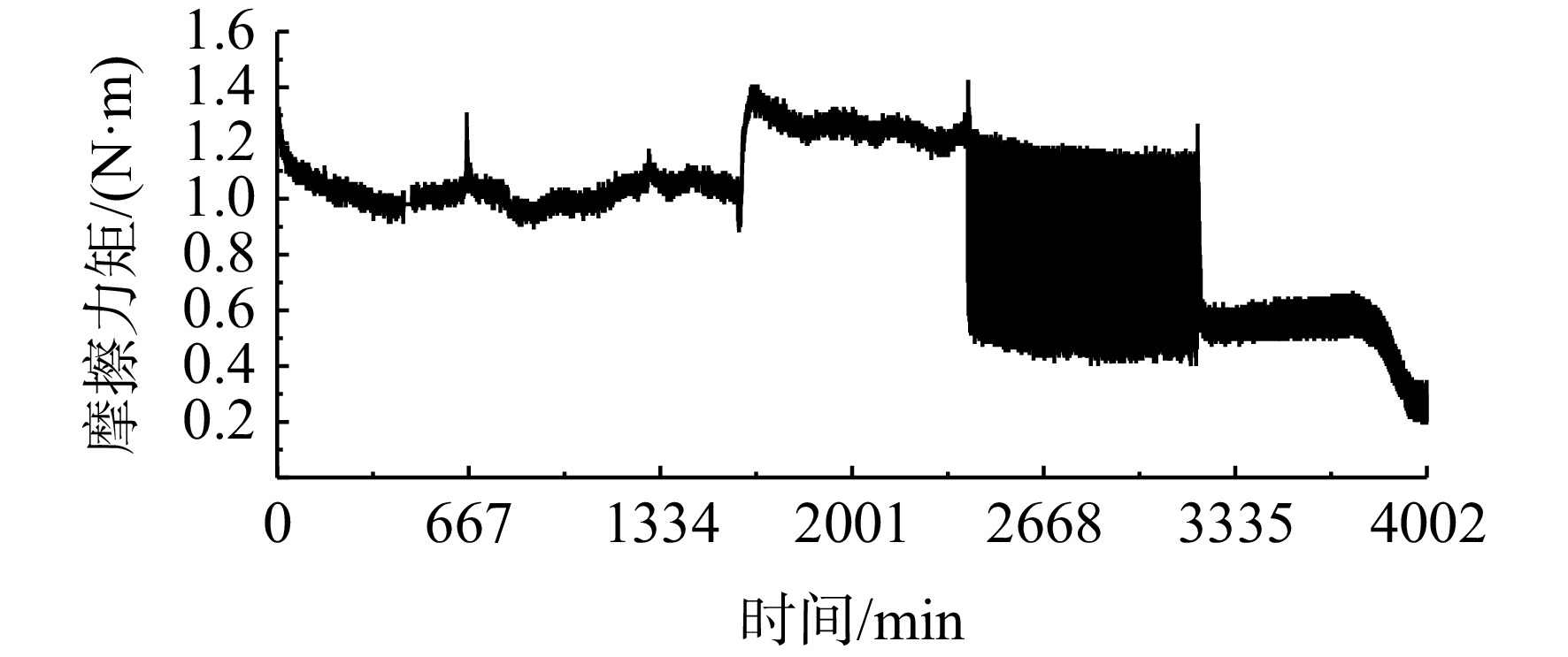

图 2 A轴承全周期摩擦力矩时间变化曲线
Figure 2. Full cycle friction torque time change curve of bearing A

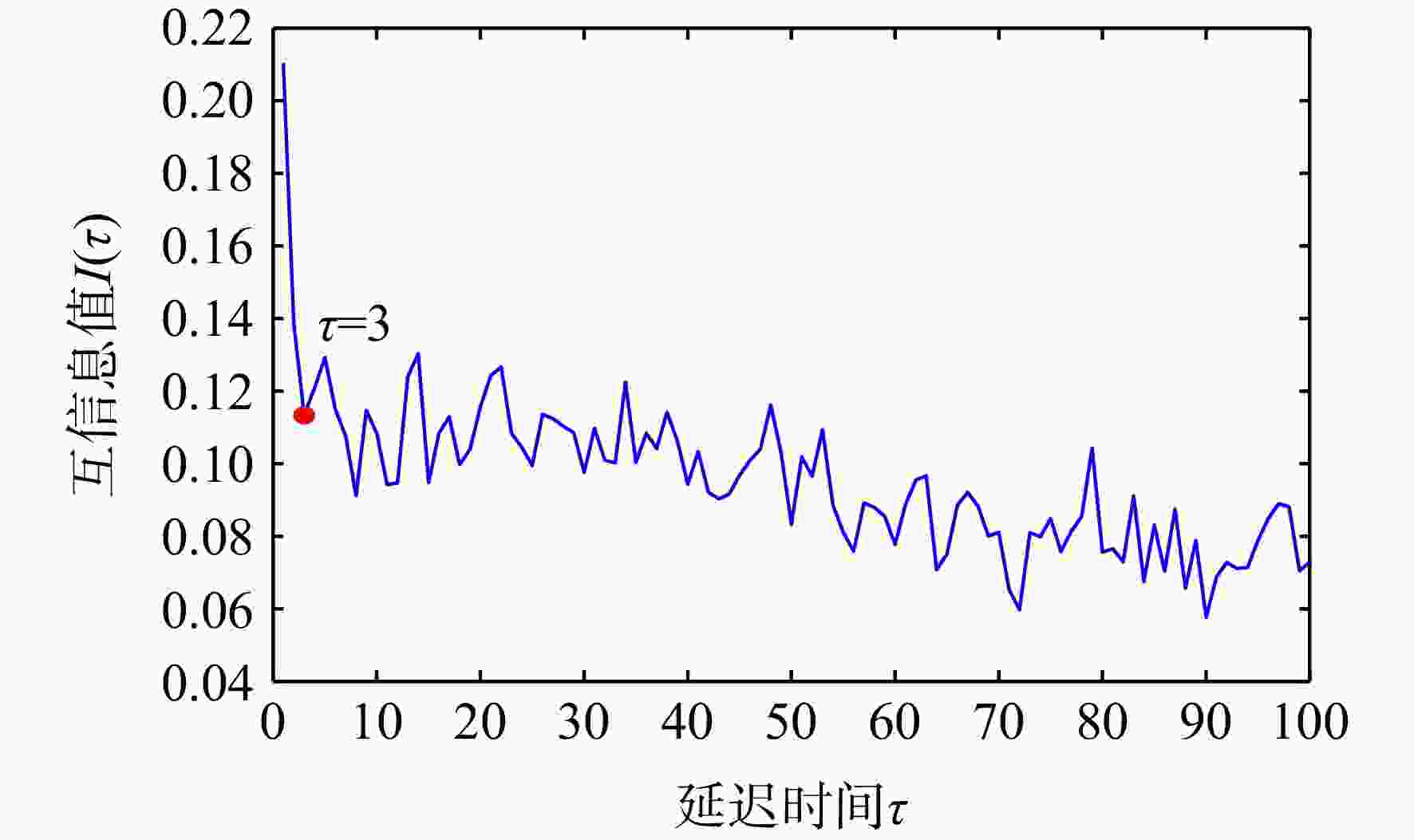

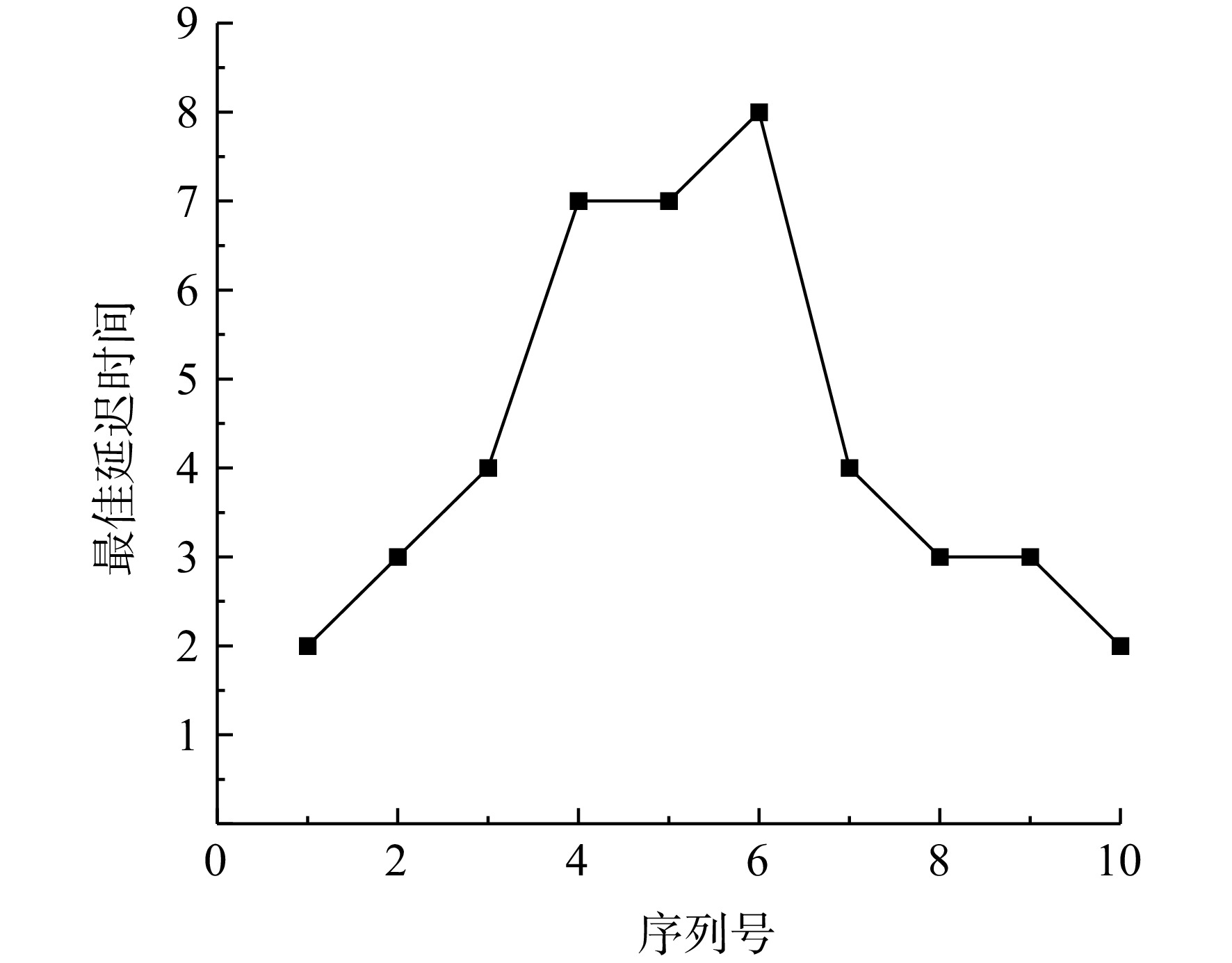

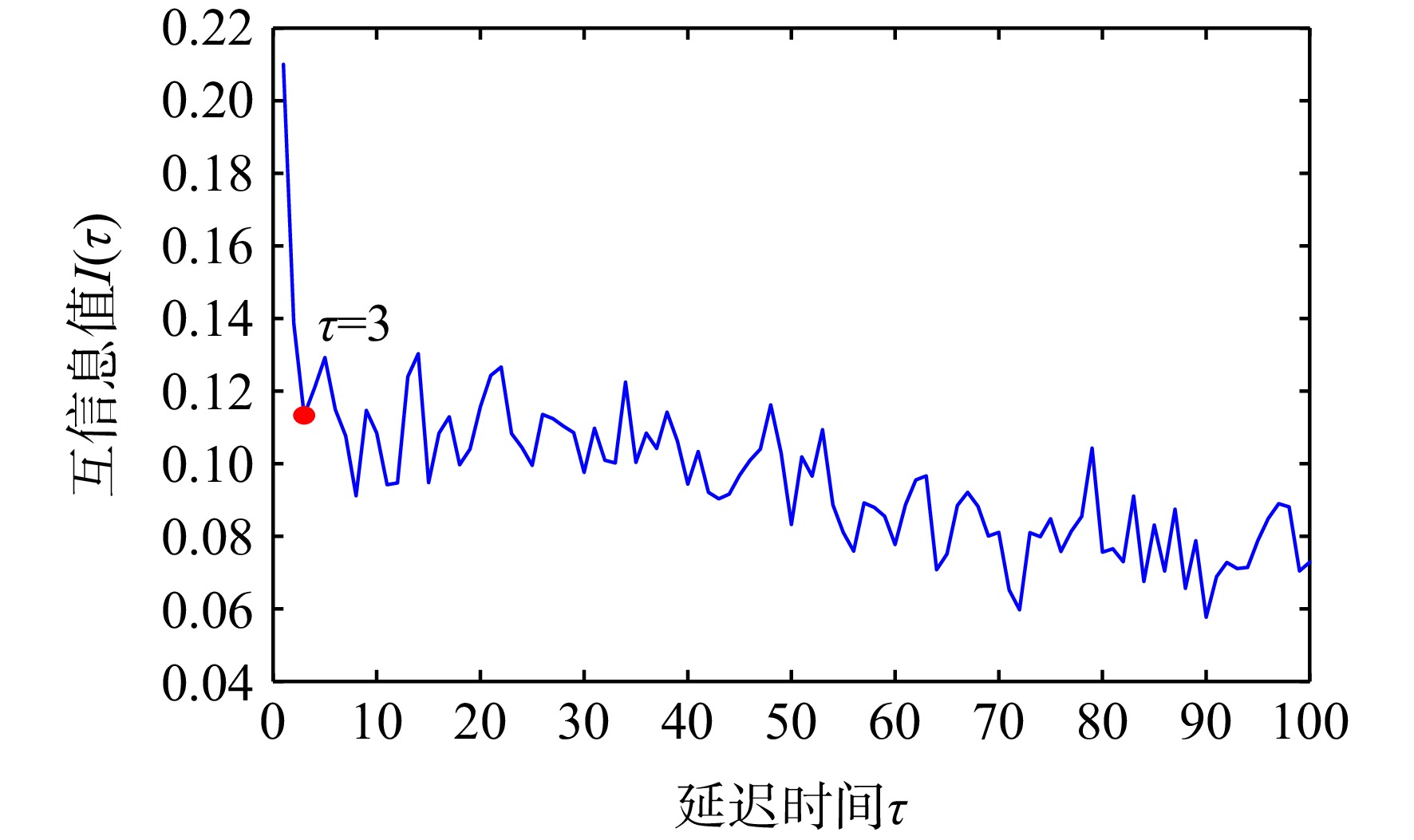

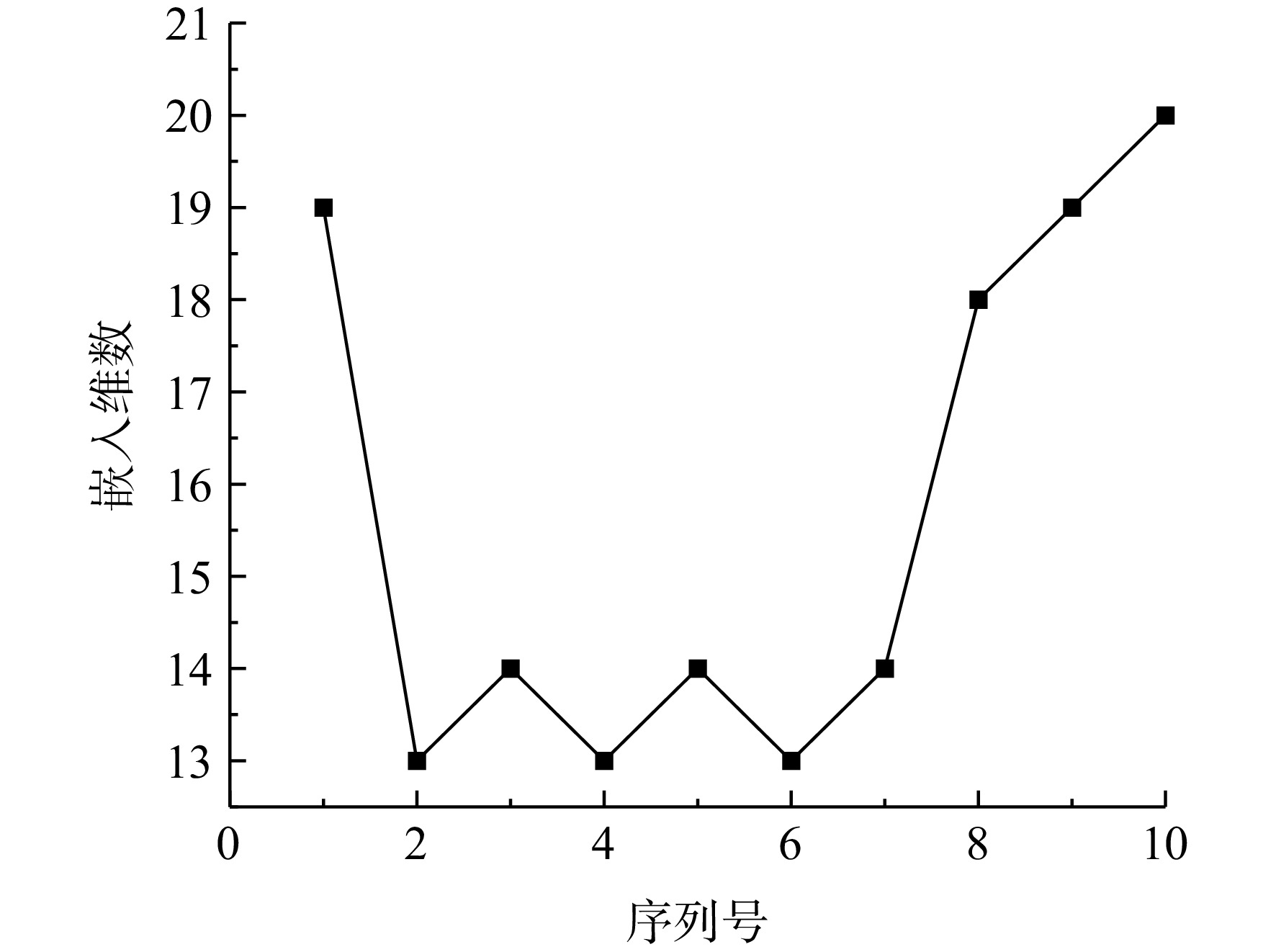

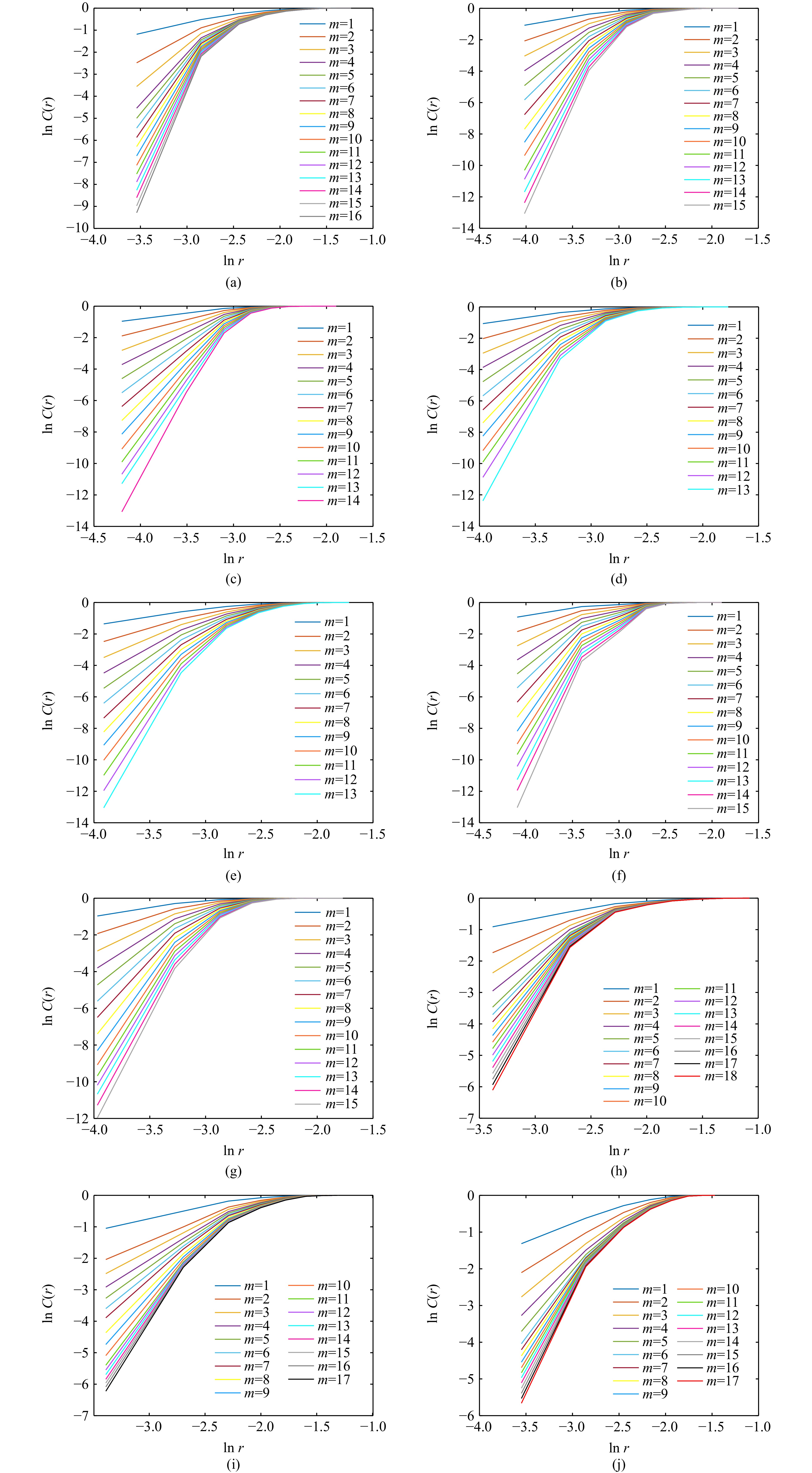

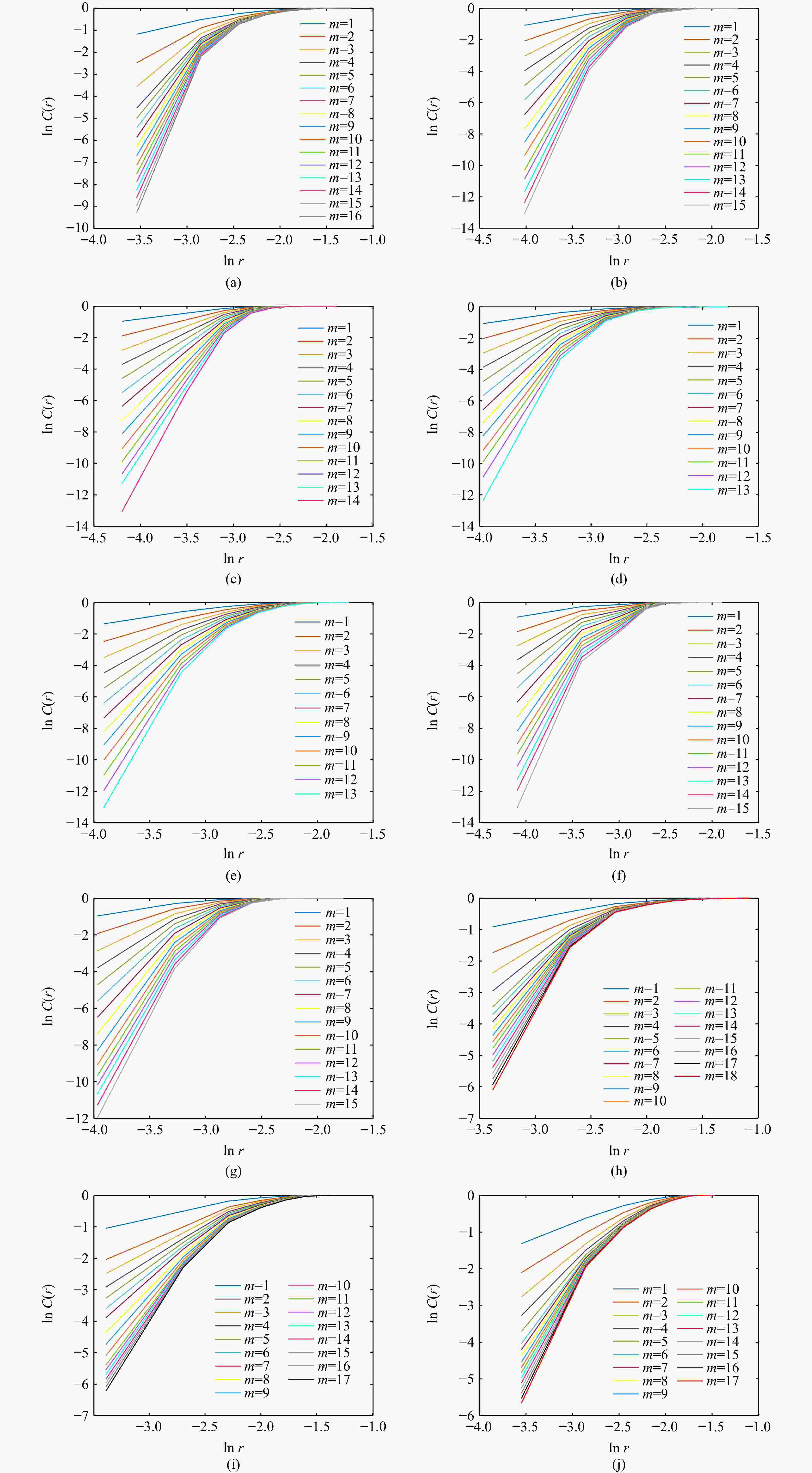

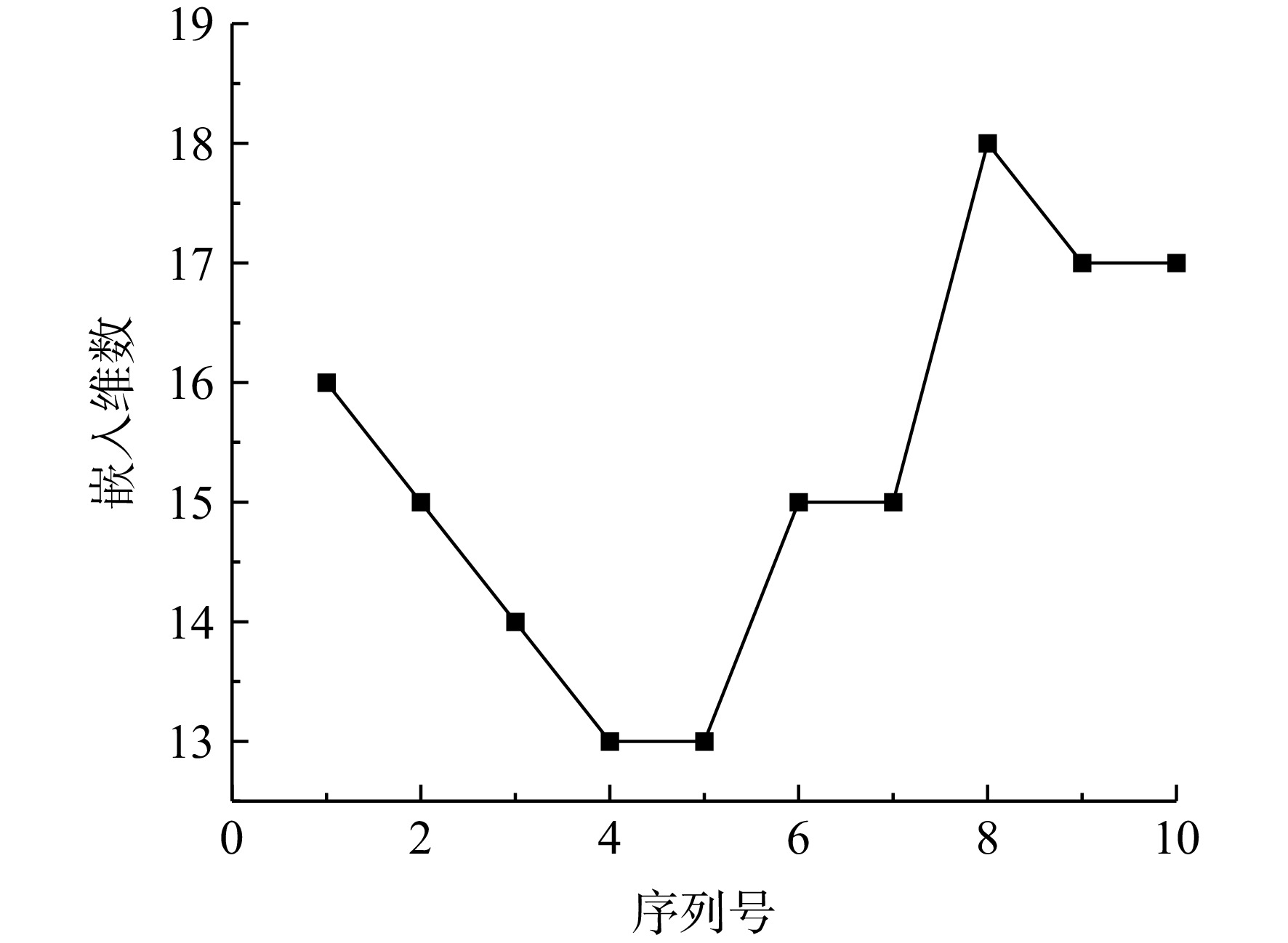

图 6 各子序列最佳嵌入维数（A轴承）
Figure 6. Optimal embedding dimension of each subsequence （bearing A）

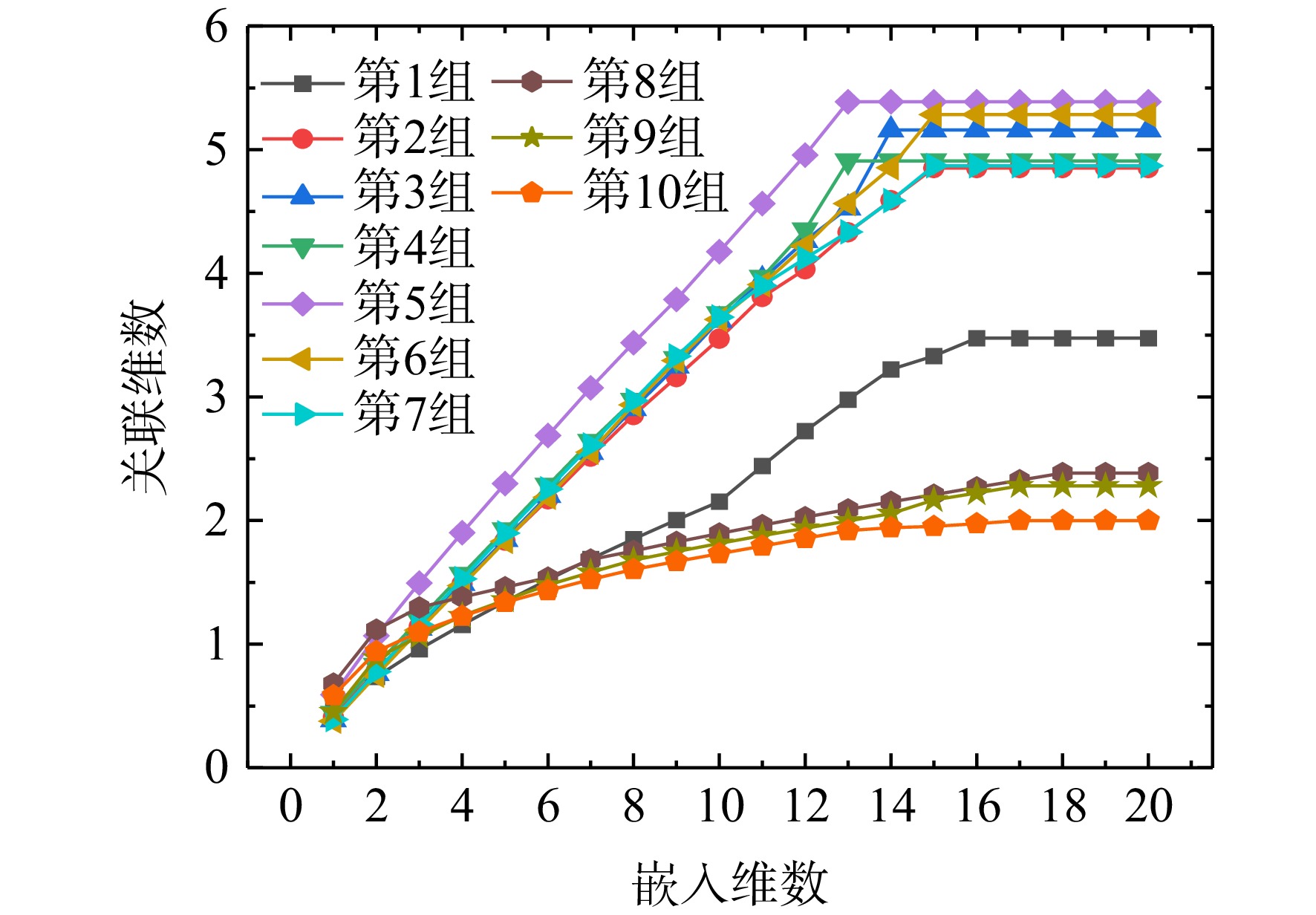

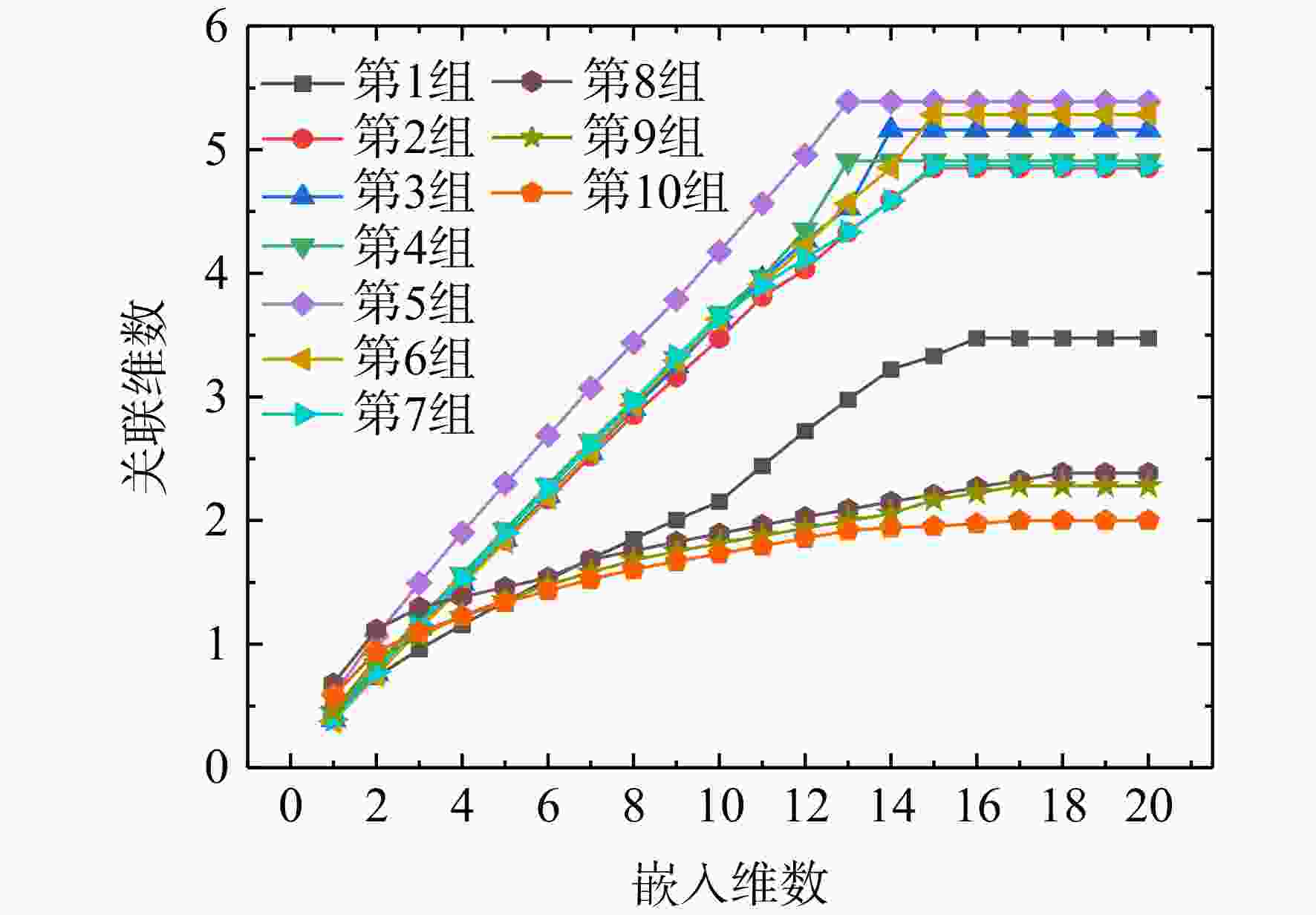

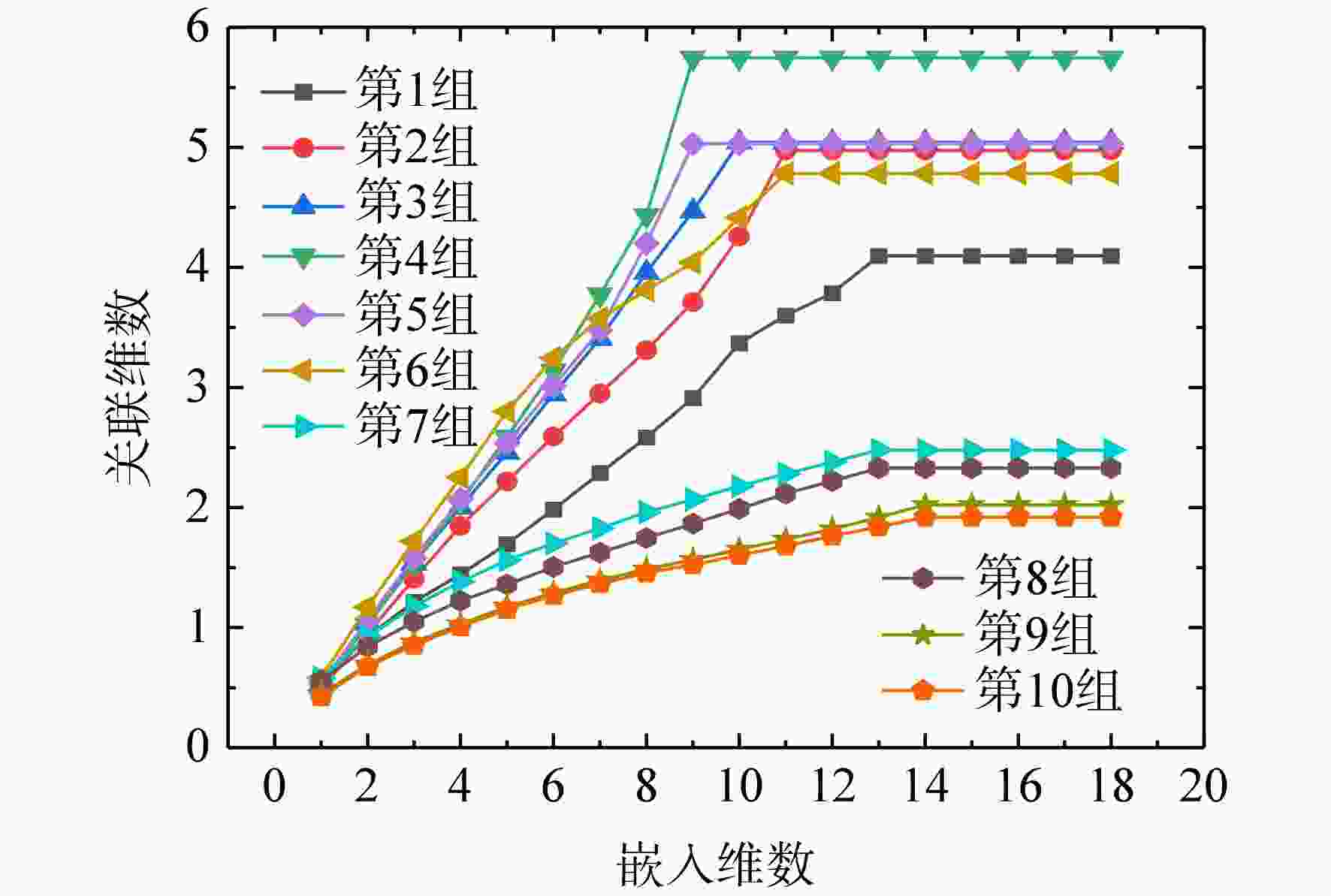

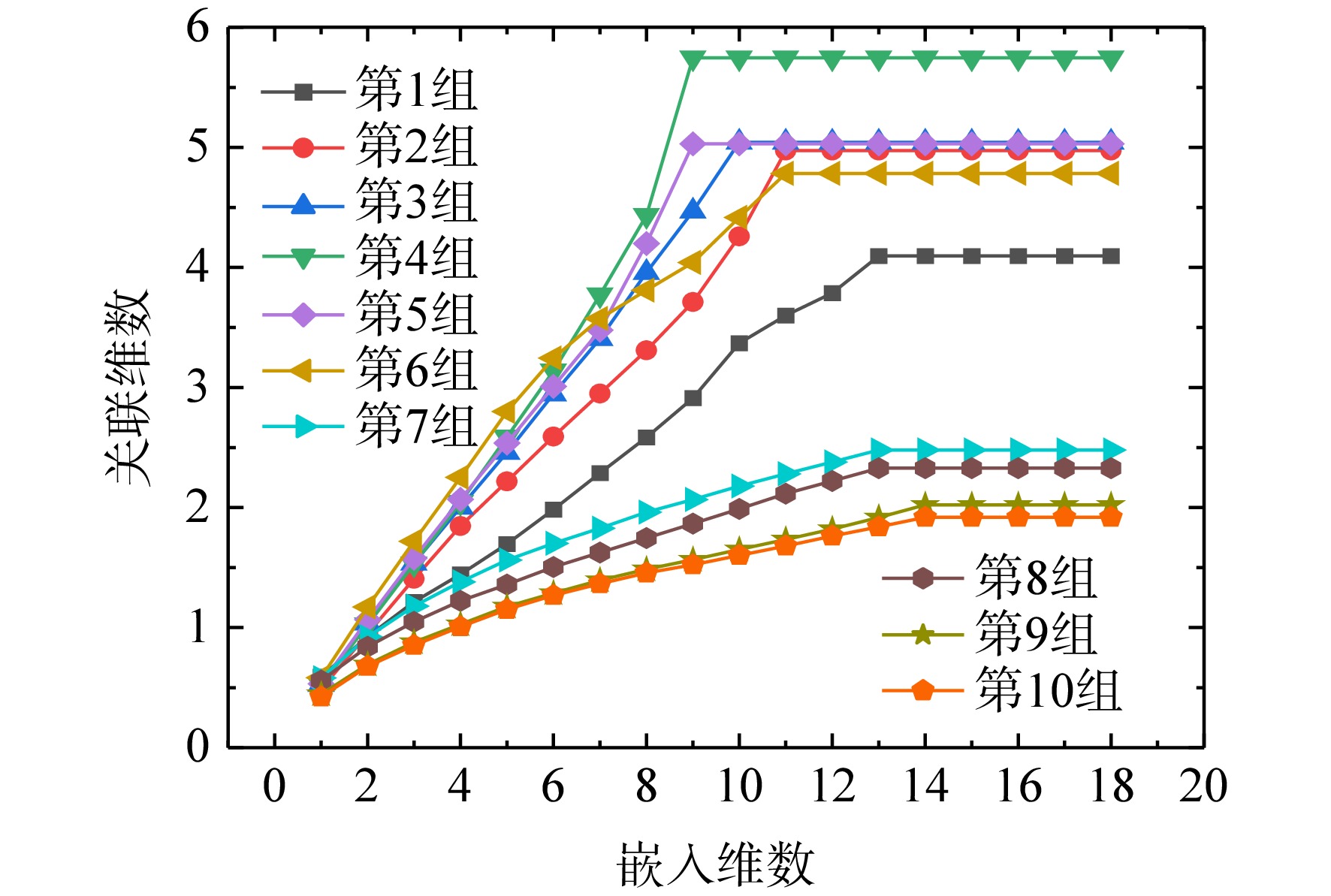

图 9 关联维数演变（A轴承，原第8组子序列）
Figure 9. Evolution of correlation dimension （bearing A, original group 8 subsequence）

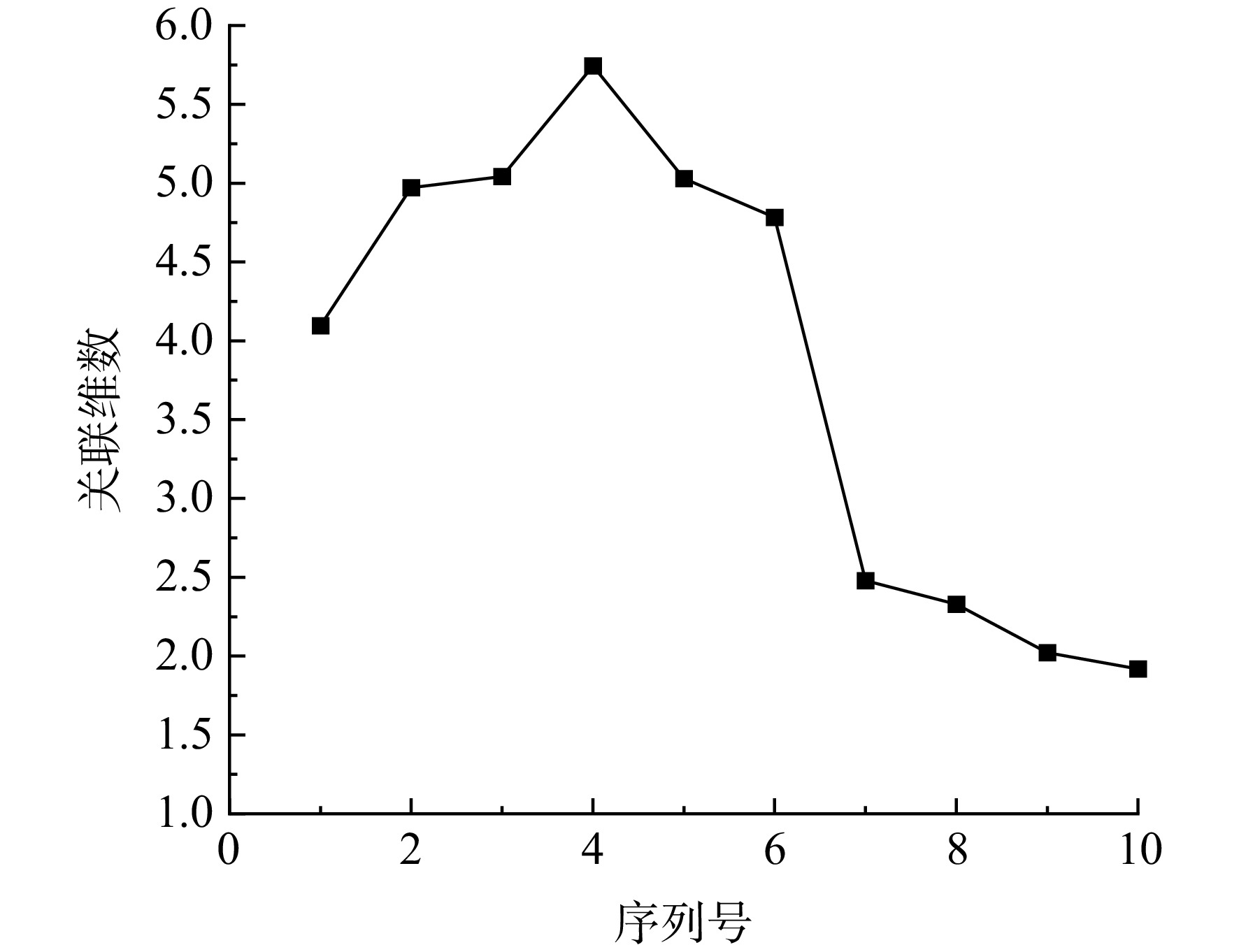

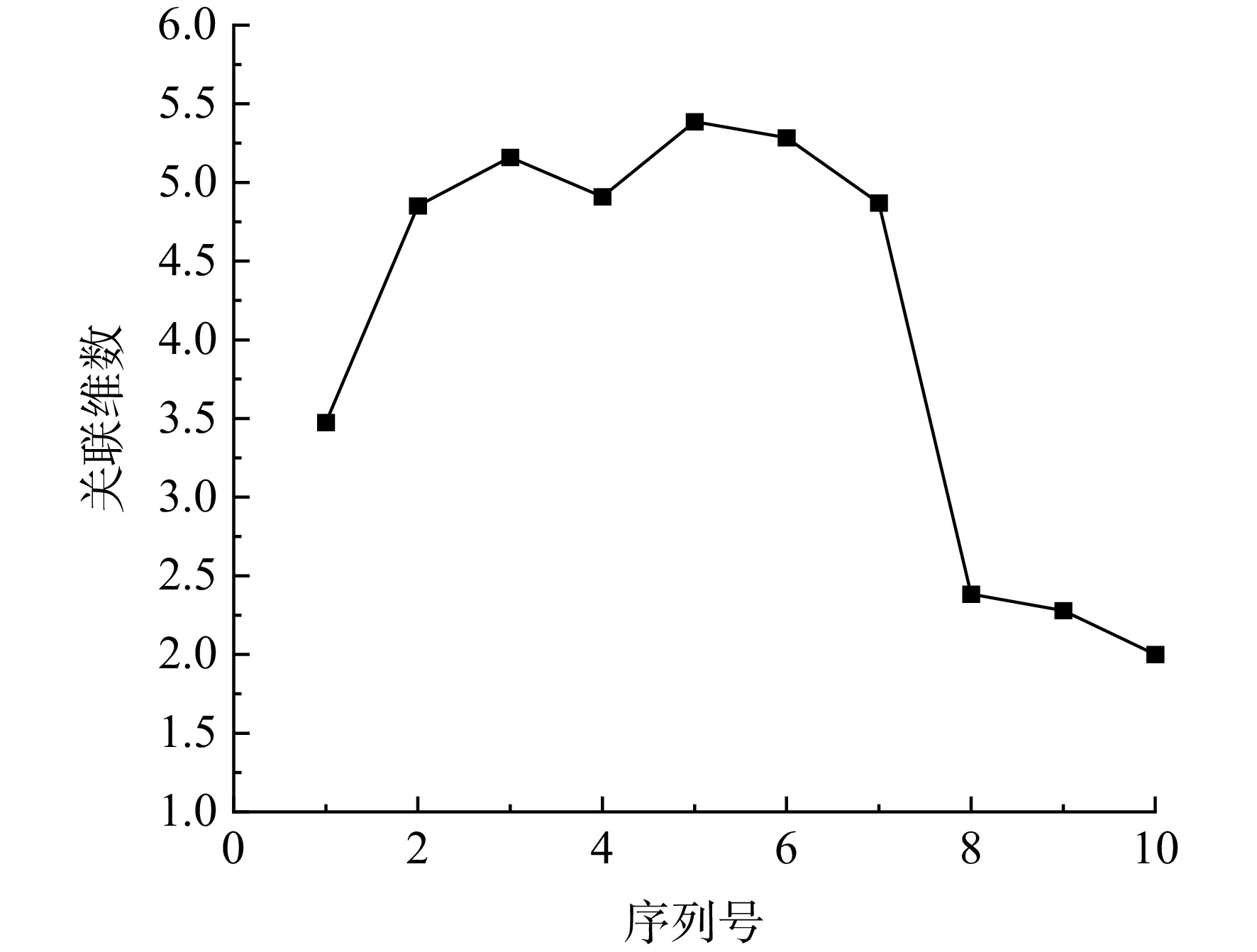

图 10 各子序列关联维数（A轴承，原第8组子序列）
Figure 10. Correlation dimension of each subsequence （bearing A, original group 8 subsequence）

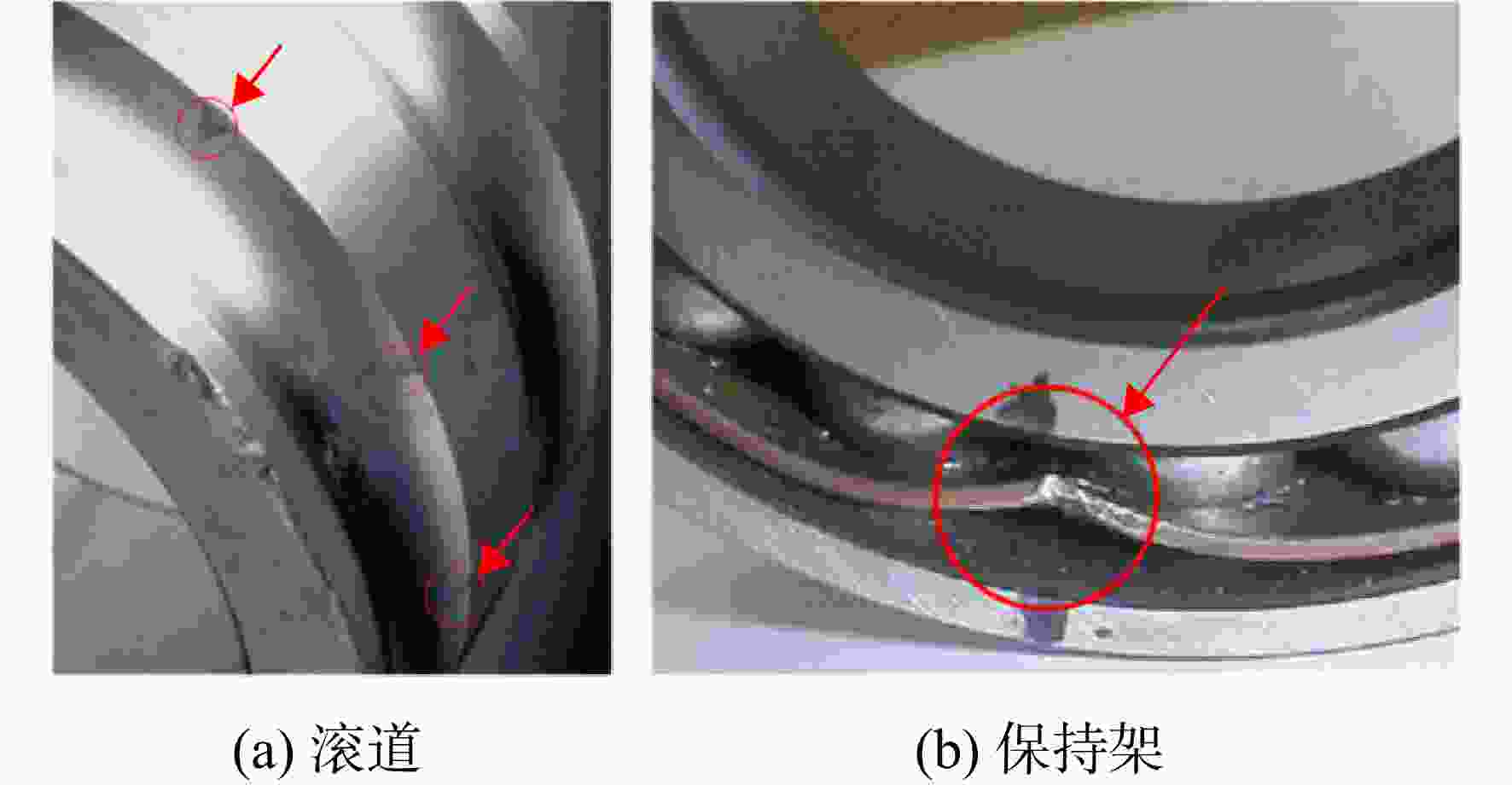

图 12 B轴承全周期摩擦力矩时间变化曲线
Figure 12. Full cycle friction torque time change curve of bearing B

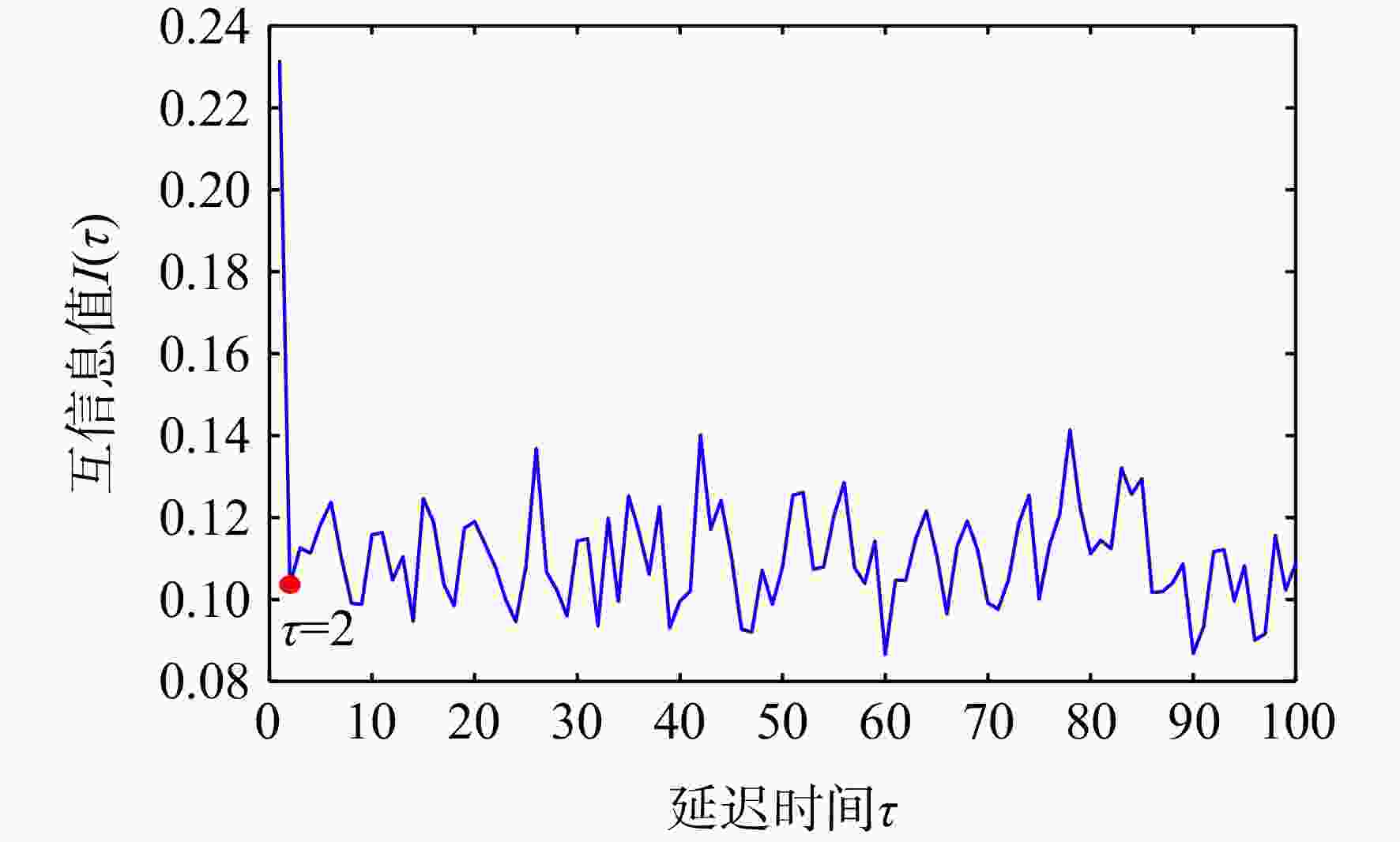

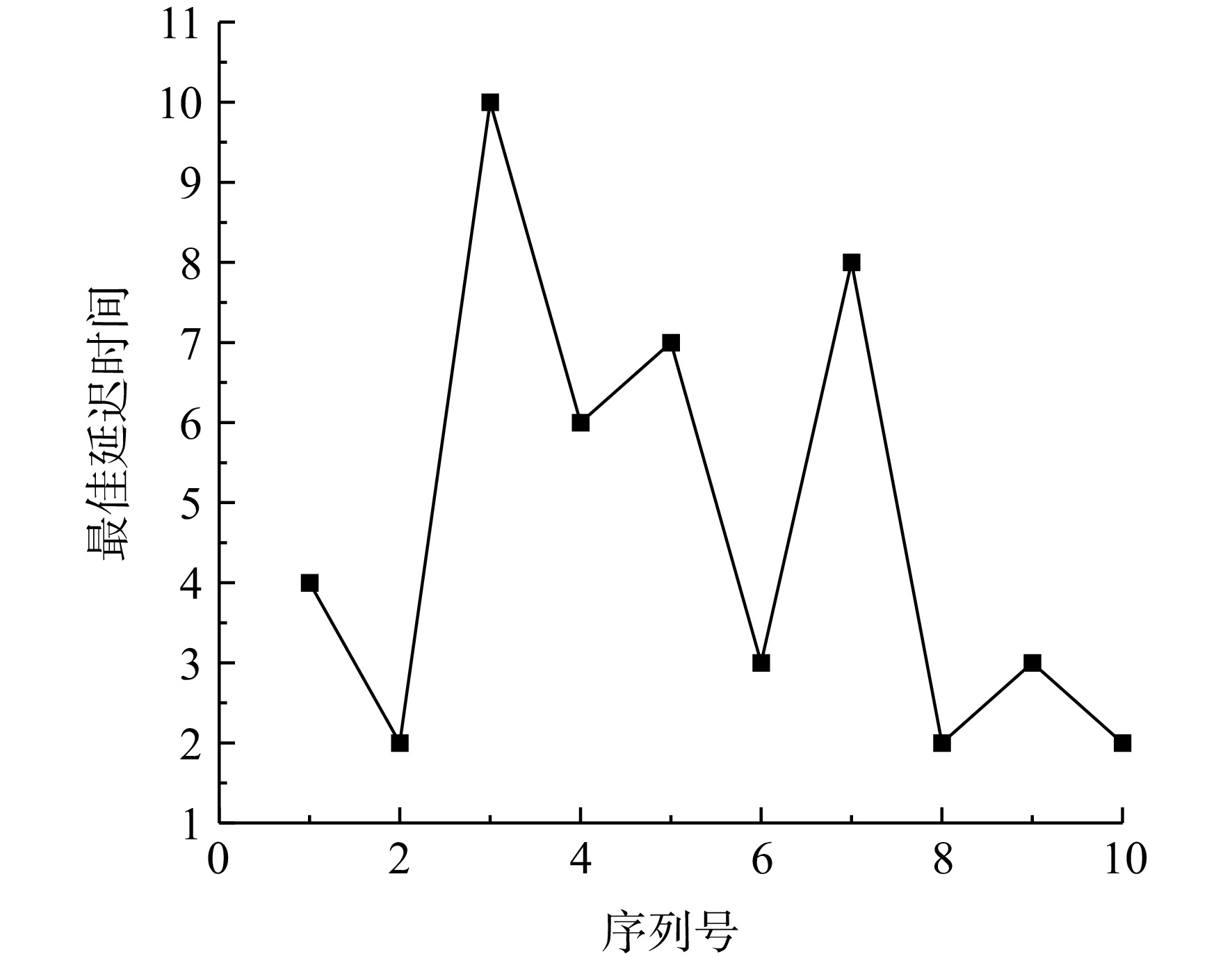

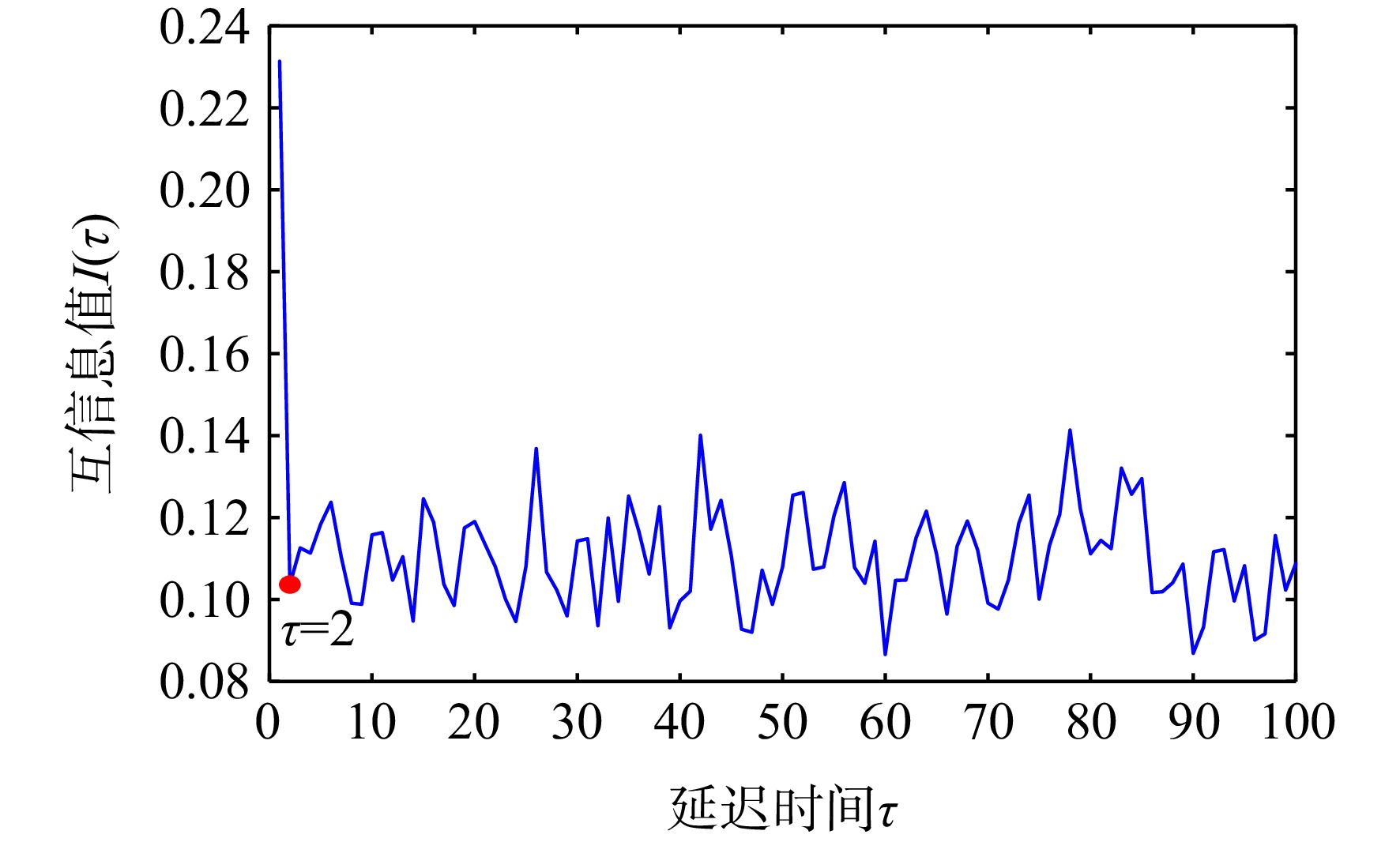

图 15 各子序列最佳嵌入维数（B轴承）
Figure 15. Optimal embedding dimension of each subsequence （bearing B）

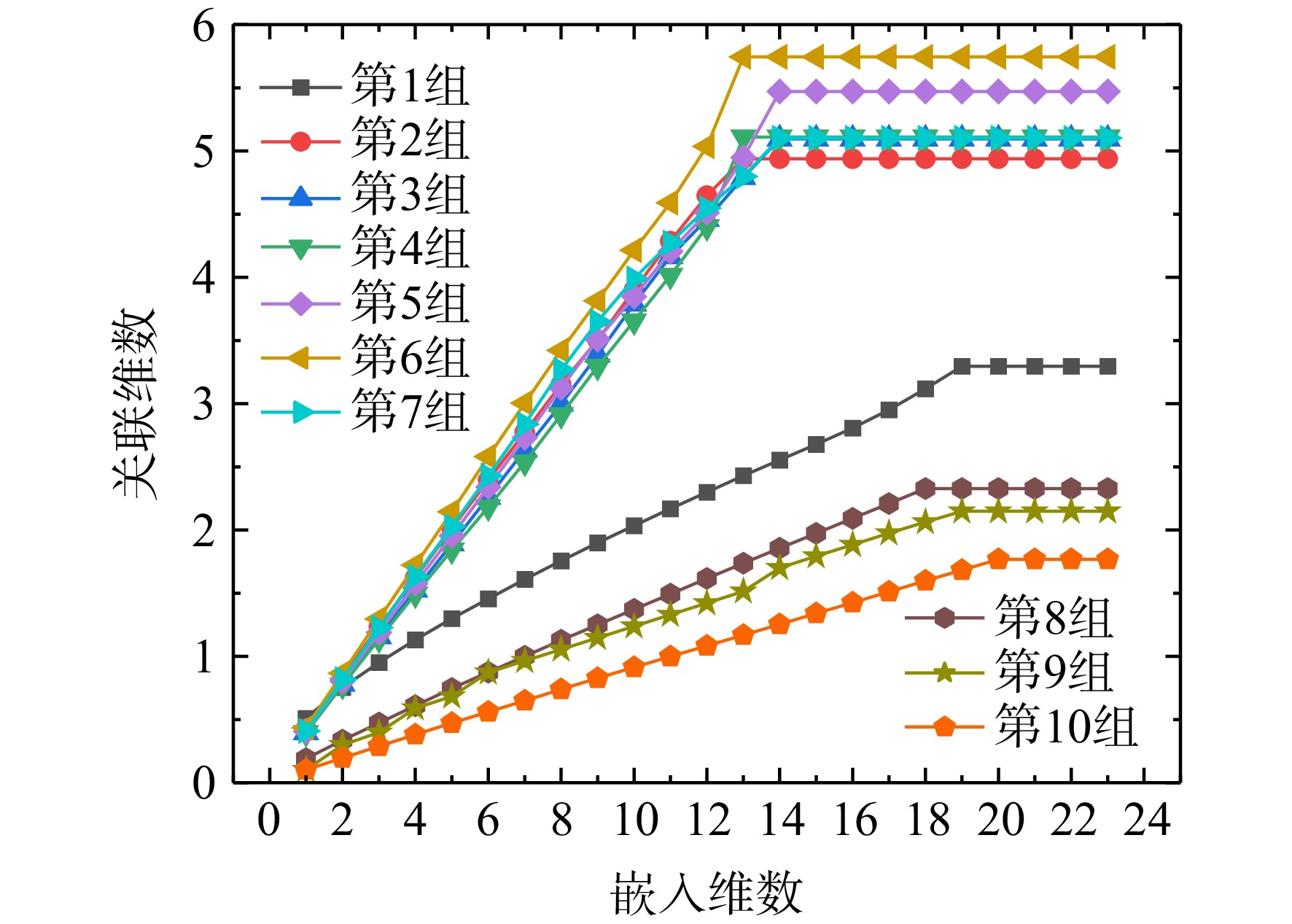

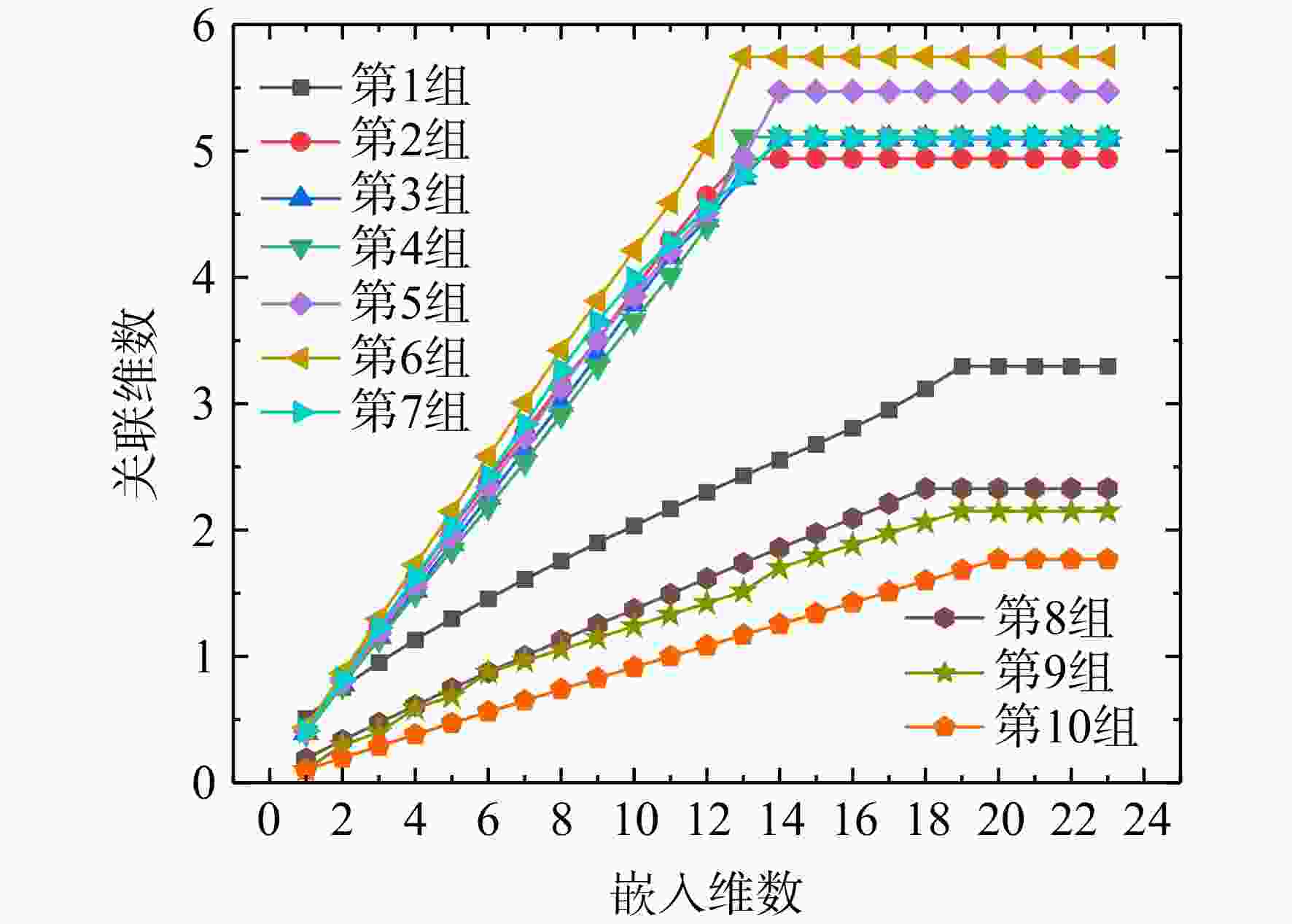

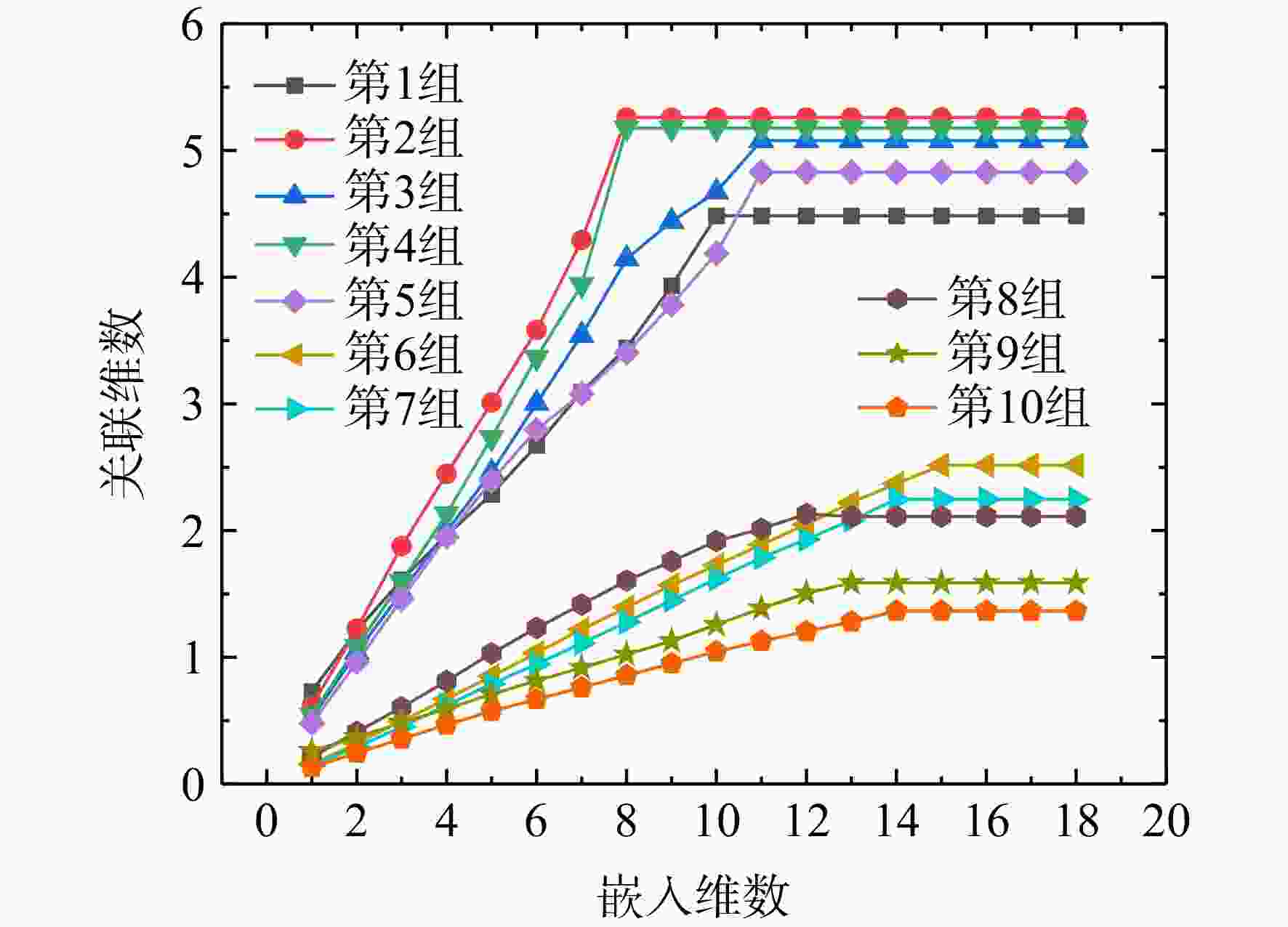

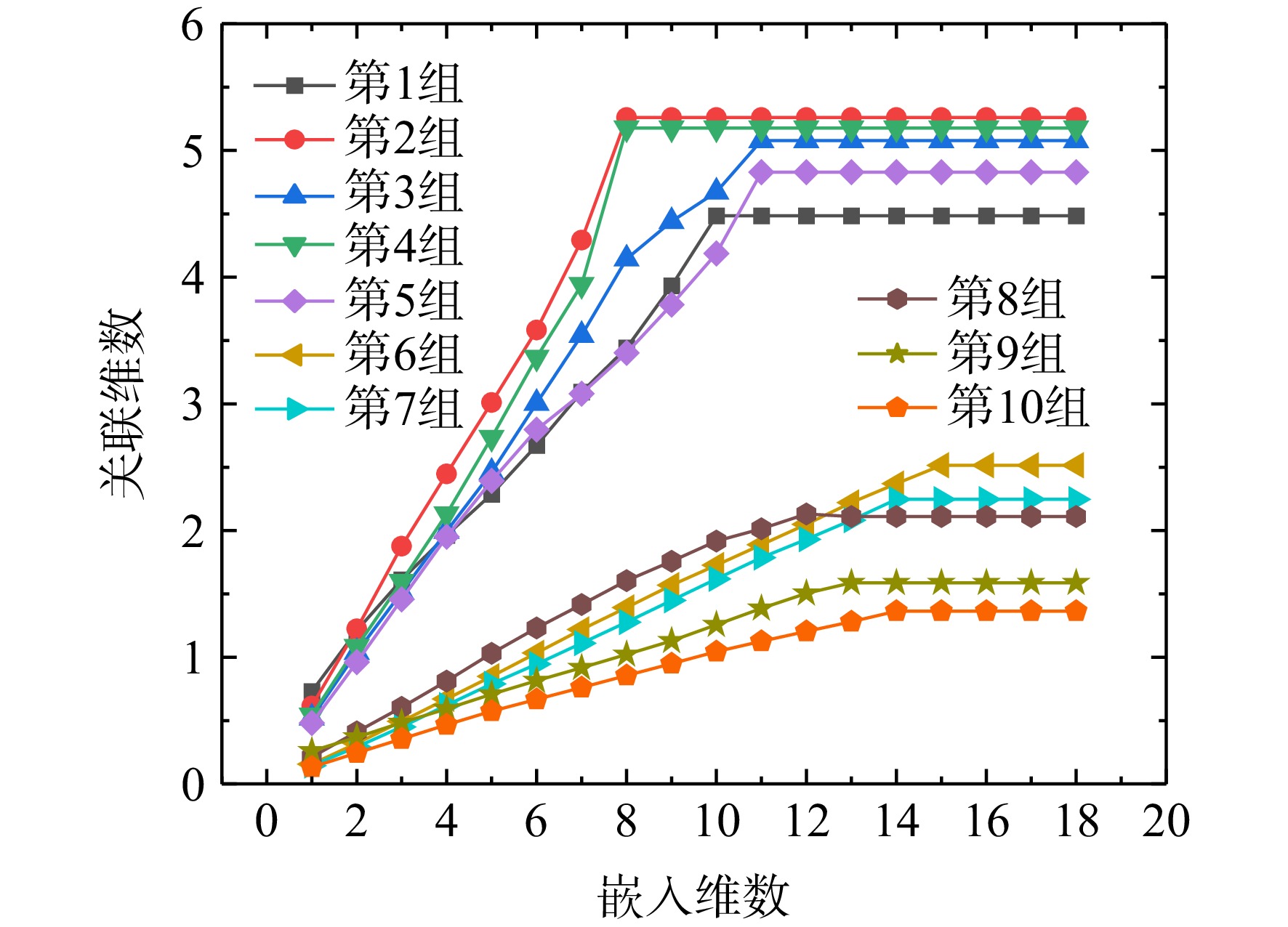

图 18 关联维数演变（B轴承，原第8组子序列）
Figure 18. Evolution of correlation dimension （bearing B, original group 8 subsequence）

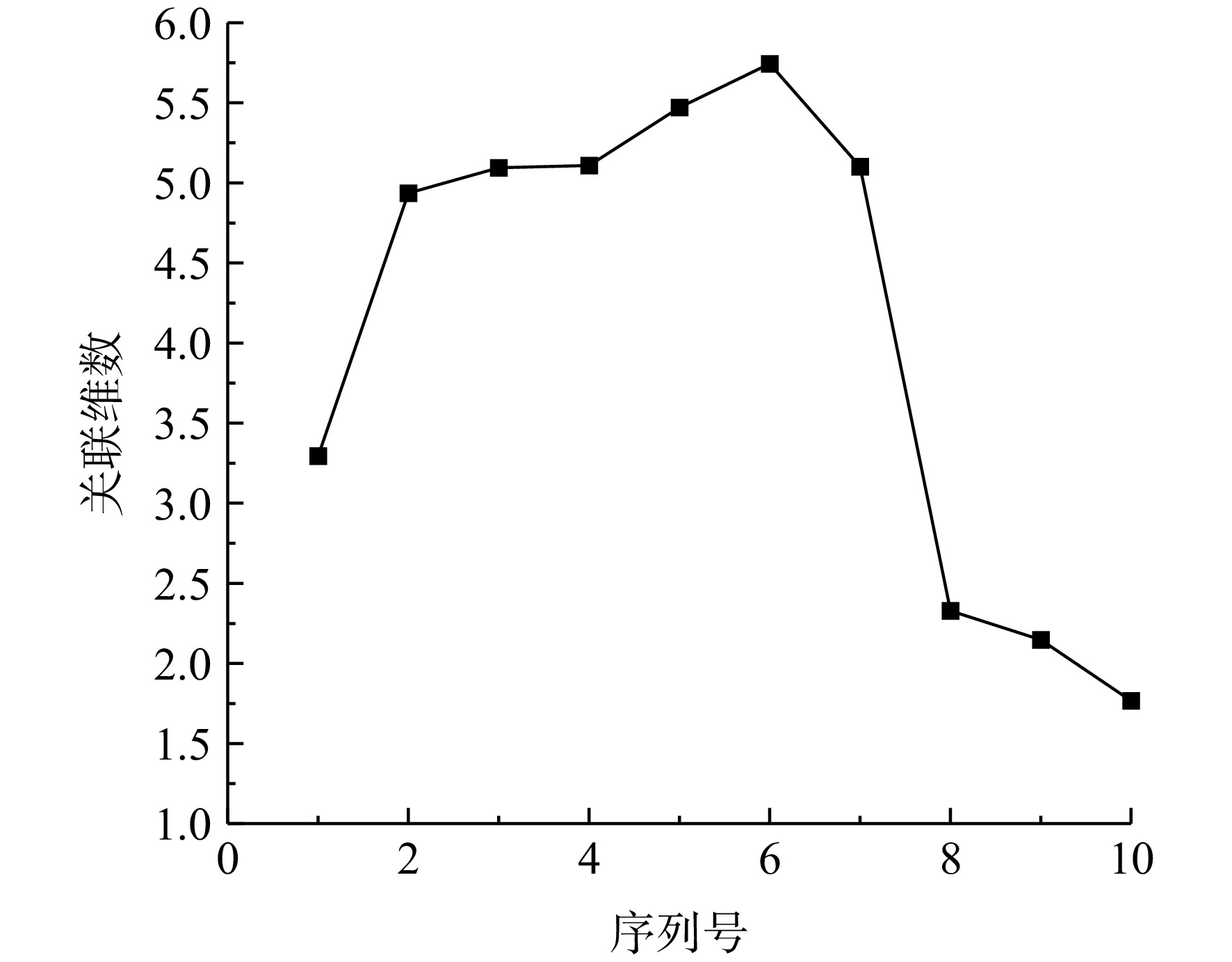

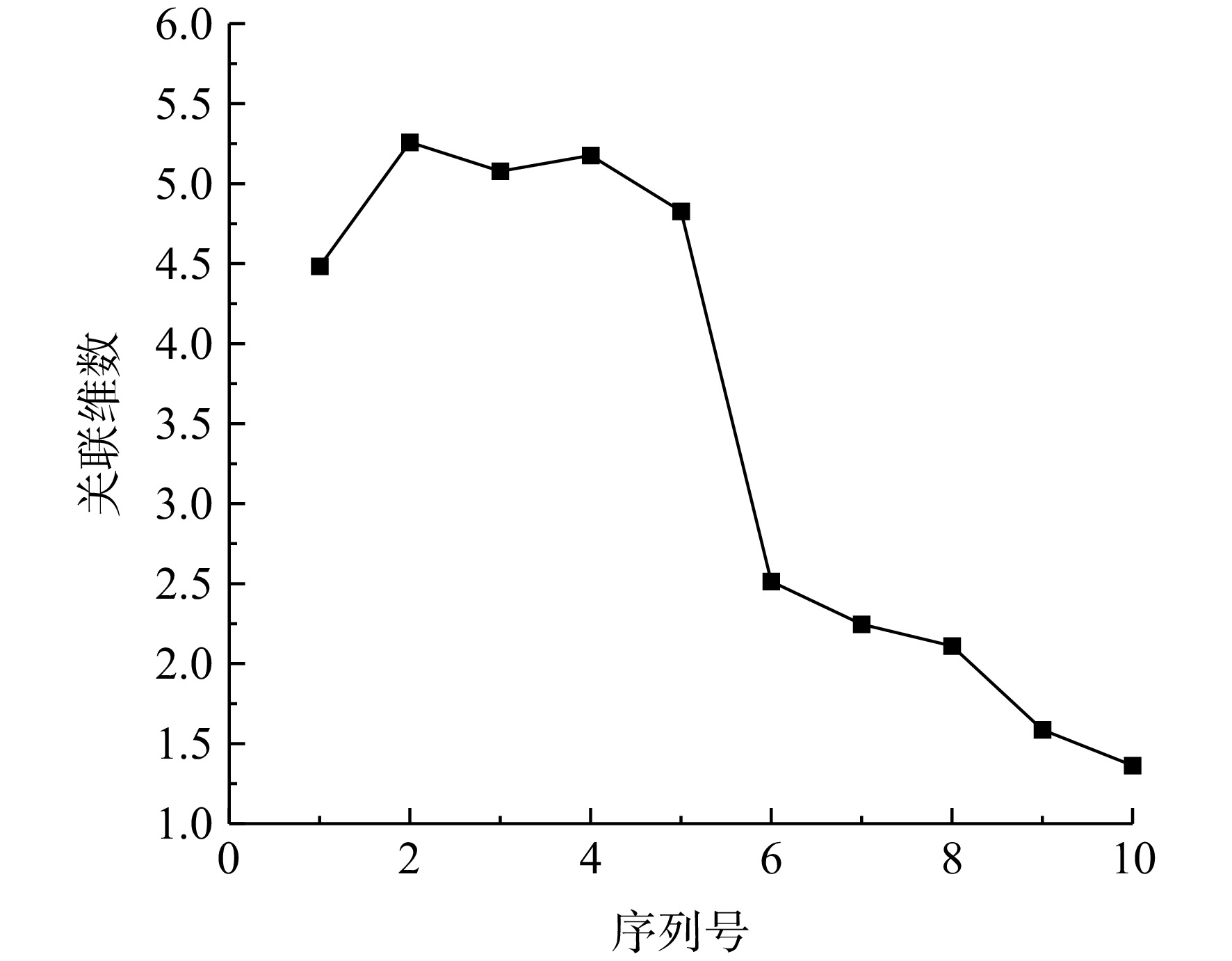

图 19 各子序列关联维数（B轴承，原第8组子序列）
Figure 19. Correlation dimension of each subsequence （bearing B, original group 8 subsequence）
表 1 试验机主要技术指标
Table 1. Main technical indexes of testing machine
参数 数值 试验轴承内径/mm 20～60 径向载荷/kN ±30 径向载荷精度/% 设定值的±1 试验轴承数量/套 2 电动机功率/kW 7.5 最高转速/（r/min） 1440 转速精度/% 设定值的±2 扭矩传感器测量量程/（N·m） 0～100 扭矩传感器测量精度/% ±0.5 径向位移传感器量程/mm 0～100
下载: 导出CSV
表 2 试验轴承的主要参数
Table 2. Main parameters of test bearings
参数 数值 3208A-2RS1TN9/
MT333209A-2RS1TN9/
MT33内径/mm 40 45 外径/mm 80 85 宽度/mm 30.2 30.2 接触角/（°） 30 30 额定动载荷/kN 48 52 额定静载荷/kN 36.5 41.5 极限转速/（r/min） 5600 5300
下载: 导出CSV
-
